YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…
YN11P00074F1 CLEANER ASSY, AIR YN11P00068F1 KOBELCO
.
055-01_YN11P00068F1_CHN-02_D0001920904_1 1 YN11P00068F1 CLEANER, AIR 1 P.055-01
2 YN11P01208P1 HOSE, AIR 1
3 YN11P01209P1 HOSE, AIR 1
4 YN11P01218P1 PLATE 1 YN15T17101–20677
. YN15425001–25648
. YQ15-T3101–T3295
. YQ15405001–05047
4 YN11P01219P1 PLATE 1 YN15425649-
. YQ15405048-
5 ZC16X12200 CLIP 1
6 ZC16X10000 CLIP 2
7 ZC16X07000 CLIP 1
8 ZM73C10025 SEMS-BOLT 4
9 ZM73C10016 SEMS-BOLT 4

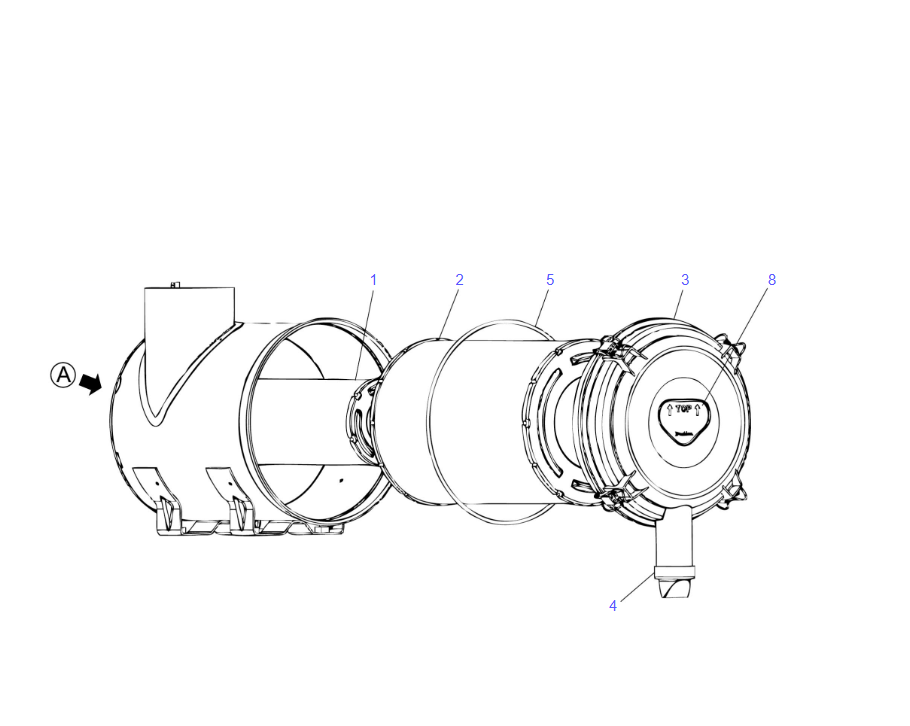

10 YN11P00039F1 CLEANER, AIR
.
1 YN11P00073S002 ELEMENT, FILTER 1
2 YN11P00029S003 ELEMENT, FILTER 1
3 YN11P00029S004 COVER ASSY 1
4 YE11P00005S004 VALVE ASSY 1
5 YN11P00029S006 O-RING 1
6 EB11P00001S006 FILTER 1
7 2450R163S1 INDICATOR 1 YN15T17101–19345
. YQ15-T3101–T3221
7 LV11P01017F1 INDICATOR 1 YN15T19346-
. YQ15-T3222-
8 EB11P00001S008 LABEL 1
