YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …

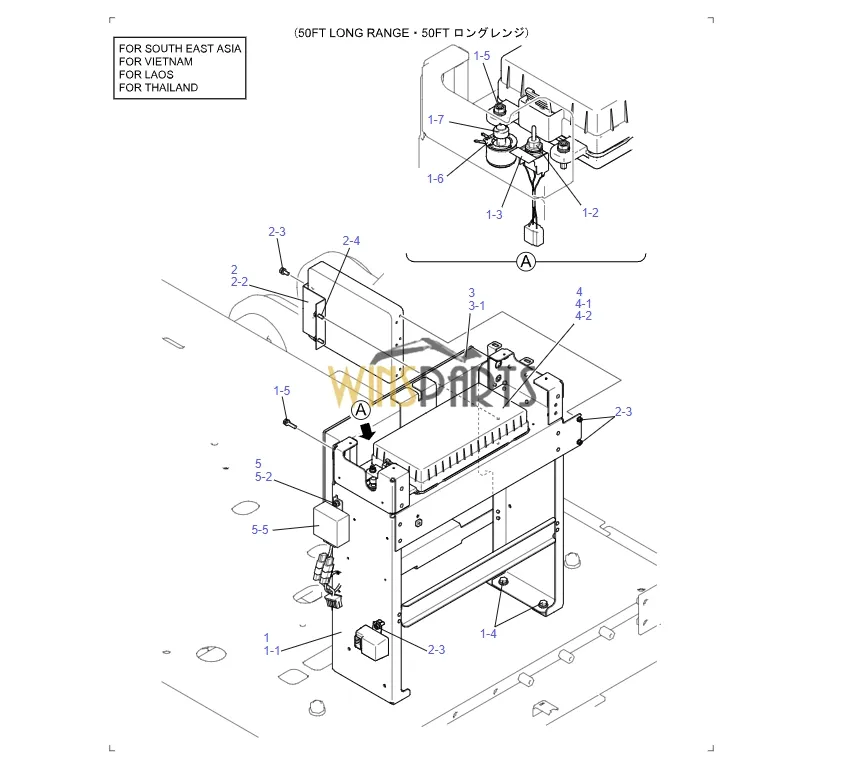

YN22E00318F1 YN22E00219F1 CONTROLLER Kobelco SK210-8 SK210LC-8
YN22E00509F1 CONTROLLER INSTAL .
1 YN22E00219F1 CONTROLLER INSTAL 1
1-1 YN22E01230P3 SUPPORT 1
1-2 YN50S00047P1 SWITCH 1
1-3 YN22M01014P1 LABEL 1
1-4 ZM73C08020 SEMS-BOLT 4
1-5 ZM61C06025 SEMS-BOLT 7
1-6 YN22E01249P3 LABEL 1
1-7 YN52S00052P1 POTENTIOMETER 1
2 YN22E00220F1 CONTROLLER INSTAL 1
2-2 YN22E01237P1 BRACKET 1
2-3 ZM61C05012 SEMS-BOLT 4
2-4 ZM61C06016 SEMS-BOLT 3
YN22E00511F1 CONTROLLER INSTALYN22E00386F1 CONTROLLER INSTAL
3 YN22E00492F6 CONTROLLER 1 YQ12T00874–T01020
3-1 YN22E00425F1 CONTROLLER 1 YQ12T00874–T01020
3 YN22E00492F7 CONTROLLER 1 YQ12T01021-
3-1 YN22E00425F1 CONTROLLER 1 YQ12T01021-

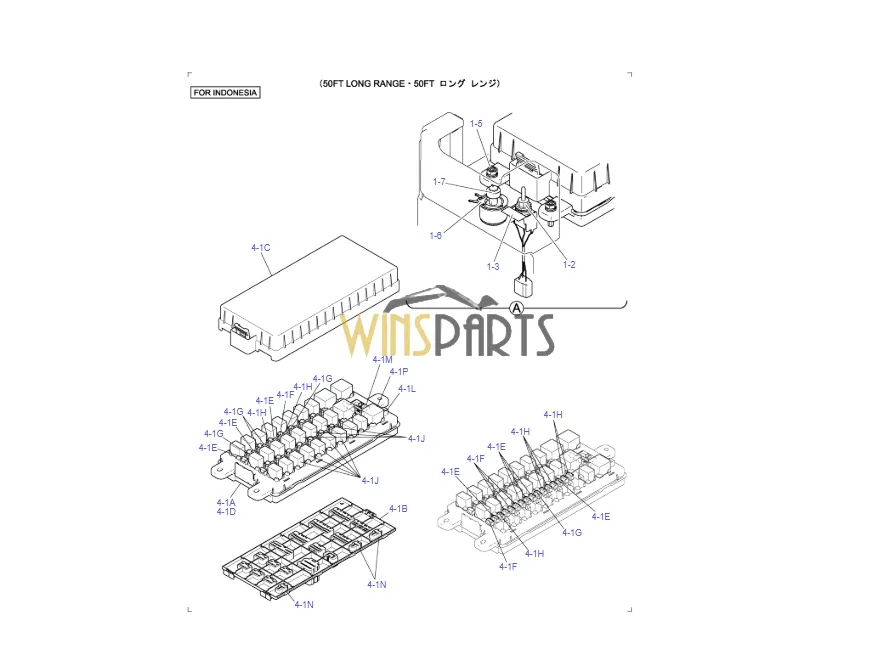

4 YN24E00019F1 RELAY BOX ASSY 1
4-1 YN24E00016F2 RELAY BOX ASSY 1
4-1A YN24E00016S001 HOUSING 1
4-1B YN24E00016S002 HOUSING 1
4-1C YN24E00016S003 COVER 1
4-1D YN24E00016S004 PRINTED BOARD 1
4-1E YN24E00016S005 FUSE 11
4-1F YN24E00016S006 FUSE 9
4-1G YN24E00016S007 FUSE 6
4-1H YN24E00016S008 FUSE 10
4-1J YN24S00010P1 RELAY 8
4-1L YN24E00016S011 HANDLE 1
4-1M YN24E00016S012 CONNECTOR 1
4-1N YN24E00016S013 CONNECTOR 3
4-1P YN24S00012P2 RELAY 4
4-2 YN73E01023P2 LABEL 1
5 YN24E00017F1 RELAY ASSY 1
5-2 ZM61C06016 SEMS-BOLT 1
5-5 YY24S00001P2 RELAY, FLASHER 1
