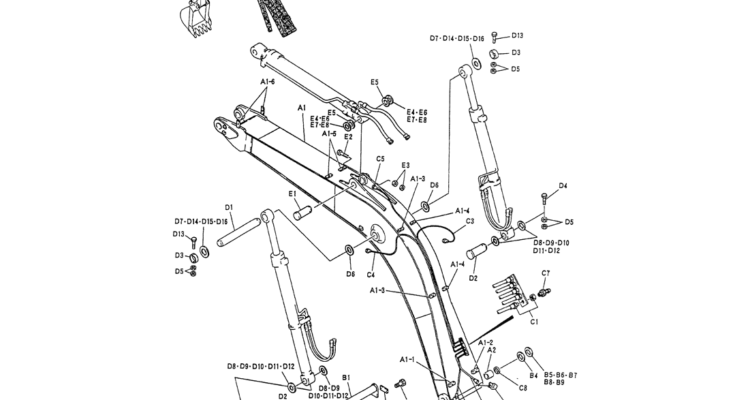

03-001 STD, BOOM ASSY, 4.6M
03-001 STD, BOOM ASSY, 4.6M-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals E8 2 B16T0442D2 SHIM ID 72 x OD 130 x Th 1.6mm E7 2 B16T0442D1 SHIM ID 72 x OD 130 x Th…

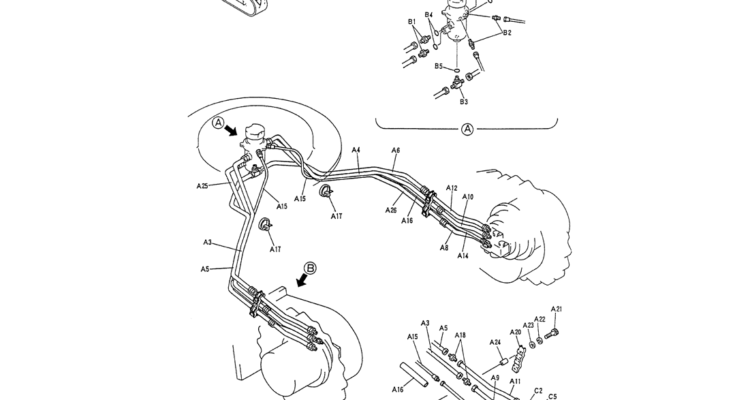

02-018 HYD LINES, LOW (FOR LONG CRAWLER)
02-018 HYD LINES, LOW (FOR LONG CRAWLER)-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals C6 2 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm C5 2 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm…

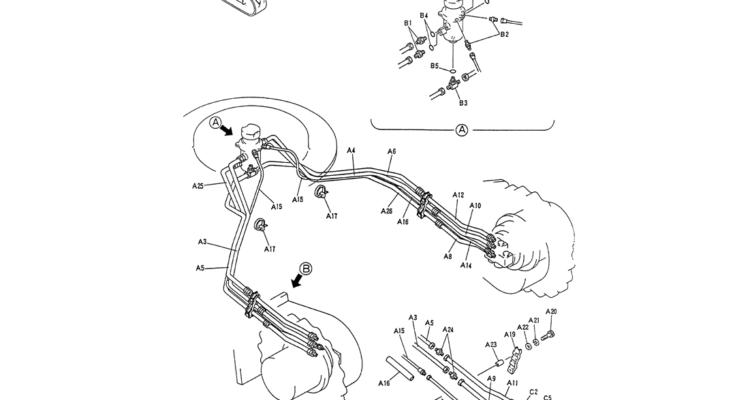

02-016 HYD LINES, LOW
02-016 HYD LINES, LOW-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals C6 2 ZD12P01100 O-RING ID 10.80 ± 0.18 x OD 15mm C5 2 ZD12P01800 O-RING ID 17.80 ± 0.21 x OD 22mm C4 4…

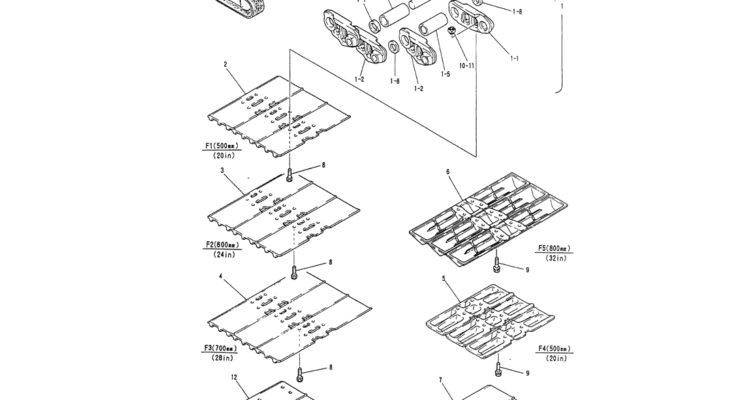

02-013 SHOE ASSY
02-013 SHOE ASSY-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 12 44 YW60D00004P1 SHOE 2 LP60D00004F7 SHOE ASSY CONSISTS OF REF 1,8,10 & 12 7 44 2424J185 TRACK SHOE SHOE RUBBER-PAD 2 LP60D00004F6 SHOE ASSY…
02-008 ROLLER ASSY, TRACK (FOR RUBBER CRAWLER)
02-008 ROLLER ASSY, TRACK (FOR RUBBER CRAWLER)-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 3-9 2 2445R440F1 SEAL 3-8 2 ZE82T04000 PLUG 1/4" PT 3-7 2 LP64D01003P1 COLLAR COLLAR1 3-6 2 ZD11G04500 O-RING ID 44.40…

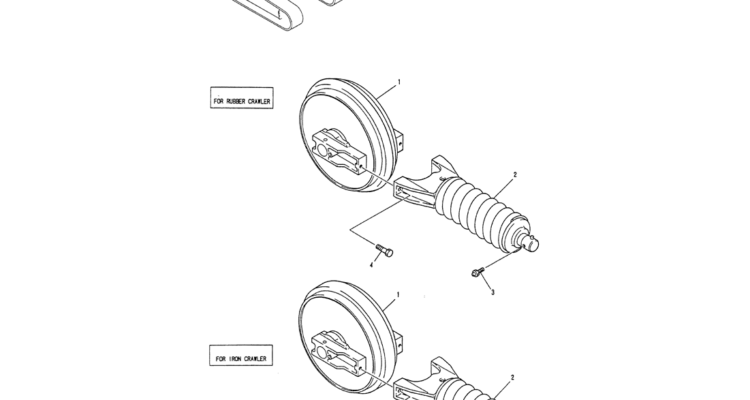

02-006 IDLER ADJUST ASSY (PN LP54D00001F1)
02-006 IDLER ADJUST ASSY (PN LP54D00001F1)-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 9 2 2419T4748 PIN 8 1 2418U130D36 PACKING OIL SEAL 7 1 ZD12G06500 O-RING ID 64.40 ± 0.57 x OD 70mm 6 1…

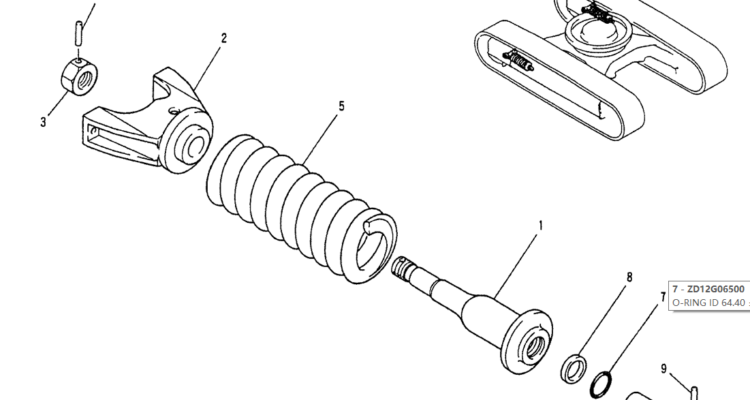

02-005 IDLER ASSY
02-005 IDLER ASSY-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 8 2 ZE82T02000 PLUG Pipe, 1.25" PT 7 2 ZD11G05500 O-RING ID 54.40 ± 0.49 x OD 60mm 6 2 LP52D01007P1 SEAL FLOATING 5 2 LP52D01006P1…

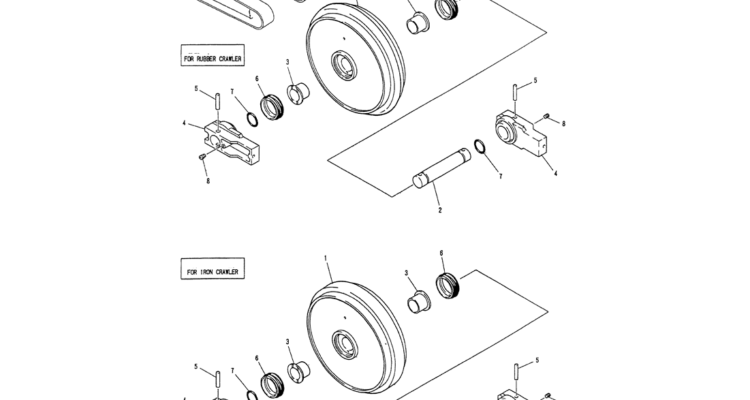

02-004 IDLER ASSY, CRAWLER
02-004 IDLER ASSY, CRAWLER-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 4 4 ZS13C12035 SCREW M12x1.75x35mm 3 2 2444P803 LUBE NIPPLE 5/8" - 18 UNF, Straight 2 2 LP54D00002F1 IDLER IDLER ADJUST ASSY, SEE FIG…

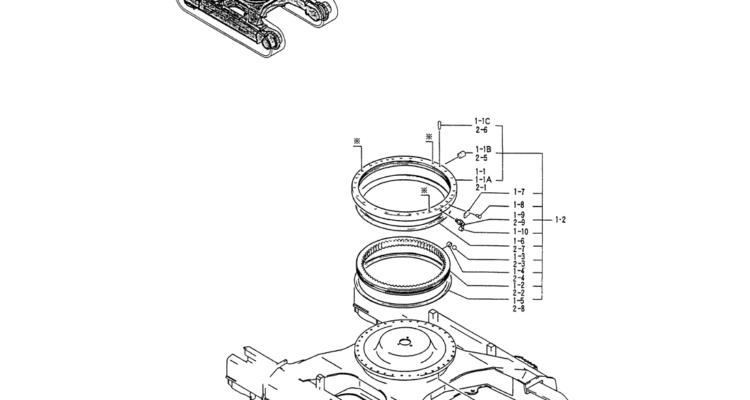

02-003 RING ASSY, SLEWING
02-003 RING ASSY, SLEWING-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals 2-9 1 ZG91S02000 LUBE NIPPLE 1/8" PT -- Straight 2-8 1 2425U238S8 SEAL SEAL 2-7 1 YW40F00001S007 SEAL SEAL 2-6 1 2425U238S6 PIN TAPER 2-5…

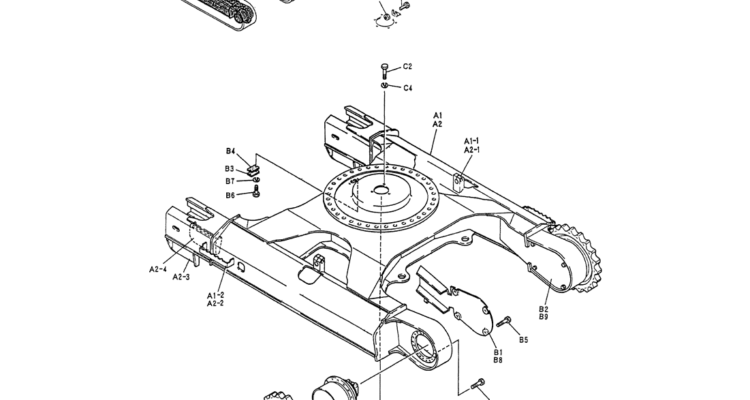

02-001 LOW GROUP
02-001 LOW GROUP-Kobelco SK120LC-5 SK120-V SK120LC-3 Excavator Parts Number Electronic Catalog EPC Manuals (INSTAL,PROPEL MOTOR 40) (INSTAL,SPROCKET 30) D2 70 LP53D01001P1 SCREW CAP D1 2 2404N271 SPROCKET LP53D00001F1 MOTOR INSTAL, PROPEL C5 1 ZN13C16013 NUT M16x2.0mm C4…
