YN01V00151F2 BOOM CYLINDER ASSY Kobelco SK200-8 SK210LC-8

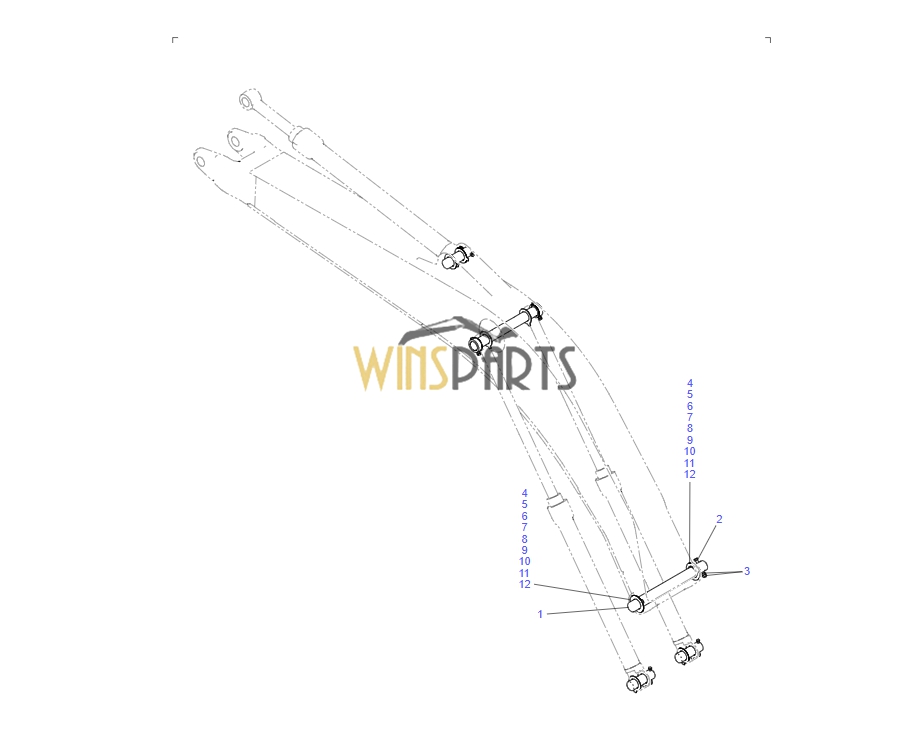

YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8
　 .
　 1 YN02B01719P1 PIN 1
　 2 HS18C20175G2 CAPSCREW 1 YQ12T00874–T00944
　 2 YN02B02491P1 CAPSCREW 1 YQ12T00945-
　 3 ZN18C20016 NUT 2 YQ12T00874–T00944
　 3 YN02B02492P1 NUT 2 YQ12T00945-
　 4 B16T0442D53 SHIM (0.5) 1 YQ12T00874–T01147
　 5 B16T0442D40 SHIM (0.9) 1 YQ12T00874–T01147
　 6 B16T0442D14 SHIM (1.6) 1 YQ12T00874–T01147
　 7 B16T0442D15 SHIM (2.3) 1 YQ12T00874–T01147
　 8 YN02B01414D1 SHIM (2.0) 2 YQ12T00874–T01147
　 9 YN02B02515D1 SHIM (2.9) 2 YQ12T01148-
　 10 YN02B02515D2 SHIM (3.4) 2 YQ12T01148-
　 11 YN02B02515D3 SHIM (3.9) 2 YQ12T01148-
　 12 YN02B02515D4 SHIM (4.4) 1 YQ12T01148-

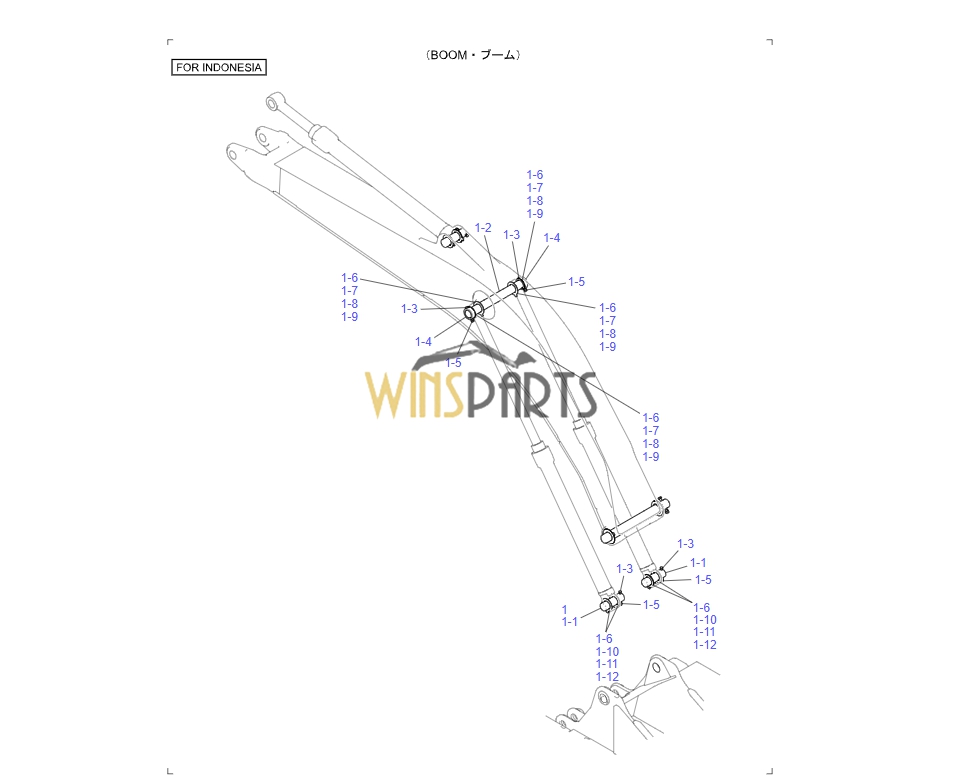

YN02B00405F1 YN02B00364F1 BOOM CYLINDER INSTAL
　 .
　 1 YN02B00364F1 CYLINDER INSTAL 1
　 1-1 YN02B01720P1 PIN 2
　 1-2 YN02B01721P1 PIN 1
　 1-3 HS18C16150G2 CAPSCREW 4
　 1-4 YN02B01108P1 BOSS 2
　 1-5 ZN18C16013 NUT 8
　 1-6 YN02B01417D1 SHIM (2.0) 6
　 1-7 YN02B01109D1 SHIM (0.5) 1
　 1-8 YN02B01109D2 SHIM (0.9) 1
　 1-9 YN02B01109D4 SHIM (1.6) 1
　 1-10 B16T0442D78 SHIM (0.5) 1
　 1-11 B16T0442D77 SHIM (0.9) 1
　 1-12 B16T0442D62 SHIM (1.6) 1
YN01V00151F2 BOOM CYLINDER ASSY Kobelco SK200-8 SK210LC-8
　 2 YN01V00151F2 CYLINDER, BOOM 2
　 2-1 NO P/No TUBE ASSY 1
　 2-2 NO P/No ROD, PISTON 1
　 2-3 YN01V00151S003 CYLINDER HEAD 1
　 2-4 2438U1106S17 BUSHING 1
　 2-5 2438U959S5 RING, SNAP 1
　 2-6 YN01V00151S006 RING, BUFFER 1
　 2-7 YN01V00151S007 RING 1
　 2-8 2438U959S8 RING, BACK-UP 1
　 2-9 LP01V00008S009 RING, WIPER 1
　 2-10 ZD12G11500 O-RING 1
　 2-11 2438U1105S12 RING, BACK UP 1
　 2-12 ZS23C16075 CAPSCREW 12
　 2-13 YN01V00151S013 RING 1
　 2-14 YN01V00103S014 SEAL 1
　 2-15 YN01V00151S015 PISTON 1
　 2-16 2438U1105S16 RING ASSY 1
　 2-17 LQ01V00004S017 RING, BACK UP 2
　 2-19 2438U1105S18 RING 2
　 2-20 2438U999S21 SETSCREW 1
　 2-21 2436U330S16 BALL 1
　 2-22 YN01V01109P1 BUSHING 4
　 2-23 2438U941S3 SEAL, DUST 4
　 2-24 2438U1105S17 RING 2
　 .
　 YN01V00151R100 REPAIR KIT 1
　 . (2-6, 2-7, 2-8, 2-9, 2-10, 2-11)X1
　 .
　 YN01V00151R400 REPAIR KIT 1
　 . (2-1)X1
　 . (2-22, 2-23)X2
　 .
　 YN01V00151R500 REPAIR KIT 1
　 . (2-2)X1
　 . (2-22, 2-23)X2
　 .
　 YN01V00151R600 REPAIR KIT 1
　 . (2-14, 2-16)X1
　 . (2-17, 2-19, 2-24)X2
　 .
　 YN01V00151R700 REPAIR KIT 1
　 . (2-6, 2-7, 2-8, 2-9, 2-10, 2-11, 2-14, 2-16)X1
　 . (2-17, 2-19, 2-24)X2

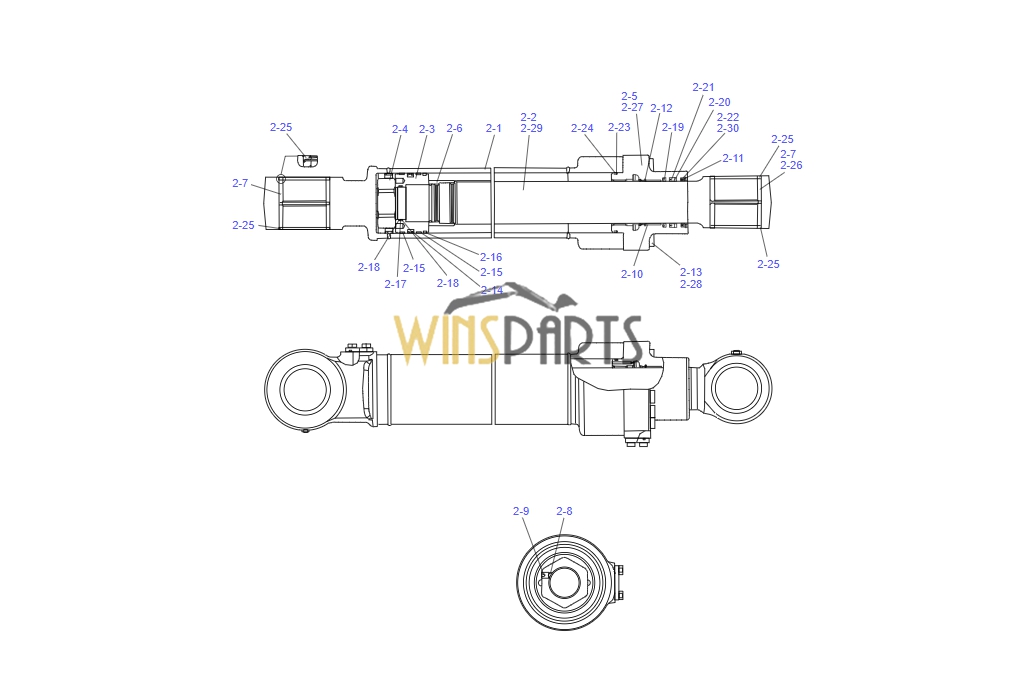

YN01V00200F2 YN02B00364F1 CYLINDER, BOOM Kobelco SK200-8 SK210LC-8
　 YN02B00732F1 CYLINDER INSTAL
　 (BOOM)
　 1 YN02B00364F1 CYLINDER INSTAL 1
　 1-1 YN02B01720P1 PIN 2
　 1-2 YN02B01721P1 PIN 1
　 1-3 HS18C16150G2 CAPSCREW 4
　 1-4 YN02B01108P1 BOSS 2
　 1-5 ZN18C16013 NUT 8
　 1-6 YN02B01417D1 SHIM (2.0) 6
　 1-7 YN02B01109D1 SHIM (0.5) 1
　 1-8 YN02B01109D2 SHIM (0.9) 1
　 1-9 YN02B01109D4 SHIM (1.6) 1
　 1-10 B16T0442D78 SHIM (0.5) 1
　 1-11 B16T0442D77 SHIM (0.9) 1
　 1-12 B16T0442D62 SHIM (1.6) 1
　 2 YN01V00200F1 CYLINDER, BOOM 2 YQ12T00874–T00968
　 2-1 NO P/No TUBE ASSY 1 YQ12T00874–T00968
　 2-2 NO P/No ROD, PISTON 1 YQ12T00874–T00968
　 2-3 YN01V00200S003 PISTON 1 YQ12T00874–T00968
　 2-4 YN01V00200S004 NUT 1 YQ12T00874–T00968
　 2-5 YN01V00200S005 COVER 1 YQ12T00874–T00968
　 2-6 YN01V00200S006 BUSHING 1 YQ12T00874–T00968
　 2-7 YN01V00200S007 BUSHING 4 YQ12T00874–T00968
　 2-8 YN01V00200S008 BALL 1 YQ12T00874–T00968
　 2-9 YN01V00200S009 SETSCREW 1 YQ12T00874–T00968
　 2-10 YN01V00126S015 BUSHING 1 YQ12T00874–T00968
　 2-11 YN01V00200S011 RING 1 YQ12T00874–T00968
　 2-12 YN01V00200S012 RING 1 YQ12T00874–T00968
　 2-13 ZS23C16070 CAPSCREW 12 YQ12T00874–T00968
　 2-14 YN01V00200S014 SEAL 1 YQ12T00874–T00968
　 2-15 YN01V00200S015 RING 2 YQ12T00874–T00968
　 2-16 YN01V00200S016 RING 1 YQ12T00874–T00968
　 2-17 ZD12G06500 O-RING 1 YQ12T00874–T00968
　 2-18 YN01V00200S018 RING, BACK UP 2 YQ12T00874–T00968
　 2-19 YN01V00200S019 SEAL 1 YQ12T00874–T00968
　 2-20 YN01V00200S020 RING, BACK UP 1 YQ12T00874–T00968
　 2-21 YN01V00200S021 SEAL 1 YQ12T00874–T00968
　 2-22 YN01V00200S022 RING 1 YQ12T00874–T00968
　 2-23 YN01V00200S023 RING, BACK UP 1 YQ12T00874–T00968
　 2-24 ZD12G11500 O-RING 1 YQ12T00874–T00968
　 2-25 YN01V00200S025 SEAL, DUST 4 YQ12T00874–T00968
　 2 YN01V00200F2 CYLINDER, BOOM 2 YQ12T00969–T01056
　 2-1 NO P/No TUBE ASSY 1 YQ12T00969–T01056
　 2-2 NO P/No ROD, PISTON 1 YQ12T00969–T01056
　 2-3 YN01V00200S003 PISTON 1 YQ12T00969–T01056
　 2-4 YN01V00200S004 NUT 1 YQ12T00969–T01056
　 2-6 YN01V00200S006 BUSHING 1 YQ12T00969–T01056
　 2-8 YN01V00200S008 BALL 1 YQ12T00969–T01056
　 2-9 YN01V00200S009 SETSCREW 1 YQ12T00969–T01056
　 2-10 YN01V00126S015 BUSHING 1 YQ12T00969–T01056
　 2-11 YN01V00200S011 RING 1 YQ12T00969–T01056
　 2-12 YN01V00200S012 RING 1 YQ12T00969–T01056
　 2-14 YN01V00200S014 SEAL 1 YQ12T00969–T01056
　 2-15 YN01V00200S015 RING 2 YQ12T00969–T01056
　 2-16 YN01V00200S016 RING 1 YQ12T00969–T01056
　 2-17 ZD12G06500 O-RING 1 YQ12T00969–T01056
　 2-18 YN01V00200S018 RING, BACK UP 2 YQ12T00969–T01056
　 2-19 YN01V00200S019 SEAL 1 YQ12T00969–T01056
　 2-20 YN01V00200S020 RING, BACK UP 1 YQ12T00969–T01056
　 2-21 YN01V00200S021 SEAL 1 YQ12T00969–T01056
　 2-22 YN01V00200S022 RING 1 YQ12T00969–T01056
　 2-23 YN01V00200S023 RING, BACK UP 1 YQ12T00969–T01056
　 2-24 ZD12G11500 O-RING 1 YQ12T00969–T01056
　 2-25 YN01V00200S025 SEAL, DUST 4 YQ12T00969–T01056
　 2-26 YN01V00200S026 BUSHING 4 YQ12T00969–T01056
　 2-27 YN01V00200S027 COVER 1 YQ12T00969–T01056
　 2-28 YN01V00200S028 CAPSCREW 12 YQ12T00969–T01056
　 2 YN01V00200F3 CYLINDER, BOOM 2 YQ12T01057-
　 2-1 NO P/No TUBE ASSY 1 YQ12T01057-
　 2-3 YN01V00200S003 PISTON 1 YQ12T01057-
　 2-4 YN01V00200S004 NUT 1 YQ12T01057-
　 2-6 YN01V00200S006 BUSHING 1 YQ12T01057-
　 2-8 YN01V00200S008 BALL 1 YQ12T01057-
　 2-9 YN01V00200S009 SETSCREW 1 YQ12T01057-
　 2-10 YN01V00126S015 BUSHING 1 YQ12T01057-
　 2-11 YN01V00200S011 RING 1 YQ12T01057-
　 2-12 YN01V00200S012 RING 1 YQ12T01057-
　 2-14 YN01V00200S014 SEAL 1 YQ12T01057-
　 2-15 YN01V00200S015 RING 2 YQ12T01057-
　 2-16 YN01V00200S016 RING 1 YQ12T01057-
　 2-17 ZD12G06500 O-RING 1 YQ12T01057-
　 2-18 YN01V00200S018 RING, BACK UP 2 YQ12T01057-
　 2-19 YN01V00200S019 SEAL 1 YQ12T01057-
　 2-20 YN01V00200S020 RING, BACK UP 1 YQ12T01057-
　 2-21 YN01V00200S021 SEAL 1 YQ12T01057-
　 2-23 YN01V00200S023 RING, BACK UP 1 YQ12T01057-
　 2-24 ZD12G11500 O-RING 1 YQ12T01057-
　 2-25 YN01V00200S025 SEAL, DUST 4 YQ12T01057-
　 2-26 YN01V00200S026 BUSHING 4 YQ12T01057-
　 2-27 YN01V00200S027 COVER 1 YQ12T01057-
　 2-28 YN01V00200S028 CAPSCREW 12 YQ12T01057-
　 2-29 NO P/No ROD, PISTON 1 YQ12T01057-
　 2-30 YN01V00200S030 RING 1 YQ12T01057-
　 .
　 YN01V00200R100 REPAIR KIT 1
　 (2-14, 2-16, 2-17)X1
　 (2-15, 2-18)X2
　 .
　 YN01V00200R200 REPAIR KIT 1 YQ12T00874–T01056
　 (2-19, 2-20, 2-21, 2-22, 2-23, 2-24)X1
　 .
　 YN01V00200R300 REPAIR KIT 1 YQ12T00874–T01056
　 (2-14, 2-16, 2-17, 2-19, 2-20, 2-21, 2-22, 2-23, 2-24)X1
　 (2-15, 2-18)X2
　 (2-25)X4
　 .
　 YN01V00200R400 REPAIR KIT 1 YQ12T00874–T00968
　 (2-1)X1
　 (2-7, 2-25)X2
　 .
　 YN01V00200R500 REPAIR KIT 1 YQ12T00874–T00968
　 (2-2)X1
　 (2-7, 2-25)X2
　 .
　 YN01V00200R600 REPAIR KIT 1
　 (2-3, 2-14, 2-16, 2-17)X1
　 (2-15, 2-18)X2
　 .
　 YN01V00200R700 REPAIR KIT 1 YQ12T00874–T00968
　 (2-5, 2-10, 2-11, 2-12, 2-19, 2-20, 2-21, 2-22, 2-23, 2-24)X1
　 .
　 YN01V00200R400 REPAIR KIT 1 YQ12T00969-
　 (2-1)X1
　 (2-25, 2-26)X2
　 .
　 YN01V00200R500 REPAIR KIT 1 YQ12T00969–T01056
　 (2-2)X1
　 (2-25, 2-26)X2
　 .
　 YN01V00200R700 REPAIR KIT 1 YQ12T00969–T01056
　 (2-10, 2-11, 2-12, 2-19, 2-20, 2-21, 2-22, 2-23, 2-24, 2-27)X1
　 .
　 YN01V00200R110 REPAIR KIT 1 YQ12T01057-
　 (2-19, 2-20, 2-21, 2-23, 2-24, 2-30)X1
　 .
　 YN01V00200R310 REPAIR KIT 1 YQ12T01057-
　 (2-14, 2-16, 2-17, 2-19, 2-20, 2-21, 2-23, 2-24, 2-30)X1
　 (2-15, 2-18)X2
　 (2-25)X4
　 .
　 YN01V00200R510 REPAIR KIT 1 YQ12T01057-
　 (2-29)X1
　 (2-25, 2-26)X2
　 .
　 YN01V00200R710 REPAIR KIT 1 YQ12T01057-
　 (2-10, 2-11, 2-12, 2-19, 2-20, 2-21, 2-23, 2-24, 2-27, 2-30)X1
