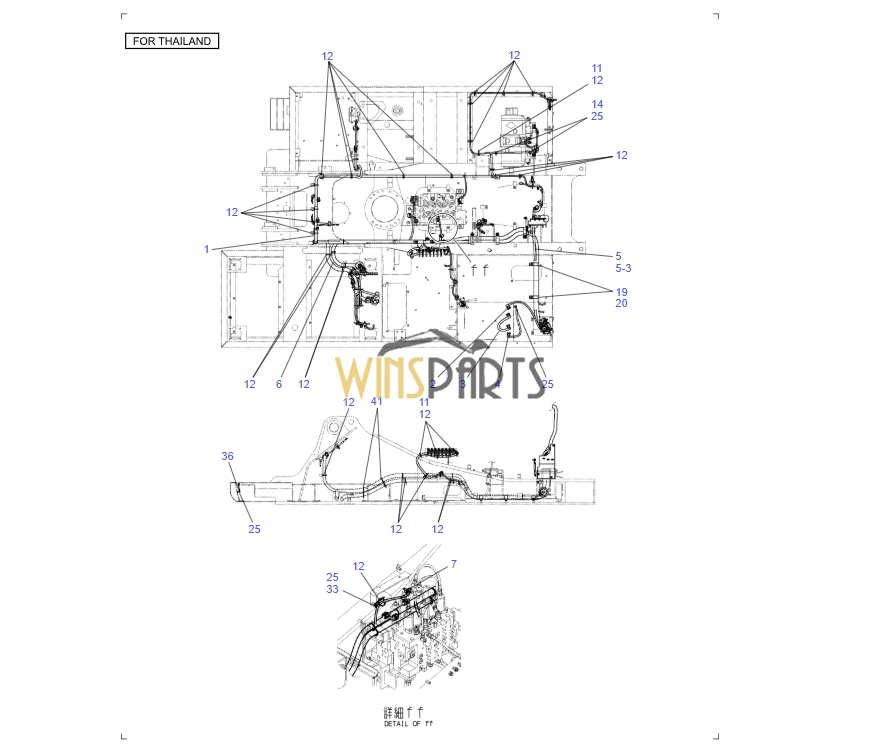

YN13E01525P4 YN13E00147F1 UPP HARNESS ASSY CABLE Kobelco SK210-8 SK210LC-8

YN13E01525P4 YN13E00147F1 UPP HARNESS ASSY CABLE Kobelco SK210-8 SK210LC-8
　 .
　 1 YN13E01525P4 HARNESS 1
　 2 YN13E01417P1 CABLE 1
　 3 YN13E01441P2 CABLE 1
　 4 LC13E01144P1 CABLE 1
　 5 YN13E01442P1 CABLE 1
　 5-3 LQ13E01099S002 FUSE 1
　 6 YN13E01533P2 HARNESS 1
　 7 PY01P01043DA CLIP 8
　 8 LC13E01193P1 HARNESS 1
　 9 ZW16P08000 WASHER 4
　 10 ZM73C12020 SEMS-BOLT 1
　 11 YN13E01375P1 CLIP 27
　 12 PY01P01043D3 CLIP 70
　 13 EW02E01015D4 CLIP 4
　 14 EW02E01015D6 CLIP 3
　 15 LQ13E01109P1 BRACKET 1
　 16 EW02E01015D9 CLIP 1
　 17 EW02E01015DA CLIP 2
　 19 CM92H01030P1 CLIP 5
　 20 ZM73C10020 SEMS-BOLT 7
　 21 ZM73C08025 SEMS-BOLT 1
　 22 LC13E01248P1 BRACKET 1
　 23 LQ13E01155P1 BRACKET 1
　 24 ZM73C08016 SEMS-BOLT 3
　 25 ZM73C08020 SEMS-BOLT 18
　 26 EW02E01015D3 CLIP 1
　 28 YA21C01019D1 TRIM 1
　 29 ZW26X08000 LOCK WASHER 1
　 30 PY01P01043D8 CLIP 4
　 31 LC13E01192P1 GROMMET 1
　 32 ZN18C08007 NUT 4
　 33 LC13E01150P1 PLATE 1
　 34 LQ13E01093P1 GROMMET 1
　 35 PX32W01059P1 COLLAR 1
　 36 LE13E01006P1 CABLE 1
　 37 LC13E01180P2 CABLE 1
　 38 LQ13E01100P1 CABLE 1
　 39 EW02E01015D8 CLIP 1
　 41 PY01P01043D5 CLIP 2
YN13E00146F1 YN13E01534P3 HARNESS ASSY, UPP Kobelco SK210-8 SK210LC-8
　 .
　 1 YN13E01534P3 HARNESS 1
　 2 PY01P01043D3 CLIP 31
　 3 YN13E01375P1 CLIP 14
　 4 LC13E01186P1 HARNESS 1
　 5 ZW26X08000 LOCK WASHER 1
　 6 ZN18C08007 NUT 1
　 7 PY01P01043D8 CLIP 3
　 8 LE13E01005P1 CABLE 1
　 9 ZW16P08000 WASHER 1
　 10 PY01P01043DA CLIP 4

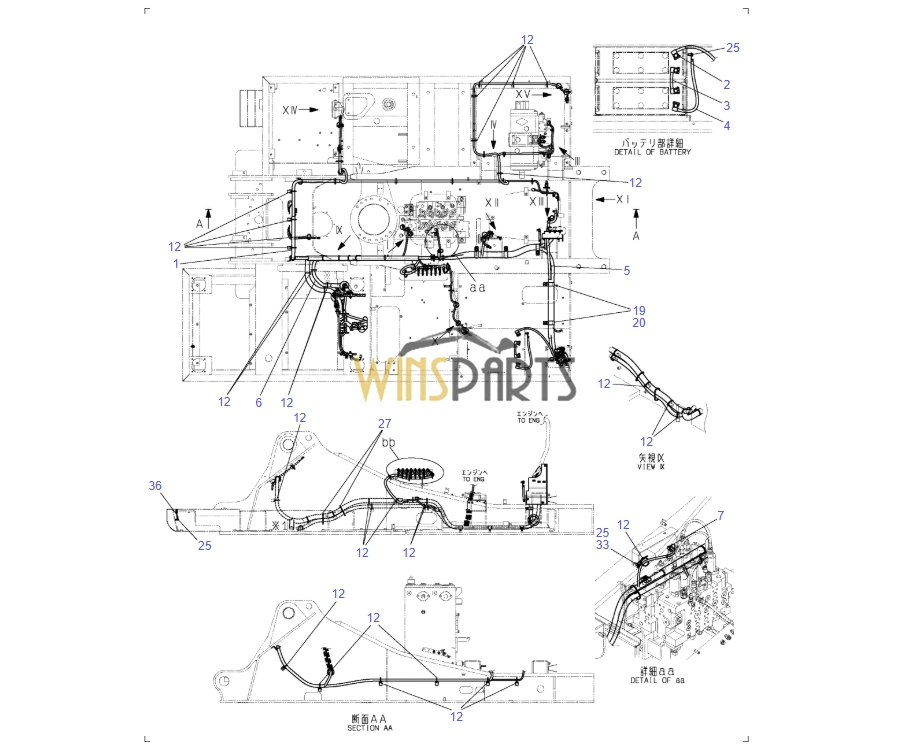

YN13E00250F1 YN13E01848P1 HARNESS ASSY, UPP Kobelco SK200-8 SK210LC-8
　 .
　 1 YN13E01848P1 HARNESS 1
　 2 YN13E01417P1 CABLE 1
　 3 YN13E01650P1 CABLE 1
　 4 LC13E01144P1 CABLE 1
　 5 YN13E01442P1 CABLE 1
　 6 YN13E01533P2 HARNESS 1
　 7 PY01P01043DA CLIP 8
　 8 LC13E01193P1 HARNESS 1
　 9 ZW16P08000 WASHER 4
　 10 ZM73C12020 SEMS-BOLT 1
　 11 YN13E01375P1 CLIP 25
　 12 PY01P01043D3 CLIP 68
　 13 EW02E01015D4 CLIP 4
　 14 EW02E01015D6 CLIP 3
　 15 LQ13E01109P1 BRACKET 1
　 16 EW02E01015D9 CLIP 1
　 17 EW02E01015DA CLIP 2
　 18 EW02E01015D8 CLIP 1
　 19 CM92H01030P1 CLIP 5
　 20 ZM73C10020 SEMS-BOLT 7
　 21 ZM73C08025 SEMS-BOLT 1
　 22 LC13E01248P1 BRACKET 1
　 23 LQ13E01155P1 BRACKET 1
　 24 ZM73C08016 SEMS-BOLT 3
　 25 ZM73C08020 SEMS-BOLT 18
　 26 EW02E01015D3 CLIP 1
　 27 PY01P01043D5 CLIP 2
　 28 YA21C01019D1 TRIM 1
　 29 ZW26X08000 LOCK WASHER 1
　 30 PY01P01043D8 CLIP 4
　 31 LC13E01192P1 GROMMET 1
　 32 ZN18C08007 NUT 4
　 33 LC13E01150P1 PLATE 1
　 34 LQ13E01093P1 GROMMET 1
　 35 PX32W01059P1 COLLAR 1
　 36 LE13E01006P1 CABLE 1
　 37 LC13E01180P2 CABLE 1
　 38 LQ13E01100P1 CABLE 1

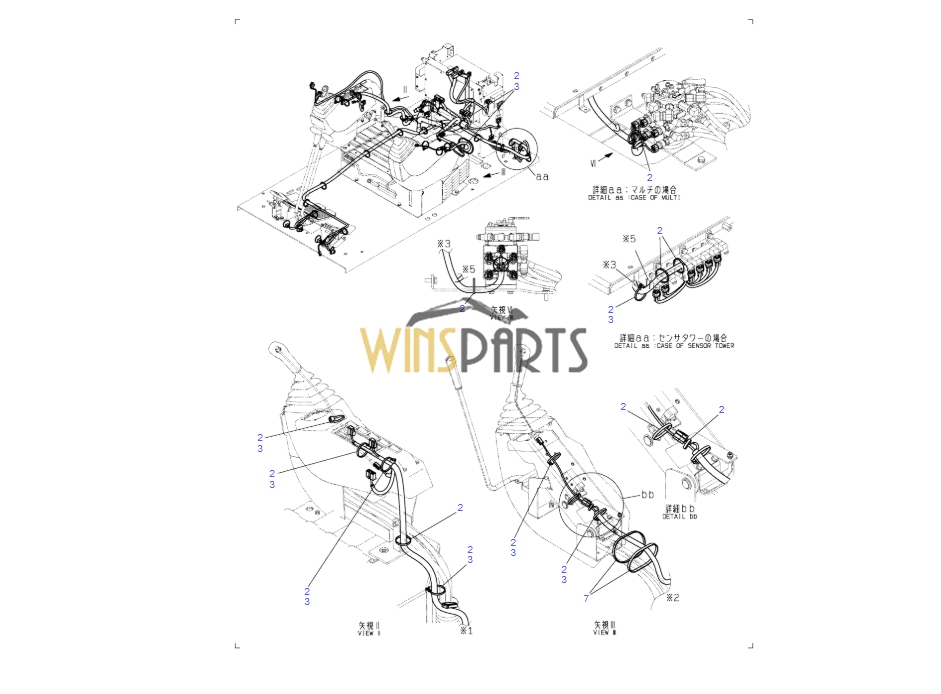

YN13E00251F1 YN13E01849P1HARNESS ASSY, UPP Kobelco
　 .
　 1 YN13E01849P1 HARNESS 1
　 2 PY01P01043D3 CLIP 30
　 3 YN13E01375P1 CLIP 14
　 4 LC13E01186P1 HARNESS 1
　 5 ZW26X08000 LOCK WASHER 1
　 6 ZN18C08007 NUT 1
　 7 PY01P01043D8 CLIP 3
　 8 LE13E01005P1 CABLE 1
　 9 ZW16P08000 WASHER 1
　 10 PY01P01043DA CLIP 4
LC11E00028F1 LC11E01065P2 CAB HARNESS ASSY Kobelco
　 1 LC11E01065P2 HARNESS 1
　 2 PY01P01043D3 CLIP 11
　 3 YN24S00010P1 RELAY 1

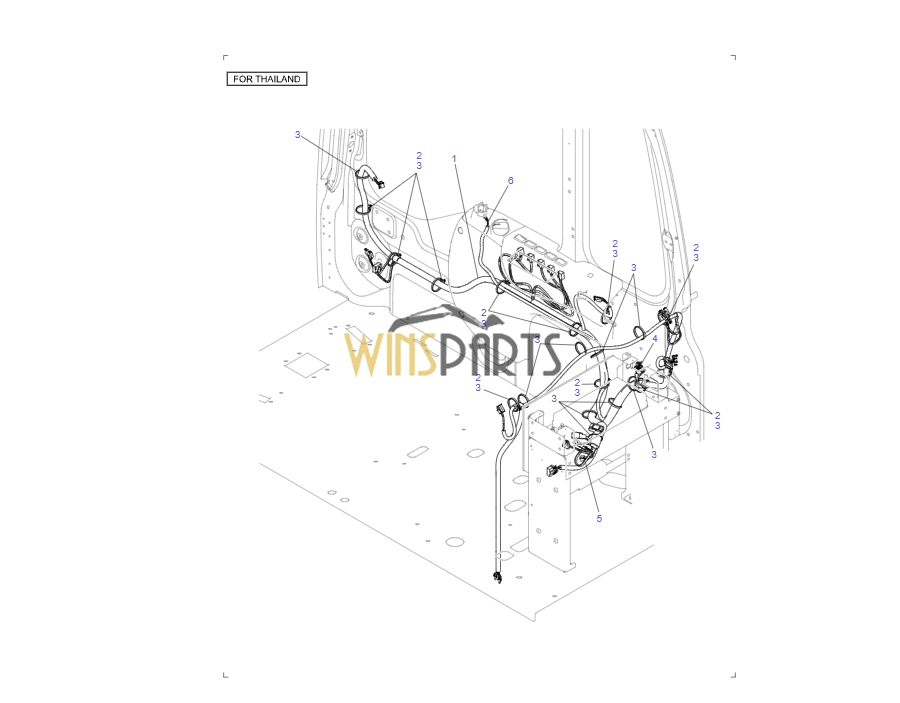

YN14E01111P2 YN14E00059F1 CAB HARNESS ASSY Kobelco
　 .
　 1 YN14E01111P2 HARNESS 1
　 2 YN13E01375P1 CLIP 11
　 3 PY01P01043D3 CLIP 20
　 4 ZM73C06016 SEMS-BOLT 1
　 5 PY01P01043D8 CLIP 1
　 6 YN14E01106P1 HARNESS 1
YN14E00069F1 HARNESS ASSY, CAB
　 1 YN14E01136P1 HARNESS 1
　 2 YN13E01375P1 CLIP 11
　 3 PY01P01043D3 CLIP 20
　 4 ZM73C06016 SEMS-BOLT 1
　 5 PY01P01043D8 CLIP 1
　 6 YN14E01106P1 HARNESS 1

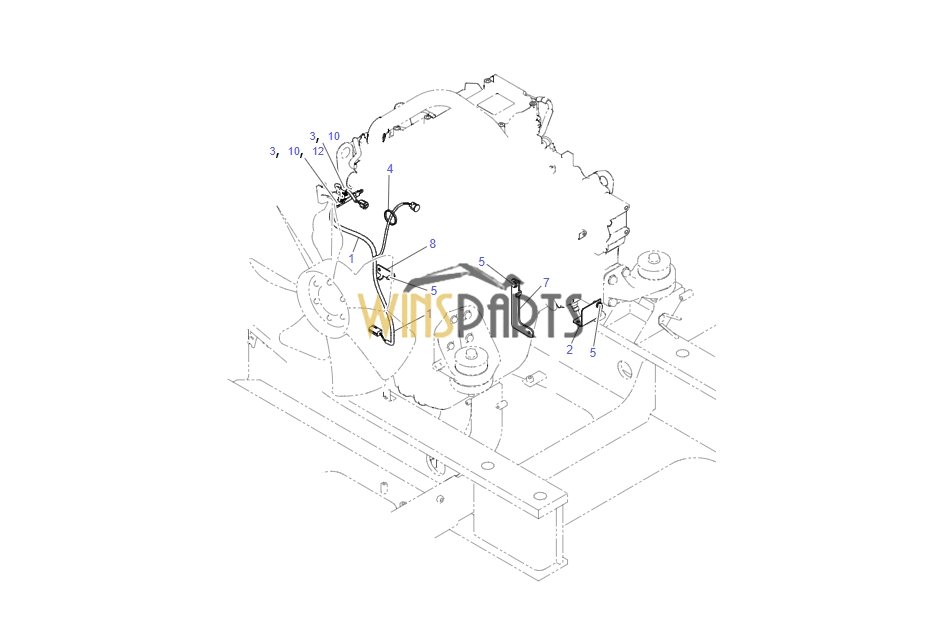

LQ16E00010F1 LQ16E01015P1 ENGINE HARNESS ASSY Kobelco SK200-8 SK210LC-8
　 .
　 1 LQ16E01015P1 HARNESS 1
　 2 LC16E01026P1 BRACKET 1
　 3 EW02E01016D2 CLIP 2
　 4 PY01P01043D3 CLIP 1
　 5 ZM73C08020 SEMS-BOLT 3
　 7 LQ16E01019P1 BRACKET 1
　 8 LQ16E01018P1 BRACKET 1
　 10 ZM73C06020 SEMS-BOLT 2
　 12 ZY26X04010 SPACER 1

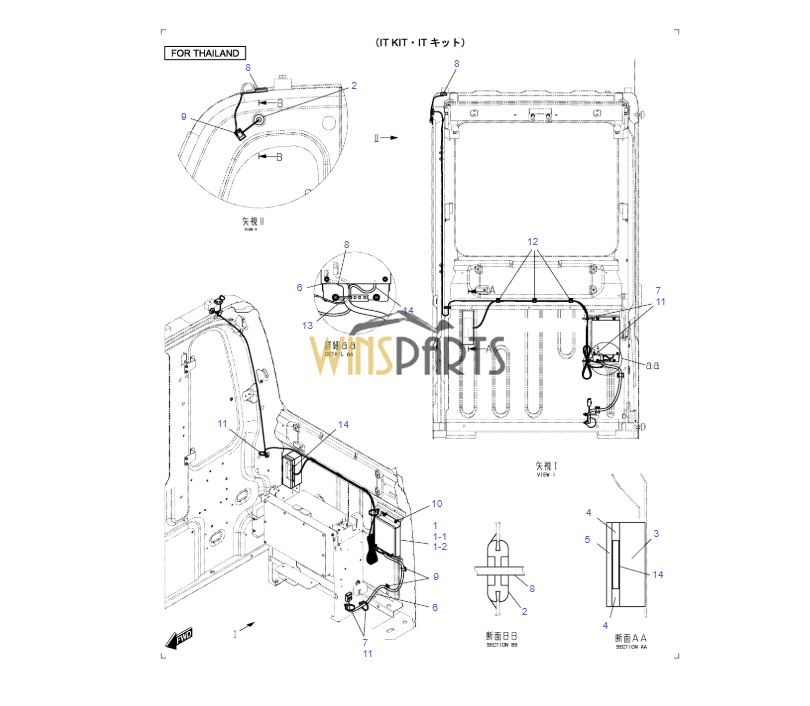

YN11E00107F1 YN22E00556F1 YN22E00556F3 CONTROLLER HARNESS ASSY Kobelco SK210-8 SK210LC-8
　 (IT KIT)
　 1 YN22E00556F1 CONTROLLER 1 YQ12T00874–T01101
　 1-1 YN22E00525F1 CONTROLLER 1 YQ12T00874–T01101
　 1-2 YN22E00302S001 BATTERY 1 YQ12T00874–T01101
　 1 YN22E00556F3 CONTROLLER 1 YQ12T01102–T01192
　 1-1 YN22E00525F1 CONTROLLER 1 YQ12T01102–T01192
　 1-2 YN22E00302S001 BATTERY 1 YQ12T01102–T01192
　 1 YN22E00683F1 CONTROLLER 1 YQ12T01193-
　 1-1 YN22E00623F1 CONTROLLER 1 YQ12T01193-
　 1-2 YN22E00643S001 BATTERY 1 YQ12T01193-
　 2 YN02C02296P1 GROMMET 1
　 3 YN02C04709P1 INSULATION 1
　 4 YN02C04710P1 INSULATION 2
　 5 YN02C04711P1 INSULATION 1
　 6 YN11E01155P1 HARNESS 1
　 7 YN13E01375P1 CLIP 4
　 8 YN54S00052P1 ANTENNA 1
　 9 2432Z478D3 CLIP 3
　 10 ZM61C06016 SEMS-BOLT 4
　 11 PY01P01043D3 CLIP 5
　 12 2432Z478D2 CLIP 3
　 13 PY01P01043D9 CLIP 1
　 14 YN54S00070P1 ANTENNA 1 YQ12T00874–T01192
　 14 YN54S00072P1 ANTENNA 1 YQ12T01193-
YN11E00107F2 YN11E01155P1 HARNESS ASSY Kobelco SK200-8 SK210LC-8
　 .
　 2 YN02C02296P1 GROMMET 1
　 3 YN02C04709P1 INSULATION 1
　 4 YN02C04710P1 INSULATION 2
　 5 YN02C04711P1 INSULATION 1
　 6 YN11E01155P1 HARNESS 1
　 7 YN13E01375P1 CLIP 4
　 8 YN54S00052P1 ANTENNA 1
　 9 2432Z478D3 CLIP 3
　 10 ZM61C06016 SEMS-BOLT 4
　 11 PY01P01043D3 CLIP 5
　 12 2432Z478D2 CLIP 3
　 13 PY01P01043D9 CLIP 1
　 14 YN54S00070P1 ANTENNA 1 YQ12T00913–T01192
　 14 YN54S00072P1 ANTENNA 1 YQ12T01193-

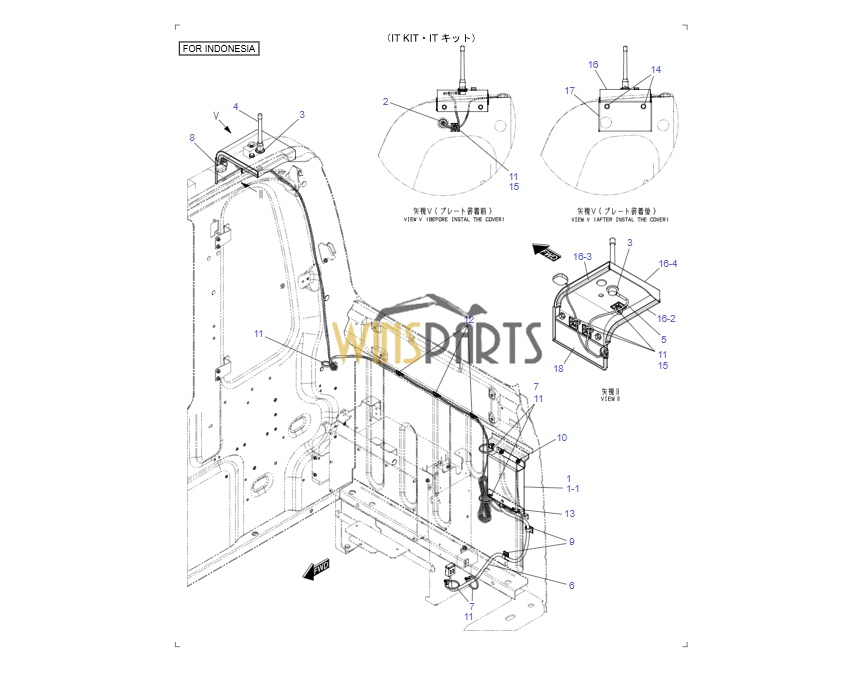

YN11E00076F1 YN22E00469F2 YN22E00469F3 HARNESS ASSY Kobelco
　 (IT KIT)
　 1 YN22E00469F2 CONTROLLER 1 YQ12T00874–T00940
　 1 YN22E00469F3 CONTROLLER 1 YQ12T00941-
　 1-1 YN22E00469S001 BATTERY 1 NBB-2000
　 2 YN02C04463P1 GROMMET 1
　 3 ZW16P16000 WASHER 2
　 4 YN54S00064P1 ANTENNA 1
　 5 YN11E01224P1 CABLE 1
　 6 YN11E01155P1 HARNESS 1
　 7 YN13E01375P1 CLIP 4
　 8 YN54S00052P1 ANTENNA 1
　 9 2432Z478D3 CLIP 2
　 10 ZM61C06016 SEMS-BOLT 4
　 11 PY01P01043D3 CLIP 9
　 12 2432Z478D2 CLIP 3
　 13 PY01P01043D9 CLIP 1
　 14 ZM22C08016 SEMS-BOLT 2
　 15 YT11E01043P1 CLIP 4
　 16 YN02C04460F2 BRACKET 1
　 16-2 PM22C01020DD TRIM 1
　 16-3 PM22C01020DV TRIM 1
　 16-4 YN02C04455P3 BRACKET 1
　 17 YN02C04462P1 PLATE 1
　 18 YN11E01233P1 RUBBER 1
