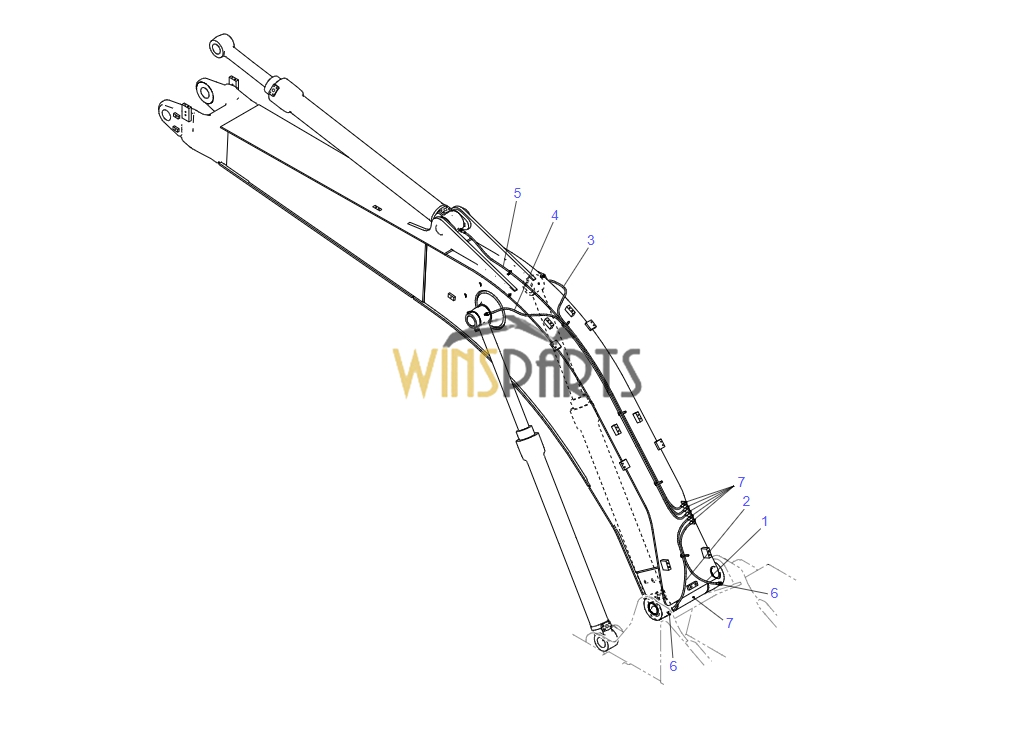

YN02B00362F1 BOOM GROUP Kobelco SK200-8 SK210LC-8

YN02B00362F1 BOOM GROUP Kobelco SK200-8 SK210LC-8 Excavator Spare Parts
　 .
　 1 2444R1117D080 HOSE 1
　 2 2444R1117D084 HOSE 1
　 3 2444R1117D250 HOSE 1
　 4 2444R1117D260 HOSE 1
　 5 2444R1117D300 HOSE 1
　 6 ZH32Z04000 ELBOW 2
　 7 ZG91S02000 NIPPLE, GREASE 6
YN02B00423F1 BOOM GROUP Kobelco SK200-8 SK210LC-8
　 (50FT LONG RANGE)
　 1 2444R1117D080 HOSE 1
　 2 2444R1117D084 HOSE 1
　 3 2444R1117D250 HOSE 1
　 4 2444R1117D260 HOSE 1
　 5 2444R1117D605 HOSE 1
　 6 ZH32Z04000 ELBOW 2
　 7 ZG91S02000 NIPPLE, GREASE 6
　 8 YN02B01098P1 LINK 1
　 9 2419T4696 PIN 2
　 10 2419T3095 PIN 2

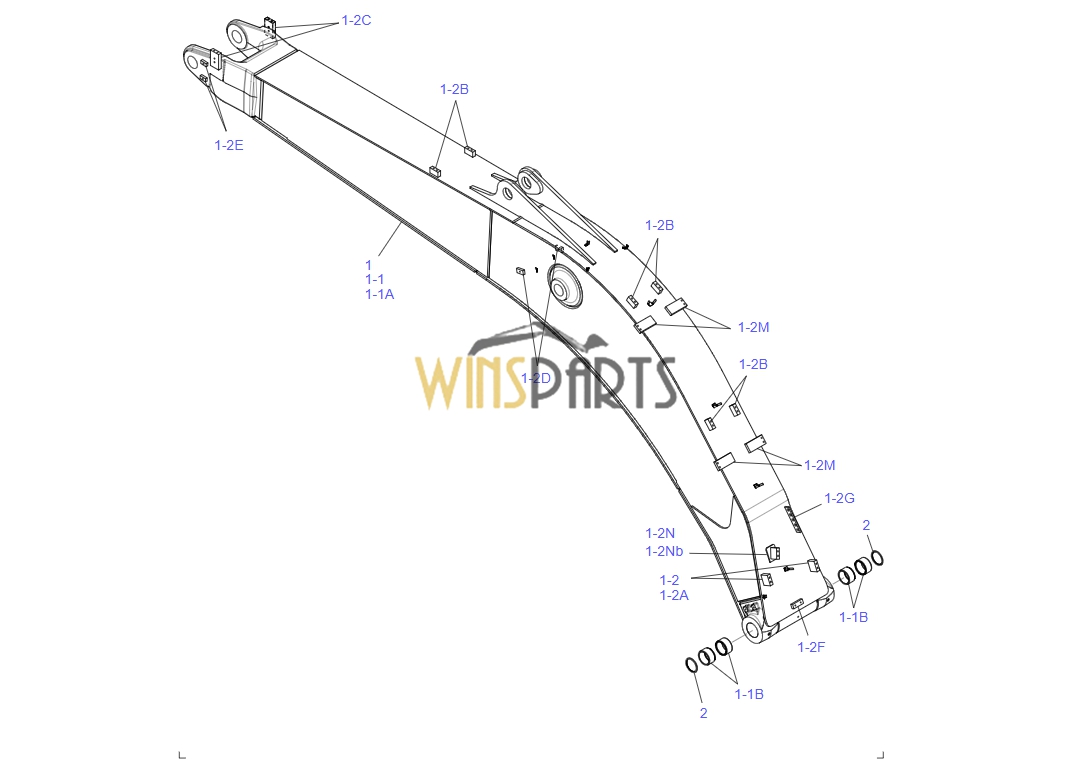

YN02B00845F1 YN02B00846F1 BOOM, HOE 5.65M Kobelco SK200-8 SK210LC-8
　 .
　 1 YN02B00846F1 BOOM, HOE 1
　 1-1 YN02B00579F1 BOOM, HOE 1
　 1-1A YN02B00580P1 BOOM, HOE 1
　 1-1B LB01V01009P1 BUSHING 4
　 YN02B00581F1 BOOM, HOE 5.65M
　 (HD)
　 1 YN02B00582F1 BOOM, HOE 1
　 1-1 YN02B00583F1 BOOM, HOE 1
　 1-1A YN02B00584P1 BOOM, HOE 1
　 1-1B LB01V01009P1 BUSHING 4
　 1-2 YN02B00614P1 BOOM, HOE 1
　 1-2A YN02B01616P1 BLOCK, TAPPED 2
　 1-2B YN02B01619P1 BLOCK, TAPPED 6
　 1-2C YN02B01622P1 BLOCK, TAPPED 2
　 1-2D 2416T9878 BLOCK, TAPPED 2
　 1-2E 2416T13042 BLOCK, TAPPED 2
　 1-2F YT02B01059P1 BLOCK, TAPPED 1
　 1-2G 2418T22409 PLATE 1
　 1-2M YN02B01882P1 BLOCK, TAPPED 4
　 1-2N YN02B01878P1 BRACKET 1
　 1-2Nb YN02B01880P1 BLOCK, TAPPED 1
　 2 2445R138D8 SEAL, DUST 2
　 YN02B00363F1 BOOM INSTAL
　 .
　 1 YN02B01719P1 PIN 1
　 2 HS18C20175G2 CAPSCREW 1 YQ12T00874–T00944
　 2 YN02B02491P1 CAPSCREW 1 YQ12T00945-
　 3 ZN18C20016 NUT 2 YQ12T00874–T00944
　 3 YN02B02492P1 NUT 2 YQ12T00945-
　 4 B16T0442D53 SHIM (0.5) 1 YQ12T00874–T01147
　 5 B16T0442D40 SHIM (0.9) 1 YQ12T00874–T01147
　 6 B16T0442D14 SHIM (1.6) 1 YQ12T00874–T01147
　 7 B16T0442D15 SHIM (2.3) 1 YQ12T00874–T01147
　 8 YN02B01414D1 SHIM (2.0) 2 YQ12T00874–T01147
　 9 YN02B02515D1 SHIM (2.9) 2 YQ12T01148-
　 10 YN02B02515D2 SHIM (3.4) 2 YQ12T01148-
　 11 YN02B02515D3 SHIM (3.9) 2 YQ12T01148-
　 12 YN02B02515D4 SHIM (4.4) 1 YQ12T01148-
YN12B00899F1 ARM GROUP BUCKET LINK Kobelco SK200-8 SK210LC-8
　 1 YN12B02406F1 LINK, BUCKET 1
　 1-1 YN12B02176P1 LINK, BUCKET 1
　 1-2 YN12B02403P1 BUSHING 2
　 1-3 YN12B02405P1 BUSHING 2
　 2 YN12B11269P1 LINK 1
　 3 YN12B01228P1 LINK 1
　 4 YN12B02407P1 PIN 2
　 5 YN12B11272P1 PIN 1
　 6 YN12B02412P1 PIN 1
　 7 HS18C16130G2 CAPSCREW 1
　 8 HS18C16140G2 CAPSCREW 1
　 9 ZN18C16013 NUT 4
　 10 2445R220D4 SEAL, DUST 6
　 11 ZG91S02000 NIPPLE, GREASE 5
　 12 ZG91S04000 NIPPLE, GREASE 1
　 13 B16T0442D57 SHIM (0.5) 1
　 14 B16T0442D44 SHIM (0.9) 1
　 15 B16T0442D2 SHIM (1.6) 1
　 16 YN12B01122D1 SHIM (0.5) 2
　 17 YN12B01122D2 SHIM (0.9) 2
　 18 YN12B01122D3 SHIM (1.6) 2
　 19 YN12B01601D1 SHIM (2.0) 4
　 20 YN12B01602D1 SHIM (2.0) 2
YN12B00905F1 YN12B00904F1 ARM 2.94M Kobelco SK200-8 SK210LC-8
　 YN12B10420F1 ARM 2.94M
　 .
　 1 YN12B10421F1 ARM 1
　 1-1 YN12B00906F1 ARM 1
　 1-1A YN12B10455P1 ARM 1
　 1-1B YN12B02285P1 BUSHING 2
　 1-1C YN12B02405P1 BUSHING 2
　 1-1D YN12B02404P1 BUSHING 2
　 1-1E YN12B02402P1 BUSHING 2
　 1-2 YN12B00742P1 ARM 1
　 1 YN12B00905F1 ARM 1
　 1-1 YN12B00906F1 ARM 1
　 1-1A YN12B10455P1 ARM 1
　 1-1B YN12B02285P1 BUSHING 2
　 1-1C YN12B02405P1 BUSHING 2
　 1-1D YN12B02404P1 BUSHING 2
　 1-1E YN12B02402P1 BUSHING 2
　 YN12B00896F1 ARM 2.94M
　 . (HD)
　 .
　 1 YN12B00897F1 ARM 1
　 1-1 YN12B00898F1 ARM 1
　 1-1A YN12B10456P2 ARM 1
　 1-1B YN12B02285P1 BUSHING 2
　 1-1C YN12B02405P1 BUSHING 2
　 1-1D YN12B02404P1 BUSHING 2
　 1-1E YN12B02402P1 BUSHING 2
　 1-2 YN12B00742P1 ARM 1
　 1-2A YN12B02417P1 BLOCK, TAPPED 2
　 1-2B YN12B02026P1 BLOCK, TAPPED 4
　 1-3 YN12B00786P1 ARM 1
　 2 2445R220D4 SEAL, DUST 2
　 3 2445R220D3 SEAL, DUST 2
　 4 2445R138D8 SEAL, DUST 2
YN12B00914F1 YN12B00913F1 ARM PIN Kobelco SK200-8 SK210LC-8
　 .
　 1 YN12B00914F1 ARM INSTAL 1
　 1-1 YN12B02415P1 PIN 1 YQ12T00874–T01102
　 1-1 YN12B02415P2 PIN 1 YQ12T01103-
　 1-2 YN02B01414D1 SHIM (2.0) 2
　 1-3 B16T0442D53 SHIM (0.5) 1
　 1-4 B16T0442D40 SHIM (0.9) 1
　 2 YN12B00912F1 ARM INSTAL 1
　 2-1 YN02B01839P1 PIN 1
　 2-2 HS18C16150G2 CAPSCREW 1
　 2-3 ZN18C16013 NUT 2
　 2-4 YN02B01415D1 SHIM (2.0) 2
　 2-5 B16T0442D78 SHIM (0.5) 1
　 2-6 B16T0442D77 SHIM (0.9) 1
　 2-7 B16T0442D62 SHIM (1.6) 1
　 3 YN12B00812F1 ARM INSTAL 1
　 3-1 YN12B02109P1 PLATE 1
　 3-2 ZS18C14030 CAPSCREW 2
　 3-3 ZW16H14000 WASHER 2
　 YN12B00435F3 ARM INSTAL
　 (50FT LONG RANGE)
　 3 HS18C16150G2 CAPSCREW 1
　 4 ZN18C16013 NUT 2
　 5 2420Z1047 NUT 1
　 6 ZP15D08100 SPLIT PIN 1
　 7 2418Z715 WASHER 1
　 8 B16T0442D53 SHIM (0.5) 1
　 9 B16T0442D40 SHIM (0.9) 1
　 10 B16T0442D78 SHIM (0.5) 1
　 11 B16T0442D77 SHIM (0.9) 1
　 12 B16T0442D62 SHIM (1.6) 1
　 13 YN02B01414D1 SHIM (2.0) 2
　 14 YN02B01415D1 SHIM (2.0) 2
　 16 YN12B01613P1 PIN 1
　 17 YN12B01789P1 PIN 1
