YN61B00331F1 YN61B00312F1 0.8M3 BUCKET ASSY Kobelco SK200-8 SK210LC-8 (SIDE TYPE PIN) 1 YN61B00331F1 BUCKET ASSY 1 1-1 YN61B00328P1 BUCKET 1 …

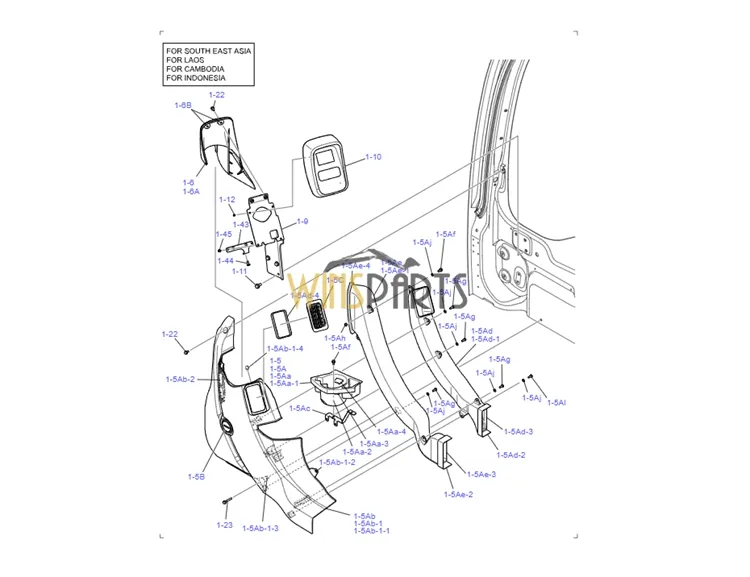

YN17M00086F1 YN17M00073F1 YN17M01316F2 PANEL COVER ASSY Kobelco SK210-8 SK210LC-8
.
YN17M00072F1 PANEL ASSY, INSTRUM
YN17M00175F1 PANEL ASSY, INSTRUM
YN17M00086F1 PANEL ASSY, INSTRUM
1 YN17M00073F1 PANEL ASSY, INSTRUM 1
1-3 YN17M01517F2 COVER ASSY 1
1-3A YN17M01538F1 COVER ASSY 1
1-3Aa YN17M01536P1 COVER 1
1-3Ab YN17M01293P1 CLIP 2
1-3Ac YN17M01516P1 LABEL 1
1-3Ad YN17M01312P1 LABEL 1
1-3B YN52S00075P1 POTENTIOMETER 1
1-3D YN17M01537P1 BRACKET 1
1-3E ZW16P05000 WASHER 2
1-3F YN17M01262P1 SCREW, TAPPING 2
1-3G ZM41C04012 SEMS-BOLT 2
1-3H YN17M01345P1 WASHER 2
1-3J YN01E01018P1 TERMINAL 1
1-3K YN50S00026F1 SWITCH, KEY 1
1-3Ka YN50S01010P1 KEY 1
1-3Kb YN50S00002S002 NUT ASSY 1
1-3Kc YN50S00002S003 WASHER 2
1-3Kd YN50S00002S004 SWITCH 1
1-3Ke YN50S00002S005 WASHER 1
1-4 YN17M01316F2 COVER ASSY 1
1-4B YN81S00003P1 LIGHTER, CIGARETTE 1
1-4C YN17M01285F2 COVER ASSY 1
1-4Ca YN17M01182P1 COVER 1
1-4Cc YN17M01264P1 SCREW, TAPPING 4
1-4Cd YN17M01266P1 WASHER 4
1-4Ce YN17M01293P1 CLIP 2
1-4Cf YN17M01303P1 COLLAR 2
1-4Cg YN17M01296P1 COLLAR 1
1-4Ch YN17M01302P1 CLIP 3
1-4Cj YN17M01305P1 SCREW, TAPPING 3
1-4Ck YN17M01183P2 COVER 1
1-4D YN17M01421P1 WASHER 1
1-5 YN17M01317F1 COVER ASSY 1
1-5A YN17M01286F1 COVER ASSY 1
1-5Aa YN17M01308F1 COVER ASSY 1
1-5Aa-1 YN17M01184P1 COVER 1
1-5Aa-2 YN17M01296P1 COLLAR 2
1-5Aa-3 YN17M01305P1 SCREW, TAPPING 3
1-5Aa-4 YN17M01309P1 RUBBER 3
1-5Ab YN17M01422F1 COVER ASSY 1
1-5Ab-1 YN17M01306F1 COVER ASSY 1
1-5Ab-1-1 YN17M01185P1 COVER 1
1-5Ab-1-2 YN17M01296P1 COLLAR 2
1-5Ab-1-3 YN17M01307P1 COLLAR 1
1-5Ab-1-4 YN17M01331P1 COLLAR 1
1-5Ab-2 YN20M01619P1 GRILLE 1
1-5Ac YN17M01271P1 BRACKET 1
1-5Ad YN20M01622F1 DUCT ASSY 1
1-5Ad-1 YN20M01566P1 DUCT 1
1-5Ad-2 YN20M01623P1 INSULATION 1
1-5Ad-3 YN20M01624P1 INSULATION 1
1-5Ad-4 YN20M01620P1 INSULATION 1
1-5Ae YN20M01625F1 DUCT ASSY 1
1-5Ae-1 YN20M01567P1 DUCT 1
1-5Ae-2 YN20M01623P1 INSULATION 1
1-5Ae-3 YN20M01624P1 INSULATION 1
1-5Ae-4 YN20M01621P1 INSULATION 1
1-5Af YN17M01255P1 SEMS-BOLT 3
1-5Ag YN17M01264P1 SCREW, TAPPING 7
1-5Ah YN17M01281P1 NUT 1
1-5Aj YN17M01266P1 WASHER 8
1-5Al YN17M01342P1 SCREW, TAPPING 1
1-5B YT58S00006P1 METER, HOUR 1
1-5C YN20M01220P1 GRILLE 1
1-6 YN17M01310F1 COVER ASSY 1
1-6A YN17M01186P1 COVER 1
1-6B YN17M01296P1 COLLAR 2
1-9 YN17M01197P2 BRACKET 1
1-10 YN59S00032F1 GAUGE, CLUSTER 1
1-11 ZM73C08020 SEMS-BOLT 3
1-12 ZM61C05012 SEMS-BOLT 2
1-19 YN20M01628F1 DUCT ASSY 1
1-19A YN20M01630P1 DUCT 1
1-19B YN20M01631F1 DUCT ASSY 1
1-19Ba YN20M01632P1 DUCT 1
1-19Bb YN20M01633P1 INSULATION 1
1-19C YN20M01634F1 DUCT ASSY 1
1-19Ca YN20M01635P1 DUCT 1
1-19Cb YN20M01636P1 INSULATION 1
1-19Cc YN20M01637P1 INSULATION 1
1-19D YN20M01684P1 CLIP 2
1-19E YN20M01685P1 SCREW, TAPPING 2
1-20 YN20M01638F1 DUCT ASSY 1
1-20A YN20M01639F1 DUCT ASSY 1
1-20Aa YN20M01640P1 DUCT 1
1-20Ab YN20M01641P1 DUCT 1
1-20B YN20M01642P1 INSULATION 1
1-22 ZM66C06016 SEMS-BOLT 19
1-23 ZM66C06045 SEMS-BOLT 1
1-24 ZM66C08016 SEMS-BOLT 2
1-26 ZM41C05016 SEMS-BOLT 4
1-27 YN17M01262P1 SCREW, TAPPING 4
1-28 ZW16P05000 WASHER 4
1-29 YN17M01267P1 CAP 2
1-31 YN17M01269P1 BRACKET 1
1-32 YN17M01270P1 BRACKET 1
1-34 YN17M01275P1 BRACKET 1
1-35 YN17M01418P1 BRACKET 1
1-36 YN17M01278P2 BRACKET 1
1-37 YN17M01279P1 BRACKET 1
1-38 ZS32T50012 CROSS TAPPING SCREW 2
1-39 YN17M01283P1 SEMS-BOLT 1
1-40 YN17M01284P2 SEMS-BOLT 2
1-41 YN01T01049F1 HAMMER 1
1-43 YN17M01319P1 BRACKET 1
1-44 YN17M01320P1 MACHINE SCREW 1
1-45 ZM61C05016 SEMS-BOLT 2
1-46 YN17M01327F1 COVER ASSY 1
1-46A YN17M01287F1 COVER ASSY 1
1-46Aa YN17M01179P2 COVER 1
1-46Ab YN17M01311P1 COLLAR 4
1-46Ac YN17M01280P1 RUBBER 1
1-46Ad YN17M01259P1 SEMS-BOLT 2
1-46Ae YN17M01260P1 NUT 2
1-46Af YN17M01288P1 COLLAR 2
1-46Ag YN17M01289P1 INSULATION 2
1-46Ah YN17M01290P1 BRACKET 2
1-46B YN17M01291F1 COVER ASSY 1
1-46Ba YN17M01187P2 COVER 1
1-46Bb YN17M01292P1 INSULATION 1
1-46Bc YN17M01293P1 CLIP 2
1-46C YN20M01568P1 GRILLE 2
1-46D YN17M01268P1 CAP 1
1-47 YN17M01325F2 COVER ASSY 1
1-47A YN17M01294F1 COVER ASSY 1
1-47Aa YN17M01180P1 COVER 1
1-47Ab YN17M01295P1 COVER 1
1-47Ac YN17M01296P1 COLLAR 2
1-47Ad YN17M01293P1 CLIP 2
1-47C YN17M01297F2 COVER ASSY 1
1-47Cb YN17M01298P1 INSULATION 1
1-47Cc YN17M01200P2 COVER 1
1-48 ZS32T45010 CROSS TAPPING SCREW 1
2 YN50E00045F1 SWITCH INSTAL 1
2-1 YN50S00040D1 SWITCH 1
2-2 YN17M01282P1 CAP 4 YQ12T00874–T00985
2-2 YN17M01282P2 CAP 4 YQ12T00986-
