YN05P00131F1 RADIATOR ASSY KOBELCO SK200-10 SK210LC-10

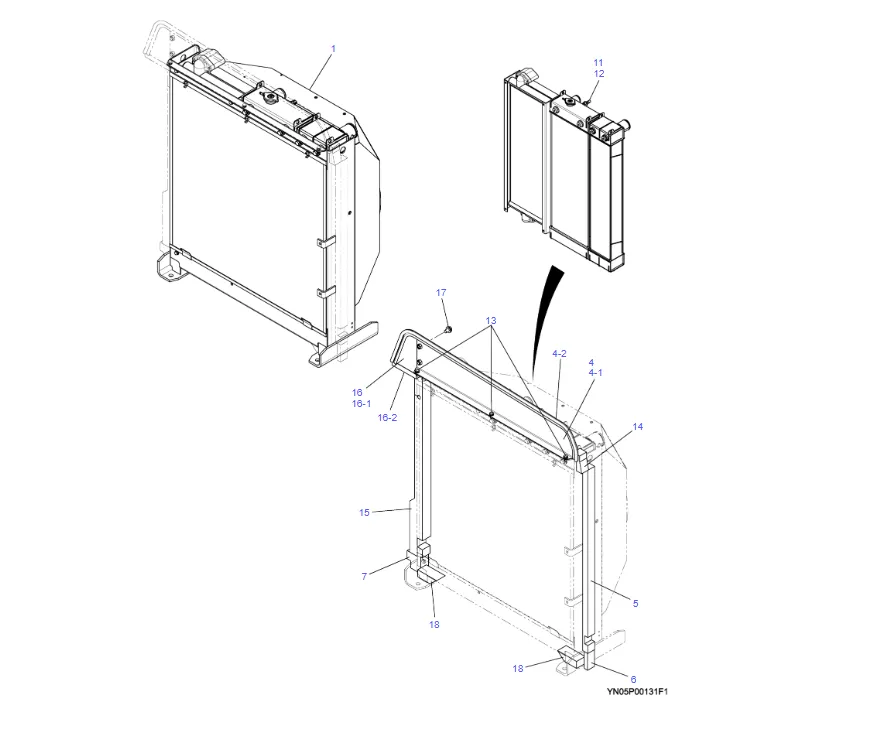

YN05P00131F1 RADIATOR ASSY
　 .

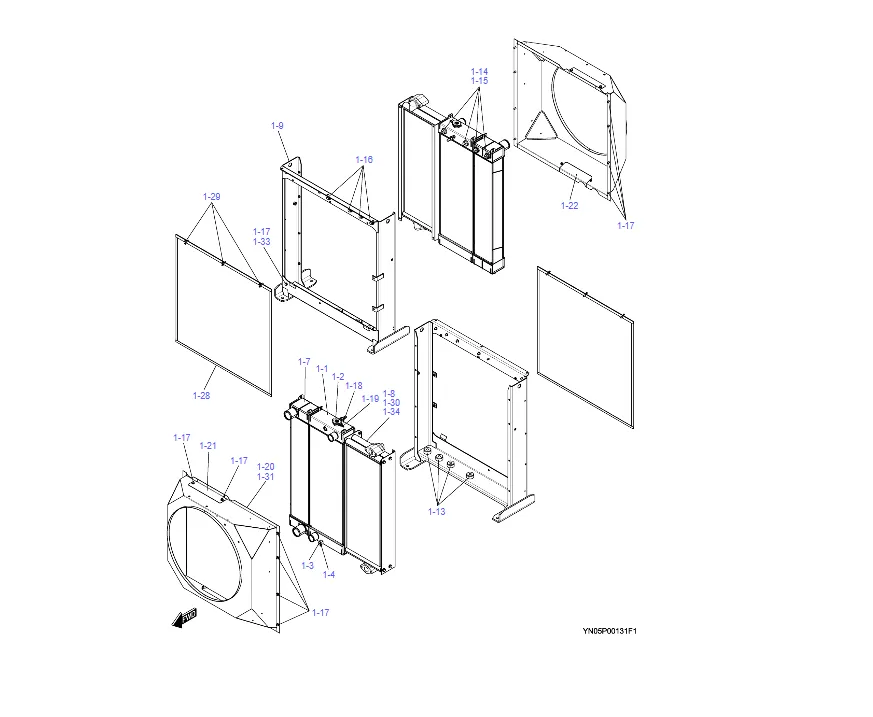

　 1 YN05P00134F1 RADIATOR ASSY 1 YN15T17101–20677
　 . YN15425001–31059
　 . YQ15-T3101–T3295
　 . YQ15405001–05684
　 1-1 YN05P00058S038 RADIATOR ASSY 1
　 1-2 YN05P00088S032 CAP 1
　 1-3 2452U221S18 COCK, DRAIN 1
　 1-4 2452U416S6 HOSE 1
　 1-5 YN05P00134S005 INSULATION 4
　 1-6 YN05P00134S006 INSULATION 4
　 1-7 YN05P00134S007 COOLER, AIR 1
　 1-8 YN05P00134S008 COOLER, OIL 1
　 1-9 YN05P00134S009 SUPPORT 1
　 1-10 YN05P00058S031 INSULATION 4
　 1-11 YN05P00134S012 INSULATION 2
　 1-12 YN05P00134S013 RUBBER 2
　 1-13 YN05P00058S014 MOUNT, RUBBER 4
　 1-14 YM05P00019S021 COLLAR 4
　 1-15 YN05P00058S013 MOUNT, RUBBER 4
　 1-16 ZM73C10030 SEMS-BOLT 4
　 1-17 LB05P00018S028 BOLT ASSY 16
　 1-18 LP05P00014S025 HOSE 1
　 1-19 2452U267S8 CLIP 2
　 1-20 YN05P00134S034 SHROUD 1
　 1-21 YN05P00134S023 PLATE 1
　 1-22 YN05P00134S024 PLATE 1
　 1-23 YN05P00134S026 INSULATION 1
　 1-24 YN05P00134S027 INSULATION 2
　 1-25 YN05P00134S028 INSULATION 1
　 1-26 YN05P00134S029 INSULATION 1
　 1-27 YN05P00134S030 INSULATION 1
　 1-28 YN05P00134S032 GUARD 1
　 1-29 2452U202S5 BOLT, WING 3
　 1-30 YN05P00134S033 COOLER, OIL 1 YN15T17959-
　 . YQ15-T3144-
　 1-31 YN05P00134S022 SHROUD 1 YN15T17959-
　 . YQ15-T3144-
　 1 YN05P00134F2 RADIATOR ASSY 1 YN15431060-
　 . YQ15405685-
　 1-1 YN05P00058S038 RADIATOR ASSY 1
　 1-2 YN05P00088S032 CAP 1
　 1-3 2452U221S18 COCK, DRAIN 1
　 1-4 2452U416S6 HOSE 1
　 1-5 YN05P00134S005 INSULATION 2
　 1-6 YN05P00134S006 INSULATION 4
　 1-7 YN05P00134S007 COOLER, AIR 1
　 1-9 YN05P00134S009 SUPPORT 1
　 1-10 YN05P00058S031 INSULATION 4
　 1-11 YN05P00134S012 INSULATION 2
　 1-12 YN05P00134S013 RUBBER 2
　 1-13 YN05P00058S014 MOUNT, RUBBER 4
　 1-14 YM05P00019S021 COLLAR 4
　 1-15 YN05P00058S013 MOUNT, RUBBER 4
　 1-16 ZM73C10030 SEMS-BOLT 4
　 1-17 LB05P00018S028 BOLT ASSY 12
　 1-18 LP05P00014S025 HOSE 1
　 1-19 2452U267S8 CLIP 2
　 1-21 YN05P00134S023 PLATE 1
　 1-22 YN05P00134S024 PLATE 1
　 1-23 YN05P00134S026 INSULATION 1
　 1-24 YN05P00134S027 INSULATION 2
　 1-25 YN05P00134S028 INSULATION 1
　 1-26 YN05P00134S029 INSULATION 1
　 1-27 YN05P00134S030 INSULATION 1
　 1-28 YN05P00134S032 GUARD 1
　 1-29 2452U202S5 BOLT, WING 3
　 1-31 YN05P00134S022 SHROUD 1
　 1-32 YN05P00134S010 INSULATION 2
　 1-33 YN05P00134S036 BOLT ASSY 4
　 1-34 YN05P00134S035 COOLER, OIL 1
　 4 YN05P02093F1 PLATE ASSY 1
　 4-1 YN05P02094P2 PLATE 1
　 4-2 YX21C01217D6 STRIP, WEATHER 1
　 5 YN05P02060P1 INSULATION 1
　 6 YN05P02003P1 RUBBER 1
　 7 YN05P02064P1 RUBBER 1
　 11 YF05P01200P1 O-RING 1 SEE E/G YN15431060-
　 . YQ15405685-
　 12 YF50S00001F1 SWITCH, LEVEL 1 SEE E/G YN15431060-
　 . YQ15405685-
　 13 ZM73C08020 SEMS-BOLT 3
　 14 YN05P02018P2 INSULATION 1
　 15 YN05P02065P1 INSULATION 1
　 16 YN05P02096F1 COVER ASSY 1
　 16-1 YN05P02097P1 COVER 1
　 16-2 YF21C02062P1 INSULATION 1
　 17 ZM73C12020 SEMS-BOLT 2
　 18 YN05P02101P1 INSULATION 2
