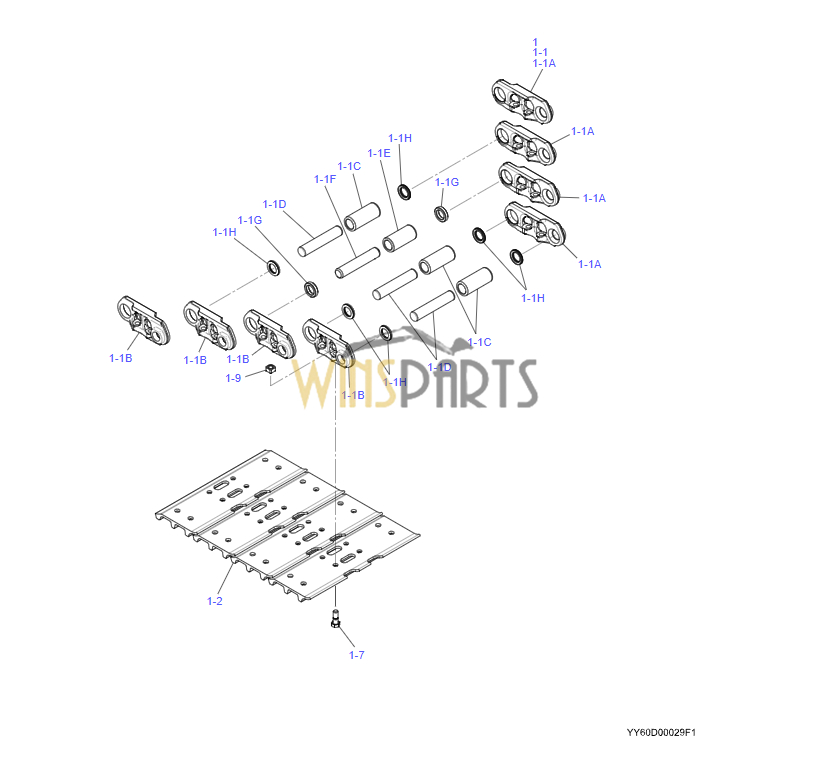

YY60D00029F1 YY60D00030F1 YY62D00015F2 TRACK LINK ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5

YY60D00029F1 YY60D00030F1 YY62D00015F2 TRACK LINK ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
　 . (LONG CRAWLER 500mm)
　 .
　 1 YY60D00030F1 SHOE ASSY 2
　 1-1 YY62D00015F2 TRACK LINK ASSY 1
　 1-1A YY62D01027P1 LINK 46
　 1-1B YY62D01028P1 LINK 46
　 1-1C YY62D01029P1 BUSHING 45
　 1-1D YY62D01031P1 PIN 45
　 1-1E YY62D01030P1 BUSHING 1
　 1-1F YY62D01032P1 PIN 1
　 1-1G YY62D01034P1 COLLAR 2
　 1-1H YY62D01033P1 SEAL 90
　 1-2 YW60D00004P1 SHOE 46
　 1-7 YY60D01004P1 BOLT 184
　 1-9 LP60D01002P1 NUT 184

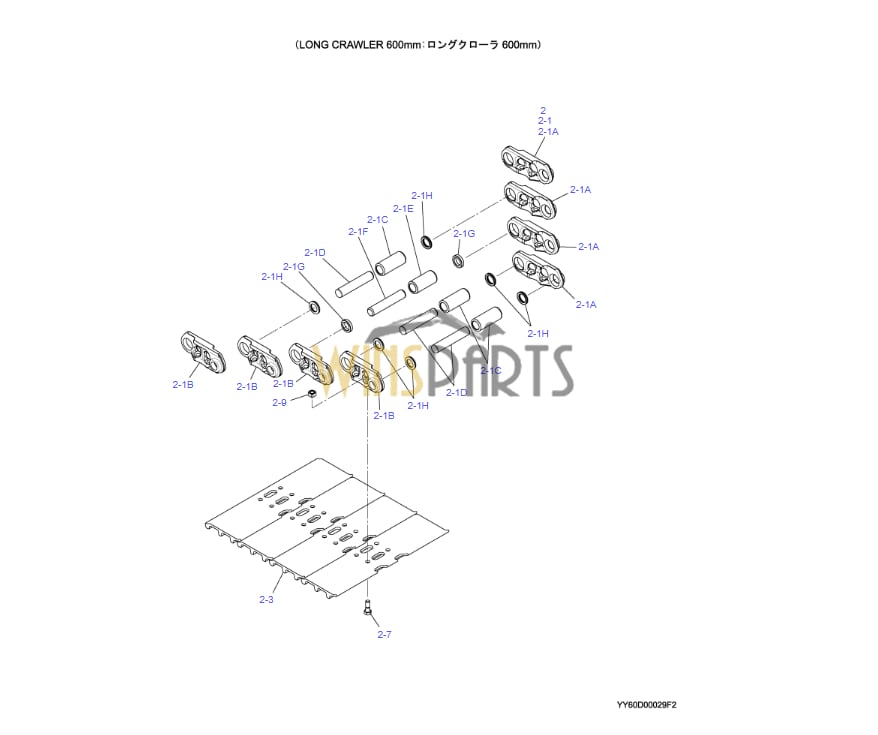

YY60D00029F2 YY60D00030F2 YY62D00015F2 TRACK LINK ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5 SK135SRD-5
　 . (LONG CRAWLER 600mm)
　 .
　 2 YY60D00030F2 SHOE ASSY 2
　 2-1 YY62D00015F2 TRACK LINK ASSY 1
　 2-1A YY62D01027P1 LINK 46
　 2-1B YY62D01028P1 LINK 46
　 2-1C YY62D01029P1 BUSHING 45
　 2-1D YY62D01031P1 PIN 45
　 2-1E YY62D01030P1 BUSHING 1
　 2-1F YY62D01032P1 PIN 1
　 2-1G YY62D01034P1 COLLAR 2
　 2-1H YY62D01033P1 SEAL 90
　 2-3 2424N240 SHOE 46
　 2-7 YY60D01004P1 BOLT 184
　 2-9 LP60D01002P1 NUT 184

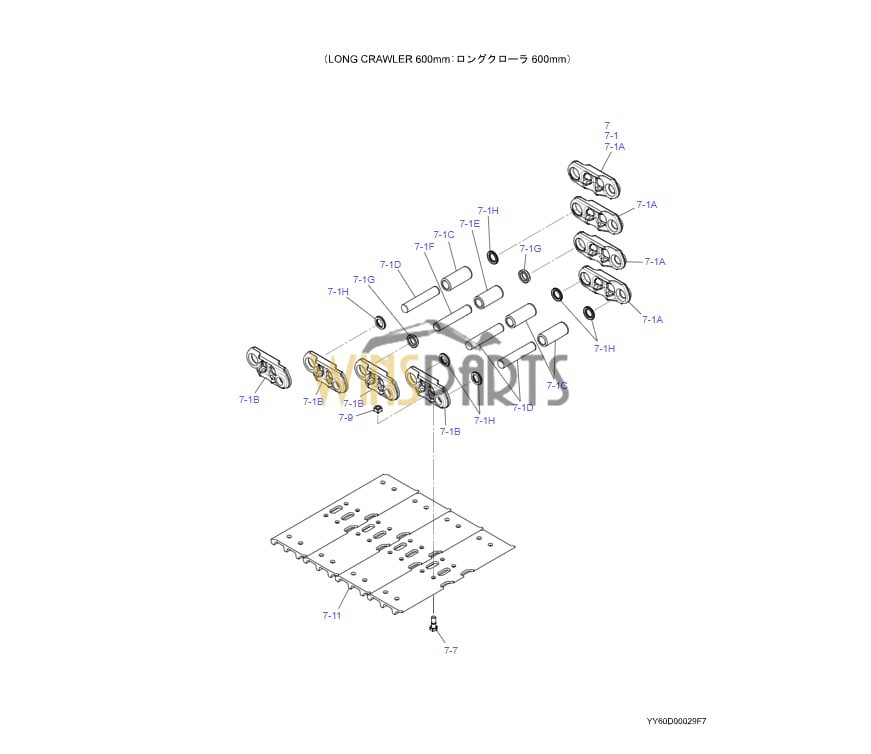

YY60D00029F7 YY62D00015F2 LONG CRAWLER 600mm SHOE ASSY KOBELCO SK135SRD-5 SK135SRLC-5 SK140SRL-5 SK140SRLC-5
　 . (LONG CRAWLER 600mm)
　 .
　 7 YY60D00030F7 SHOE ASSY 2
　 7-1 YY62D00015F2 TRACK LINK ASSY 1
　 7-1A YY62D01027P1 LINK 46
　 7-1B YY62D01028P1 LINK 46
　 7-1C YY62D01029P1 BUSHING 45
　 7-1D YY62D01031P1 PIN 45
　 7-1E YY62D01030P1 BUSHING 1
　 7-1F YY62D01032P1 PIN 1
　 7-1G YY62D01034P1 COLLAR 2
　 7-1H YY62D01033P1 SEAL 90
　 7-7 YY60D01004P1 BOLT 184
　 7-9 LP60D01002P1 NUT 184
　 7-11 YY60D00092P1 SHOE 46

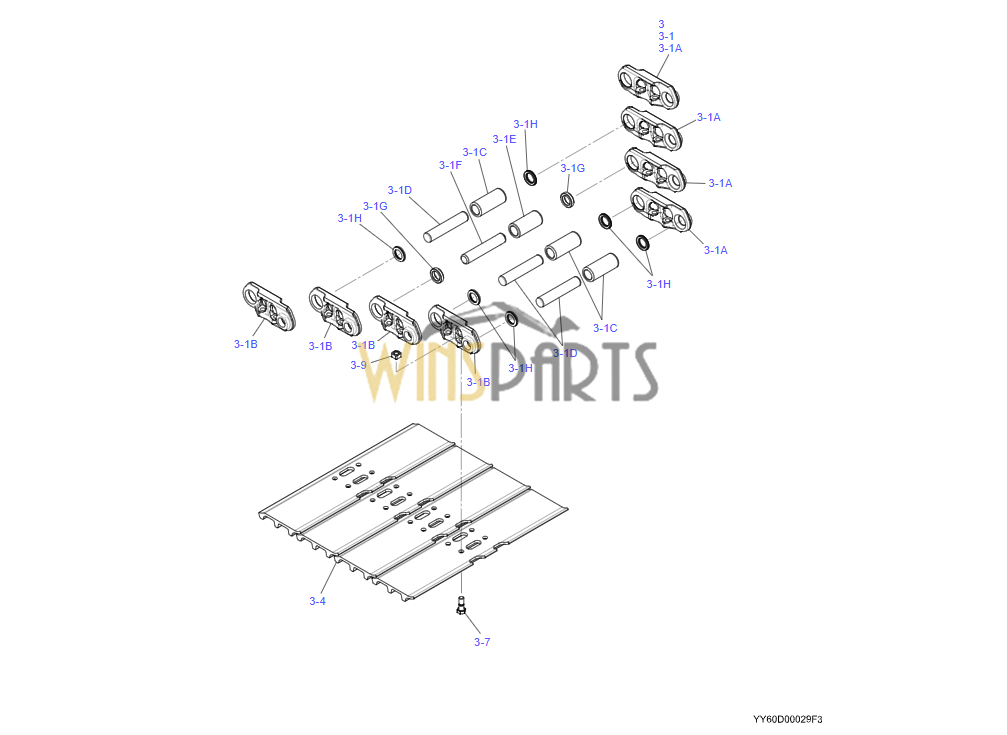

YY60D00029F3 YY60D00030F3 YY62D00015F2 TRACK LINK ASSY KOBELCO SK140SRLC-7 SK135SRLC-5 Excavator
　 .
　 3 YY60D00030F3 SHOE ASSY 2
　 3-1 YY62D00015F2 TRACK LINK ASSY 1
　 3-1A YY62D01027P1 LINK 46
　 3-1B YY62D01028P1 LINK 46
　 3-1C YY62D01029P1 BUSHING 45
　 3-1D YY62D01031P1 PIN 45
　 3-1E YY62D01030P1 BUSHING 1
　 3-1F YY62D01032P1 PIN 1
　 3-1G YY62D01034P1 COLLAR 2
　 3-1H YY62D01033P1 SEAL 90
　 3-4 2424N240D2 SHOE 46
　 3-7 YY60D01004P1 BOLT 184
　 3-9 LP60D01002P1 NUT 184

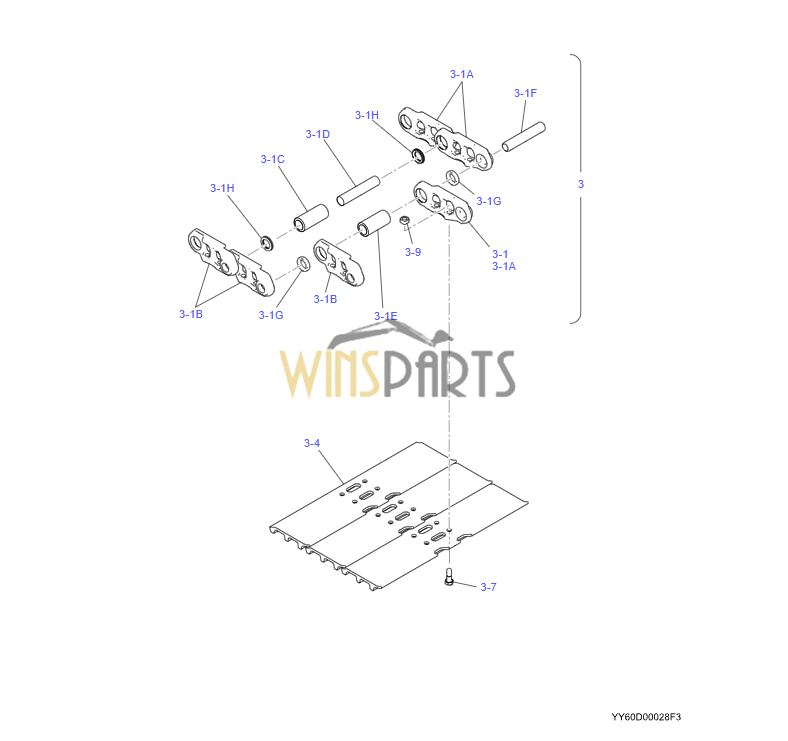

YY60D00028F3 YY60D00024F3 YY62D00015F1 SHOE ASSY KOBELCO SK140SRD-7 SK140SRLC-7 SK140LC-11
　 .
　 3 YY60D00024F3 SHOE ASSY 2
　 3-1 YY62D00015F1 TRACK LINK ASSY 1
　 3-1A YY62D01027P1 LINK 44
　 3-1B YY62D01028P1 LINK 44
　 3-1C YY62D01029P1 BUSHING 43
　 3-1D YY62D01031P1 PIN 43
　 3-1E YY62D01030P1 BUSHING 1
　 3-1F YY62D01032P1 PIN 1
　 3-1G YY62D01034P1 COLLAR 2
　 3-1H YY62D01033P1 SEAL 86
　 3-4 2424N240D2 SHOE 44
　 3-7 YY60D01004P1 BOLT 176
　 3-9 LP60D01002P1 NUT 176
YY60D00028F4 SHOE ASSY Not Service
　 . (500mm, SHOE FLAT)
　 .
　 4 YY60D00024F4 SHOE ASSY 2
　 4-1 YY62D00015F1 TRACK LINK ASSY 1
　 4-1A YY62D01027P1 LINK 44
　 4-1B YY62D01028P1 LINK 44
　 4-1C YY62D01029P1 BUSHING 43
　 4-1D YY62D01031P1 PIN 43
　 4-1E YY62D01030P1 BUSHING 1
　 4-1F YY62D01032P1 PIN 1
　 4-1G YY62D01034P1 COLLAR 2
　 4-1H YY62D01033P1 SEAL 86
　 4-5 2424J113C1 SHOE, FLAT 44
　 4-8 YY60D01008P1 BOLT 176
　 4-9 LP60D01002P1 NUT 176
YY60D00028F7 SHOE ASSY Not Service
　 . (600mm)
　 .
　 7 YY60D00024F7 SHOE ASSY 2
　 7-1 YY62D00015F1 TRACK LINK ASSY 1
　 7-1A YY62D01027P1 LINK 44
　 7-1B YY62D01028P1 LINK 44
　 7-1C YY62D01029P1 BUSHING 43
　 7-1D YY62D01031P1 PIN 43
　 7-1E YY62D01030P1 BUSHING 1
　 7-1F YY62D01032P1 PIN 1
　 7-1G YY62D01034P1 COLLAR 2
　 7-1H YY62D01033P1 SEAL 86
　 7-7 YY60D01004P1 BOLT 176
　 7-9 LP60D01002P1 NUT 176
　 7-12 YY60D00092P1 SHOE 44
