YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

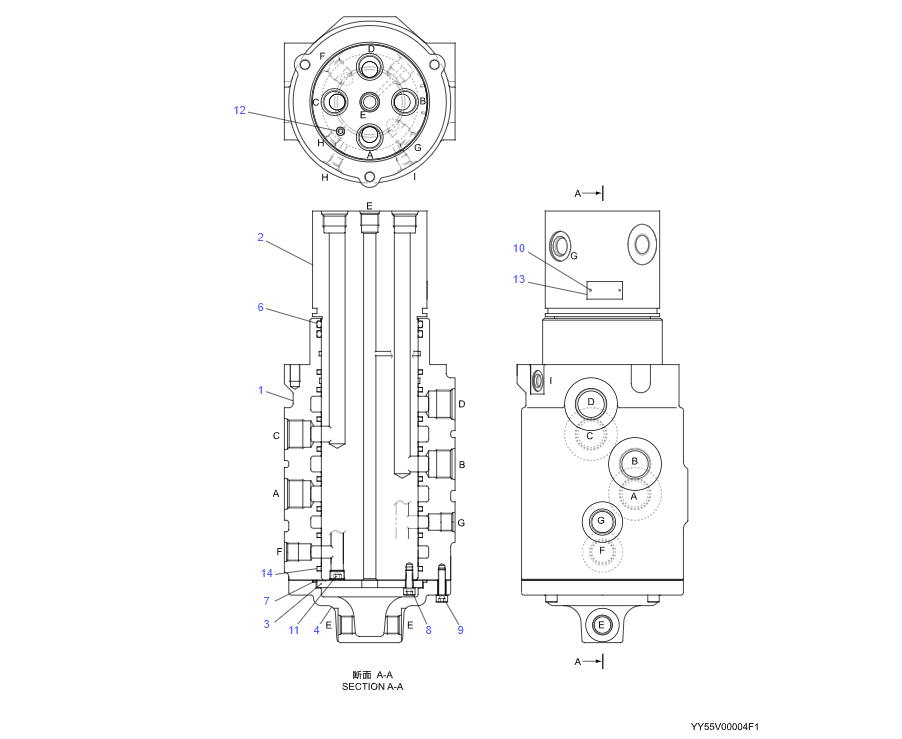

YY55V00004F1 YN55V00053F1 SWIVEL JOINT KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
.
1 YY55V01008P1 BODY 1
2 YY55V01007P1 STEM 1
3 2414T2712 PLATE, THRUST 1
4 YY55V01012P1 COVER 1
6 ZD11P11000 O-RING 2
7 ZD11G12500 O-RING 1
8 ZS23C08020 CAPSCREW 2
9 ZS23C08030 CAPSCREW 4
10 2420Z1036D3 CLEVIS 2
11 YN55V01091P1 PLUG 2
12 PV52D01007P1 PLUG 1
13 YN22T00194P1 NAME PLATE 1
14 LS55V01028P1 SEAL 8
YN55V00053F1 JOINT, SWIVEL
.
1 YN55V01063P1 BODY 1
2 YN55V01084P1 STEM 1
3 YN55V01115P1 PLATE 1
4 YN55V01062P1 COVER 1
5 YN55V01057P1 SEAL 5
6 YN55V01049P1 SEAL 1
7 ZD11G09500 O-RING 1
8 ZS23C08020 CAPSCREW 2
9 ZS23C08030 CAPSCREW 3
10 YN22T00194P1 NAME PLATE 1
11 2420Z1036D3 CLEVIS 2
12 PV52D01007P1 PLUG 1
13 ZD12P08000 O-RING 2
YN19H00053F1 JOINT INSTAL, SWIVEL Not Service.
HC550-00_YN55V00053F1_KCM-EUR_D0003591680_1 1 YN55V00053F1 JOINT, SWIVEL 1 HC 550-00
2 ZM73C12025 SEMS-BOLT 3
YY19H00045F1 JOINT INSTAL, SWIVEL Not Service
. (DOZER)
.
HC551-00_YY55V00004F1_KCM-EUR_D0003894800_1 1 YY55V00004F1 JOINT, SWIVEL 1 HC 551-00
2 ZM73C12030 SEMS-BOLT 3
