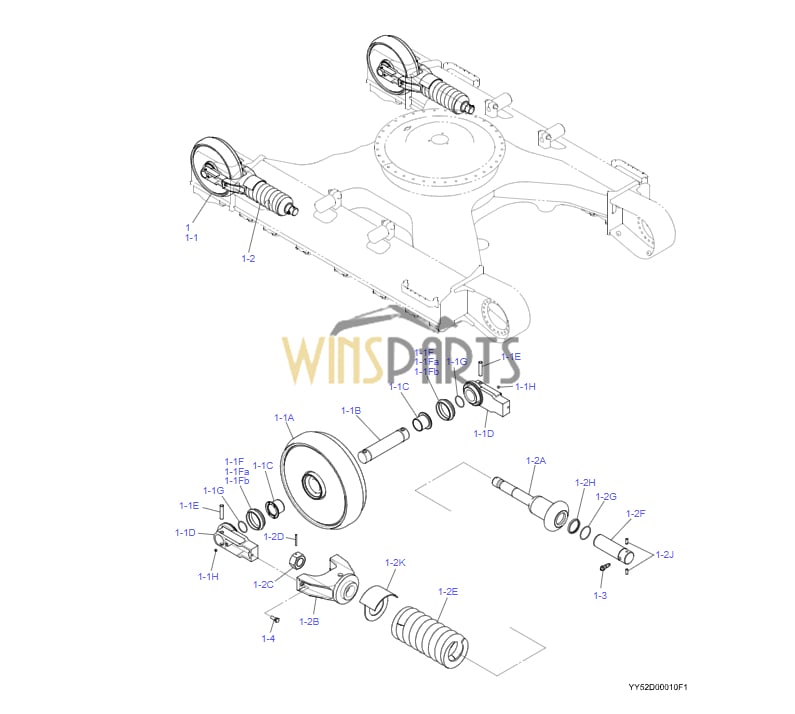

YY52D00010F1 YY52D00011F1 YY52D00014F1 CRAWLER IDLER ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5

YY52D00010F1 YY52D00011F1 YY52D00014F1 CRAWLER IDLER ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
　 .
　 1 YY52D00011F1 IDLER ASSY, CRAWLER 2 LP10030001–30001
　 1-1 YY52D00014F1 IDLER ASSY 1
　 1-1A YY52D00015P1 IDLER 1
　 1-1B LP52D01003P1 SHAFT 1
　 1-1C LP52D01004P1 BUSHING 2
　 1-1D LP52D01009P1 COLLAR 2
　 1-1E LP52D01006P1 PIN 2
　 1-1F 2445R441F1 SEAL, FLOATING 2
　 1-1Fa 2445R441S1 SEAL 2
　 1-1Fb 2445R441S2 O-RING 2
　 1-1G ZD11G05500 O-RING 2
　 1-1H PV52D01007P1 PLUG 2
　 1-2 YY54D00003F1 IDLER ADJUST ASSY 1
　 1-2A YY70V00002P1 CYLINDER, GREASE 1
　 1-2B LP54D01002P1 BRACKET 1
　 1-2C LP54D01003P1 NUT 1
　 1-2D ZP26D06063 PIN, SPRING 1
　 1-2E YY54D01004P1 SPRING 1
　 1-2F 2439P171 PISTON 1
　 1-2G ZD12G06500 O-RING 1
　 1-2H 2418U130D36 U-PACKING 1
　 1-2J LQ54D01023P1 PIN 2
　 1-2K YX54D01003P1 COVER 1
　 1-3 2444P803 NIPPLE 1
　 1-4 ZS13C12035 CAPSCREW 2

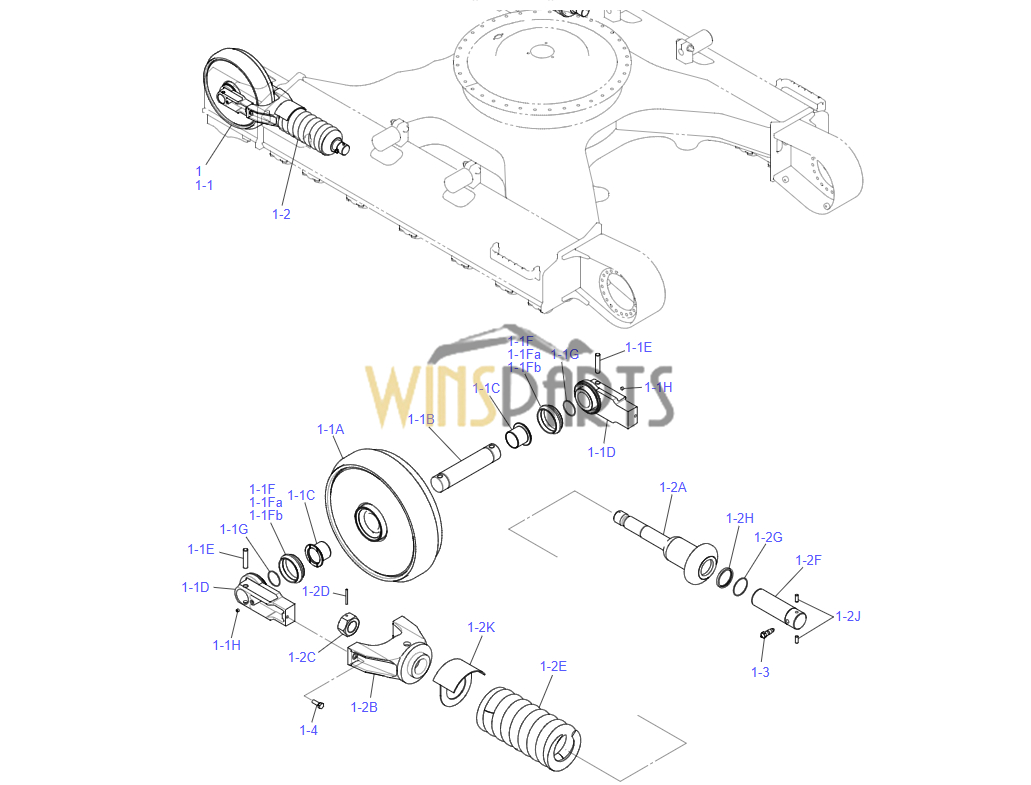

YY52D00031F1 YY54D00003F1 IDLER ADJUST ASSY KOBELCO SK130UR-5 SK135SRD-5 SK135SRLC-5 SK140SRL-5
　 1 YY52D00031F1 IDLER ASSY, CRAWLER 2 LP10030002-
　 1-1 YY52D00032F1 IDLER ASSY 1
　 1-1A YY52D00015P1 IDLER 1
　 1-1B YY52D01007P1 SHAFT 1
　 1-1C LP52D01004P1 BUSHING 2
　 1-1D YY52D01006P1 COLLAR 2
　 1-1E LP52D01006P1 PIN 2
　 1-1F 2445R441F1 SEAL, FLOATING 2
　 1-1Fa 2445R441S1 SEAL 2
　 1-1Fb 2445R441S2 O-RING 2
　 1-1G ZD11G05500 O-RING 2
　 1-1H PV52D01007P1 PLUG 2
　 1-2 YY54D00003F1 IDLER ADJUST ASSY 1
　 1-2A YY70V00002P1 CYLINDER, GREASE 1
　 1-2B LP54D01002P1 BRACKET 1
　 1-2C LP54D01003P1 NUT 1
　 1-2D ZP26D06063 PIN, SPRING 1
　 1-2E YY54D01004P1 SPRING 1
　 1-2F 2439P171 PISTON 1
　 1-2G ZD12G06500 O-RING 1
　 1-2H 2418U130D36 U-PACKING 1
　 1-2J LQ54D01023P1 PIN 2
　 1-2K YX54D01003P1 COVER 1
　 1-3 2444P803 NIPPLE 1
　 1-4 ZS13C12035 CAPSCREW 2

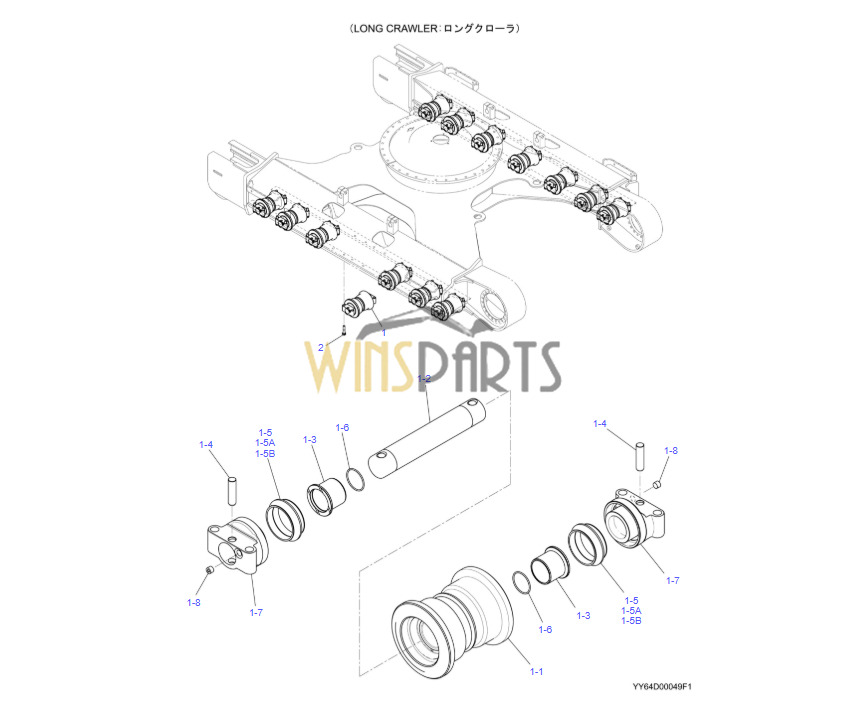

YY64D00049F1 TRACK ROLLER ASSY KOBELCO SK125SR-5 SK130SR-7 SK140SRLC-7 SK135SRLC-5
　 .
　 1 YY64D00047F1 ROLLER, TRACK, LOW 14
　 1-1 YY64D01088P1 ROLLER 1
　 1-2 YY64D01043P1 SHAFT 1
　 1-3 2405P490 BUSHING 2
　 1-4 YY64D01018P1 PIN 2
　 1-5 2445R440F1 SEAL, FLOATING 2
　 1-5A 2445R440S1 SEAL 2
　 1-5B 2445R440S2 O-RING 2
　 1-6 ZD11G04500 O-RING 2
　 1-7 YY64D01095P1 COLLAR 2
　 1-8 ZE82T04000 PLUG 2
　 2 LP64D01004P1 CAPSCREW 56
YY64D00051F1 YY64D01100F1 YY64D01101P1 UPP ROLLER ASSY KOBELCO SK125SR-5 SK130SR-5 SK130UR-5 SK135SRD-5
　 .
　 1 YY64D01100F1 ROLLER ASSY 2
　 1-1 YY64D01101P1 ROLLER 1
　 1-2 YY64D01091P1 SHAFT 1
　 1-3 2418P23223 COLLAR 1
　 1-4 YY64D01092P1 PLATE 1
　 1-5 YY64D01093P1 COVER 1
　 1-6 YY64D01094P1 BUSHING 2
　 1-7 2445R360F1 SEAL, FLOATING 1
　 1-7A 2445R360S1 SEAL 2
　 1-7B 2445R360S2 O-RING 2
　 1-8 ZD11G06000 O-RING 1
　 1-9 LP64D01010P1 BOLT 2
　 1-10 ZR26X06500 RING, SNAP 1
　 1-11 YN55V01090P1 PLUG 1
　 2 ZS13C20110 CAPSCREW 2
　 3 ZN13C20016 NUT 2
　 4 ZW13H20000 WASHER 4

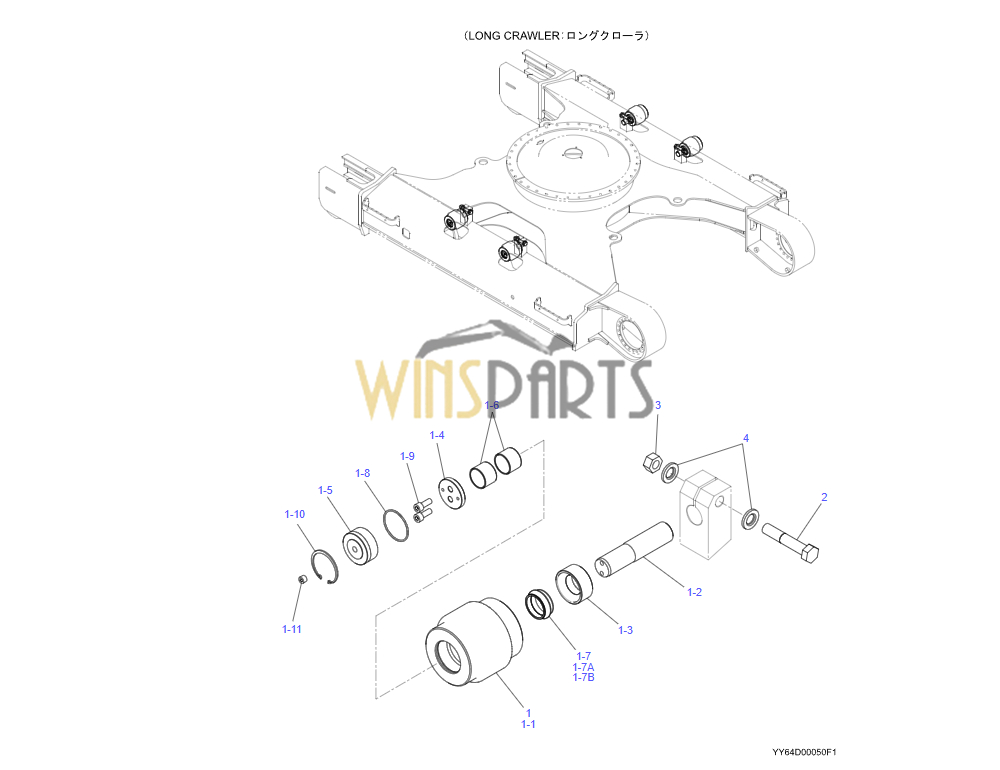

YY64D00050F1 YY64D01100F1 YY64D01101P1 UPP ROLLER ASSY KOBELCO SK125SR-5 SK130SR-7 SK140SRLC-7 SK135SRLC-5
　 .
　 1 YY64D01100F1 ROLLER ASSY 4
　 1-1 YY64D01101P1 ROLLER 1
　 1-2 YY64D01091P1 SHAFT 1
　 1-3 2418P23223 COLLAR 1
　 1-4 YY64D01092P1 PLATE 1
　 1-5 YY64D01093P1 COVER 1
　 1-6 YY64D01094P1 BUSHING 2
　 1-7 2445R360F1 SEAL, FLOATING 1
　 1-7A 2445R360S1 SEAL 2
　 1-7B 2445R360S2 O-RING 2
　 1-8 ZD11G06000 O-RING 1
　 1-9 LP64D01010P1 BOLT 2
　 1-10 ZR26X06500 RING, SNAP 1
　 1-11 YN55V01090P1 PLUG 1
　 2 ZS13C20110 CAPSCREW 4
　 3 ZN13C20016 NUT 4
　 4 ZW13H20000 WASHER 8
