YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

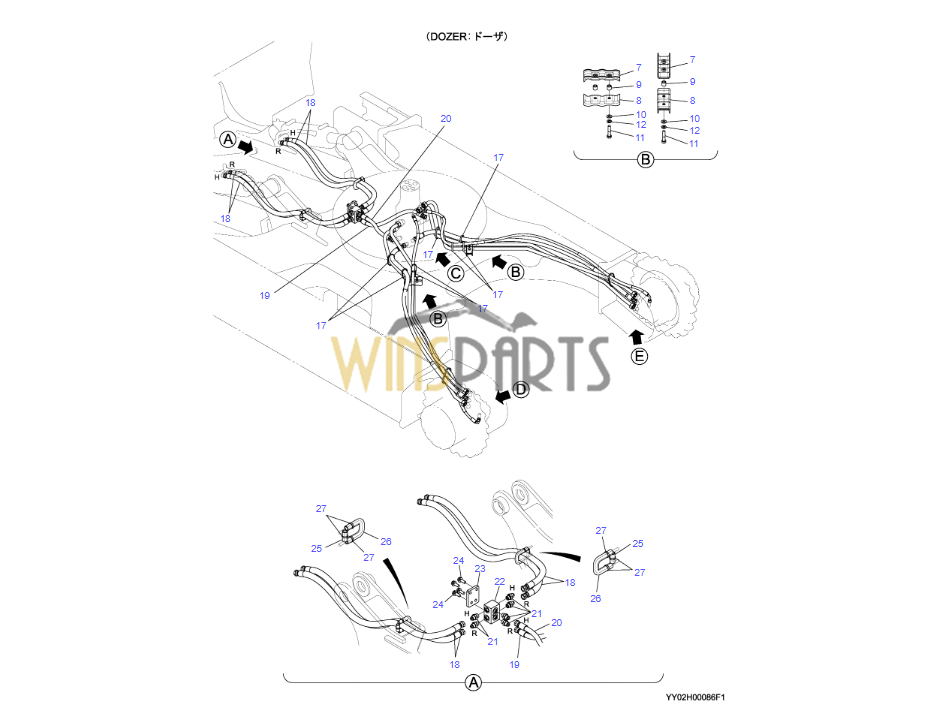

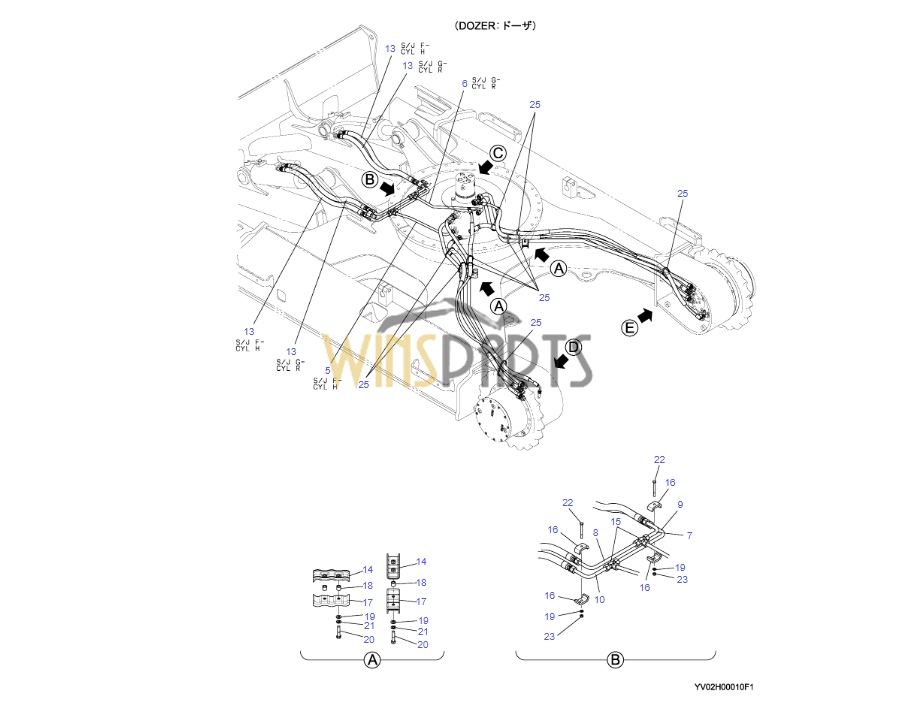

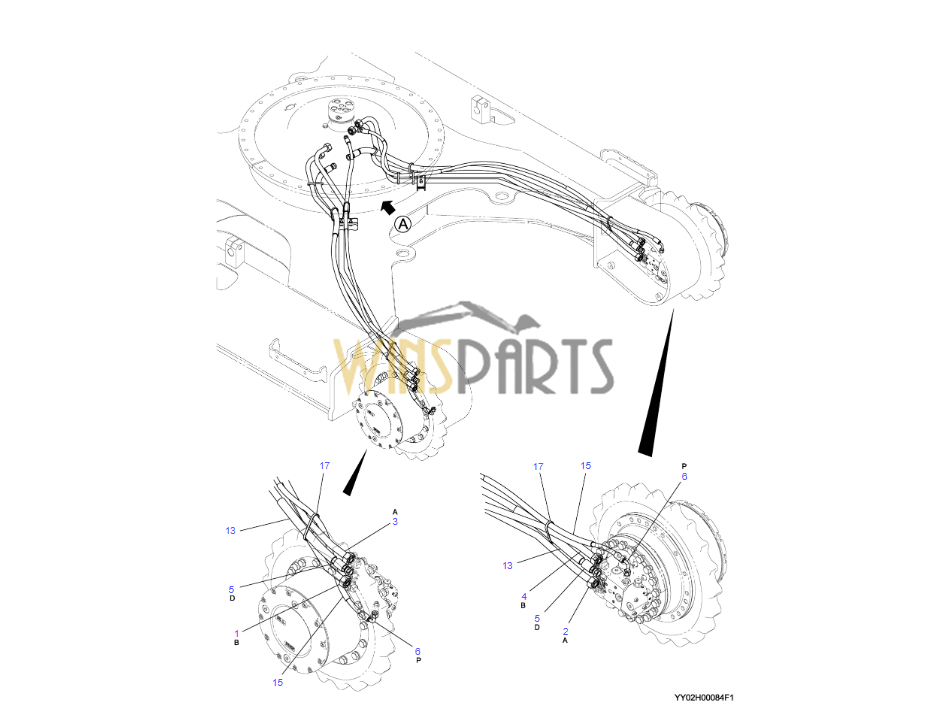

YY02H00087F1 YY02H01266P1 TUBE HYD LINES LOW KOBELCO SK130LC-11 SK140LC-11 SK125SR-5 SK130SR-7
1 YY02H01266P1 TUBE 1
2 YY02H01267P1 TUBE 1
3 YY02H01279P1 TUBE 1
4 YY02H01280P1 TUBE 1
5 YY02H01243P1 TUBE 1 LP10030001–30482
5 YY02H01478P1 TUBE 1 LP10030483-
6 YY02H01244P1 TUBE 1 LP10030001–30482
6 YY02H01484P1 TUBE 1 LP10030483-
7 YY02H01277P1 TUBE 1 LP10030001–30482
7 YY02H01480P1 TUBE 1 LP10030483-
8 YY02H01278P1 TUBE 1 LP10030001–30482
8 YY02H01485P1 TUBE 1 LP10030483-
12 ZX22M08180 HOSE 2
13 ZX33M04210 HOSE ASSY 2
14 YN02H01511D1 HOSE 2
15 YN02H01511D2 HOSE 2
16 2420Z1224D9 HOSE 4
17 ZA23B22000 CONNECTOR 4
21 LP02H01074P1 CLAMP 2
22 LP02H01075P1 CLAMP 2
23 YW02H01074P1 SPACER 4
25 ZS18C08040 CAPSCREW 4
26 ZW16P08000 WASHER 4
27 ZW26X08000 LOCK WASHER 4
28 PY01P01043D8 CLIP 10
.
1 YY02H01262P1 TUBE 1 YY09045001–46361
1 YY02H01474P1 TUBE 1 YY09046362-
2 YY02H01263P1 TUBE 1 YY09045001–46361
2 YY02H01482P1 TUBE 1 YY09046362-
3 YY02H01264P1 TUBE 1 YY09045001–46361
3 YY02H01476P1 TUBE 1 YY09046362-
4 YY02H01265P1 TUBE 1 YY09045001–46361
4 YY02H01483P1 TUBE 1 YY09046362-
5 ZX22M08170 HOSE 2
6 ZX33M04200 HOSE ASSY 2
7 LP02H01075P1 CLAMP 2
8 LP02H01074P1 CLAMP 2
9 YW02H01074P1 SPACER 4
10 ZW16P08000 WASHER 4
11 ZS18C08040 CAPSCREW 4
12 ZW26X08000 LOCK WASHER 4
13 YN02H01511D1 HOSE 2
14 YN02H01511D2 HOSE 2
15 2420Z1224D9 HOSE 4
17 PY01P01043D8 CLIP 10
.
1 YY02H01262P1 TUBE 1
2 YY02H01263P1 TUBE 1
3 YY02H01264P1 TUBE 1
4 YY02H01265P1 TUBE 1
5 ZX22M08170 HOSE 2
6 ZX33M04200 HOSE ASSY 2
7 LP02H01074P1 CLAMP 2
8 LP02H01075P1 CLAMP 2
9 YW02H01074P1 SPACER 4
10 ZW16P08000 WASHER 4
11 ZS18C08040 CAPSCREW 4
12 ZW26X08000 LOCK WASHER 4
13 PY01P01043D8 CLIP 10
14 2420Z1224D9 HOSE 4
15 YN02H01511D1 HOSE 2
16 YN02H01511D2 HOSE 2
1 YY02H01225P1 TUBE 1 YY09045002–46361
1 YY02H01486P1 TUBE 1 YY09046362-
2 YY02H01226P1 TUBE 1 YY09045002–46361
2 YY02H01487P1 TUBE 1 YY09046362-
3 YY02H01227P1 TUBE 1 YY09045002–46361
3 YY02H01488P1 TUBE 1 YY09046362-
4 YY02H01228P1 TUBE 1 YY09045002–46361
4 YY02H01489P1 TUBE 1 YY09046362-
5 ZX22M08170 HOSE 2
6 ZX33M04200 HOSE ASSY 2
7 LP02H01075P1 CLAMP 2
8 LP02H01074P1 CLAMP 2
9 YW02H01074P1 SPACER 4
10 ZW16P08000 WASHER 4
11 ZS18C08040 CAPSCREW 4
12 ZW26X08000 LOCK WASHER 4
13 YN02H01511D1 HOSE 2
14 YN02H01511D2 HOSE 2
15 2420Z1224D9 HOSE 4
17 PY01P01043D8 CLIP 10
18 YY02H01434D1 HOSE 4
19 ZX25M08056 HOSE 1
20 ZX25M08052 HOSE ASSY 1
21 ZH22X08000 CONNECTOR 6
22 YY02H01435P1 BLOCK 1
23 YY02H01436P1 PLATE 1
24 ZM73C12035 SEMS-BOLT 4
25 HX80X13004DX TUBE 2 YY09045034-
26 HX80X13018DX TUBE 2 YY09045034-
27 PY01P01043D1 CLIP 6 YY09045034-

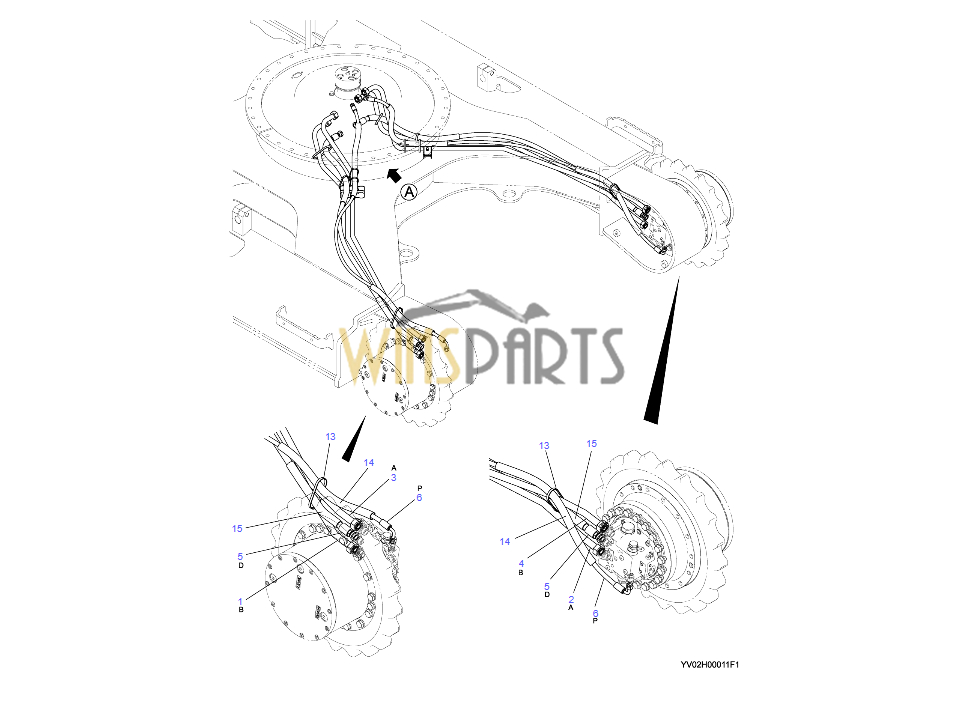

YY12H00011F1 HYD LINES, PROPEL Not Service
.
1 ZA23F22012 CONNECTOR 4
2 ZH22X08000 CONNECTOR 2
3 HH25X04004G5 CONNECTOR 2
4 ZD12P02400 O-RING
.
1 YY02H01225P1 TUBE 1
2 YY02H01226P1 TUBE 1
3 YY02H01227P1 TUBE 1
4 YY02H01228P1 TUBE 1
5 YY02H01218P1 TUBE 1
6 YY02H01219P1 TUBE 1
7 YY02H01231P1 TUBE 1
8 YY02H01232P1 TUBE 1
9 YY02H01233P1 TUBE 1
10 YY02H01234P1 TUBE 1
11 ZX22M08170 HOSE 2
12 ZX33M04200 HOSE ASSY 2
13 ZX56N08084 HOSE ASSY 4
14 LP02H01075P1 CLAMP 2
15 ZA53B15000 TEE 2
16 YY02H01237P1 CLAMP 4
17 LP02H01074P1 CLAMP 2
18 YW02H01074P1 SPACER 4
19 ZW16P08000 WASHER 6
20 ZS18C08040 CAPSCREW 4
21 ZW26X08000 LOCK WASHER 4
22 ZS18C08080 CAPSCREW 2
23 ZN18C08007 NUT 2
24 YN02H01511D1 HOSE 2
25 PY01P01043D8 CLIP 10
26 2420Z1224D9 HOSE 4
27 YN02H01511D2 HOSE 2

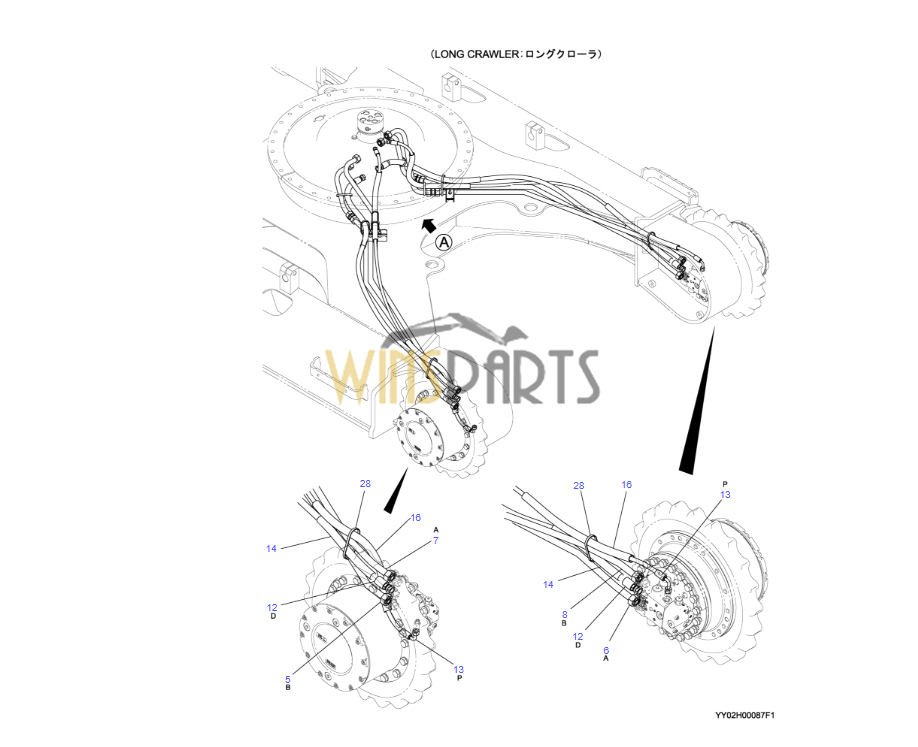

YY02H00087F1 HYD LINES, LOW Not Service
(LONG CRAWLER)
1 YY02H01266P1 TUBE 1
2 YY02H01267P1 TUBE 1
3 YY02H01279P1 TUBE 1
4 YY02H01280P1 TUBE 1
5 YY02H01243P1 TUBE 1 YY09045001–46361
5 YY02H01478P1 TUBE 1 YY09046362-
6 YY02H01244P1 TUBE 1 YY09045001–46361
6 YY02H01484P1 TUBE 1 YY09046362-
7 YY02H01277P1 TUBE 1 YY09045001–46361
7 YY02H01480P1 TUBE 1 YY09046362-
8 YY02H01278P1 TUBE 1 YY09045001–46361
8 YY02H01485P1 TUBE 1 YY09046362-
12 ZX22M08180 HOSE 2
13 ZX33M04210 HOSE ASSY 2
14 YN02H01511D1 HOSE 2
15 YN02H01511D2 HOSE 2
16 2420Z1224D9 HOSE 4
17 ZA23B22000 CONNECTOR 4
21 LP02H01074P1 CLAMP 2
22 LP02H01075P1 CLAMP 2
23 YW02H01074P1 SPACER 4
25 ZS18C08040 CAPSCREW 4
26 ZW16P08000 WASHER 4
27 ZW26X08000 LOCK WASHER 4
28 PY01P01043D8 CLIP 10
.
1 2444Z2320 CONNECTOR 4
2 ZD12P02900 O-RING 4
4 ZH22X04000 CONNECTOR 2
5 ZH22X08000 CONNECTOR 2
YY12H00011F1 HYD LINES, PROPEL Not Service
.
1 ZA23F22012 CONNECTOR 4
2 ZH22X08000 CONNECTOR 2
3 HH25X04004G5 CONNECTOR 2
4 ZD12P02400 O-RING 4

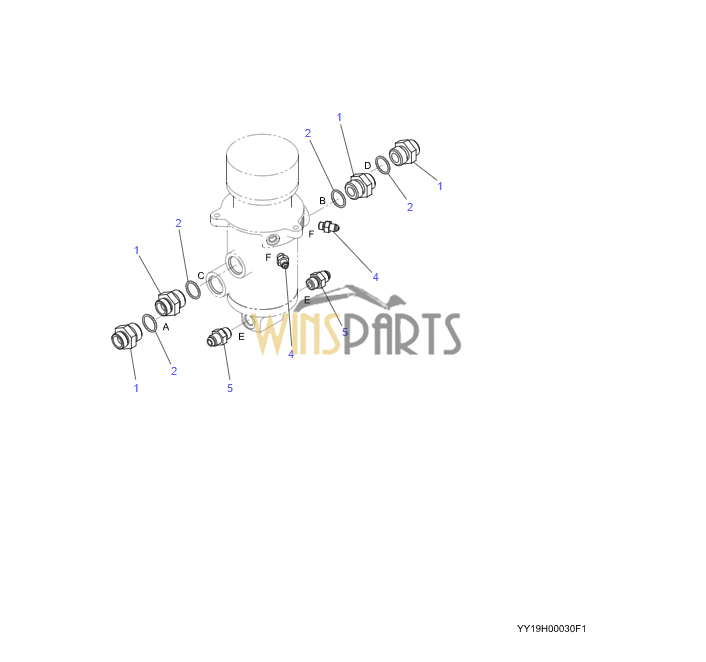

YY19H00052F1 HYD LINES, SWIVEL
1 2444Z2320 CONNECTOR 4
2 YR03H01121P1 CONNECTOR 1
3 HH25R08008GB CONNECTOR 1
4 ZH22X08000 CONNECTOR 2
5 ZH22X04000 CONNECTOR 2
6 ZH32X08000 ELBOW 2
7 ZD12P02900 O-RING 4
.

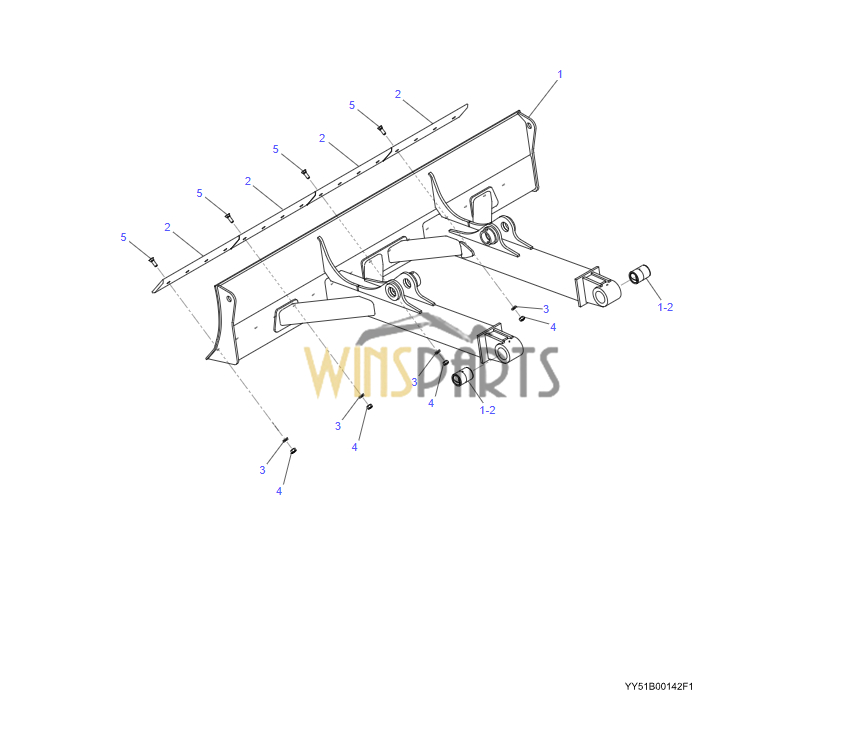

1 YY51B00143F1 DOZER ASSY 1
1-2 YY51B01183P1 BUSHING 2
2 YY69B01004P1 EDGE, CUTTING 4
3 ZW13H16000 WASHER 16
4 2420P1481D1 NUT 16
5 2420P1480D1 BOLT 16
YY51B00136F1 DOZER ASSY Not Service
YY51B00136F2 DOZER ASSY Not Service
. (DOZER WIDTH 2590mm)
.
2 YY51B00137F2 DOZER ASSY 1
2-2 YY51B01183P1 BUSHING 2
1 YY51B00137F1 DOZER ASSY 1
1-2 YY51B01183P1 BUSHING 2
YY51B00096F1 DOZER ASSY Not Service
. (500mm SHOE)
.
1 YY51B00089F1 DOZER ASSY 1
1-2 YY51B01183P1 BUSHING 2
YY51B00133F1 DOZER GROUP Not Service
.
1 YY51B01289P1 COVER 1
2 YY51B01290P1 COVER 1
3 ZM73C10020 SEMS-BOLT 8
4 ZG91V02000 NIPPLE, GREASE 2
5 ZG91S02000 NIPPLE, GREASE 4
YY51B00134F1 DOZER INSTAL Not Service
.
1 YY51B01286P1 PIN ASSY 2
2 ZS18C14020 CAPSCREW 2
3 ZW16H14000 WASHER 2
4 YT51B01183P1 WASHER 2
5 2445R138D3 SEAL, DUST 4
6 B16T0442D27 SHIM (1.2) 2
7 B16T0442D19 SHIM (1.6) 2
8 B16T0442D20 SHIM (2.3) 2
YY51B00135F1 CYLINDER INSTAL Not Service
. (DOZER)
.
1 YY51B01291P1 PIN 4
2 ZS18C12120 CAPSCREW 4 YY09045001–45713
2 HS18C12115G2 CAPSCREW 4 YY09045714-
3 ZN18C12010 NUT 8
4 B16T0442D27 SHIM (1.2) 2
5 B16T0442D19 SHIM (1.6) 2
6 B16T0442D20 SHIM (2.3) 2
HC628-00_YY01V00100F1_EUR_D0003623156_1 7 YY01V00100F1 CYLINDER, DOZER 1 HC 628-00
HC628-00_YY01V00101F1_EUR_D0003623157_1 8 YY01V00101F1 CYLINDER, DOZER 1 HC 628-00
