YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

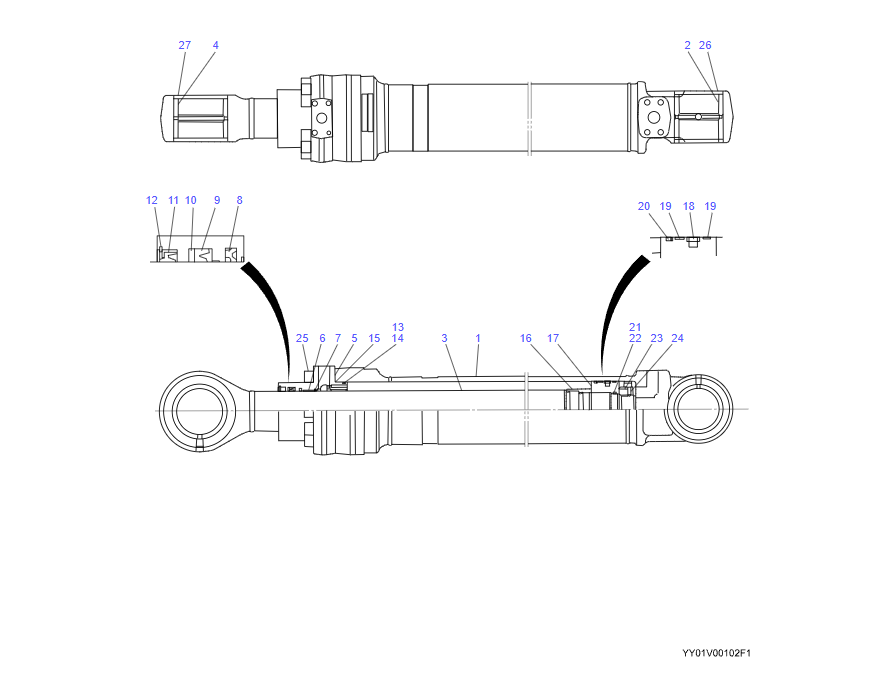

YY01V00102F1 BOOM CYLINDER ASSY KOBELCO SK130LC-11 SK140LC-11 SK125SR-5
.
1 NO P/No TUBE ASSY 1 R4
2 YY12B01449P2 BUSHING 1 R4
3 NO P/No ROD, PISTON 1 R5
4 YY01V01024P1 BUSHING 1 R5
5 YY01V00102S005 COVER, ROD 1
6 YY01V00102S006 BUSHING 1
7 YY01V00053S007 RING, RETAINING 1
8 YY01V00053S008 SEAL 1 R1, R3
9 YY01V00053S009 SEAL 1 R1, R3
10 YY01V00102S010 RING, BACK UP 1 R1, R3
11 YY01V00102S011 SEAL, DUST 1 R1, R3
12 YY01V00054S007 RING, RETAINING 1 R1, R3
13 ZD12G09500 O-RING 1 R1, R3
14 YY01V00053S013 RING, BACK UP 1 R1, R3
15 ZD12G10000 O-RING 1 R1, R3
16 YY01V00053S015 RING 1
17 YY01V00053S034 PISTON 1
18 YY01V00053S033 SEAL, PISTON 1 R2, R3
19 YY01V00053S018 RING, WEAR 2 R2, R3
20 YY01V00053S019 RING 1 R2, R3
21 YY01V00053S020 O-RING 1 R2, R3
22 YY01V00053S021 RING, BACK UP 2 R2, R3
23 YY01V00053S036 NUT 1
24 YY01V00054S046 SETSCREW 1
25 YY01V00053S024 CAPSCREW 10
26 YY01V00053S025 SEAL 2 R4
27 YY01V00053S026 SEAL 2 R5
.
YY01V00102R100 SEAL KIT, CYL ROD 1 RK1
. (8, 9, 10, 11, 12, 13, 14, 15)X1
.
YY01V00053R820 SEAL KIT 1 RK2
. (18, 20, 21)X1
. (19, 22)X2
.
YY01V00102R300 SEAL KIT, CYL 1 RK3
. (8, 9, 10, 11, 12, 13, 14, 15, 18, 20, 21)X1
. (19, 22)X2
.
YY01V00087R410 TUBE KIT, CYL 1 RK4
. (1, 2)X1
. (26)X2
.
YY01V00053R500 ROD KIT 1 RK5
. (3, 4)X1
. (27)X2
1 LP02B00064F1 CYLINDER INSTAL 1 P.655-01
2 YY01V00102F1 CYLINDER, BOOM 2 HC 655-00

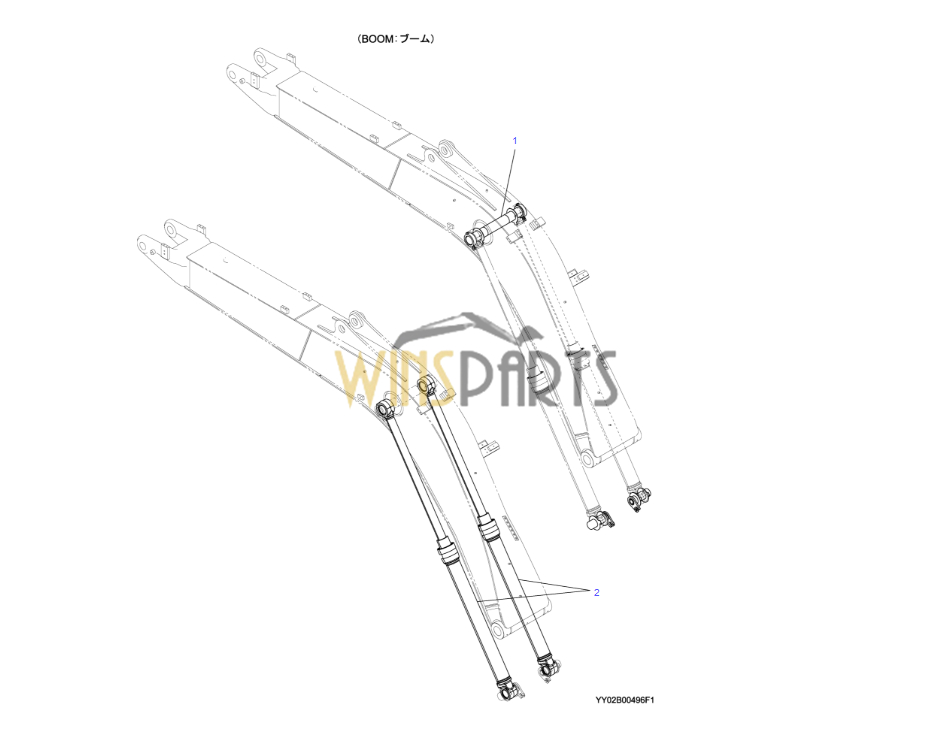

YY02B00496F1 CYLINDER INSTAL Not Service
. (BOOM)
.
1 YY02B00433F1 CYLINDER INSTAL 1 P.655-01
2 YY01V00102F1 CYLINDER, BOOM 2 HC 655-00
.
1 YY02B01177P2 PIN 1
2 LP02B01113P1 PIN 2
3 LP02B01054P1 COLLAR 2
4 HS18C14135G2 CAPSCREW 2
5 ZS18C10020 CAPSCREW 2
6 2418T21137 WASHER 2
7 ZW16H10000 WASHER 2
8 ZN18C14011 NUT 4
9 LP02B01060D1 SHIM (0.5) 1
10 LP02B01060D2 SHIM (0.9) 1
11 LP02B01060D4 SHIM (1.6) 1
12 YN12B01601D1 SHIM (2.0) 2
13 B16T0442D57 SHIM (0.5) 1
14 B16T0442D44 SHIM (0.9) 1
15 B16T0442D2 SHIM (1.6) 1
16 YN12B01602D1 SHIM (2.0) 4

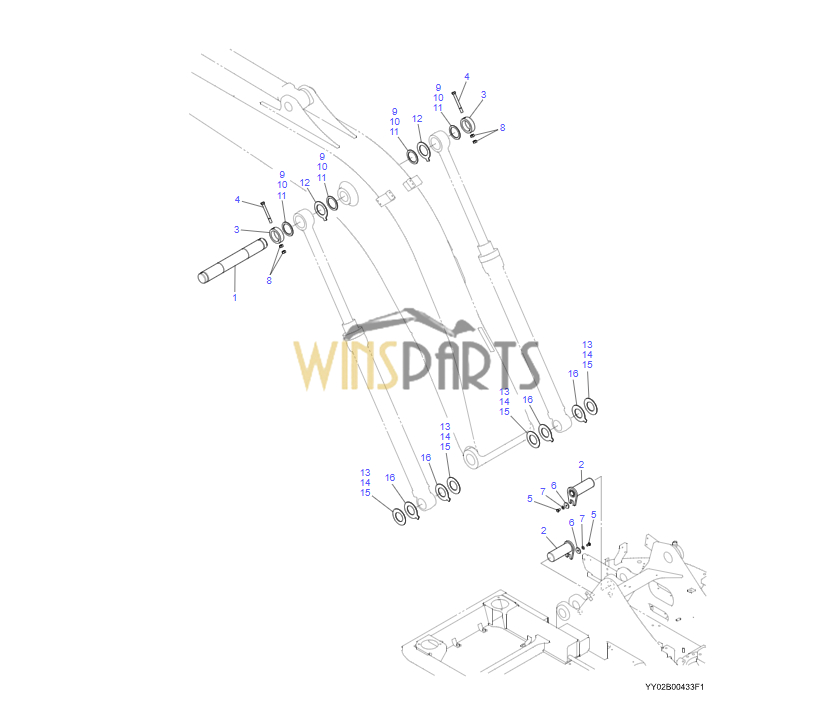

YY02B00433F1 CYLINDER INSTAL Not Service
.
1 YY02B01984P1 PIN 1
2 YY02B01174P2 PIN 2
3 YY02B01985P1 COLLAR 2
4 HS18C16150G2 CAPSCREW 2
5 ZS18C10020 CAPSCREW 2
6 2418T21137 WASHER 2
7 ZW16H10000 WASHER 2
8 ZN18C16013 NUT 4
9 LP02B01060D1 SHIM (0.5) 1
10 LP02B01060D2 SHIM (0.9) 1
11 LP02B01060D4 SHIM (1.6) 1
12 YY02B01101D1 SHIM (2.0) 2
13 B16T0442D2 SHIM (1.6) 1
14 B16T0442D44 SHIM (0.9) 1
15 B16T0442D57 SHIM (0.5) 1
16 YN12B01602D1 SHIM (2.0) 4
LP42H00094F1 HYD LINES, BOOM 4.68M Not Service
. (NIBBLER & BREAKER)
.

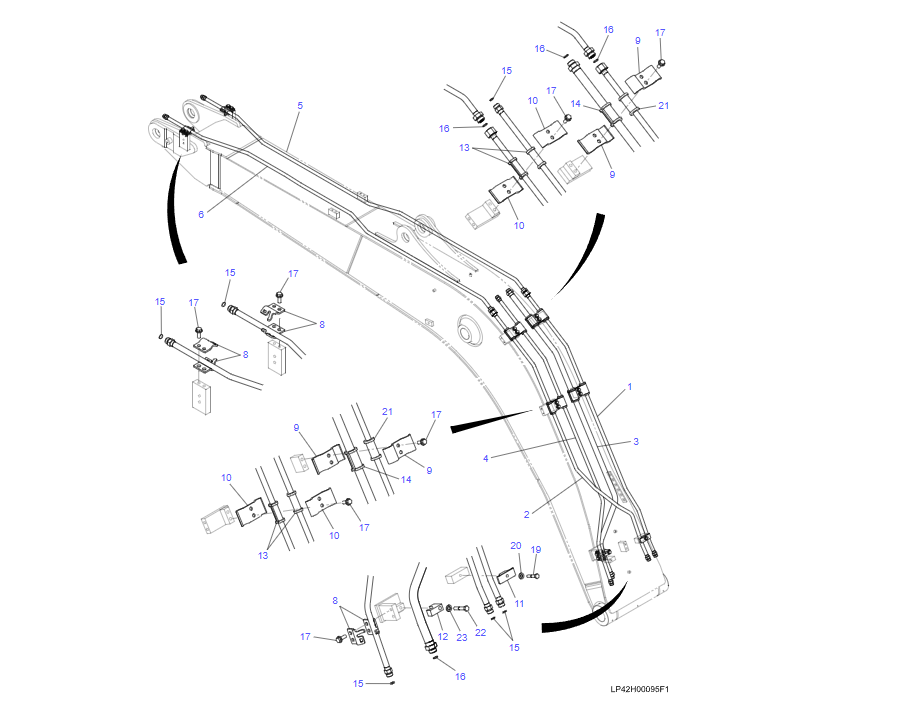

665-01_LP42H00095F1_NA_X_D0003591541_1 1 LP42H00095F1 HYD LINES, BOOM 1 P.665-01
665-02_LP42H00096F1_NA_D0003591542_1 2 LP42H00096F1 HYD LINES, BOOM 1 P.665-02
.
1 LP42H01319P1 TUBE 1
2 LP42H01320P1 TUBE 1
3 LP42H01368P1 TUBE 1
4 LP42H01365P1 TUBE 1
5 LP42H01323P1 TUBE 1
6 LP42H01371P1 TUBE 1
8 YY42H01475P1 CLAMP 6
9 YN42H02348P1 CLAMP 4
10 YN42H02349P1 CLAMP 4
11 LE03H01234P1 CLAMP 1
12 2432T2417 CLAMP 1
13 YY42H01473P1 BUSHING 4
14 YN43H01524P1 BUSHING 2
15 ZD12A01600 O-RING 6
16 ZD12A01800 O-RING 4
17 ZM73C12035 SEMS-BOLT 14
19 ZS18C10055 CAPSCREW 1
20 ZW16H10000 WASHER 1
21 LP42H01370P1 BUSHING 2
22 ZS18C12070 CAPSCREW 1
23 ZW16H12000 WASHER 1
LP42H00143F1 HYD LINES, BOOM Not Service
.
1 LP42H01319P1 TUBE 1
2 LP42H01320P1 TUBE 1
3 LP42H01429P1 TUBE 1
4 LP42H01430P1 TUBE 1
5 LP42H01323P1 TUBE 1
6 LP42H01371P1 TUBE 1
7 YY42H01475P1 CLAMP 6
8 YN42H02348P1 CLAMP 4
9 YN42H02349P1 CLAMP 4
10 LE03H01234P1 CLAMP 1
11 2432T2417 CLAMP 1
12 YY42H01473P1 BUSHING 4
13 YN43H01524P1 BUSHING 2
14 LP42H01370P1 BUSHING 2
15 ZD12A01600 O-RING 6
16 ZD12A01800 O-RING 4
17 ZM73C12035 SEMS-BOLT 14
18 ZS18C10055 CAPSCREW 1
19 ZS18C12070 CAPSCREW 1
20 ZW16H10000 WASHER 1
21 ZW16H12000 WASHER 1
LP42H00160F1 HYD LINES, BOOM Not Service
.
1 LP42H01319P1 TUBE 1
2 LP42H01320P1 TUBE 1
3 LP42H01442P1 TUBE 1
4 LP42H01430P1 TUBE 1
5 LP42H01323P1 TUBE 1
6 LP42H01371P1 TUBE 1
7 YY42H01475P1 CLAMP 6
8 YY42H01477P1 CLAMP 4
9 YN42H02349P1 CLAMP 4
10 LE03H01234P1 CLAMP 1
11 YN43H01097P1 CLAMP 1
12 YY42H01473P1 BUSHING 6
13 YN42H02319P1 BUSHING 2
14 ZD12A01600 O-RING 6
15 ZD12A01800 O-RING 4
16 ZM73C12035 SEMS-BOLT 14
17 ZS18C10055 CAPSCREW 1
18 ZS18C12055 CAPSCREW 1
19 ZW16H10000 WASHER 1
20 ZW16H12000 WASHER 1
LP42H00096F1 HYD LINES, BOOM Not Service
.
1 LP42H01325P1 TUBE 1
2 LP42H01369P1 TUBE 1
3 LP42H01274P1 BRACKET 1
4 YY42H02669P1 BRACKET 1
5 YY42H02670P1 BRACKET 1
6 YN42H02582P1 PLUG 2
7 YN42H02355P1 CLAMP 6
8 YN42H02357P1 CLAMP 4
9 YN42H02349P1 CLAMP 2
10 YY42H01477P1 CLAMP 2
11 YN43H01803P1 CLAMP 1
12 YN43H01097P1 CLAMP 1
13 YY42H01473P1 BUSHING 2
14 ZD12A01600 O-RING 1
15 ZD12A01800 O-RING 2
16 ZD12A02100 O-RING 1
17 ZM73C12035 SEMS-BOLT 18
19 ZM73C12045 SEMS-BOLT 2
20 ZS18C12055 CAPSCREW 1
21 ZS18C12060 CAPSCREW 2
22 ZW16H12000 WASHER 3
23 YN64H01393D1 CAP 2
LP42H00106F1 HYD LINES, BOOM 4.68M Not Service
. (ROTARY)
.
665-01_LP42H00099F1_EUR_D0003894276_1 1 LP42H00099F1 HYD LINES, BOOM 1 P.665-01
665-02_LP42H00107F1_NA_D0005524000_1 2 LP42H00107F1 HYD LINES, BOOM 1 P.665-02
LP42H00099F1 HYD LINES, BOOM Not Service
.
1 LP42H01327P1 TUBE 1
2 LP42H01328P1 TUBE 1
3 YY42H02665P1 TUBE 1
4 YY42H02849P1 TUBE 1
5 ZC27M18009 CLAMP 2
6 YY42H01480P1 CLAMP 2
7 YY42H01481P1 CLAMP 2
8 ZA28B18000 CONNECTOR 2
9 ZM73C12040 SEMS-BOLT 4
10 LP42H01286P1 BRACKET 1
11 ZS18C08050 CAPSCREW 2
12 ZW16H08000 WASHER 2
LP42H00107F1 HYD LINES, BOOM Not Service
.
1 LP42H01331P1 TUBE 1
2 YY42H02854P1 TUBE 1
3 YF42H01363P1 BRACKET 2
4 YF42H01366P1 BRACKET 2
5 YY42H01480P1 CLAMP 2
6 YY42H01481P1 CLAMP 2
7 YY42H02675P1 CLAMP 3
8 ZC26M18011 CLAMP 3
9 ZA28B18000 CONNECTOR 1
10 2444Z3251 CONNECTOR 1
11 ZM73C10045 SEMS-BOLT 6
12 ZM73C12040 SEMS-BOLT 2
13 ZS18C12055 CAPSCREW 8
14 ZW16H12000 WASHER 8
YY42H00662F1 HYD LINES, CYLINDER Not Service
. (BOOM)
.
675-01_YY42H00646F1_NA_D0003591685_1 1 YY42H00646F1 HYD LINES, CYLINDER 1 P.675-01
675-02_YY42H00443F1_KCM-EUR_D0003591693_1 2 YY42H00443F1 HYD LINES, CYLINDER 1 P.675-02
676-03_YY42H00131F1_KOR_D0003591702_1 3 YY42H00131F1 HYD LINES, CYLINDER 1 P.676-03
