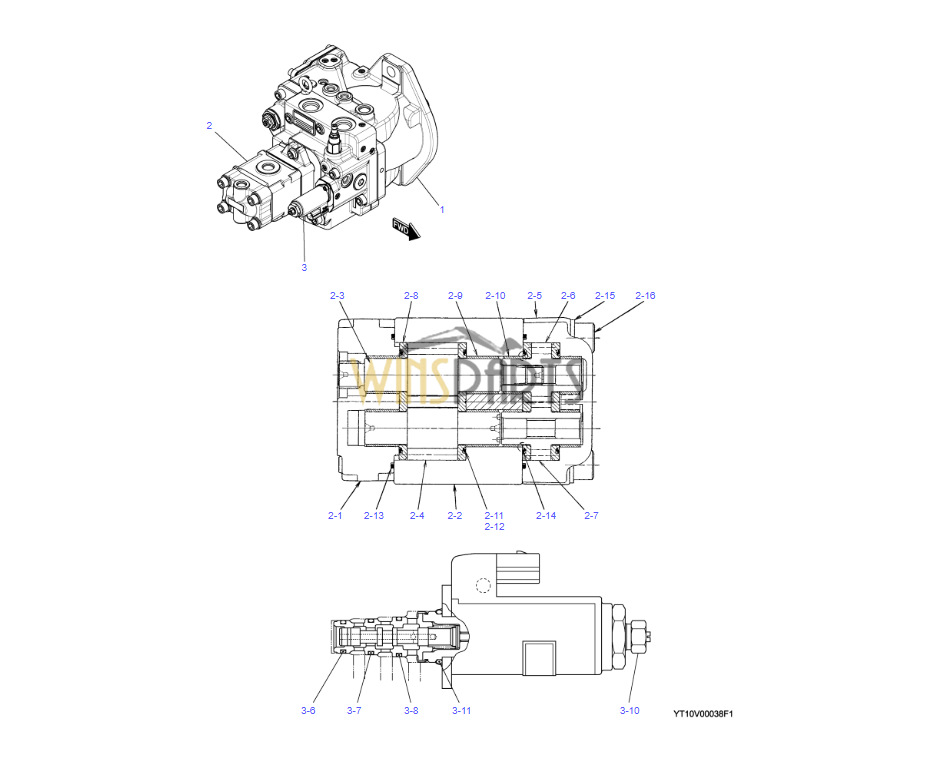

YT10V00038F1 YT10V00041F1 HYD PUMP ASSY KOBELCO SK75SR-7 SK75SR-3E SK75UR-5 SK75UR-3
.
1 YT10V00041F1 PUMP, HYD 1
1-1 YT10V00027S111 SHAFT 1
1-2 YT10V00003S114 COUPLING 1
1-3 YT10V00003S115 COLLAR 1
1-4 YA10V00014S123 BEARING, BALL 1
1-5 YA10V00014S124 BEARING, NEEDLE 1
1-6 YW10V00003S127 SPACER 2
1-7 NO P/No BLOCK 1 R2
1-8 NO P/No PISTON 10 R1
1-9 NO P/No SHOE 10 R1
1-10 YA10V00014S153 PLATE 1
1-11 YM10V00006S156 BUSHING 1
1-12 2437U213S157 SPRING 10
1-13 NO P/No PLATE 1 R3
1-14 NO P/No BUSHING 1 R3
1-15 2437U188S261 COVER 1
1-16 YT10V00027S271 CASE 1
1-17 NO P/No COVER 1 R5
1-18 YT10V00027S312 COVER 1
1-19 NO P/No PLATE 1 R2
1-20 YA10V00014S363 SEAL 1
1-21 YA10V00014S364 SPACER 1
1-22 ZS28C12070 CAPSCREW 2
1-23 ZS23C12040 CAPSCREW 3
1-24 ZS28C12110 CAPSCREW 3
1-25 ZS23C08025 CAPSCREW 8
1-26 ZS28C06020 CAPSCREW 6
1-27 LS10V00003S435 BOLT 2
1-28 ZS23C05012 CAPSCREW 2
1-29 YW30V00001S155 PLUG 3
1-30 YW30V00001S157 PLUG 3
1-31 YN30V00001S158 PLUG 1
1-32 2441U722S490 PLUG 2 R3
1-33 LV10V00006S059 PLUG 13
1-34 NO P/No PIN 1 R7
1-35 YA10V00014S532 PISTON 1
1-36 YT10V00041S535 STOPPER 1
1-37 YA10V00014S536 PLUG 1
1-38 NO P/No SEAT 2 R6
1-39 NO P/No STOPPER 2 R6
1-40 NO P/No BALL 2 R6
1-41 NO P/No PIN 1 R7
1-42 NO P/No LEVER 1 R8
1-43 NO P/No PISTON 1 R9
1-44 NO P/No CASE 1 R9
1-45 PY10V00003S624 SEAT 1
1-46 YT10V00041S626 SPRING 1
1-47 YA10V00014S627 STEM 1 R4
1-48 EE10V01001S628 SCREW 1 R4
1-49 2436U1378S630 NUT 1 R4
1-50 YA10V00014S641 COVER 1 R4
1-51 NO P/No SLEEVE 1 R10
1-52 NO P/No SPOOL 1 R10
1-53 NO P/No PIN 1 R8
1-54 NO P/No PIN 1 R8
1-55 YA10V00014S655 PISTON 1 R11
1-56 NO P/No PIN 1 R5
1-57 YA10V00014S657 CASE 1 R11
1-58 ZD12G08500 O-RING 1
1-59 ZD12P01100 O-RING 5
1-60 ZD12P01800 O-RING 3
1-61 YN35V00004S363 O-RING 1 R11
1-62 ZD12P00900 O-RING 1 R4
1-63 ZD12P00800 O-RING 11
1-64 ZD12P00700 O-RING 2
1-65 YN10V01006S022 O-RING 1
1-66 ZD12P02600 O-RING 1 R4
1-67 ZD12P02400 O-RING 1
1-68 ZD12G03500 O-RING 1 R4
1-69 ZD12P01000 O-RING 2
1-70 YT10V00027S713 O-RING 1
1-71 YA10V00014S751 PACKING 1
1-72 YA10V00014S752 PACKING 1
1-73 YX10V00003S020 OIL SEAL 1
1-74 ZD85P00700 RING, BACK-UP 2
1-75 ZD85P02600 RING, BACK-UP 1
1-76 YY10V01001S802 NUT 1 R4
1-77 ZR16X03500 RING, SNAP 2
1-78 ZP26D06014 PIN, SPRING 1
1-79 ZS91C01000 BOLT, EYE 1
1-80 YT10V00041S981 NAME PLATE 1
1-81 2437U407S983 RIVET 2
1-82 NO P/No VALVE, RELIEF 1 YT09-40001–40251
. YT09045001–49434
1-82 YT22V00021F2 VALVE, RELIEF 1 YT09049435-
1-82a NO P/No O-RING 1 R12
1-82b NO P/No O-RING 1 R12
1-82c NO P/No RING, BACK-UP 1 R12
1-82d NO P/No SLIP RING 1 R12
2 YT10V00031F1 PUMP ASSY, GEAR 1
2-1 NO P/No COVER, FR. 1
2-2 NO P/No BODY 1
2-3 NO P/No GEAR 1
2-4 NO P/No GEAR 1
2-5 NO P/No BODY 1
2-6 NO P/No GEAR 1
2-7 NO P/No GEAR 1
2-8 NO P/No PLATE, SIDE 4
2-9 NO P/No BUSHING 4
2-10 NO P/No BUSHING 4
2-11 NO P/No GASKET 4 R13
2-12 NO P/No RING, BACK-UP 4 R13
2-13 NO P/No GASKET 2 R13
2-14 NO P/No BALL 2
2-15 NO P/No WASHER 4
2-16 NO P/No BOLT 4
3 YT35V00032F2 VALVE, SOLENOID 1
3-6 YN35V00004S361 O-RING 1
3-7 YN35V00004S362 O-RING 1
3-8 YN35V00004S363 O-RING 1
3-10 YN35V00018S802 NUT 1
3-11 ZD12P02000 O-RING 1
.
YA10V00014R100 REPAIR KIT 1 RK1
. (1-8, 1-9)X10
.
YA10V00014R110 REPAIR KIT 1 RK2
. (1-7, 1-19)X1
.
YA10V00014R120 REPAIR KIT 1 RK3
. (1-13, 1-14)X1
. (1-32)X2
.
YA10V00014R130 REPAIR KIT 1 RK4
. (1-47, 1-48, 1-49, 1-50, 1-62, 1-66, 1-68, 1-76)X1
.
YA10V00014R140 REPAIR KIT 1 RK5
. (1-17, 1-56)X1
.
2437U219S41 REPAIR KIT 1 RK6
. (1-38, 1-39, 1-40)X2
.
YA10V00014R150 REPAIR KIT 1 RK7
. (1-34, 1-41)X1
.
YA10V00014R160 REPAIR KIT 1 RK8
. (1-42, 1-53, 1-54)X1
.
YT10V00027R170 REPAIR KIT 1 RK9
. (1-43, 1-44)X1
.
YA10V00014R180 REPAIR KIT 1 RK10
. (1-51, 1-52)X1
.
YA10V00014R190 REPAIR KIT 1 RK11
. (1-55, 1-57, 1-61)X1
.
YR22V00001R100 SEAL KIT 1 RK12 YT09049435-
. (1-82a, 1-82b, 1-82c, 1-82d)X1
.
YT10V00031R100 REPAIR KIT 1 RK13
. (2-13)X2
. (2-11, 2-12)X4
.

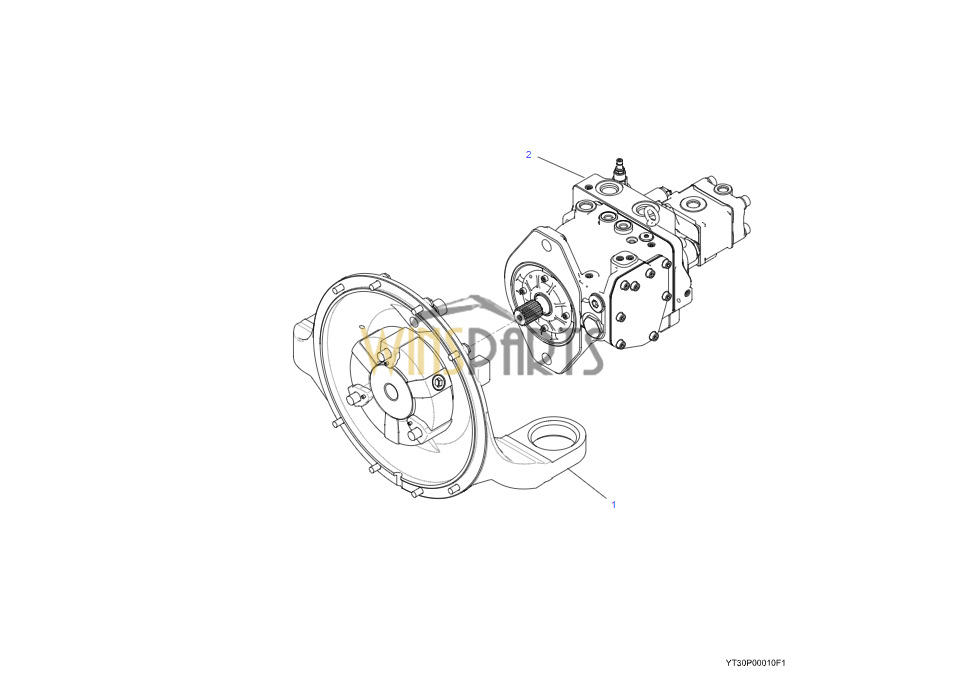

085-01_YT30P00011F1_KCM-EUR_D0002504925_1 1 YT30P00011F1 POWER TAKE-OFF ASSY 1 P.085-01
HC085-00_YT10V00038F1_KCM-EUR-02_D0002604241_1 2 YT10V00038F1 PUMP ASSY, HYD 1 HC 085-00

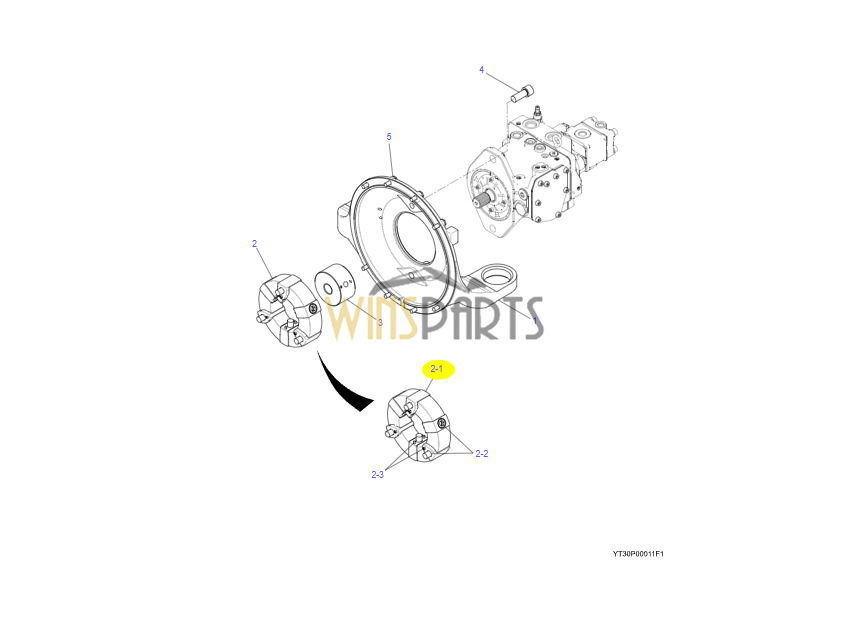

YT30P00011F1 POWER TAKE-OFF ASSY Not Service
.
1 YT30P01023P1 BRACKET 1
2 LF30P01001F1 COUPLING ASSY 1
2-1 LF30P01001S001 COUPLING 1
2-2 2418U128S5 CAPSCREW 6
2-3 ZP26D05010 SPRING PIN 9
3 YT30P01009P1 HUB 1
4 ZS28C18045 CAPSCREW 2
5 ZS18C10030 CAPSCREW 8
