YT10V00023F1 YT10V00016S071 YT10V00016R300 HYDRAULIC PUMP KOBELCO SK75-8

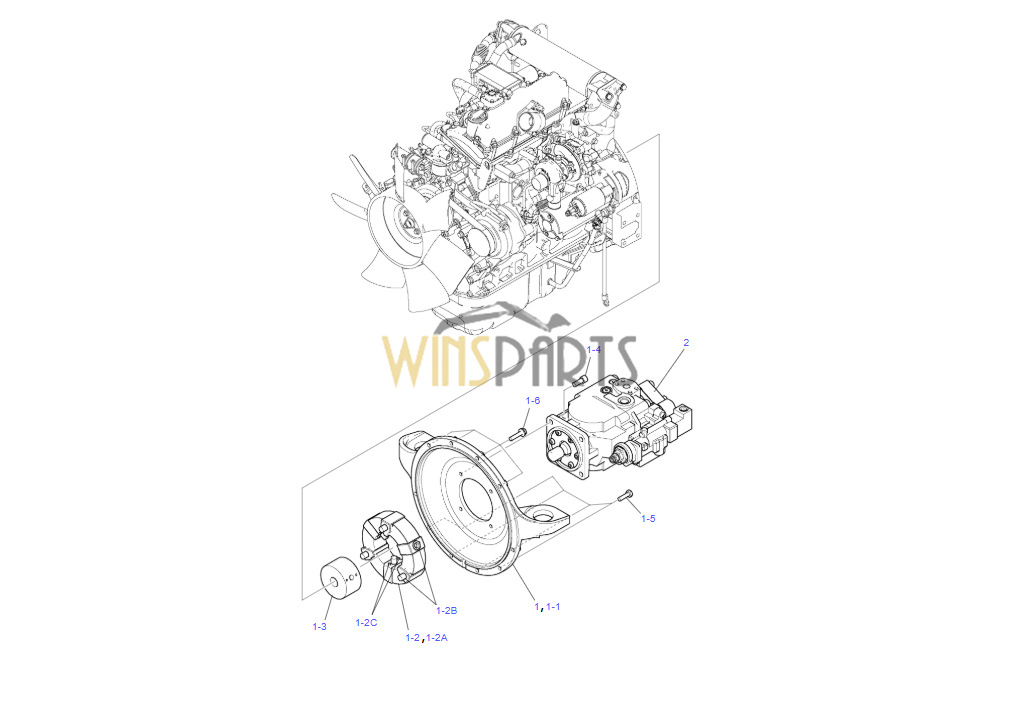

YT30P00004F1 POWER TAKE-OFF ASSY KOBELCO SK75-8 SK75UR-5 SK80MSR-2 SK80CS-2
　 .
　 1 YT30P00003F1 POWER TAKE-OFF ASSY 1
　 1-1 YT30P01007P1 BRACKET 1
　 1-2 LF30P01001F1 COUPLING ASSY 1
　 1-2A LF30P01001S001 COUPLING 1
　 1-2B 2418U128S5 CAPSCREW 6
　 1-2C ZP26D05010 SPRING PIN 9
　 1-3 YT30P01009P1 HUB 1
　 1-4 ZS28C12030 CAPSCREW 4
　 1-5 ZS18C10035 CAPSCREW 4
　 1-6 ZM73C10045 SEMS-BOLT 4

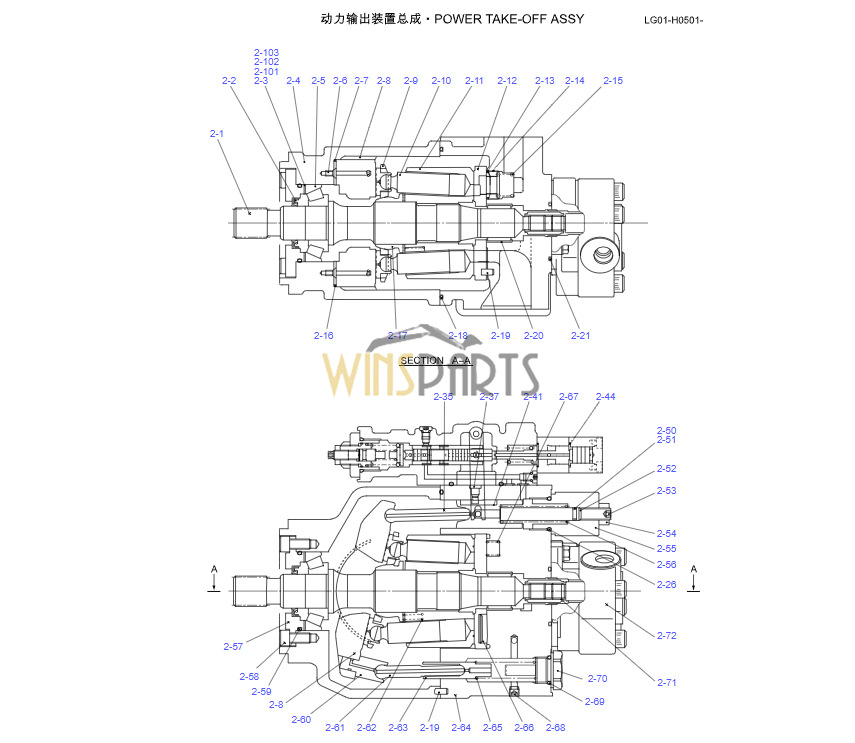

YT10V00023F1 HYDRAULIC MAIN PUMP KOBELCO SK75-8 SK70SR-2 SK75SR SK75SR-3
　 2 YT10V00023F1 PUMP ASSY, HYD 1
　 2-1 YT10V00016S001 SHAFT 1
　 2-2 YT10V00016S002 SEAL 1
　 2-3 EZ10V00001S012 SHIM 2
　 2-4 NO P/No HOUSING 1
　 2-5 2437U283S23 PUMP, HYD 1
　 2-6 YT10V00016S006 SCREW 2
　 2-7 YT10V00016S007 PLATE 1
　 2-8 NO P/No PLATE 1
　 2-9 YT10V00016S009 PLATE 1
　 2-10 NO P/No PISTON 9
　 2-11 NO P/No BLOCK 1
　 2-12 YT10V00016S012 PLATE 1
　 2-13 YT10V00016S013 RING 1
　 2-14 YT10V00016S014 BUSHING 1
　 2-15 YT10V00016S015 SPRING 1
　 2-16 YT10V00016S016 PLATE 1
　 2-17 YT10V00016S017 RETAINER 1
　 2-18 LQ15V00015S012 O-RING 1
　 2-19 2441U754S17 PIN 6
　 2-20 YT10V00016S020 BEARING, NEEDLE 1
　 2-21 ZD12G05500 O-RING 1
　 2-22 YT10V00016S022 NUT 1
　 2-23 NO P/No NUT 1
　 2-24 YT10V00016S024 O-RING 4
　 2-25 NO P/No CAP 1
　 2-26 ZD12P02900 O-RING 2
　 2-27 NO P/No SLEEVE 1
　 2-28 ZD12P02000 O-RING 1
　 2-29 NO P/No STOPPER 1
　 2-30 NO P/No SPRING 1
　 2-31 NO P/No SPRING 1
　 2-32 NO P/No GUIDE 1
　 2-33 NO P/No CAP 6
　 2-34 YT10V00016S034 O-RING 6
　 2-35 YT10V00016S035 ROD 1
　 2-36 NO P/No SLEEVE 1
　 2-37 YT10V00016S037 PIN 1
　 2-38 NO P/No CASE 1
　 2-39 NO P/No ROD 1
　 2-40 NO P/No PISTON 1
　 2-41 YT10V00016S041 PISTON 1
　 2-42 NO P/No PISTON 1
　 2-43 NO P/No SPRING 1
　 2-44 YT10V00016S044 O-RING 1
　 2-45 NO P/No COVER 1
　 2-46 NO P/No PISTON 1
　 2-47 NO P/No COVER 1
　 2-48 NO P/No PISTON 1
　 2-49 NO P/No CAPSCREW 4
　 2-50 ZD12P01000 O-RING 1
　 2-51 ZD85P01000 RING, BACK-UP 1
　 2-52 NO P/No STOPPER 1
　 2-53 YT10V00016S053 SCREW 1
　 2-54 YT10V00016S054 NUT 1
　 2-55 NO P/No CAP 1
　 2-56 YT10V00016S056 SPRING 1
　 2-57 YT10V00016S057 RETAINER 1
　 2-58 ZS23C10020 CAPSCREW 6
　 2-59 ZD12G07500 O-RING 1
　 2-60 NO P/No GUIDE 1
　 2-61 YT10V00016S061 ROD 1
　 2-62 YT10V00016S062 SPRING 6
　 2-63 YT10V00016S063 PISTON 1
　 2-64 NO P/No COVER 1
　 2-65 YT10V00016S065 SPRING 1
　 2-66 YT10V00016S066 BUSHING 2
　 2-67 YT10V00016S067 SPRING 2
　 2-68 YT30V00039S089 PLUG 2
　 2-69 ZD12P02240 O-RING 1
　 2-70 YT10V00016S070 CAP 1
YT10V00023F1 YT10V00016S071 YT10V00016R300 HYDRAULIC PUMP KOBELCO SK75-8
　 2-71 YT10V00016S071 COUPLING 1
　 2-72 YT10V00022F1 PUMP, GEAR 1
　 2-72G NO P/No GASKET 2
　 2-72H NO P/No GASKET 1
　 2-73 PR15V00003S043 CAPSCREW 1
　 2-74 YT10V00016S074 RING 1
　 2-75 NO P/No PLUG 1
　 2-76 YT10V00016S076 O-RING 3
　 2-77 YT10V00016S077 LINK 1
　 2-78 NO P/No PIN 1
　 2-79 NO P/No O-RING 1
　 2-80 ZS23C16090 CAPSCREW 3
　 2-81 YT10V00016S081 BOLT 2
　 2-82 YT10V00016S082 WASHER 2
　 2-83 YT10V00016S083 CAPSCREW 1
　 2-84 2436U1309S41 CAP 2
　 2-101 EZ10V00001S013 SHIM 2
　 2-102 YT10V00023S102 SHIM 2
　 2-103 YT10V00023S103 SHIM 2
　 .
　 YT10V00022R100 REPAIR KIT 1
　 . (2-72H)X1
　 . (2-72G)X2
　 .
　 YT10V00023R100 REPAIR KIT 1
　 . (2-22, 2-23, 2-25, 2-27, 2-28, 2-29,
　 . 2-30, 2-31, 2-32, 2-36, 2-38, 2-39,
　 . 2-40, 2-42, 2-43, 2-44, 2-45, 2-46,
　 . 2-47, 2-48, 2-73, 2-74, 2-75, 2-77,
　 . 2-78, 2-79)X1
　 . (2-26)X2
　 . (2-76)X3
　 . (2-24, 2-49)X4
　 . (2-19, 2-33, 2-34)X6
　 .
　 YT10V00016R300 REPAIR KIT 1
　 . (2-11)X1
　 . (2-10)X9
　 .
　 YT10V00016R400 REPAIR KIT 1
　 . (2-8, 2-60)X1
　 .
　 YT10V00016R500 REPAIR KIT 1
　 . (2-50, 2-51, 2-52, 2-53, 2-54, 2-55)X1
　 . (2-26)X2
　 .
　 YT10V00023R500 REPAIR KIT 1
　 . (2-3, 2-101, 2-102, 2-103)X2
