YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

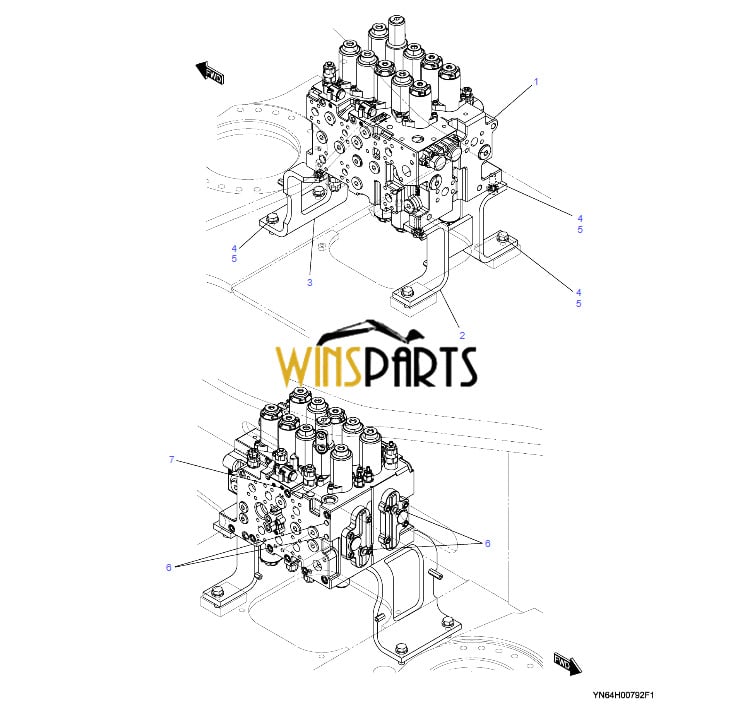

YN64H00792F1 YN30V00161F2 YN30V00161F3 VALVE ASSY, CONTROL
.

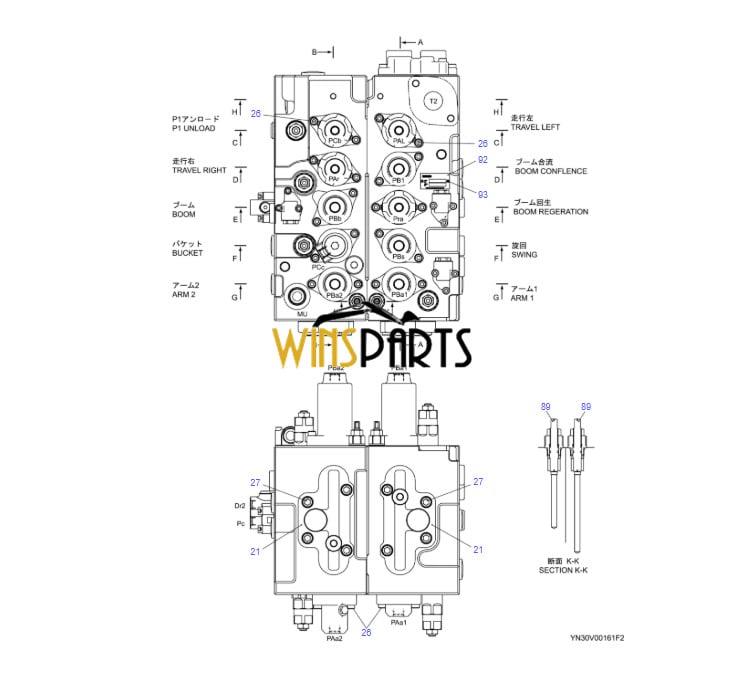

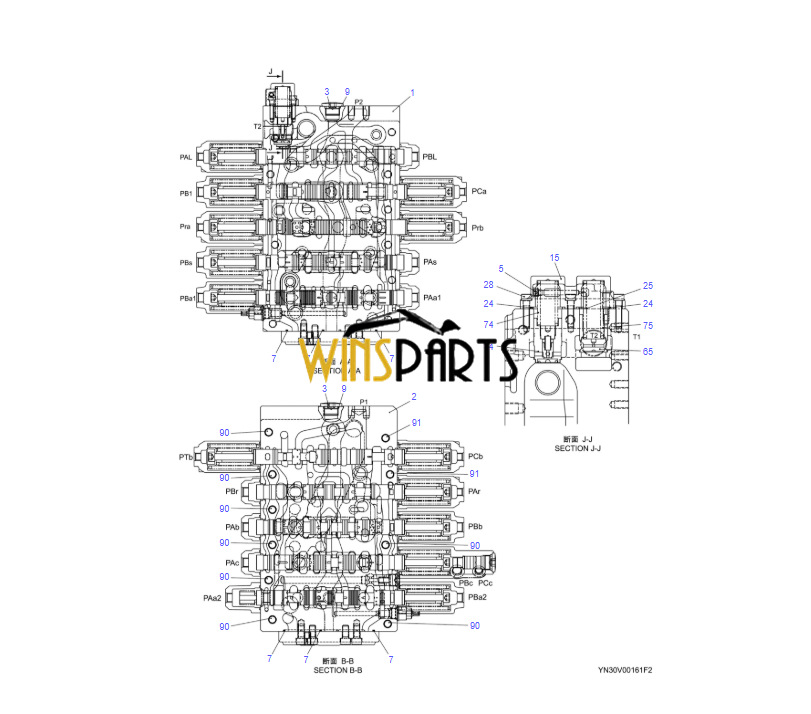

HC100-00 YN30V00161F2 INDIA D0002445370 1 1 YN30V00161F2 VALVE ASSY, CONTROL 1 HC 100-00 YN15T17101–20523
. YQ15-T3101–T3285
HC100-00 YN30V00161F3 JP D0003070430 1 1 YN30V00161F3 VALVE ASSY, CONTROL

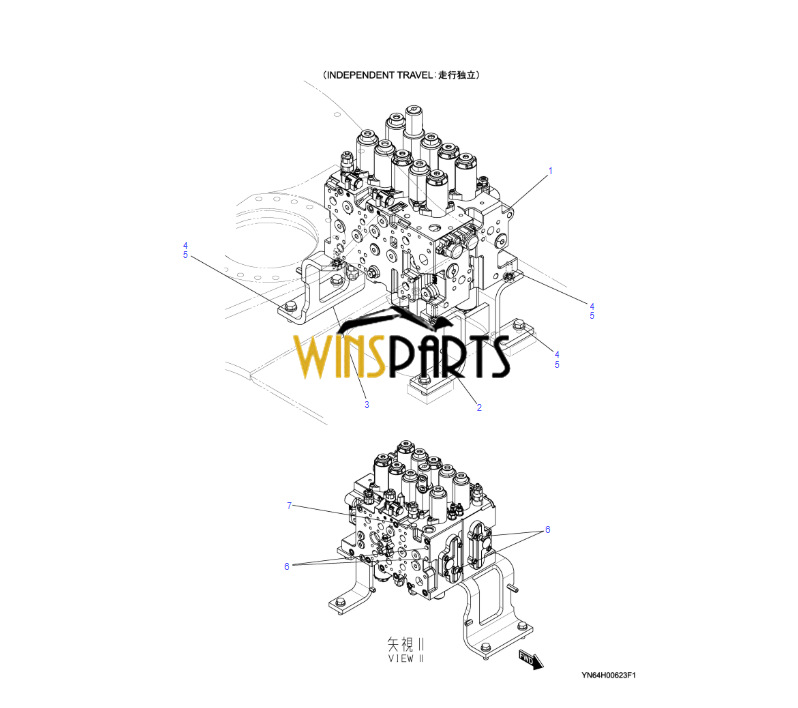

YN64H00623F1 VALVE INSTAL Not Service. (INDEPENDENT TRAVEL)
.

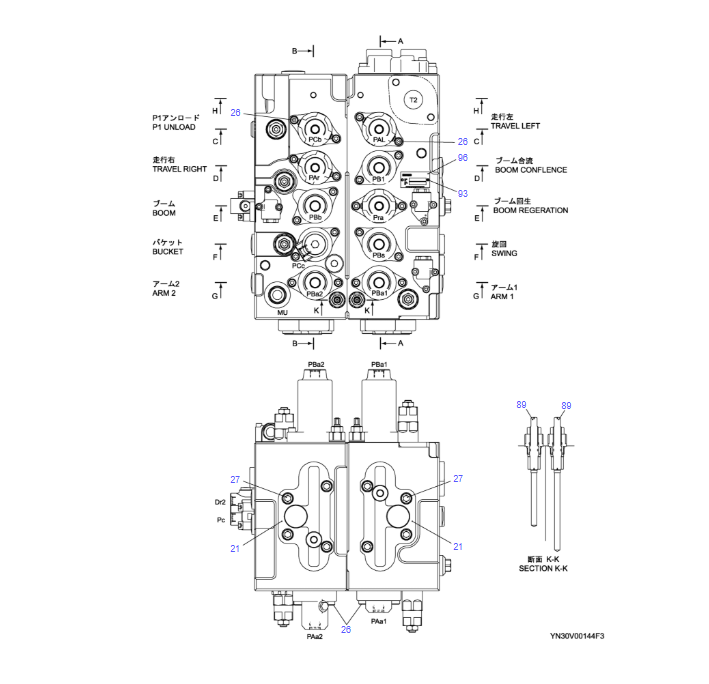

HC100-00 YN30V00144F3 NA-01 D0003836944 1 1 YN30V00144F3 VALVE ASSY, CONTROL 1 HC 100-00
2 YN64H01507P1 BRACKET 1
3 YN64H01482P1 BRACKET 1
4 ZS18C16045 CAPSCREW 7
5 ZW16H16000 WASHER 7
6 YN64H01391D1 CAP 4
7 YN64H01392D1 CAP
.
1 NO P/No BODY 1
2 NO P/No BODY 1
3 YN30V00001S154 PLUG 3
4 NO P/No PLUG 4
5 NO P/No PLUG 1
6 ZD12P03800 O-RING 5
7 ZD12G03000 O-RING 21
8 ZD12P01500 O-RING 9
9 ZD12P02400 O-RING 20
10 ZD12P01600 O-RING 1
11 YN30V00101S201 COVER 4
12 YF30V00011S202 COVER 7
13 YN30V00101S203 COVER 1
14 YN30V00001S205 COVER 6
15 YN30V00101S094 COVER 1
17 YN30V00101S209 COVER 1
18 LC30V00034S979 COVER 1
19 YN30V00119F1 VALVE, CONTROL 2
19-2 ZD12P00700 O-RING 4
19-6 ZS23C06035 CAPSCREW 3
20 LQ30V00048F1 VALVE, CONTROL 1
20-2 YN30V00101S266 RING 4
20-3 ZD12P01600 O-RING 1
20-4 YN22V00037S561 O-RING 1
20-5 YN35V00004S362 O-RING 1
20-6 ZS23C06035 CAPSCREW 3
21 YF30V00011S212 PLATE 2
22 LB30V00013S216 PISTON 1
23 ZD12G05000 O-RING 13
24 YN30V00101S264 RING 9
25 YN30V00101S266 RING 2
26 ZS23C08025 CAPSCREW 40
27 ZS23C12025 CAPSCREW 8
28 ZS23C08035 CAPSCREW 5
41 LQ30V00045S319 SPRING 1 R142 LQ30V00045S320 SPRING 2 R11, R12
43 YN30V00079S321 SPRING 5 R1, R2, R3, R4, R8
44 YN30V00079S322 SPRING 5 R2, R3, R4, R11, R12
45 2436U1165S371 SPRING 2 R6
46 2436U1165S372 SPRING 2 R6
47 YN30V00079S323 SPRING 1 R5
48 YN30V00101S326 SPRING 1 R5
49 YN30V00101S327 SPRING 3 R7, R9, R10
50 YN30V00101S328 SPRING 1 R8
51 YN30V00101S329 SPRING 3 R7, R9, R10
52 2436U1443S332 SEAT, SPRING 26 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11, R12
53 2436U1165S336 BOLT 13 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11, R12
54 2436U1165S335 STOPPER 11 R1, R2, R3, R4, R6, R7, R9, R10, R11, R12
55 YN30V00001S339 STOPPER 1 R5
56 YN30V00101S340 STOPPER 1 R8
57 LQ30V00045S510 POPPET 1
58 YN30V00101S341 POPPET 9
59 YW30V00001S513 POPPET 2
60 LQ30V00045S513 POPPET 1
61 YN30V00101S514 POPPET 2
62 2436U1231S513 POPPET 1
63 LQ30V00045S516 POPPET 1
64 LQ30V00045S517 POPPET 1
65 YN30V00101S518 POPPET 1
66 LQ30V00045S519 POPPET 1
67 LQ30V00050F1 VALVE, CONTROL 1
67-3 LQ30V00050S103 SEAT 1
67-5 LQ30V00050S106 SPRING 1
68 2436U1165S521 SPRING 10
69 YN30V00101S522 SPRING 2
70 YN30V00089S523 SPRING 1
71 YN30V00001S524 SPRING 2
72 2436U1265S521 SPRING 1
73 YA30V00002S521 SPRING 1
74 LQ30V00045S527 SPRING 1
75 YN30V00101S528 SPRING 1
76 LQ30V00045S529 SPRING 1
77 YN30V00021S552 PLUG 1
78 YN30V00001S551 PLUG 13
79 YW30V00001S556 PLUG 2
80 YN30V00001S556 PLUG 4
81 LQ30V00045S557 PLUG 1
82 ZD12P02000 O-RING 3
83 LC30V00034S981 PLUG 1
84 ZD12P00800 O-RING 1
85 YN22V00047F1 VALVE, RELIEF 1
85-3 YN22V00001S121 RING 1
85-4 YN22V00001S122 SPACER 1
85-8 ZD12P02500 O-RING 1
85-10 YN22V00001S521 SPRING 1
85-12 YN22V00001S561 O-RING 1
85-13 YN22V00001S562 RING, BACK UP 1
86 YN22V00002F1 VALVE ASSY, OVERLOAD 2
86-161 ZD12P02400 O-RING 1
86-162 ZD12P02240 O-RING 1
86-521 YN22V00001S521 SPRING 1
86-522 YN22V00002S522 SPRING 1
86-561 YN22V00001S561 O-RING 1
86-562 YN22V00001S562 RING, BACK UP 1
86-563 YN22V00002S563 O-RING 1
86-564 YN22V00002S564 RING, BACK UP 1
86-612 YN22V00002S612 SPRING 1
86-621 2436R750S512 SPRING 1
86-651 YN22V00002S651 SCREW 1
86-661 ZD12P00800 O-RING 1
86-671 YN22V00001S671 LOCK NUT 1
87 YN22V00002F9 VALVE ASSY, OVERLOAD 3
87-161 ZD12P02400 O-RING 1
87-162 ZD12P02240 O-RING 1
87-521 YN22V00001S521 SPRING 1
87-522 YN22V00002S522 SPRING 1
87-561 YN22V00001S561 O-RING 1
87-562 YN22V00001S562 RING, BACK UP 1
87-563 YN22V00002S563 O-RING 1
87-564 YN22V00002S564 RING, BACK UP 1
87-612 YN22V00002S612 SPRING 1
87-621 2436R750S512 SPRING 1
87-651 YN22V00002S651 SCREW 1
87-661 ZD12P00800 O-RING 1
87-671 YN22V00001S671 LOCK NUT 1
88 YN22V00029F1 VALVE ASSY, OVERLOAD 1
88-161 ZD12P02400 O-RING 1
89 LQ30V00047F1 VALVE, CONTROL 2
89-2 ZD12P01000 O-RING 1
89-4 ZD12P01800 O-RING 1
89-5 ZN11C12010 NUT 1
90 LC30V00036S973 CAPSCREW 8
91 LQ30V00045S974 CAPSCREW 2
92 NO P/No NAME PLATE 1
93 NO P/No PIN 2
94 LQ30V00049F2 VALVE, CONTROL 1
94-6 ZD12P02600 O-RING 1
94-7 ZD12P00900 O-RING 1
94-8 ZD12P00800 O-RING 1
94-9 ZS28C08030 CAPSCREW 4
.
YN30V00145R220 REPAIR KIT 1 RK1
. (29, 41, 43, 53, 54)X1
. (52)X2
.
YN30V00145R110 REPAIR KIT 1 RK2
. (30, 43, 44, 53, 54)X1
. (52)X2
.
LQ30V00045R120 REPAIR KIT 1 RK3
. (31, 43, 44, 53, 54)X1
. (52)X2
.
YN30V00126R130 REPAIR KIT 1 RK4
. (32, 43, 44, 53, 54)X1
. (52)X2
.
LQ30V00045R140 REPAIR KIT 1 RK5
. (33, 47, 48, 53, 55)X1
. (52)X2
.
YN30V00101R150 REPAIR KIT 1 RK6
. (34, 45, 46, 53, 54)X1
. (52)X2
.
YN30V00101R170 REPAIR KIT 1 RK7
. (35, 49, 51, 53, 54)X1
. (52)X2
.
YN30V00145R170 REPAIR KIT 1 RK8
. (36, 43, 50, 53, 56)X1
. (52)X2
.
LQ30V00045R180 REPAIR KIT 1 RK9
. (37, 49, 51, 53, 54)X1
. (52)X2
.
LQ30V00045R190 REPAIR KIT 1 RK10
. (38, 49, 51, 53, 54)X1
. (52)X2
.
YN30V00145R200 REPAIR KIT 1 RK11
. (39, 42, 44, 53, 54)X1
. (52)X2
.
YN30V00145R210 REPAIR KIT 1 RK12
.
1 NO P/No BODY 1
2 NO P/No BODY 1
3 YN30V00001S154 PLUG 3
4 NO P/No PLUG 4
5 NO P/No PLUG 1
6 ZD12P03800 O-RING 5
7 ZD12G03000 O-RING 21
8 ZD12P01500 O-RING 9
9 ZD12P02400 O-RING 19
10 ZD12P01600 O-RING 1
11 YN30V00101S201 COVER 4
12 YF30V00011S202 COVER 7
13 YN30V00101S203 COVER 1
14 YN30V00001S205 COVER 6
15 YN30V00101S094 COVER 1
17 YN30V00101S209 COVER 1
18 LC30V00034S979 COVER 1
19 YN30V00119F1 VALVE, CONTROL 2
19-2 ZD12P00700 O-RING 4
19-6 ZS23C06035 CAPSCREW 3
20 LQ30V00048F1 VALVE, CONTROL 1
20-2 YN30V00101S266 RING 4
20-3 ZD12P01600 O-RING 1
20-4 YN22V00037S561 O-RING 1
20-5 YN35V00004S362 O-RING 1
20-6 ZS23C06035 CAPSCREW 3
21 YF30V00011S212 PLATE 2
22 LB30V00013S216 PISTON 1
23 ZD12G05000 O-RING 13
24 YN30V00101S264 RING 9
25 YN30V00101S266 RING 2
