YN64H00635F1 CONTROL LINES, VALVE KOBELCO SK200-10 SK210LC-10

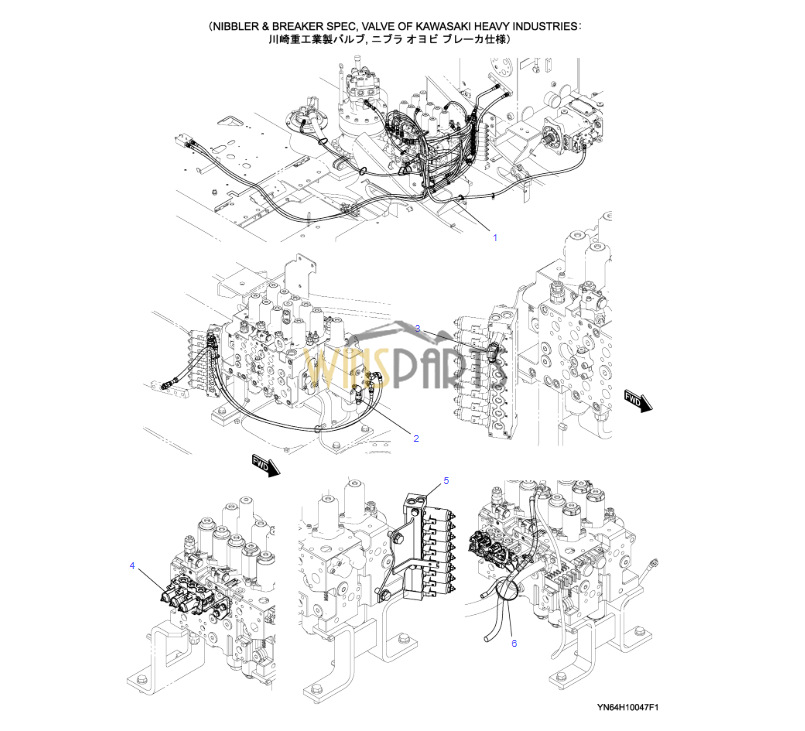

YN64H10047F1 CONTROL LINES, VALVE Not Service
　 . (NIBBLER & BREAKER SPEC, VALVE OF KAWASAKI HEAVY INDUSTRIES)
　 .
250-01 YN64H00635F1 ASIA-01 D0001917349 1 1 YN64H00635F1 CONTROL LINES, VALVE 1 P.250-01
250-02 YN64H00636F1 KCMU-05 D0002395123 1 2 YN64H00636F1 CONTROL LINES, VALVE 1 P.250-02
250-03 LC64H00444F1 KCMU-01 D0001918740 1 3 LC64H00444F1 CONTROL LINES, VALVE 1 P.250-03
250-04 LQ64H00542F1 INDIA-01 X D0003924345 1 4 LQ64H00542F1 VALVE INSTAL 1 P.250-04
250-05 YN64H10003F1 NA-01 D0003070501 1 5 YN64H10003F1 VALVE INSTAL 1 P.250-05
250-06 YN13E00382F1 INDIA X D0003924331 1 6 YN13E00382F1 HARNESS ASSY, UPP 1 P.250-06

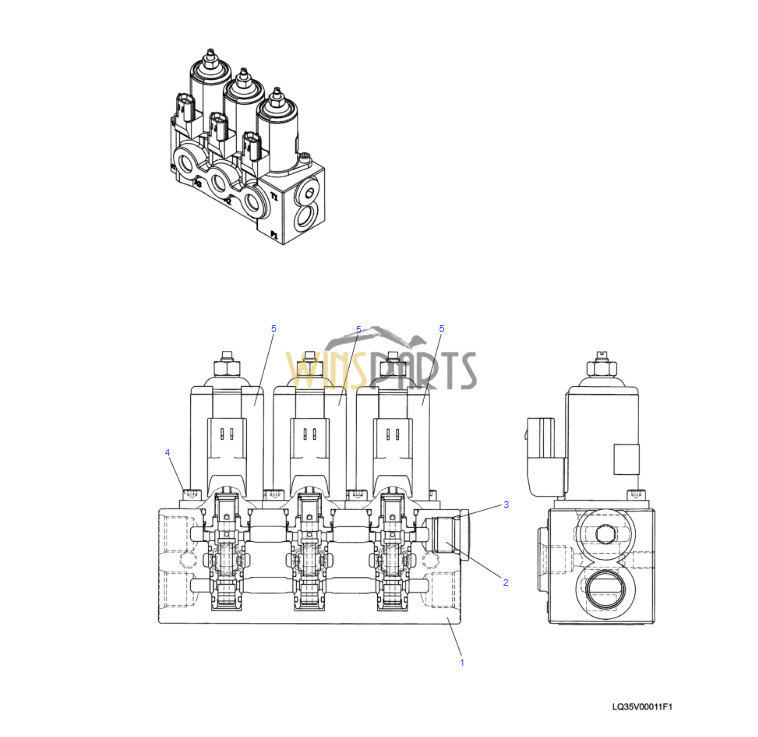

LQ35V00011F1 VALVE ASSY, SOLENOID
　 .
　 1 LQ35V00011S101 BODY 1
　 2 LQ35V00011S151 PLUG 1
　 3 ZD12P01400 O-RING 1
　 4 ZS23C05012 CAPSCREW 6
　 5 LQ35V00011S701 VALVE ASSY, SOLENOID 3

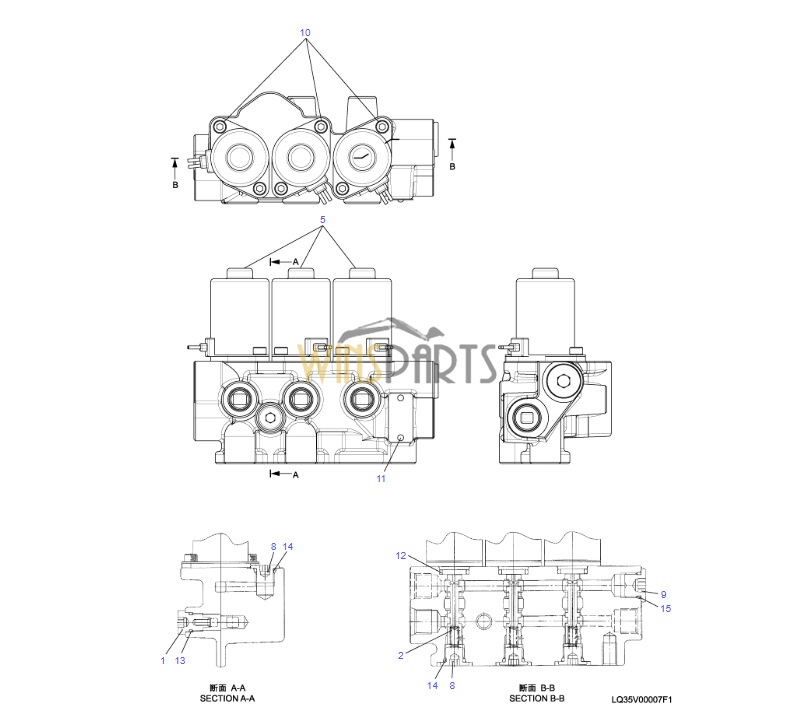

LQ35V00007F1 VALVE ASSY, SOLENOID
　 .
　 1 PY35V00008S003 PLUG 1
　 2 2436U2802S3 SPRING 3
　 5 YR35V00009S022 VALVE ASSY, SOLENOID 3
　 8 LC35V00004S007 PLUG 4
　 9 YN35V00063S009 PLUG 1
　 10 LC35V00004S008 CAPSCREW 6
　 11 YN30V00080S023 SCREW 2
　 12 ZD11P01600 O-RING 3
　 13 ZD12P01000 O-RING 1
　 14 ZD12P01100 O-RING 4
　 15 ZD12P01400 O-RING 1

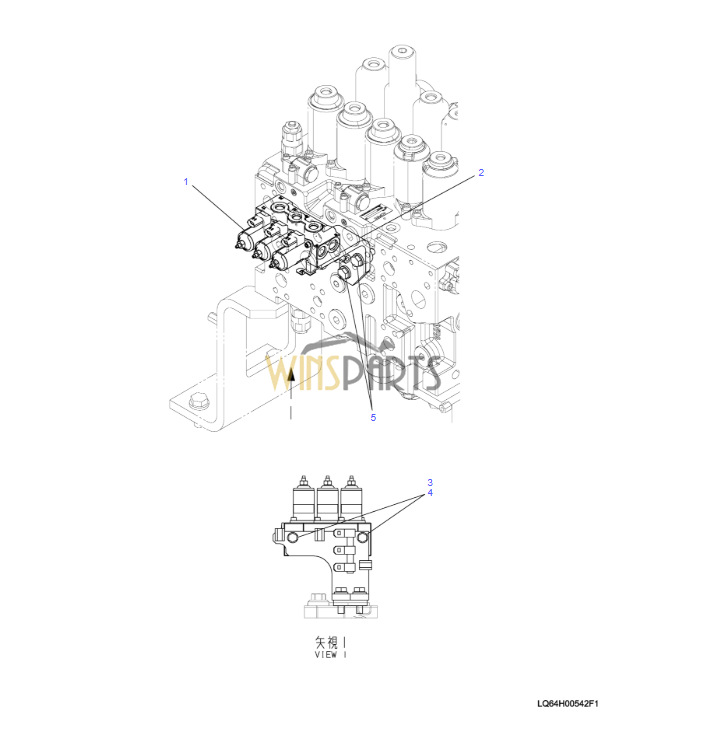

LQ64H00542F1 VALVE INSTAL
　 .
HC250-04_LQ35V00011F1_LA_X_D0005519728_1 1 LQ35V00011F1 VALVE ASSY, SOLENOID 1 HC 250-04
　 2 LQ64H01185P1 BRACKET 1
　 3 ZS18C08020 CAPSCREW 2
　 4 ZW16P08000 WASHER 2
　 5 ZM73C10035 SEMS-BOLT 2

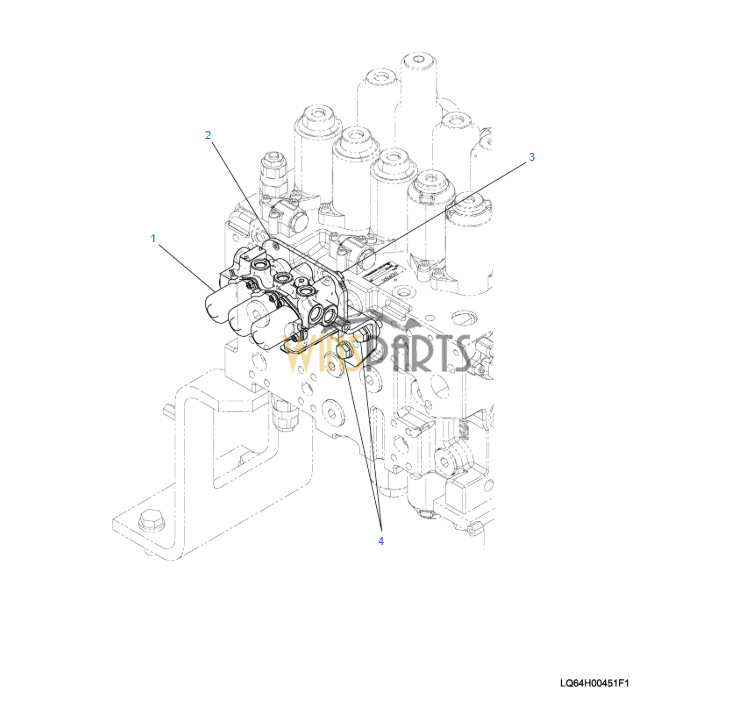

LQ64H00451F1 VALVE INSTAL
　 .
HC250-04_LQ35V00007F1_ASIA_X1_D0002495061_1 1 LQ35V00007F1 VALVE ASSY, SOLENOID 1 HC 250-04
　 2 LQ64H01150P1 BRACKET 1
　 3 ZM73C10020 SEMS-BOLT 2
　 4 ZM73C10030 SEMS-BOLT 2

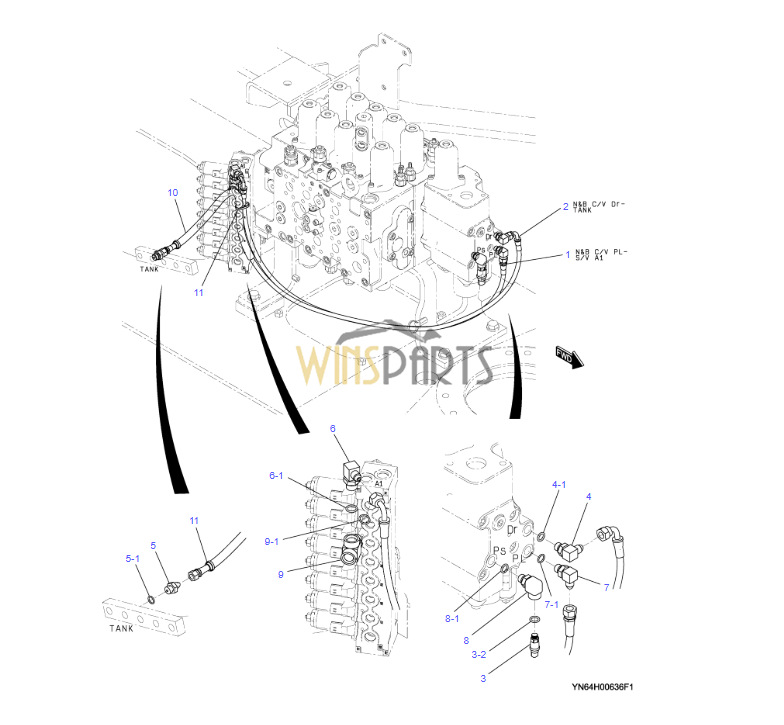

YN64H00636F1 CONTROL LINES, VALVE
　 .
　 1 HX33L04110DY HOSE 1
　 2 HX33L04150DY HOSE 1
　 3 LC52S00019P1 SENSOR, PRESS 1 YN15T17101–17209
　 . YQ15-T3101–T3107
　 3-2 ZD12P01100 O-RING 1
　 3 YN52S00102P1 SENSOR, PRESS 1 YN15T17210-
　 . YQ15-T3108-
　 3-2 ZD12P01100 O-RING 1
　 4 ZH32X04000 ELBOW, 90 1
　 4-1 ZD12P01100 O-RING 1
　 5 ZH22X04006 CONNECTOR 1
　 5-1 ZD12P01400 O-RING 1
　 6 ZH32X04006 ELBOW 1
　 6-1 ZD12P01400 O-RING 1
　 7 HH35X04004G3 ELBOW 1
　 7-1 ZD12P01100 O-RING 1
　 8 2444Z2894 ELBOW 1
　 8-1 ZD12P01100 O-RING 1
　 9 HH55Q06006G1 TEE 1
　 9-1 ZD12P01400 O-RING 1
　 10 PU13E01002D8 TUBE 1
　 11 PY01P01043D3 CLIP

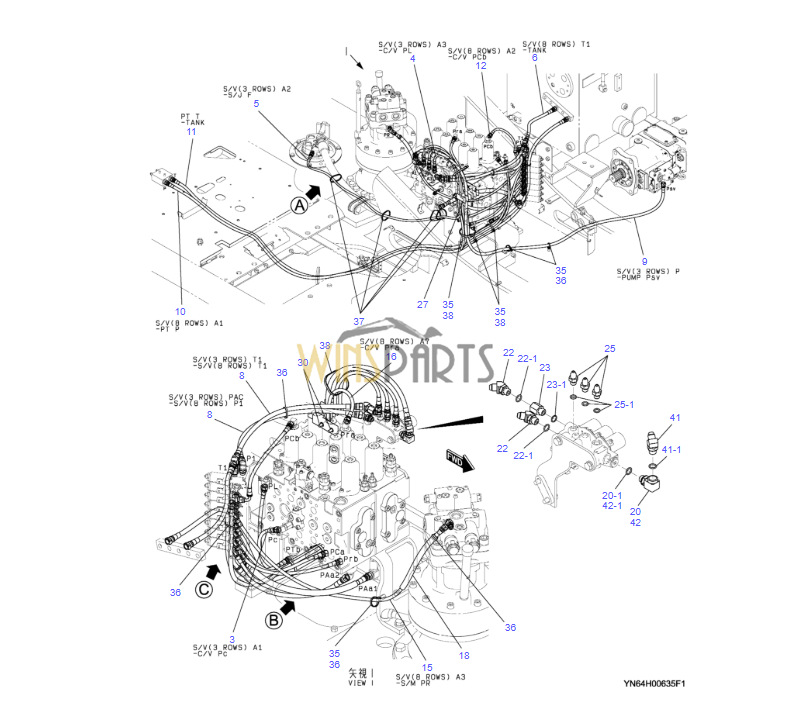

YN64H00635F1 CONTROL LINES, VALVE
　 .
　 3 2420R349D160 HOSE ASSY 1
　 4 2420R349D155 HOSE 1
　 5 2420R349D200 HOSE 1
　 6 2420R537D044 HOSE 1
　 7 2420R537D052 HOSE 1
　 8 2420R537D058 HOSE 2
　 9 2420R537D225 HOSE 1
　 10 LQ64H01137D1 HOSE 1
　 11 2420R537D300 HOSE 1
　 12 HX33L04034DY HOSE 1
　 13 HX33L04040DY HOSE 1
　 14 HX33L04048DY HOSE 1
　 15 HX33L04105DY HOSE 1
　 16 HX33L04140DY HOSE 1
　 17 HX33L06046DX HOSE 1
　 18 PU13E01002DK TUBE 1
　 19 ZH52X06000 TEE 1
　 19-1 ZD12P01400 O-RING 1
　 20 HH35X06006G3 ELBOW 2
　 20-1 ZD12P01400 O-RING 1
　 21 ZH32X04000 ELBOW, 90 2
　 21-1 ZD12P01100 O-RING 1
　 22 ZH42X06000 ELBOW 2
　 22-1 ZD12P01400 O-RING 1
　 23 2444Z2891 CONNECTOR 2
　 23-1 ZD12P01400 O-RING 1
　 25 ZH22X04000 CONNECTOR 9
　 25-1 ZD12P01100 O-RING 1
　 26 ZH22X06000 CONNECTOR 1
　 26-1 ZD12P01400 O-RING 1
　 27 LC64H01104P1 CLAMP 1
　 30 ZM73C08030 SEMS-BOLT 2
　 35 YN13E01375P1 CLIP 6
　 36 PY01P01043D3 CLIP 6
　 37 PY01P01043D5 CLIP 4
　 38 PY01P01043D8 CLIP 4
　 39 HX33L04046DY HOSE 1
　 40 PU13E01010D7 TUBE 1
　 41 HH45X06006G2 ELBOW 1
　 41-1 ZD12P01400 O-RING 1
　 42 YT42H01128P1 ELBOW 1
　 42-1 ZD12P01400 O-RING 1
