YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

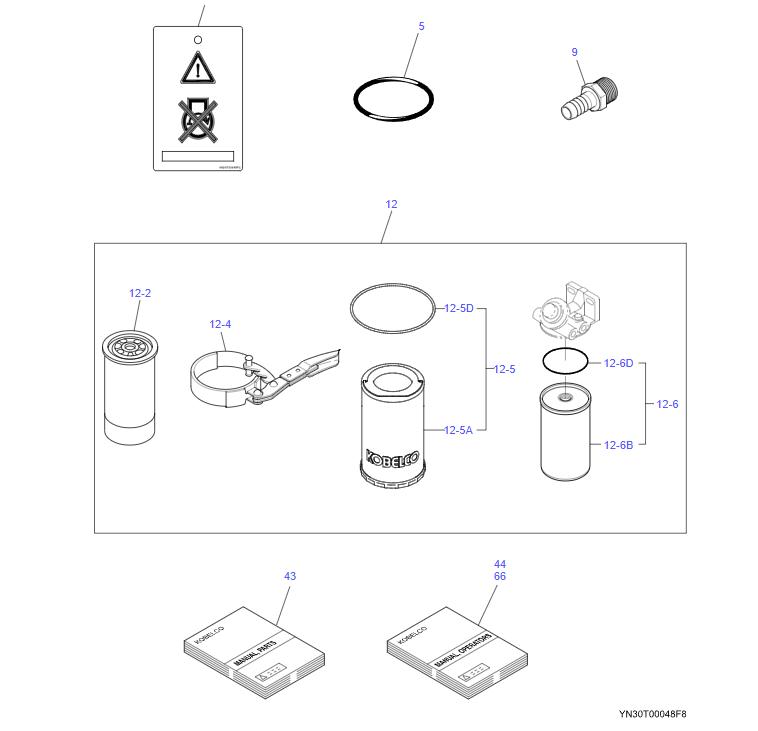

YN30T00048F8 ELEMENT FILTER KIT YN30T00050F2
.
4 YN20T02672P1 LABEL 1
5 2445Z1136 O-RING 4
9 YN01T01083P1 CONNECTOR 1
12 YN30T00050F2 ELEMENT KIT 1
12-2 YN30T01001P1 ELEMENT, OIL 1
12-4 2421R171 WRENCH 1
12-5 YN52V01025R100 REPAIR KIT 1
12-5A YN52V01026P1 ELEMENT, FILTER 1
12-5D ZD11G19000 O-RING 1
12-6 LC21P01019R100 ELEMENT, FILTER 1
12-6B LC21P01019S002 ELEMENT, FILTER 1
12-6D LC21P01019S004 O-RING 1
43 YN91Z00082DH MANUAL, PARTS 1
44 YN91Z00083DE MANUAL, OPERATORS 1
66 YN91Z00123D1 MANUAL, OPERATORS 1 YN15428458-
. YQ15405283-
67 YN20T03045P1 LABEL 1
.

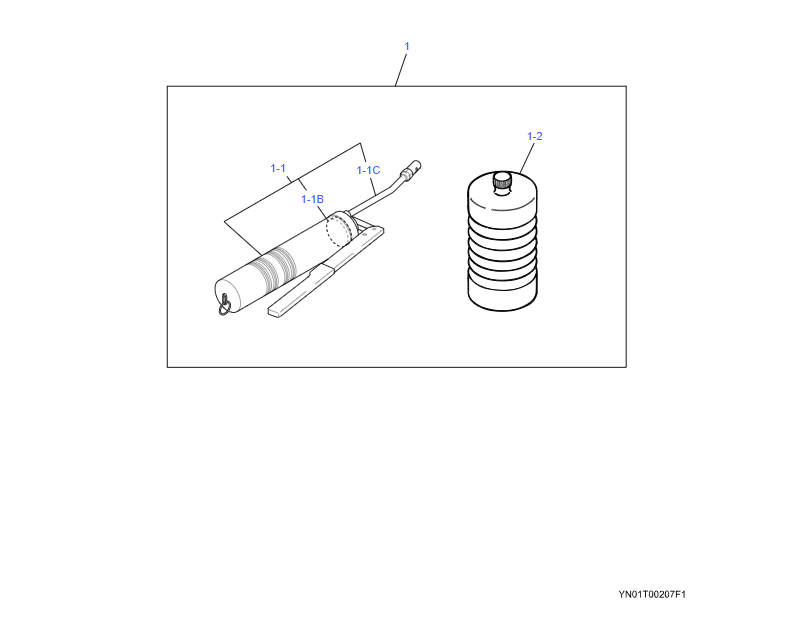

1 YN01T01087F1 GUN, GREASE 1
1-1 YT01T01009F1 GUN, GREASE 1
1-1B PW01T01008P1 SEAL 1
1-1C 2421R140 NOZZLE 1
1-2 2421Z183 CARTRIDGE, GREASE 1
LQ02C01278F1 GUARD ASSY
785-00_LQ01C00007F1_ASIA-01_D0002445532_1 785-00 LQ01C00007F1 CAB & GUARD ASSY
788-00_LQ80E00047F1_ASIA-03_D0002445415_1 788-00 LQ80E00047F1 LIGHT INSTAL[2 LIGHT (FOR ADDITIONAL 1 LIGHT)]
058-00_YN22P00038F1_INDIA-01_D0002445386_1 058-00 YN22P00038F1 PUMP ASSY, FUEL
380-00_YN24C00085F1_CKCM-03_D0002509062_1 380-00 YN24C00085F1 COVER ASSY, UNDER(REINFORCE TYPE)
492-00_YN13E00322F1_LA-01_D0002445387_1 492-00 YN13E00322F1 HARNESS ASSY, UPP(FUEL SUPPLY)
518-00_ANZ_D0002395163_1 518-00 YN11E00140F1 HARNESS ASSY(REAR CAMERA)
781-00_ASIA_D0001917788_1 781-00 LQ11E00076F1 HARNESS ASSY(IT KIT SATELLITE)
830-00_YN11E00138F1_ASIA-04_D0001921354_1 830-00 YN11E00138F1 HARNESS ASSY(IT KIT SATELLITE)
530-00_LQ11E00128F1_RUS-01_D0005583015_1 530-00 LQ11E00128F1 HARNESS ASSY(IT KIT, SATELLITE, IRIDIUM)
531-00_YN11E00245F1_RUS-01_D0005583016_1 531-00 YN11E00245F1 HARNESS ASSY(IT KIT, SATELLITE, IRIDIUM)
035-00_YN55E00033F1_ANZ-04_D0002395164_1 035-00 YN55E00033F1 CAMERA INSTAL
445-00_KCMU_D0002395158_1 445-00 YN77S00071F1 CONVERTER(REAR CAMERA POWER SUPPLY BOX)
541-00_YN41C00117F3_KCMU-01_D0002445423_1 541-00 YN41C00117F3 STEP INSTAL(w100mm)
542-00_KCM-EUR_D0002445416_1 542-00 YN41C00117F1 STEP INSTAL(w50mm)
891-00_ASIA_D0001921353_1 891-00 YN61B00361F1 BUCKET ASSY, 0.8M3
892-00_YN61B00358F1_ASIA-01_D0001921352_1 892-00 YN61B00358F1 BUCKET ASSY, 0.8M3(REINFORCED, SIDE PIN)
893-00_YN61B00487F1_ANZ-01_D0002156264_1 893-00 YN61B00487F1 BUCKET ASSY, 0.93M3(GD)
763-00_ASIA_D0001921357_1 763-00 YN61B00353F1 BUCKET ASSY, 0.93M3(REINFORCED, SIDE PIN)
895-00_YN61B00612F1_ASIA_D0003924284_1 895-00 YN61B00612F1 BUCKET ASSY, 1.0M3(WEAR RIB REINFORCEMENT, SIDE PIN & CUTTER, SIDE CAST STEEL TYPE)
.

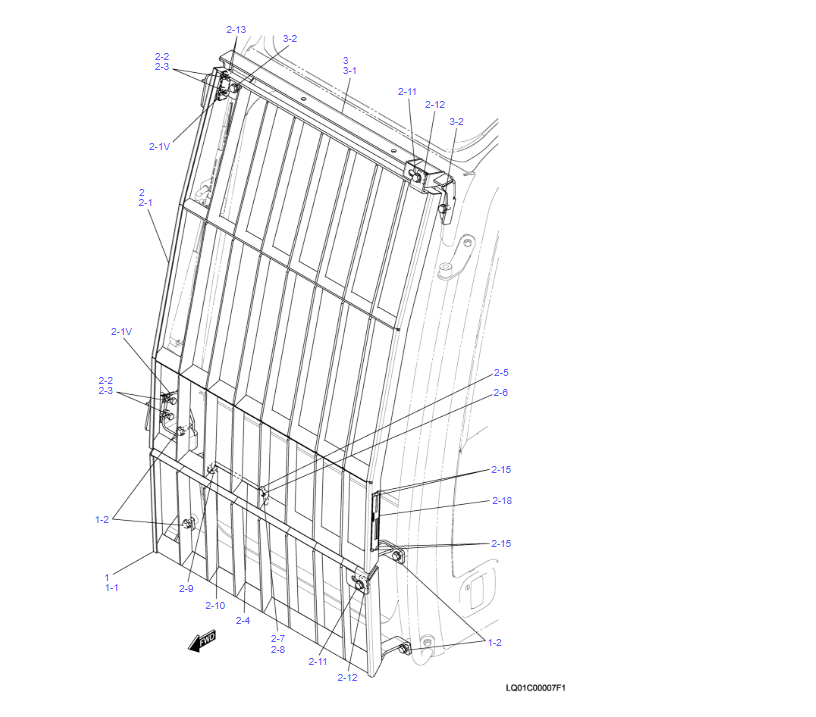

1 LQ02C01278F1 GUARD ASSY 1
1-1 LQ02C01299P1 GUARD 1
1-2 ZM73C12025 SEMS-BOLT 4
2 LQ02C01284F4 GUARD ASSY 1
2-1 LQ02C01300P1 GUARD 1
2-1V YN02C01489P1 HINGE 2
2-2 ZN18C10008 NUT 4
2-3 ZW16H10000 WASHER 4
2-4 YN02C03597P1 STAY 1
2-5 YN21C01178P1 CLIP 1
2-6 ZM66C04012 SEMS-BOLT 1
2-6 YN03M01252P1 SEMS-BOLT 1 YN15429845-
. YQ15405504-
2-7 ZN16C04003 NUT 1
2-8 ZW16P04000 WASHER 1
2-9 HY25X10027G1 WASHER 1
2-10 2419R9D2 PIN 1
2-11 ZM73C12030 SEMS-BOLT 2
2-12 YN02C03199P1 NUT 2
2-13 YN02C03660P1 SHIM (1.6) 2
2-15 4020Z64 RIVET 4
2-18 LQ20T01379P1 PLATE, NUMBER 1
2-18 LQ20T01379P2 PLATE, NUMBER 1 YN15429845-
. YQ15405504-
3 LQ02C01288F1 SUPPORT ASSY 1
3-1 LQ02C01289P1 SUPPORT 1
3-2 ZM73C12025 SEMS-BOLT 2
LQ02C01278F1 GUARD ASSY Not Service
.
1 LQ02C01299P1 GUARD 1
2 ZM73C12025 SEMS-BOLT 4
