YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…
YN30P00047F1 YN30P00044F1 Hydraulic pump ASSY KOBELCO SK200-10 SK210LC-10
.

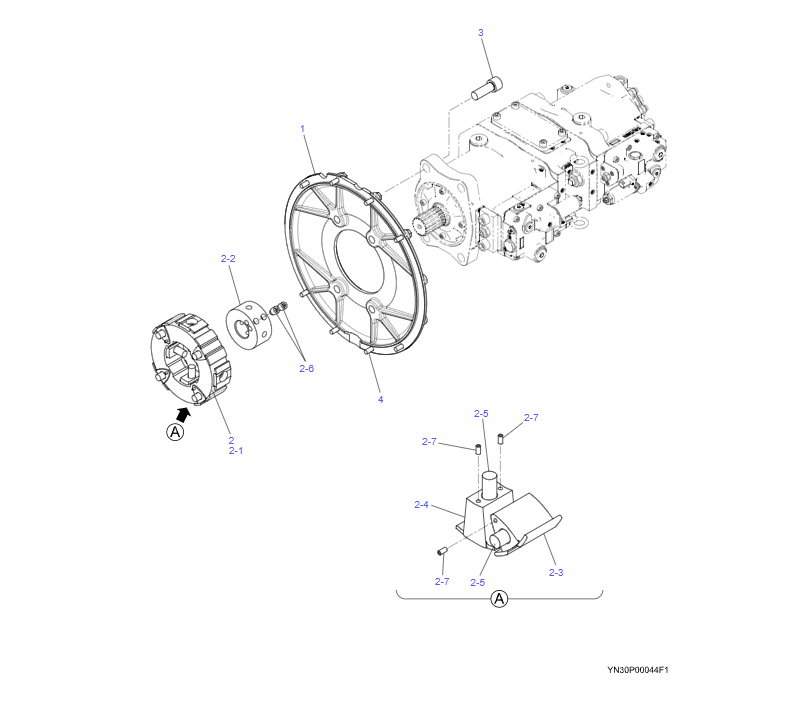

085-01 CKCM D0001918669 1 1 YN30P00044F1 POWER TAKE-OFF ASSY 1 P.085-01

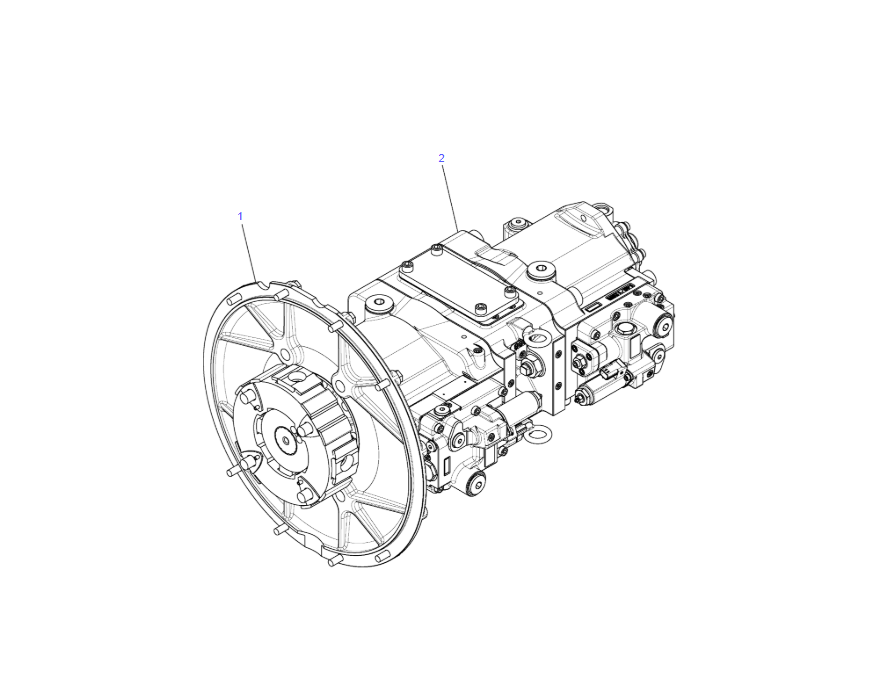

HC085-00 YN10V00070F1 CKCM-02 D0001918670 1 2 YN10V00070F1 PUMP ASSY, HYD 1 HC 085-00
.
1 YN30P01029P1 BRACKET 1
2 YN30P01041F1 COUPLING 1
2-1 LQ30P01003S001 RUBBER 1
2-2 YN30P01041S002 HUB 1
2-3 YN30P01028S008 INSERT 4
2-4 YN30P01028S009 INSERT 4
2-5 LQ30P01003S005 CAPSCREW 8
2-6 YN30P01028S006 SETSCREW 2
2-7 ZP26D05010 SPRING PIN 12
3 ZS28C20055 CAPSCREW 4
4 ZS18C10035 CAPSCREW 8
