YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…
YN22T00597F1 BODY NAME LABEL KOBELCO SK200-10 SK210LC-10
901-00_YN22T00597F3_ASIA-02_D0001921350_1 901-00 YN22T00597F3 NAME PL.INSTAL, BODY(BODY, NON REGULATION, WITHOUT BATTERY INTERCEPTION SWITCH)
915-00_YN22T00601F2_ASIA-02_D0001921349_1 915-00 YN22T00601F2 NAME PL.INSTAL, CAB(CAB INTERIOR, COMMON)
926-00_KCM-EUR_D0001921787_1 926-00 YN22T00574F2 NAME PLATE INSTAL(ATTACHMENTS)
927-00_YN22T00630F1_ASIA-01_X_D0001921465_1 927-00 YN22T00630F1 NAME PLATE INSTAL(LUBRICATION CHART)
927-00_YN22T00630F3_ASIA_D0005522211_1 927-00 YN22T00630F3 NAME PLATE INSTAL(LUBRICATION CHART)
931-00_YY22T00219F2_CKCM-01_D0001921788_1 931-00 YY22T00219F2 NAME PLATE INSTAL(BHL LESS / MULTI LESS)
960-00_YN22T00769F1_RUS-01_D0006260131_1 960-00 YN22T00769F1 NAME PL.INSTAL, MLT(MULTILESS)
965-00_LC22T00138F3_KCMU_D0002395159_1 965-00 LC22T00138F3 NAME PLATE INSTAL(NIBBLER & BREAKER HAND CONTROL PROPORTIONAL)
966-00_YN22T00582F1_KCM-EUR_D0002395160_1 966-00 YN22T00582F1 NAME PLATE INSTAL(LONG RANGE)
941-00_YN22T00626F1_ASIA-02_X1_D0001921462_1 941-00 YN22T00626F1 NAME PLATE INSTAL
941-01_ASIA_D0001921464_1 941-01 YN22T00627F1 NAME PLATE INSTAL
941-01_PS22T00011F2_ASIA_D0002445531_1 941-01 PS22T00011F2 NAME PLATE INSTAL
941-02_ASIA_D0001921463_1 941-02 YN22T00628F1 NAME PLATE INSTAL
941-02_YN22T00628F2_ASIA-01_D0002445530_1 941-02 YN22T00628F2 NAME PLATE INSTAL
966-00_ASIA_D0001921461_1 966-00 YN22T00645F1 NAME PLATE INSTAL(MODEL NAME)
970-00_YN22T00525F3_CKCM-02_D0001934964_1 970-00 YN22T00525F3 NAME PLATE INSTAL(MODEL NAME)
971-00_YN22T00525F1_KCMU-01_D0001921789_1 971-00 YN22T00525F1 NAME PLATE INSTAL(LONG CRAWLER)
975-00_CKCM_D0001934965_1 975-00 YN22T00571F1 NAME PL.INSTAL, EXT
970-01_CKCM_D0001921814_1 970-01 LQ22T00244F1 NAME PLATE INSTAL
970-02_CKCM_D0001921815_1 970-02 LQ22T00245F1 NAME PLATE INSTAL
970-03_CKCM_D0001934978_1 970-03 LQ22T00246F1 NAME PLATE INSTAL

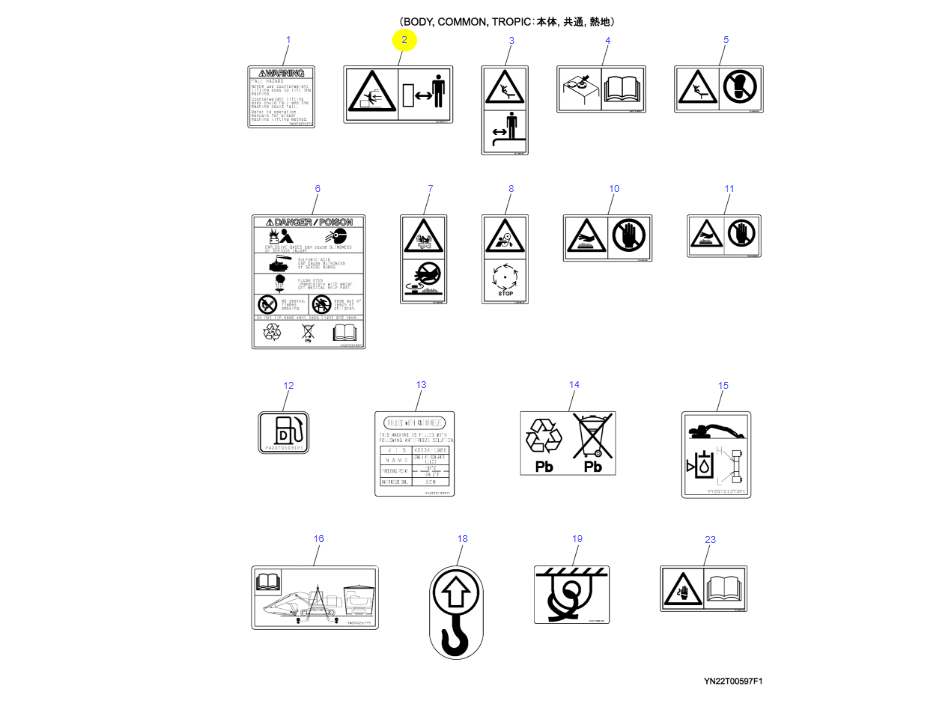

YN22T00597F1 NAME PL.INSTAL, BODY x
1 YN20T02741P1 LABEL 2
2 ZL21M04124 LABEL, SAFETY SIGNS 2
3 ZL31N02604 LABEL, SAFETY SIGNS 1
4 YN20T01355P1 LABEL 1
5 ZL21M02708 LABEL, SAFETY SIGNS 2
6 YN20T02746P1 LABEL 1
7 ZL21N00404 LABEL, SAFETY SIGNS 1
8 ZL21N05104 LABEL, SAFETY SIGNS 1
10 ZL21M00508 LABEL, SAFETY SIGNS 1
11 YN20T02626P1 LABEL 1
12 PA20T01031P1 LABEL 1
13 YN20T01832P1 LABEL 1
14 2432T6179 LABEL 2
15 YY20T01373P1 LABEL 1
16 YN20T02317P1 LABEL 1
18 YN20T01818P1 LABEL 4
19 YN20T01819P1 LABEL 4
YN22T00597F3 NAME PL.INSTAL, BODY
20 YN20T02813P1 LABEL 1
21 YN20T02814P1 LABEL 1
YN22T00601F2 NAME PL.INSTAL, CAB
1 YN20T02630P1 LABEL 1
2 LQ20T01468P1 LABEL 1
3 ZL21M03708 LABEL, SAFETY SIGNS 1
4 YN20T02631P1 LABEL 1
5 PH20T01018P1 LABEL 1
YN22T00574F2 NAME PLATE INSTAL
2 ZL31N07508 LABEL, SAFETY SIGNS 2
YN22T00630F1 NAME PLATE INSTAL
1 YN20T02812P1 LABEL 1
YY22T00219F2 NAME PLATE INSTAL
.
5 LC20T01333P1 LABEL
YN22T00626F1 NAME PLATE INSTAL Not Service
.
941-01_ASIA_D0001921464_1 1 YN22T00627F1 NAME PLATE INSTAL 1 P.941-01 YN15T17101–18266
. (OK LABEL) YQ15-T3101–T3151
941-01_PS22T00011F2_ASIA_D0002445531_1 1 PS22T00011F2 NAME PLATE INSTAL 1 P.941-01 YN15T18267-
. (OK LABEL) YQ15-T3152-
941-02_ASIA_D0001921463_1 2 YN22T00628F1 NAME PLATE INSTAL 1 P.941-02 YN15T17101–18266
. (NUMBER PLATE) YQ15-T3101–T3151
941-02_YN22T00628F2_ASIA-01_D0002445530_1 2 YN22T00628F2 NAME PLATE INSTAL 1 YN22T00627F1 NAME PLATE INSTAL
1 YN20T02324P1 LABEL
YN22T00628F1 NAME PLATE INSTAL
1 YN20T02078P1 PLATE, NUMBER 1
2 4020Z64 RIVET
LQ22T00246F1 NAME PLATE INSTAL
.
1 LQ20T01462P2 LABEL 1
2 LQ20T01463P2 LABEL 1
3 LQ20T01464P2 LABEL 1
4 LQ20T01465P2 LABEL 1
5 LQ20T01466P2 LABEL 1
