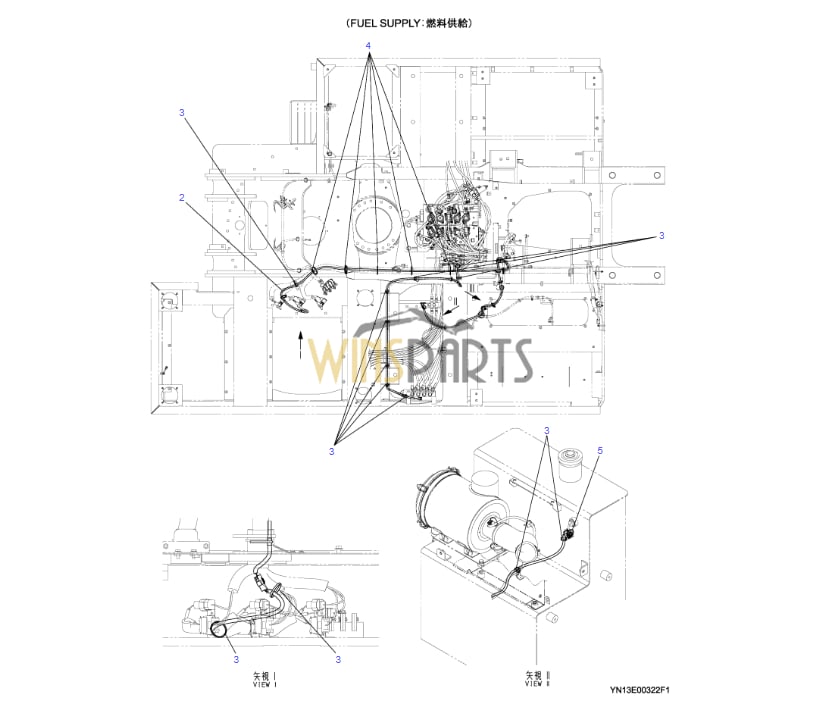

YN13E00322F1 FUEL SUPPLY HARNESS ASSY

YN13E00322F1 FUEL SUPPLY HARNESS ASSY, UPP
　 1 LQ13E01361P1 HARNESS 1
　 2 YN13E02107P1 HARNESS 1
　 3 PY01P01043D3 CLIP 23
　 4 PY01P01043D5 CLIP 11
　 5 PY01P01043DA CLIP 1
YN11E00140F1 LC55E01012P1 YN55E01138P1 CABLE HARNESS ASSY
　 1 LC55E01012P1 CABLE 1
　 2 YN55E01138P1 CABLE 1
　 3 PY01P01043D3 CLIP 36
　 4 PY01P01043D5 CLIP 9
　 5 YN13E01375P1 CLIP 1
　 6 LQ11E01075P1 GROMMET 1

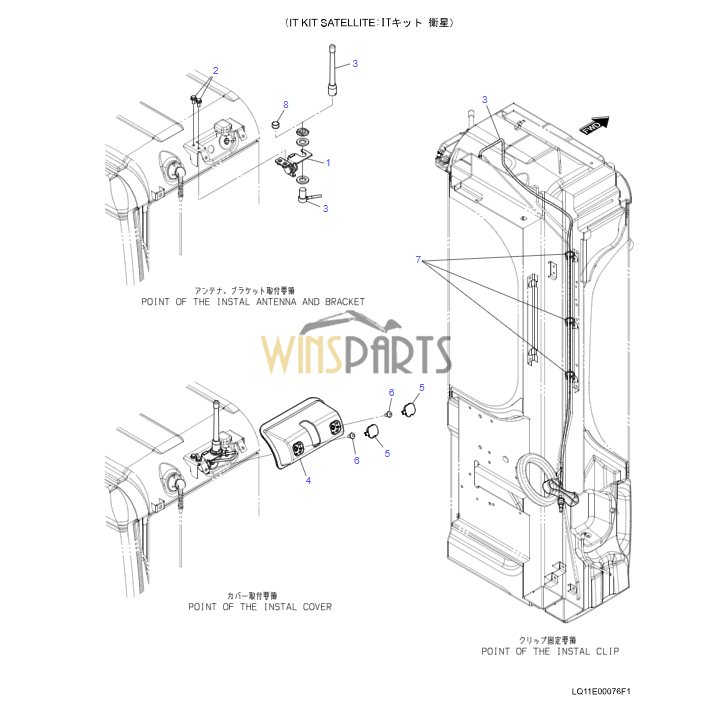

LQ11E00076F1 YN11E01224P1 LQ11E01092F1 HARNESS ASSY KOBELCO
　 1 LQ11E01091F1 BRACKET ASSY 1
　 1-1 LQ11E01093P1 PLATE ASSY 1
　 1-2 LQ11E01094P1 WASHER 2
　 1-3 LQ11E01095P2 PIN 1
　 1-4 LQ11E01096P1 PLATE ASSY 1
　 1-5 YN20M01701P1 WASHER 1
　 1-6 LQ02C01314S005 SCREW 1
　 1-7 LQ11E01097P1 RUBBER 1
　 2 ZM73C06016 SEMS-BOLT 2
　 3 LQ11E01092F1 CONNECTOR ASSY 1
　 3-1 YN11E01224P1 CABLE 1
　 3-2 YN11E01236P1 GROMMET 1
　 3-3 YN11E01237P1 SEAL 1
　 3-4 ZW16P16000 WASHER 2
　 3-5 YN54S00064P1 ANTENNA 1
　 4 LQ02C01568F1 COVER ASSY 1
　 4-1 LQ02C01569P1 COVER 1
　 4-2 YN02C04700P1 COLLAR 2
　 4-3 LQ02C01570P1 INSULATION 1
　 5 YN02C04473P1 CAP 2
　 6 LQ11E00034S005 SCREW 2
　 7 PY01P01043DA CLIP 3
　 8 YN11E01239P1 CAP 1
YN11E00138F1 YN22E00664F1 YN22E00664F5 YN22E00664F4 CONTROLLER HARNESS ASSY
　 1 YN22E00664F1 CONTROLLER 1
　 1-1 YN22E00469S001 BATTERY 1 NBB-2000
　 1 YN22E00664F2 CONTROLLER 1 YN15T18514–19047
　 . YQ15-T3169–T3205
　 1-1 YN22E00469S001 BATTERY 1 NBB-2000
　 1 YN22E00664F3 CONTROLLER 1 YN15T19048–19900
　 . YQ15-T3206–T3232
　 1-1 YN22E00469S001 BATTERY 1 NBB-2000
　 1 YN22E00664F4 CONTROLLER 1
　 1-1 YN22E00469S001 BATTERY 1 NBB-2000
　 1 YN22E00664F5 CONTROLLER 1
　 1-1 YN22E00469S001 BATTERY 1 NBB-2000
　 2 ZM61C06016 SEMS-BOLT 4
　 3 YN11E01292P1 HARNESS 1
　 4 PY01P01043D3 CLIP 1
　 5 PY01P01043D5 CLIP 1
　 6 PY01P01043DA CLIP 1

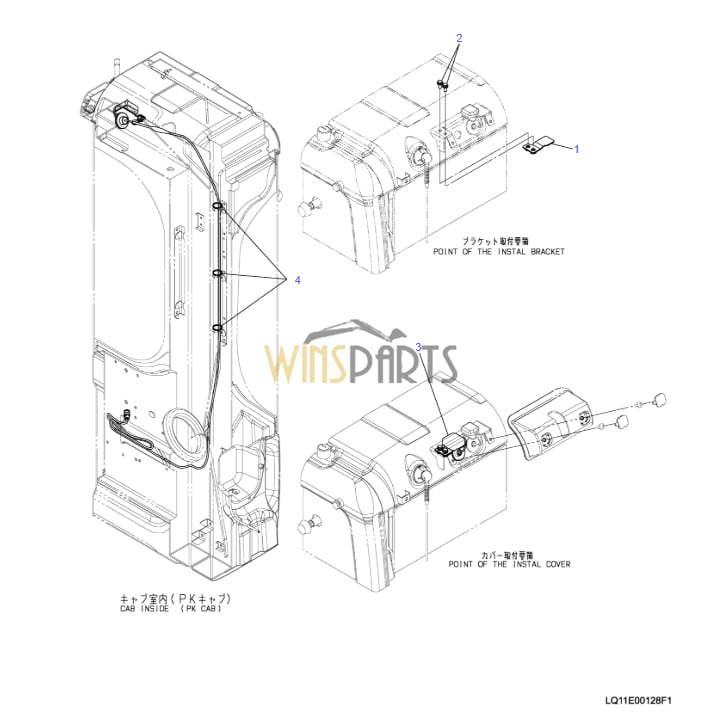

LQ11E00128F1 HARNESS ASSY
　 1 YT11E01127P1 BRACKET 1
　 2 ZM73C06016 SEMS-BOLT 2
　 3 YN54S00115P1 ANTENNA 1
　 4 PY01P01043DA CLIP 3
　 5 HX85A20004DX TRIM 1

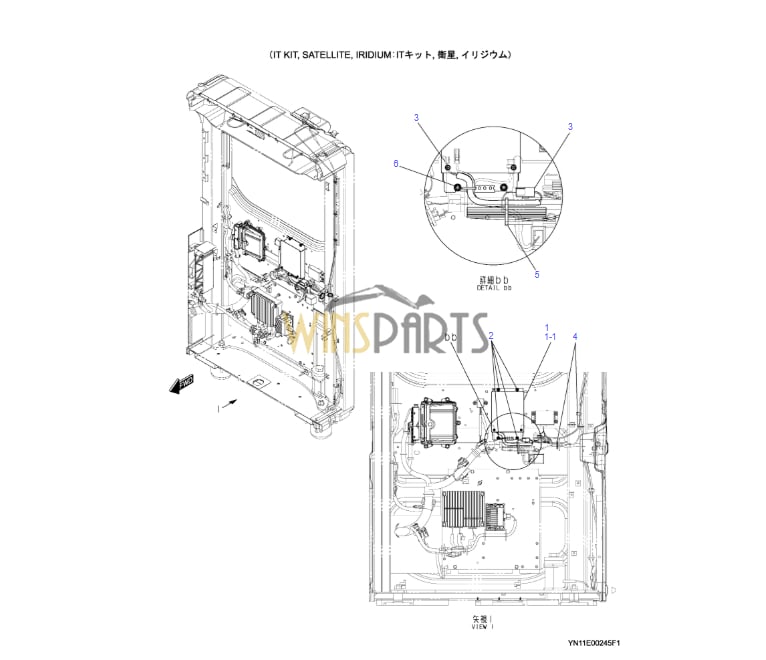

YN11E00245F1 YN22E00849F1 YN22E00849F2 HARNESS ASSY KOBELCO SK200-10 SK210LC-10
　 . (IT KIT, SATELLITE, IRIDIUM)
　 .
　 1 YN22E00849F1 CONTROLLER 1 YN15428679–29233
　 . YQ15405299–05416
　 1-1 YN22E00469S001 BATTERY 1 NBB-2000
　 1 YN22E00849F2 CONTROLLER 1 YN15429234-
　 . YQ15405417-
　 1-1 YN22E00469S001 BATTERY 1 NBB-2000
　 2 ZM61C06016 SEMS-BOLT 4
　 3 YN11E01292P1 HARNESS 1
　 4 PY01P01043D3 CLIP 2
　 5 PY01P01043D5 CLIP 1
　 6 PY01P01043DA CLIP 1

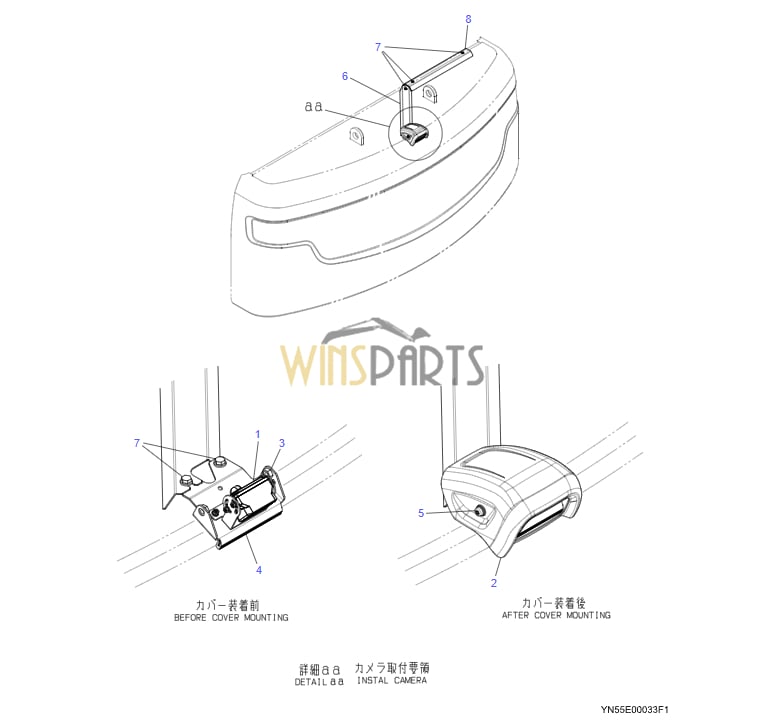

YN55E00033F1 YN55S00009F1 YN55S00009F2 CAMERA KOBELCO
　 .
　 1 YN55S00009F1 CAMERA 1
　 1 YN55S00009F2 CAMERA 1 YN15429021-
　 . YQ15405358-
　 2 YN55E01177P1 COVER 1
　 3 YN55E01178P1 BRACKET 1 YN15T17101–18053
　 . YQ15-T3101–T3145
　 3 YN55E01220P1 BRACKET 1 YN15T18054-
　 . YQ15-T3146-
　 4 YN21C03253D4 TRIM 1
　 5 YN55E01107P1 SEMS-BOLT 2
　 6 YN55E01134P1 COVER 1
　 7 ZM73C08016 SEMS-BOLT 5
　 8 YN55E01136P1 COVER 1
YN77S00071F1 CONVERTER
　 1 YN77S00040P1 CONVERTER 1
　 2 ZM61C06016 SEMS-BOLT 4
