YN01V00212F1 YN01V00212F2 ARM CYLINDER ASSY Kobelco SK200-8 SK210LC-8

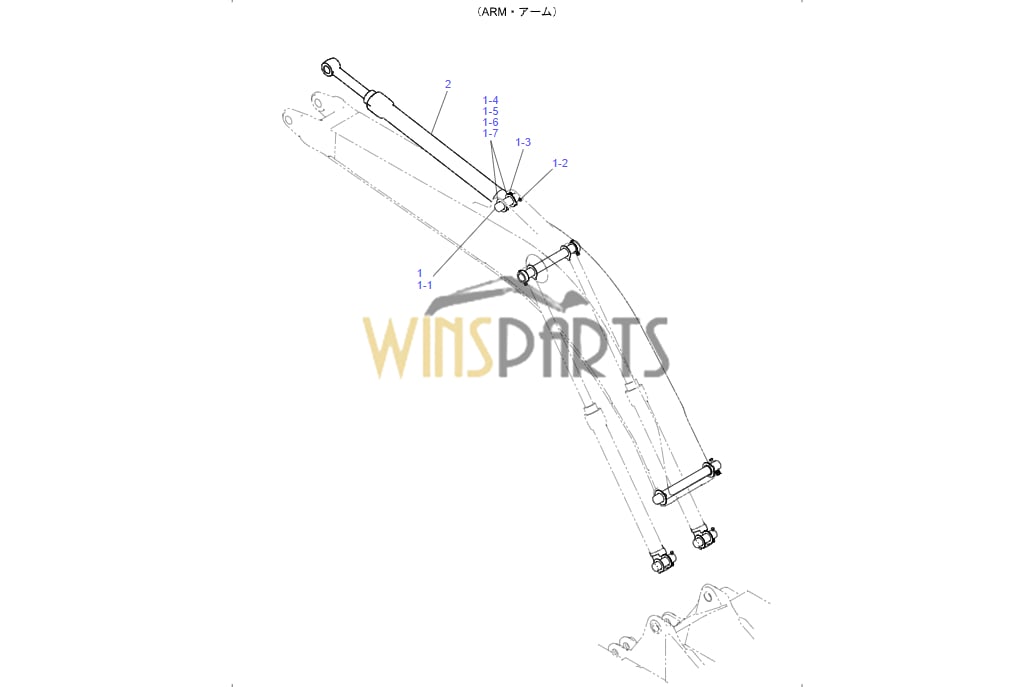

YN02B00832F1 YN02B00426F1 ARM CYLINDER INSTAL Kobelco SK200-8 SK210LC-8
　 (ARM)
　 1 YN02B00426F1 CYLINDER INSTAL 1
　 1-1 YN02B01839P1 PIN 1
　 1-2 HS18C16150G2 CAPSCREW 1
　 1-3 ZN18C16013 NUT 2
　 1-4 B16T0442D78 SHIM (0.5) 1
　 1-5 B16T0442D77 SHIM (0.9) 1
　 1-6 B16T0442D62 SHIM (1.6) 1
　 1-7 YN02B01417D1 SHIM (2.0) 2

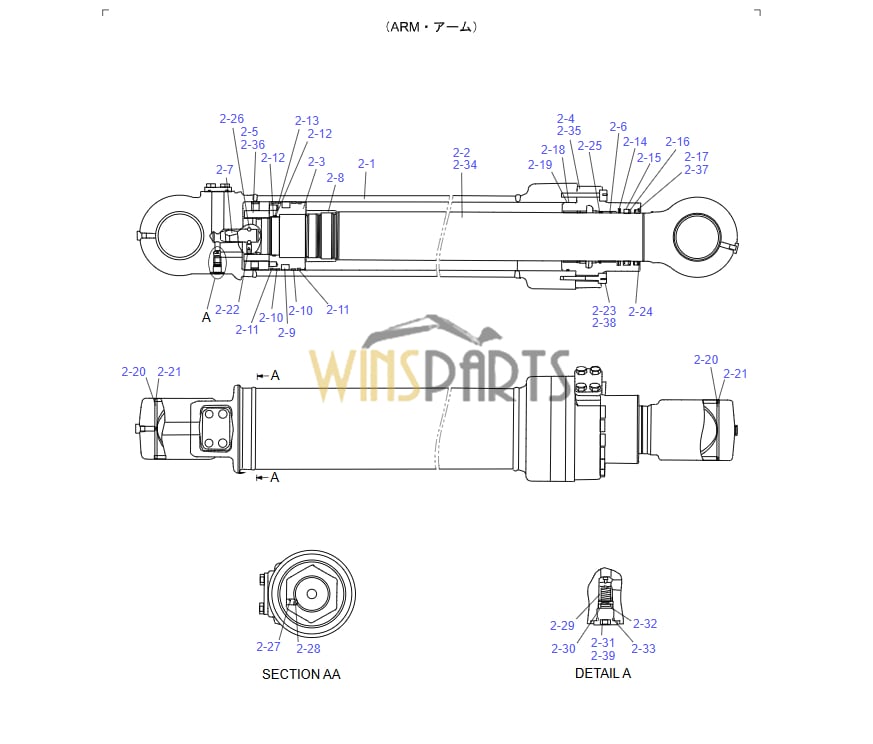

YN01V00212F1 YN01V00212F2 ARM CYLINDER ASSY Kobelco SK200-8 SK210LC-8
　 2 YN01V00212F1 CYLINDER, ARM 1 YQ12T00874–T01062
　 2-1 NO P/No TUBE ASSY 1 YQ12T00874–T01062
　 2-2 NO P/No ROD, PISTON 1 YQ12T00874–T01062
　 2-3 YN01V00128S003 PISTON 1 YQ12T00874–T01062
　 2-4 YN01V00201S003 COVER 1 YQ12T00874–T01062
　 2-5 YN01V00201S005 NUT 1 YQ12T00874–T01062
　 2-6 YN01V00128S008 BUSHING 1 YQ12T00874–T01062
　 2-7 YN01V00201S007 BUSHING 1 YQ12T00874–T01062
　 2-8 YN01V00201S008 BUSHING 1 YQ12T00874–T01062
　 2-9 YN01V00201S009 SEAL 1 YQ12T00874–T01062
　 2-10 YN01V00201S010 RING 2 YQ12T00874–T01062
　 2-11 YN01V00201S011 RING 2 YQ12T00874–T01062
　 2-12 YN01V00201S012 RING, BACK UP 2 YQ12T00874–T01062
　 2-13 ZD12G07500 O-RING 1 YQ12T00874–T01062
　 2-14 YN01V00201S014 SEAL 1 YQ12T00874–T01062
　 2-15 YN01V00201S015 SEAL 1 YQ12T00874–T01062
　 2-16 YN01V00201S016 RING, BACK UP 1 YQ12T00874–T01062
　 2-17 YN01V00201S017 RING 1 YQ12T00874–T01062
　 2-18 YN01V00201S018 RING, BACK UP 1 YQ12T00874–T01062
　 2-19 ZD12G13000 O-RING 1 YQ12T00874–T01062
　 2-20 YN01V00201S020 BUSHING 2 YQ12T00874–T01062
　 2-21 YN01V00201S021 SEAL, DUST 4 YQ12T00874–T01062
　 2-22 YN01V00201S022 SETSCREW 1 YQ12T00874–T01062
　 2-23 ZS23C16070 CAPSCREW 14 YQ12T00874–T01062
　 2-24 YN01V00201S024 RING 1 YQ12T00874–T01062
　 2-25 YN01V00128S016 RING 1 YQ12T00874–T01062
　 2-26 YN01V00128S015 BALL 12 YQ12T00874–T01062
　 2-27 YN01V00200S009 SETSCREW 1 YQ12T00874–T01062
　 2-28 YN01V00200S008 BALL 1 YQ12T00874–T01062
　 2-29 YN01V00201S029 ORIFICE 1 YQ12T00874–T01062
　 2-30 YN01V00128S010 SPRING 1 YQ12T00874–T01062
　 2-31 YN01V00128S017 PLUG 1 YQ12T00874–T01062
　 2-32 YN01V00128S011 SPACER 1 YQ12T00874–T01062
　 2-33 ZD12P01400 O-RING 1 YQ12T00874–T01062
　 2 YN01V00212F2 CYLINDER, ARM 1 YQ12T01063-
　 2-1 NO P/No TUBE ASSY 1 YQ12T01063-
　 2-3 YN01V00128S003 PISTON 1 YQ12T01063-
　 2-6 YN01V00128S008 BUSHING 1 YQ12T01063-
　 2-7 YN01V00201S007 BUSHING 1 YQ12T01063-
　 2-8 YN01V00201S008 BUSHING 1 YQ12T01063-
　 2-9 YN01V00201S009 SEAL 1 YQ12T01063-
　 2-10 YN01V00201S010 RING 2 YQ12T01063-
　 2-11 YN01V00201S011 RING 2 YQ12T01063-
　 2-12 YN01V00201S012 RING, BACK UP 2 YQ12T01063-
　 2-13 ZD12G07500 O-RING 1 YQ12T01063-
　 2-14 YN01V00201S014 SEAL 1 YQ12T01063-
　 2-15 YN01V00201S015 SEAL 1 YQ12T01063-
　 2-16 YN01V00201S016 RING, BACK UP 1 YQ12T01063-
　 2-18 YN01V00201S018 RING, BACK UP 1 YQ12T01063-
　 2-19 ZD12G13000 O-RING 1 YQ12T01063-
　 2-20 YN01V00201S020 BUSHING 2 YQ12T01063-
　 2-21 YN01V00201S021 SEAL, DUST 4 YQ12T01063-
　 2-22 YN01V00201S022 SETSCREW 1 YQ12T01063-
　 2-24 YN01V00201S024 RING 1 YQ12T01063-
　 2-25 YN01V00128S016 RING 1 YQ12T01063-
　 2-26 YN01V00128S015 BALL 12 YQ12T01063-
　 2-27 YN01V00200S009 SETSCREW 1 YQ12T01063-
　 2-28 YN01V00200S008 BALL 1 YQ12T01063-
　 2-29 YN01V00201S029 ORIFICE 1 YQ12T01063-
　 2-30 YN01V00128S010 SPRING 1 YQ12T01063-
　 2-32 YN01V00128S011 SPACER 1 YQ12T01063-
　 2-33 ZD12P01400 O-RING 1 YQ12T01063-
　 2-34 NO P/No ROD, PISTON 1 YQ12T01063-
　 2-35 YN01V00212S035 COVER 1 YQ12T01063-
　 2-36 YN01V00212S036 NUT 1 YQ12T01063-
　 2-37 YN01V00212S037 RING 1 YQ12T01063-
　 2-38 YN01V00200S028 CAPSCREW 14 YQ12T01063-
　 2-39 YN01V00212S039 PLUG 1 YQ12T01063-
　 .
　 YN01V00201R100 REPAIR KIT 1
　 (2-9, 2-13)X1
　 (2-10, 2-11, 2-12)X2
　 .
　 YN01V00201R200 REPAIR KIT 1 YQ12T00874–T01062
　 (2-14, 2-15, 2-16, 2-17, 2-18, 2-19, 2-24, 2-25)X1
　 .
　 YN01V00201R300 REPAIR KIT 1 YQ12T00874–T01062
　 (2-9, 2-13, 2-14, 2-15, 2-16, 2-17, 2-18, 2-19, 2-33)X1
　 (2-10, 2-11, 2-12)X2
　 (2-21)X4
　 .
　 YN01V00212R400 REPAIR KIT 1
　 (2-1, 2-20)X1
　 (2-21)X2
　 .
　 YN01V00201R500 REPAIR KIT 1 YQ12T00874–T01062
　 (2-2, 2-20)X1
　 (2-21)X2
　 .
　 YN01V00201R600 REPAIR KIT 1
　 (2-3, 2-9, 2-13)X1
　 (2-10, 2-11, 2-12)X2
　 .
　 YN01V00201R700 REPAIR KIT 1 YQ12T00874–T01062
　 (2-4, 2-6, 2-14, 2-15, 2-16, 2-17, 2-18, 2-19, 2-24, 2-25)X1
　 .
　 YN01V00212R110 REPAIR KIT 1 YQ12T01063-
　 (2-14, 2-15, 2-16, 2-18, 2-19, 2-24, 2-25, 2-37)X1
　 .
　 YN01V00212R310 REPAIR KIT 1 YQ12T01063-
　 (2-9, 2-13, 2-14, 2-15, 2-16, 2-18, 2-19, 2-33, 2-37)X1
　 (2-10, 2-11, 2-12)X2
　 (2-21)X4
　 .
　 YN01V00212R510 REPAIR KIT 1 YQ12T01063-
　 (2-20, 2-34)X1
　 (2-21)X2
　 .
　 YN01V00212R710 REPAIR KIT 1 YQ12T01063-
　 (2-6, 2-14, 2-15, 2-16, 2-18, 2-19, 2-24, 2-25, 2-35, 2-37)X1
YN01V00175F2 YN01V00175F4 ARM CYLINDER Kobelco SK200-8 SK210LC-8
　 YN02B00425F1 CYLINDER INSTAL
　 [HD (ARM)]
　 1 YN02B00426F1 CYLINDER INSTAL 1
　 1-1 YN02B01839P1 PIN 1
　 1-2 HS18C16150G2 CAPSCREW 1
　 1-3 ZN18C16013 NUT 2
　 1-4 B16T0442D78 SHIM (0.5) 1
　 1-5 B16T0442D77 SHIM (0.9) 1
　 1-6 B16T0442D62 SHIM (1.6) 1
　 1-7 YN02B01417D1 SHIM (2.0) 2
　 2 YN01V00175F2 CYLINDER, ARM 1 YQ12T00874–T01176
　 2-3 YN01V00105S003 CYLINDER HEAD 1 YQ12T00874–T01176
　 2-4 2438U1018S4 BUSHING 1 YQ12T00874–T01176
　 2-5 2438U776S5 RING, SNAP 1 YQ12T00874–T01176
　 2-6 YN01V00175S006 RING, BUFFER 1 YQ12T00874–T01176
　 2-7 YN01V00175S007 RING 1 YQ12T00874–T01176
　 2-8 YN01V00105S008 RING, BACK UP 1 YQ12T00874–T01176
　 2-9 2438U776S9 RING, WIPER 1 YQ12T00874–T01176
　 2-10 ZD12G13000 O-RING 1 YQ12T00874–T01176
　 2-11 LQ01V00001S011 RING, BACK UP 1 YQ12T00874–T01176
　 2-12 ZS23C18080 CAPSCREW 12 YQ12T00874–T01176
　 2-13 YN01V00175S013 RING 1 YQ12T00874–T01176
　 2-14 YN01V00175S014 SEAL 1 YQ12T00874–T01176
　 2-15 YN01V00175S015 PISTON 1 YQ12T00874–T01176
　 2-16 LQ01V00001S016 RING ASSY 1 YQ12T00874–T01176
　 2-17 LQ01V00001S017 RING, BACK UP 2 YQ12T00874–T01176
　 2-18 YN01V00175S018 RING 2 YQ12T00874–T01176
　 2-19 LQ01V00001S019 RING 2 YQ12T00874–T01176
　 2-20 2438U953S21 SETSCREW 1 YQ12T00874–T01176
　 2-21 2436R624S6 BALL 1 YQ12T00874–T01176
　 2-22 YN01V00175S022 RING 1 YQ12T00874–T01176
　 2-23 LQ01V00007S025 SEAL 1 YQ12T00874–T01176
　 2-24 2438U1104S25 STOPPER 2 YQ12T00874–T01176
　 2-25 2438U1104S26 RING 1 YQ12T00874–T01176
　 2-27 2438U1102S26 RING, WIPER 4 YQ12T00874–T01176
　 2-28 NO P/No TUBE ASSY 1 YQ12T00874–T01176
　 2-29 NO P/No ROD, PISTON 1 YQ12T00874–T01176
　 2-30 2438U1104S28 BUSHING 2 YQ12T00874–T01176
　 2 YN01V00175F4 CYLINDER, ARM 1 YQ12T01177-
　 2-3 YN01V00105S003 CYLINDER HEAD 1 YQ12T01177-
　 2-4 2438U1018S4 BUSHING 1 YQ12T01177-
　 2-5 2438U776S5 RING, SNAP 1 YQ12T01177-
　 2-6 YN01V00175S006 RING, BUFFER 1 YQ12T01177-
　 2-7 YN01V00175S007 RING 1 YQ12T01177-
　 2-8 YN01V00105S008 RING, BACK UP 1 YQ12T01177-
　 2-9 2438U776S9 RING, WIPER 1 YQ12T01177-
　 2-10 ZD12G13000 O-RING 1 YQ12T01177-
　 2-11 LQ01V00001S011 RING, BACK UP 1 YQ12T01177-
　 2-12 ZS23C18080 CAPSCREW 12 YQ12T01177-
　 2-13 YN01V00175S013 RING 1 YQ12T01177-
　 2-14 YN01V00175S014 SEAL 1 YQ12T01177-
　 2-15 YN01V00175S015 PISTON 1 YQ12T01177-
　 2-16 LQ01V00001S016 RING ASSY 1 YQ12T01177-
　 2-17 LQ01V00001S017 RING, BACK UP 2 YQ12T01177-
　 2-18 YN01V00175S018 RING 2 YQ12T01177-
　 2-19 LQ01V00001S019 RING 2 YQ12T01177-
　 2-20 2438U953S21 SETSCREW 1 YQ12T01177-
　 2-21 2436R624S6 BALL 1 YQ12T01177-
　 2-22 YN01V00175S022 RING 1 YQ12T01177-
　 2-23 LQ01V00007S025 SEAL 1 YQ12T01177-
　 2-24 2438U1104S25 STOPPER 2 YQ12T01177-
　 2-25 2438U1104S26 RING 1 YQ12T01177-
　 2-27 2438U1102S26 RING, WIPER 4 YQ12T01177-
　 2-29 NO P/No ROD, PISTON 1 YQ12T01177-
　 2-30 2438U1104S28 BUSHING 2 YQ12T01177-
　 2-31 NO P/No TUBE ASSY 1 YQ12T01177-
　 .
　 YN01V00175R100 REPAIR KIT 1
　 (2-6, 2-7, 2-8, 2-9, 2-10, 2-11)X1
　 .
　 YN01V00175R200 REPAIR KIT 1
　 (2-14, 2-16, 2-23)X1
　 (2-17, 2-18, 2-19)X2
　 .
　 YN01V00175R300 REPAIR KIT 1
　 (2-6, 2-7, 2-8, 2-9, 2-10, 2-11, 2-14, 2-16, 2-23)X1
　 (2-17, 2-18, 2-19)X2
　 .
　 YN01V00175R600 REPAIR KIT 1 YQ12T00874–T01176
　 (2-28, 2-30)X1
　 (2-27)X2
　 .
　 YN01V00175R700 REPAIR KIT 1
　 (2-29, 2-30)X1
　 (2-27)X2
　 .
　 YN01V00175R410 REPAIR KIT 1 YQ12T01177-
　 (2-30, 2-31)X1
　 (2-27)X2

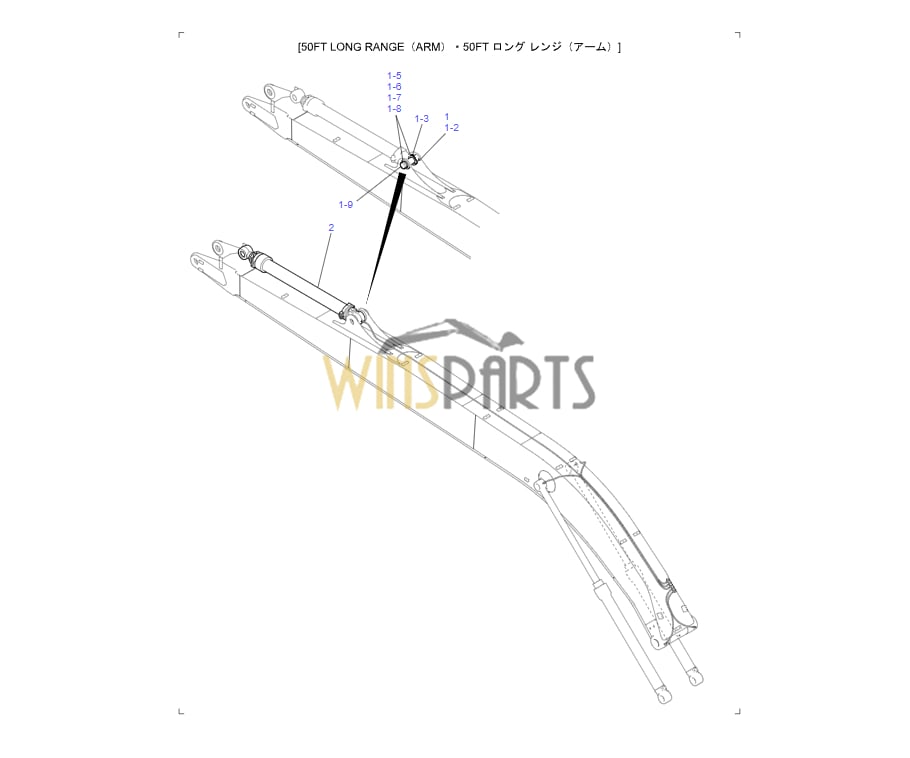

YN02B00244F2 YN01V00132F5 CYLINDER, ARM REPAIR KIT Kobelco SK200-8
　 YN02B00508F1 CYLINDER INSTAL
　 [50FT LONG RANGE (ARM)]
　 1 YN02B00244F2 CYLINDER INSTAL 1
　 1-2 HS18C16150G2 CAPSCREW 1
　 1-3 ZN18C16013 NUT 2
　 1-5 B16T0442D78 SHIM (0.5) 1
　 1-6 B16T0442D77 SHIM (0.9) 1
　 1-7 B16T0442D62 SHIM (1.6) 1
　 1-8 YN02B01417D1 SHIM (2.0) 2
　 1-9 YN02B01381P1 PIN 1
　 2 YN01V00132F5 CYLINDER, ARM 1
　 2-3 YN01V00105S003 CYLINDER HEAD 1
　 2-4 2438U1018S4 BUSHING 1
　 2-5 2438U776S5 RING, SNAP 1
　 2-7 YN01V00105S007 RING 1
　 2-8 YN01V00105S008 RING, BACK UP 1
　 2-9 YN01V00105S009 RING 1
　 2-10 ZD12G13000 O-RING 1
　 2-11 LQ01V00001S011 RING, BACK UP 1
　 2-12 ZS23C18080 CAPSCREW 12
　 2-13 YN01V00105S013 RING 1
　 2-14 YN01V00105S014 SEAL 1
　 2-15 YN01V00118S015 PISTON 1
　 2-16 LQ01V00001S016 RING ASSY 1
　 2-17 LQ01V00001S017 RING, BACK UP 2
　 2-18 YN01V00105S050 RING 2
　 2-19 LQ01V00001S019 RING 2
　 2-20 2438U1170S20 SHIM 1
　 2-21 YN01V00118S021 NUT 1
　 2-22 2438U953S21 SETSCREW 1
　 2-23 2436R624S6 BALL 1
　 2-24 YN01V00105S024 RING 1
　 2-25 LQ01V00007S025 SEAL 1
　 2-26 2438U1104S25 STOPPER 2
　 2-27 2438U1104S26 RING 1
　 2-29 2438U1102S26 RING, WIPER 4
　 2-30 YN01V00105S030 BAND ASSY 1
　 2-31 2438U1018S28 BAND 1
　 2-32 ZS18C10035 CAPSCREW 2
　 2-33 ZW26X10000 LOCK WASHER 2
　 2-34 NO P/No TUBE ASSY 1
　 2-35 NO P/No ROD, PISTON 1
　 2-36 2438U1104S28 BUSHING 2
　 2-37 YN01V00132S037 RING, BUFFER 1
　 .
　 YN01V00105R100 REPAIR KIT 1
　 (2-7, 2-8, 2-9, 2-10, 2-11, 2-37)X1
　 .
　 YN01V00105R800 REPAIR KIT 1
　 (2-14, 2-16, 2-25)X1
　 (2-17, 2-18, 2-19)X2
　 .
　 YN01V00105R900 REPAIR KIT 1
　 (2-7, 2-8, 2-9, 2-10, 2-11, 2-14, 2-16, 2-25, 2-37)X1
　 (2-17, 2-18, 2-19)X2
　 .
　 YN01V00105R400 REPAIR KIT 1
　 (2-34, 2-36)X1
　 (2-29)X2
　 .
　 YN01V00132R100 REPAIR KIT 1
　 (2-35, 2-36)X1
　 (2-29)X2
