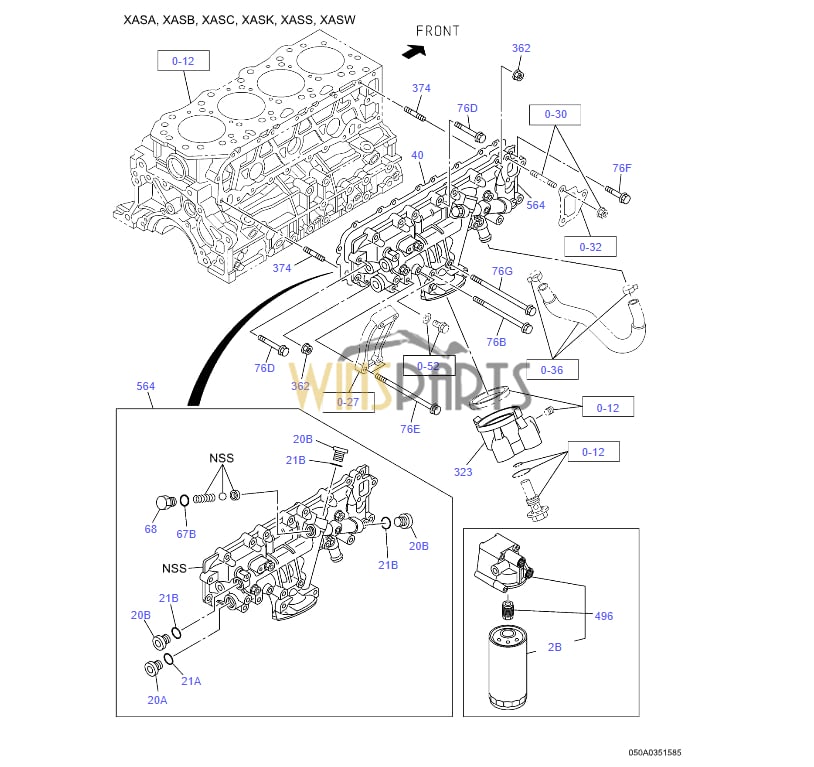

VI8983758600 OIL COOLER OIL FILTER ELEMENT KOBELCO SK135SRLC-5 SK140SRL-5 SK140SRLC-5 ED160(BR)-5

VI8983758600 OIL COOLER OIL FILTER ELEMENT KOBELCO SK135SRLC-5 SK140SRL-5 SK140SRLC-5 ED160(BR)-5
　 .
　 2B VI8983758600 ELEMENT; OIL FILTER 1
　 20A VI8943967530 PLUG; COOLER BODY 1
　 20B VI8981339780 PLUG; COOLER BODY 3
　 21A VI8981330600 GASKET; PLUG 1
　 21B VI8981339790 GASKET; PLUG 3
　 40 VI8980747460 GASKET; O/FILTER BODY 1
　 67B VI8981330590 GASKET; VLV 1
　 68 VI9132630100 PLUG; VLV 1
　 76D VI0286508350 BOLT; OIL FILTER 12 M8X35 FLANGE
　 76E VI0280558110 BOLT; OIL FILTER 2 M8X110 FLANGE
　 76F VI0280508200 BOLT; OIL FILTER 1 M8X20 FLANGE
　 76B VI0280508900 BOLT; OIL FILTER 1 M8X90 FLANGE
　 76G VI0280508000 BOLT; OIL FILTER 1 M8X100 FLANGE
　 323 VI8981536782 COVER; OIL PORT 1
　 362 VI0911802080 NUT; OIL FILTER 2 M8 FLANGE
　 374 VI0410108200 STUD; OIL FILTER 2 M8X20 L=32
　 496 VI8983758661 FILTER ASM; OIL 1
　 564 VI8982743440 COOLER ASM; OIL, W/O FILTER 1

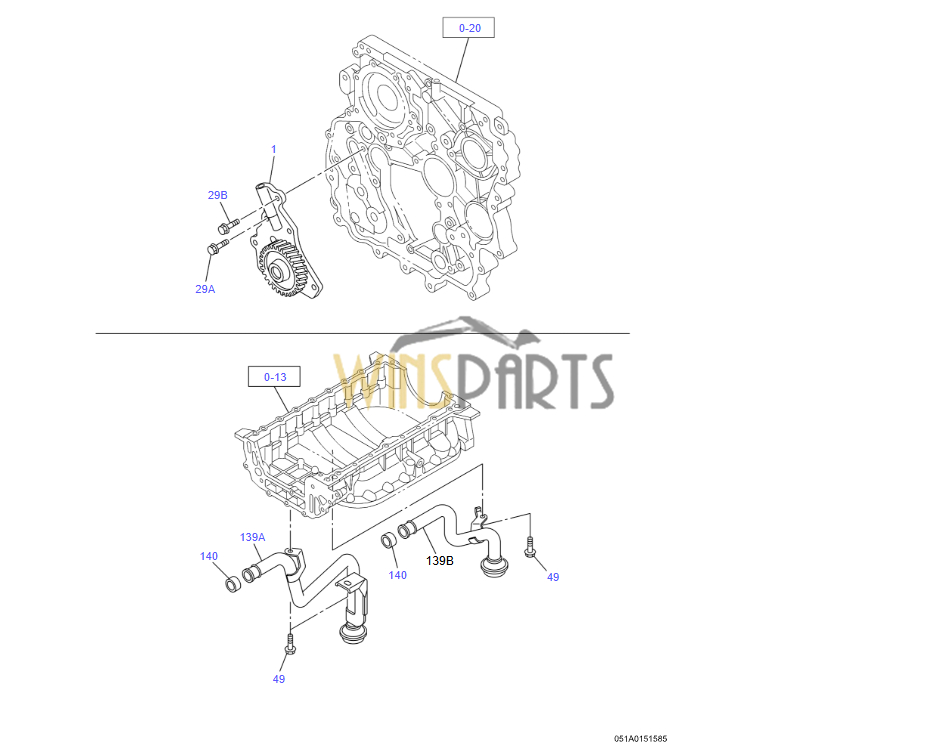

VI8981451531 OIL PUMP AND OIL STRAINER KOBELCO SK130LC-11 SK140LC-11 SK125SR-5 SK130SR-7
　 .
　 1 VI8981451531 PUMP ASM; OIL 1
　 29A VI0280508300 BOLT; OIL PUMP 4 M8X30 FLANGE
　 29B VI0280508450 BOLT; OIL PUMP 2 M8X45 FLANGE
　 49 VI0280508160 BOLT; STRAINER, OIL PUMP 2 M8X16 FLANGE
　 139A VI8980195101 PIPE; OIL STRAINER 1
　 140 VI8973561500 GASKET; OIL STRAINER 1
　 .
4JJ1XASK05_0-13A-4_51585_1 0-13
ENGINE OIL AND VACUUM PIPING KOBELCO SK130LC-11 SK140LC-11 SK125SR-5 SK130SR-7 SK140SRLC-7
　 .
　 2A VI8944435350 BOLT; EYE, OIL PIPE 1 M10X27 EYE-BOLT
　 2B VI9099062051 BOLT; EYE, OIL PIPE 1 M10X24 EYE-BOLT
　 2D VI1096750860 BOLT; EYE, OIL PIPE 1 M14X27 EYE-BOLT
　 2E VI8981086890 BOLT; EYE, OIL PIPE 1 M8X23 EYE-BOLT
　 3 VI9095714100 GASKET; EYE BOLT, OIL PIPE 4 ID=10.2 OD=16.0
　 28A VI8983407230 GASKET; OIL PIPE 1 ID=8.2
　 28B VI8981137620 GASKET; OIL PIPE 1 ID=14.2 OD=20.0
　 29A VI0280508100 BOLT; OIL PIPE, OIL JET 1 M8X10 FLANGE
　 29B VI8971172981 BOLT; OIL PIPE, OIL JET 4 M6X20 FLANGE
　 48B VI8981212330 CLIP; OIL PIPE 2 ID=7 L=28
　 57 VI8973121323 PIPE; OIL, OIL JET 1
　 58 VI8982853340 VALVE; RELIEF, OIL JET, PISTON COOLING 1
　 63B VI8981353250 PIPE; OIL, TURBOCHARGER FEED 1
　 89A VI8970316740 CLIP; HOSE, VAC 2 ID=7.3
　 89B VI0952348550 CLIP; HOSE, VAC 1 ID=9 L=28
　 100B VI0280508120 BOLT; CLIP 2 M8X12 FLANGE
　 131 VI0911802080 NUT; CLIP FIX 1 M8 FLANGE
　 147 VI8980294750 GASKET; OIL PIPE TO TURBOCHARGER 1
　 149B VI8981353260 PIPE; OIL RETURN, TURBOCHARGER 1
　 150 VI8980294760 GASKET; OIL PIPE TO C/BL 1
　 311 VI0280506120 BOLT; PIPE FIX 1 M6X12 FLANGE
　 332A VI8980389290 PIPE; OIL, VAC OIL FEED 1
　 338 VI5096750181 BOLT; JOINT, OIL PIPE 2 M8X20 EYE-BOLT
　 339A VI9095714080 GASKET; OIL PIPE 4 ID=8.2 OD=14
　 414A VI0286506200 BOLT; OIL PIPE 2 M6X20 FLANGE
　 414B VI8973666320 BOLT; OIL PIPE 2 M8X20 FLANGE
　 448A VI8980952450 FILLER; OIL 1 L=126
　 472 VI9095714100 GASKET; PLUG 1 ID=10.2 OD=16.0
　 480 VI1096040740 PLUG; OIL FILTER 1 M10X10
　 495 VI8980274560 SENSOR; OIL PRESS 1
　 499A VI8981536820 PIPE; VACUUM 1
　 499B VI8981344590 PIPE; VACUUM 1
　 500 VI8981538160 HOSE ASM; VAC 1
　 572 VI8982513450 GASKET; SENSOR 1 ID=14.2 OD=19.2
　 583 VI1096232460 GASKET; ADAPTER 1
　 585 VI0410108180 STUD; CLIP 1 M8X18 L=30
　 586 VI8982555070 PIPE; OIL, TENSIONER 1

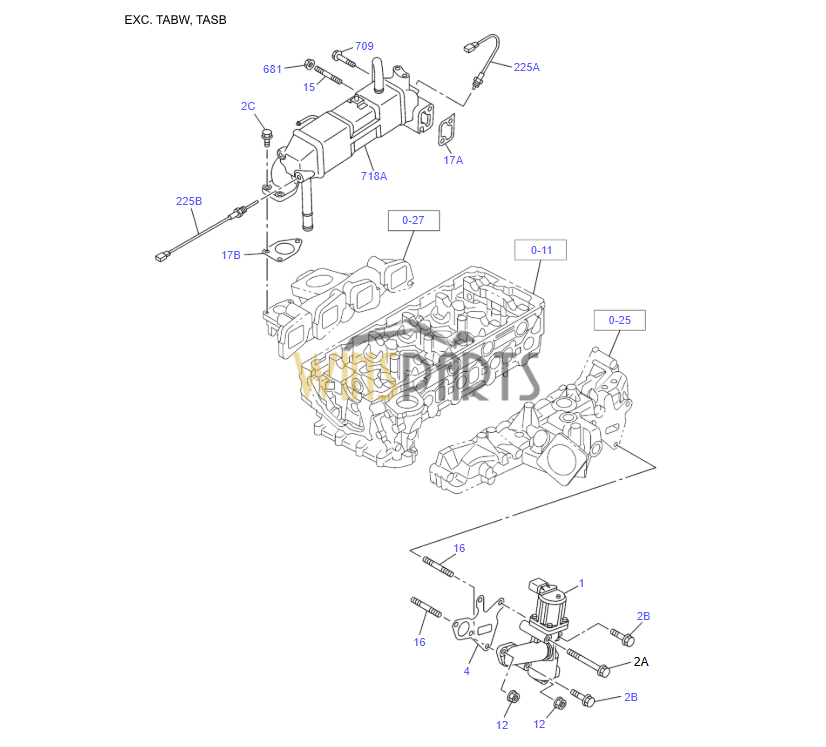

VI8982382453 EGR VALVE EMISSION PIPING KOBELCO SK130SR-7 SK140SRLC-7 SK135SRLC-5 Excavator
　 .
　 1 VI8982382453 VALVE; EGR 1 24V
　 2C VI0280508800 BOLT; EGR VLV 1 M8X80 FLANGE
　 2B VI0280508500 BOLT; EGR VLV 2 M8X50FLANGE
　 2D VI8973780770 BOLT; EGR VLV 3 M8X23 FLANGE
　 4 VI8980945282 GASKET; EGR VLV 1
　 12 VI0911802080 NUT; EGR VLV 2 M8 FLANGE
　 15 VI0402108600 STUD; EGR PIPE 1 M8X60 L=72
　 16 VI0410108200 STUD; EGR VLV 2 M8X20 L=32
　 17A VI8982283030 GASKET; EGR PIPE 1
　 17B VI8980632841 GASKET; EGR PIPE 1
　 73A VI8943154260 CLIP; VAC HOSE 2 ID=13.2 & 7.5
　 73B VI1097091820 CLIP; VAC HOSE 1 ID=11.8 & 7.5
　 73C VI8941690270 CLIP; VAC HOSE 1 ID=8.3 & 16.5
　 73D VI8970316740 CLIP; VAC HOSE 8 ID=7.3
　 194A VI0044202700 HOSE; VAC 1 ID=3.5 L=270
　 194B VI8982554070 HOSE; VAC 1
　 194C VI8981870610 HOSE; VAC 1 ID=4 L=490
　 194D VI8981870620 HOSE; VAC 1 ID=4 L=200
　 225A VI8980283980 SENSOR; THERMO, EGR 1
　 225B VI8980309550 SENSOR; THERMO, EGR 1
　 472 VI0280508160 BOLT; BRKT 2 M8X16 FLANGE
　 681 VI0911802080 NUT; EGR PIPE 1 M8 FLANGE
　 709 VI0280508500 BOLT; EGR COOLER 1 M8X50 FLANGE
　 718A VI8982381950 COOLER; EGR 1
　 747 VI0911801080 NUT; VAC REG VALVE 2
　 752 VI8981628830 VALVE; EVRV 1
　 753 VI8973815711 BRACKET; VALVE 1
　 779 VI0916106080 WASHER; VALVE 2

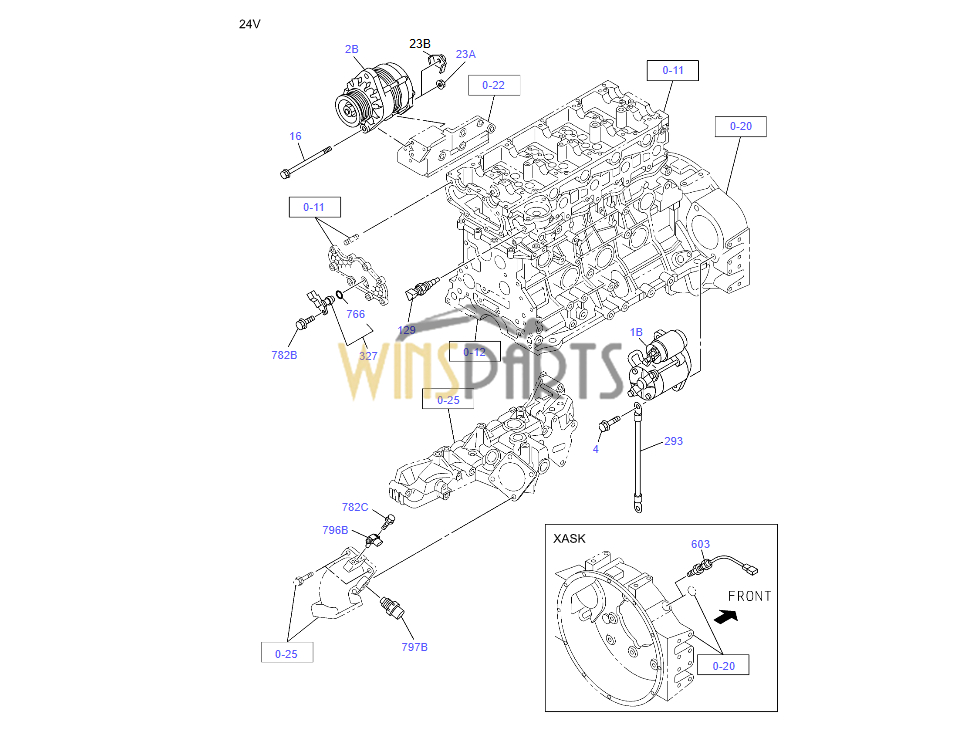

VI8980450273 VI8980921122 ENGINE ELECTRICAL CONTROL PARTS KOBELCO SK130LC-11 SK140LC-11 SK125SR-5 SK130SR-7
　 .
　 1B VI8980450273 STARTER ASM 1 24V 4.0KW HITACHI
　 2B VI8980921122 GENERATOR ASM 1 24V 50A NIKKO
　 4 VI0287512350 BOLT; STARTER 2 M12X35 FLANGE
　 10C VI8980056311 RELAY; STARTER 1 24V
　 16 VI0280560130 BOLT; GEN 1 M10X130 FLANGE
　 23A VI0911802100 NUT; GEN 1 M10
　 46 VI8944607061 RELAY; GLOW PLUG 1 24V
　 129 VI8981566480 SENSOR; GLOW PLUG, THERMO 1
　 293 VI9829322110 CABLE; STARTER EARTH 1 L=350
　 327 VI8980190240 SENSOR; CAMSHAFT POSITION 1
　 603 VI1815105130 SENSOR; TACHO 1
　 613 VI8975053450 CONTROL UNIT; ENG 1
　 766 VI8973694040 GASKET; SENSOR 1
　 782B VI0280506160 BOLT; SENSOR 1 M6X16 FLANGE
　 782C VI8973166150 BOLT; SENSOR 2 M4X10 W/PL WASHER
　 796B VI8980094180 SENSOR; MAP 1
　 797B VI8121468300 SENSOR; MAT 1
　 819 VI8976019670 SENSOR; MASS AIR FLOW (MAF) 1
　 915 VI9533190240 SPACER; HARNESS 1
　 995 VI8975055550 CONTROL UNIT; DEF DCM 1
