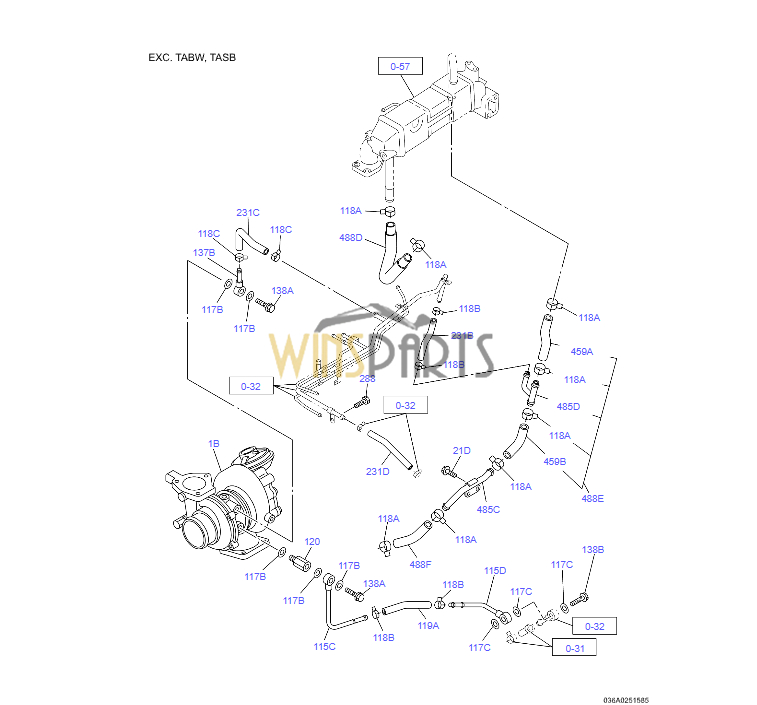

VI8983686610 8-98368661-0 ENGINE TURBOCHARGER KOBELCO SK130LC-11 SK140LC-11 SK125SR-5 SK130SR-7
.
1B VI8983686610 TURBOCHARGER ASM 1
2 VI8944336050 GASKET; TURBOCHARGER TO EXH MANIF 1
11 VI8971616070 NUT; TURBOCHARGER 4 M8 FLANGE
16B VI8981338540 ADAPTER; EXH PIPE 1
18 VI8971616070 NUT; EXH PIPE 3 M8 FLANGE
21D VI0280506160 BOLT; PIPE 2 M6X16 FLANGE
66 VI9041308250 STUD; EXH PIPE 2 M8X25 L=36
94 VI8972023281 GASKET; INL PIPE 1
115C VI8981353310 PIPE; WATER, TURBOCHARGER OUT 1
115D VI8981844280 PIPE; WATER, TURBOCHARGER OUT 1
117C VI9095714140 GASKET; WATER PIPE 3 ID=14.2 OD=20.0
117B VI9099208731 GASKET; WATER PIPE 5 ID=12.2
118A VI8941258621 CLIP; WATER HOSE 8 ID=20.8
118B VI8943679430 CLIP; WATER HOSE 4 ID=12.8
118C VI8973756360 CLIP; WATER HOSE 2 ID=14.2
119A VI0035593000 HOSE; WATER, TURBOCHARGER 1 L=110 S.B.L.=3000
120 VI8944725830 ADAPTER; WATER 1
137B VI8981353330 PIPE; WATER, TURBOCHARGER IN 1
138A VI1096750810 BOLT; EYE, WATER PIPE 2 M12X24 FLANGE
138B VI1096751090 BOLT; EYE, WATER PIPE 1
141 VI0410106200 STUD; INL PIPE TO BRKT 3 M6X20 L=28
163 VI8943690210 GASKET; ADAPTER TO EXH PIPE 1
183 VI8982554090 PIPE; INLET, TURBOCHARGER 1
231B VI8981203941 HOSE; RUBBER, TURBOCHARGER OUT 1
231C VI8981538140 HOSE; RUBBER, TURBOCHARGER OUT 1
231D VI0035593000 HOSE; RUBBER, TURBOCHARGER OUT 1 L=140 S.B.L.=3000
288 VI0280506120 BOLT; WATER PIPE CLIP 1 M6X12 FLANGE
408A VI8973780600 STUD; TURBOCHARGER TO ADAPTER 3 M8X20 L=31
408B VI8941098900 STUD; TURBOCHARGER TO ADAPTER 1 M8x50 L=61
412B VI8980115320 GASKET; TURBOCHARGER 1
459A VI8981073470 HOSE; WATER 1
459B VI8981083210 HOSE; WATER 1
460 VI0911801060 NUT; PIPE 3
485C VI8980824241 PIPE; WATER EGR 1
485D VI8981073460 PIPE; WATER EGR 1
488D VI8980751840 HOSE; RUBBER 1
488E VI8980822210 HOSE; RUBBER 1
488F VI0035663000 HOSE; RUBBER 1 L=140 S.B.L.=3000
539 VI8973811820 SENSOR; TURBOCHARGER
