YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

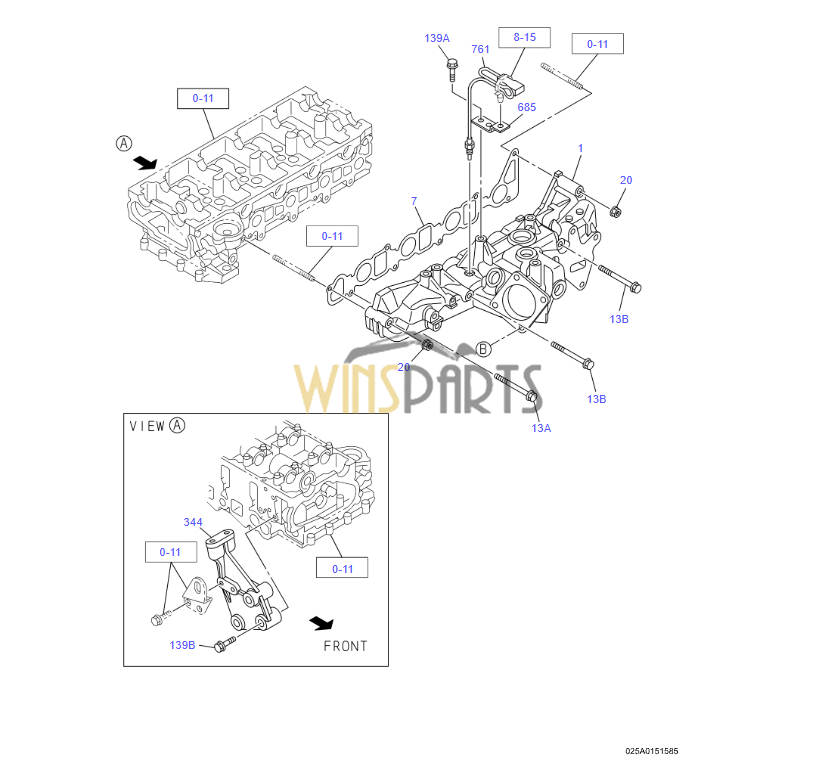

VI8982817790 ENGINE INLET MANIFOLD KOBELCO SK125SR-5 SK130SR-5 SK130UR-5 SK135SRD-5
.
1 VI8982817790 MANIFOLD; INL 1
7 VI8982129990 GASKET; INL MANIF TO HD 1
13A VI0280508700 BOLT; INL MANIF 4 M8X70 FLANGE
13B VI0280558110 BOLT; INL MANIF 2 M8X110 FLANGE
20 VI0911802080 NUT; INL MANIF 2 M8 FLANGE
32 VI0410106200 STUD; INL PIPE 2 M6X20 L=28
139A VI0280508160 BOLT; BRACKET FIX 1 M8X16 FLANGE
139B VI8982341520 BOLT; BRACKET FIX 2 M10X53 FLANGE
184 VI8980969680 GASKET; T/V 2
344 VI8982555620 BRACKET; INLET PIPE 1
373 VI8975193010 THROTTLE ASM; INT 1
685 VI1826995880 BRACKET; HARNESS 1
731 VI0583306500 BOLT; THROTTLE ASM 4 M6X50 HEX SOCKET
746A VI8981710310 ADAPTER 1
761 VI8973811820 SENSOR; MANIF 1
808 VI0911105060 NUT; ADAPTER 2
809 VI0286506300 BOLT; ADAPTER 2 M6X30 FLANGE
.

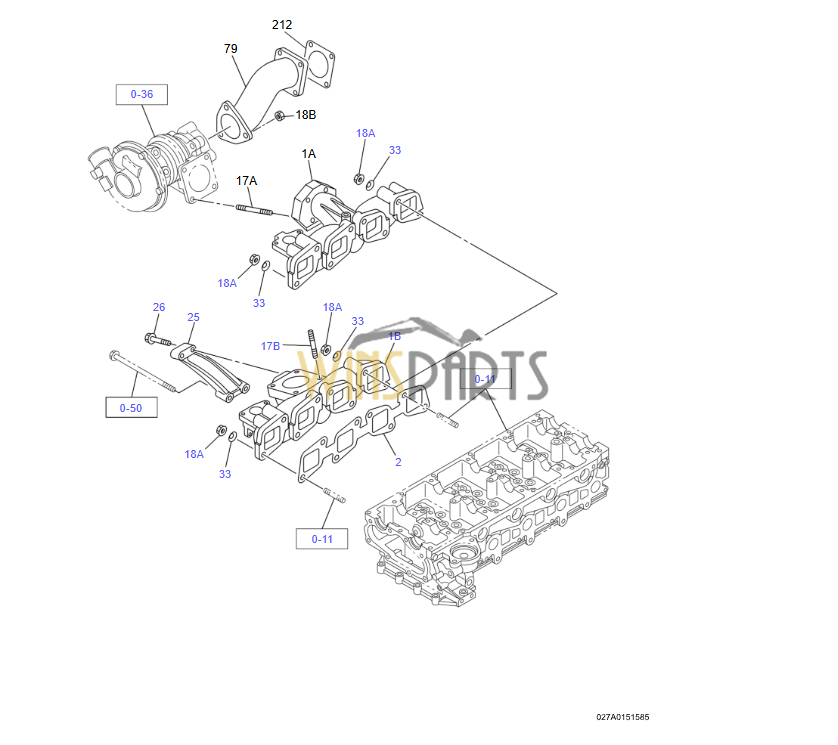

1B VI8981340601 MANIFOLD; EXHAUST 1
2 VI8982157520 GASKET; EXH MANIF TO HD 1
17B VI8973780620 STUD; MANIF TO TURBOCHARGER 4 M8X25 L=36
18A VI8973816170 NUT; EXH MANIF 8 M10 FLANGE
25 VI8981887410 BRACKET; EXH MANIF 1
26 VI8980654810 BOLT; BRACKET TO EXH MANIF 2 M8X43 HEX SOCKET
33 VI5095000130 WASHER; EXH MANIF 8 ID=10.5
.

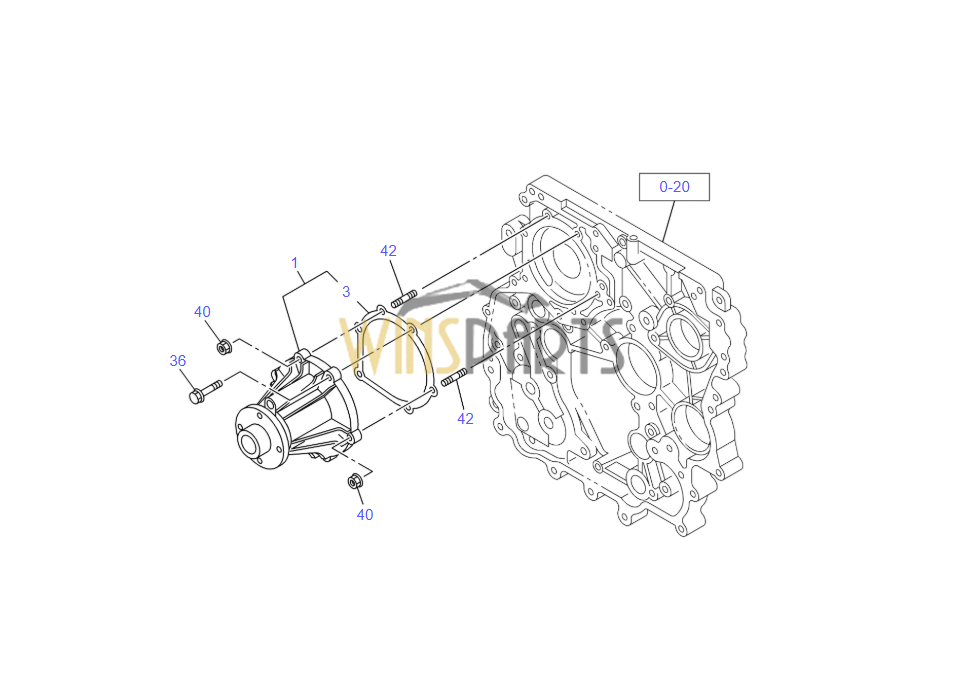

1 VI8980476894 PUMP ASM; WATER, W/GASKET 1
3 VI8973121560 GASKET; PUMP TO C/BL 1
22 VI0956902260 GASKET 1 ID=26.2
36 VI0280508600 BOLT; WATER PUMP TO C/BL 4 M8X60 FLANGE
40 VI0911802080 NUT; WATER PUMP 2 M8 FLANGE
42 VI0410108300 STUD; WATER PUMP 2 M8X30 L=41
63B VI0286508300 BOLT; INL PIPE 1 M8X30 FLANGE
63A VI0280508160 BOLT; INL PIPE 1 M8X16 FLANGE
63C VI0280508700 BOLT; INL PIPE 1 M8X70 FLANGE
97A VI8982553750 PIPE; WATER 1
154 VI0410108350 STUD; PIPE FIX 2 M8X35 L=47
155 VI0911802080 NUT; PIPE 2 M8 FLANGE
.

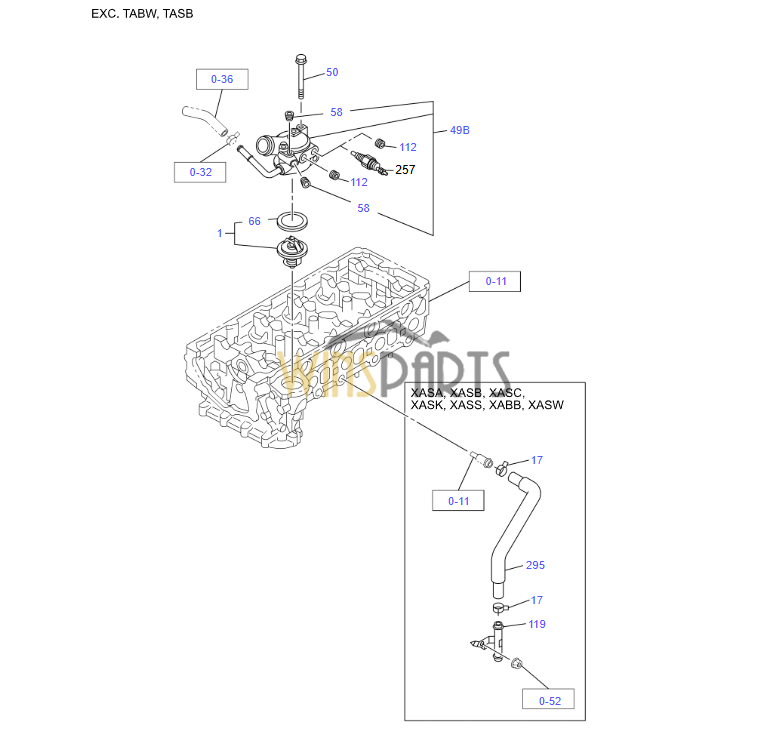

1 VI8982277230 THERMOSTAT 1 82 CELSIUS BLUE
17 VI8941258621 CLIP; WATER HOSE 2 ID=20.8
49B VI8982574920 PIPE; WATER OUTLET 1
50 VI0280508800 BOLT; OUTLET PIPE 2 M8X80 FLANGE
58 VI8973695521 PLUG 2 PT 1/8
66 VI8981145870 GASKET; THERMOSTAT 1
84B VI8944487270 CLIP; WATER PIPE 1 ID=14.8
84C VI8941226790 CLIP; WATER PIPE 1 ID=17.1
112 VI5096050050 PLUG 2 PT 3/8
119 VI8981536800 PIPE; HTR 1
147A VI8941258621 CLIP; RUBBER CAP 1 ID=20.8
147B VI8941226790 CLIP; RUBBER CAP 1 ID=17.1
193A VI8941077930 CAP; RUBBER 1
193B VI8941076780 CAP; RUBBER 1
193C VI8942492890 CAP; RUBBER 2 ID=12 L=30
193D VI8943668981 CAP; RUBBER 1
295 VI8982555790 HOSE; RUBBER, HTR 1
.

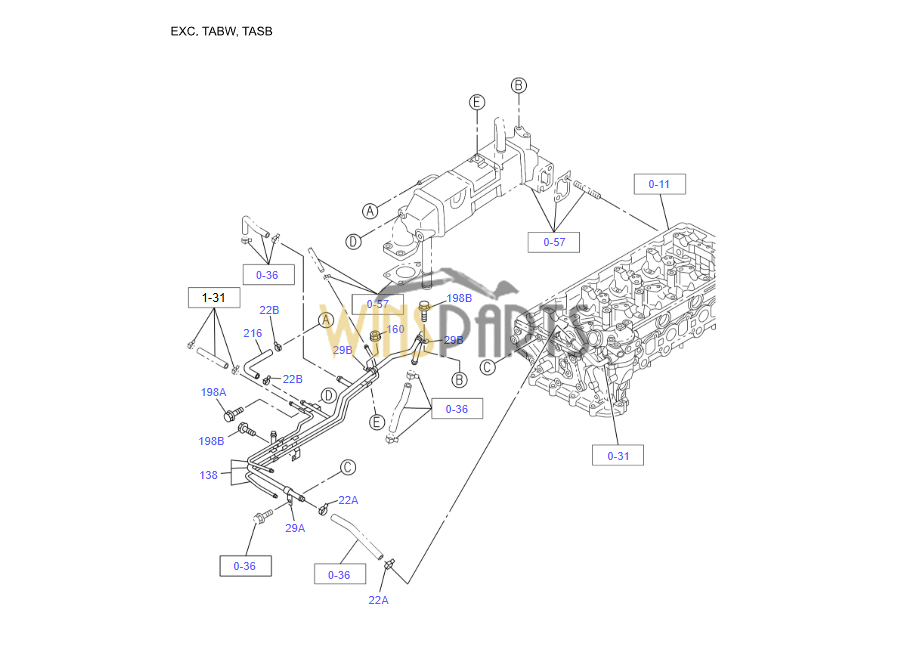

22A VI8943679430 CLIP; WATER HOSE 2 ID=13
22B VI8973756390 CLIP; WATER HOSE 2 ID=11
23B VI8980751270 GASKET; SUCTION PIPE TO BLOCK 1
29A VI0952350520 CLIP; PIPE 1 ID=11 L=28
29B VI8981209170 CLIP; PIPE 2 ID=12 L=20
59 VI8970106050 CLIP; HARNESS, WATER OUTLET PIPE 1 ID=24
138 VI8982555610 PIPE; WATER 1
160 VI0911802060 NUT; WATER PIPE 1
198A VI8973780750 BOLT; PIPE 1 M8X14 FLANGE
198B VI0280506120 BOLT; PIPE 2 M6X12 FLANGE
216 VI8981711330 HOSE; WATER 1
815 VI5133111260 PIPE; WATER, DEF TANK FEED 1
.

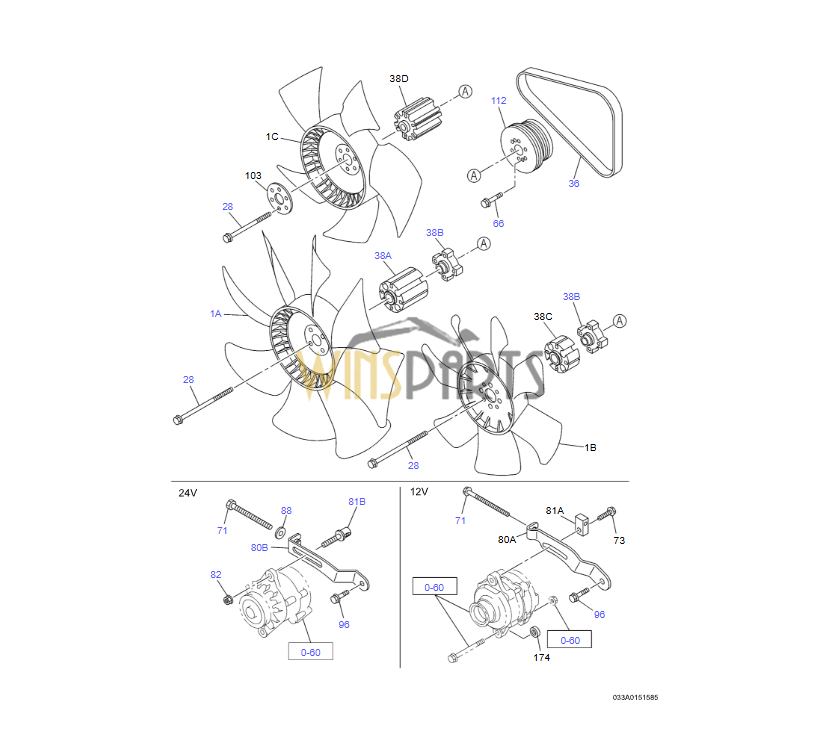

1A VI8971615992 FAN; COOLING 1 8 BLADE OD=550
28 VI0280508800 BOLT; COOLING FAN 4 M8X80 FLANGE
36 VI8980388550 BELT; COOLING FAN 1 L=976
38A VI1136420700 SPACER; FAN 1 H=40 OD=78
38B VI8980388830 SPACER; FAN 1 H=20 OD=80
66 VI0208006120 BOLT; PULLEY 2 M6X12
71 VI8943881781 BOLT; ADJ PLATE, GEN 1
80B VI8980387851 PLATE; ADJ 1
81B VI8972572230 PIECE; SLIDING 1
82 VI0911802080 NUT; ADJ PLATE 1 M8 FLANGE
88 VI0916147080 WASHER; PL, ADJ PLATE 1 ID=8.4 OD=22
96 VI0286508200 BOLT; ADJ PLATE 1 M8X20 FLANGE
112 VI8980388150 PULLEY; FAN CENTER 1 OD=141.5
