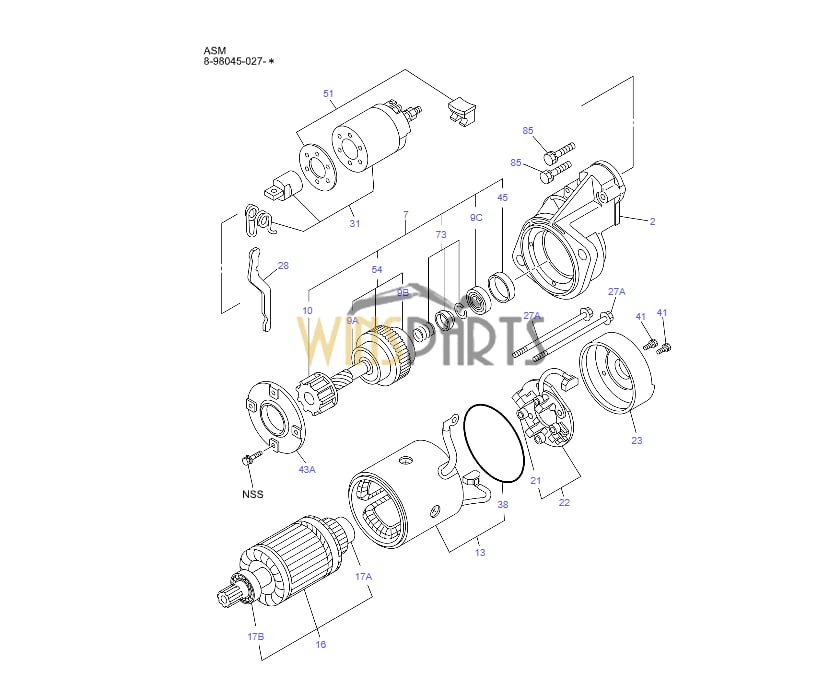

VI8980450273 8-98045027-3 ENGINE STARTER KOBELCO SK125SR-5 SK130SR-5 SK130UR-5
.
2 VI8980566690 CASE; PINION, STARTER 1
7 VI8982221020 CLUTCH ASM; PINION, STARTER 1
9A VI8970256730 BEARING; GEAR SHAFT STARTER 1
9B VI8970256740 BEARING; GEAR SHAFT STARTER 1
9C VI8970256760 BEARING; GEAR SHAFT STARTER 1
10 VI8980566660 SHAFT; GEAR STARTER 1
13 VI8980739090 YOKE; STARTER 1
16 VI8971922990 ARMATURE; STARTER 1
17A VI8942284360 BEARING; ARMATURE, STARTER 1
17B VI8970303870 BEARING; ARMATURE, STARTER 1
21 VI8941529720 SPRING; BRUSH HOLDER STARTER 4
22 VI8980739330 HOLDER; BRUSH STARTER 1
23 VI8973194180 COVER; RR COVER STARTER 1
27A VI8971924230 BOLT; THROUGH, STARTER 2
28 VI8971797760 LEVER; SHIFT, STARTER 1
31 VI8980566670 SWITCH; ENGAGE STARTER 1
38 VI8971157630 GASKET; RR COVER, STARTER 1
41 VI8971171070 SCREW; RR COVER, STARTER 2
43A VI8980566680 RETAINER; PINION STARTER 1
45 VI8944355670 RETAINER; BEARING, STARTER 1
51 VI8980566700 COVER SET; DUST ENGAGE SW STARTER 1
54 VI8982221030 CLUTCH; PINION, STARTER 1
73 VI8941529780 STOPPER SET; PINION 1
85 VI8944085000 BOLT; ENGAGE SW FIX, STARTER 2
.

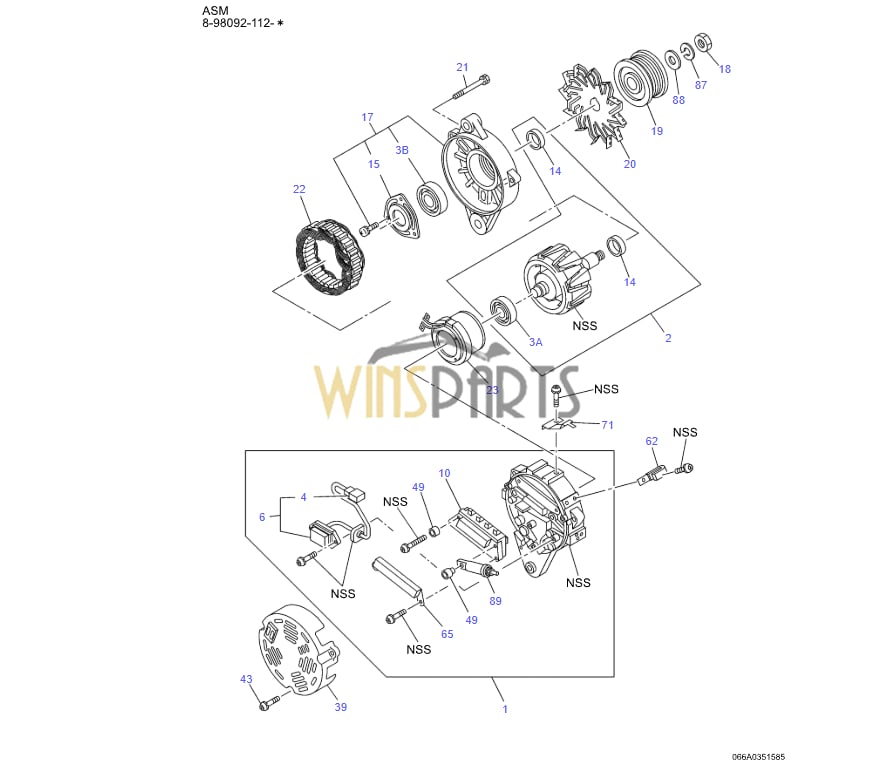

1 VI8980969760 COVER ASM; RR, GEN 1
2 VI8973828690 ROTOR; GEN 1
3A VI1812297230 BEARING; ROTOR, GEN 1
3B VI1812297580 BEARING; ROTOR, GEN 1
4 VI8973828840 TERMINAL; BRUSH, GEN 1
6 VI8980923990 REGULATOR ASM; VOLTAGE, GEN 1
10 VI8973828790 RECTIFIER; GEN 1
14 VI8973828700 COLLAR; STEEL 2
15 VI1812297601 RETAINER; ROTOR, GEN 1
17 VI8980456870 COVER ASM; FRT, GEN 1
18 VI1812294740 NUT; PULLEY, GEN 1
19 VI8980457230 PULLEY; GEN 1
20 VI8973828740 FAN; GEN 1
21 VI1812293820 BOLT; THROUGH, GEN 3
22 VI8973828710 STATOR; GEN 1
23 VI8980362950 COIL; ROTOR GEN 1
39 VI8973828821 COVER; END, RR COVER, GEN 1
43 VI1812297330 SCREW; RR END COVER 3
49 VI8973828800 BUSHING; RECTIFIER, GEN 2
62 VI1811180110 CLIP; TERMINAL, BRUSH, GEN 1
65 VI1841320120 CONDENSER; GEN 1
71 VI8970290590 HOLDER; TERMINAL, GEN 1
87 VI1812294790 WASHER; PULLEY, GEN 1
88 VI1812294780 WASHER; PL, PULLEY GEN 1
89 VI8973828810 BOLT; RECTIFIER, GEN 1
.

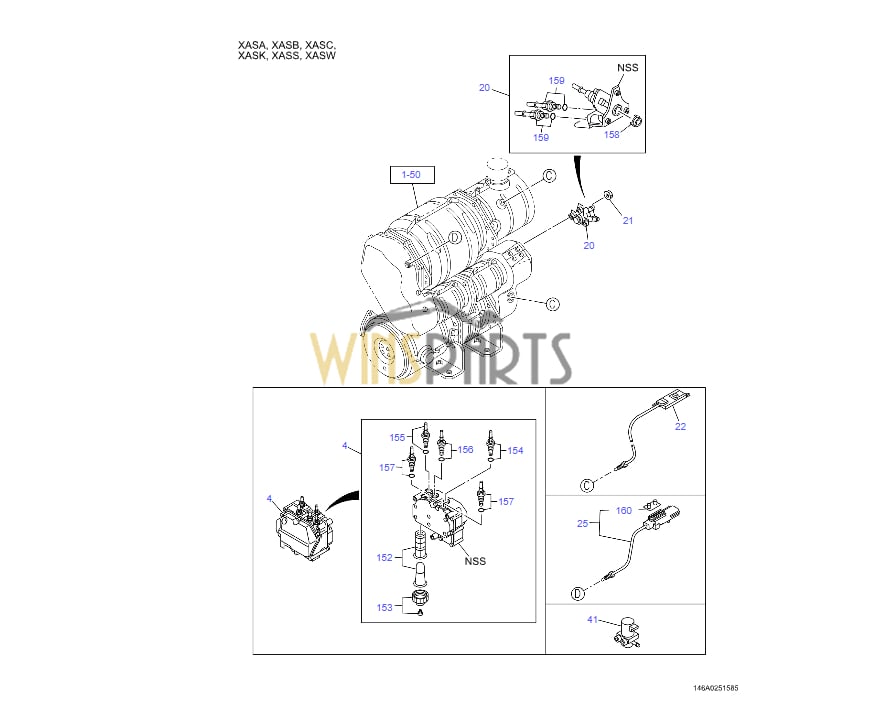

4 VI8982264733 PUMP ASM; DEF, DCM SPLY 1
20 VI8982318983 INJECTOR ASM; DEF DCM 1
21 VI0911801060 NUT; INJECTOR ASM, DEF DCM 3
22 VI8983023940 SENSOR; DEF DCM EXH NOX 2
25 VI8980863290 SENSOR; DEF DCM EXH TEMP 1
41 VI8976289561 VALVE ASM; DEF TANK HTR DLVY 1 24V
152 VI8983507160 FILTER KIT; PUMP ASM, DEF DCM SPLY 1
153 VI8981694080 COVER KIT; PUMP ASM, DEF DCM SPLY 1
154 VI8981694090 CONNECTOR KIT; INLET PUMP, DEF 1
155 VI8981694110 CONNECTOR KIT; OUTLET PUMP, DEF 1
156 VI8982688130 CONNECTOR KIT; RETURN PUMP, DEF 1
157 VI8981694141 CONNECTOR KIT; COOLANT PUMP, DEF 2
158 VI8980863330 GASKET; INJECTOR ASM, DEF DCM 1
159 VI8981694161 CONNECTOR KIT; COOLANT, INJECTOR ASM DEF 2
160 VI8981703310 CLIP; HARNESS, SENSOR DEF DCM XXH TEMP 1
.
8A VI8982735910 BRACKET; EXH PIPE 1
8B VI8982735920 BRACKET; EXH PIPE 1
8D VI8982735940 BRACKET; EXH PIPE 1
8E VI8982735950 BRACKET; EXH PIPE 2
8F VI8982735930 BRACKET; EXH PIPE 1
8G VI8975242600 BRACKET; EXH PIPE 1
35B VI8973767580 GASKET; EXH PIPE TO MANIF 1
65A VI0916147080 WASHER; PL 14 ID=8.4 OD=22
65B VI0916146100 WASHER; PL 8 ID=10.5 OD=22
65C VI8980199670 WASHER; PL 2 ID=8.2
272A VI8970614011 NUT; FLANGE 30 M8 FLANGE
272B VI0911115080 NUT; FLANGE 4 M8
272C VI0911115100 NUT; FLANGE 1 M10
272D VI0911802080 NUT; FLANGE 8 M8 FLANGE
272E VI8970961921 NUT; FLANGE 3 M10 FLANGE
380A VI8982736000 BRACKET; STAY 1
380B VI8982736010 BRACKET; STAY 1
467A VI0280506120 BOLT; PROTECTOR 12 M6X12 FLANGE
467B VI0280608160 BOLT; PROTECTOR 5 M8X16 FLANGE
467C VI8980191790 BOLT; PROTECTOR 17 M6X16
526 VI9095714200 GASKET; PLUG 1 ID=20.5 OD=28.0
530 VI0916147080 WASHER 5 ID=8.4 OD=22
542A VI8982735880 BRACKET 1
542B VI8982735890 BRACKET 1

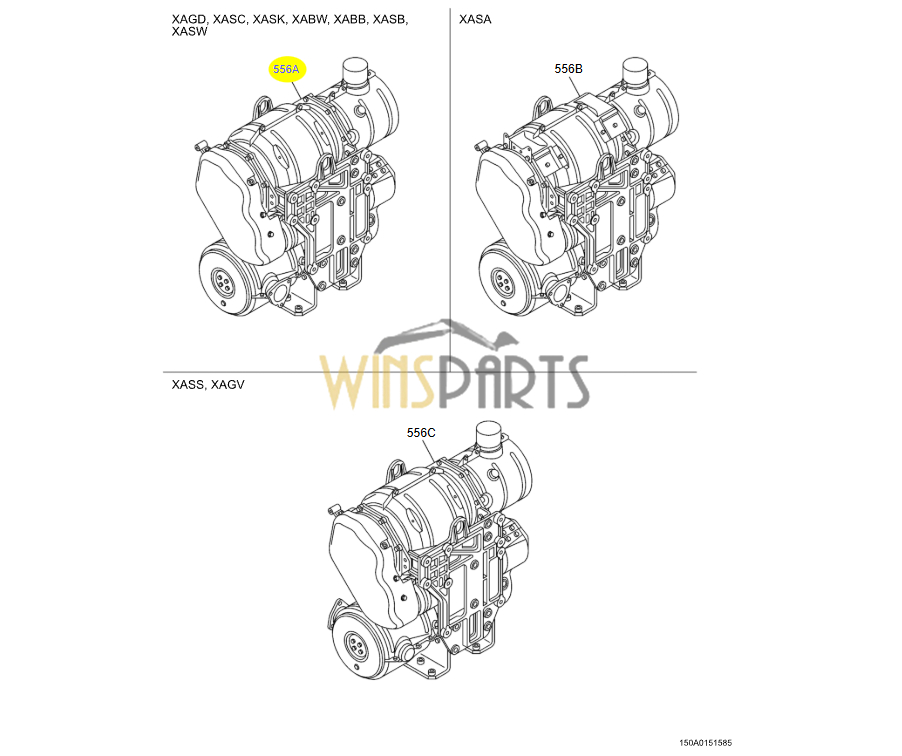

556A VI8975242570 DPD ASM 1
557B VI8983064611 CATALYST ASM 1
558 VI8983064621 FILTER ASM 1
560A VI8973319470 GASKET; DPD 1
560B VI8976282570 GASKET; DPD 3
567A VI0280506120 BOLT; DPD 4 M6X12 FLANGE
567B VI8980116961 BOLT; DPD 1 M8X60 FLANGE
567C VI8980191790 BOLT; DPD 6 M6X16
567D VI8980532240 BOLT; DPD 1 M8X35 FLANGE
567E VI8980654810 BOLT; DPD 6 M8X43 HEX SOCKET
580B VI0280610400 BOLT; FLANGE 1 M10X40 FLANGE
580C VI0280610600 BOLT; FLANGE 2 M10X60 FLANGE
580D VI8973780770 BOLT; FLANGE 8 M8X23 FLANGE
580E VI8980435280 BOLT; FLANGE 10 M8X28 FLANGE
580F VI8980532240 BOLT; FLANGE 17 M8X35 FLANGE
580G VI8980654810 BOLT; FLANGE 9 M8X43 HEX SOCKET
580H VI0280610350 BOLT; FLANGE 6 M10X35 FLANGE
580I VI0280610300 BOLT; FLANGE 2 M10X30 FLANGE
619 VI9096620081 PLUG; SENSOR 1
622 VI8982909150 SILENCER SUB ASM; DPD FRONT 1
633A VI8982909120 CHAMBER SUB ASM; DEF, FRONT 1
633B VI8982909130 CHAMBER SUB ASM; DEF, FRONT 1
634 VI8981184221 GASKET; MIXER 1
638 VI8983064631 CATALYST ASM; DEF 1
641 VI5878323641 GASKET KIT; FLANGE, DPD 1
643 VI8981413510 STUD 3
647A VI1095560150 WASHER; FLYWHEEL 3
647B VI5095000120 WASHER; FLYWHEEL 30
675 VI8983365760 BRACKET; SENSOR 1

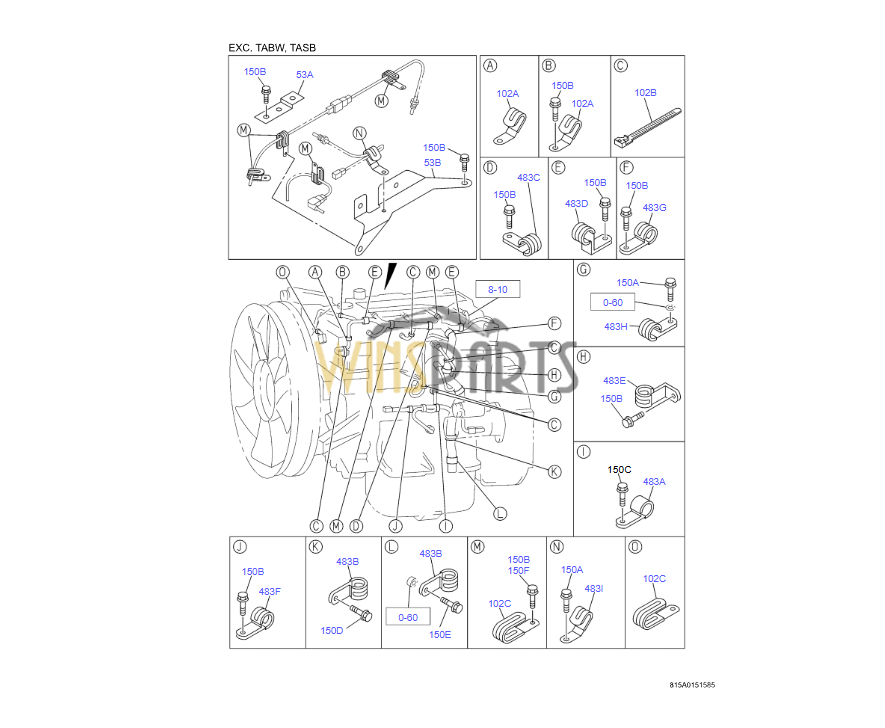

WIRING HARNESS AND FUSE
.
13 VI8982554962 HARNESS; ENG
483B VI1097006071 CLIP; ENG HARNESS 2 ID=28 L=30
483F VI1097010130 CLIP; ENG HARNESS 1 ID=14.5 L=28
483C VI1097008090 CLIP; ENG HARNESS 1 ID=24 L=27
483D VI1097008600 CLIP; ENG HARNESS 2 ID=18 H=23 L=28
483A VI0952355560 CLIP; ENG HARNESS 1 ID=16 L=28
483E VI1097009470 CLIP; ENG HARNESS 1 ID=35 H=45 L=33
483I VI8973296310 CLIP; ENG HARNESS 1 ID=12 B=13 L=18
483G VI1097011071 CLIP; ENG HARNESS 1 ID=28 L=32
483H VI1097010830 CLIP; ENG HARNESS 1 ID=30 H=40 L=35
102B VI5097070311 CLIP; BAND 7 L=140
102A VI8973679841 CLIP; BAND 2 ID=12
102C VI8973679851 CLIP; BAND 7 ID=18 L=44
53A VI1826995880 BRACKET; HARNESS 1
53B VI8982554970 BRACKET; HARNESS 1
150A VI0280506160 BOLT; CLIP 1 M6X16 FLANGE
150D VI0280510160 BOLT; CLIP 1 M10X16 FLANGE
150B VI0280508120 BOLT; CLIP 12 M8X12 FLANGE
150E VI0280510200 BOLT; CLIP 1 M10X20 FLANGE
150F VI0280508100 BOLT; CLIP 1 M8X10 FLANGE
SWITCH AND RELAY; INSTRUMENT PANEL
.
424B VI8980137900 RELAY 1 24V
ELECTRICAL CONTROL AND OTHER PARTS
701A VI8981867621 SENSOR; DPD 1 REAR L=571
701B VI8981783581 SENSOR; DPD 1 FRONT L=821
