YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

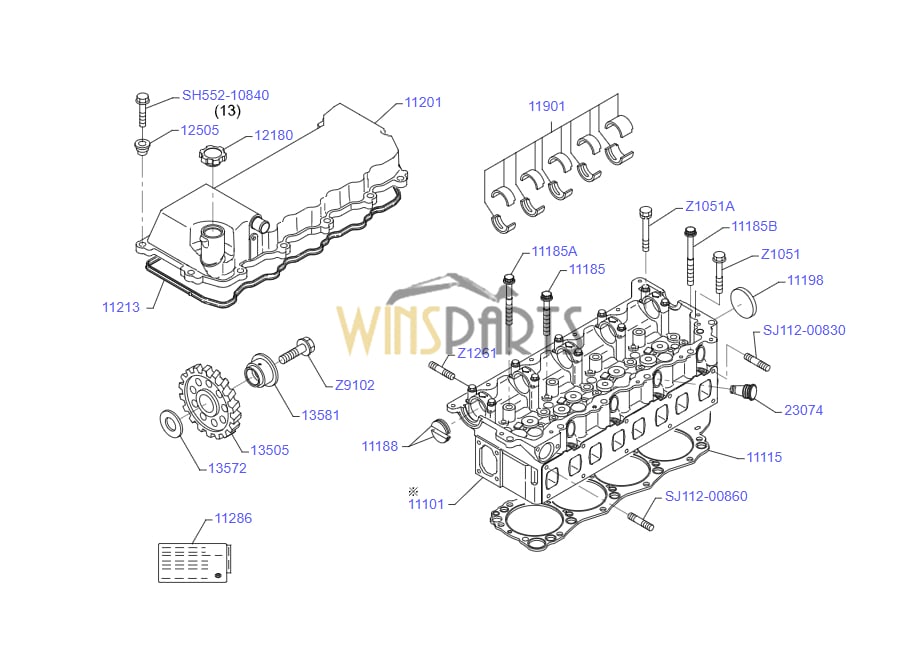

VH11101E0B61 ENGINE CYLINDER HEAD KOBELCO SK200XDL-10 SK210LC-10 SK200-10 SK210-10
.
11101 VH11101E0B61 HEAD SUB-ASSY, CYLINDER 1
11115 VH11115E0150 GASKET, CYLINDER HEAD 1 1505-2205
11115 VH11115E0151 GASKET, CYLINDER HEAD 1 2205-2501
11115 VH11115E0152 GASKET, CYLINDER HEAD 1 2501-
11122 VHS111221220 BUSHING, VALVE GUIDE INTAKE, REPAIR STD 16
11131 VH11131E0010 SEAT, INTAKE VALVE 8
11135 VH11135E0040 SEAT, EXHAUST VALVE 8
11147 VHS111471130 PIN, CROSSHEAD GUIDE 8
11176 VHS111761190 SEAT, INJ NOZZLE 4
11185 VHS111852261 BOLT, CYL HEAD 9
11185A VHS111852450 BOLT, CYL HEAD 4
11185B VHS111852460 BOLT, CYL HEAD 5
11188 VH11188E0010 PLUG, CAMSHAFT HOUSING 2
11198 VHS111981060 PLUG, CYL HEAD 1
11201 VH11201E0082 COVER SUB-ASSY, CYLINDER HEAD 1 1505-2101
11201 VH11201E0190 COVER SUB-ASSY, CYLINDER HEAD 1 2101-
11213 VHS112132020 GASKET, CYL HEAD COVER 1
11286 VH11286E0360 PLATE, ENGINE SPECIFICATION 1
11901 VHS119011070 BEARING SET, CAMSHAFT 1 1505-1705
11901 VHS119011060 BEARING SET, CAMSHAFT 1 1705-
12180 VH12180E0010 CAP ASSY, OIL FILLER 1
12505 VHS125051101 SILENT BLOCK SUB ASSY 13
13505 VH13508E0660 GEAR SUB-ASSY, IDLE 1
13572 VHS135721250 PLATE, IDLE GEAR THRUST 1
13581 VH13581E0190 SHAFT, IDLE GEAR 1
21814 VH21814E0050 BOLT 10
23074 VHS230741070 SEAL SUB ASSY, INJECTION PIPE OIL 4 1505-2010
23074 VH2368178030 SEAL, NOZZLE HOLDER 4 2010-
SH552-10840 VHSH55210840 BOLT, FLANGE 13
SJ112-00830 VHSJ11200830 STUD 1
SJ112-00860 VHSJ11200860 STUD 1
SM212-00408 VHSM21200408 PIN, STRAIGHT 10
SN411-01712 VHSN41101712 PLUG, SEALING 4
SN411-02216 VHSN41102216 PLUG, SEALING 8
SN411-03016 VHSN41103016 PLUG, SEALING 5
SN441-00610 VHSN44100610 BALL, STEEL 4
Z1051 VHSZ10510056 BOLT, FLANGE 2
Z1051A VHSZ10510069 BOLT, FLANGE 1
Z1261 VHSZ12610012 STUD 12
Z9101A VHSZ91015047 GASKET 4 1505-1611
Z9101A VHSZ30126012 O-RING 4 1611-
Z9102 VHSZ91024264 BOLT 1

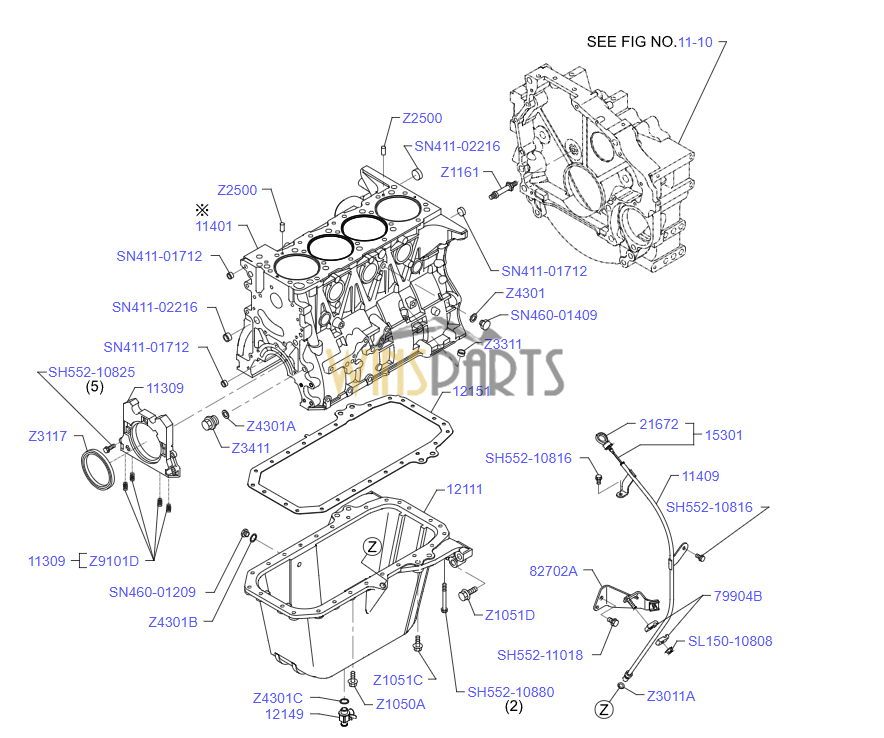

1309 VH11309E0010 RETAINER SUB-ASSY, OIL SEAL 1

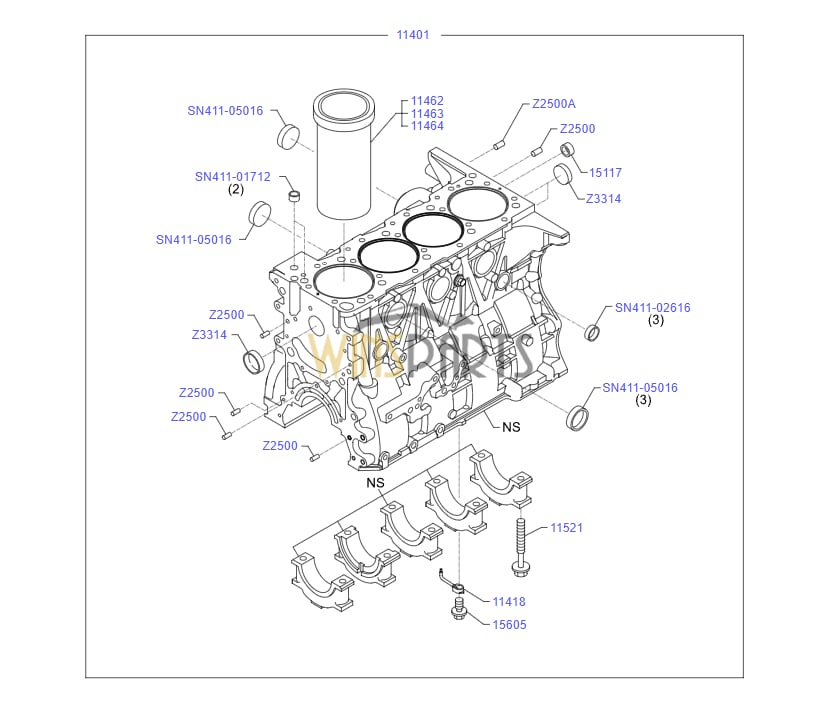

11401 VH11401E0704 BLOCK SUB-ASSY, CYLINDER 1 1505-1602
11401 VH11401E0705 BLOCK SUB-ASSY, CYLINDER 1 1602-1809
11401 VH11401E0706 BLOCK SUB-ASSY, CYLINDER 1 1809-
11409 VH11409E0190 GUIDE SUB-ASSY, OIL LEVEL GAGE 1
11418 VH11418E0080 PIPE, CYLINDER BLOCK OIL JET 4
11462 VH11462E0080 LINER, CYLINDER, O/S 4 A
11463 VH11463E0050 LINER, CYLINDER, O/S 4 B
11464 VH11464E0050 LINER, CYLINDER, O/S 4 C
11521 VHS115211261 BOLT, BEARING CAP 10
12111 VH12111E0B60 PAN, OIL 1
12129 VH12129E0070 PLUG, OIL PAN 1 2002-
12149 VHS121491030 VALVE, OIL DRAIN 1
12151 VH12151E0020 GASKET, OIL PAN 1
15117 VHS151171170 BUSHING, BODY OIL PUMP 1
15301 VH15301E0022 GAGE SUB-ASSY, OIL LEVEL 1 1505-1507
15301 VH15301E0023 GAGE SUB-ASSY, OIL LEVEL 1 1507-
15605 VHS156051250 VALVE SUB ASSY, OIL CHECK 4
21672 VH21672E0010 CAP 1
79904B VHS799041220 CLIP SUB ASSY 2
82702A VH82702E0E80 BRACKET SUB-ASSY, WIRING HARNESS 1
SH552-10816 VHSH55210816 BOLT, FLANGE 2
SH552-10825 VHSH55210825 BOLT, FLANGE 5
SH552-10880 VHSH55210880 BOLT, FLANGE 2
SH552-11018 VHSH55211018 BOLT, FLANGE 1
SL150-10808 VHSL15010808 NUT 1
SL723-01210 VHSL72301210 WASHER, SOFT 1 2304-
SL723-01414 VHSL72301414 WASHER, SOFT 1 2304-
SN411-01712 VHSN41101712 PLUG, SEALING 3
SN411-01712 VHSN41101712 PLUG, SEALING 2
SN411-02216 VHSN41102216 PLUG, SEALING 2
SN411-02616 VHSN41102616 PLUG, SEALING 3
SN411-05016 VHSN41105016 PLUG, SEALING 5
SN460-01209 VHSN46001209 PLUG 1 1505-2002
SN460-01409 VHSN46001409 PLUG 1
Z1050A VHSZ10508068 BOLT, FLANGE 24
Z1051C VHSZ10512023 BOLT, FLANGE 4
Z1051D VHSZ10514018 BOLT, FLANGE 4
Z1161 VHSZ11610047 STUD 1
Z2500 VHSZ25008007 PIN 2
Z2500 VHSZ25008007 PIN 9
Z2500A VHSZ25008008 PIN 2
Z3011A VHSZ30110025 O-RING 1
Z3117 VHSZ31179002 SEAL, OIL 1
Z3311 VHSZ33114001 PLUG, EXPANSION 1 1809-
Z3314 VHSZ33142002 PLUG, EXPANSION 4
Z3411 VHSZ34116009 PLUG 1
Z4301 VHSZ43014003 WASHER, SOFT 1 1505-2304
Z4301A VHSZ43016004 WASHER, SOFT 1
Z4301B VHSZ43012005 WASHER, SOFT 1 1505-2304
Z4301C VHSZ43018009 WASHER, SOFT 1 T=1.50
Z9101D VHSZ91013008 HELISERT 4

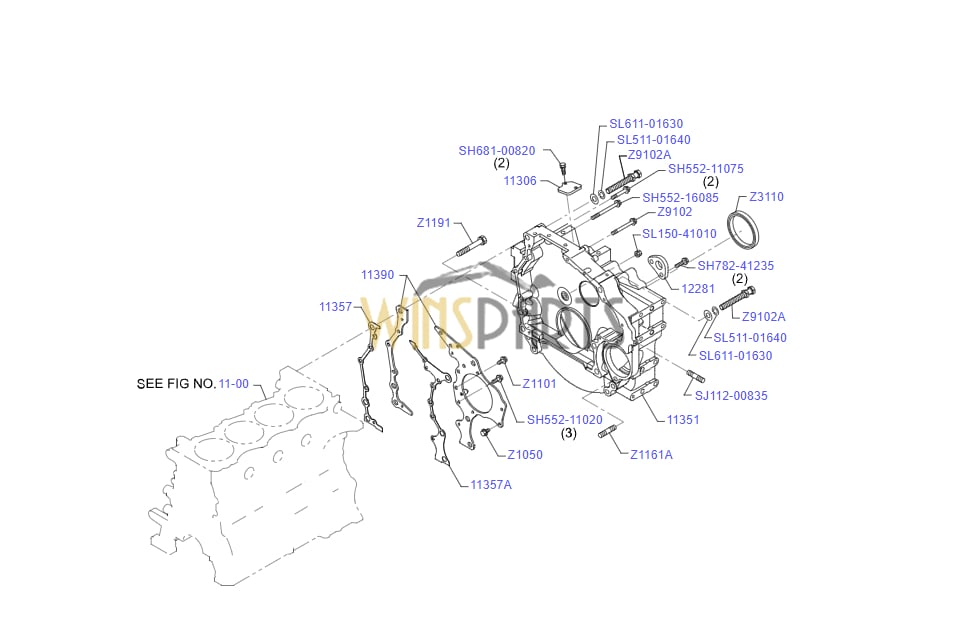

11306 VH11306EW010 COVER SUB-ASSY, FLYWHEEL HOUSING DUST 1 2109-
11351 VH11351E0272 HOUSING, FLYWHEEL 1 1505-1704
11351 VH11351E0273 HOUSING, FLYWHEEL 1 1704-
11357 VHS113571022 GASKET, RR END PLATE 1 1505-1508
11357 VH16258E0050 GASKET 1 1508-
11357A VHS113571062 GASKET, RR END PLATE 1 1505-1508
11357A VH16258E0060 GASKET 1 1508-
11390 VHS113901090 PLATE SET, END 1
12281 VH12281E0240 HANGER, ENGINE 1
SH552-11020 VHSH55211020 BOLT, FLANGE 3
SH552-11075 VHSH55211075 BOLT, FLANGE 2
SH552-16085 VHSH55216085 BOLT, FLANGE 1
SH681-00820 VHSH68100820 BOLT 2
SH782-41235 VHSH78241235 BOLT, W/WASHER 2
SJ112-00835 VHSJ11200835 STUD 1
SL150-41010 VHSL15041010 NUT 1
SL511-01640 VHSL51101640 LOCKWASHER 2
SL611-01630 VHSL61101630 WASHER, PLAIN 2
Z1050 VHSZ10508055 BOLT, FLANGE 1
Z1101 VHSZ11010007 BOLT 2
Z1161A VHSZ11614025 STUD 1
Z1191 VHSZ11916013 BOLT 4
Z3110 VHSZ31101045 SEAL, OIL 1
Z9102 VHSZ91024487 BOLT 1
Z9102A VHSZ91024292 BOLT 2
