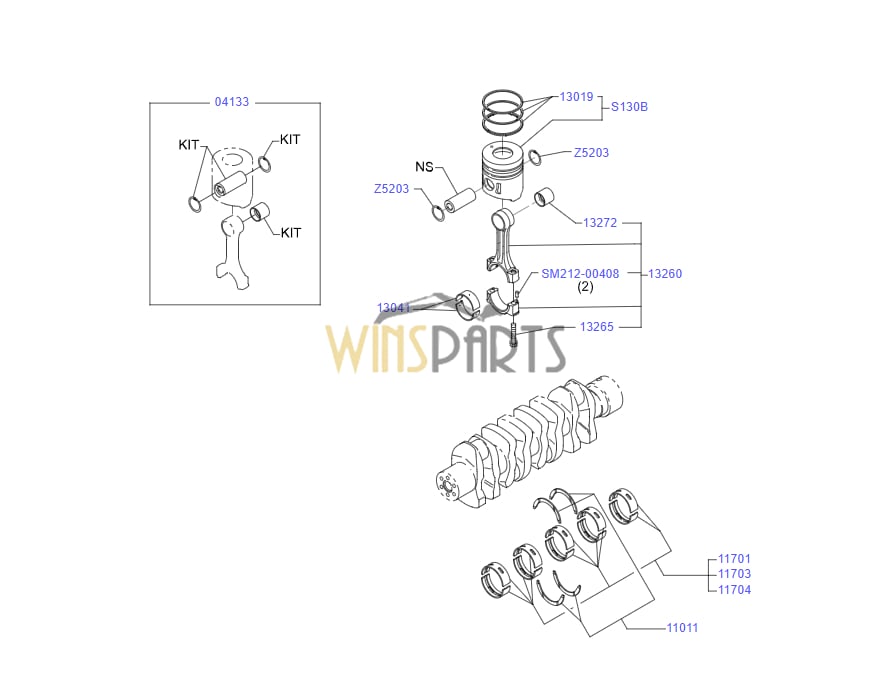

VH04133E0140 ENGINE CRANKSHAFT PISTON PIN KIT

VH04133E0140 ENGINE CRANKSHAFT PISTON PIN KIT
　 11011 VHS110111270 WASHER SET, CRANKSHAFT THRUST, STD 1 STD DAIDO
　 11011 VHS110111380 WASHER SET, CRANKSHAFT THRUST, STD 1 STD TAIHO 1505-2111
　 11011 VH11011E0060 WASHER SET, CRANKSHAFT THRUST 1 STD TAIHO 2111-
　 11701 VHS117012280 BEARING SET, CRANKSHAFT 1 STD DAIDO
　 11703 VHS117032010 BEARING SET, CRANKSHAFT, U/S 0.25 1 U/S 0.25 TAIH 1505-2202
　 11703 VH11704E0120 BEARING SET, CRANKSHAFT, U/S 0.25 1 U/S 0.25 TAIH 2202-
　 11704 VHS117042040 BEARING SET, CRANKSHAFT, U/S 0.50 1 U/S 0.5 TAIHO 1505-2202
　 11704 VH11705E0120 BEARING SET, CRANKSHAFT, U/S 0.50 1 U/S 0.50 TAIH 2202-
　 13019 VHS130192080 RING SUB SET, PISTON 1 1505-2103
　 13019 VH13011E0650 RING SET, PISTON 1 2103-
　 13041 VH13041E0800 BEARING SET, CONNECTING ROD 1 STD 1505-2108
　 13041 VH13041E0C40 BEARING SET, CONNECTING ROD 1 STD 2108-
　 13041 VH13041E0810 BEARING SET, CONNECTING ROD 1 U/S 0.25 1505-2108
　 13041 VH13041E0D30 BEARING SET, CONNECTING ROD 1 U/S 0.25 2108-
　 13041 VH13041E0820 BEARING SET, CONNECTING ROD 1 U/S 0.50 1505-2108
　 13041 VH13041E0D40 BEARING SET, CONNECTING ROD 1 U/S 0.50 2108-
　 13041 VH13041E0830 BEARING SET, CONNECTING ROD 1 U/S 0.75 1510-2108
　 13041 VH13041E0D50 BEARING SET, CONNECTING ROD 1 U/S 0.75 2108-
　 13041 VH13041E0840 BEARING SET, CONNECTING ROD 1 U/S 1.00 1510-2108
　 13041 VH13041E0D60 BEARING SET, CONNECTING ROD 1 U/S 1.00 2108-
　 13260 VH13260E0100 ROD ASSY, CONNECTING 4 1505-1909
　 13260 VH13260E0101 ROD ASSY, CONNECTING 4 1909-
　 13265 VHS132651620 BOLT, CONROD 2 1505-1909
　 13265 VHS132651620 BOLT, CONROD 2 1909-
　 13272 VHS132721460 BUSHING, CONROD, REPAIR STD 6

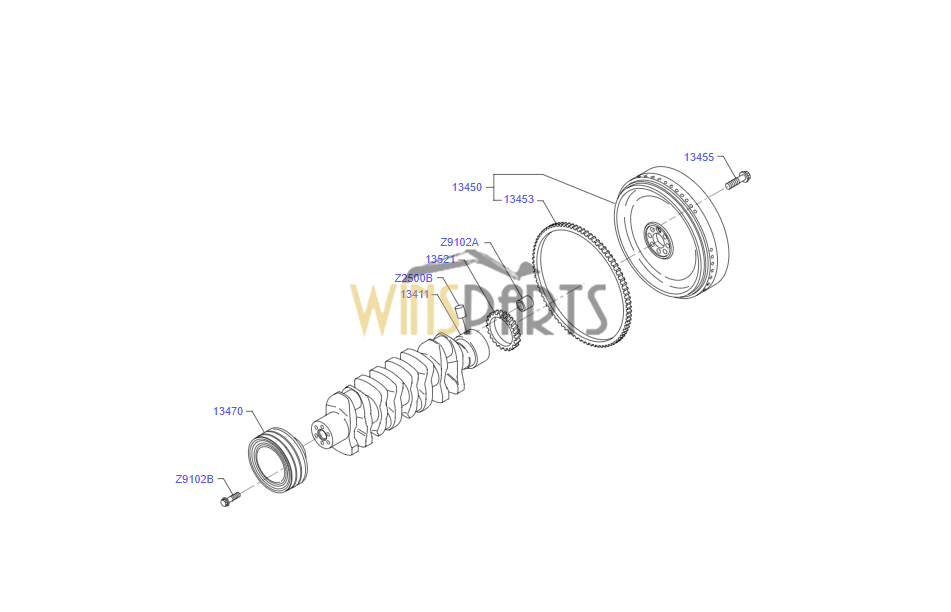

VHS134112281 S1341-12281 VH13411E0240 VH13411E0241 ENGINE CRANKSHAFT
　 13411 S1341-12281 CRANKSHAFT 1 1505-1509
　 13411 VHS134112281 CRANKSHAFT 1 1712-1810
　 13411 VH13411E0240 CRANKSHAFT 1 1810-1905
　 13411 VH13411E0241 CRANKSHAFT 1 1905-
　 13450 VH13450E0121 FLYWHEEL ASSY 1 1505-1806
　 13450 VH13450E0122 FLYWHEEL ASSY 1 1806-
　 13453 VH13453E0080 GEAR, FLYWHEEL RING 1 1505-1806
　 13453 VH13453E0080 GEAR, FLYWHEEL RING 1 1806-
　 13455 VHS134551550 BOLT, FLYWHEEL 8
　 13470 VH13470E0261 PULLEY ASSY, CRANKSHAFT 1
　 13521 VH13521E0150 GEAR, CRANKSHAFT 1 1505-1509
　 13521 VH13521E0151 GEAR, CRANKSHAFT 1 1509-1510
　 13521 VH13521E0152 GEAR, CRANKSHAFT 1 1510-1905
　 13521 VH13521E0152 GEAR, CRANKSHAFT 1 1905-
　 S130B VHS130BE0370 PISTON & PISTON RING SET 4
　 SM212-00408 VHSM21200408 PIN, STRAIGHT 2 1505-1909
　 SM212-00408 VHSM21200408 PIN, STRAIGHT 2 1909-
　 Z2500B VHSZ25006006 PIN 1 1505-1509
　 Z2500B VHSZ25006006 PIN 1 1509-1510
　 Z2500B VHSZ25006006 PIN 1 1510-1712
　 Z2500B VHSZ25006006 PIN 1 1712-1905
　 Z2500B VHSZ25006006 PIN 1 1905-
　 Z5203 VHSZ52037001 RING, RETAINER OR SPRING, RETAINER 8
　 Z9102A VHSZ91029013 COLLAR 1 1505-1509
　 Z9102A VHSZ91029013 COLLAR 1 1509-1510
　 Z9102A VHSZ91029013 COLLAR 1 1510-1905
　 Z9102A VHSZ91029013 COLLAR 1 1905-
　 Z9102B VHSZ91024350 BOLT 6

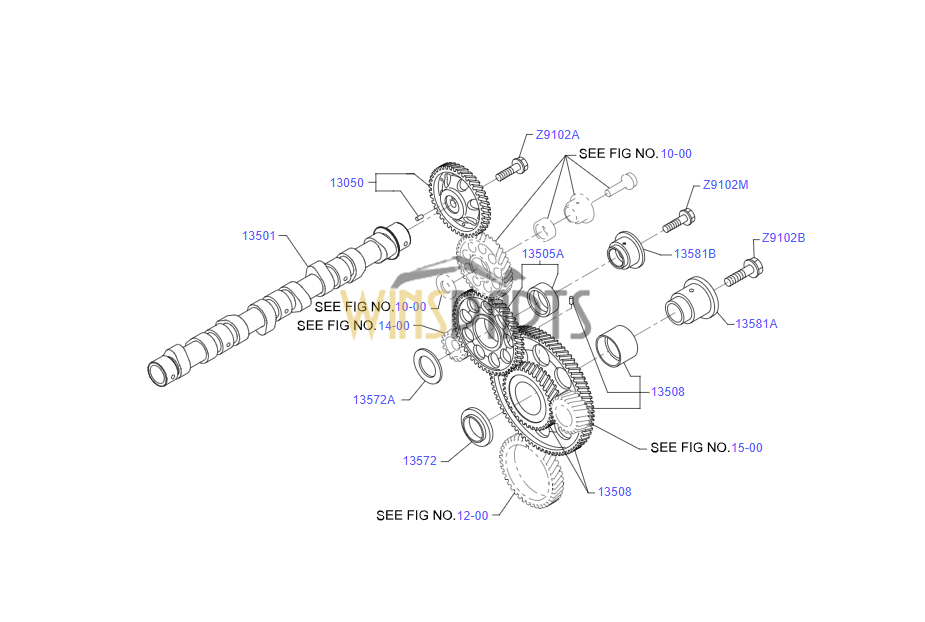

VH13050E0130 VH13501E0240 VH13501E0241 CAMSHAFT AND IDLE GEAR
　 .
　 13050 VH13050E0130 GEAR ASSY, CAMSHAFT TIMING 1
　 13501 VH13501E0240 CAMSHAFT SUB-ASSY 1 1505-2006
　 13501 VH13501E0241 CAMSHAFT SUB-ASSY 1 2006-
　 13505A VH13508E0590 GEAR SUB-ASSY, IDLE 1
　 13508 VH13508E0331 GEAR SUB-ASSY, IDLE 1
　 13572 VHS135721271 PLATE, IDLE GEAR THRUST 1
　 13572A VHS135721230 PLATE, IDLE GEAR THRUST 1
　 13581A VHS135811440 SHAFT, IDLE GEAR 1
　 13581B VHS135811530 SHAFT, IDLE GEAR 1 1505-1711
　 13581B VH13581E0270 SHAFT, IDLE GEAR 1 1711-
　 Z9102A VHSZ91024265 BOLT 1
　 Z9102B VHSZ91024338 BOLT 1 1505-1512
　 Z9102B VHSZ91024491 BOLT 1 1512-
　 Z9102M VHSZ91024264 BOLT 1

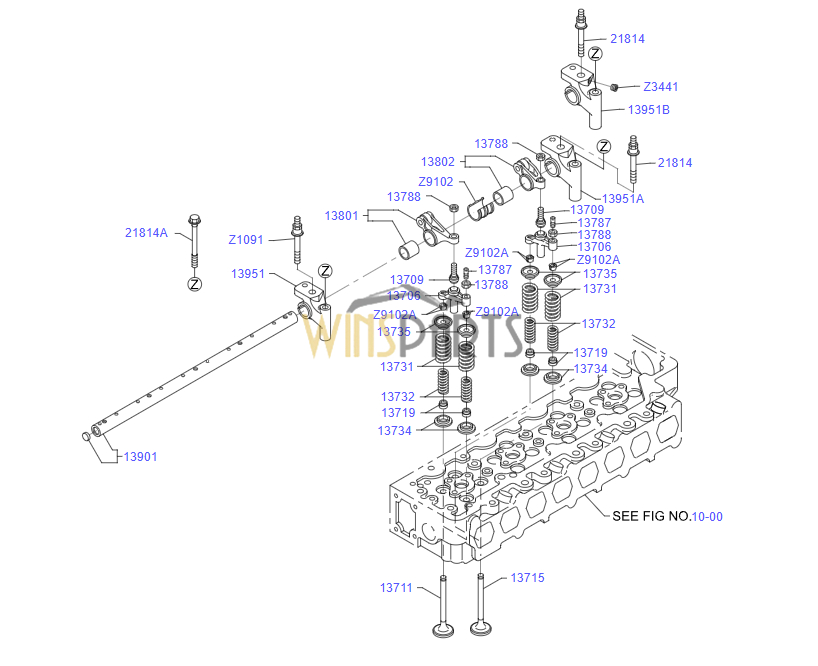

VHS137061080 VHS137111632 VHS137151733 VALVE SYSTEM
　 .
　 13706 VHS137061080 CROSSHEAD SUB ASSY 8
　 13709 VHS137091030 SCREW SUB ASSY, VALVE ADJ 8
　 13711 VHS137111632 VALVE, INTAKE, STD 8
　 13715 VHS137151733 VALVE, EXH, STD 8
　 13719 VHS137191470 SEAL, VALVE STEM OIL 16
　 13731 VHS137311610 SPRING, VALVE, OUTER 16
　 13732 VHS137321500 SPRING, VALVE, INNER 16
　 13734 VH13734E0020 SEAT, VALVE SPRING 16 1505-1912
　 13734 VH13734E0021 SEAT, VALVE SPRING 16 1912-
　 13735 VHS137351470 SEAT, VALVE SPG, UPR 16
　 13787 VHS137871210 SCREW, VALVE ADJ 8
　 13788 VHS137881030 NUT, VALVE ADJ SCREW 8
　 13788 VHS137881030 NUT, VALVE ADJ SCREW 8
　 13801 VH13801E0070 ARM SUB-ASSY, VALVE ROCKER, NO.1 4
　 13802 VH13802E0010 ARM SUB-ASSY, VALVE ROCKER, NO.2 4
　 13901 VHS139011410 SHAFT SUB ASSY, VALVE ROCKER 1
　 13951 VHS139512211 SUPPORT, VALVE ROCKER 1
　 13951A VHS139512221 SUPPORT, VALVE ROCKER 3
　 13951B VHS139512231 SUPPORT, VALVE ROCKER 1
　 21814 VH21814E0040 BOLT 4
　 21814A VH21814E0060 BOLT 5
　 Z1091 VHSZ10910059 BOLT, FLANGE 1
　 Z3441 VHSZ34410003 PLUG 1
　 Z9102 VHSZ91029116 COLLAR 4
　 Z9102A VHSZ91026013 LOCK, VALVE SPG RETAINER 32
