UPPERSTRUCTURE YN52F10004F1 FRAME GROUP, UPP – KOBELCO SK200-10 SK210LC-10
.

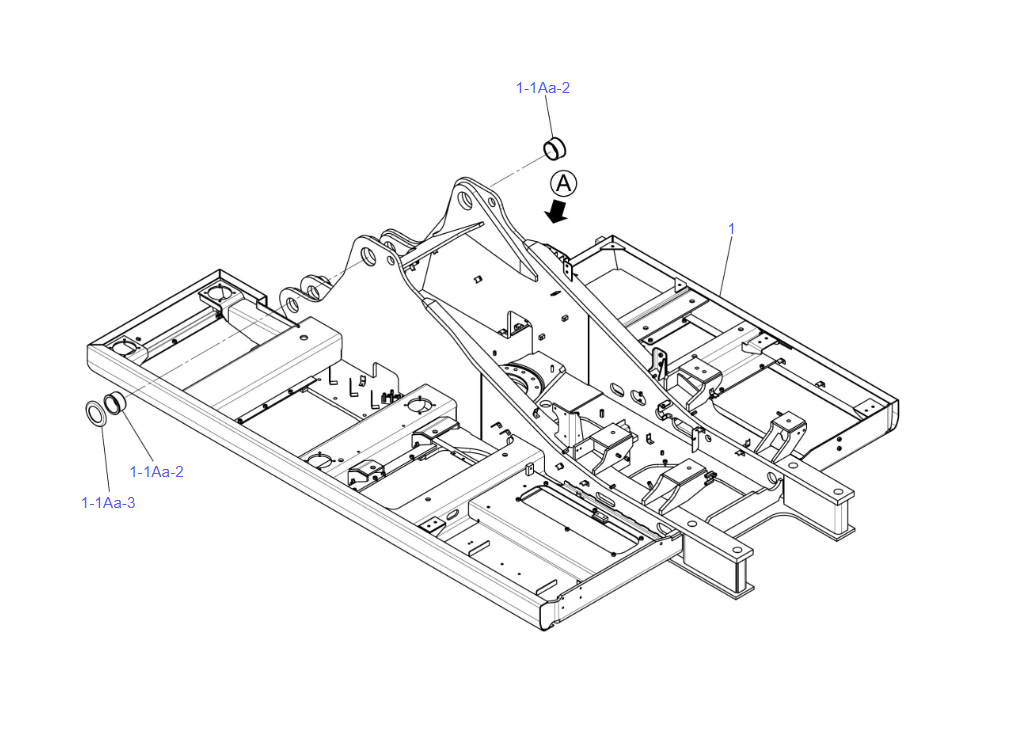

1 YN52F00883F1 FRAME, UPP 1
1-1Aa-2 YN52F01582P1 BUSHING 2
1-1Aa-3 2414T2784 COVER 1
1-1Ck YN41C00058P1 STEP 1
YN52F00952F1 FRAME, UPP Not Service
YN52F00949F1 FRAME, UPP Not Service

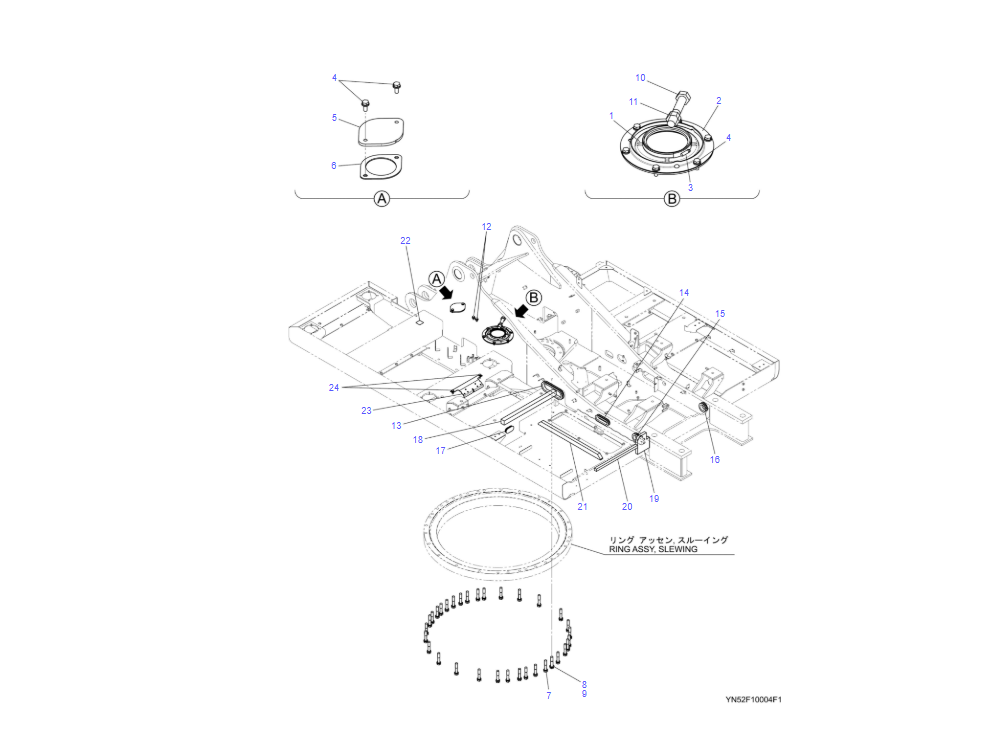

YN52F10004F1 FRAME GROUP, UPP Not Service
.
1 YN52F02796P1 SEAL 1
2 YN52F01615P1 PLATE 1
3 ZC16X14800 CLIP 1
4 ZM73C10025 SEMS-BOLT 8
5 YN52F03092P1 PLATE 1
6 YN52F03094P1 PACKING 1
7 YN52F01100D3 CAPSCREW 32
8 HS53C20105G1 CAPSCREW 1
9 ZW13H20000 WASHER 1
10 ZS18F24130 CAPSCREW 1
11 ZN18F24019 NUT 1
12 ZM73C12020 SEMS-BOLT 2
13 YN52F02750P1 GROMMET 1
14 YN52F02751P1 GROMMET 1
15 YN52F02752P1 GROMMET 1
16 YN52F02753P1 GROMMET 1
17 YN52F03259P1 GROMMET 1
18 YN52F03000P1 INSULATION 1
19 YN52F03202P1 INSULATION 1
20 LQ52F01754P1 INSULATION 1
21 YN52F03005P1 RUBBER 1
22 YN20T02785P1 PLATE 1
23 YN52F03185P1 PLATE 1
24 ZM73C10030 SEMS-BOLT
