YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

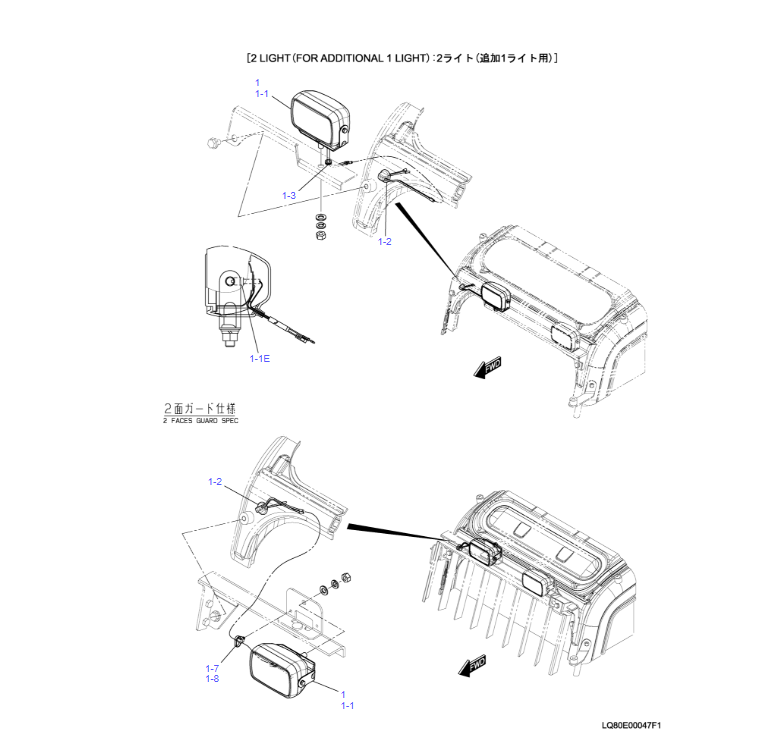

LQ80E00047F1 LQ80E00033F2 YT80S00002F2 LIGHT KOBELCO
1 LQ80E00033F2 LIGHT INSTAL 1
1-1 YT80S00002F2 LIGHT 1
1-1E YT80S00002S005 BULB 1
1-2 LQ80E01019P2 HARNESS 1
1-3 2420R372D7 GROMMET 1
1-7 YN13E01375P1 CLIP 1 YN15428547–31523
. YQ15405290–05729
1-7 YN13E01375P1 CLIP 2 YN15431524-
. YQ15405730-
1-8 PY01P01043D3 CLIP 1 YN15428547–31523
. YQ15405290–05729
1-8 PY01P01043D3 CLIP 2 YN15431524-

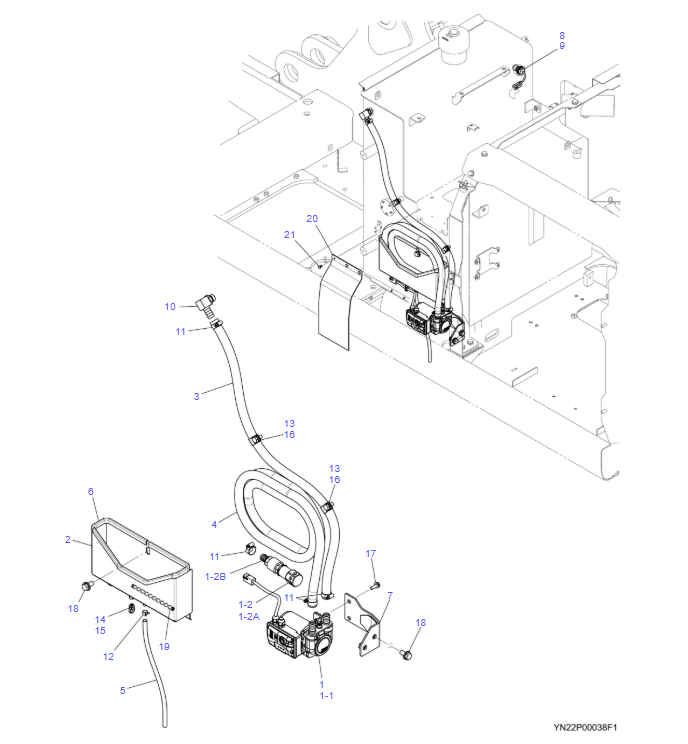

1 LQ22P00008F1 PUMP ASSY, FUEL 1
1-1 LQ22P00007P1 PUMP, FUEL 1
1-2 YY22P01097F1 FILLER 1
1-2A YY22P01084P1 FILLER 1
1-2B YY22P01083P1 CONNECTOR 1
2 YN22P01126P2 BOX 1
3 LQ22P01009D3 HOSE 1
4 LQ22P01009D1 HOSE 1
5 HX11Y06040DX HOSE 1
6 LQ21C01041D6 TRIM 1
7 LQ22P01011P1 BRACKET 1
8 YF52S00004P2 SENSOR, LEVEL 1
9 YN33H01052P1 SEAL 1
10 LC22P01012P1 ELBOW 1
11 ZC15X02600 CLAMP 4
12 PH05P01088D5 CLIP 1
13 ZC46X25011 CLIP 2
14 YN13E01375P1 CLIP 1
15 PY01P01043D3 CLIP 1
16 ZM73C10020 SEMS-BOLT 2
17 ZM73C08025 SEMS-BOLT 2
18 ZM73C12025 SEMS-BOLT 3
19 YN21C01724D5 TRIM 1
20 YN22P01127P1 RUBBER 1
21 YY21C01070P1 CLIP 3

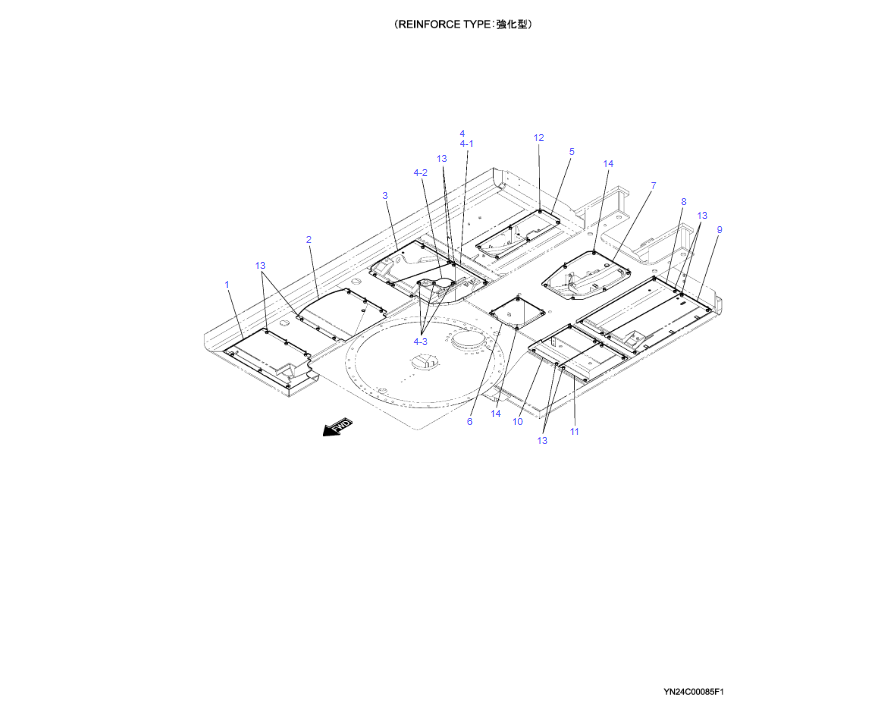

1 YN24C01517P1 COVER 1 YN15T17101–19345
1 YN24C01569P1 COVER 1 YN15T19346–20343
1 YN24C01576P1 COVER 1 YN15T20344-
2 YN24C01518P1 COVER 1 YN15T17101–19345
2 YN24C01570P1 COVER 1 YN15T19346–20343
2 YN24C01577P1 COVER 1 YN15T20344-
3 YN24C01519P1 COVER 1 YN15T17101–19345
3 YN24C01571P1 COVER 1 YN15T19346–20343
3 YN24C01578P1 COVER 1 YN15T20344-
4 YN24C01523F1 COVER ASSY 1
4-1 YN24C01524P1 COVER 1
4-2 LQ24C01298P1 COVER 1
4-3 ZM73C12025 SEMS-BOLT 3
5 LQ24C01258P1 COVER 1
6 YN24C01466P1 COVER 1
7 LQ24C01260P1 COVER 1
8 YN24C01467P1 COVER 1
9 YN24C01468P1 COVER 1
10 YN24C01469P1 COVER 1
11 YN24C01470P1 COVER 1
12 ZM73C12030 SEMS-BOLT 6
13 ZM73C12035 SEMS-BOLT 36
14 ZM73C12040 SEMS-BOLT 10
