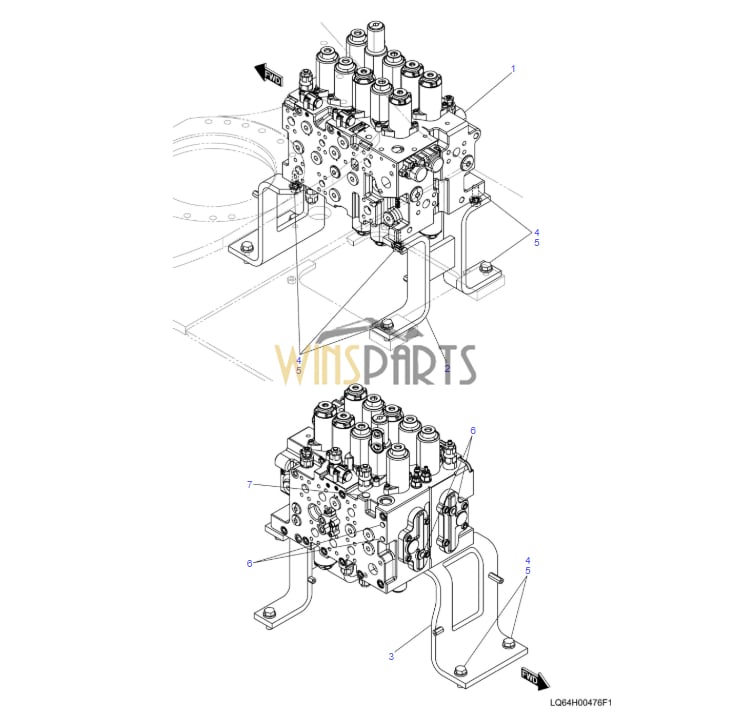

LQ64H00476F1 LQ30V00054F2 CONTROL VALVE KOBELCO

LQ64H00476F1 LQ30V00054F2 CONTROL VALVE KOBELCO
HC100-00 LQ30V00054F1 JP-02 D0002488476 1 1 LQ30V00054F1 VALVE ASSY, CONTROL 1
HC100-00 LQ30V00054F2 ASIA D0003126854 1 1 LQ30V00054F2 VALVE ASSY, CONTROL 1
　 2 LQ64H01142P1 BRACKET 1
　 3 LQ64H01122P1 BRACKET 1
　 4 ZS18C16045 CAPSCREW 7
　 5 ZW16H16000 WASHER 7
　 6 YN64H01391D1 CAP 4
　 7 YN64H01392D1 CAP 1

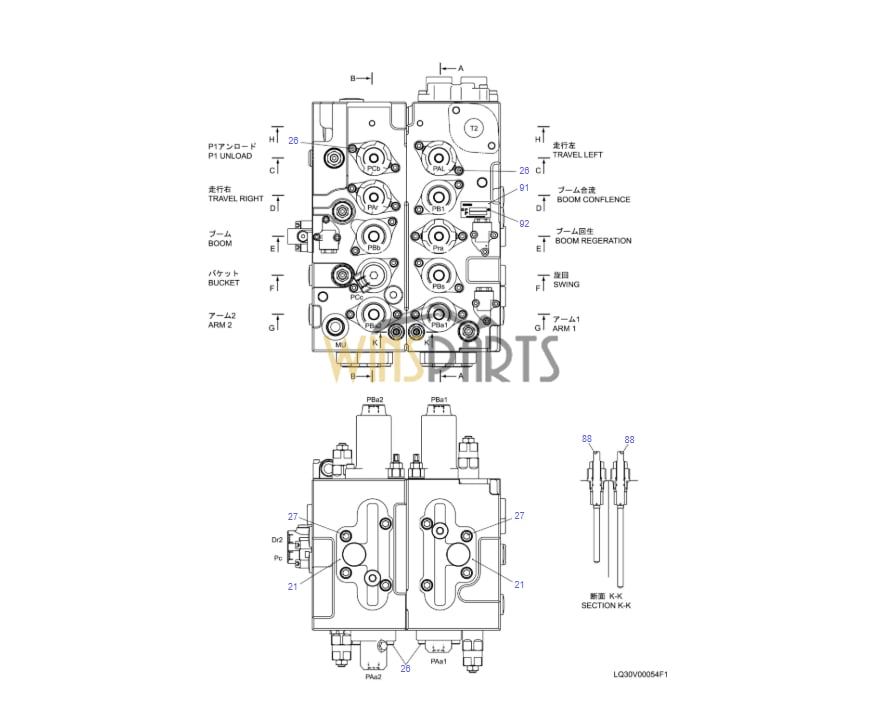

LQ30V00054F1 CONTROL VALVE ASSY KOBELCO SK250-10 SK260LC-10
　 1 NO P/No BODY 1
　 2 NO P/No BODY 1
　 3 YN30V00001S154 PLUG 3
　 4 NO P/No PLUG 4
　 5 NO P/No PLUG 1
　 6 ZD12P03800 O-RING 5
　 7 ZD12G03000 O-RING 21
　 8 ZD12P01500 O-RING 9
　 9 ZD12P02400 O-RING 20
　 10 ZD12P01600 O-RING 1

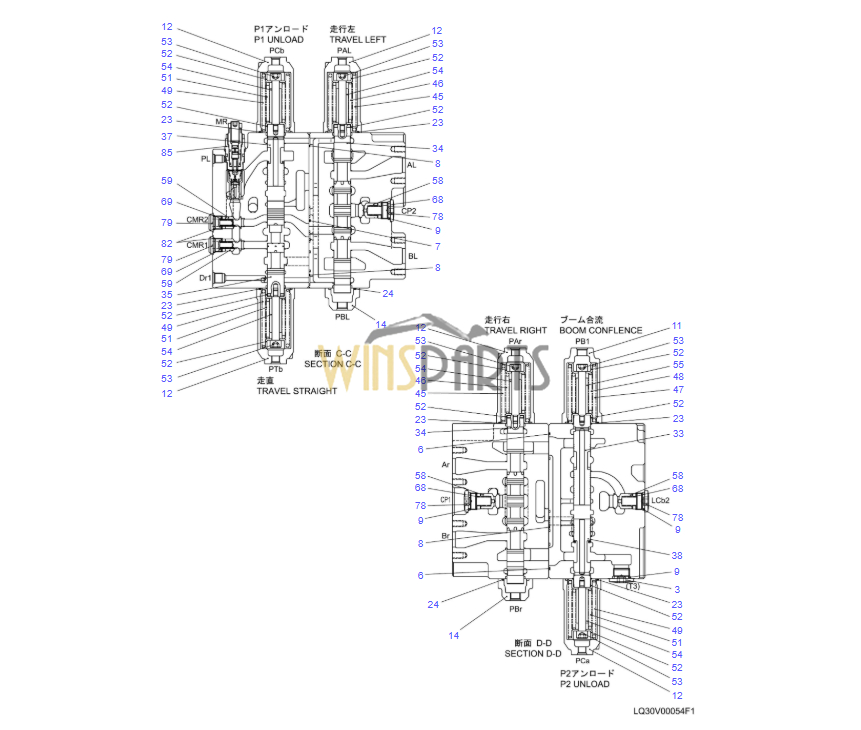

YN30V00101S201 YF30V00011S202 CONTROL VALVE ASSY KOBELCO
LQ30V00054F1 VALVE ASSY, CONTROL
　 11 YN30V00101S201 COVER 4
　 12 YF30V00011S202 COVER 7
　 13 YN30V00101S203 COVER 1
　 14 YN30V00001S205 COVER 6
　 15 YN30V00101S094 COVER 1
　 17 YN30V00101S209 COVER 1
　 18 LC30V00034S979 COVER 1
41 LQ30V00045S319 SPRING 1 R1
　 42 LQ30V00045S320 SPRING 2 R11, R12
　 43 YN30V00079S321 SPRING 5 R1, R2, R3, R4, R8
　 44 YN30V00079S322 SPRING 5 R2, R3, R4, R11, R12
　 45 2436U1165S371 SPRING 2 R6
　 46 2436U1165S372 SPRING 2 R6
　 47 YN30V00079S323 SPRING 1 R5
　 48 YN30V00101S326 SPRING 1 R5
　 49 YN30V00101S327 SPRING 3 R7, R9, R10
　 50 YN30V00101S328 SPRING 1 R8
　 51 YN30V00101S329 SPRING 3 R7, R9, R10
　 52 2436U1443S332 SEAT, SPRING 26 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11, R12
　 53 2436U1165S336 BOLT 13 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11, R12
　 54 2436U1165S335 STOPPER 11 R1, R2, R3, R4, R6, R7, R9, R10, R11, R12
　 55 YN30V00001S339 STOPPER 1 R5
　 56 YN30V00101S340 STOPPER 1 R8
　 57 LQ30V00045S510 POPPET 1
　 58 YN30V00101S341 POPPET 9
　 59 YW30V00001S513 POPPET 2
　 60 LQ30V00045S513 POPPET 1
　 61 YN30V00101S514 POPPET 2
　 62 2436U1231S513 POPPET 1
　 63 LQ30V00045S516 POPPET 1
　 64 LQ30V00045S517 POPPET 1
　 65 YN30V00101S518 POPPET 1
　 66 LQ30V00045S519 POPPET 1

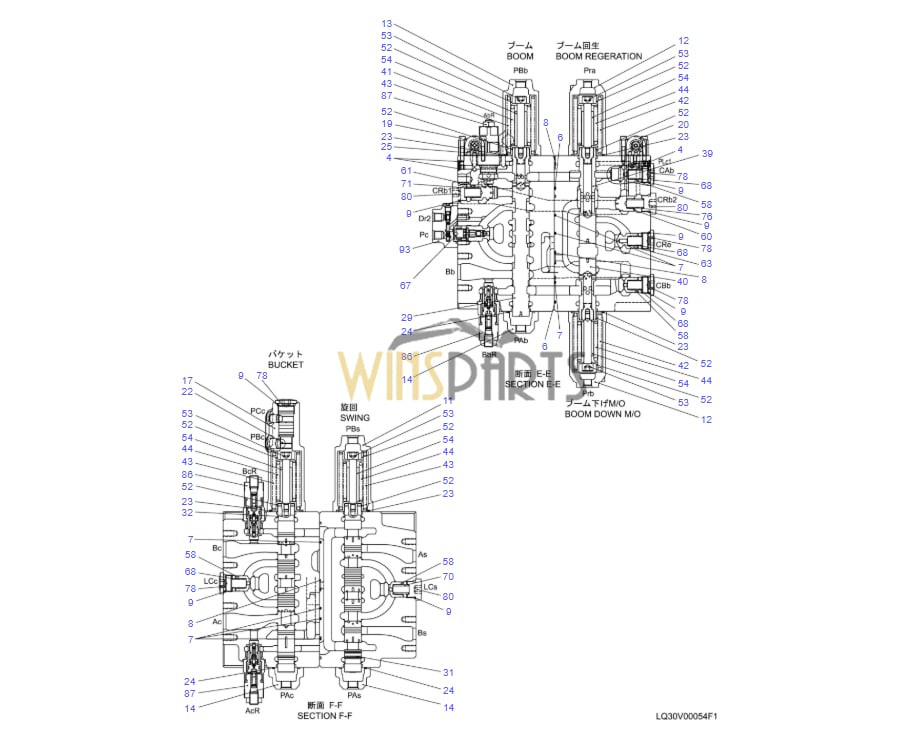

YN30V00119F1 LQ30V00048F1 CONTROL VALVE KOBELCO
LQ30V00054F2 VALVE ASSY, CONTROL
LQ30V00054F1 VALVE ASSY, CONTROL
　 19 YN30V00119F1 VALVE, CONTROL 2
　 19-2 ZD12P00700 O-RING 4
　 19-6 ZS23C06035 CAPSCREW 3
　 20 LQ30V00048F1 VALVE, CONTROL 1
　 20-2 YN30V00101S266 RING 4
　 20-3 ZD12P01600 O-RING 1
　 20-4 YN22V00037S561 O-RING 1
　 20-5 YN35V00004S362 O-RING 1
　 20-6 ZS23C06035 CAPSCREW 3
　 21 YF30V00011S212 PLATE 2
　 22 LB30V00013S216 PISTON 1
　 23 ZD12G05000 O-RING 13
　 24 YN30V00101S264 RING 9
　 25 YN30V00101S266 RING 2
　 26 ZS23C08025 CAPSCREW 40
　 27 ZS23C12025 CAPSCREW 8
　 28 ZS23C08035 CAPSCREW 5
　 29 NO P/No SPOOL 1 R1
　 30 NO P/No SPOOL 1 R2
　 31 NO P/No SPOOL 1 R3
　 32 NO P/No SPOOL 1 R4
　 33 NO P/No SPOOL 1 R5
　 34 NO P/No SPOOL 2 R6
　 35 NO P/No SPOOL 1 R7
　 36 NO P/No SPOOL 1 R8
　 37 NO P/No SPOOL 1 R9
　 38 NO P/No SPOOL 1 R10
　 39 NO P/No SPOOL 1 R11
　 40 NO P/No SPOOL 1 R12
　
　 67 LQ30V00050F1 VALVE, CONTROL 1
　 67-3 LQ30V00050S103 SEAT 1
　 67-5 LQ30V00050S106 SPRING 1
　 68 2436U1165S521 SPRING 10
　 69 YN30V00101S522 SPRING 2
　 70 YN30V00089S523 SPRING 1
　 71 YN30V00001S524 SPRING 2
　 72 2436U1265S521 SPRING 1
　 73 YA30V00002S521 SPRING 1
　 74 LQ30V00045S527 SPRING 1
　 75 YN30V00101S528 SPRING 1
　 76 LQ30V00045S529 SPRING 1
　 77 YN30V00021S552 PLUG 1
　 78 YN30V00001S551 PLUG 13
　 79 YW30V00001S556 PLUG 2
　 80 YN30V00001S556 PLUG 4
　 81 LQ30V00045S557 PLUG 1
　 82 ZD12P02000 O-RING 3

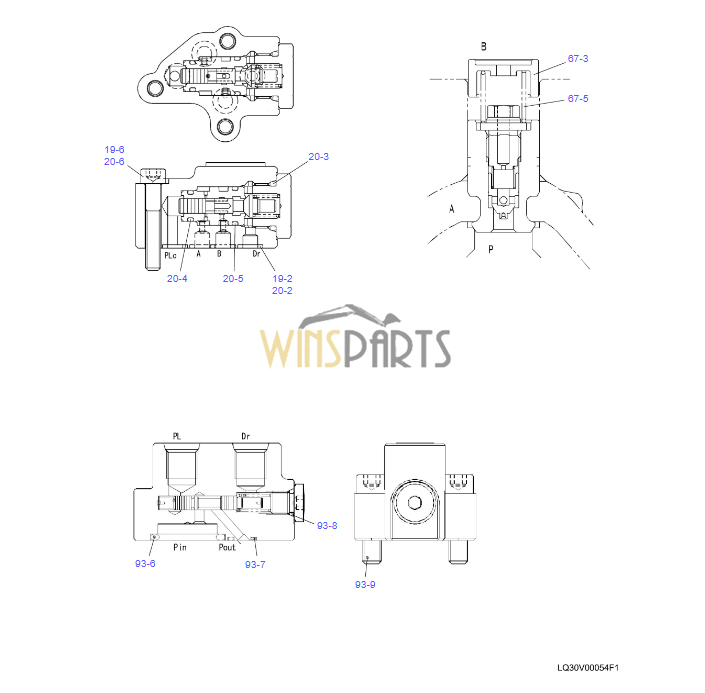

LQ30V00049F2 VALVE, CONTROL LQ22V00009F1 RELIEF VALVE KOBELCO
LQ30V00054F2 VALVE ASSY, CONTROL
83 LC30V00034S981 PLUG 1
　 84 ZD12P00800 O-RING 1
　 85 LQ22V00009F1 VALVE, RELIEF 1
　 85-3 YN22V00001S121 RING 1
　 85-4 YN22V00001S122 SPACER 1
　 85-8 ZD12P02500 O-RING 1
　 85-10 YN22V00001S521 SPRING 1
　 85-12 YN22V00001S561 O-RING 1
　 85-13 YN22V00001S562 RING, BACK UP 1

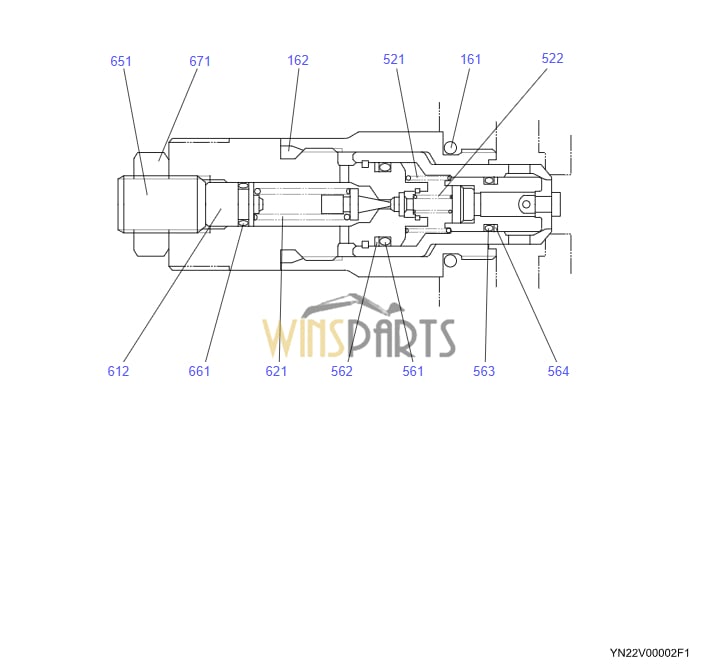

　 86 YN22V00002F1 VALVE ASSY, OVERLOAD 3
　 86-161 ZD12P02400 O-RING 1
　 86-162 ZD12P02240 O-RING 1
　 86-521 YN22V00001S521 SPRING 1
　 86-522 YN22V00002S522 SPRING 1
　 86-561 YN22V00001S561 O-RING 1
　 86-562 YN22V00001S562 RING, BACK UP 1
　 86-563 YN22V00002S563 O-RING 1
　 86-564 YN22V00002S564 RING, BACK UP 1
　 86-612 YN22V00002S612 SPRING 1
　 86-621 2436R750S512 SPRING 1
　 86-651 YN22V00002S651 SCREW 1
　 86-661 ZD12P00800 O-RING 1
　 86-671 YN22V00001S671 LOCK NUT 1
　 87 YN22V00002F9 VALVE ASSY, OVERLOAD 3
　 87-161 ZD12P02400 O-RING 1
　 87-162 ZD12P02240 O-RING 1
　 87-521 YN22V00001S521 SPRING 1
　 87-522 YN22V00002S522 SPRING 1
　 87-561 YN22V00001S561 O-RING 1
　 87-562 YN22V00001S562 RING, BACK UP 1
　 87-563 YN22V00002S563 O-RING 1
　 87-564 YN22V00002S564 RING, BACK UP 1
　 87-612 YN22V00002S612 SPRING 1
　 87-621 2436R750S512 SPRING 1
　 87-651 YN22V00002S651 SCREW 1
　 87-661 ZD12P00800 O-RING 1
　 87-671 YN22V00001S671 LOCK NUT 1
　 88 LQ30V00047F1 VALVE, CONTROL 2
　 88-2 ZD12P01000 O-RING 1
　 88-4 ZD12P01800 O-RING 1
　 88-5 ZN11C12010 NUT 1
　 89 LC30V00036S973 CAPSCREW 8
　 90 LQ30V00045S974 CAPSCREW 2
　 91 NO P/No NAME PLATE 1
　 92 NO P/No PIN 2
　 93-6 ZD12P02600 O-RING 1
　 93-7 ZD12P00900 O-RING 1
　 93-8 ZD12P00800 O-RING 1
　 93-9 ZS28C08030 CAPSCREW 4
　 .
　 LQ30V00045R220 REPAIR KIT 1 RK1
　 . (29, 41, 43, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R110 REPAIR KIT 1 RK2
　 . (30, 43, 44, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R120 REPAIR KIT 1 RK3
　 . (31, 43, 44, 53, 54)X1
　 . (52)X2
　 .
　 LB30V00013R130 REPAIR KIT 1 RK4
　 . (32, 43, 44, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R140 REPAIR KIT 1 RK5
　 . (33, 47, 48, 53, 55)X1
　 . (52)X2
　 .
　 YN30V00101R150 REPAIR KIT 1 RK6
　 . (34, 45, 46, 53, 54)X1
　 . (52)X2
　 .
　 YN30V00101R170 REPAIR KIT 1 RK7
　 . (35, 49, 51, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R170 REPAIR KIT 1 RK8
　 . (36, 43, 50, 53, 56)X1
　 . (52)X2
　 .
　 LQ30V00045R180 REPAIR KIT 1 RK9
　 . (37, 49, 51, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R190 REPAIR KIT 1 RK10
　 . (38, 49, 51, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R200 REPAIR KIT 1 RK11
　 . (39, 42, 44, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R210 REPAIR KIT 1 RK12
　 . (40, 42, 44, 53, 54)X1
　 . (52)X2

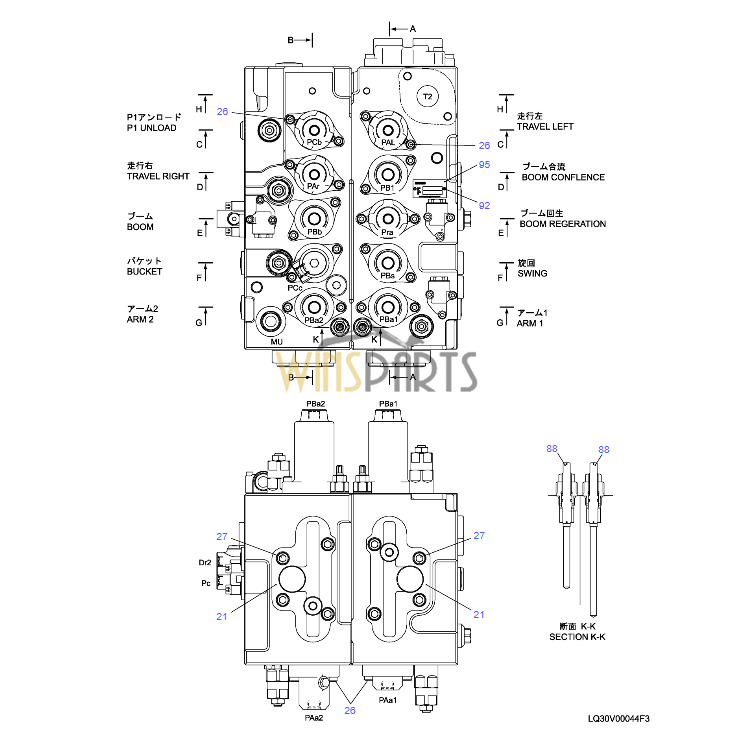

LQ30V00044F3 CONTROL VALVE ASSY KOBELCO SK250-10 SK260LC-10
　 .
　 1 NO P/No BODY 1
　 2 NO P/No BODY 1
　 3 YN30V00001S154 PLUG 3
　 4 NO P/No PLUG 4
　 5 NO P/No PLUG 1
　 6 ZD12P03800 O-RING 5
　 7 ZD12G03000 O-RING 21
　 8 ZD12P01500 O-RING 9
　 9 ZD12P02400 O-RING 19
　 10 ZD12P01600 O-RING 1
　 11 YN30V00101S201 COVER 4
　 12 YF30V00011S202 COVER 7
　 13 YN30V00101S203 COVER 1
　 14 YN30V00001S205 COVER 6
　 15 YN30V00101S094 COVER 1
　 17 YN30V00101S209 COVER 1
　 18 LC30V00034S979 COVER 1
　 19 YN30V00119F1 VALVE, CONTROL 2
　 19-2 ZD12P00700 O-RING 4
　 19-6 ZS23C06035 CAPSCREW 3
　 20 LQ30V00048F1 VALVE, CONTROL 1
　 20-2 YN30V00101S266 RING 4
　 20-3 ZD12P01600 O-RING 1
　 20-4 YN22V00037S561 O-RING 1
　 20-5 YN35V00004S362 O-RING 1
　 20-6 ZS23C06035 CAPSCREW 3
　 21 YF30V00011S212 PLATE 2
　 22 LB30V00013S216 PISTON 1
　 23 ZD12G05000 O-RING 13
　 24 YN30V00101S264 RING 9
　 25 YN30V00101S266 RING 2
　 26 ZS23C08025 CAPSCREW 40
　 27 ZS23C12025 CAPSCREW 8
　 28 ZS23C08035 CAPSCREW 5
　 29 NO P/No SPOOL 1 R1
　 30 NO P/No SPOOL 1 R2
　 31 NO P/No SPOOL 1 R3
　 32 NO P/No SPOOL 1 R4
　 33 NO P/No SPOOL 1 R5
　 34 NO P/No SPOOL 2 R6
　 35 NO P/No SPOOL 1 R7
　 36 NO P/No SPOOL 1 R8
　 37 NO P/No SPOOL 1 R9
　 38 NO P/No SPOOL 1 R10
　 39 NO P/No SPOOL 1 R11
　 40 NO P/No SPOOL 1 R12
　 41 LQ30V00045S319 SPRING 1 R1
　 42 LQ30V00045S320 SPRING 2 R11, R12
　 43 YN30V00079S321 SPRING 5 R1, R2, R3, R4, R8
　 44 YN30V00079S322 SPRING 5 R2, R3, R4, R11, R12
　 45 2436U1165S371 SPRING 2 R6
　 46 2436U1165S372 SPRING 2 R6
　 47 YN30V00079S323 SPRING 1 R5
　 48 YN30V00101S326 SPRING 1 R5
　 49 YN30V00101S327 SPRING 3 R7, R9, R10
　 50 YN30V00101S328 SPRING 1 R8
　 51 YN30V00101S329 SPRING 3 R7, R9, R10
　 52 2436U1443S332 SEAT, SPRING 26 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11, R12
　 53 2436U1165S336 BOLT 13 R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11, R12
　 54 2436U1165S335 STOPPER 11 R1, R2, R3, R4, R6, R7, R9, R10, R11, R12
　 55 YN30V00001S339 STOPPER 1 R5
　 56 YN30V00101S340 STOPPER 1 R8
　 57 LQ30V00045S510 POPPET 1
　 58 YN30V00101S341 POPPET 10
　 59 YW30V00001S513 POPPET 2
　 60 LQ30V00045S513 POPPET 1
　 61 YN30V00101S514 POPPET 2
　 62 2436U1231S513 POPPET 1
　 63 LQ30V00045S516 POPPET 1
　 64 LQ30V00045S517 POPPET 1
　 65 YN30V00101S518 POPPET 1
　 66 LQ30V00045S519 POPPET 1
　 67 LQ30V00050F1 VALVE, CONTROL 1
　 67-3 LQ30V00050S103 SEAT 1
　 67-5 LQ30V00050S106 SPRING 1
　 68 2436U1165S521 SPRING 11
　 69 YN30V00101S522 SPRING 2
　 70 YN30V00089S523 SPRING 1
　 71 YN30V00001S524 SPRING 2
　 72 2436U1265S521 SPRING 1
　 73 YA30V00002S521 SPRING 1
　 74 LQ30V00045S527 SPRING 1
　 75 YN30V00101S528 SPRING 1
　 76 LQ30V00045S529 SPRING 1
　 77 YN30V00021S552 PLUG 1
　 78 YN30V00001S551 PLUG 12
　 79 YW30V00001S556 PLUG 2
　 80 YN30V00001S556 PLUG 4
　 81 LQ30V00045S557 PLUG 1
　 82 ZD12P02000 O-RING 3
　 83 LC30V00034S981 PLUG 1
　 84 ZD12P00800 O-RING 1
　 85 LQ22V00009F1 VALVE, RELIEF 1
　 85-3 YN22V00001S121 RING 1
　 85-4 YN22V00001S122 SPACER 1
　 85-8 ZD12P02500 O-RING 1
　 85-10 YN22V00001S521 SPRING 1
　 85-12 YN22V00001S561 O-RING 1
　 85-13 YN22V00001S562 RING, BACK UP 1
　 86 YN22V00002F1 VALVE ASSY, OVERLOAD 3
　 86-161 ZD12P02400 O-RING 1
　 86-162 ZD12P02240 O-RING 1
　 86-521 YN22V00001S521 SPRING 1
　 86-522 YN22V00002S522 SPRING 1
　 86-561 YN22V00001S561 O-RING 1
　 86-562 YN22V00001S562 RING, BACK UP 1
　 86-563 YN22V00002S563 O-RING 1
　 86-564 YN22V00002S564 RING, BACK UP 1
　 86-612 YN22V00002S612 SPRING 1
　 86-621 2436R750S512 SPRING 1
　 86-651 YN22V00002S651 SCREW 1
　 86-661 ZD12P00800 O-RING 1
　 86-671 YN22V00001S671 LOCK NUT 1
　 87 YN22V00002F9 VALVE ASSY, OVERLOAD 3
　 87-161 ZD12P02400 O-RING 1
　 87-162 ZD12P02240 O-RING 1
　 87-521 YN22V00001S521 SPRING 1
　 87-522 YN22V00002S522 SPRING 1
　 87-561 YN22V00001S561 O-RING 1
　 87-562 YN22V00001S562 RING, BACK UP 1
　 87-563 YN22V00002S563 O-RING 1
　 87-564 YN22V00002S564 RING, BACK UP 1
　 87-612 YN22V00002S612 SPRING 1
　 87-621 2436R750S512 SPRING 1
　 87-651 YN22V00002S651 SCREW 1
　 87-661 ZD12P00800 O-RING 1
　 87-671 YN22V00001S671 LOCK NUT 1
　 88 LQ30V00047F1 VALVE, CONTROL 2
　 88-2 ZD12P01000 O-RING 1
　 88-4 ZD12P01800 O-RING 1
　 88-5 ZN11C12010 NUT 1
　 89 LC30V00036S973 CAPSCREW 8
　 90 LQ30V00045S974 CAPSCREW 2
　 92 NO P/No PIN 2
　 93 LQ30V00049F2 VALVE, CONTROL 1
　 93-6 ZD12P02600 O-RING 1
　 93-7 ZD12P00900 O-RING 1
　 93-8 ZD12P00800 O-RING 1
　 93-9 ZS28C08030 CAPSCREW 4
　 94 LC21V00015F1 VALVE, CHECK 1
　 94-4 ZD12P02400 O-RING 1
　 95 NO P/No NAME PLATE 1
　 .
　 LQ30V00045R220 REPAIR KIT 1 RK1
　 . (29, 41, 43, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R110 REPAIR KIT 1 RK2
　 . (30, 43, 44, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R120 REPAIR KIT 1 RK3
　 . (31, 43, 44, 53, 54)X1
　 . (52)X2
　 .
　 LB30V00013R130 REPAIR KIT 1 RK4
　 . (32, 43, 44, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R140 REPAIR KIT 1 RK5
　 . (33, 47, 48, 53, 55)X1
　 . (52)X2
　 .
　 YN30V00101R150 SPOOL KIT 1 RK6
　 . (34, 45, 46, 53, 54)X1
　 . (52)X2
　 .
　 YN30V00101R170 SPOOL KIT 1 RK7
　 . (35, 49, 51, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R170 REPAIR KIT 1 RK8
　 . (36, 43, 50, 53, 56)X1
　 . (52)X2
　 .
　 LQ30V00045R180 REPAIR KIT 1 RK9
　 . (37, 49, 51, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R190 REPAIR KIT 1 RK10
　 . (38, 49, 51, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R200 REPAIR KIT 1 RK11
　 . (39, 42, 44, 53, 54)X1
　 . (52)X2
　 .
　 LQ30V00045R210 REPAIR KIT 1 RK12
　 . (40, 42, 44, 53, 54)X1
　 . (52)X2

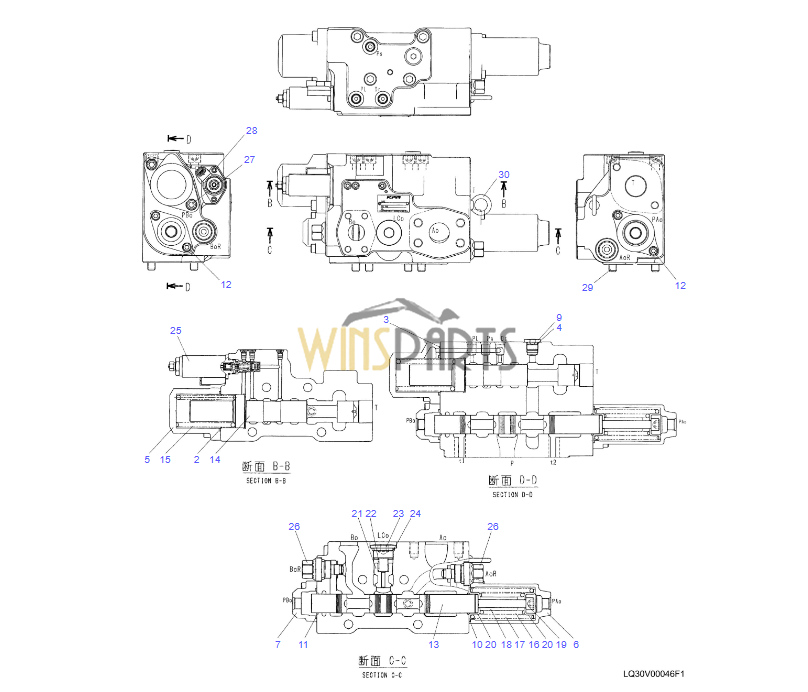

LQ30V00046F1 CONTROL VALVE
　 .
　 2 ZD12G05500 O-RING 1
　 3 ZD12P00900 O-RING 1
　 4 ZD12P01400 O-RING 1
　 5 YN30V00104S201 COVER 1
　 6 YN30V00101S201 COVER 1
　 7 YN30V00001S205 COVER 1
　 9 YW30V00001S156 PLUG 1
　 10 ZD12G05000 O-RING 1
　 11 YN30V00101S264 RING 1
　 12 ZS23C08025 CAPSCREW 4
　 13 LQ30V00046S301 SPOOL 1
　 14 LQ30V00046S302 SPOOL 1
　 15 YN30V00104S321 SPRING 1
　 16 2436U1231S323 SPRING 1
　 17 2436U1165S371 SPRING 1
　 18 2436U1165S335 STOPPER 1
　 19 2436U1165S336 BOLT 1
　 20 2436U1443S332 SEAT, SPRING 2
　 21 YN30V00084S512 POPPET 1
　 22 YN30V00084S522 SPRING 1
　 23 YN15V00002S012 PLUG 1
　 24 ZD12P02800 O-RING 1
　 25 YN35V00050F1 VALVE, SOLENOID 1
　 25-5 YN35V00004S361 O-RING 1
　 25-6 YN35V00004S362 O-RING 1
　 25-7 YN35V00004S363 O-RING 1
　 25-9 YN35V00018S802 NUT 1
　 25-10 ZD12P02000 O-RING 1
　 26 YN30V01062P1 PLUG ASSY 2
　 27 ZS28C10025 CAPSCREW 2
　 28 EC20V00003S171 CAPSCREW 2
　 29 LQ30V00046S703 CAPSCREW 4
　 30 PY10V00003S901 BOLT 1

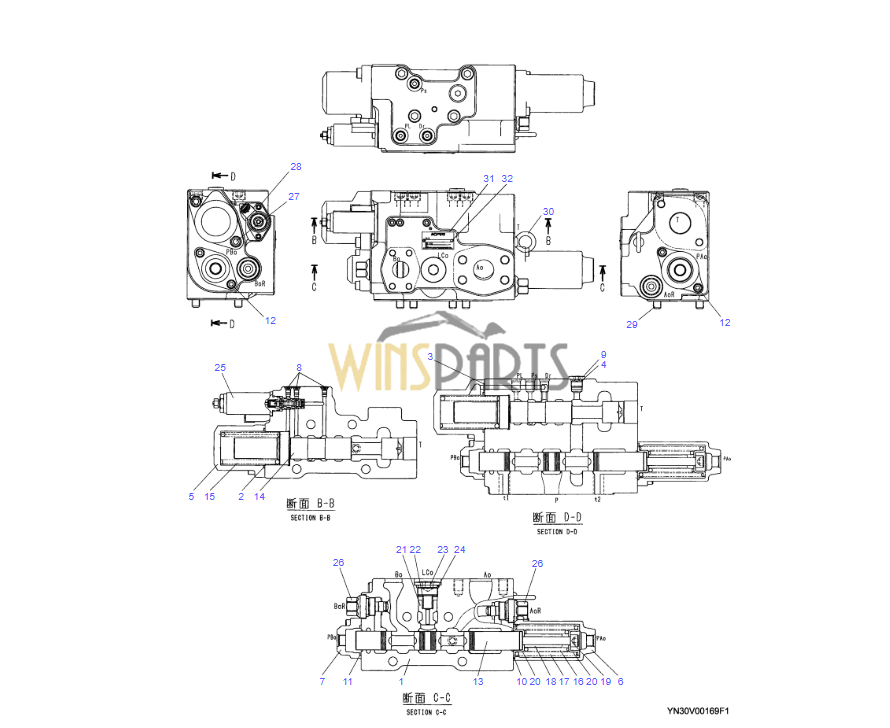

YN30V00169F1 VALVE, CONTROL
　 .
　 1 NO P/No BODY 1
　 2 ZD12G05500 O-RING 1
　 3 ZD12P00900 O-RING 1
　 4 ZD12P01400 O-RING 1
　 5 YN30V00104S201 COVER 1
　 6 YN30V00101S201 COVER 1
　 7 YN30V00001S205 COVER 1
　 8 NO P/No PLUG 3
　 9 YW30V00001S156 PLUG 1
　 10 ZD12G05000 O-RING 1
　 11 YN30V00101S264 RING 1
　 12 ZS23C08025 CAPSCREW 4
　 13 LQ30V00046S301 SPOOL 1 R1
　 14 YN30V00169S302 SPOOL 1
　 15 YN30V00167S321 SPRING 1
　 16 2436U1231S323 SPRING 1 R1
　 17 2436U1165S371 SPRING 1 R1
　 18 2436U1165S335 STOPPER 1 R1
　 19 2436U1165S336 BOLT 1 R1
　 20 2436U1443S332 SEAT, SPRING 2 R1
　 21 YN30V00084S512 POPPET 1
　 22 YN30V00084S522 SPRING 1
　 23 YN15V00002S012 PLUG 1
　 24 ZD12P02800 O-RING 1
　 25 YN35V00050F1 VALVE, SOLENOID 1
　 25-5 YN35V00004S361 O-RING 1
　 25-6 YN35V00004S362 O-RING 1
　 25-7 YN35V00004S363 O-RING 1
　 25-9 YN35V00018S802 NUT 1
　 25-10 ZD12P02000 O-RING 1
　 26 YN30V01062P1 PLUG ASSY 2
　 27 ZS28C10025 CAPSCREW 2
　 28 EC20V00003S171 CAPSCREW 2
　 29 LQ30V00046S703 CAPSCREW 4
　 30 PY10V00003S901 BOLT 1
　 31 NO P/No NAME PLATE 1
　 32 NO P/No PIN 2
　 .
　 YN30V00169R100 SPOOL KIT 1 RK1

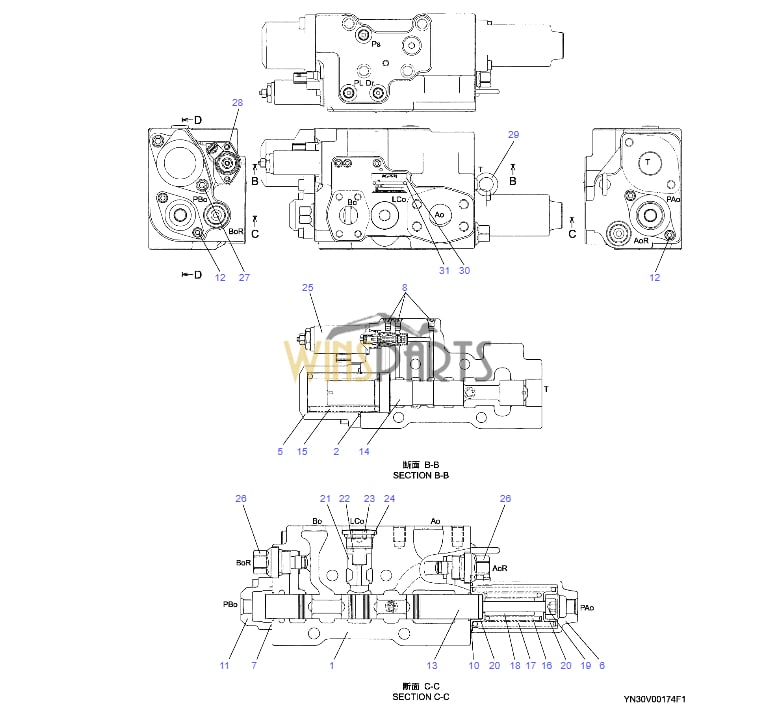

YN30V00174F1 VALVE, CONTROL KOBELCO SK250-10 SK260LC-10
　 .
　 1 NO P/No BODY 1
　 2 ZD12G05500 O-RING 1
　 3 ZD12P00900 O-RING 1
　 4 ZD12P01400 O-RING 1
　 5 YN30V00104S201 COVER 1
　 6 YN30V00101S201 COVER 1
　 7 YN30V00001S205 COVER 1
　 8 NO P/No PLUG 3
　 9 YN30V00001S156 PLUG 1
　 10 ZD12G05000 O-RING 1
　 11 YN30V00101S264 RING 1
　 12 ZS23C08025 CAPSCREW 4
　 13 LQ30V00046S301 SPOOL 1 R1
　 14 YN30V00169S302 SPOOL 1
　 15 YN30V00167S321 SPRING 1
　 16 2436U1231S323 SPRING 1 R1
　 17 2436U1165S371 SPRING 1 R1
　 18 2436U1165S335 STOPPER 1 R1
　 19 2436U1165S336 BOLT 1 R1
　 20 2436U1443S332 SEAT, SPRING 2 R1
　 21 YN30V00084S512 POPPET 1
　 22 YN30V00084S522 SPRING 1
　 23 YN15V00002S012 PLUG 1
　 24 ZD12P02800 O-RING 1
　 25 YN35V00050F1 VALVE, SOLENOID 1
　 25-5 YN35V00004S361 O-RING 1
　 25-6 YN35V00004S362 O-RING 1
　 25-7 YN35V00004S363 O-RING 1
　 25-9 YN35V00018S802 NUT 1
　 25-10 ZD12P02000 O-RING 1
　 26 YN30V01062P1 PLUG ASSY 2
　 27 ZS28C10025 CAPSCREW 2
　 28 EC20V00003S171 CAPSCREW 2
　 29 PY10V00003S901 BOLT 1
　 30 NO P/No NAME PLATE 1
　 31 NO P/No PIN 2
　 .
　 YN30V00169R100 SPOOL KIT 1 RK1
YN22V00002F1 OVERLOAD VALVE ASSY
　 .
　 161 ZD12P02400 O-RING 1
　 162 ZD12P02240 O-RING 1
　 521 YN22V00001S521 SPRING 1
　 522 YN22V00002S522 SPRING 1
　 561 YN22V00001S561 O-RING 1
　 562 YN22V00001S562 RING, BACK UP 1
　 563 YN22V00002S563 O-RING 1
　 564 YN22V00002S564 RING, BACK UP 1
　 612 YN22V00002S612 SPRING 1
　 621 2436R750S512 SPRING 1
　 651 YN22V00002S651 SCREW 1
　 661 ZD12P00800 O-RING 1
　 671 YN22V00001S671 LOCK NUT

Related Posts
