LQ53D00014F2 LQ53D00015F2 PROPEL MOTOR KOBELCO SK250-10 SK260LC-10
ใ .

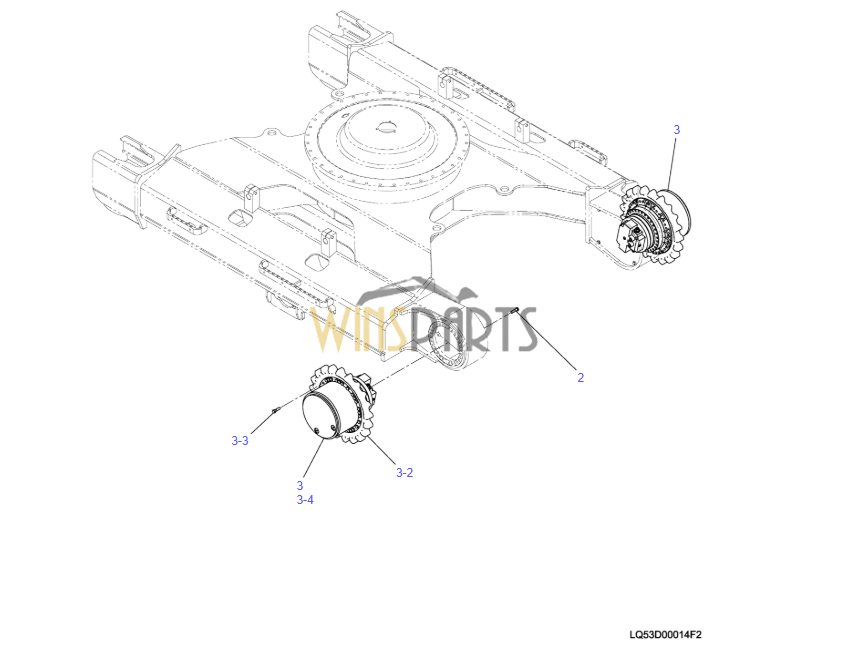

ใ 2 2420P2963D3 CAPSCREW 56
ใ 3 LQ53D00015F2 MOTOR ASSY, PROPEL 2
ใ 3-2 LQ51D01007P1 SPROCKET 1
ใ 3-3 ZS13C16055 CAPSCREW 30
HC545-00b_LQ15V00031F5_JP-01_D0002488554_1 3-4 LQ15V00031F5 MOTOR ASSY, PROPEL 1 HC 545-00b
ใ .

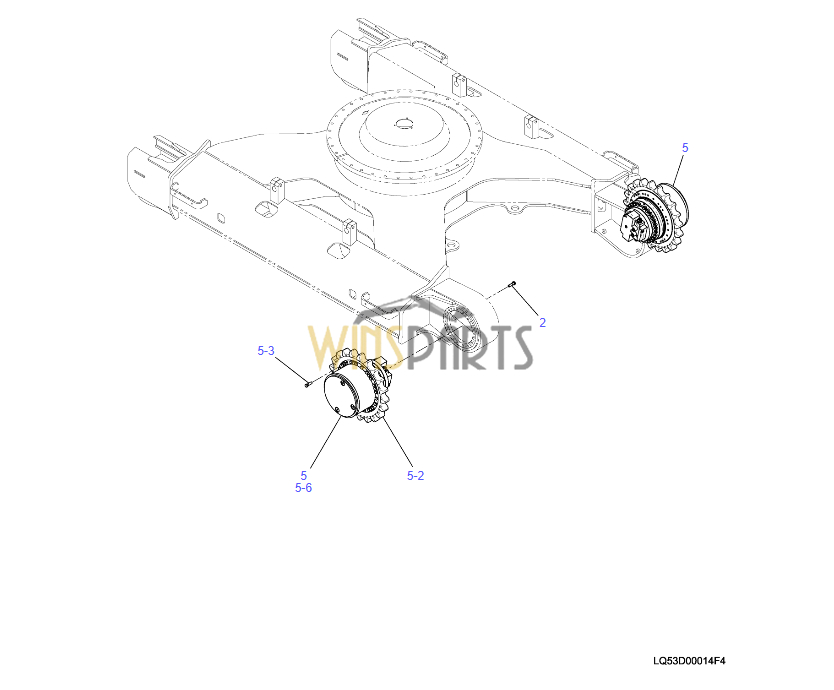

ใ 2 2420P2963D3 CAPSCREW 56
ใ 5 LQ53D00015F4 MOTOR ASSY, PROPEL 2
ใ 5-2 LQ51D01007P1 SPROCKET 1
ใ 5-3 ZS13C16055 CAPSCREW 30
HC545-00c_LQ15V00039F1_JP-02_X_D0003613480_1 5-6 LQ15V00039F1 MOTOR ASSY, PROPEL 1 HC 545-00c LL16405007–05150
ใ . LQ16405001–05027
HC545-00_LQ15V00039F2_EUR_D0005988401_1 5-6 LQ15V00039F2 MOTOR ASSY, PROPEL 1 HC 545-00c LL16405151-
ใ .

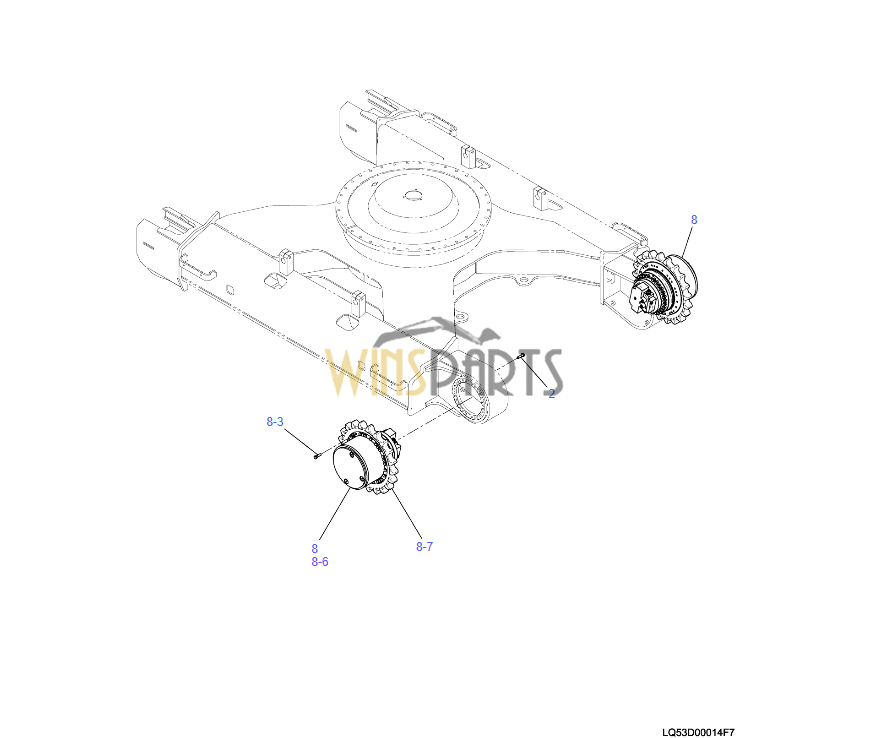

ใ 2 2420P2963D3 CAPSCREW 56
ใ 8 LQ53D00015F7 MOTOR ASSY, PROPEL 2
ใ 8-3 ZS13C16055 CAPSCREW 30
HC545-00_LQ15V00039F2_EUR_D0005988401_1 8-6 LQ15V00039F2 MOTOR ASSY, PROPEL 1 HC 545-00c
ใ 8-7 YN51D01027P1 SPROCKET 1
ใ .

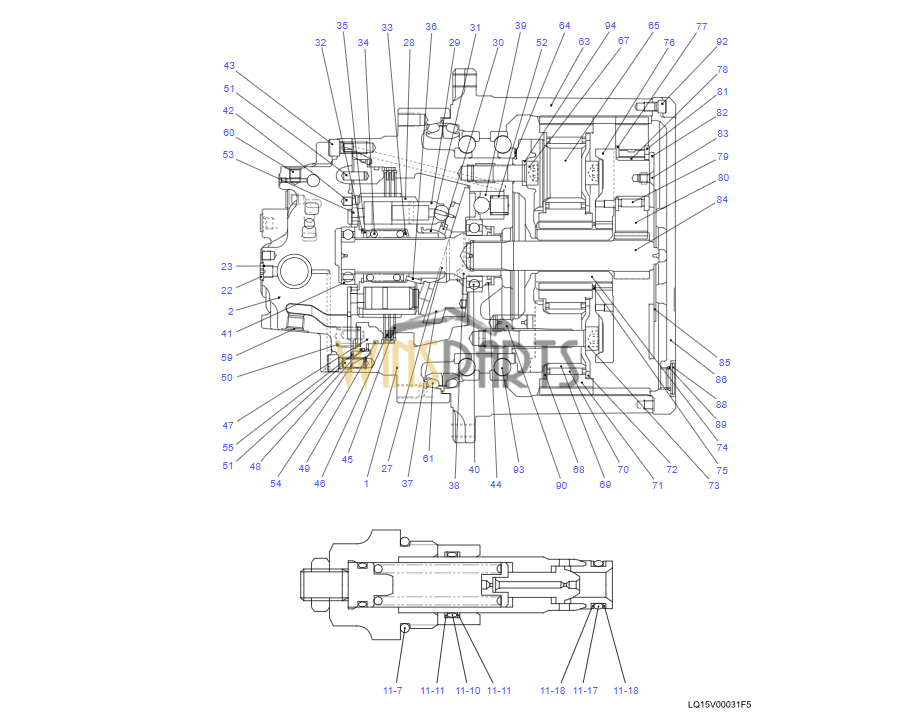

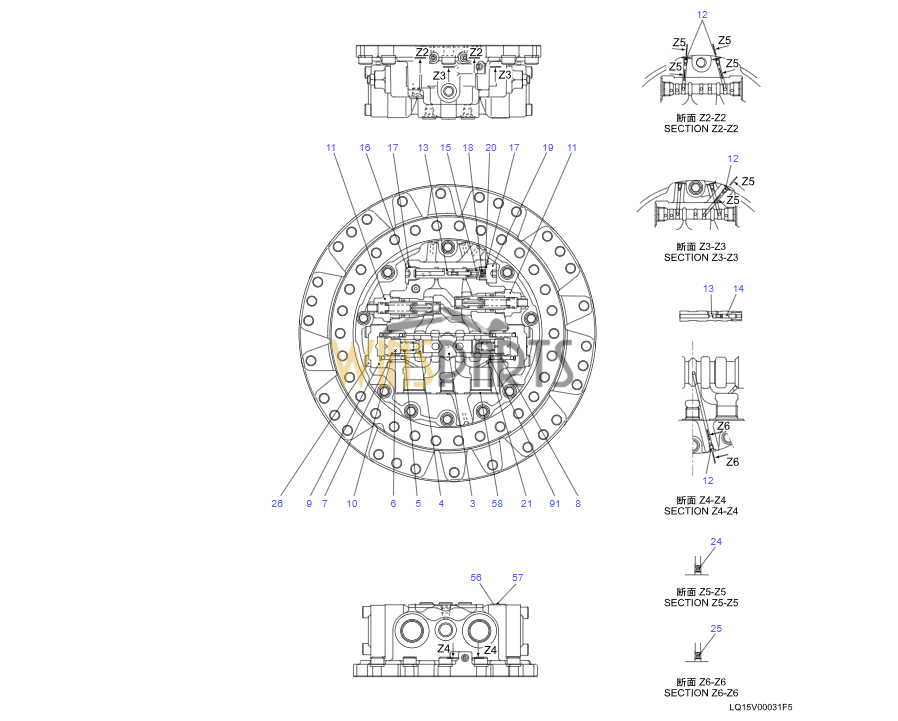

ใ 1 NO P/No FLANGE 1 R9, R10
ใ 2 NO P/No PLATE 1 R6
ใ 3 NO P/No SPOOL 1 R6
ใ 4 NO P/No VALVE, CHECK 2 R6
ใ 5 NO P/No SPRING 2 R6
ใ 6 NO P/No PLUG 2 R6
ใ 7 ZD12P02100 O-RING 2 R1, R6
ใ 8 LQ15V00020S009 SPRING 2
ใ 9 LQ15V00031S009 CAP 2
ใ 10 ZD12G04500 O-RING 2 R1
ใ 11 YN23V00003F1 VALVE ASSY, BRAKE 2
ใ 11-7 2436U388S42 O-RING 1
ใ 11-10 ZD12P02100 O-RING 1
ใ 11-11 ZD75P02100 RING, BACK-UP 2
ใ 11-17 ZD12P01500 O-RING 1
ใ 11-18 ZD85P01500 RING, BACK-UP 2
ใ 12 NO P/No PLUG 8 R6
ใ 13 NO P/No SPOOL 1 R6
ใ 14 NO P/No SPOOL 1 R6
ใ 15 LQ15V00007S027 SPRING 1
ใ 16 2441U792S141 PLUG 1
ใ 17 ZD12P01800 O-RING 2 R1
ใ 18 LQ15V00007S030 GUIDE 1
ใ 19 LQ15V00007S031 PLUG 1
ใ 20 ZW16K06000 WASHER 1
ใ 21 LQ15V00031S021 ORIFICE 2 R6
ใ 22 2441U984S35 PLUG 4 R6
ใ 23 ZD12P01100 O-RING 4 R1, R6
ใ 24 PW15V00013S040 ORIFICE 3 R6
ใ 25 LQ15V00031S025 ORIFICE 1 R6
ใ 26 ZS23C12040 CAPSCREW 8
ใ 27 LQ15V00007S042 SHAFT 1
ใ 28 NO P/No BLOCK 1 R3
ใ 29 NO P/No PISTON ASSY 9 R3
ใ 30 NO P/No PLATE 1 R3
ใ 31 NO P/No HOLDER 1 R3
ใ 32 YN15V00005S114 RING, RETAINING 1 R3
ใ 33 YN15V00005S115 STEP 1 R3
ใ 34 YN15V00005S116 SPRING 1 R3
ใ 35 YN15V00005S117 COLLAR 1 R3
ใ 36 2441U792S119 PIN 3 R3
ใ 37 LQ15V00020S043 PLATE 1
ใ 38 2441U792S110 BALL 2
ใ 39 NO P/No PISTON ASSY 2 R9, R10
ใ 40 LQ15V00007S055 BEARING, BALL 1
ใ 41 LQ15V00007S056 BEARING, BALL 1
ใ 42 LQ15V00020S048 PIN 1
ใ 43 ZS23C14035 CAPSCREW 10
ใ 44 LQ15V00020S050 OIL SEAL 1 R1
ใ 45 LQ15V00007S060 PLATE 3 R8
ใ 46 2441U983S126 PLATE 2
ใ 47 LQ15V00020S053 PISTON 1 R8
ใ 48 2441U984S42 RING 1 R1
ใ 49 2441U983S130 SEAL 1 R1
ใ 50 2441U792S130 SPRING 8 R8
ใ 51 YN15V00005S128 PIN 4
ใ 52 YN15V00005S139 SPRING 2
ใ 53 LQ15V00020S059 PLATE 1
ใ 54 ZD12P01000 O-RING 4 R1
ใ 55 2441U802S30 O-RING 1 R1
ใ 56 NO P/No NAME PLATE 1
ใ 57 NO P/No SCREW 2
ใ 58 NO P/No PLUG 2
ใ 59 NO P/No PLUG 1
ใ 60 NO P/No PLUG 1
ใ 61 LQ15V00031S061 SEAL 2 R2, R10
ใ 63 NO P/No HOUSING 1 R10
ใ 64 NO P/No SHIM 1 R4, R10
ใ 65 LQ15V00020S071 HOLDER 1 R10
ใ 67 LQ15V00007S082 CAPSCREW 8 R10
ใ 68 LQ15V00007S083 PLATE 4 R10
ใ 69 LQ15V00007S084 RACE, INNER 4 R10
ใ 70 LQ15V00020S076 BEARING, NEEDLE 4 R10
ใ 71 LQ15V00007S086 GEAR 4 R10
ใ 72 LQ15V00020S078 PLATE 4 R10
ใ 73 LQ15V00007S088 CAPSCREW 4 R10
ใ 74 LQ15V00020S080 GEAR, SUN 1 R10
ใ 75 LQ15V00007S090 RING 1 R10
ใ 76 LQ15V00020S082 HOLDER 1 R10
ใ 77 LQ15V00007S092 PLATE 3 R10
ใ 78 LQ15V00020S084 RACE, INNER 3 R10
ใ 79 LQ15V00020S085 BEARING, NEEDLE 3 R10
ใ 80 LQ15V00020S086 GEAR 3 R10
ใ 81 LQ15V00007S096 PLATE 3 R10
ใ 82 LQ15V00020S088 PLATE 1 R10
ใ 83 LQ15V00007S098 CAPSCREW 3 R10
ใ 84 LQ15V00020S090 GEAR 1 R10
ใ 85 NO P/No PLATE 1 R5, R10
ใ 86 NO P/No COVER 1 R7, R10
ใ 88 LQ15V00007S103 PLUG 3 R10
ใ 89 ZD12P02400 O-RING 3 R2, R10
ใ 90 LQ15V00007S105 PIN 4 R10
ใ 91 2436U1027S203 SEAT, SPRING 2
ใ 92 ZS23C10020 CAPSCREW 16 R7, R10
ใ 93 YY15V00036S098 BEARING 2 R10
ใ 94 YY15V00036S099 WASHER 8 R10
ใ .
ใ LQ15V00031R100 REPAIR KIT 1 RK1
ใ . (44, 48, 49, 55)X1
ใ . (7, 10, 17)X2
ใ . (23, 54)X4
ใ .
ใ LQ15V00031R200 REPAIR KIT 1 RK2
ใ . (61)X2
ใ . (89)X3
ใ .
ใ LQ15V00020R600 REPAIR KIT 1 RK3
ใ . (28, 30, 31, 32, 33, 34, 35)X1
ใ . (36)X3
ใ . (29)X9
ใ .
ใ LQ15V00007R700 REPAIR KIT 1 RK4
ใ . (64)X1
ใ .
ใ LQ15V00007R800 REPAIR KIT 1 RK5
ใ . (85)X1
ใ .
ใ LQ15V00031R910 REPAIR KIT 1 RK6
ใ . (2, 3, 13, 14, 25)X1
ใ . (4, 5, 6, 7, 21)X2
ใ . (24)X3
ใ . (22, 23)X4
ใ . (12)X8
ใ .
ใ LQ15V00031R930 REPAIR KIT 1 RK7
ใ . (86)X1
ใ . (92)X16
ใ .
ใ LQ15V00031R940 REPAIR KIT 1 RK8
ใ . (45)X3
ใ . (47)X1
ใ . (50)X8
ใ .
ใ LQ15V00031R950 REPAIR KIT 1 RK9
ใ . (1)X1
ใ . (39)X2
ใ .
ใ YY15V00036R920 REPAIR KIT 1 RK10
ใ . (1, 63, 64, 65, 74, 75, 76, 82, 84, 85, 86)X1
ใ . (39, 61, 93)X2
ใ . (92)X16
ใ . (77, 78, 79, 80, 81, 83, 88, 89)X3
ใ . (68, 69, 70, 71, 72, 73, 90)X4
ใ . (67, 94)X8

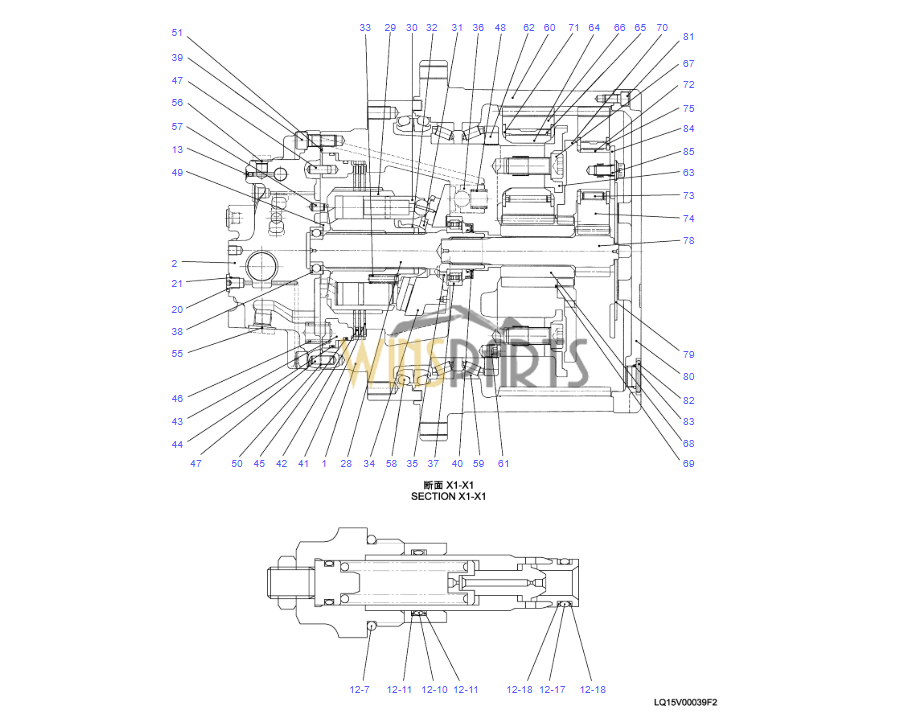

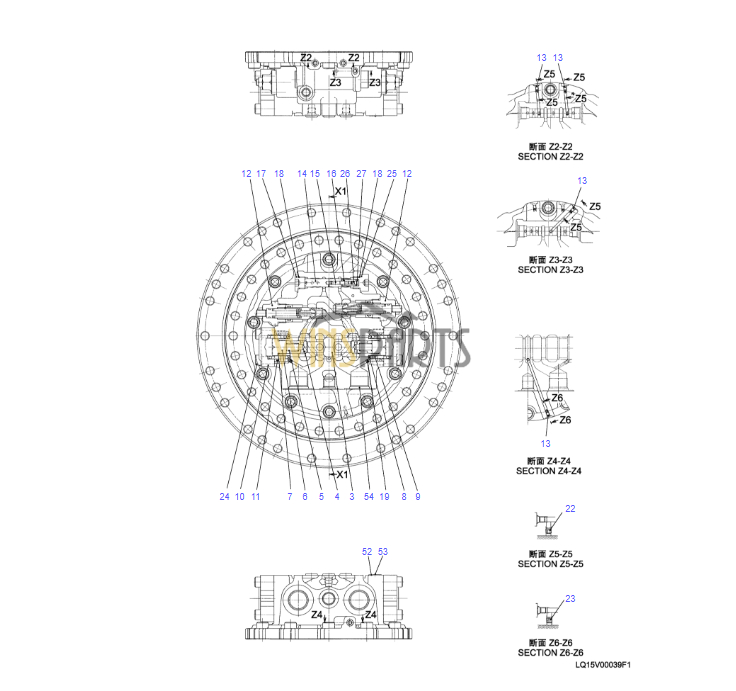

ใ 1 NO P/No FLANGE 1 R3, R7
ใ 2 NO P/No PLATE 1 R4
ใ 3 NO P/No SPOOL 1 R4
ใ 4 NO P/No VALVE, CHECK 2 R4
ใ 5 NO P/No SPRING 2 R4
ใ 6 NO P/No PLUG 2 R4
ใ 7 ZD12P02100 O-RING 2 R1, R4
ใ 8 2436U1027S203 SEAT, SPRING 2
ใ 9 YN15V00081S009 SPRING 2
ใ 10 LQ15V00031S009 CAP 2
ใ 11 ZD12G04500 O-RING 2 R1
ใ 12 YN23V00003F1 VALVE ASSY, BRAKE 2
ใ 12-7 2436U388S42 O-RING 1
ใ 12-10 ZD12P02100 O-RING 1
ใ 12-11 ZD75P02100 RING, BACK-UP 2
ใ 12-17 ZD12P01500 O-RING 1
ใ 12-18 ZD85P01500 RING, BACK-UP 2
ใ 13 NO P/No PLUG 8 R4
ใ 14 NO P/No SPOOL 1 R4
ใ 15 NO P/No SPOOL 1 R4
ใ 16 LQ15V00007S027 SPRING 1
ใ 17 YT15V00021S025 PLUG 1
ใ 18 ZD12P01800 O-RING 2 R1
ใ 19 YN15V00081S019 ORIFICE 2 R4
ใ 20 2441U984S35 PLUG 4 R4
ใ 21 ZD12P01100 O-RING 4 R1, R4
ใ 22 PW15V00013S040 ORIFICE 3 R4
ใ 23 LQ15V00031S025 ORIFICE 1 R4
ใ 24 ZS23C12040 CAPSCREW 8
ใ 25 LQ15V00007S031 PLUG 1 R4
ใ 26 NO P/No SEAT, SPRING 1 R4
ใ 27 NO P/No WASHER 1
ใ 28 YN15V00081S028 SHAFT 1
ใ 29 NO P/No BLOCK 1 R5
ใ 30 NO P/No PISTON ASSY 9 R5
ใ 31 NO P/No PLATE 1 R5
ใ 32 NO P/No HOLDER 1 R5
ใ 33 YN15V00081S033 SPRING 9 R5
ใ 34 LQ15V00039S034 PLATE 1
ใ 35 2441U792S110 BALL 2
ใ 36 NO P/No PISTON ASSY 2 R3, R7
ใ 37 YN15V00081S037 BEARING, ROLLER 1
ใ 38 YN15V00081S038 BEARING, BALL 1
ใ 39 ZS23C14035 CAPSCREW 10
ใ 40 YN15V00081S040 OIL SEAL 1
ใ 41 YN15V00081S041 PLATE 3
ใ 42 2441U983S126 PLATE 2
ใ 43 LQ15V00020S053 PISTON 1
ใ 44 2441U984S42 RING 1 R1
ใ 45 2441U983S130 SEAL 1 R1
ใ 46 2441U792S130 SPRING 8
ใ 47 YN15V00005S128 PIN 4
ใ 48 YN15V00005S139 SPRING 2
ใ 49 NO P/No PLATE 1 R5
ใ 50 ZD12P01000 O-RING 5 R1
ใ 51 2441U802S30 O-RING 1 R1
ใ 52 NO P/No NAME PLATE 1
ใ 53 NO P/No SCREW 2
ใ 54 NO P/No PLUG 2
ใ 55 NO P/No PLUG 1
ใ 56 NO P/No PLUG 1
ใ 57 LQ15V00020S048 PIN 1
ใ 58 LQ15V00031S061 SEAL 2 R2, R3
ใ 59 YN15V00081S059 BEARING 2 R3
ใ 60 NO P/No PLUG 1 R3
ใ 61 LP15V00006S005 PLUG 3 R3
ใ 62 YN15V00081S062 RING 1 R3
ใ 63 YN15V00081S063 HOLDER 1 R3
ใ 64 YN15V00081S064 RACE, INNER 3 R3
ใ 65 YN15V00081S065 BEARING, NEEDLE 3 R3
ใ 66 YN15V00081S066 GEAR 3 R3
ใ 67 YN15V00081S067 BOLT 6 R3
ใ 68 YN15V00081S068 GEAR, SUN 1 R3
ใ 69 YN15V00081S069 RING 1 R3
ใ 70 YN15V00081S070 HOLDER 1 R3
ใ 71 YN15V00081S071 PLATE 6 R3
ใ 72 YN15V00081S072 RACE, INNER 3 R3
ใ 73 LQ15V00020S085 BEARING, NEEDLE 3 R3
ใ 74 YN15V00081S074 GEAR 3 R3
ใ 75 YN15V00081S075 PLATE 6 R3
ใ 76 YN15V00081S076 PLATE 1 R3
ใ 77 YN15V00081S077 SCREW 3 R3
ใ 78 YN15V00081S078 GEAR 1 R3
ใ 79 NO P/No PLATE 1 R3, R6
ใ 80 YN15V00081S080 COVER 1 R3
ใ 81 ZS23C10020 CAPSCREW 20 R3
ใ 82 LQ15V00007S103 PLUG 3 R3
ใ 83 ZD12P02400 O-RING 3 R2, R3
YN15V00081R100 SEAL KIT 1 RK1
ใ . (44, 45, 51)X1
ใ . (7, 11, 18)X2
ใ . (21)X4
ใ . (50)X5
ใ .
ใ YN15V00081R200 SEAL KIT 1 RK2
ใ . (58)X2
ใ . (83)X3
ใ .
ใ YN15V00081R300 GEAR KIT 1 RK3
ใ . (1, 60, 62, 63, 68, 69, 70, 76, 78, 79, 80)X1
ใ . (36, 58, 59)X2
ใ . (61, 64, 65, 66, 72, 73, 74, 77, 82, 83)X3
ใ . (67, 71, 75)X6
ใ . (81)X20
ใ .
ใ YN15V00081R400 PLATE KIT 1 RK4
ใ . (2, 3, 14, 15, 23, 25, 26)X1
ใ . (4, 5, 6, 7, 19)X2
ใ . (22)X3
ใ . (20, 21)X4
ใ . (13)X8
ใ .
ใ YN15V00081R500 ROTARY KIT 1 RK5
ใ . (29, 31, 32, 49)X1
ใ . (30, 33)X9
ใ .
ใ YN15V00081R600 PLATE KIT 1 RK6
ใ . (79)X1
ใ .
ใ YN15V00081R700 CASE KIT 1 RK7
ใ . (1)X1
ใ . (36)X2
