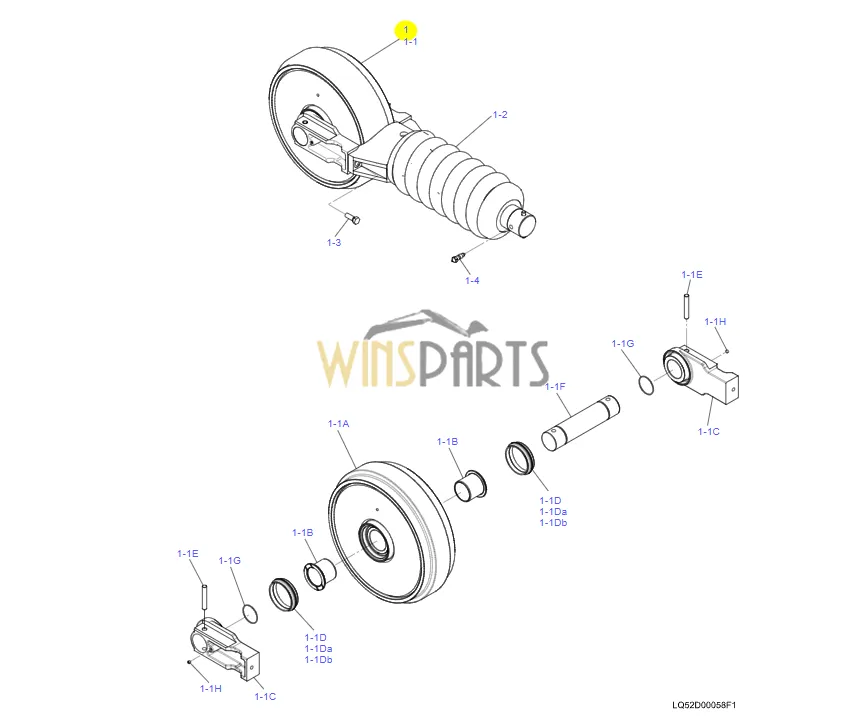

LQ52D00059F1 YN52D00009F1 LQ52D00058F1 CRAWLER IDLER ASSY KOBELCO SK250-10 SK260LC-10

LQ52D00059F1 YN52D00009F1 LQ52D00058F1 CRAWLER IDLER ASSY KOBELCO SK250-10 SK260LC-10
　 .
　 1 LQ52D00059F1 IDLER ASSY, CRAWLER 2
　 1-1 YN52D00009F1 IDLER ASSY 1
　 1-1A YN52D01006P1 IDLER 1
　 1-1B 2405P482 BUSHING 2
　 1-1C YN52D01011P1 COLLAR 2
　 1-1D 2445R442F1 SEAL, FLOATING 2
　 1-1Da 2445R442S1 SEAL 2
　 1-1Db 2445R442S2 O-RING 2
　 1-1E YN52D01008P1 PIN 2
　 1-1F YN52D01001P1 SHAFT 1
　 1-1G ZD11G07000 O-RING 2
　 1-1H PV52D01007P1 PLUG 2

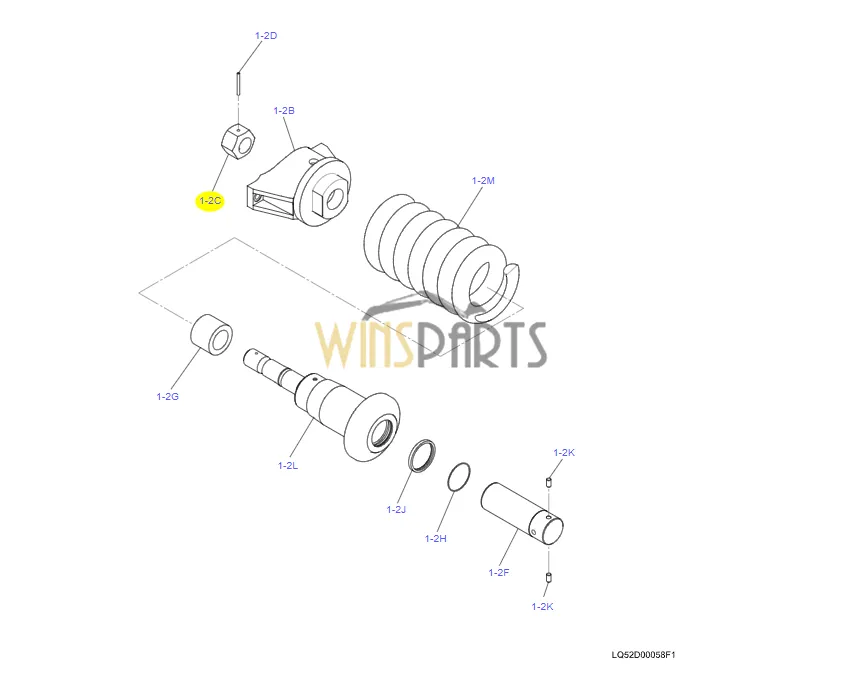

LQ54D00021F1 LQ54D01013P1 LQ54D01041P1 IDLER ADJUST ASSY KOBELCO SK260LC-11 SK260NLC-11
　 1-2 LQ54D00021F1 IDLER ADJUST ASSY 1
　 1-2B LQ54D01013P1 BRACKET 1
　 1-2C LQ54D01005P1 NUT 1
　 1-2D ZP26D08080 SPRING PIN 1
　 1-2F LQ01V01045P1 PISTON 1
　 1-2G YN54D01024P1 COLLAR 1
　 1-2H ZD12G09000 O-RING 1
　 1-2J 2445Z1034 U-PACKING 1
　 1-2K LQ54D01037P1 PIN 2
　 1-2L LQ70V00003P1 CYLINDER, GREASE 1
　 1-2M LQ54D01041P1 SPRING 1
　 1-3 ZS13C16045 CAPSCREW 2
　 1-4 2444P803 NIPPLE 1

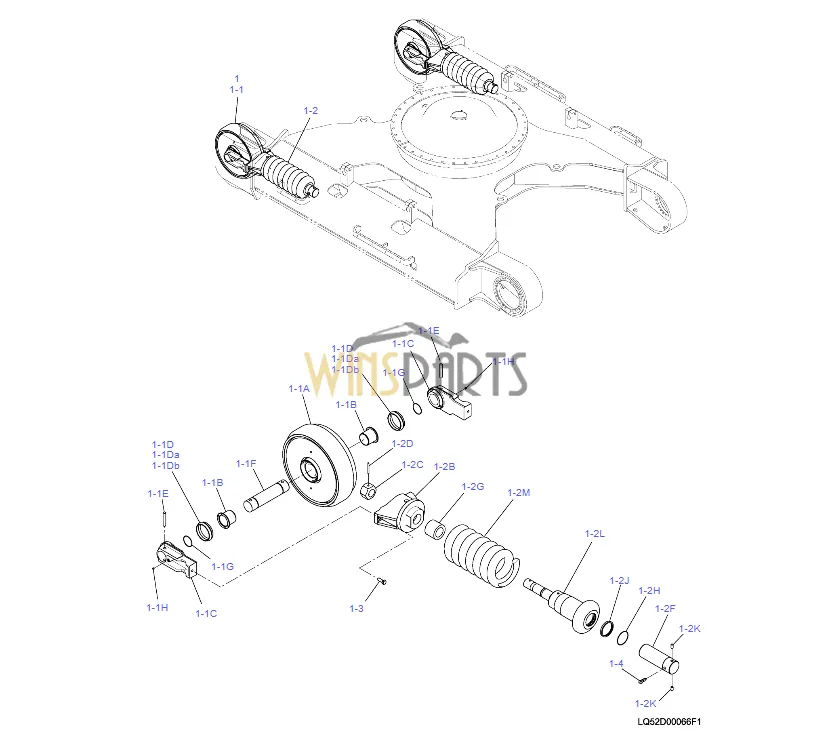

LQ52D00070F1 LQ52D00062F1 LQ52D00066F1 IDLER ASSY, CRAWLER
　 .
　 1 LQ52D00070F1 IDLER ASSY, CRAWLER 2
　 1-1 LQ52D00062F1 IDLER ASSY 1
　 1-1A LQ52D00045P1 IDLER 1
　 1-1B 2405P482 BUSHING 2
　 1-1C YN52D01054P1 COLLAR 2
　 1-1D 2445R442F1 SEAL, FLOATING 2
　 1-1Da 2445R442S1 SEAL 2
　 1-1Db 2445R442S2 O-RING 2
　 1-1E YN52D01008P1 PIN 2
　 1-1F YN52D01001P1 SHAFT 1
　 1-1G ZD11G07000 O-RING 2
　 1-1H PV52D01007P1 PLUG 2
　 1-2 LQ54D00021F1 IDLER ADJUST ASSY 1
　 1-2B LQ54D01013P1 BRACKET 1
　 1-2C LQ54D01005P1 NUT 1
　 1-2D ZP26D08080 SPRING PIN 1
　 1-2F LQ01V01045P1 PISTON 1
　 1-2G YN54D01024P1 COLLAR 1
　 1-2H ZD12G09000 O-RING 1
　 1-2J 2445Z1034 U-PACKING 1
　 1-2K LQ54D01037P1 PIN 2
　 1-2L LQ70V00003P1 CYLINDER, GREASE 1
　 1-2M LQ54D01041P1 SPRING 1
　 1-3 ZS13C16045 CAPSCREW 2
　 1-4 2444P803 NIPPLE 1

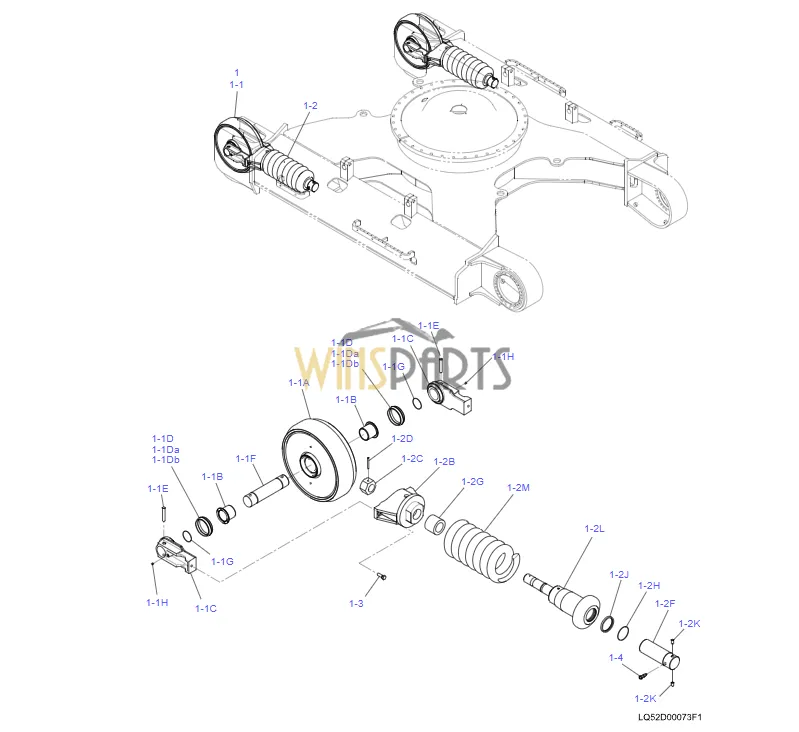

LQ52D00074F1 LQ52D00073F1 YN52D00118F1 IDLER ADJUST ASSY KOBELCO SK250-10 SK260LC-10
　 .
　 1 LQ52D00074F1 IDLER ASSY, CRAWLER 2
　 1-1 YN52D00118F1 IDLER ASSY 1
　 1-1A YN52D00119P1 IDLER 1
　 1-1B 2405P482 BUSHING 2
　 1-1C YN52D01065P1 COLLAR 2
　 1-1D 2445R442F1 SEAL, FLOATING 2
　 1-1Da 2445R442S1 SEAL 2
　 1-1Db 2445R442S2 O-RING 2
　 1-1E YN52D01008P1 PIN 2
　 1-1F YN52D01066P1 SHAFT 1
　 1-1G ZD11G07000 O-RING 2
　 1-1H PV52D01007P1 PLUG 2
　 1-2 LQ54D00021F1 IDLER ADJUST ASSY 1
　 1-2B LQ54D01013P1 BRACKET 1
　 1-2C LQ54D01005P1 NUT 1
　 1-2D ZP26D08080 SPRING PIN 1
　 1-2F LQ01V01045P1 PISTON 1
　 1-2G YN54D01024P1 COLLAR 1
　 1-2H ZD12G09000 O-RING 1
　 1-2J 2445Z1034 U-PACKING 1
　 1-2K LQ54D01037P1 PIN 2
　 1-2L LQ70V00003P1 CYLINDER, GREASE 1
　 1-2M LQ54D01041P1 SPRING 1
　 1-3 ZS13C16045 CAPSCREW 2
　 1-4 2444P803 NIPPLE 1
