YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

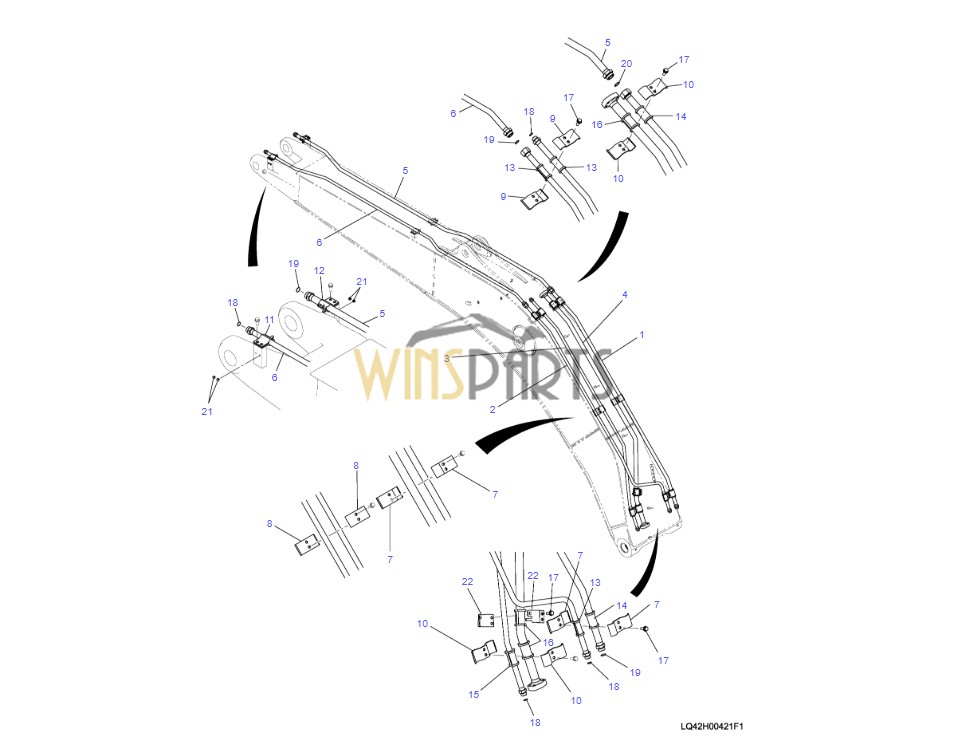

LQ42H00421F1 Hydraulic LINES, CYLINDER TUBE KOBELCO SK250-10 SK260LC-10
LQ42H00421F1 HYD LINES, BOOM .
1 LQ42H02055P1 TUBE 1
2 LQ42H02056P1 TUBE 1
3 LQ42H02057P1 TUBE 1
4 LQ42H02058P1 TUBE 1
5 LQ42H02059P1 TUBE 1
6 LQ42H02060P1 TUBE 1
7 YN42H02348P1 CLAMP 4
8 YN42H02349P1 CLAMP 2
9 YN42H02351P1 CLAMP 2
10 YN42H02359P1 CLAMP 4
11 YN42H02355P1 CLAMP 2
12 YN42H02357P1 CLAMP 2
13 YN42H02319P1 BUSHING 3
14 YN43H01524P1 BUSHING 2
15 YN42H02366P1 BUSHING 1
16 YN42H02321P1 BUSHING 3
17 ZM73C12035 SEMS-BOLT 8
18 ZD12A01800 O-RING 4
19 ZD12A02100 O-RING 3
20 YY42H01313P1 O-RING 1
21 YN64H01391D1 CAP 4
22 YN42H02361P1 CLAMP 2
LQ42H00334F1 Hydraulic LINES BOOM 6.02M
.
665-01_LQ42H00421F1_ASIA_X_D0002488570_1 1 LQ42H00421F1 HYD LINES, BOOM 1 P.665-01

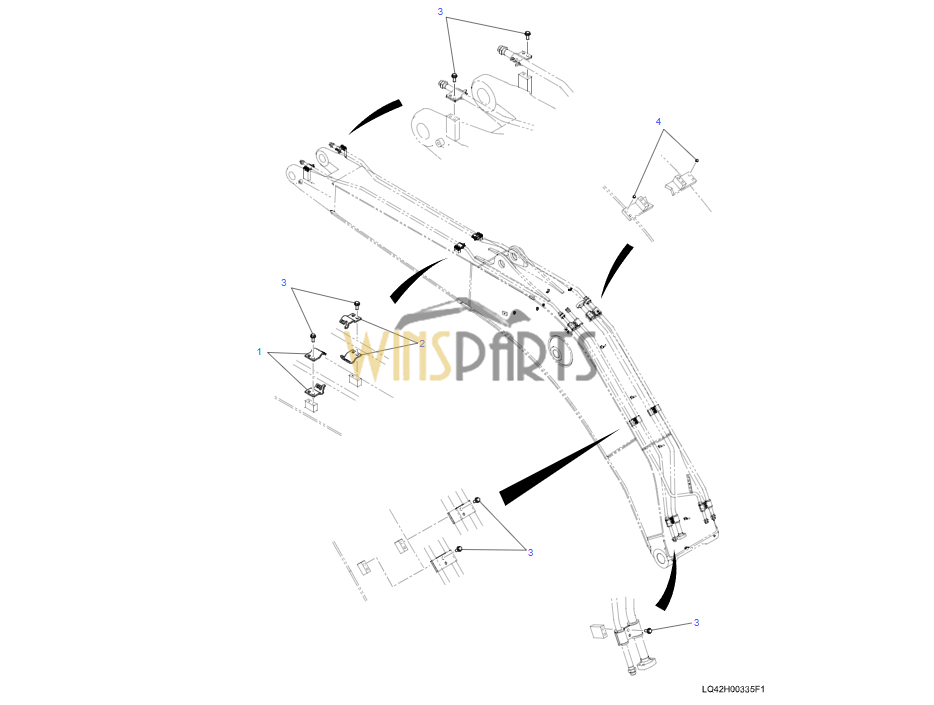

665-02_LQ42H00335F1_CKCM-01_D0002488571_1 2 LQ42H00335F1 HYD LINES, BOOM 1 P.665-02
1 YN42H02355P1 CLAMP 2
2 YN42H02357P1 CLAMP 2
3 ZM73C12035 SEMS-BOLT 14
4 YN64H01391D1 CAP 4
LQ42H00336F1 HYD LINES, BOOM 6.02M Not Service
. (NIBBLER & BREAKER)
.
665-01_LQ42H00421F1_ASIA_X_D0002488570_1 1 LQ42H00421F1 HYD LINES, BOOM 1 P.665-01
666-02_LQ42H00332F1_KCMU_X_D0002495009_1 2 LQ42H00332F1 HYD LINES, BOOM 1 P.666-LQ42H00385F1 HYD LINES, BOOM 10.35M

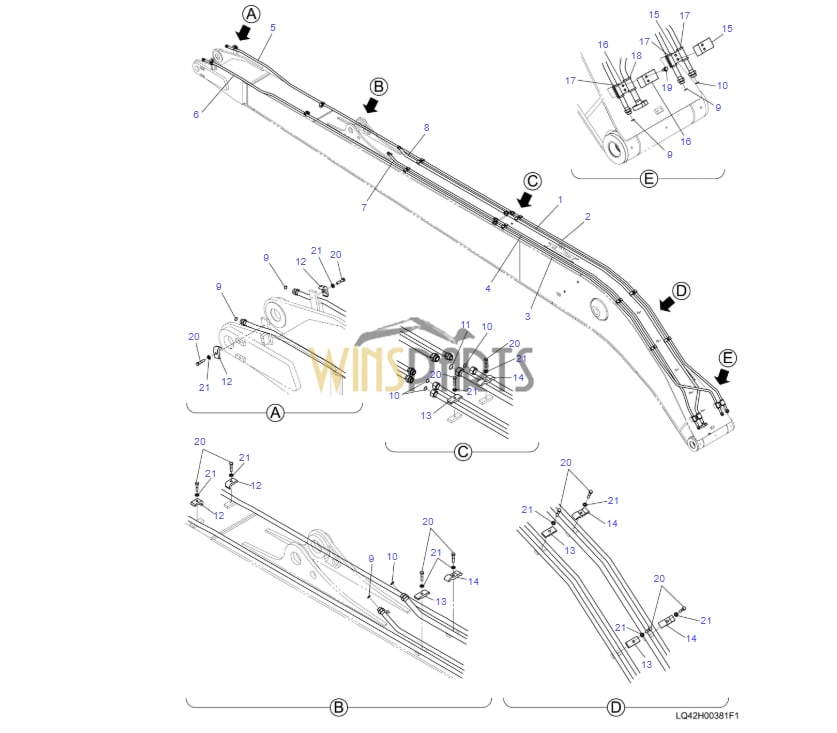

669-01_KCMU_D0002498816_1 1 LQ42H00381F1 HYD LINES, BOOM 1 P.669-01
669-02_KCMU_D0002498817_1 2 LQ42H00384F1 HYD LINES, BOOM 1 P.669-02
.
1 LQ42H02149P1 TUBE 1
2 LQ42H02150P1 TUBE 1
3 LQ42H02151P1 TUBE 1
4 LQ42H02152P1 TUBE 1
5 LQ42H01979P1 TUBE 1
6 LQ42H01971P1 TUBE 1
7 LQ42H01381P1 TUBE 1
8 LQ42H01581P1 TUBE 1
9 ZD12A01800 O-RING 5
10 ZD12A02100 O-RING 5
11 YY42H01313P1 O-RING 1
12 ZC26M28014 CLAMP 4
13 ZC36M28014 CLAMP 4
14 2432T2434 CLAMP 4
15 YN42H02351P1 CLAMP 2
16 YN42H02348P1 CLAMP 2
17 YN42H02319P1 BUSHING 3
18 YN43H01524P1 BUSHING 1
19 ZM73C12035 SEMS-BOLT 2
20 ZS18C12055 CAPSCREW 12
21 ZW16H12000 WASHER 12
675-01_CKCM_D0002488572_1 1 LQ42H00364F1 HYD LINES, CYLINDER 1 P.675-01
675-02_CKCM_D0002488575_1 2 LQ42H00365F1 HYD LINES, CYLINDER 1 P.675-02
675-03_CKCM_D0002488576_1 3 LQ42H00135F1 HYD LINES, CYLINDER 1 P.675-03
LQ42H00364F1 HYD LINES, CYLINDER
LQ42H00365F1 HYD LINES, CYLINDER
LQ42H00135F1 HYD LINES, CYLINDER .
1 LQ42H02121P1 TUBE 1
2 ZD12P02600 O-RING 1
3 ZD12A01600 O-RING 1
4 ZS28C10030 CAPSCREW
1 LQ42H02120P1 TUBE 1
2 ZX20H10072 HOSE 2
3 ZX20H16080 HOSE 2
4 LQ42H01511P1 BAND 2
5 YN42H02336P1 BAND 2
6 YY42H01184P1 CLAMP 2
7 ZH22Z04000 CONNECTOR 2
8 ZG91S02000 NIPPLE, GREASE 2
9 ZD12P02600 O-RING 1
10 ZD12A01600 O-RING 1
11 ZS18C10030 CAPSCREW 4
12 ZS18C12065 CAPSCREW 2
13 ZS28C10030 CAPSCREW 4
14 ZW26X10000 LOCK WASHER 4
15 ZW16H12000 WASHER 2
680-01_LQ42H00114F1_KCMU-01_D0002488573_1 1 LQ42H00114F1 HYD LINES, CYLINDER 1 P.680-01
680-02_CKCM_D0002488577_1 2 LQ42H00137F1 HYD LINES, CYLINDER 1 P.680-02
LQ42H00114F1 HYD LINES, CYLINDER
LQ42H00170F1 HYD LINES, CYLINDER .
1 LC42H01873D1 HOSE 1
2 ZX20H12110 HOSE 1
3 LQ42H02009P1 BAND 1
3 LQ42H02259P1 BAND 1
4 LQ42H02010P1 BAND 1
5 YN43H01097P1 CLAMP 1
6 ZH22Z04000 CONNECTOR 1
7 ZE13X20001 CLAMP, HALF 4
8 ZG91V02000 NIPPLE, GREASE 1
9 ZS18C10035 CAPSCREW 2
10 ZS18C12055 CAPSCREW 1
11 ZW26X10000 LOCK WASHER 2
12 ZW16H12000 WASHER 1
13 ZD12P03800 O-RING 2
14 ZS28C14050 CAPSCREW 8
15 ZW26K14000 LOCK WASHER 8
1 YN42H01934D6 HOSE 1
2 YN02B01030D5 HOSE 1
3 LQ42H01277P2 BAND 1
4 LQ42H01278P3 BAND 1
5 YN43H01097P1 CLAMP 2
6 ZH22Z04000 CONNECTOR 1
7 ZE13X16000 CLAMP, HALF 2
8 ZG91S02000 NIPPLE, GREASE 1
9 ZD12P03400 O-RING 1
10 ZS18C10035 CAPSCREW 2
11 ZS18C12055 CAPSCREW 2
12 ZS28C12040 CAPSCREW 4
13 ZW16H12000 WASHER 2
14 ZW26X10000 LOCK WASHER 2
15 ZW26K12000 LOCK WASHER 4
