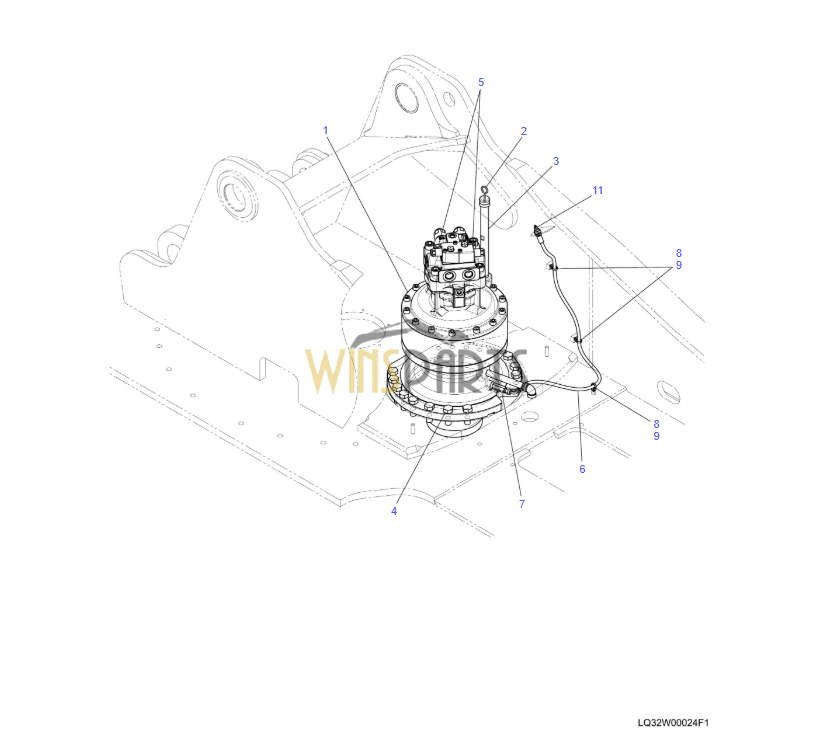

LQ32W00024F1 LQ15V00038F2 SWING MOTOR KOBELCO SK250-10 SK260LC-10

LQ32W00024F1 LQ15V00038F2 SWING MOTOR KOBELCO SK250-10 SK260LC-10
HC090-00_LQ15V00038F2_CKCM-04_D0002488475_1 1 LQ15V00038F2 MOTOR ASSY, SWING 1 HC 090-00
　 2 YY32W01001D1 GAUGE, LEVEL 1
　 3 LC32W01073D5 TUBE 1
　 4 ZS13C20055 CAPSCREW 16
　 5 YN64H01391D1 CAP 2
　 6 YF32W01006D4 HOSE 1
　 7 LS32W01029P1 CONNECTOR 1
　 8 PY01P01043D3 CLIP 3
　 9 YN13E01375P1 CLIP 3
　 11 ZG91S02000 NIPPLE, GREASE 1
LQ15V00038F2 SWING MOTOR REDUCTION GEAR ASSY KOBELCO SK250-10 SK260LC-10
　 .
　 3 LQ32W00021F2 REDUCTION ASSY,SWING 1
　 3-1 LQ32W01096P1 SHAFT, PINION 1
　 3-2 LQ32W01097P1 GEAR, SUN 1
　 3-3 LQ32W01098P1 PINION 3
　 3-5 LQ32W01101P1 GEAR, SUN 1
　 3-6 LQ32W01065P1 PINION 4
　 3-7 LQ32W01102P1 GEAR, RING 1
　 3-9 LQ32W01104P1 SHAFT 4
　 3-10 LQ32W01074P1 BEARING, NEEDLE 11
　 3-11 LQ32W01016P1 BEARING, SPHERICAL 1
　 3-12 LQ32W01015P1 BEARING, SPHERICAL 1
　 3-13 LQ32W01035P1 OIL SEAL 1
　 3-15 LC32W01033P1 OIL SEAL 1
　 3-16 LQ32W01106P1 SLEEVE 1
　 3-17 LQ32W01072P1 WASHER, THRUST 6
　 3-18 LQ32W01075P1 WASHER, THRUST 8
　 3-19 ZR16X04000 RING, RETAINING 3
　 3-20 ZR16X10000 RING, SNAP 1
　 3-21 ZP26D08032 PIN, SPRING 4
　 3-23 YN32W01080D4 TUBE 1
　 3-24 ZG31U08000 ELBOW, 90 1
　 3-25 ZE82T08000 PLUG 1
　 3-27 ZR16X03500 RING, SNAP 1
　 3-28 LQ32W01111F1 SPIDER ASSY 1
　 3-28A LQ32W01112P1 SPIDER 1
　 3-28B LQ32W01063P1 SHAFT 3
　 3-29 LQ32W01113P1 SPIDER 1
　 3-30 LQ32W01114P1 HOUSING 1
　 3-31 ZS23C14160 CAPSCREW 14
　 3-32 ZG91V02000 NIPPLE, GREASE 1

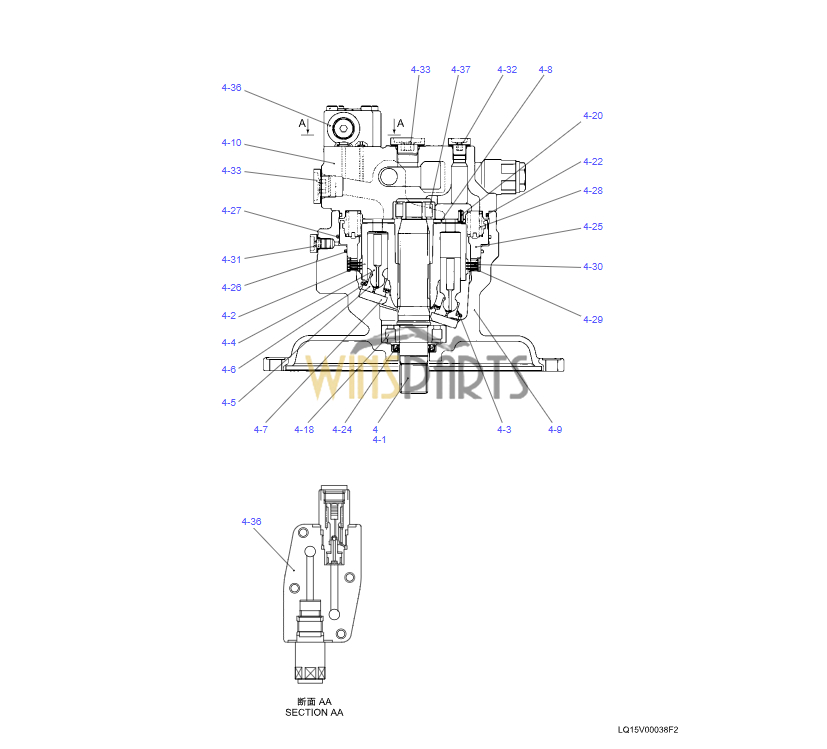

LQ15V00037F2 LQ15V00037F1 SWING MOTOR Hydraulic ASSY
　 4 LQ15V00037F2 MOTOR ASSY, HYD 1
　 4-1 YN15V00025S101 SHAFT 1
　 4-2 YN15V00025S111 CYLINDER 1
　 4-3 YN15V00025S114 SPRING 1
　 4-4 NO P/No PISTON 9 R4
　 4-5 NO P/No SHOE 9 R4
　 4-6 YN15V00025S123 PLATE 1
　 4-7 YN15V00025S124 PLATE 1
　 4-8 YN15V00025S131 PLATE 1
　 4-9 LQ15V00037S301 CASE 1
　 4-10 NO P/No CASE 1 R5
　 4-11 YN15V00025S351 SPOOL 2
　 4-12 YN15V00002S355 SPRING 2
　 4-13 NO P/No NAME PLATE 1
　 4-14 NO P/No NAME PLATE 1
　 4-15 2437U407S983 RIVET 2
　 4-17 ZS23C20045 CAPSCREW 4
　 4-18 YN15V00002S011 BEARING 1
　 4-20 NO P/No PIN 2 R5
　 4-21 YN15V00002S012 PLUG 2
　 4-22 YN15V00025S489 O-RING 1 R6
　 4-23 ZD12P02800 O-RING 2 R6
　 4-24 YN15V00035S491 OIL SEAL 1 R6
　 4-25 YN15V00002S014 PISTON 1
　 4-26 2441U736S706 O-RING 1 R6
　 4-27 2415U188S707 O-RING 1 R6

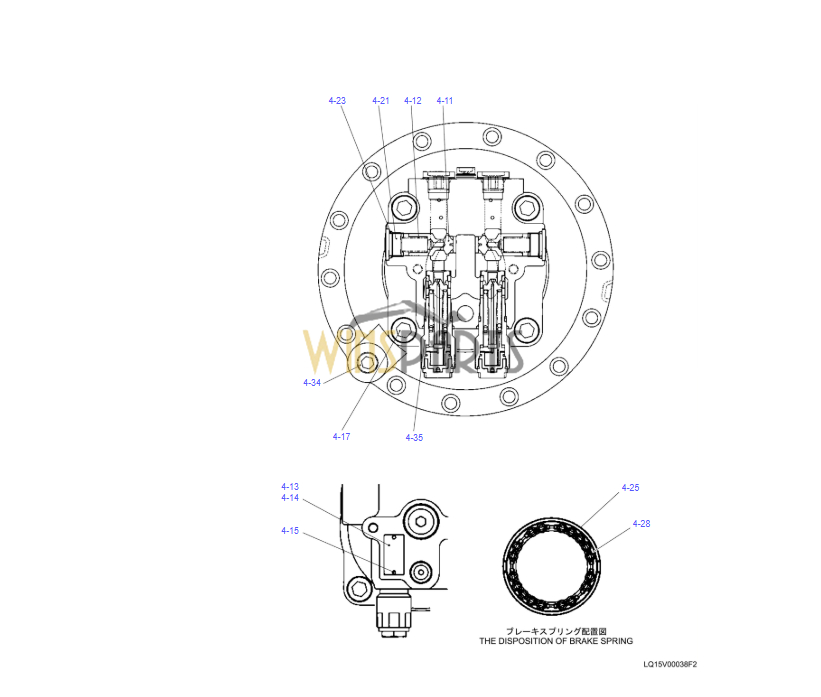

LQ15V00038F2 SWING MOTOR ASSY KOBELCO SK250-10 SK260LC-10
　 4-28 YN15V00025S712 SPRING 18
　 4-29 YN15V00025S742 PLATE 3
　 4-30 YN15V00025S743 PLATE 4
　 4-31 YN15V00035S980 PLUG 1
　 4-32 YN15V00035S984 PLUG 1
　 4-33 YN15V00035S985 PLUG 3
　 4-34 ZE82T12000 PLUG 1
　 4-35 YN22V00042F2 VALVE, RELIEF 2
　 4-35B ZD12G03000 O-RING 1
　 .
　 YN15V00055R100 REPAIR KIT 1 RK4
　 . (4-4, 4-5)X9
　 .
　 YN15V00025R200 REPAIR KIT 1 RK5
　 . (4-10)X1
　 . (4-20)X2
　 .
　 YM15V00006R100 REPAIR KIT 1 RK6
　 . (4-22, 4-24, 4-26, 4-27)X1
　 . (4-23)X2

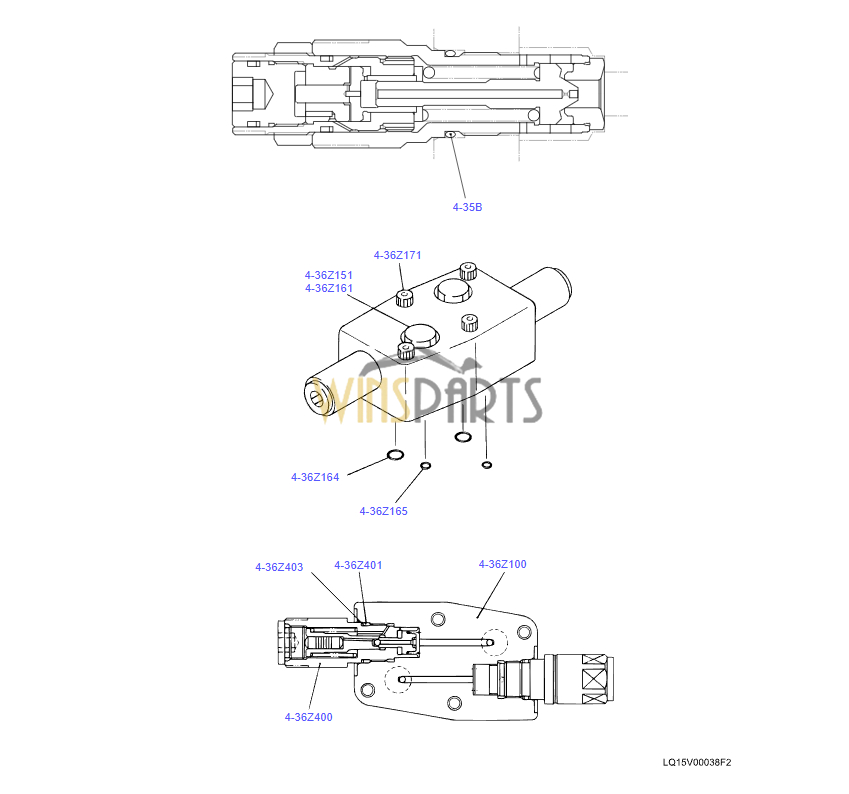

YN20V00004F4 MOTOR VALVE ASSY KOBELCO SK250-10 SK260LC-10
　 4-36 YN20V00004F4 VALVE ASSY 1
　 4-36Z100 LQ15V00001S100 CASE 1
　 4-36Z151 YW30V00001S157 PLUG 2
　 4-36Z161 ZD12P01100 O-RING 2
　 4-36Z164 YT10V00003S711 O-RING 2
　 4-36Z165 YN10V01006S011 O-RING 2
　 4-36Z171 ZS23C08055 CAPSCREW 4
　 4-36Z400 YN20V00004S400 VALVE ASSY 2
　 4-36Z401 ZD12P02000 O-RING 2
　 4-36Z403 ZD85P02000 RING, BACK-UP 2
　 4-37 LQ15V00037S444 BEARING, ROLLER 1
