YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

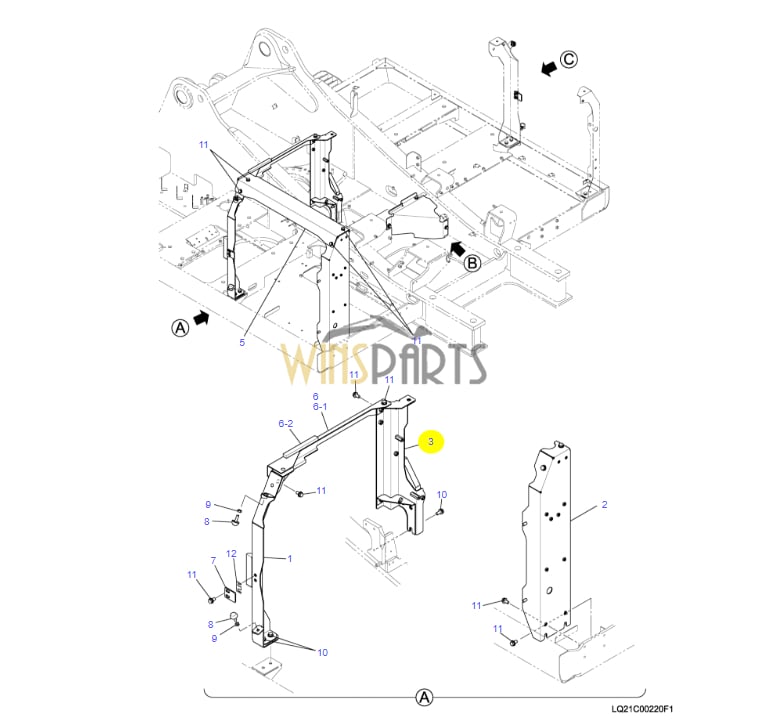

LQ21C00220F1 GUARD ASSY KOBELCO SK250-10 SK260LC-10
.
1 LQ21C04004P2 PILLAR 1
2 YN21C06592P1 PILLAR 1
2 LQ21C04718P1 PILLAR 1
3 LQ21C04107F1 GUARD ASSY 1
3-1 LQ21C04108P1 PILLAR 1
3-2 LQ21C03605P1 RUBBER 1
4 LQ21C04165P1 COVER 1
5 YN21C06487P1 BEAM 1
6 LQ21C04456F1 BRACKET ASSY 1
6-1 LQ21C04162P1 BEAM 1
6-2 LQ21C04453P1 INSULATION 1
7 YN21C04515P1 STRIKER 2
8 YN21C03212P1 STOPPER 4
9 ZN18F10008 NUT 4
10 ZM73C12030 SEMS-BOLT 5
11 ZM73C12025 SEMS-BOLT 19
12 LQ21C02996P1 SHIM (1.0) 2
13 LQ21C02848P1 WASHER 1

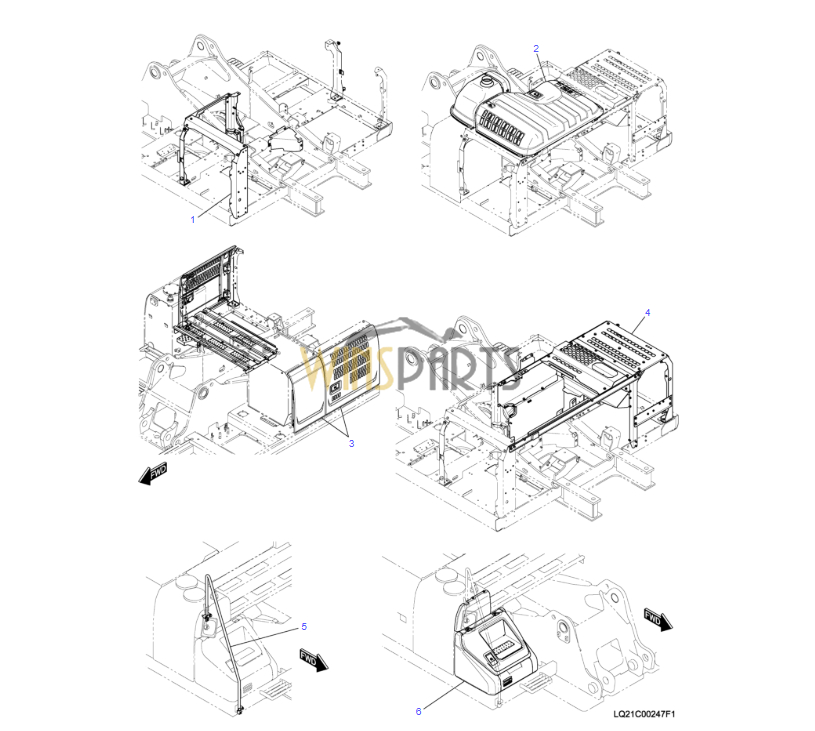

LQ21C00291F1 GUARD INSTAL
360-01 LQ21C00220F1 CKCM-05 D0002488533 1 1 LQ21C00220F1 GUARD INSTAL 1 P.360-01
360-02 LQ21C00221F1 CKCM-04 D0002488534 1 2 LQ21C00221F1 GUARD INSTAL 1 P.360-02
360-03 LQ21C00248F1 CHN-06 D0002488545 1 3 LQ21C00248F1 GUARD INSTAL 1 P.360-03
360-04 LQ21C00223F1 CKCM-06 D0002488546 1 4 LQ21C00223F1 GUARD INSTAL 1 P.360-04
360-05 LQ41C00055F1 CKCM-02 D0002488547 1 5 LQ41C00055F1 HANDRAIL INSTAL 1 P.360-05
360-06 LQ21C00225F1 CKCM-07 D0002488548 1 6 LQ21C00225F1 GUARD INSTAL 1 P.360-06
.

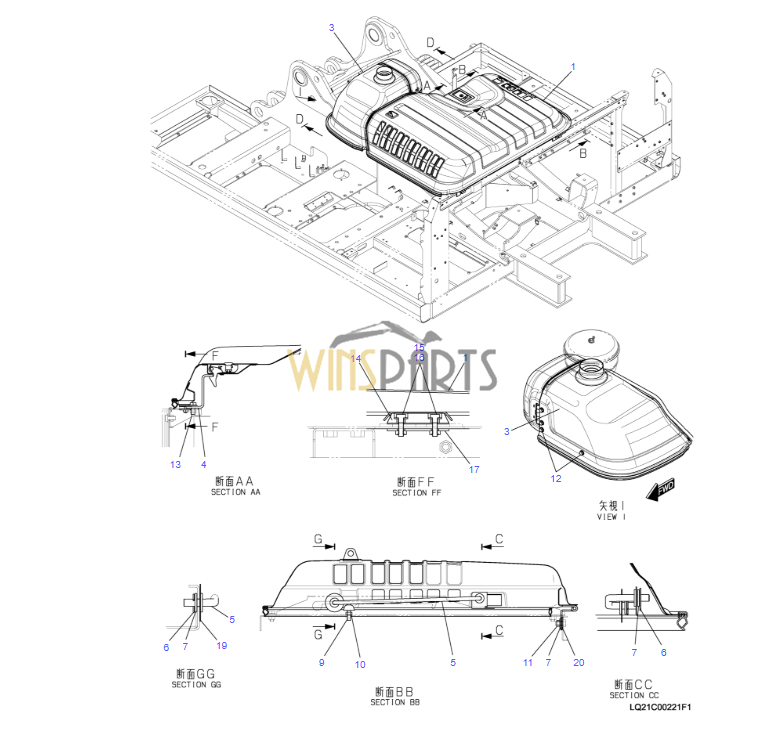

1 LQ22C00037F1 BONNET ASSY 1
1-1 LQ22C01348P3 BONNET 1
1-1F YN21C06245P1 LOCK 1
1-1G LQ22C01275P1 HINGE 2
1-2 LC22C01323DD STRIP, WEATHER 1
1-3 LQ22C01353P1 INSULATION 1
1-4 LQ22C01354P1 INSULATION 1
1-5 YN22C01377P1 INSULATION 1
3 LQ21C04201F1 COVER ASSY 1
3-1 LQ21C04382P2 COVER 1
3-1 LQ21C04713P1 COVER 1 LL16405097-
. LQ16405011-
3-2 LQ21C04416P3 COVER 1
3-2H LQ21C04254P4 LOCK 1
3-2J LQ21C04376P1 HINGE 1
3-3 LQ21C04210P1 INSULATION 1
3-4 LQ21C04227P1 INSULATION 1
3-5 LQ21C03770P1 RUBBER 1
3-6 LQ21C04217P1 RUBBER 1
3-7 YF22C01046D2 STRIP, WEATHER 1
3-8 LC22C01323DC STRIP, WEATHER 1
3-12 YR22C01025P2 LOCK 1
3-13 LQ21C04359P1 PLATE 1
3-15 ZM73C12025 SEMS-BOLT 2
3-16 LQ21C04427P1 RUBBER 1
3-17 LQ21C04428P1 RUBBER 1
3-19 LQ21C04714P1 STRIKER 1
3-20 ZM73C08016 SEMS-BOLT 2
4 LQ21C03995P1 STRIKER 1
5 LQ21C04450P1 STAY 1
6 2419R9D4 PIN 2
7 2418T10357 WASHER 4
9 YN21C03212P1 STOPPER 1
10 ZN18F10008 NUT 1
11 ZN18C12010 NUT 2
12 ZM73C12025 SEMS-BOLT 5
13 ZM73C12030 SEMS-BOLT 2
14 2416T28650 RUBBER, CUSHION 1
15 ZS18C08030 CAPSCREW 2
16 2418T23178 WASHER 2
17 LQ21C04350P1 PLATE 1
19 LQ21C04452P1 WASHER 1
20 LQ22C01352P2 SHIM (2.3) 2
.

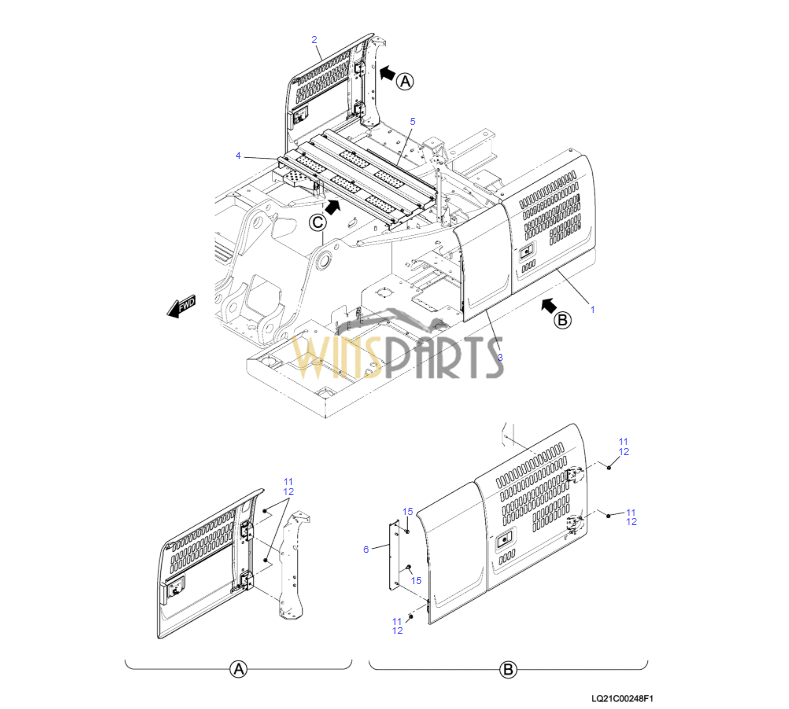

1 YN21C06673F1 PANEL ASSY 1
1-1 LQ21C04424P2 PANEL 1
1-1C LQ21C03662P3 HINGE 2
1-1D YN21C06245P1 LOCK 1
1-2 LQ21C03783P1 RUBBER 1
1-3 YR21C01123P1 CLIP 1
1-4 LQ21C03677P1 STAY 1
1 YN21C07351F1 PANEL ASSY 1
1-1 YN21C07354P1 PANEL 1
1-1C LQ21C04710P1 HINGE 2
1-1D YN21C06245P1 LOCK 1
1-2 LQ21C03783P1 RUBBER 1
1-3 YR21C01123P1 CLIP 1
1-4 LQ21C03677P1 STAY 1
2 LQ21C03665F1 PANEL ASSY 1
2-1 LQ21C04422P2 PANEL 1
2-1C LQ21C03662P3 HINGE 2
2-1D YN21C06245P1 LOCK 1
2-2 LQ21C03670P1 RUBBER 1
2-3 YR21C01123P1 CLIP 1
2-4 LQ21C03677P1 STAY 1
2 YN21C07358F1 PANEL ASSY 1 LL16405153-
. LQ16405028-
2-1 YN21C07359P1 PANEL 1
2-1C LQ21C04710P1 HINGE 2
2-1D YN21C06245P1 LOCK 1
2-2 LQ21C03670P1 RUBBER 1
2-3 YR21C01123P1 CLIP 1
2-4 LQ21C03677P1 STAY 1
.

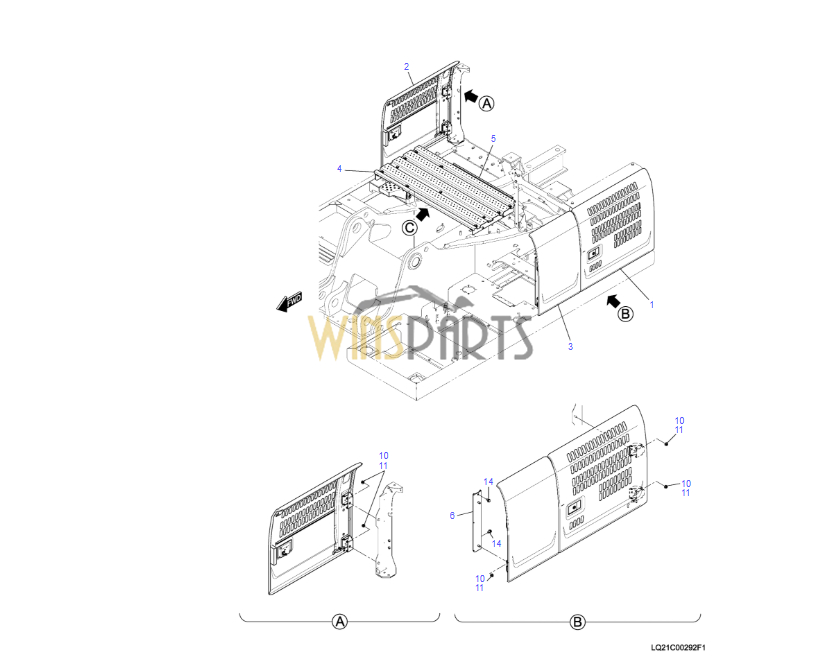

3 YN21C06658F1 PANEL ASSY 1
3-1 YN21C06838P2 PANEL 1
3-1D LQ21C03662P3 HINGE 2
3-1 YN21C07236P1 PANEL 1
3-1D LQ21C03662P3 HINGE 2
3-2 LQ21C03959P1 RUBBER 1
3-3 YR21C01123P1 CLIP 1
3-4 LQ21C03677P1 STAY 1
3 YN21C07352F1 PANEL ASSY 1
3-1 YN21C07355P1 PANEL 1
3-1D LQ21C04710P1 HINGE 2
3-2 LQ21C03959P1 RUBBER 1
3-3 YR21C01123P1 CLIP 1
3-4 LQ21C03677P1 STAY 1

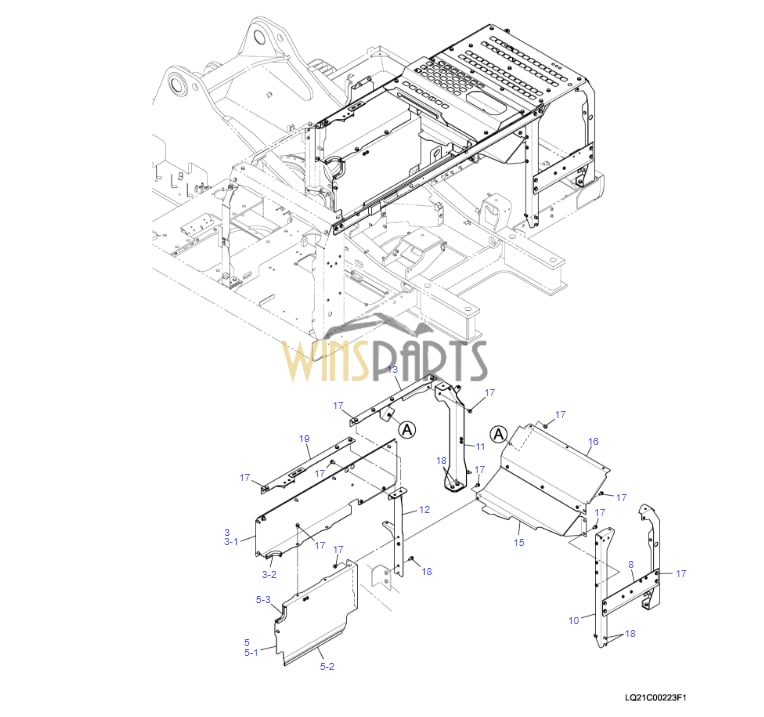

4 LQ21C04310F1 GUARD ASSY 1
4-1 LQ21C04338P1 GUARD 1
4-2 YN21C06508P1 PLATE 3
4-3 YN21C03168P1 RIVET 18
5 LQ21C04312F1 GUARD ASSY 1
5-1 LQ21C04311P1 GUARD 1
5-2 YN21C06508P1 PLATE 2
5-3 YN21C03168P1 RIVET 12
5-4 YT21C01164DJ STRIP, WEATHER 1
6 LQ21C04407P1 BRACKET 1
7 LQ21C03653P2 BRACKET 1
8 LQ21C04085P2 BRACKET 1
10 LQ21C04088P2 BRACKET 1
11 ZN18C12010 NUT 6
12 ZW16H12000 WASHER 6
13 LQ21C02848P1 WASHER 8
14 HY25X12040G1 WASHER 4
15 ZM73C12025 SEMS-BOLT 12
16 LS21C01410P1 WASHER 1
17 YN21C01395P1 WASHER 1
18 ZM73C12030 SEMS-BOLT 8
.
1 LQ21C03950P2 GUARD 1
2 LQ21C04399P1 GUARD 1
3 LQ21C04095F1 COVER ASSY 1
3-1 LQ21C04096P2 COVER 1
3-2 LC22C01323DA STRIP, WEATHER 1
4 LQ21C04352F1 COVER ASSY 1
4-1 LQ21C04354P1 COVER 1
4-2 LQ21C04355P1 RUBBER 1
4-3 PM02C01035D8 STRIP, WEATHER 1
4-4 PM21C01152DW STRIP, WEATHER 2
5 LQ21C04012F1 COVER ASSY 1
5-1 LQ21C04036P1 COVER 1
5-1 LQ21C04036P2 COVER 1 LL16405260-
. LQ16405056-
5-2 PM21C01152DK STRIP, WEATHER 1
5-2 HX83C13062DX STRIP, WEATHER 1 LL16405260-
. LQ16405056-
5-3 LC22C01323DB STRIP, WEATHER 1
5-3 HX84E16016DX STRIP, WEATHER 1 LL16405260-
. LQ16405056-
8 LQ21C04300P1 BRACKET 1
9 LQ21C03989P1 PILLAR 1
10 YN21C06445P1 PILLAR 1
11 LQ21C04020P2 PILLAR 1
12 LQ21C03941P1 PILLAR 1
13 LQ21C04148P1 BEAM 1
14 LQ21C04353F1 BRACKET ASSY 1
14-1 LQ21C04402P2 BEAM 1
14-2 YN21C04469P1 INSULATION 1
14-3 YN21C01688D7 STRIP, WEATHER 1
15 LQ21C03611P1 COVER 1
16 LQ21C04146P1 COVER 1
17 ZM73C12025 SEMS-BOLT 56
18 ZM73C12030 SEMS-BOLT 8
19 LQ21C04347P3 BEAM 1
20 LQ21C04596P1 COVER 1
21 LQ21C04411P1 PLATE 1
.
1 YN21C06525F1 COVER ASSY 1
1-1 YN21C07214P1 BOX 1
1-2 YN21C07021F1 COVER ASSY 1
1-2A YN21C06478P3 COVER 1
1-2Ad YN21C06245P1 LOCK 1
1-2Ae YN21C06497P1 HINGE 2
1-2B YN21C06508P1 PLATE 1
1-2C YN21C03168P1 RIVET 6

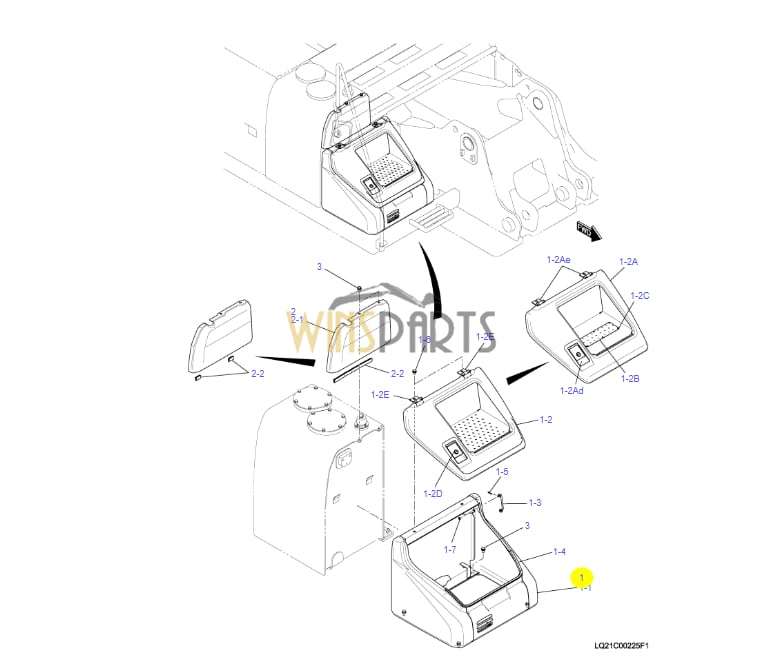

1-2 LS21C04311F1 COVER ASSY 1 LL16405057-
. LQ16405001-
1-2A LS21C04380P2 COVER 1
1-2Ad YN21C06245P1 LOCK 1
1-2Ae YN21C06497P1 HINGE 2
1-2B YN21C06508P1 PLATE 1
1-2C YN21C03168P1 RIVET 6
1-3 LQ21C04573P1 STAY 1
1-4 PM21C01091D6 STRIP, WEATHER 1
1-5 2419R9D2 PIN 1
1-6 ZM73C12020 SEMS-BOLT 2
1-7 ZW16P08000 WASHER 1
1 YN21C07372F1 COVER ASSY 1 LL16405151-
. LQ16405028-
1-1 YN21C07214P1 BOX 1
1-2 LS21C04849P1 COVER 1
1-2D YN21C06245P1 LOCK 1
1-2E YN21C06497P1 HINGE 2
1-3 LQ21C04573P1 STAY 1
1-4 PM21C01091D6 STRIP, WEATHER 1
1-5 2419R9D2 PIN 1
1-6 ZM73C12020 SEMS-BOLT 2
1-7 ZW16P08000 WASHER 1
2 YN21C06499F1 COVER ASSY 1
2-1 WB21C01158P1 COVER 1
2-2 LC21C02936D2 STRIP, WEATHER 2 LL16-T0101–T0102
. LL16405001–05061
. LQ16405001–05002
2-2 HX83C13035DX STRIP, WEATHER 1 LL16405062-
. LQ16405003-
3 ZM73C12025 SEMS-BOLT 6
