YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

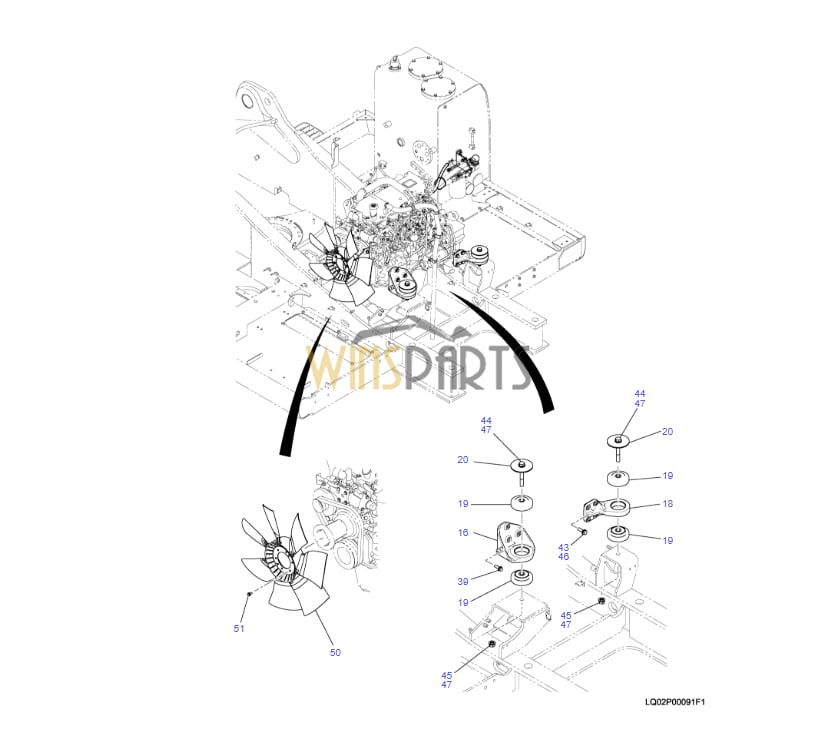

LQ02P00091F1 YN75S00010P2 ENGINE FAN KOBELCO SK250-10 SK260LC-10
.

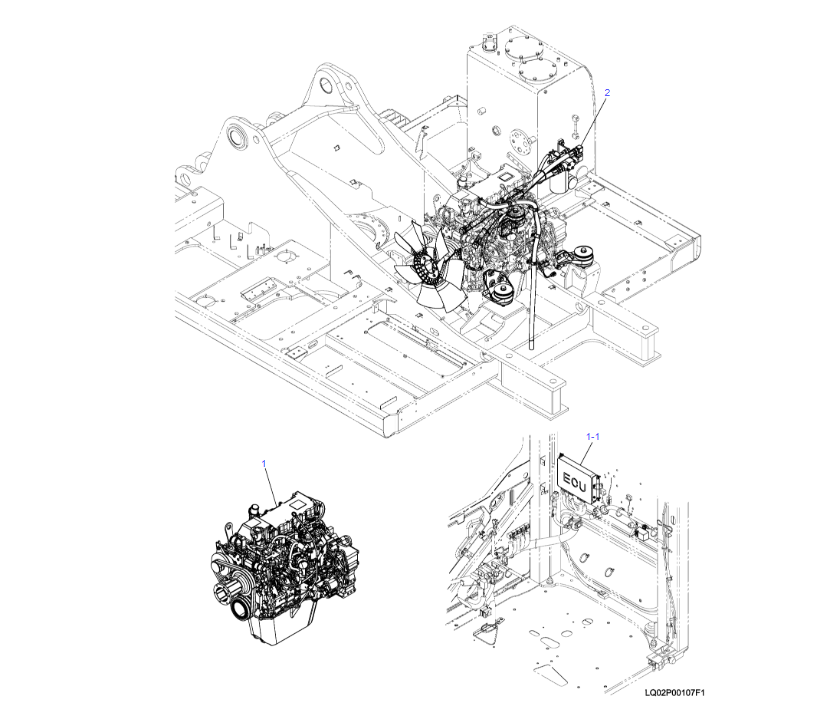

1 LQ02P00108F1 ENGINE ASSY 1 SEE E/G
1-1 LQ22E00140F2 CONTROLLER 1

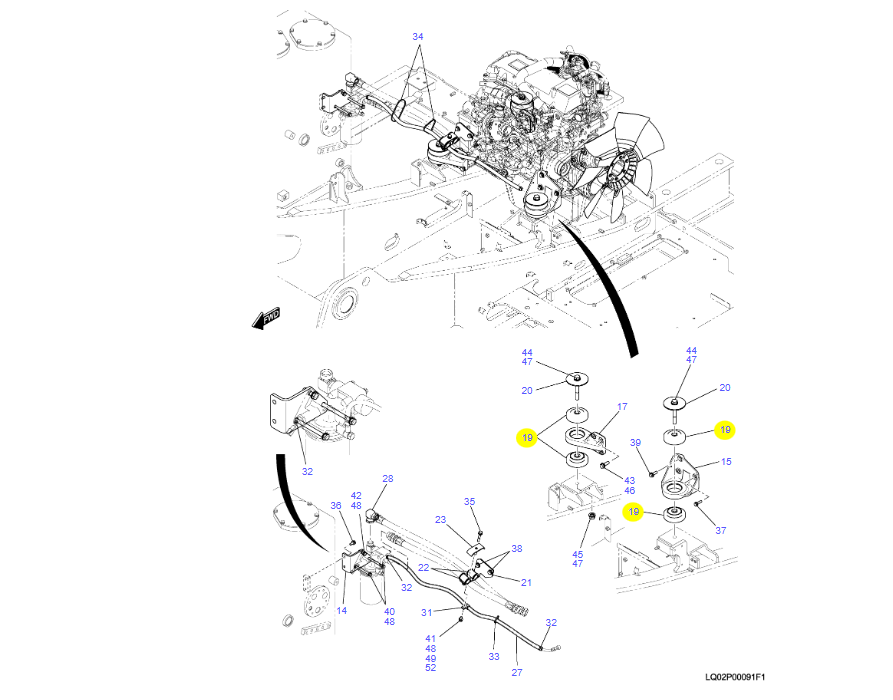

040-01_LQ02P00091F1_CKCM-01_D0002488463_1 2 LQ02P00091F1 ENGINE INSTAL 1 P.040-01
.
14 YN02P01410P1 BRACKET 1
15 YN02P01397P1 BRACKET 1
16 YN02P01398P1 BRACKET 1
17 YN02P01408P1 BRACKET 1
18 YN02P01409P1 BRACKET 1
19 YN02P01401P1 ENGINE MOUNT, RUBBER KOBELCO SK250-10 SK260LC-10
20 YN02P01402P1 PLATE 4
21 YN02P01115P1 PLATE 1
22 YN02P01076P1 BUSHING 2
23 YN02P01125P1 CLAMP 1
27 HX81X15120DX TUBE 1
28 YB02P01017P1 ELBOW, 90 1
31 ZC46X19011 CLIP 1
32 PY01P01043D2 CLIP 3
33 PY01P01043D5 CLIP 1
34 PY01P01043D8 CLIP 2
35 ZM22C10065 SEMS-BOLT 1
36 ZM73C10025 SEMS-BOLT 2
37 ZM73C10040 SEMS-BOLT 1
38 ZM73C12020 SEMS-BOLT 2
39 ZM73C12040 SEMS-BOLT 5
40 HS18C10140G1 CAPSCREW 2
41 ZS18C10020 CAPSCREW 1
42 ZS18C10040 CAPSCREW 1
43 ZS18C14045 CAPSCREW 8
44 ZS18C18140 CAPSCREW 4
45 ZN18C18015 NUT 3
46 ZW16H14000 WASHER 8
47 ZW16H18000 WASHER 7
48 ZW16P10000 WASHER 4
48 ZW16P10000 WASHER 3 LL16405049-
. LQ16405001-
49 ZW26X10000 LOCK WASHER 1
50 YN75S00010P2 FAN 1
51 ZM73C08020 SEMS-BOLT 6
52 ZM22C10020 SEMS-BOLT 1
