YN12B00907F1 YN12B00908F1 BUCKET CYLINDER INSTAL Kobelco (BUCKET/SHORT) 1 YN12B00908F1 CYLINDER INSTAL 1 1-1 YN12B02413P1 PIN 1 1-2 HS18C16140G2 CAPSCREW 1 …

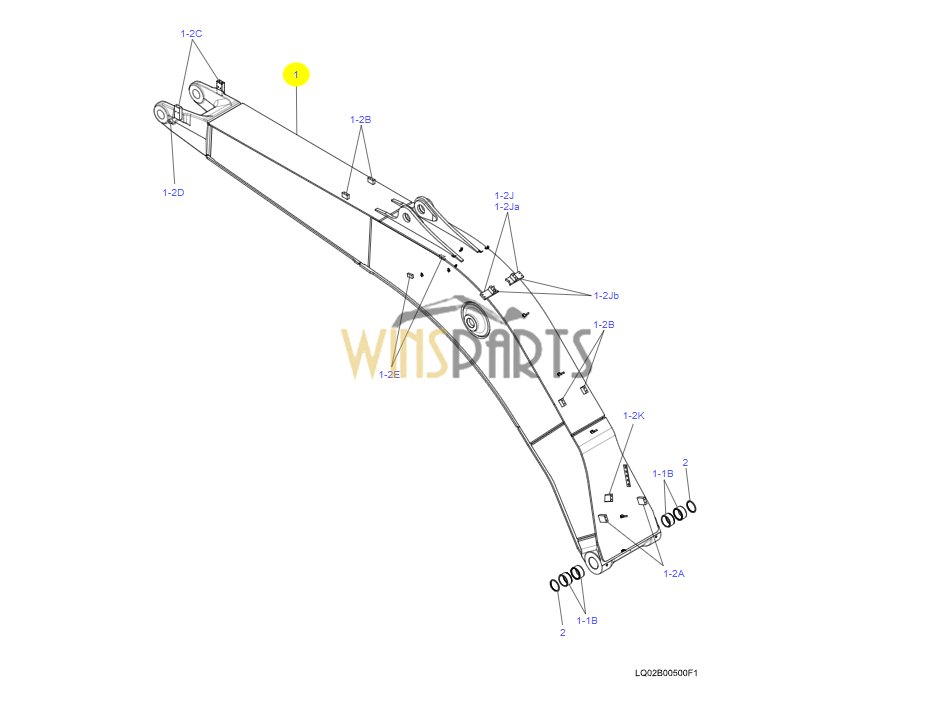

LQ02B00500F1 BOOM, HOE 6.02M BOOM GROUP KOBELCO
1 LQ02B00529F1 BOOM, HOE 1
1-1B LQ02B01481P1 BUSHING 4
1-2A LQ02B01786P1 BLOCK, TAPPED 2
1-2B LQ02B01785P1 BLOCK, TAPPED 4
1-2C LQ02B01870P2 BLOCK, TAPPED 2
1-2D LC52F02262P1 BLOCK, TAPPED 1
1-2E 2416T9878 BLOCK, TAPPED 2
1-2J LQ02B01855P1 BRACKET 2
1-2Ja LQ02B01856P1 BLOCK, TAPPED 1
1-2Jb LQ02B01785P1 BLOCK, TAPPED 1
1-2K LQ02B01947P1 BLOCK, TAPPED 1
2 2445R138D24 SEAL, DUST 2

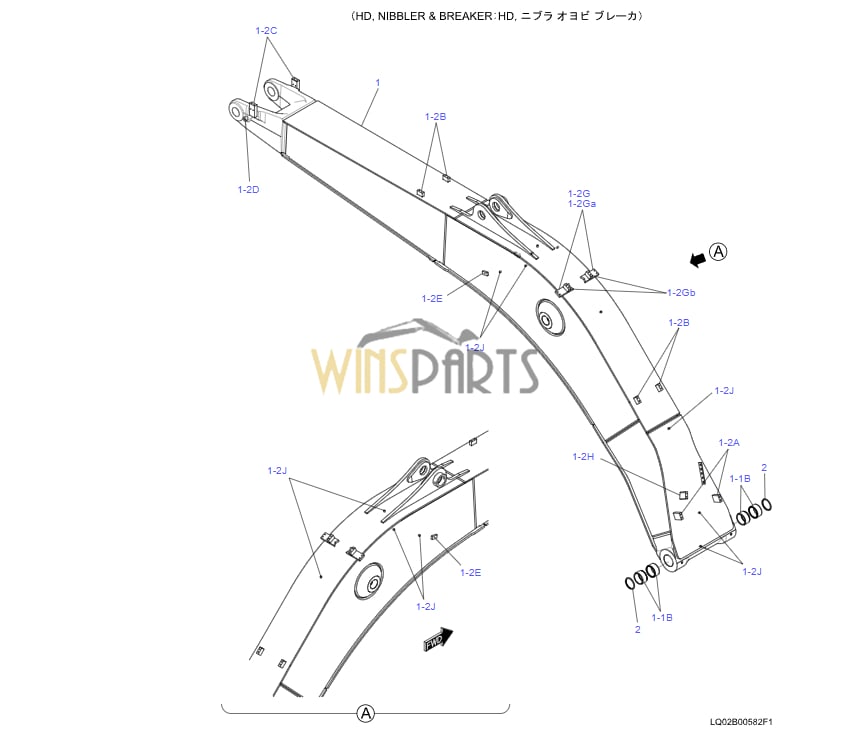

1 LQ02B00583F1 BOOM, HOE 1
1-1B LQ02B01481P1 BUSHING 4
1-2A LQ02B01786P1 BLOCK, TAPPED 2
1-2B LQ02B01785P1 BLOCK, TAPPED 4
1-2C LQ02B01870P2 BLOCK, TAPPED 2
1-2D LC52F02262P1 BLOCK, TAPPED 1
1-2E 2416T9878 BLOCK, TAPPED 2
1-2G LQ02B01855P1 BRACKET 2
1-2Ga LQ02B01856P1 BLOCK, TAPPED 1
1-2Gb LQ02B01785P1 BLOCK, TAPPED 1
1-2H LQ02B01947P1 BLOCK, TAPPED 1
1-2J YT02B01505P1 BLOCK, TAPPED 9
2 2445R138D24 SEAL, DUST 2
LQ02B00553F1 BOOM, HOE 6.02M
1 LQ02B00554F1 BOOM, HOE 1
1-1B LQ02B01481P1 BUSHING 4
1-2A LQ02B01786P1 BLOCK, TAPPED 2
1-2B LQ02B01785P1 BLOCK, TAPPED 4
1-2C LQ02B01870P2 BLOCK, TAPPED 2
1-2D LC52F02262P1 BLOCK, TAPPED 1

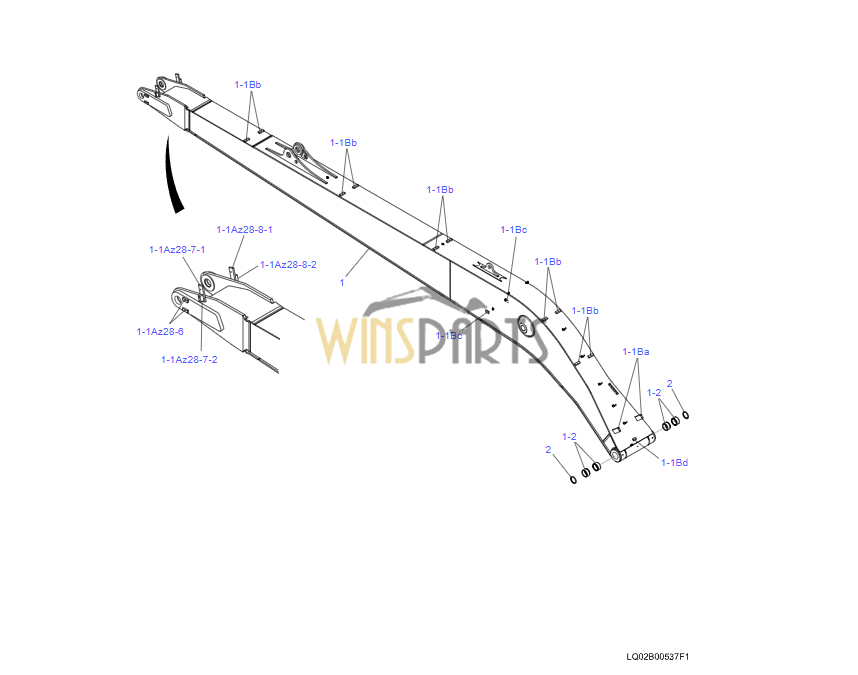

1 LQ02B00538F1 BOOM, HOE 1
1-1Az28-6 LQ02B01736P1 BLOCK, TAPPED 2
1-1Az28-7-1 LQ02B01902P1 BLOCK, TAPPED 1
1-1Az28-7-2 LQ02B01785P1 BLOCK, TAPPED 1
1-1Az28-8-1 LQ02B01902P1 BLOCK, TAPPED 1
1-1Az28-8-2 LQ02B01785P1 BLOCK, TAPPED 1
1-1Ba LQ02B01903P1 BLOCK, TAPPED 2
1-1Bb 2416T21120D2 BLOCK, TAPPED 10
1-1Bc 2416T9878 BLOCK, TAPPED 2
1-1Bd 2416T10127 BLOCK, TAPPED 1
1-2 LQ02B01481P1 BUSHING 4
2 2445R138D24 SEAL, DUST 2
LQ02B00578F1 BOOM GROUP
LQ02B00651F1 BOOM GROUP
1 2444R1117D088 HOSE 1
2 2444R1117D092 HOSE 1
3 2444R1117D245 HOSE 1
4 2444R1117D255 HOSE 1
5 2444R1117D320 HOSE 1
6 ZH32Z04000 ELBOW 2
7 ZG91S02000 NIPPLE, GREASE 8
8 ZC48X10009 CLIP 3
9 PY01P01043D3 CLIP 2
10 ZC46X10009 CLIP 1
11 ZS18C06016 CAPSCREW 4
12 ZW26X06000 LOCK WASHER 4
13 YN20M01702P1 WASHER 4

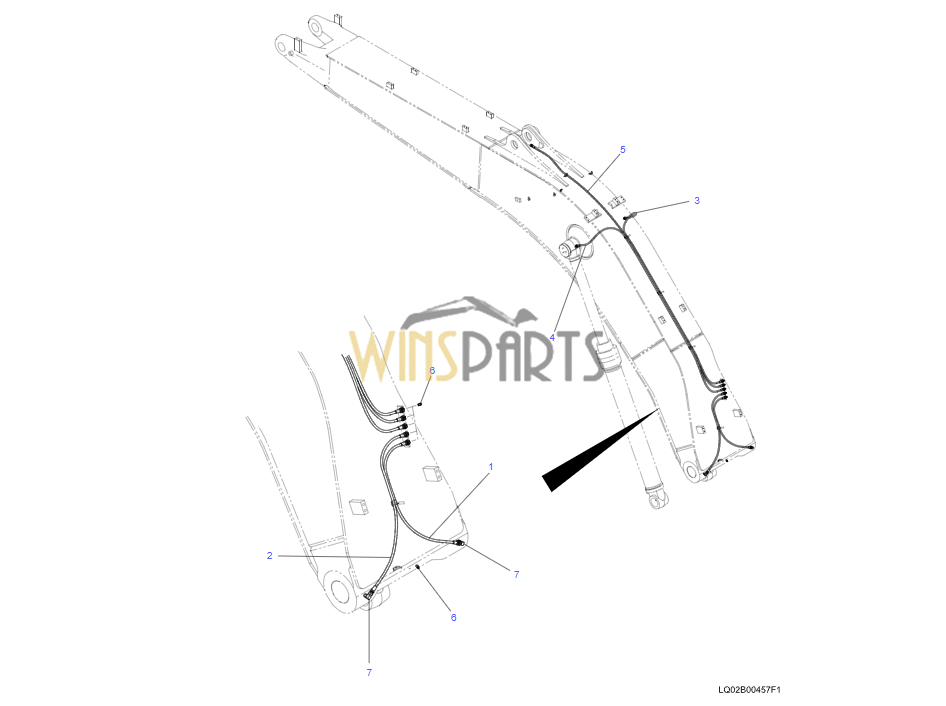

LQ02B00353F1 BOOM GROUP
1 2444R1117D110 HOSE 1
2 2444R1117D115 HOSE 1
3 2444R1117D195 HOSE 1
4 2444R1117D205 HOSE 1
5 2444R1117D700 HOSE 1
6 ZH32Z04000 ELBOW 2
7 ZG91S02000 NIPPLE, GREASE 6
8 LQ02B01923P1 PIN 2
9 2419T3095 PIN 2
10 LQ02B01665P1 LINK 1
11 2418R676D12 TUBE 1
11 HX80X10070DX TUBE 1 LL16405058-
12 PY01P01043D3 CLIP 2 LL16405058-
.

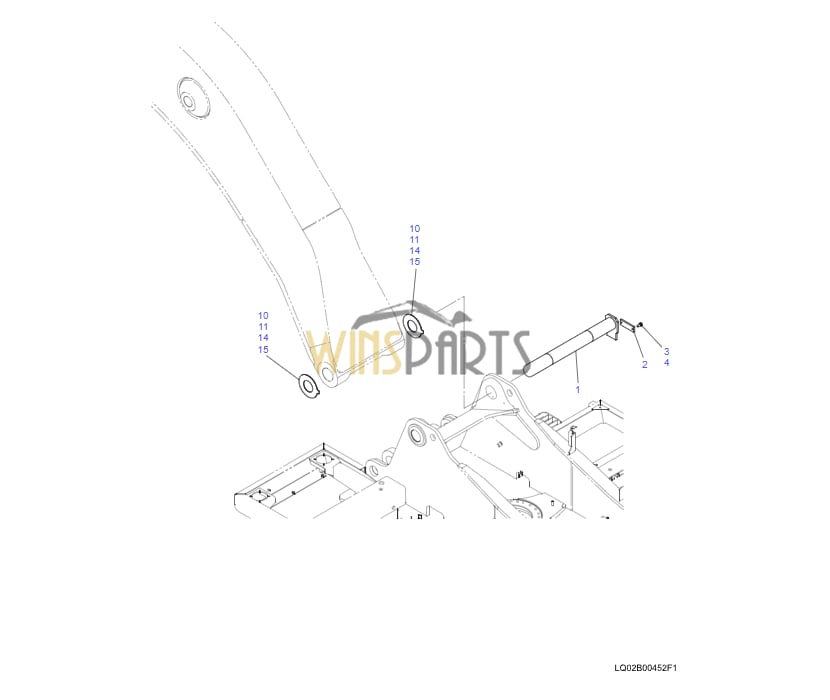

1 LQ02B01926P1 PIN 1
2 2418T12469 PLATE 1
2 LQ02B02005P1 PLATE 1
3 ZS18C14035 CAPSCREW 2
4 ZW16H14000 WASHER 2
10 LQ02B01869D1 SHIM (2.9) 2
11 LQ02B01869D2 SHIM (3.4) 2
14 LQ02B01869D5 SHIM (1.9) 2
15 LQ02B01869D6 SHIM (2.4) 2
