LQ02B00453F1 ARM CYLINDER KOBELCO SK250-10 SK260LC-10

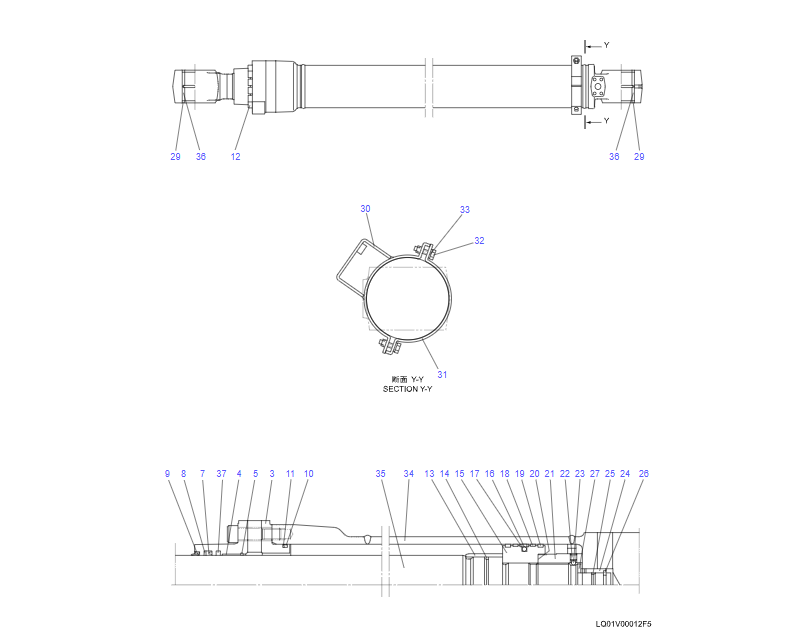

LQ01V00012F5 ARM CYLINDER KOBELCO SK250-10 SK260LC-10
　 .
　 3 LQ01V00012S003 CYLINDER HEAD 1
　 4 2438U1104S4 BUSHING 1
　 5 2438U1324S5 RING, SNAP 1
　 7 LQ01V00007S007 RING 1 R1, R3
　 8 LQ01V00007S008 RING, BACK UP 1 R1, R3
　 9 2438U1172S37 RING, WIPER 1 R1, R3
　 10 ZD12G13500 O-RING 1 R1, R3
　 11 2438U1753S16 RING, BACK UP 1 R1, R3
　 12 ZS23C18080 CAPSCREW 12
　 13 2438U1170S13 RING 1
　 14 LQ01V00007S034 SEAL 1
　 15 LQ01V00003S015 PISTON 1
　 16 2438U999S16 RING, SEAL 1 R2, R3
　 17 LQ01V00003S017 RING, BACK UP 2 R2, R3
　 18 LQ01V00003S018 RING 2 R2, R3
　 19 2438U999S18 RING 2 R2, R3
　 20 2438U1170S20 SHIM 1
　 21 LQ01V00012S021 NUT 1
　 22 2438U953S21 SETSCREW 1
　 23 2436R624S6 BALL 1
　 24 2438U1948S24 RING 1
　 25 LQ01V00007S025 SEAL 1
　 26 2438U1104S25 STOPPER 2
　 27 2438U1104S26 RING 1
　 29 2438U1381S24 RING, WIPER 4
　 30 LQ01V00003S030 BAND ASSY 1
　 31 LQ01V00003S031 BAND 1
　 32 ZS18C10035 CAPSCREW 2
　 33 ZW26X10000 LOCK WASHER 2
　 34 NO P/No TUBE ASSY 1 R4
　 35 NO P/No ROD, PISTON 1 R5
　 36 2438U1324S22 BUSHING 2 R4, R5
　 37 LC01V00006S032 RING, BUFFER 1 R1, R3
　 .
　 LQ01V00007R100 REPAIR KIT 1 RK1
　 . (7, 8, 9, 10, 11, 37)X1
　 .
　 LQ01V00007R200 REPAIR KIT 1 RK2
　 . (16)X1
　 . (17, 18, 19)X2
　 .
　 LQ01V00007R300 REPAIR KIT 1 RK3
　 . (7, 8, 9, 10, 11, 16, 37)X1
　 . (17, 18, 19)X2
　 .
　 LQ01V00007R400 REPAIR KIT 1 RK4
　 . (34, 36)X1
　 .
　 LQ01V00012R700 REPAIR KIT 1 RK5

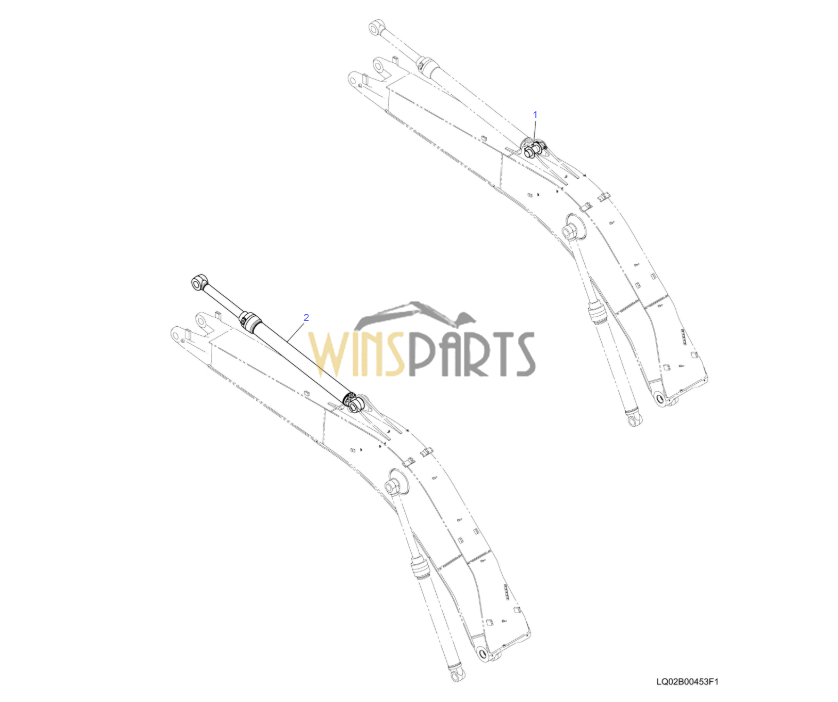

LQ02B00453F1 ARM CYLINDER KOBELCO SK250-10 SK260LC-10
660-01_CKCM_D0002488568_1 1 LQ02B00454F1 CYLINDER INSTAL 1 P.660-00
HC660-00_CKCM_D0002488569_1 2 LQ01V00046F4 CYLINDER, ARM 1 HC 660-00

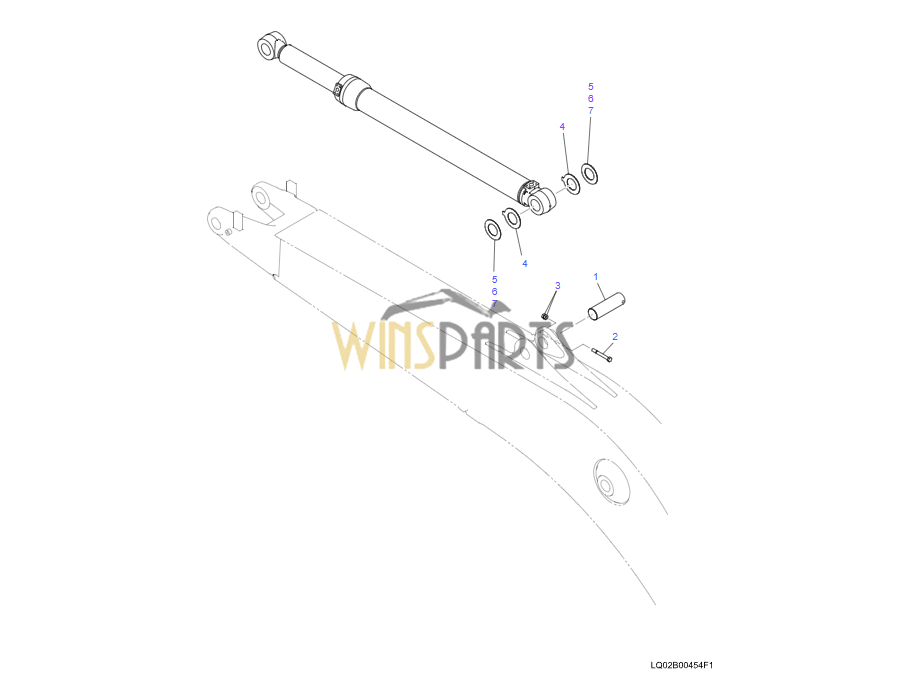

LQ02B00454F1 CYLINDER LQ02B01763P1 PIN SHIM KOBELCO SK250-10 SK260LC-10
　 .
　 1 LQ02B01763P1 PIN 1
　 2 HS18C20165G2 CAPSCREW 1
　 3 ZN18C20016 NUT 2
　 4 YN02B01414D1 SHIM (2.0) 2
　 5 B16T0442D53 SHIM (0.5) 1
　 6 B16T0442D40 SHIM (0.9) 1
　 7 B16T0442D14 SHIM (1.6) 1

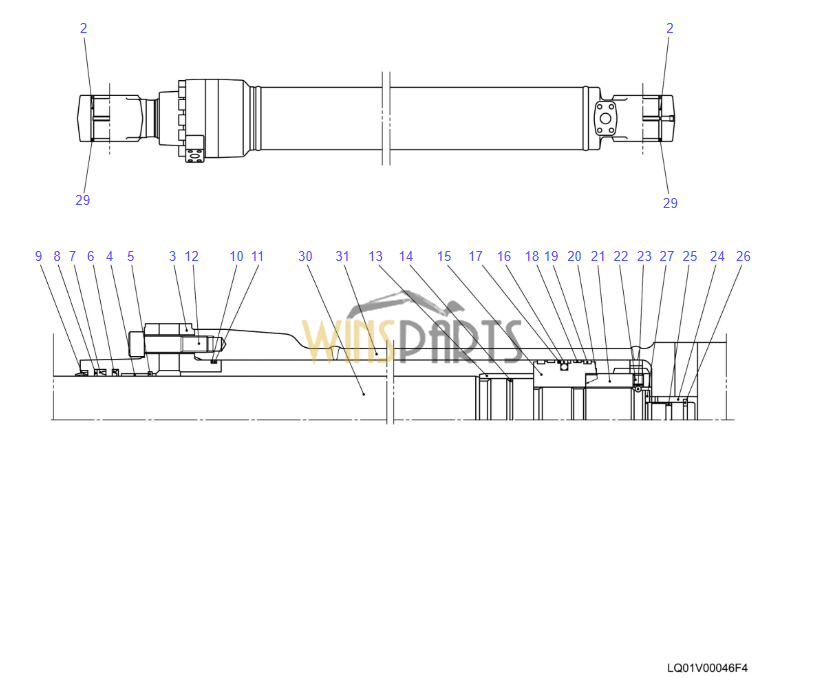

LQ01V00046F4 ARM CYLINDER ASSY KOBELCO SK250-10 SK260LC-10
　 .
　 2 2438U1324S22 BUSHING 2 R4, R5
　 3 LQ01V00038S003 CYLINDER HEAD 1
　 4 2438U953S4 BUSHING 1
　 5 2438U953S5 RING, SNAP 1
　 6 LQ01V00038S006 RING, BUFFER 1 R1, R2
　 7 LQ01V00038S007 RING 1 R1, R2
　 8 LB01V00007S008 RING, BACK UP 1 R1, R2
　 9 YN01V00020S009 RING 1 R1, R2
　 10 ZD12G14000 O-RING 1 R1, R2
　 11 LQ01V00038S011 RING, BACK UP 1 R1, R2
　 12 ZS23C20080 CAPSCREW 10
　 13 LQ01V00038S013 RING 1
　 14 LQ01V00038S014 SEAL 1 R1, R3
　 15 LQ01V00038S015 PISTON 1
　 16 2438U1104S18 BUSHING 1 R1, R3
　 17 LQ01V00038S017 RING, BACK UP 2 R1, R3
　 18 LQ01V00038S018 RING 2 R1, R3
　 19 2438U1104S20 RING 2 R1, R3
　 20 2438U953S19 SHIM 1
　 21 LB01V00007S021 NUT 1
　 22 2438U953S21 SETSCREW 1
　 23 2436R624S6 BALL 1
　 24 LQ01V00038S024 RING 1
　 25 LC01V00005S025 SEAL 1 R1, R3
　 26 2438U1137S26 STOPPER 2
　 27 2438U1137S27 SNAP RING 1
　 29 2438U1381S24 RING, WIPER 4 R4, R5
　 30 NO P/No ROD, PISTON 1 R5
　 31 NO P/No TUBE ASSY 1 R4
　 .
　 LQ01V00038R300 REPAIR KIT 1 RK1
　 . (6, 7, 8, 9, 10, 11, 14, 16, 25)X1
　 . (17, 18, 19)X2
　 .
　 LQ01V00038R100 REPAIR KIT 1 RK2
　 . (6, 7, 8, 9, 10, 11)X1
　 .
　 LQ01V00038R200 REPAIR KIT 1 RK3
　 . (14, 16, 25)X1
　 . (17, 18, 19)X2
　 .
　 LQ01V00046R410 REPAIR KIT 1 RK4
　 . (2, 31)X1
　 . (29)X2
　 .
　 LQ01V00038R700 REPAIR KIT 1 RK5
　 . (2, 30)X1
　 . (29)X2

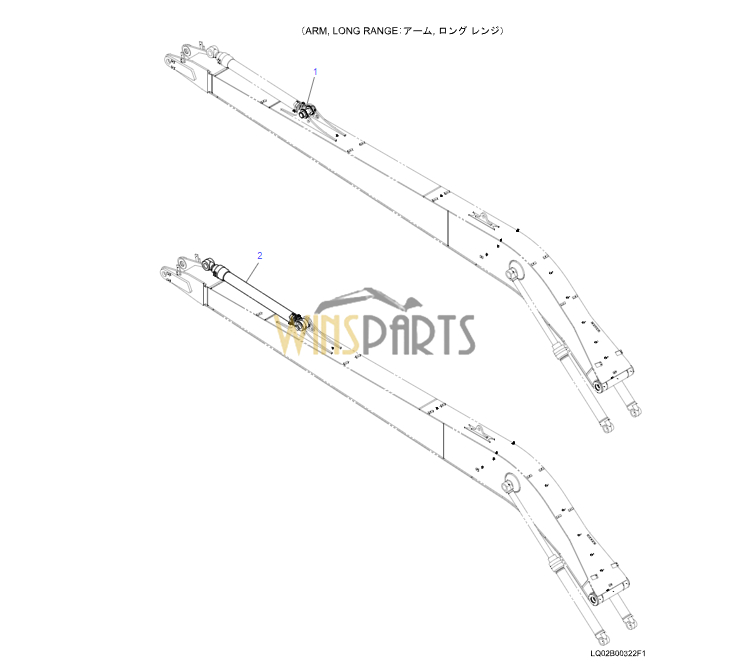

LQ02B00322F1 LQ02B00116F2 LQ01V00012F5 CYLINDER KOBELCO SK260LC-11 SK260NLC-11
　 .
663-01_LQ02B00116F2_ASIA_D0002498846_1 1 LQ02B00116F2 CYLINDER INSTAL 1 P.663-01
HC663-00_LQ01V00012F5_ANZ_D0002498799_1 2 LQ01V00012F5 CYLINDER, ARM 1 HC 663-00 LQ02B00116F2 CYLINDER INSTAL
　 .
　 2 HS18C16150G2 CAPSCREW 1
　 3 ZN18C16013 NUT 2
　 4 B16T0442D53 SHIM (0.5) 1
　 5 B16T0442D40 SHIM (0.9) 1
　 6 B16T0442D14 SHIM (1.6) 1
　 7 YN02B01414D1 SHIM (2.0) 2
　 8 LQ02B01269P1 PIN
