YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…

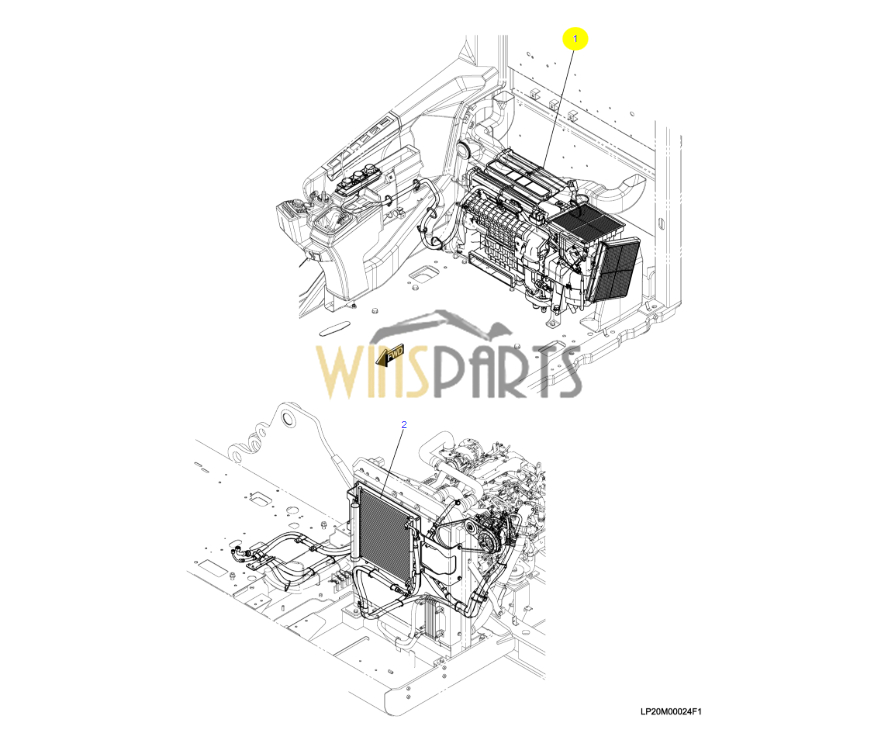

LP20M00024F1 YY20M00051F1 LP20M00019F1 AIR CONDITIONER ASSY KOBELCO SK130LC-11 SK140LC-11
.

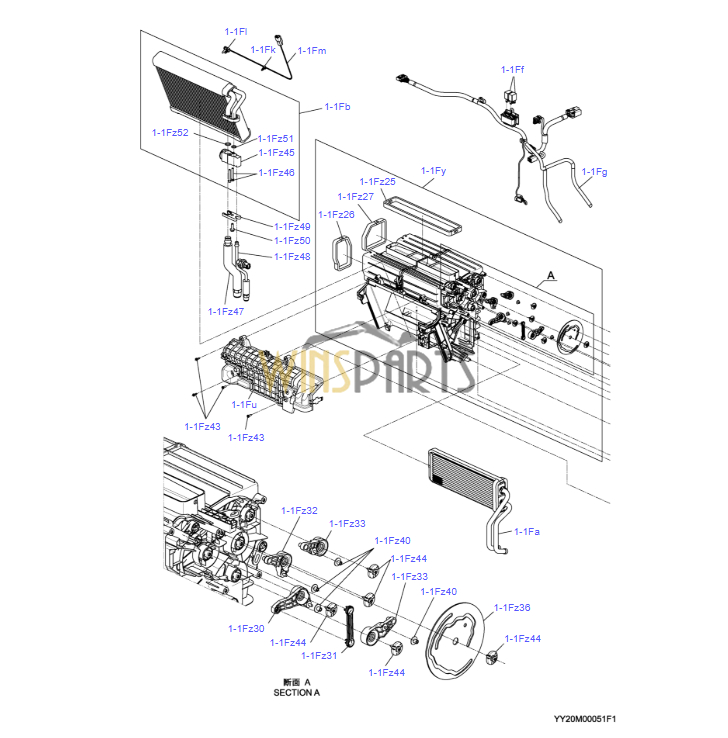

475-01_YY20M00051F1_JP-02_D0003591645_1 1 YY20M00051F1 CONDITIONER, AIR 1 P.475-01

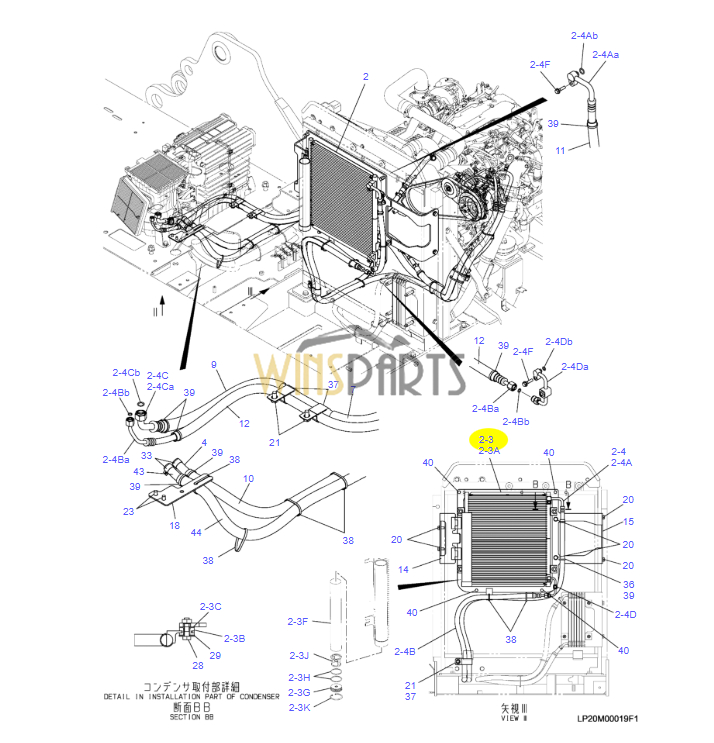

475-02_LP20M00019F1_NA-02_D0003591492_1 2 LP20M00019F1 CONDITIONER, AIR 1 P.475-02
.
1 YT20M00033F1 CONDITIONER ASSY,AIR 1
1-1 YT20M00032F2 CONDITIONER ASSY,AIR 1
1-1B LC20M01014D2 HOSE 1
1-1C LC20M01014D3 HOSE 1
1-1D 24100U1176S5 CLAMP 2
1-1E YN20M00016S078 CLIP 3
1-1F YT20M00030F2 CONDITIONER, AIR 1
1-1Fa YT20M00030S001 CORE 1
1-1Fb YT20M00030S002 EVAPORATOR 1
1-1Fc YT20M00030S003 BLOWER ASSY 1
1-1Fd YT20M00030S004 MOTOR, ELEC 3
1-1Fe LQ20M00059S039 RESISTOR 1
1-1Ff YT20M00030S006 RELAY 2
1-1Fg YT20M00030S053 HARNESS 1
1-1Fh LQ20M00059S018 HOSE 1
1-1Fj LQ20M00059S008 SENSOR 1
1-1Fk LQ20M00059S044 HOLDER 1
1-1Fl PS20M00005S033 HOLDER 1
1-1Fm YT20M00030S012 THERMOMETER 1
1-1Fn LQ50V01007P1 FILTER 1
1-1Fp LQ20M00059S003 RAIL 2
1-1Fr YT20M00030S015 CASE ASSY 1
1-1Fs YT20M00030S016 CASE 1
1-1Ft YT20M00030S017 CASE 1
1-1Fu YT20M00030S018 COVER 1
1-1Fv YT20M00030S019 STAY 1
1-1Fw YT20M00030S020 STAY 1
1-1Fx YT20M00030S021 COVER 1
1-1Fy YT20M00030S022 CASE ASSY 1
1-1Fz YT20M00030S023 CASE ASSY 1
1-1Fz24 YT20M00030S024 DUMPER 1
1-1Fz25 YT20M00030S025 PACKING 1
1-1Fz26 YT20M00030S026 PACKING 1
1-1Fz27 YT20M00030S027 PACKING 1
1-1Fz28 YT20M00030S028 PACKING 1
1-1Fz29 YT20M00030S054 PACKING 1
1-1Fz30 YT20M00030S030 JOINT 1
1-1Fz31 YT20M00030S031 ROD 1
1-1Fz32 YT20M00030S032 JOINT 1
1-1Fz33 YT20M00030S033 JOINT 2
1-1Fz34 YT20M00030S034 LEVER 1
1-1Fz35 YT20M00030S035 LEVER 1
1-1Fz36 YT20M00030S036 LINK 1
1-1Fz37 YT20M00030S037 ROD 1
1-1Fz38 YT20M00030S038 LEVER 1
1-1Fz39 YT20M00030S039 LEVER 1
1-1Fz40 LQ20M00059S048 BUSHING 4
1-1Fz41 LQ20M00059S049 HOLDER 2
1-1Fz42 LQ20M00059S046 SCREW, TAPPING 3
1-1Fz43 LQ20M00059S047 SCREW, TAPPING 26
1-1Fz44 LQ20M00059S050 SCREW, TAPPING 5
1-1Fz45 LQ20M00088S041 CONDITIONER, AIR 1
1-1Fz46 YT20M00030S046 CAPSCREW 2
1-1Fz47 YT20M00030S047 TUBE 1
1-1Fz48 YT20M00030S048 TUBE 1
1-1Fz49 YT20M00035S013 PLATE 1
1-1Fz50 YT20M00009S005 MACHINE SCREW 1
1-1Fz51 2445Z1604D4 O-RING 1
1-1Fz52 2445Z1604D5 O-RING 1
1-2 YT20M01274P1 PANEL 1 LP10030001–30008
1-2 YT20M01274P2 PANEL 1 LP10030009-
1-3 YT50V01036P1 FILTER 1
2 ZM73C10030 SEMS-BOLT 5
3 YN13E01375P1 CLIP 4 LP10030001–30009
3 YN13E01375P1 CLIP 3 LP10030010-
4 PY01P01043D5 CLIP 1 LP10030001–30193
5 PY01P01043D3 CLIP 6 LP10030001–30009
5 PY01P01043D3 CLIP 4 LP10030010-
YT20M00030F2 CONDITIONER, AIR Not Service
.
475-01_YY20M00051F1_JP-06_D0003588805_1 1 YY20M00051F1 CONDITIONER, AIR 1 P.475-01

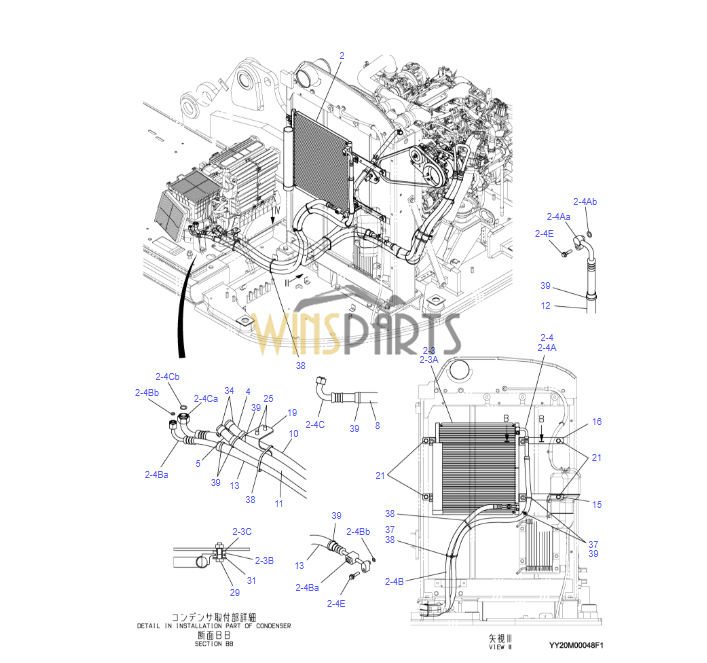

475-02_YY20M00048F1_NA-03_D0003895150_1 2 YY20M00048F1 CONDITIONER, AIR 1 P.475-02 .
2 YY20M00054F1 CONDITIONER ASSY,AIR 1
2-1 YX91V00001F1 COMPRESSOR, AIR 1
2-1A LC91V00001S002 PLATE 1
2-1B YN91V01001S002 PLATE 1
2-1C YN91V01001S003 ROTOR 1
2-1D LC91V00001S004 ACCESSORIES 1
2-1E YN91V01001S005 COVER 1
2-1F YN91V01001S006 COVER 1
2-1G YN91V01001S007 RING ASSY 1
2-2 YN20M01696F1 PULLEY ASSY 1
2-3 YT20M01273F1 CONDENSER 1
2-3A YT20M01273S001 CONDENSER 1 Not Service
2-3B YT20M01215S002 RUBBER 4
2-3C YT20M01215S003 COLLAR 4
2-3F YT20M01273S002 DRYER 1 R1
2-3G YT20M01273S003 CAP ASSY 1
2-3H YT20M01273S004 O-RING 2 R1
2-3J YT20M01273S005 FILTER 1
2-3K YT20M01273S006 RING, RETAINING 1
2-4 YY96V00033F1 DRYER ASSY, AIR 1
2-4A YY20M01359F1 HOSE ASSY 1
2-4Aa YY20M01359S001 HOSE ASSY 1
2-4Ab 2445Z1604D4 O-RING 2
2-4Ac YN20M01726P1 CAP 1
2-4B YY20M01360F1 HOSE ASSY 1
2-4Ba YY20M01360S001 HOSE ASSY 1
2-4Bb 2445Z1604D6 O-RING 2
2-4C YY20M01358F1 HOSE ASSY 1
2-4Ca YY20M01358S001 HOSE ASSY 1
2-4Cb 2445Z1604D5 O-RING 2
2-4Cc YN20M01725P1 CAP 1
2-4D YN20M01954P1 CAPSCREW 2
2-4E YN20M01955P1 CAPSCREW 2
3 YN20M01414D3 V-BELT 1
4 HX11W08125DX HOSE 1
5 HX11W08110DX HOSE 1
6 YN20M01953D1 HOSE 1
7 LP20M01060P1 HOSE 1
8 HX80X25200DX TUBE 1
9 HX80X25062DX TUBE 1
10 HX80X22115DX TUBE 1
11 HX80X22100DX TUBE 1
12 HX80X19260DX TUBE 1
13 HX80X19120DX TUBE 1
14 LQ20M01370P1 TUBE 2
15 YY20M01417P1 BRACKET 1
16 YY20M01419P1 BRACKET 1
17 LP20M01093P1 BRACKET 1 YV09020001–20040
. YY09045001–46751
17 LP20M01126P1 BRACKET 1 YV09020041-
. YY09046752-
18 YY20M01334P1 BRACKET 1 YY09045001–5002
18 YY20M01420P1 BRACKET 1 YV09020001–20040
. YY09045001–46751
18 YY20M01449P1 BRACKET 1 YV09020041-
. YY09046752-
19 YY20M01364P1 PLATE 1
20 ZM73C10030 SEMS-BOLT 2
21 ZM73C10025 SEMS-BOLT 5
23 ZM73C08030 SEMS-BOLT 2
24 ZM73C08025 SEMS-BOLT 4 YV09020001–20040
. YY09045001–46751
24 ZM73C08025 SEMS-BOLT 2 YV09020041-
. YY09046752-
25 ZM73C08016 SEMS-BOLT 2 YY09045001–5002
25 ZM73C08020 SEMS-BOLT 2 YV09020001-
. YY09045003-
26 ZS18C08100 CAPSCREW 4
27 ZS18C08090 CAPSCREW 3 YV09020001–20040
. YY09045001–46751
27 ZS18C08085 CAPSCREW 3 YV09020041-
. YY09046752-
28 ZS18C08065 CAPSCREW 1
29 ZS18C08030 CAPSCREW 4
31 PV01P01007P1 WASHER 4
32 ZW16P08000 WASHER 8
33 YN20M01752P1 CLIP 2
34 LQ20M01371P1 CLIP 4
35 LQ20M01372P1 CLIP 4
36 EW02E01015D7 CLIP 1
37 YN13E01375P1 CLIP 3
38 PY01P01043D5 CLIP 12
39 PY01P01043D3 CLIP 14 YY09045001–5002
39 PY01P01043D3 CLIP 15 YV09020001-
. YY09045003-
40 LP20M01061P1 BRACKET 1
41 ZM73C08035 SEMS-BOLT 2 YV09020041-
. YY09046752-
.
YT20M01273R100 DRYER KIT 1 RK1
.
2 LP20M00020F1 CONDITIONER ASSY,AIR 1
2-1 YX91V00001F1 COMPRESSOR, AIR 1
2-1A LC91V00001S002 PLATE 1
2-1B YN91V01001S002 PLATE 1
2-1C YN91V01001S003 ROTOR 1
2-1D LC91V00001S004 ACCESSORIES 1
2-1E YN91V01001S005 COVER 1
2-1F YN91V01001S006 COVER 1
2-1G YN91V01001S007 RING ASSY 1
2-2 YN20M01696F1 PULLEY ASSY 1
2-3 YT20M01273F1 CONDENSER 1
2-3A YT20M01273S001 CONDENSER 1 Not Service
2-3B YT20M01215S002 RUBBER 4
2-3C YT20M01215S003 COLLAR 4
2-3F YT20M01273S002 DRYER 1 R1 LP10030319-
2-3G YT20M01273S003 CAP ASSY 1 LP10030319-
2-3H YT20M01273S004 O-RING 2 R1 LP10030319-
2-3J YT20M01273S005 FILTER 1 LP10030319-
2-3K YT20M01273S006 RING, RETAINING 1 LP10030319-
2-4 LP96V00005F1 DRYER ASSY, AIR 1
2-4A LP20M01106F1 HOSE ASSY 1
2-4Aa LP20M01106S001 HOSE ASSY 1
2-4Ab 2445Z1604D4 O-RING 2
2-4Ac YN20M01726P1 CAP 1
2-4B LP20M01107F1 HOSE ASSY 1
2-4Ba LP20M01107S001 HOSE ASSY 1
2-4Bb 2445Z1604D6 O-RING 2
2-4C LP20M01059F1 HOSE ASSY 1
2-4Ca LP20M01059S001 HOSE ASSY 1
2-4Cb 2445Z1604D5 O-RING 2
2-4Cc YN20M01725P1 CAP 1
2-4D LP20M01103F1 TUBE ASSY 1
2-4Da LP20M01103S001 TUBE ASSY 1
2-4Db 2445Z1604D6 O-RING 1
2-4E YN20M01954P1 CAPSCREW 2
2-4F YN20M01955P1 CAPSCREW 2
3 YN20M01414D3 V-BELT 1
4 HX11W08145DX HOSE 1
5 YN20M01953D1 HOSE 1
6 LP20M01060P1 HOSE 1
7 HX80X25185DX TUBE 1
8 HX80X25062DX TUBE 1
9 HX80X25040DX TUBE 1
10 HX80X22135DX TUBE 1
11 HX80X19280DX TUBE 1
12 HX80X19240DX TUBE 1
13 LQ20M01370P1 TUBE 2
14 LP20M01097P1 SUPPORT 1
15 LP20M01101P1 BRACKET 1
16 LP20M01093P1 BRACKET 1 LP10030001–30519
16 LP20M01126P1 BRACKET 1 LP10030520-
17 YY20M01334P1 BRACKET 1 LP10030001–30002
17 YY20M01420P1 BRACKET 1 LP10030003–30519
17 YY20M01449P1 BRACKET 1 LP10030520-
18 LP20M01081P1 PLATE 1
19 ZM73C10030 SEMS-BOLT 2
20 ZM73C10025 SEMS-BOLT 6
21 ZM73C10020 SEMS-BOLT 5
22 ZM73C08030 SEMS-BOLT 2
23 ZM73C08016 SEMS-BOLT 2 LP10030001–30002
23 ZM73C08020 SEMS-BOLT 2 LP10030003-
24 ZM73C08025 SEMS-BOLT 4 LP10030001–30519
24 ZM73C08025 SEMS-BOLT 2 LP10030520-
25 ZS18C08100 CAPSCREW 4
26 ZS18C08090 CAPSCREW 3 LP10030001–30519
26 ZS18C08085 CAPSCREW 3 LP10030520-
27 ZS18C08065 CAPSCREW 1
28 ZS18C08030 CAPSCREW 4
29 PV01P01007P1 WASHER 4
30 ZW16P08000 WASHER 8
31 YN20M01751P1 CLIP 1
32 YN20M01752P1 CLIP 2
33 LQ20M01371P1 CLIP 4
34 LQ20M01372P1 CLIP 4
35 EW02E01015D7 CLIP 1
36 YN13E01375P1 CLIP 2
37 ZC48X24014 CLIP 3
38 PY01P01043D5 CLIP 17
39 PY01P01043D3 CLIP 13 LP10030001–30002
39 PY01P01043D3 CLIP 14 LP10030003-
40 PV02B01073D2 CAP 4
41 LP20M01061P1 BRACKET 1
43 HX11W08150DX HOSE 1
44 HX80X22140DX TUBE 1
45 ZM73C08035 SEMS-BOLT 2 LP10030520-
.
YT20M01273R100 DRYER KIT 1 RK1 LP10030319-
. (2-3F)X1
. (2-3H)X2
