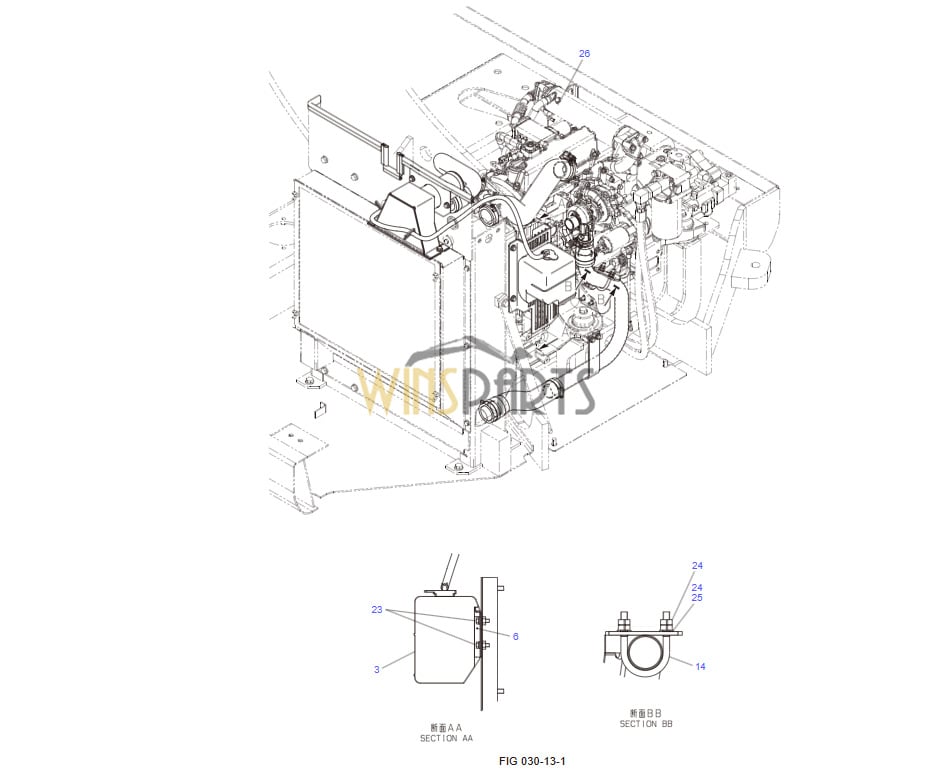

LG05P00002F1 RADIATOR KOBELCO SK75-8 SK75SR-7

LG05P00002F1 RADIATOR KOBELCO SK75-8 SK75SR-7
　 .
　 1 LG05P01038F1 BRACKET ASSY 1 LG01-H0101–H5726
　 1-1 LG05P01036P1 BRACKET 1
　 1-2 YT05P01163P1 RUBBER 1
　 1-3 YT05P01164P1 RUBBER 1
　 1 LG05P01038F2 BRACKET ASSY 1 LG01-H5727-
　 1-2 YT05P01163P1 RUBBER 1
　 1-3 YT05P01164P1 RUBBER 1
　 1-4 LG05P01036P2 BRACKET 1
　 2 YT05P01227P1 GUARD 1
　 3 YT05P01041F1 TANK ASSY, WATER, SUB 1 LG01-H0101–H9512
　 . LG01315001–15137
　 3-1 YT05P01041S001 TANK 1
　 3 LE05P01019F1 TANK ASSY, WATER, SUB 1 LG01315138-
　 4 YT05P01203P1 BRACKET 1
　 5 YT05P01257P1 BRACKET 1
　 6 2416Z519 BRACKET 1
　 7 YT05P01065P1 HOSE, RADIATOR 1
　 8 YT05P01239P1 HOSE, RADIATOR 1
　 9 YT05P01180P1 HOSE 1
　 10 YT05P01181P1 HOSE 1
　 11 YT05P01069P1 HOSE 1
　 12 YT05P01182P1 TUBE 1
　 14 2420T2948D20 U-BOLT 1
　 16 ZC46X50014 CLIP 1
　 17 ZC16X04200 CLIP 3
　 18 ZC16X05100 CLIP 2
　 19 ZC16X05800 CLIP 5
　 20 ZM73C10025 SEMS-BOLT 3
　 21 ZM73C08020 SEMS-BOLT 6
　 22 ZM73C08016 SEMS-BOLT 4
　 23 ZM61C06020 SEMS-BOLT 2
　 24 ZN18C08007 NUT 4
　 25 ZW16P08000 WASHER 2
　 26 YT05P01266P1 PACKING 1
　 27 2427P1836D19 STRIP, WEATHER 1
　 28 2427P1836D47 STRIP, WEATHER 3
　 29 YT21C01039DD STRIP, WEATHER 1
　 30 PY01P01043D2 CLIP 1 LG01-H5727-
　 31 YN13E01375P1 CLIP 1 LG01-H5727-
　 32 PU13E01002D9 TUBE 1 LG01-H5727-

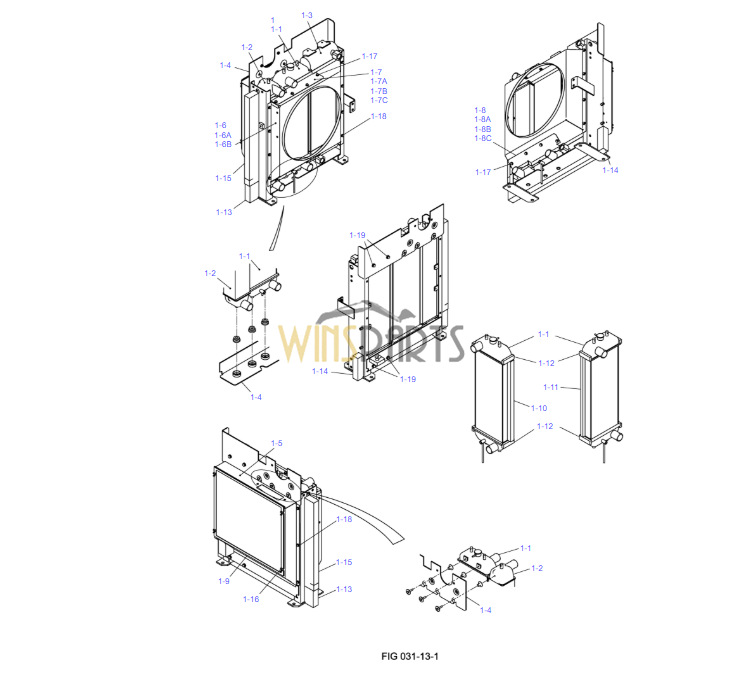

LG05P00004F1 LG05P00001F1 YT05P00021F1 RADIATOR ASSY KOBELCO SK75-8
　 .
　 1 LG05P00001F1 RADIATOR ASSY 1
　 1-1 YT05P00021F1 RADIATOR 1
　 1-2 YT05P01080P1 COOLER, AIR 1
　 1-3 YT53V00002P1 COOLER, OIL 1 LG01-H0101–H9512
　 . LG01315001–15376
　 1-3 YT53V00002P2 COOLER, OIL 1 LG01315377-
　 1-4 LG05P01007F1 FRAME ASSY 1
　 1-4A LG05P01035P1 FRAME 1
　 1-4B YT05P01189P1 RUBBER 2
　 1-4C YT05P01107P1 RUBBER 2
　 1-4D YT05P01108P1 RUBBER 2
　 1-4E YT05P01111P1 INSULATION 1
　 1-4F YT05P01112P1 INSULATION 1
　 1-4G YJ13E01014P1 GROMMET 2
　 1-4H LG05P01008P1 RUBBER 1
　 1-4J LG05P01055P1 RUBBER 1
　 1-5 LG05P01048F1 GUARD ASSY 1
　 1-5A LG05P01047P1 GUARD 1
　 1-5B LG05P01049P1 RUBBER 2
　 1-5C LG05P01050P1 RUBBER 2
　 1-5D LG05P01028P1 RUBBER 1
　 1-5E LG05P01029P1 RUBBER 1
　 1-6 YT05P01232F1 SHROUD ASSY, RADIATOR 1
　 1-6A YT05P01233P1 SHROUD 1
　 1-6B YT05P01125P1 RUBBER 2
　 1-7 YT05P01172F1 COVER ASSY 1
　 1-7A YT05P01173P1 COVER 1
　 1-7B YT05P01126P1 RUBBER 1
　 1-7C YT05P01133P1 RUBBER 1
　 1-8 YT05P01174F1 COVER ASSY 1
　 1-8A YT05P01177P1 COVER 1
　 1-8B YT05P01126P1 RUBBER 1
　 1-8C YT05P01133P1 RUBBER 1
　 1-9 LG05P01052P1 NET, CATCH, INSECT 1
　 1-10 YT05P01101P1 INSULATION 1
　 1-11 YT05P01102P1 INSULATION 1
　 1-12 YT05P01103P1 RUBBER 4
　 1-13 LG05P01010P1 RUBBER 1
　 1-14 LG05P01053P1 RUBBER 1
　 1-15 LG05P01009P1 INSULATION 1
　 1-16 2420R585D21 BOLT 4
　 1-17 ZM73C08016 SEMS-BOLT 8
　 1-18 ZM73C08020 SEMS-BOLT 14
　 1-19 ZM73C10025 SEMS-BOLT 4
　 2 LG05P00003F1 RADIATOR INSTAL 1
　 2-1 YN05P01177P1 STAY 1
　 2-2 ZM73C12030 SEMS-BOLT 6

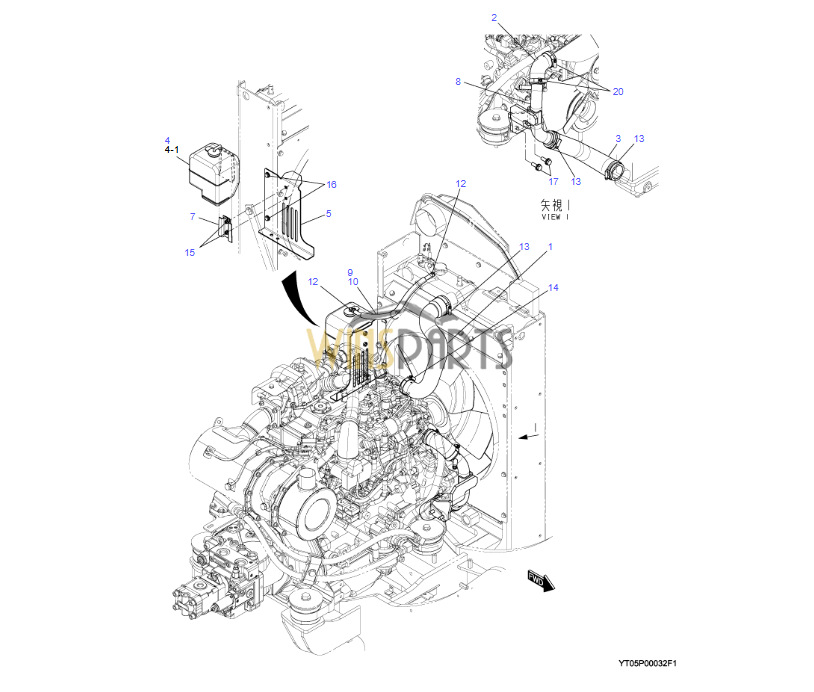

YT05P01041F1 LE05P01019F1 WATER TANK ASSY KOBELCO SK75-8 SK75SR-7
　 .
　 1 YT05P01485P1 HOSE, RADIATOR 1
　 2 YT05P01487P1 HOSE, RADIATOR 1
　 3 YT05P01496P1 HOSE, RADIATOR 1
　 4 YT05P01041F1 TANK ASSY, WATER,SUB 1 YT09-40001–40002
　 4 LE05P01019F1 TANK ASSY, WATER,SUB 1 YT09-40003–40251
　 . YT09045001–47348
　 4 LE05P01019F2 TANK ASSY, WATER,SUB 1 YT09047349-
　 5 YT05P01589P1 GUARD 1 YT09-40001–40008
　 5 YT05P01621P1 GUARD 1 YT09-40009–40251
　 . YT09045001–49355
　 5 YT05P01641P1 GUARD 1 YT09049356-
　 7 2416Z519 BRACKET 1
　 8 YT05P01580P1 TUBE 1
　 9 PU13E01002D5 TUBE 1
　 10 HX11Y05044DX HOSE 1 YT09-40001–40002
　 10 PV21M01001DA HOSE 1 YT09-40003-
　 12 PH05P01088D6 CLIP 2 YT09-40001–40251
　 . YT09045001–48857
　 12 PH05P01088D5 CLIP 2 YT09048858-
　 13 ZC16X05800 CLIP 3
　 14 ZC16X05000 CLIP 1
　 15 ZM61C06016 SEMS-BOLT 2
　 16 ZM73C08020 SEMS-BOLT 2
　 17 ZM73C10030 SEMS-BOLT 2
　 20 ZC16X04200 CLIP 2
YT05P00031F1 RADIATOR INSTAL Not Service
　 .
050-01_YT05P00034F1_KCM-EUR-05_D0002504918_1 1 YT05P00034F1 RADIATOR ASSY 1 P.050-01
050-02_YT05P00033F1_KCM-EUR_D0002504919_1 2 YT05P00033F1 RADIATOR INSTAL 1 P.050-02

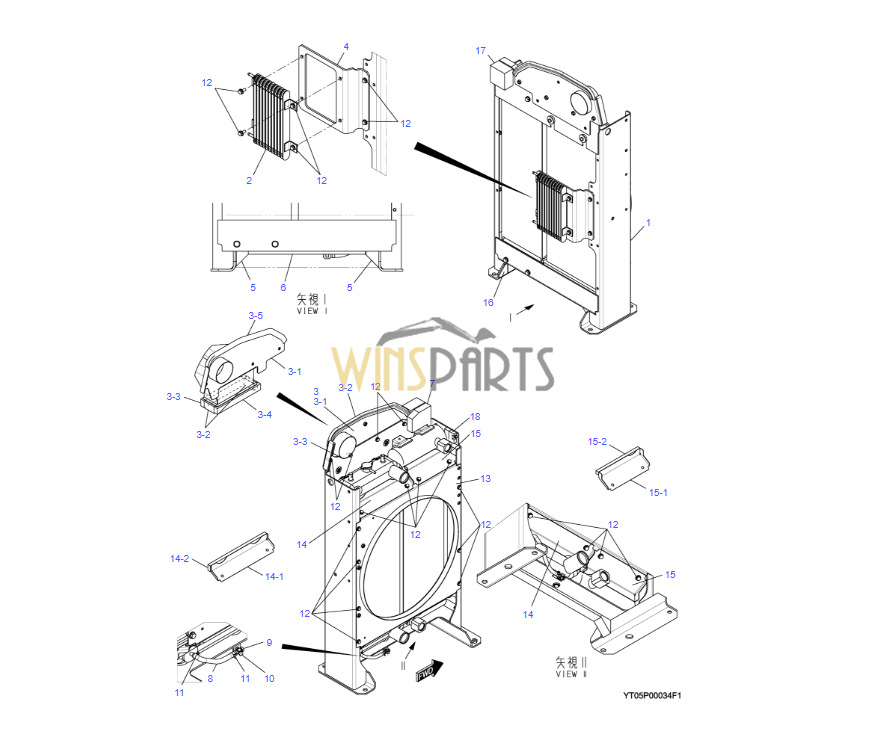

YT05P00034F1 YT05P00036F1 YT05P00036S002 RADIATOR ASSY KOBELCO SK75SR-7 Excavator
　 1 YT05P00036F1 RADIATOR ASSY 1 YT09-40001–40251
　 . YT09045001–46435
　 1-1 YT05P00036S001 FRAME 1
　 1-2 YT05P00036S002 RADIATOR 1
　 1-3 YY05P00061S005 CAP 1
　 1-4 YT05P00036S004 COOLER, OIL 1
　 1-5 YY05P00061S009 MOUNT, RUBBER 2
　 1-6 YY05P00061S010 MOUNT, RUBBER 2
　 1-7 YY05P00061S011 COLLAR 2
　 1-8 YY05P00061S012 BOLT 2
　 1-9 YY05P00076S013 BOLT 4
　 1-13 YY05P00061S019 INSULATION 1
　 1-14 YY05P00061S024 INSULATION 1
　 1-15 YY05P00061S025 INSULATION 1
　 1-16 YY05P00076S023 INSULATION 1
　 1-18 YT05P00036S018 RUBBER 2
　 1-19 YY05P00061S030 RUBBER 1
　 1-20 YY05P00076S029 RUBBER 1
　 1-21 YY05P00076S030 RUBBER 1
　 1-22 YY05P00076S031 RUBBER 1
　 1 YT05P00040F2 RADIATOR ASSY 1 YT09046436-
　 1-1 YT05P00040S001 FRAME 1
　 1-2 YT05P00036S002 RADIATOR 1
　 1-3 YY05P00061S005 CAP 1
　 1-5 YY05P00061S009 MOUNT, RUBBER 2
　 1-6 YY05P00061S010 MOUNT, RUBBER 2
　 1-7 YY05P00061S011 COLLAR 2
　 1-8 YY05P00061S012 BOLT 2
　 1-9 YY05P00076S013 BOLT 4
　 1-13 YY05P00061S019 INSULATION 1
　 1-14 YY05P00061S024 INSULATION 1
　 1-15 YY05P00061S025 INSULATION 1
　 1-16 YY05P00076S023 INSULATION 1
　 1-18 YT05P00036S018 RUBBER 2
　 1-19 YY05P00061S030 RUBBER 1
　 1-20 YY05P00076S029 RUBBER 1
　 1-21 YY05P00076S030 RUBBER 1
　 1-22 YY05P00076S031 RUBBER 1
　 1-25 YT05P00036S025 COOLER, OIL 1
　 1-26 YT05P00036S011 INSULATION 2
　 1-27 YT05P00036S012 INSULATION 2
　 1-28 YT05P00036S017 INSULATION 1
　 1-29 YT05P00036S023 INSULATION 2
　 1-30 YT05P00036S024 RUBBER 2
　 2 YT53V00004P1 COOLER, OIL 1
　 3 YT05P01504F1 GUARD ASSY 1 YT09-40001–40002
　 3-1 YT05P01595P1 GUARD 1
　 3-2 YT05P01514P1 RUBBER 2
　 3-3 YT05P01515P1 RUBBER 1
　 3-4 YT05P01516P1 RUBBER 1
　 3-5 2427P1836D15 STRIP, WEATHER 1
　 3 YT05P01602F1 GUARD ASSY 1 YT09-40003-
　 3-1 YT05P01578P1 GUARD 1 YT09-40003–40251
　 . YT09045001–45218
　 3-1 YT05P01629P1 GUARD 1 YT09045219-
　 3-2 2427P1836D15 STRIP, WEATHER 1 YT09-40003–40251
　 . YT09045001–45218
　 3-2 PH21C01136DN STRIP, WEATHER 1 YT09045219-
　 3-3 YT05P01603P1 RUBBER 1
　 4 YT05P01597P1 BRACKET 1
　 5 YT05P01501P1 RUBBER 2 YT09-40001–40251
　 . YT09045001–49355
　 5 YT05P01501P1 RUBBER 1 YT09049356-
　 6 YT05P01502P1 RUBBER 1 YT09-40001–40251
　 . YT09045001–49355
　 6 YT05P01640P1 RUBBER 1 YT09049356-
　 7 YT05P01503P1 INSULATION 1
　 8 YJ05P01098D2 HOSE 1
　 9 PW05P01117P1 PLUG 1
　 10 YR21C01123P1 CLIP 1
　 11 PH05P01088D5 CLIP 2
　 12 ZM73C08020 SEMS-BOLT 25
　 13 YT05P01587P1 SHROUD 1
　 14 YT05P01525F1 COVER ASSY 2
　 14-1 YT05P01526P1 COVER 1
　 14-2 YT05P01527P1 RUBBER 1
　 15 YT05P01546F1 COVER ASSY 2
　 15-1 YT05P01545P1 COVER 1
　 15-2 YT05P01547P1 RUBBER 1
　 16 YT05P01591P1 RUBBER 1
　 17 YT05P01594P1 INSULATION 1
　 18 YT21C03126P1 RUBBER 1
YT05P00033F1 RADIATOR INSTAL Not Service
　 .
　 1 YT05P01498P1 STAY 1
　 2 ZM73C12030 SEMS-BOLT 5
　 3 ZM73C12045 SEMS-BOLT 1
YT11P00015F1 YT11P00014F1 AIR CLEANER ASSY KOBELCO SK75SR-7 Excavator
　 .
055-01_YT11P00015F1_NA_D0003567438_1 1 YT11P00015F1 CLEANER, AIR 1 P.055-01
　 2 YT11P01073P1 HOSE, AIR 1 YT09-40001–40251
　 . YT09045001–47012
　 2 YT11P01073P2 HOSE, AIR 1 YT09047013-
　 3 YT11P01076F1 HOSE ASSY 1 YT09-40001–40251
　 . YT09045001–47012
　 3 YT11P01076F2 HOSE ASSY 1 YT09047013-
　 4 YT11P01077P1 BRACKET 1 YT09-40001–40002
　 4 YT11P01077P2 BRACKET 1 YT09-40003-
　 6 ZC16X05800 CLIP 1
　 7 ZC16X10000 CLIP 2 YT09-40001–40002
　 7 ZC16X10000 CLIP 3 YT09-40003-
　 8 ZC16X11000 CLIP 1
　 9 ZM73C08025 SEMS-BOLT 4
　 10 ZM73C10025 SEMS-BOLT 2
　 11 YT11P01078P1 TUBE, INTAKE, AIR 1 YT09-40003-
　 12 ZS18C08020 CAPSCREW 3 YT09-40003-
　 13 YR21C01223P1 WASHER 3 YT09-40003-
　 14 YT22C01695P1 RUBBER 1 YT09-40003-
YT11P00015F1 CLEANER, AIR
　 .
　 1 YT11P00015S001 BODY ASSY 1
　 2 YT11P00015S002 GASKET 1
　 3 YT11P00015S003 CAP ASSY 1
　 4 YT11P00015S004 VALVE ASSY 1
　 5 YT11P00015S005 FILTER 1
　 6 YT11P00015S006 FILTER 1
　 7 YT11P00015S007 CLIP 4
　 8 YT11P00015S008 INDICATOR 1
　 9 PW11P00010S004 INDICATOR 1
　 10 YT11P00015S009 HOSE 1
YT11P00008F1 CLEANER ASSY, AIR ELEMENT SK75-8
　 .
　 1 YT11P00009F2 CLEANER, AIR 1
　 1-1 YT11P00009S001 BODY ASSY 1
　 1-2 YT11P00009S007 ELEMENT ASSY, INNER 1
　 1-3 YT11P00009S002 ELEMENT ASSY, OUTER 1
　 1-4 YT11P00009S003 COVER ASSY 1
　 1-5 YT11P00009S004 VALVE ASSY 1
　 1-6 YR11P00008S005 INDICATOR 1
　 2 YT11P01023P2 BRACKET 1 LG01-H0101–H0442
　 2 YT11P01036P1 BRACKET 1 LG01-H0443-
　 3 YT11P01017P1 HOSE, AIR 1
　 4 YT11P01018P1 HOSE, AIR 1
　 5 YT11P01019P1 HOSE, AIR 1
　 6 YT11P01021P1 TUBE 1
　 7 ZM73C08016 SEMS-BOLT 2
　 8 ZM73C10025 SEMS-BOLT 2
　 9 ZC16X05100 CLIP 1
　 10 ZC16X06100 CLIP 2
　 11 ZC16X09100 CLIP 3
LG12P00001F1 LG12P00002P1 MUFFLER ASSY KOBELCO SK75SR-7 Excavator
　 .
　 1 LG12P00002P1 MUFFLER 1
　 2 YT12P01054P2 BRACKET 1
　 3 LG12P01004P1 TUBE, EXHAUST 1
　 4 YT12P01052P1 TUBE, EXHAUST 1
　 5 YT12P01031P1 CLAMP ASSY 1
　 6 HR91C08000GK U-BOLT 2
　 7 HX11Y07066DX HOSE 1
　 8 ZM73C12020 SEMS-BOLT 1
　 9 ZM73C10025 SEMS-BOLT 6
　 10 ZS18C10035 CAPSCREW 2
　 11 ZW16P10000 WASHER 2
　 12 ZW16P08000 WASHER 3
　 13 ZN18C10008 NUT 2
　 14 ZN18C08007 NUT 11
　 15 YB12P01011P1 CLIP 1
　 16 ZC16X01200 CLIP 1
　 19 YT12P01061P1 BRACKET 1
　 20 ZM73C06025 SEMS-BOLT 2
　 21 ZM73C06016 SEMS-BOLT 2
　 22 ZM73C08016 SEMS-BOLT 1
　 23 ZS18C06012 CAPSCREW 2
　 24 ZW16H06000 WASHER 2
YT12P00017F1 MUFFLER ASSY KOBELCO SK75SR-7 Excavator
　 .
　 1 YT12P01124P1 TUBE, EXHAUST 1
　 2 YT12P01139P1 TUBE, EXHAUST 1
　 3 YT12P01140P1 CLAMP ASSY 1
　 4 ZM73C10020 SEMS-BOLT 4
1 2 YN30V00105S005 COVER
11 4 YN30V00105S010 ROD Spool
1 YN30V00105R120 KIT Repair Consists Of Ref. 9×4, 10×4
1 YN30V00105R130 KIT Repair Consists Of Ref. 12×4
1 YN30V00105R140 KIT Repair Consists Of Ref. 13×4
1 YN30V00105R150 KIT Repair Consists Of Ref. 14×4, 15×6, 16×6
