LG03M00010F1 LG03M00004F1 OPERATORS CONTROLS KOBELCO SK75-8 SK70SR-2 SK75SR-3 SK75UR-5
.

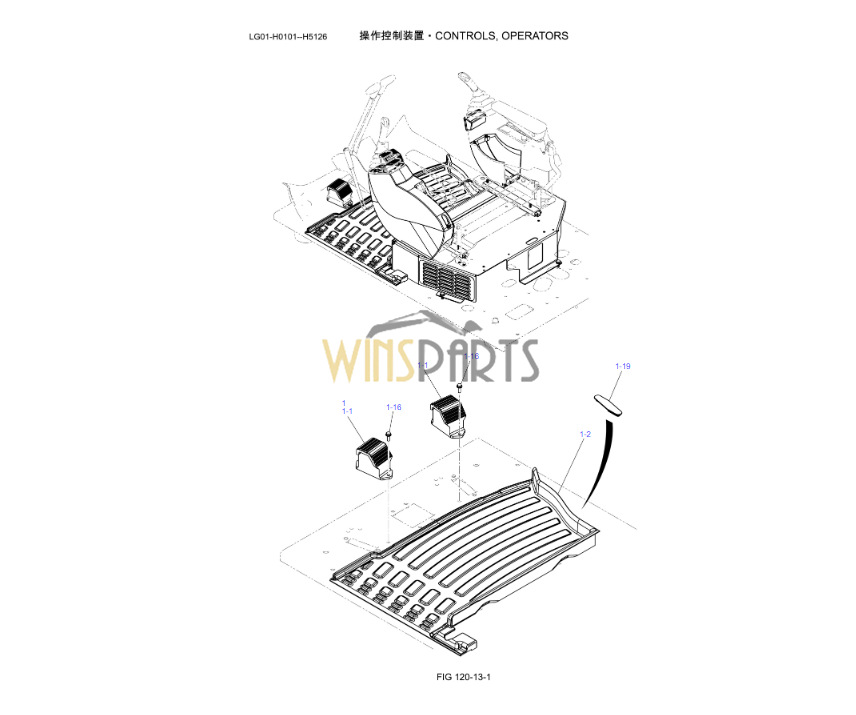

1 LG03M00004F1 CONTROLS, OPERATORS 1
1-1 YN03M01859P2 SUPPORT 2
1-2 YN26M00065P1 MAT, FLOOR 1
1-3 YN03M01943F2 COVER ASSY 1
1-3B YN03M01944P1 NUT 3
1-3C YN03M01654P2 COVER 1
1-4 YN03M01945F1 COVER ASSY 1
1-4A YN03M01655P1 COVER 1
1-4B YN17M01296P1 COLLAR 4
1-5 YN03M01946F1 COVER ASSY 1
1-5A YN03M01656P1 COVER 1
1-5B YN03M01944P1 NUT 4
1-6 LG25M01001P1 STAND, SEAT 1
1-7 YN25M01161F1 RAIL 1
1-8 YN20M01356P1 GRILLE 1
1-9 ZM73C10020 SEMS-BOLT 4
1-10 ZS28C08016 CAPSCREW 4
1-11 ZW26K08000 LOCK WASHER 4
1-12 ZW16P08000 WASHER 4
1-13 ZS28C08020 CAPSCREW 4
1-14 YN02C02055P1 TRAY, ASH 1
1-15 ZM66C06016 SEMS-BOLT 9
1-16 ZM73C08025 SEMS-BOLT 4
1-17 YN20M01643P2 SPRING 1
1-18 YT03M01222P1 GROMMET 1
1-19 YN03M02085P2 GROMMET 1

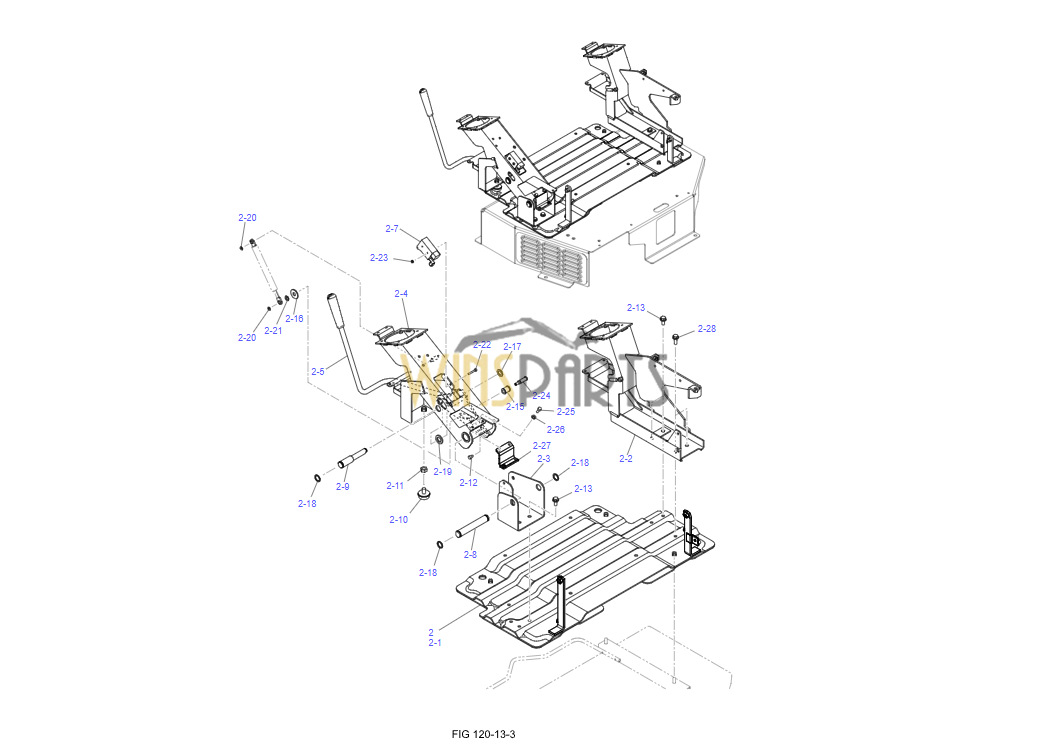

2 LG03M00008F1 CONTROL BOX ASSY
2-1 YN03M02173P1 BRACKET ASSY 1
2-2 YB03M01058P1 CONTROL BOX 1
2-3 YN03M01886P1 BRACKET 1
2-4 YN03M01889P3 CONTROL BOX 1
2-5 YN03M02084P1 LEVER ASSY 1
2-7 YN50S00041F1 SWITCH, LIMIT 1
2-8 YN03M01904P1 SHAFT 1
2-9 YN03M01905P1 SHAFT 1
2-10 YN03M01906P1 STOPPER 1
2-11 YN03M01907P1 NUT 1
2-12 YN03M01908P2 BOLT 1
2-13 ZM73C08020 SEMS-BOLT 6
2-15 YN03M01911P1 BUSHING 1
2-16 YN03M01912P1 WASHER 1
2-17 YN03M01913P1 RING, RETAINING 1
2-18 YN03M01914P1 RING, RETAINING 3
2-19 YN03M01915P1 WASHER 1
2-20 YN03M01916P1 RING, RETAINING 2
2-21 YN03M01917P1 RING, RETAINING 1
2-22 YN03M01918P1 BOLT 2
2-23 YN03M01919P1 NUT 2
2-24 YN03M01920P1 SHAFT 1
2-25 YN03M01921P1 BOLT 2
2-26 YN03M01922P1 WASHER 2
2-27 YN03M01924P1 PLATE 1
2-28 ZM73C08025 SEMS-BOLT 2

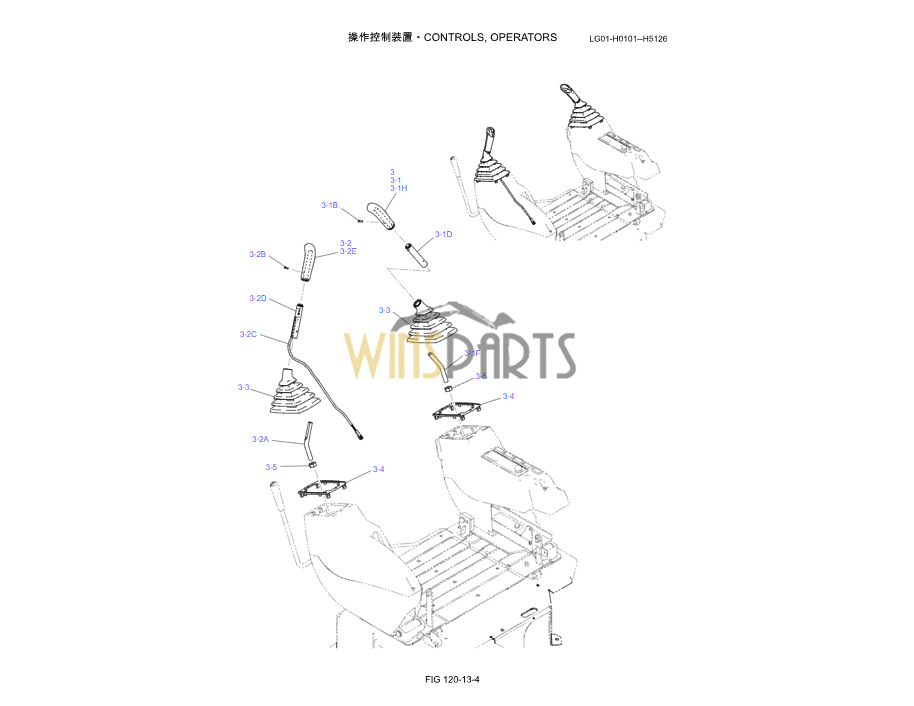

3 YN03M01974F1 GRIP ASSY 1
3-1 YN03M02021F3 GRIP ASSY 1
3-1B YN03M02019P1 CAPSCREW 1
3-1D YN03M01866P1 CASE 1
3-1F YN03M01864P1 LEVER 1
3-1H YN03M01972P1 GRIP 1
3-2 YN03M02021F1 GRIP ASSY 1
3-2A YN03M01865P1 LEVER 1
3-2B YN03M02019P1 CAPSCREW 1
3-2C YN50E00017P1 SWITCH ASSY 1
3-2D YN03M01866P1 CASE 1
3-2E YN03M01867P1 GRIP 1
3-3 YN03M01498P1 BOOT 2
3-4 YN03M01328P2 PLATE 2
3-5 ZN18C14011 NUT 2
4 YN50E00018F1 SWITCH INSTAL 1
4-1 YN17M01282P1 CAP 5

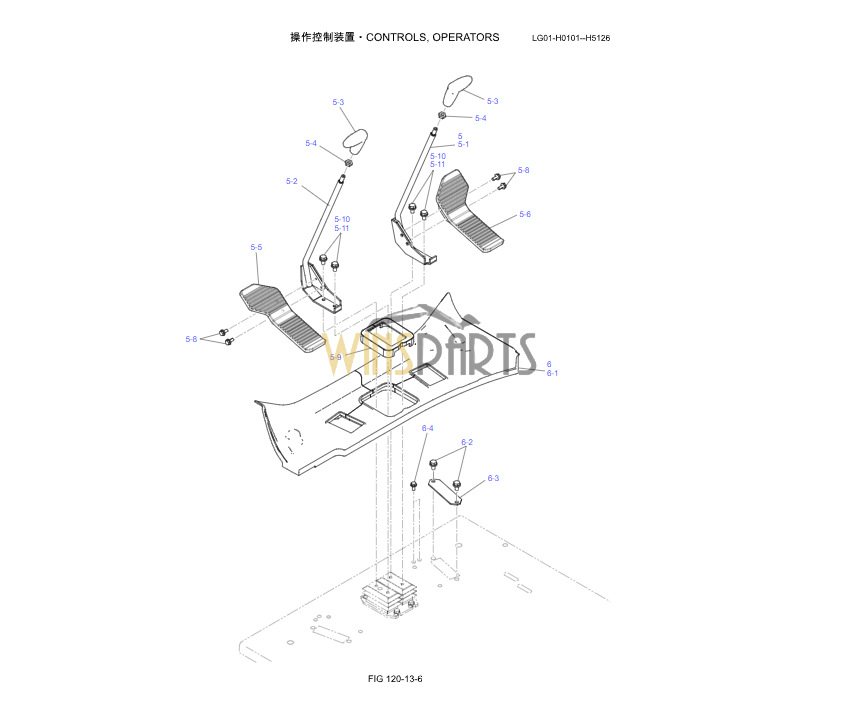

5 YT50M00003F1 LEVER ASSY, PROPEL 1
5-1 YT50M01032P1 LEVER 1
5-2 YT50M01031P1 LEVER 1
5-3 YN03M01040P1 GRIP 2
5-4 2420Z1232 NUT 2
5-5 YN55M01011P1 PEDAL 1
5-6 YN55M01010P1 PEDAL 1
5-8 ZM22C08025 SEMS-BOLT 4
5-9 YT26M00031P1 MAT, FLOOR 1
5-10 ZW16H08000 WASHER 4
5-11 ZS28C08016 CAPSCREW 4
6 YY55M00009F1 PEDAL ASSY 1
6-1 YN26M00064P1 MAT, FLOOR 1
6-2 ZM73C10020 SEMS-BOLT 2
6-3 YY55M01009P1 PLATE 1
6-4 ZM73C08020 SEMS-BOLT 2
7 LG54E00002F1 RADIO INSTAL 1
7-1 YN17M01072P1 CABLE 1
7-2 2432Z478D1 CLIP 2
7-3 PY01P01043D3 CLIP 4
7-4 YN54S00030P1 TUNER 1 LG01-H0101–H0220
7-4 YN54S00030P2 TUNER 1 LG01-H0221-
7-5 YN03M01942F2 COVER ASSY 1
7-5B YN17M01296P1 COLLAR 3
7-5C YN03M01653P2 COVER 1
7-6 YN54E01020P1 BRACKET 2
7-7 ZM66C06016 SEMS-BOLT 3
7-8 2420R1089D1 SEMS-BOLT 4
7-9 YN17M01262P1 SCREW, TAPPING 4
7-10 ZW16P05000 WASHER 4
8 YT12P01066F1 CLAMP ASSY 1
8-1 YT12P01037F1 CLAMP 1
8-1A YT12P01038P1 PLATE 1
8-1B YT12P01040P1 RUBBER 1
8-2 YT12P01063F1 CLAMP 2
8-2A YT12P01064P1 PLATE 1
8-2B YT12P01065P1 RUBBER 1
8-4 YT12P01047F1 CLAMP 1
8-4A YT12P01048P1 PLATE 1
8-4B YT12P01050P1 RUBBER 1
8-5 ZW26K06000 LOCK WASHER 4
8-6 ZS28C06020 CAPSCREW 4
