LG02C00001F1 LG02C00003F1 LG02C00004P1 LG02C00002F1 CAB ASSY KOBELCO SK75-8 SK70SR-2 SK75SR-3

LG02C00001F1 LG02C00003F1 LG02C00004P1 LG02C00002F1 CAB ASSY KOBELCO SK75-8 SK70SR-2 SK75SR-3
　 .
　 1 LG02C00002F1 CAB ASSY 1
　 . (GRAYISH BLACK)
　 1-1 LG02C00003F1 CAB ASSY 1
　 1-1A LG02C00004P1 CAB 1
　 1-1B YN51C00009F1%KL DOOR ASSY, CAB 1
　 . (GRAYISH BLACK)
　 1-1Ba YN51C01001P1 PANEL 1
　 1-1Bb YN51C01045P1 HANDLE 1
　 1-1Bc HN16C06000G1 NUT 2
　 1-1Bd YN51C01043P1 HOOK 1
　 1-1Be YN02C02034F1 SASH ASSY 1
　 1-1Be-1 YN02C02034S001 FRAME ASSY 1
　 1-1Be-2 YN02C02035P1 GLASS 1
　 1-1Be-3 YN02C02036P1 GLASS 1
　 1-1Be-4 YN02C02034S004 SEAL 1
　 1-1Be-5 YN02C02034S005 LOCK ASSY 2
　 1-1Be-6 YN02C02034S006 SEAL 1
　 1-1Be-7 YN02C02034S007 SEAL 1
　 1-1Be-8 YN02C02034S008 STOPPER 1
　 1-1Be-9 YN02C02034S009 STOPPER 1
　 1-1Be-10 YN02C02034S010 STOPPER 1
　 1-1Bf YN51C01096P1 GLASS 1
　 1-1Bg YN51C01099P2 LOCK ASSY 1
　 1-1Bh YN02C01635P1 HINGE 2
　 1-1Bj ZS13C10025 CAPSCREW 6
　 1-1Bk ZW11X10000 WASHER 6
　 1-1Bl YN51C01180P1 SEAL 1
　 1-1Bm YT51C01065D1 PLATE 2
　 1-1Bn YT02C01261D4 PLATE 2
　 . (NEUTRAL GRAY 971)
　 1-1Bp YT02C01233P1 CAP 2
　 1-1Br YN51C01055P1 TRIM 1
　 1-1Bs YT02C01246P1 PLATE 1
　 1-1Bt YN51C01051P2 RUBBER 1
　 1-1Bu YT51C01039P1 GROMMET 1
　 1-1Bv YT51C01029P1 CLIP 1
　 1-1Bw ZS41C06016 MACHINE SCREW 3
　 1-1Bx YN51C01030P1 RUBBER 2
　 1-1By YN51C01054P1 RUBBER 2
　 1-1Bz YN51C01053P1 RUBBER 2
　 1-1Bz24 YN51C01040P1 HOLDER 3
　 1-1Bz25 YN51C01016P1 ROD 1
　 1-1Bz26 YN51C01015P1 ROD 1
　 1-1Bz27 ZN18C08007 NUT 2
　 1-1Bz28 YT51C01068P1 WASHER 2
　 1-1Bz29 ZW26X08000 LOCK WASHER 2
　 1-1Bz30 YN51C01031P1 RUBBER 2
　 1-1Bz31 ZM27C10025 SEMS-BOLT 2
　 1-1Bz32 YN17M01033D3 MACHINE SCREW 1
　 1-1Bz33 YT02C01295D2 RUBBER 1
　 1-1Bz34 YT02C01230P1 WASHER 3
　 1-1Bz35 YN51C01155F1 LINK ASSY 1
　 1-1Bz35-1 YT51C01027P1 LOCK 1
　 1-1Bz35-2 YN51C01024P1 LINK 1
　 1-1Bz35-3 YN51C01154P1 ROD 1
　 1-1Bz35-4 YN51C01013P1 ROD 1
　 1-1Bz35-5 YN51C01018P1 PLATE 1
　 1-1Bz35-6 YN51C01094P1 ROD 1
　 1-1Bz35-7 YT51C01017P1 PIN 3
　 1-1Bz35-8 YN51C01032P1 HOLDER 3
　 1-1Bz35-9 YT51C01016P1 PIN 1
　 1-1Bz35-10 YN51C01040P1 HOLDER 1
　 1-1Bz36 YN51C01019P1 PLATE 1
　 1-1Bz37 YT51C01018P1 HOLDER 1
　 1-1Bz38 YT02C01296P1 RIVET 6
　 1-1Bz39 YT02C01241D1 BOLT 3
　 1-1Bz40 YN51C01052P1 WASHER 3
　 1-1Bz41 YN51C01042P1 COVER 1
　 1-1Bz42 YN51C01046P1 HANDLE 1
　 1-1Bz43 YN51C01028P1 HANDLE 1
　 1-1Bz44 ZW16X08000 WASHER 3
　 1-1Bz45 YT02C01514D4 SEAL 1
　 1-1Bz46 YN01T01067P1 ADHESIVE 1
　 1-1Bz47 YN09T00009P1 PAINT (25g) 1
　 1-1Bz48 YN09T00008P1 PAINT (25g) 1
　 1-1Bz49 YT02C01515D3 TRIM 1
　 1-1Bz50 YT02C01567D4 PLATE 2
　 . (GRAYISH BLACK)
　 1-1Bz52 YN09T00007P1 PAINT (25g) 1
　 1-1C YN50C00005F1 WINDOW ASSY, FR. 1
　 1-1Ca YN50C01237P1 FRAME ASSY 1
　 1-1Cb YN50C01189P1 LOCK ASSY 1
　 1-1Cc YN50C01173P1 GLASS 1
　 1-1Cd YN50C01170P1 PLATE 2
　 1-1Ce YN50C01171P1 RUBBER 2
　 1-1Cf ZM66C06016 SEMS-BOLT 8
　 1-1Cg ZM73C08020 SEMS-BOLT 2
　 1-1Ch YN50C01172P1 RUBBER 2
　 1-1Cj YT50C01023P1 RUBBER 4
　 1-1Ck YN50C01194P1 SEAL 1
　 1-1Cl YN50C01246P1 SEAL 1
　 1-1Cm YT50C01012P1 ROLLER 4
　 1-1Cn 2414Z306D2 CAP 2
　 1-1Cp YN50C01207P1 PLATE 1
　 1-1D YN02C03160P1 GLASS 1
　 1-1E YN02C01794P1 GLASS 1
　 1-1F YN02C01567P1 GLASS 1
　 1-1G YN02C01787P1 GLASS 1
　 1-1H YN02C02136P1 GLASS 1
　 1-1J YN02C03006P2 RUBBER 1
　 1-1K YN02C01821P1 RUBBER 1
　 1-1L YN02C01825P1 SEAL 1
　 1-1M YT02C01115D3 RUBBER 1
　 1-1N YT02C01515D5 TRIM 1
　 1-1P YN02C01741P2 SEAL 1
　 1-1R YN02C03669P2 STRIP, WEATHER 1
　 1-1S YN02C03887P1 STOPPER 2
　 1-1T YN02C02747P1 GUIDE 1
　 1-1U YN02C02746P1 GUIDE 1
　 1-1V YN02C03005P1 SPACER 4
　 1-1W YN02C01811P1 PLATE 2
　 1-1X YN02C01656P1 LOCK ASSY 1
　 1-1Y YN02C01812P1 SPACER 3
　 1-1Z YN02C01668P1 RETAINER 3
　 1-1Z24 YN02C01669P1 PACKING 3
　 1-1Z25 YT02C01066P1 STOPPER 2
　 1-1Z26 YT50S00004P1 SWITCH 1
　 1-1Z27 YN02C02970F1 CABLE ASSY 1
　 1-1Z27a YN02C02970S001 BRACKET ASSY 1
　 1-1Z27b YN02C02970S002 CABLE ASSY 1
　 1-1Z28 YT02C01161P1 CLAMP 2
　 1-1Z29 YT02C01136P1 STOPPER 2
　 1-1Z30 YT51C01021P1 HOOK 1
　 1-1Z31 YT51C01077D1 SPACER 1
　 1-1Z32 YT02C01109F1 CATCH ASSY, DOOR 1
　 1-1Z33 YT02C01124P1 COVER 1
　 1-1Z34 YN02C02117P2 LEVER 1
　 1-1Z35 YT02C01207P1 SPRING 1
　 1-1Z36 YT02C01276P1 COVER 1
　 1-1Z37 YN02C01823P1 STOPPER 2
　 1-1Z38 YT02C01274P1 COVER 1
　 1-1Z39 YT02C01280P1 SPACER 1
　 1-1Z40 YT02C01275P1 LABEL 1
　 1-1Z41 YN02C02941P3 PAD 1
　 1-1Z42 YN02C01820P1 CLIP 6
　 1-1Z45 YN02C01880P1 CLIP 6
　 1-1Z46 YT54C00001P1 WASHER ASSY, WINDOW 1
　 1-1Z47 YT02C01126D1 TUBE 1
　 1-1Z48 YT02C01129P1 COVER 2
　 1-1Z49 YN02C03098P1 HARNESS 1
　 1-1Z50 YT54S00018F1 ANTENNA 1
　 1-1Z51 YT02C01134P1 HOOK 1
　 1-1Z52 YT80S00001P1 LIGHT, ROOM 1
　 1-1Z53 YN02C03321P1 HANDLE 1
　 1-1Z54 YN02C02983P1 HANDLE 1
　 1-1Z55 YN53C00012F2 WIPER ASSY 1
　 1-1Z56 YN53C01003F1 ARM ASSY 1
　 1-1Z56a YN53C01003S001 ARM, WIPER 1
　 1-1Z56b YN53C01003S002 BLADE, WIPER 1
　 1-1Z56c YN53C01003S003 MACHINE SCREW 2
　 1-1Z56d YN53C01003S004 COVER 1
　 1-1Z56e YN53C01003S005 BRACKET 1
　 1-1Z56f YN53C01003S006 STOPPER 1
　 1-1Z57 YN02C01294P1 STOPPER 1
　 1-1Z59 PY21V01001P1 VALVE, CHECK 1
　 1-1Z61 2420Z1227D4 MACHINESCREW 3
　 1-1Z62 ZS18C08030 CAPSCREW 1
　 1-1Z63 ZM22C08025 SEMS-BOLT 4
　 1-1Z64 ZM27C10025 SEMS-BOLT 3
　 1-1Z65 ZS31C05010 MACHINESCREW 4
　 1-1Z66 ZS32T40012 CROSS TAPPING SCREW 4
　 1-1Z67 ZS41C06020 MACHINESCREW 2
　 1-1Z68 ZM66C05012 SEMS-BOLT 2
　 1-1Z69 ZM66C06016 SEMS-BOLT 18
　 1-1Z70 ZS68C08025 CAPSCREW 2
　 1-1Z72 YR02C01571D2 CAPSCREW 2
　 1-1Z73 YN17M01033D3 MACHINE SCREW 3
　 1-1Z74 ZN13C10008 NUT 6
　 1-1Z75 ZN18F10008 NUT 4
　 1-1Z76 2418T12753 WASHER 1
　 1-1Z77 2418Z725D3 WASHER 1
　 1-1Z78 2420T4505 WASHER 6
　 1-1Z79 ZW11X10000 WASHER 6
　 1-1Z80 ZW16H10000 WASHER 2
　 1-1Z81 ZW16X10000 WASHER 4
　 1-1Z82 ZW22X10000 LOCK WASHER 6
　 1-1Z83 ZW26X08000 LOCK WASHER 1
　 1-1Z84 YT02C01229P1 WASHER 2
　 1-1Z85 2420R372D14 GROMMET 2
　 1-1Z87 2420R372D8 GROMMET 2
　 1-1Z89 YT02C01235P1 GROMMET 1
　 1-1Z90 YT02C01514D2 SEAL 1
　 1-1Z91 YN01T01067P1 ADHESIVE 1
　 1-1Z92 YN09T00009P1 PAINT (25g) 1
　 1-1Z93 YN09T00008P1 PAINT (25g) 1
　 1-1Z94 YT02C01567D1 PLATE 10
　 . (GRAYISH BLACK)
　 1-1Z95 YT02C01567D3 PLATE 13
　 . (GRAYISH BLACK)
　 1-1Z96 YT02C01567D2 PLATE 6
　 . (GRAYISH BLACK)
　 1-1Z99 YT02C01233P1 CAP 1
　 1-1Z100 YT02C01567D4 PLATE 3
　 . (GRAYISH BLACK)
　 1-1Z101 YN02C03056P1 STRIKER 1
　 1-1Z102 YN02C03055P1 STRIKER 1
　 1-1Z103 YN02C03095P2 STOPPER 1
　 1-1Z104 YN02C03094P2 STOPPER 1
　 1-1Z105 YN02C03077P1 BRACKET 1
　 1-1Z106 YN02C03075P1 BRACKET 1
　 1-1Z108 ZM66C06025 SEMS-BOLT 4
　 1-1Z109 YN02C03039P1 SPACER 1
　 1-1Z110 2420R372D7 GROMMET 1
　 1-1Z111 YN02C03047P2 BRACKET 1
　 1-1Z112 YN02C03048P2 BRACKET 1
　 1-1Z114 YN02C03147P1 RUBBER 1
　 1-1Z115 YN02C03040P1 SPACER 1
　 1-1Z116 HY25X09017G1 WASHER 2
　 1-1Z117 ZM27C08025 SEMS-BOLT 8
　 1-1Z118 ZM73C12020 SEMS-BOLT 4
　 1-1Z119 YT02C01261D1 PLATE 10
　 . (NEUTRAL GRAY 971)
　 1-1Z120 YT02C01261D2 PLATE 6
　 . (NEUTRAL GRAY 971)
　 1-1Z121 YT02C01261D3 PLATE 13
　 . (NEUTRAL GRAY 971)
　 1-1Z122 YT02C01261D4 PLATE 3
　 . (NEUTRAL GRAY 971)
　 1-1Z123 YN09T00007P1 PAINT (25g) 1
　 1-1Z124 YN02C02968P1 PLATE 1
　 1-1Z125 YN02C02969P1 PLATE 1
　 1-1Z126 YN02C01875D1 MACHINE SCREW 4
　 1-2 YY02C01040F1 WINDOW, ROOF 1
　 . (GRAYISH BLACK)
　 1-2A YY02C01041P1 WINDOW, ROOF 1
　 . (GRAYISH BLACK)
　 1-2Ad YY02C01109P1 HINGE 2
　 1-2B YN02C03810F1 LOCK 2
　 1-2Ba YN02C03812P1 LOCK 1
　 1-2Bb YN02C03811P1 COVER 1
　 1-2C YN02C03054P1 GLASS 1
　 1-2D YY02C01039P1 INSULATION 1
　 1-2E YY02C01102P2 SPRING 2
　 1-2F YT02C01390P1 WASHER 4
　 1-2G ZR36X00600 RING, SNAP 4
　 1-2H ZM46C06025 SEMS-BOLT 2
　 1-2J YN02C01820P1 CLIP 4
　 1-2K YN02C02967P1 HANDLE 1
　 1-2L YN01T01043P1 ADHESIVE 1
　 1-2M YN09T00005P1 PAINT 1
　 1-2N YN02C02971P1 SEAL 1
　 1-2P ZS18C08020 CAPSCREW 4
　 1-2R YR21C01161P1 WASHER 4
　 1-2S YN02C03131P1 BRACKET 2
　 1-2T ZM73C06016 SEMS-BOLT 4
　 1-2U ZM66C06020 SEMS-BOLT 8
　 1-2V YN02C01292P1 PLUG 4
　 2 YN02C00136F1 CAB INSTAL 1
　 2-1 ZS18C12065 CAPSCREW 5
　 2-2 2418T10357 WASHER 6
　 2-3 ZS18C12030 CAPSCREW 1

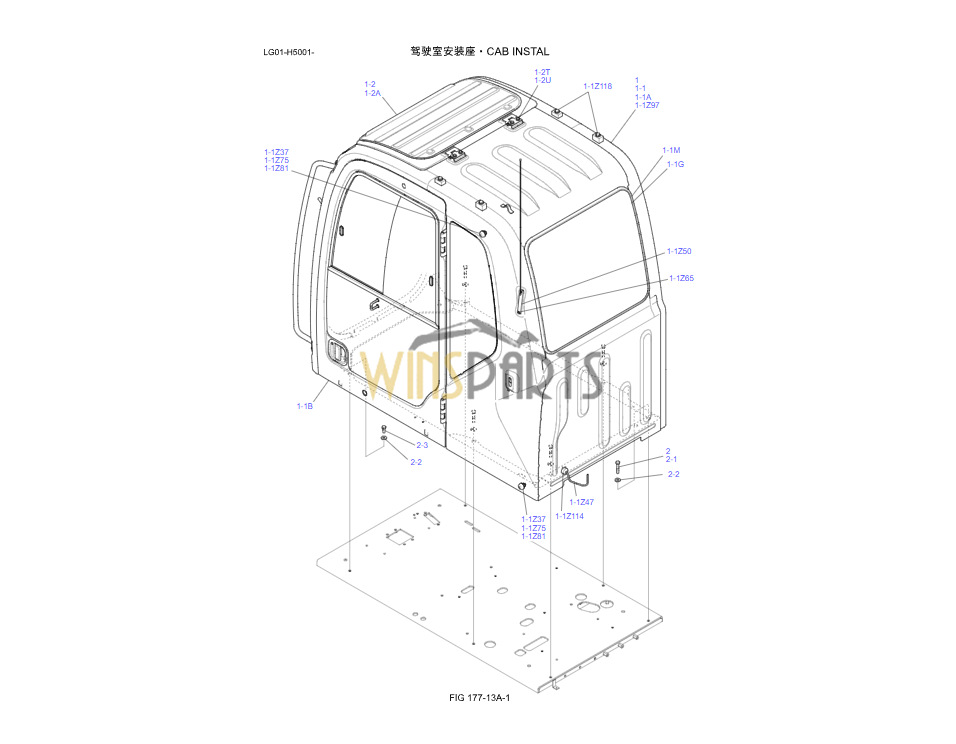

LG02C00005F1 LG02C00006F1 LG02C00007F1 LG02C00008P1 CAB DOOR ASSY KOBELCO SK75-8 SK80MSR-2 SK80CS-2
　 1 LG02C00006F1 CAB ASSY 1
　 1-1 LG02C00007F1 CAB ASSY 1
　 1-1A LG02C00008P1 CAB 1
　 1-1B YN51C00019F1%KL DOOR ASSY, CAB 1
　 . (GRAYISH BLACK)
　 1-1Ba YN51C01190P1 PANEL 1
　 1-1Bb LQ51C00003S005 HANDLE ASSY 1
　 1-1Bd YN51C01043P1 HOOK 1
　 1-1Be YN02C02034F1 SASH ASSY 1
　 1-1Be-1 YN02C02034S001 FRAME ASSY 1
　 1-1Be-2 YN02C02035P1 GLASS 1
　 1-1Be-3 YN02C02036P1 GLASS 1
　 1-1Be-4 YN02C02034S004 SEAL 1
　 1-1Be-5 YN02C02034S005 LOCK ASSY 2
　 1-1Be-6 YN02C02034S006 SEAL 1
　 1-1Be-7 YN02C02034S007 SEAL 1
　 1-1Be-8 YN02C02034S008 STOPPER 1
　 1-1Be-9 YN02C02034S009 STOPPER 1
　 1-1Be-10 YN02C02034S010 STOPPER 1
　 1-1Bf YN51C01195P1 GLASS 1
　 1-1Bh YN02C01635P1 HINGE 2
　 1-1Bj ZS13C10025 CAPSCREW 6
　 1-1Bk ZW11X10000 WASHER 6 LG01-H5001–H5276
　 1-1Bk ZW11P10000 WASHER 6 LG01-H5277-
　 1-1Bl YN51C01180P1 SEAL 1
　 1-1Bm YT51C01065D1 PLATE 2
　 1-1Bp YT02C01233P1 CAP 2
　 1-1Br YN51C01196P1 TRIM 1
　 1-1Bs LQ51C00003S016 SPACER 4
　 1-1Bt YN51C01051P2 RUBBER 1
　 1-1Bu YN51C01200P1 GROMMET 1
　 1-1Bw ZS41C06016 MACHINE SCREW 3
　 1-1Bx LQ51C00003S017 SPACER 2
YN52C00004F5 PY02C01079P1 BACK MIRROR ASSY KOBELCO SK75-8 SK70SR-2 SK75SR-3 SK75UR-5
　 .
　 2 YN52C01007P1 STAY 1
　 3 YN02C01762P1 BRACKET 1
　 4 ZS18C10050 CAPSCREW 2
　 5 ZW16X12000 WASHER 2
　 6 R16T0137D1 WASHER 2
　 7 ZN18C12010 NUT 4
　 13 ZW16H10000 WASHER 2
　 14 ZW26X10000 LOCK WASHER 2
　 15 PY02C01079P1 MIRROR ASSY, BACK

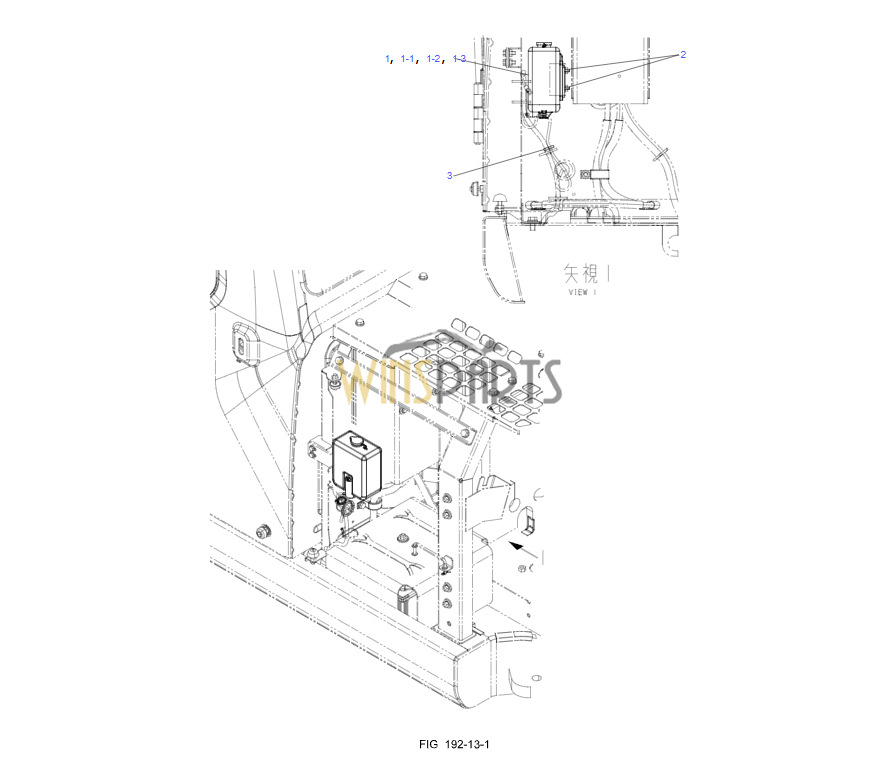

LG54C00001F1 YT54C00003F1 WASHER TANK ASSY KOBELCO SK75-8 SK70SR-2 SK75SR-3
　 1 YT54C00003F1 TANK ASSY, WATER 1
　 1-1 YT54C00003S001 MOTOR ASSY, ELEC 1
　 1-2 YT54C00003S002 TANK ASSY, WATER 1
　 1-3 YT54C00003S003 BRACKET 1
　 2 ZM73C06016 SEMS-BOLT 2
　 3 PY01P01043D3 CLIP 1
YN71M00007F1 YN71M01011P2 EXTINGUISHER KOBELCO SK75-8 SK70SR-2 SK75SR-3 SK75UR-5
　 .
　 1 YN71M01011P2 BRACKET 1
　 2 LE71M01001F1 BRACKET 1 LG01-H5725–H6404
　 2-1 LE71M01002P2 PLATE 1 LG01-H5725–H6404
　 2-2 LE71M01003P1 HOLDER 1 LG01-H5725–H6404
　 2-3 YN22E01254P1 RIVET 2 LG01-H5725–H6404
　 2-4 LE71M01004P1 RUBBER 1 LG01-H5725–H6404
　 2 LE71M01005P1 HOLDER 1 LG01-H6405–
　 3 ZM66C06016 SEMS-BOLT 6YY25M00007F1 YY25M00004F1 SEAT ASSY KOBELCO SK75-8 SK70SR-2 SK75SR-3 SK75UR-5 SK80MSR-2 SK80CS-2
　 .
　 1 YY25M00004F1 SEAT ASSY 1
　 1-1 YY25M00004S001 SEAT ASSY 1
　 1-2 YY25M00004S002 COVER 1
　 1-3 YY25M00004S003 PAD 1
　 1-4 YY25M00004S004 COVER 1
　 1-5 YY25M00004S005 SEAT 1
　 1-6 YY25M00004S006 FRAME 1
　 1-7 YN25MU0001S007 CABLE 1
　 1-8 EW25M00003S008 HANDLE 1
　 1-9 LE25M00004S009 BRACKET 1
　 1-10 LE25M00004S010 RAIL 1
　 1-11 YY25M00004S011 SUPPORT 1
　 2 YN25M00062F1 SEAT INSTAL 1
　 2-1 ZW26K08000 LOCK WASHER 4
　 2-2 ZS28C08020 CAPSCREW 4
　 3 YY25M00008F1 SEAT GROUP 1
　 3-1 YY25M01003P1 BRACKET 1
　 3-2 YY25M01002P1 GROMMET 1
　 3-3 ZM73C08025 SEMS-BOLT 4

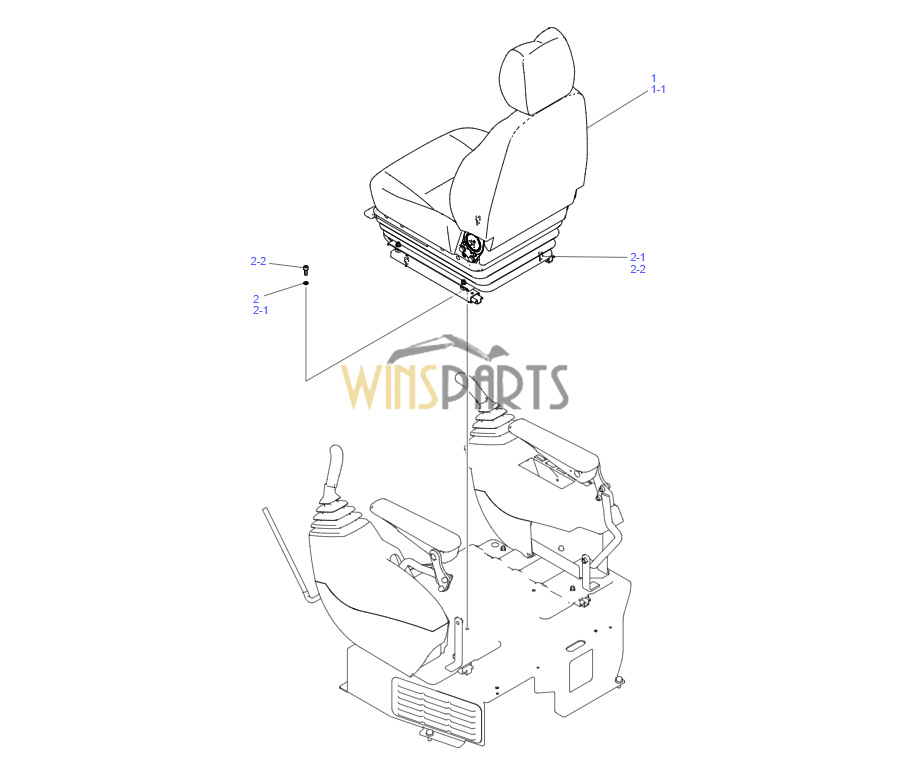

YN25M00061F1 YN25M00059F1 YN25M00059S001 SEAT SUSPENSION KOBELCO SK75-8 SK70SR-2 SK75SR-3 SK75UR-5
YN25M00126F1 SEAT INSTAL
　 . (SUSPENSION, SEAT)
　 .
　 1 YN25M00125F1 SEAT ASSY 1
　 1-1 YN25M00059S001 SEAT ASSY 1
　 1-2 YN25M00125S002 COVER ASSY 1
　 1-3 YN25M00125S003 PAD 1
　 1-4 YN25M00125S004 COVER ASSY 1
　 1 YN25M00059F1 SEAT ASSY 1
　 1-1 YN25M00059S001 SEAT ASSY 1
　 1-2 YN25M00059S002 COVER 1
　 1-3 YN25M00059S003 PAD 1
　 1-4 YN25M00059S004 COVER 1
　 1-5 YN25M00059S005 SEAT 1
　 1-6 YN25M00059S006 SUPPORT 1
　 1-7 YN25M00059S007 FRAME 1
　 1-8 YN25MU0001S007 CABLE 1
　 1-9 LC25M00001S018 ADJUSTER 1
　 1-11 YN25M00059S011 SPRING 1
　 1-12 2448U167S15 DAMPER 1
　 1-13 YN25M00059S013 SUSPENSION, SEAT 1
　 1-14 2448U167S16 STOPPER 1
　 1-15 2448U167S12 ADJUSTER 1
　 1-16 2448U167S18 BEARING 1
　 1-17 YN25M00059S017 COVER 1
　 1-18 YN25M00059S018 HANDLE 1
　 1-19 YN25M00059S019 RAIL 1
　 1-20 YN25M00059S020 CLAMP 1
　 2 YN25M00062F1 SEAT INSTAL 1
　 2-1 ZW26K08000 LOCK WASHER 4
　 2-2 ZS28C08020 CAPSCREW 4

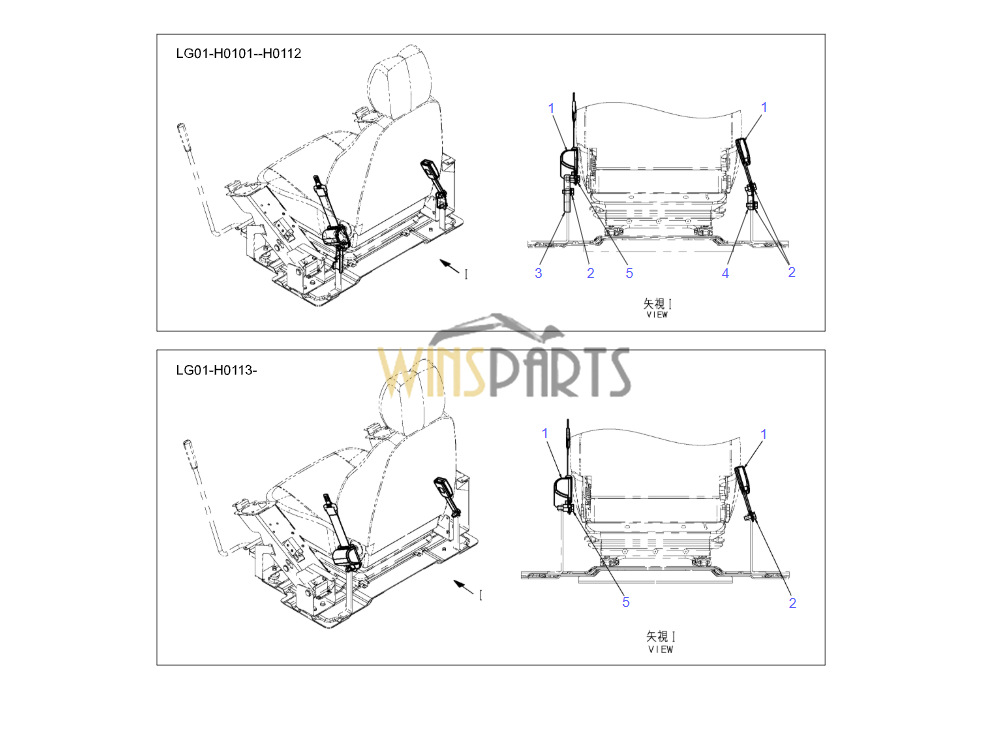

YN25M00053F1 YN25M00081F1 SEAT BELT ASSY KOBELCO SK75-8 SK70SR-2 SK75SR-3 SK75UR-5
　 .
　 1 YN25M00081F1 BELT ASSY, SEAT 1
　 2 ZM73C10025 SEMS-BOLT 3 LG01-H0101–H0112
　 2 ZM73C10025 SEMS-BOLT 1 LG01-H0113–
　 3 YN25M01246P1 BRACKET 1 LG01-H0101–H0112
　 4 YN25M01248P1 BRACKET 1 LG01-H0101–H0112
　 5 ZM73C10035 SEMS-BOLT 1 LG01-H0101–H0112
　 5 ZM73C10040 SEMS-BOLT 1 LG01-H0113–

Related Posts
