LC53D00021F1 LC53D00022F1 LC15V00041F1 PROPEL MOTOR ASSY KOBELCO SK330-10 SK350LC-10
.

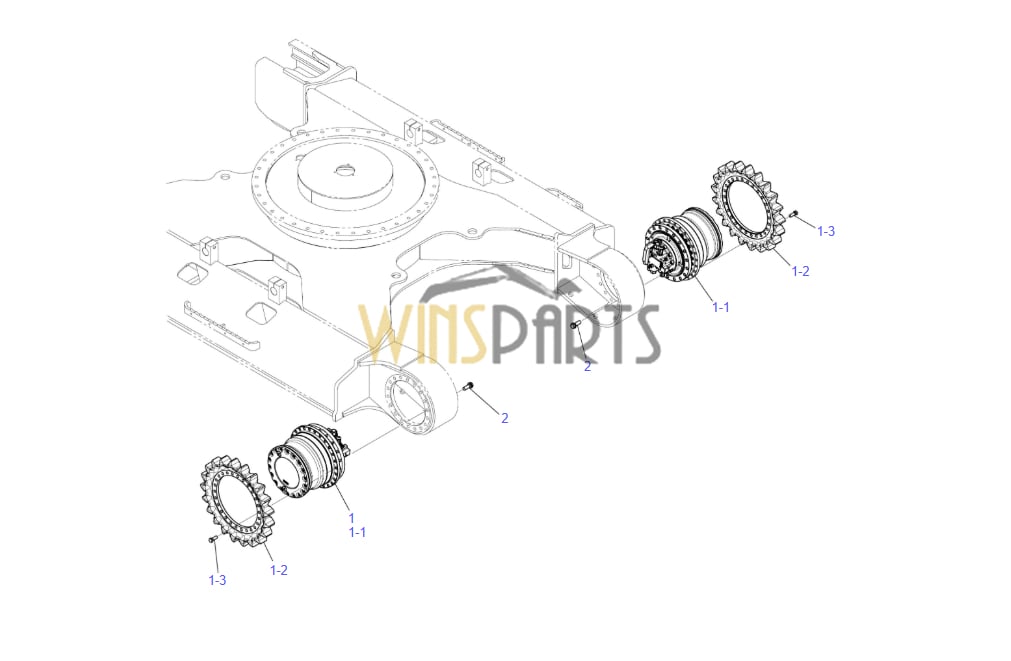

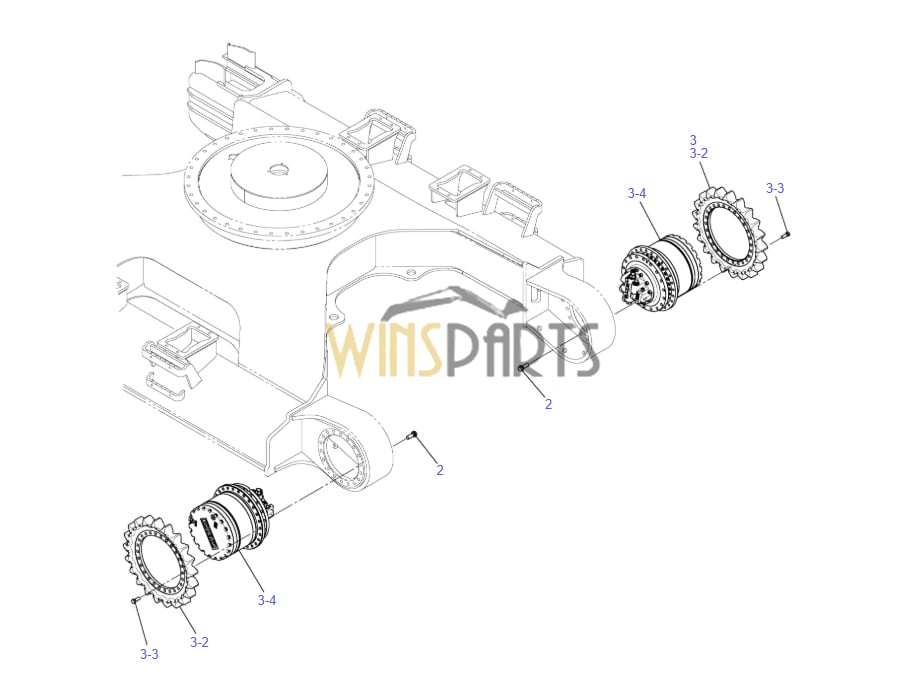

1 LC53D00022F1 MOTOR ASSY, PROPEL 2
1-1 LC15V00041F1 MOTOR ASSY, PROPEL 1 HC 545-00
1-2 LC51D01008P1 SPROCKET 1
1-3 ZS13C20055 CAPSCREW 26
2 2420P1613D4 CAPSCREW 36
.
2 2420P1613D4 CAPSCREW 36
3 LC53D00022F2 MOTOR ASSY, PROPEL 2
3-2 LC51D01008P1 SPROCKET 1
3-3 ZS13C20055 CAPSCREW 26

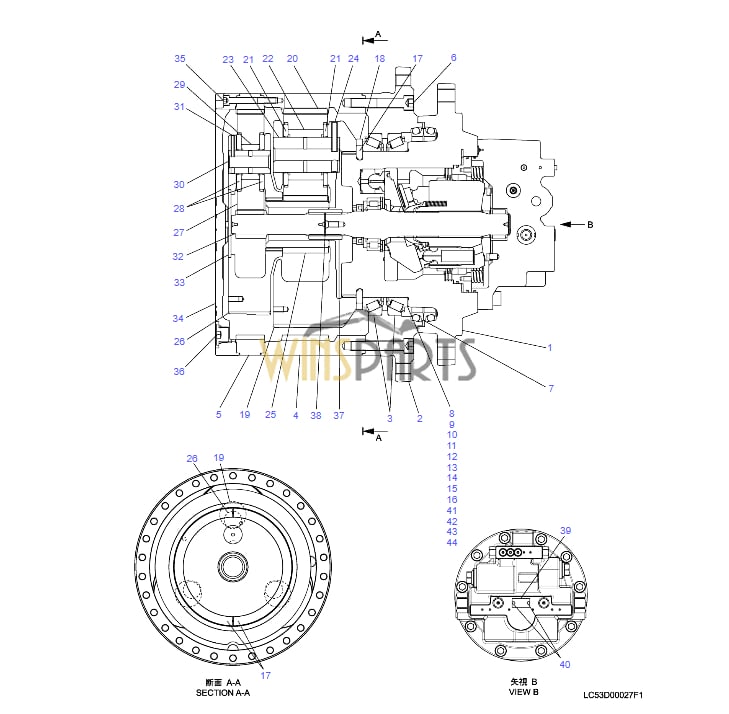

HC546-00_LC53D00027F1_ASIA-01_D0003957780_1 3-4 LC53D00027F1 MOTOR ASSY, PROPEL 1 HC 546-00
.

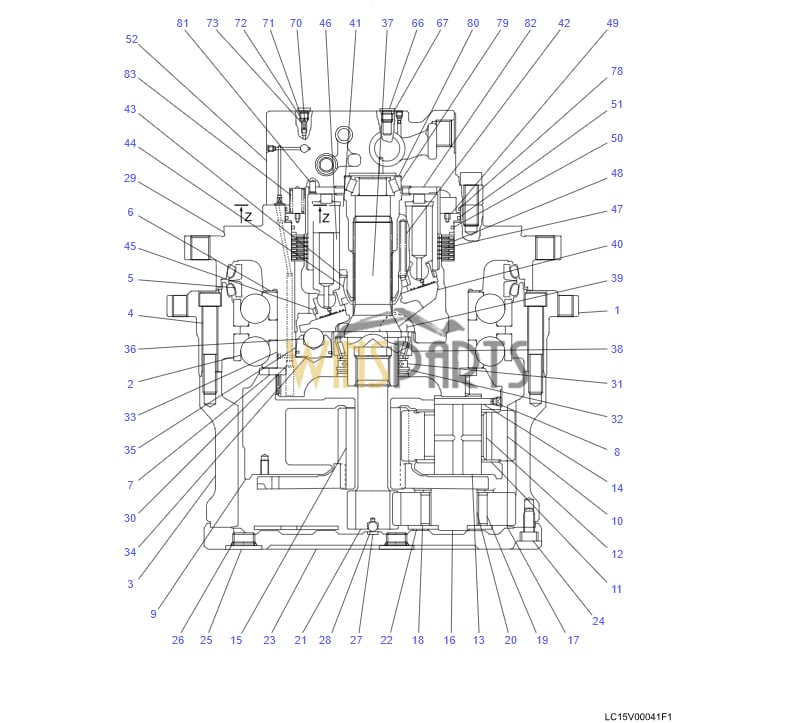

1 LC15V00041S001 HOUSING 1
2 24100U1682S19 BEARING 2
3 LC15V00041S003 GEAR, RING 1
4 ZS23C18110 CAPSCREW 25
5 LC15V00041S005 SEAL, FLOATING 1
6 LC15V00041S006 SHIM 1
7 LC15V00041S007 LOCK WASHER 2
8 YX15V00003S146 PLUG 4
9 LC15V00041S009 SPINDLE 1
10 LC15V00041S010 GEAR 4
11 LC15V00041S011 WASHER, THRUST 8
12 LC15V00041S012 BEARING 4
13 LC15V00041S013 SHAFT 4
14 LC15V00041S014 PIN, SPRING 4
15 LC15V00041S015 GEAR 1
16 LC15V00041S016 SPINDLE 1
17 LC15V00041S017 GEAR 3
18 LC15V00041S018 WASHER, THRUST 3
19 LC15V00041S019 BEARING 3
20 LC15V00041S020 SHAFT 3
21 LC15V00041S021 GEAR 1
22 LC15V00041S022 PLATE 1
23 LC15V00041S023 COVER 1
24 ZS23C12030 CAPSCREW 18
25 YR30V00001S116 PLUG 2
26 ZD12P02400 O-RING 2
27 LC15V00041S027 WASHER 1
28 LC15V00041S028 BALL 1
29 LC15V00041S029 SPINDLE 1
30 2436U279S3 PLUG 1
31 LC15V00041S031 OIL SEAL 1
32 LC15V00041S032 RING, RETAINING 1
33 2436U1749S17 PLUG 1
34 NO P/No PISTON 1 R1
35 NO P/No SEAL, PISTON 1 R1
36 LC15V00007S021 BALL 1
37 LC15V00041S037 SHAFT 1
38 LC15V00041S038 BEARING 1
39 NO P/No RETAINER 2 R2
40 NO P/No PLATE 1 R2
41 LC15V00023S040 BLOCK 1
42 2441U1030S29 SPRING 9
43 LC15V00023S042 HOLDER 1
44 LC15V00021S024 JOINT, BALL 1
45 LC15V00021S004 RETAINER 1
46 GK15V00003S014 PISTON 9
47 2441U1040S7 PLATE 7
48 LC15V00041S048 PLATE 6
49 2441U1040S6 PISTON 1
50 LS15V00004S052 RING 1
51 LS15V00004S053 RING 1
52 LC15V00023S051 COVER 1
53 2436U1427S25 PLUG 14
54 LC15V00023S089 SPOOL 1
55 LC15V00023S090 HOLDER 2
56 YN15V00017S053 SPRING 2
57 LC15V00023S091 PLUG 2
58 ZD12G04000 O-RING 2
59 LC15V00023S058 SPOOL 1
60 2436R874S6 PIN 1
61 2436R874S5 SEAT, SPRING 1
62 2436R874S7 SPRING 1
63 LC15V00023S062 PLUG 1
64 ZD12P01400 O-RING 2
65 2436R874S3 JOINT 1
66 2436U1317S13 PLUG 2
67 ZD12P01100 O-RING 2
68 LC15V00023S067 ORIFICE 2
69 LC15V00023S068 SPRING 2
70 YN15V00017S038 PLUG 5
71 ZD12P00800 O-RING 5
72 YY15V00007S017 VALVE, CHECK 3
73 YN15V00017S026 SPRING 3
74 YN15V00037S376 ORIFICE 1
75 ZD12P01250 O-RING 1
76 LC15V00041S076 ORIFICE 1
77 ZD12P01500 O-RING 1
78 2441U1040S40 O-RING 1
79 2441U1040S32 BEARING 1
80 2441U1040S34 SHIM 2
81 LC15V00041S081 PIN 1
82 LC15V00021S008 PLATE 1
83 YN15V00003S030 SPRING 10
84 ZS23C18050 CAPSCREW 10
85 LC22V00006F1 VALVE ASSY, OVERLOAD 2
85-10 ZD12P00700 O-RING 1
85-11 ZD85P00700 RING, BACK UP 2
85-12 ZD12G02500 O-RING 2
85-13 ZD85G02500 RING, BACK UP 1
86 ZD12P01800 O-RING 2
87 YR30V00001S115 PLUG 2
88 LC15V00041S088 ORIFICE 1
.
LC15V00041R100 REPAIR KIT 1 RK1
. (34, 35)X1
.
LC15V00041R200 REPAIR KIT 1 RK2
.
1 LC15V00045F2 MOTOR ASSY, HYD 1
1-1 LC15V01365P1 SPINDLE 1
1-3 LC15V01067F1 PISTON ASSY 1
1-3A ET15V00012S121 PISTON 9 R4
1-3B EG15V00006S122 SHOE 9 R4
1-4 LC15V01068F1 BLOCK, CYLINDER 1
1-4A LC15V01068S111 BLOCK, CYLINDER 1
1-4B LC15V01068S131 PLATE, VALVE 1
1-5 LC15V01349P1 PLATE, SWASH 1
1-6 LC15V01260P1 JOINT, BALL 1
1-7 LC15V01013P1 PIVOT 2
1-8 LC15V01248P1 SHAFT 1
1-9 LC15V01015P1 BEARING 1
1-10 LC15V01016P1 BEARING 1
1-11 LC15V01017P1 RETAINER 1
1-12 LC15V01073F1 PISTON ASSY 1
1-12A ET15V00012S501 PISTON 1
1-12B JJ15V00004S503 SHOE 1
1-13 LC15V01019P1 OIL SEAL 1
1-14 LC15V01020P1 SPRING 9
1-15 ZR26X09000 RING, SNAP 1
1-16 ZR16X05000 RING, SNAP 1
1-17 LC15V01021P1 PIN 1
1-18 LC15V01331P1 PISTON 1
1-19 LC15V01023P1 PLATE, FRICTION 2 R1
1-20 LC15V01095P1 PLATE 3 R1
1-21 LC15V01078P1 SEAL 1 R2
1-22 LC15V01079P1 SEAL 1 R2
1-23 LC15V01027P1 SPRING 16
1-24 LC15V01034F2 SPOOL ASSY 1
1-24A LC15V01035P1 SPOOL 1
1-24B LC15V01036P1 PLUG 2
1-24C LC15V01037P1 POPPET 2
1-24D LC15V01038P1 SPRING 2
1-24E ZD12P02200 O-RING 2
1-25 LC15V01039P1 WASHER 2
1-26 LC15V01040P1 SPRING 2
1-27 LC15V01041P1 PLUG 2
1-28 LC15V01044P1 PLUG 5
1-29 LC15V01042P1 SPRING 5
1-30 LC15V01247P1 POPPET 2
1-31 LC15V01262P1 SPOOL 1
1-32 LC15V01060P1 PIN 1
1-33 LC15V01362P1 PLUG 1
1-34 LC15V01031P1 CONNECTOR 1
1-35 LC15V01032P1 SPRING 1
1-36 LC15V01033P1 SEAT, SPRING 1
1-37 LC22V00018F1 VALVE, RELIEF 2
1-37A LC22V01030P1 SEAT, VALVE 1
1-37B LC22V01032P1 POPPET 1
1-37C LC22V01029P1 SLEEVE 1
1-37D LC22V01035P1 PLUG 1
1-37E LC22V01005P1 SEAT, SPRING 1
1-37F LC22V01031P1 PISTON 1
1-37G LC22V01033P1 SPRING 1
1-37H ZD12P02000 O-RING 1
1-37J ZD12P02200 O-RING 1
1-37K ZD85P02000 RING, BACK-UP 2
1-37L ZD75P02200 RING, BACK-UP 2
1-37M 2445Z7D10 O-RING 1
1-37N LC22V01034D1 SHIM (0.5) 1
1-37P LC22V01034D2 SHIM (0.1) 1
1-38 LC15V01061P1 POPPET 3
1-39 LC15V01047P1 PLUG 1
1-40 LE03H01117D2 PLUG 2
1-41 ZD12P01100 O-RING 2
1-42 LC15V01098P1 PLUG 12
1-43 LC15V01048P1 ORIFICE 1
1-44 LC15V01077P1 O-RING 1
1-45 ZS23C16050 CAPSCREW 10
1-46 LE03H01117D4 PLUG 3
1-47 LC15V01255P1 PLUG 1
1-48 LC15V01348P1 ORIFICE 2
1-49 LC15V01320P2 FLANGE 1
1-50 LC15V01479F1 PISTON ASSY 1
1-50A LC15V01477P1 PISTON 1
1-50B LC15V01478P1 SHOE 1
2 LC53D01043P1 HOUSING 1
3 LC53D01083P1 BEARING 2 R3
4 LC53D01060P1 GEAR, RING 1
5 LC53D01005P1 GEAR, RING 1
6 ZS23C16090 CAPSCREW 30
7 ZD58F30040 SEAL, FLOATING 1
8 LC53D01025D4 SHIM (1.6) 1 R3
9 LC53D01025D8 SHIM (2.0) 1 R3
10 LC53D01025D1 SHIM (1.3) 1 R3
11 LC53D01025D2 SHIM (1.4) 1 R3
12 LC53D01025D3 SHIM (1.5) 1 R3
13 LC53D01025D5 SHIM (1.7) 1 R3
14 LC53D01025D6 SHIM (1.8) 1 R3
15 LC53D01025D7 SHIM (1.9) 1 R3
16 LC53D01025D9 SHIM (2.1) 1 R3
17 LC53D01035P1 WASHER 2
18 LC53D01036P1 RING 1
19 LC53D01037P1 SPIDER 1
20 LC53D01006P1 PINION 3
21 LC53D01058P1 WASHER, THRUST 6
22 LC53D01020P1 BEARING, NEEDLE 3
23 LC53D01016P1 SHAFT 3
24 ZP26D10050 SPRING PIN 3
25 LB53D01018P1 GEAR, SUN 1
26 LC53D01038P2 SPIDER 1
27 LC53D01008P1 PINION 3
28 LC53D01059P1 WASHER, THRUST 6
29 LC53D01019P1 BEARING, NEEDLE 3
30 LC53D01017P1 SHAFT 3
31 ZP26D06036 PIN, SPRING 3
32 LC53D01029P1 GEAR, SUN 1
33 LC53D01009P1 WASHER, THRUST 1
34 LC53D01047P1 COVER 1
35 ZS23C10080 CAPSCREW 20
36 LE03H01117D5 PLUG 2
37 LC53D01015P1 COUPLING 1
38 ZR26X03500 RING, SNAP 1
39 YN22T00194P1 NAME PLATE 1
40 2420Z1036D3 CLEVIS 2
41 LC53D01025DA SHIM (2.2) 1 R3
42 LC53D01025DC SHIM (1.0) 1 R3
43 LC53D01025DH SHIM (1.2) 1 R3
44 LC53D01025DJ SHIM (1.1) 1 R3
.
LC15V00045R100 REPAIR KIT 1 RK1
. (1-19)X2
. (1-20)X3
.
LC15V00045R200 REPAIR KIT 1 RK2
. (1-21, 1-22)X1
.
LB53D00018R100 REPAIR KIT 1 RK3
. (3)X2
. (8, 9, 10, 11, 12, 13, 14, 15, 16, 41, 42, 43, 44)X1
.
EG15V00006R100 REPAIR KIT 1 RK4
. (1-3A, 1-3B)X9
