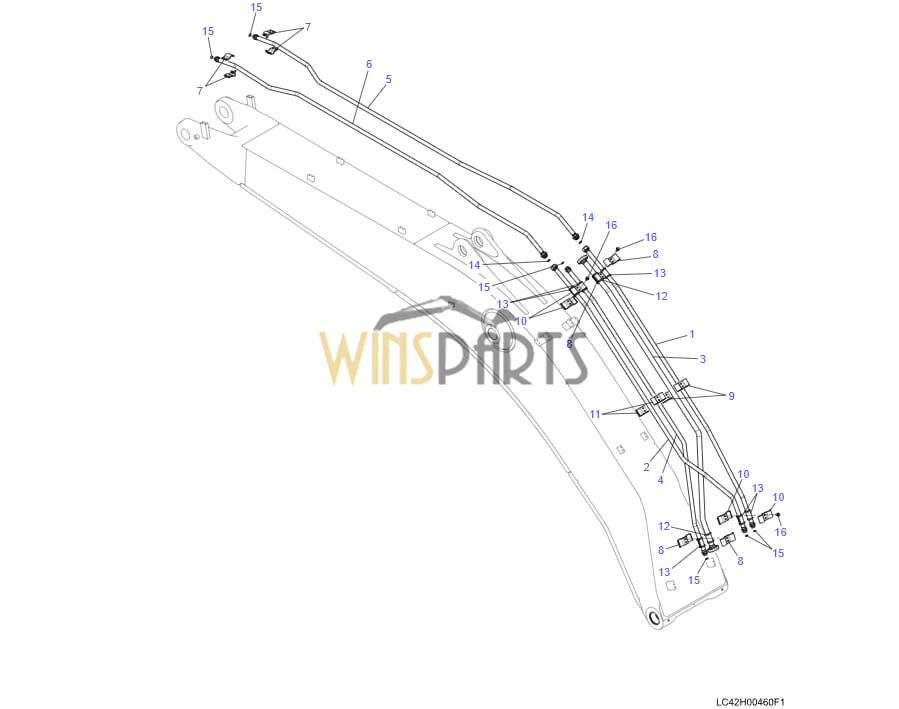

LC42H00460F1 LC42H02387P1 LC42H02388P1 HYD LINES, BOOM TUBE

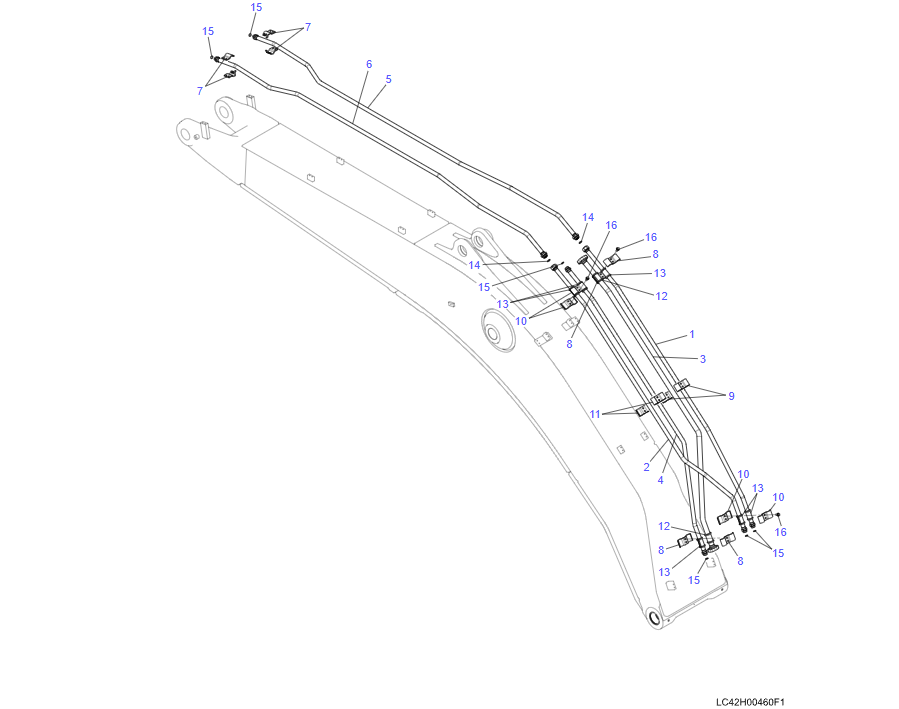

LC42H00460F1 LC42H02387P1 LC42H02388P1 HYD LINES, BOOM TUBE
　 .
　 1 LC42H02387P1 TUBE 1
　 2 LC42H02388P1 TUBE 1
　 3 LC42H02389P1 TUBE 1
　 4 LC42H02390P1 TUBE 1
　 5 LC42H02391P1 TUBE 1
　 6 LC42H02392P1 TUBE 1
　 7 YN42H02357P1 CLAMP 4
　 8 YN42H02359P1 CLAMP 4
　 9 YN42H02348P1 CLAMP 2
　 10 YN42H02353P1 CLAMP 4
　 11 YN42H02351P1 CLAMP 2
　 12 YN42H02321P1 BUSHING 2
　 13 YN43H01524P1 BUSHING 6
　 14 YY42H01313P1 O-RING 2
　 15 ZD12A02100 O-RING 6
　 16 ZM73C12035 SEMS-BOLT 6

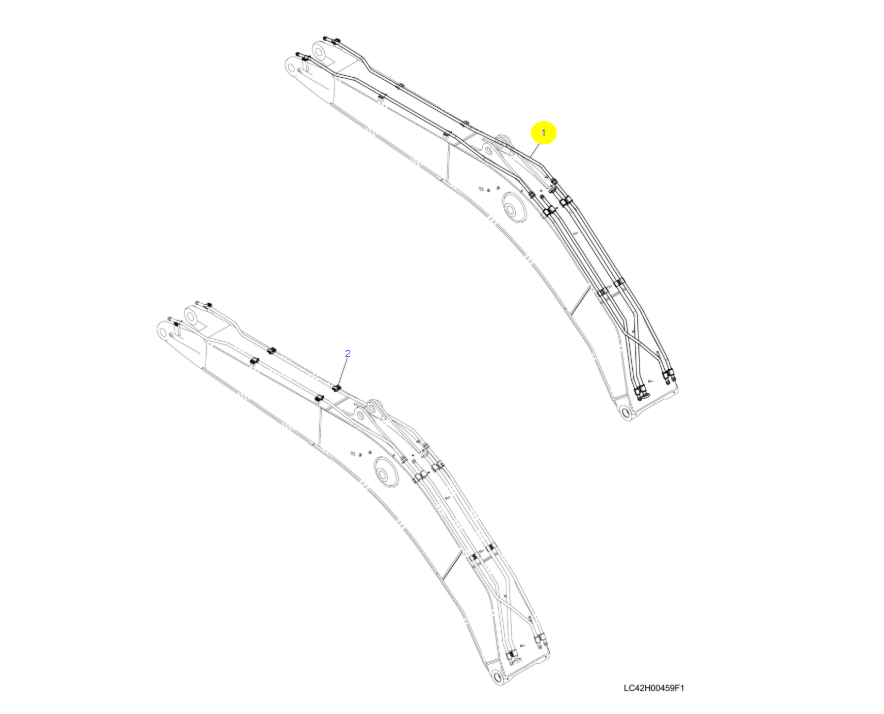

LC42H00459F1 LC42H00466F1 LC42H00460F1 HYD LINES, BOOM 6.5M KOBELCO SK330-10 SK350LC-10
LC42H00466F1 HYD LINES, BOOM 6.5M
1 LC42H00460F1 HYD LINES, BOOM 1 P.665-01
1 LC42H00654F1 HYD LINES, BOOM 1 P.665-01
2 LC42H00461F1 HYD LINES, BOOM 1 P.665-02

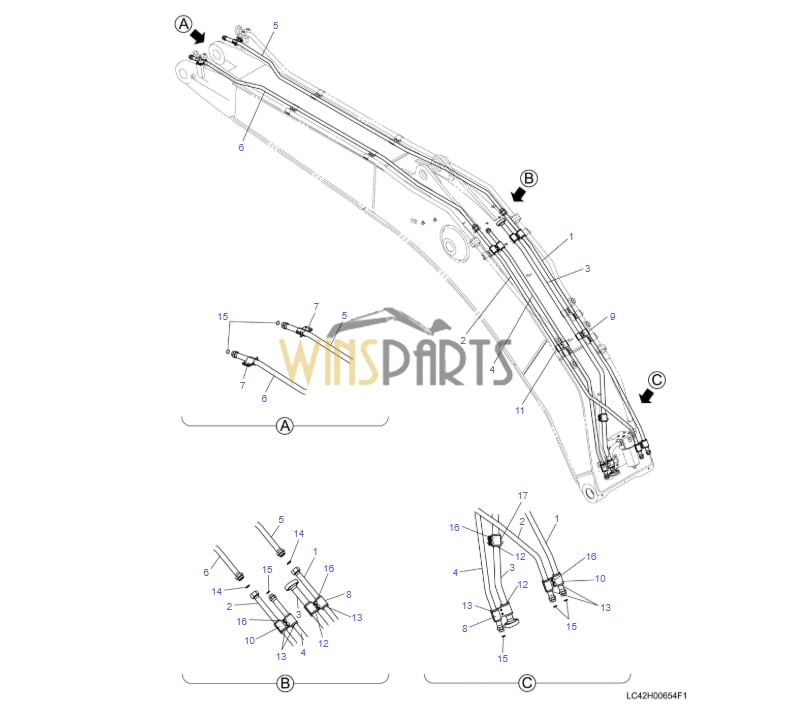

LC42H00654F1 LC42H02392P1 LC42H02391P2 HYD LINES, BOOM
　 .
　 1 LC42H02387P1 TUBE 1
　 2 LC42H02388P1 TUBE 1
　 3 LC42H02389P1 TUBE 1
　 4 LC42H02390P1 TUBE 1
　 5 LC42H02391P2 TUBE 1
　 6 LC42H02392P1 TUBE 1
　 7 YN42H02357P1 CLAMP 4
　 8 YN42H02359P1 CLAMP 4
　 9 YN42H02348P1 CLAMP 2
　 10 YN42H02353P1 CLAMP 4
　 11 YN42H02351P1 CLAMP 2
　 12 YN42H02321P1 BUSHING 3
　 13 YN43H01524P1 BUSHING 6
　 14 YY42H01313P1 O-RING 2
　 15 ZD12A02100 O-RING 6
　 16 ZM73C12035 SEMS-BOLT 8
　 17 YN42H02361P1 CLAMP 2

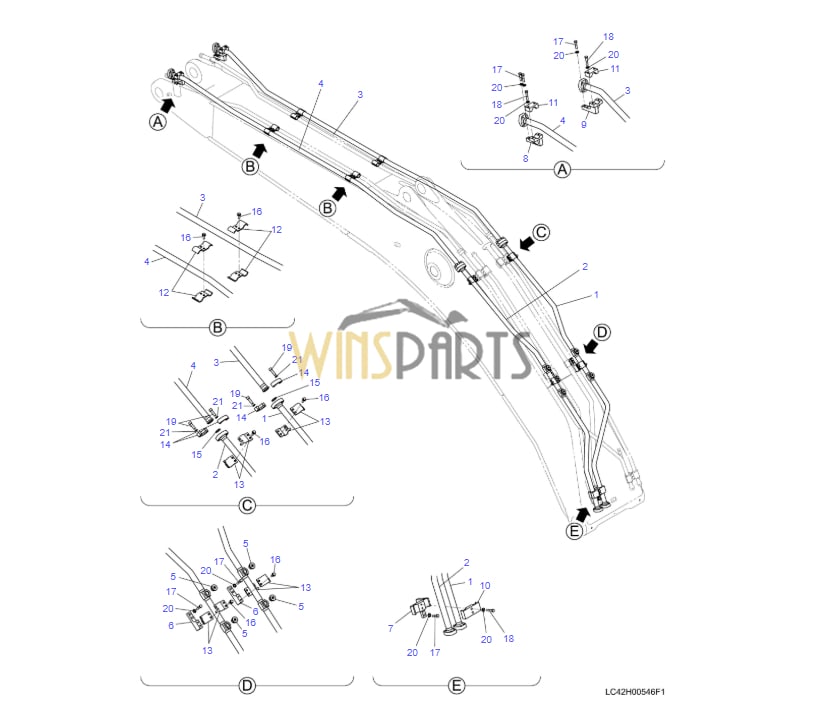

LC42H00546F1 LC42H02509P1 LC42H02396P1 HYD LINES, BOOM KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 1 LC42H02395P1 TUBE 1 LC14-18001–18045
　 . YC14-14001–14335
　 1 LC42H02395P2 TUBE 1 LC14-18046-
　 . YC14-14336-
　 2 LC42H02396P1 TUBE 1
　 3 LC42H02508P1 TUBE 1
　 4 LC42H02509P1 TUBE 1
　 5 YN42H02582P1 PLUG 4
　 6 LQ42H02076P1 BLOCK, TAPPED 2
　 7 LC42H02402P1 BRACKET 1
　 8 LC42H02499P1 BRACKET 1
　 9 LC42H02500P1 BRACKET 1
　 10 LC42H01914P1 CLAMP 1
　 11 LC42H01269P1 CLAMP 2
　 12 YN42H02348P1 CLAMP 8
　 13 YN42H02363P1 CLAMP 8
　 14 ZE13X20001 CLAMP, HALF 4
　 15 ZD12P03800 O-RING 2
　 16 ZM73C12035 SEMS-BOLT 16
　 17 ZS18C12055 CAPSCREW 10
　 18 ZS18C12065 CAPSCREW 6
　 19 ZS28C14050 CAPSCREW 8
　 20 ZW16H12000 WASHER 16
　 21 ZW26K14000 LOCK WASHER 8

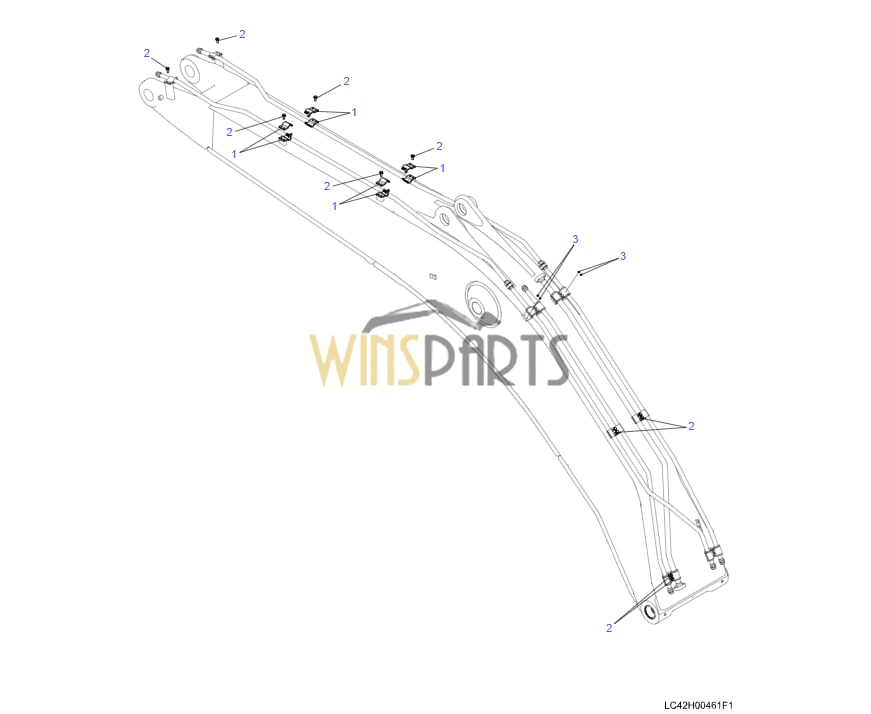

LC42H00461F1 HYD LINES, BOOM KOBELCO SK330-10 SK350LC-10
　 1 YN42H02357P1 CLAMP 8
　 2 ZM73C12035 SEMS-BOLT 18
　 3 YN64H01391D1 CAP 4

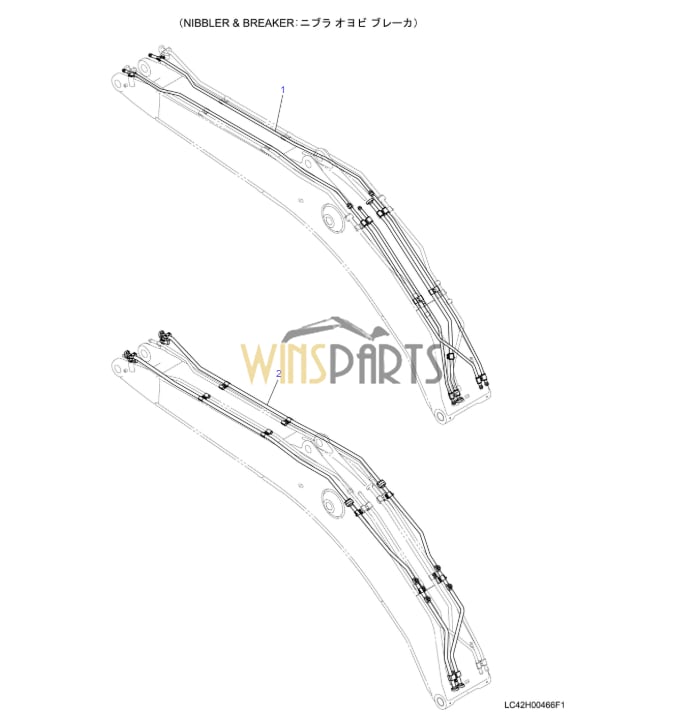

LC42H00544F1 LC42H02515P1 LC42H02515P2 HYD LINES, BOOM TUBE
　 .
　 1 LC42H02515P1 TUBE 1 LC14-18001–18011
　 . YC14-14001–14124
　 1 LC42H02515P2 TUBE 1 LC14-18012-
　 . YC14-14125-
　 2 LC42H02527P1 TUBE 1 LC14-18001–18011
　 . YC14-14001–14124
　 2 LC42H02527P2 TUBE 1 LC14-18012-
　 . YC14-14125-
　 3 LC42H02517P1 TUBE 1 LC14-18001–18011
　 . YC14-14001–14124
　 3 LC42H02517P2 TUBE 1 LC14-18012-
　 . YC14-14125-
　 4 LC42H02518P1 TUBE 1 LC14-18001–18011
　 . YC14-14001–14124
　 4 LC42H02518P2 TUBE 1 LC14-18012-
　 . YC14-14125-
　 5 YN42H03377P1 BRACKET 1
　 6 ZC26M18011 CLAMP 2
　 7 LC42H02519P1 CLAMP 1
　 8 LC42H02520P1 CLAMP 1
　 9 LC42H02521P1 CLAMP 2
　 10 LC42H02522P1 CLAMP 2
　 11 LQ42H01092P1 CLAMP 9
　 12 LQ42H01093P1 CLAMP 9
　 13 ZM73C10040 SEMS-BOLT 2
　 14 ZM73C12045 SEMS-BOLT 2
　 15 ZS18C12050 CAPSCREW 10
　 16 ZS18C12055 CAPSCREW 2
　 17 ZW16H12000 WASHER 12
　 18 ZD12A01200 O-RING 6
LC42H00466F1 HYD LINES, BOOM 6.5M Not Service
　 . (NIBBLER & BREAKER)
　 .
665-01_CKCM_D0002431290_1 1 LC42H00460F1 HYD LINES, BOOM 1 P.665-01 LC14-T1101–T1143
　 . YC14-T1101–T1149
665-01_LC42H00654F1_INDIA_D0002507966_1 1 LC42H00654F1 HYD LINES, BOOM 1 P.665-01 LC14-T1144-
　 . YC14-T1150-
665-02_LC42H00546F1_CKCM-01_D0002507964_1 2 LC42H00546F1 HYD LINES, BOOM 1 P.665-02

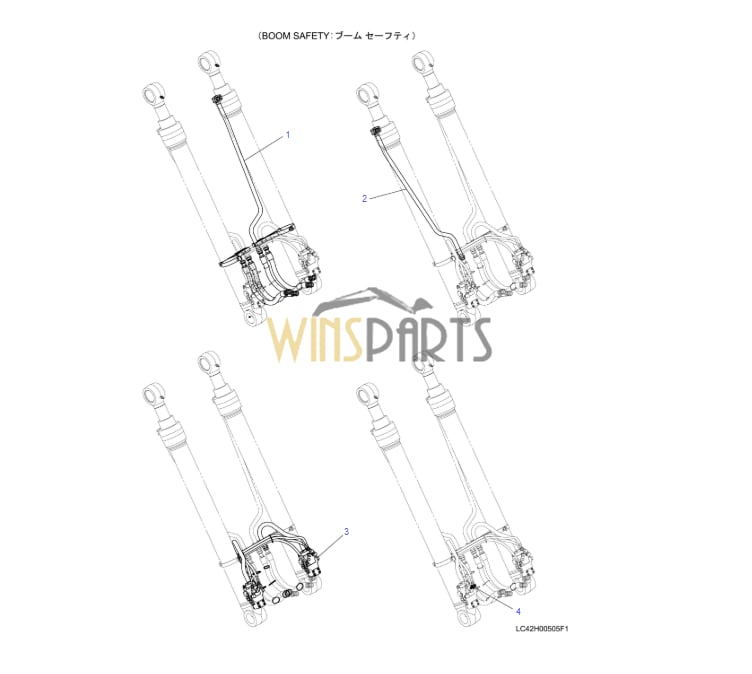

LC42H00505F1 LC42H00503F1 BOOM SAFETY HYD LINES, CYLINDER KOBELCO SK330-10 SK350LC-10
675-01_KCM-EUR_D0002121672_1 1 LC42H00503F1 HYD LINES, CYLINDER 1 P.675-01
675-02_KCM-EUR_D0002121671_1 2 LC42H00504F1 HYD LINES, CYLINDER 1 P.675-02
675-03_KCM-EUR_D0002121750_1 3 LC42H00513F1 HYD LINES, CYLINDER 1 P.675-03
　 4 YN52S00104P1 SENSOR, PRESS 1
LC42H00502F1 BOOM HYD LINES, CYLINDER
1 LC42H00503F1 HYD LINES, CYLINDER 1 P.675-01
2 LC42H00504F1 HYD LINES, CYLINDER 1 P.675-02
3 LC42H00508F1 HYD LINES, CYLINDER 1 P.676-03

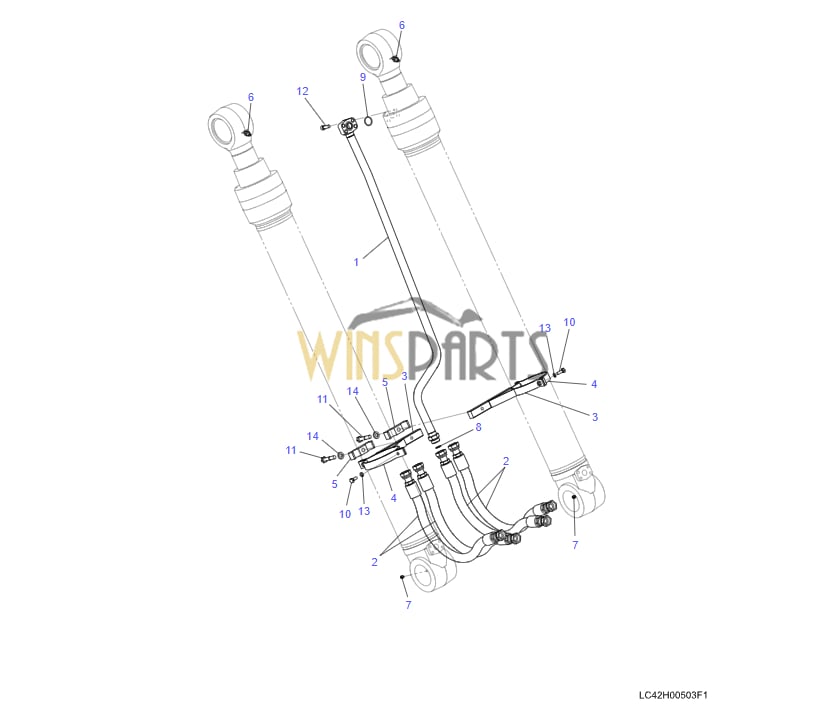

LC42H00503F1 LC42H02451P1 HYD LINES, CYLINDER
　 .
　 1 LC42H02451P1 TUBE 1
　 1 LC42H02764P1 TUBE 1 LC14405027-
　 . YC14405077-
　 2 ZX20H16084 HOSE 4
　 3 LC42H02482P1 BAND 2
　 4 LC42H02088P1 BAND 2
　 5 2432T5986 CLAMP 2
　 6 ZH22Z04000 CONNECTOR 2
　 7 ZG91S02000 NIPPLE, GREASE 2
　 8 ZD12A02100 O-RING 1
　 9 ZD12P03400 O-RING 1
　 10 ZS18C10030 CAPSCREW 4
　 11 ZS18C14075 CAPSCREW 2
　 12 ZS28C12040 CAPSCREW 4
　 13 ZW26X10000 LOCK WASHER 4
　 14 ZW16H14000 WASHER 2
LC42H00504F1 HYD LINES, CYLINDER
　 1 LC42H02452P1 TUBE 1
　 1 LC42H02765P1 TUBE 1
　 2 ZD12A02100 O-RING 1
　 3 ZD12P03400 O-RING 1
　 4 ZS28C12040 CAPSCREW 4
LC42H00508F1 HYD LINES, CYLINDER
　 1 LC42H02459P1 TUBE 1
　 2 LC42H02460P1 TUBE 1
　 3 ZD12A02100 O-RING 2
　 4 ZD12P03400 O-RING 2
　 5 ZS28C12040 CAPSCREW

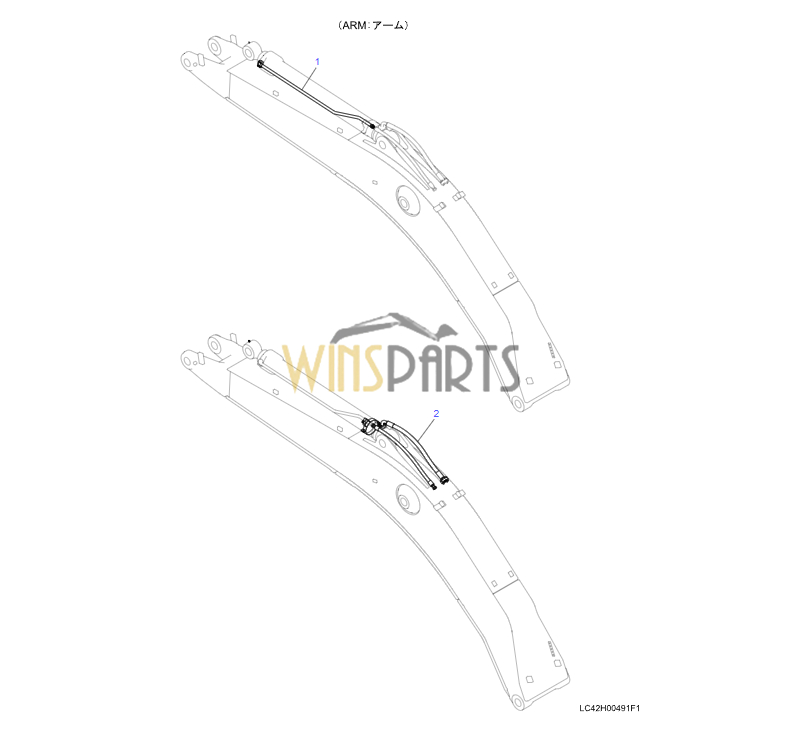

LC42H00491F1 LC42H00185F1 ARM CYLINDER KOBELCO SK350NLC-10 SK350DLC-10
　 .
1 LC42H00185F1 HYD LINES, CYLINDER 1 P.681-01
2 LC42H00492F1 HYD LINES, CYLINDER 1
2 LC42H00682F1 HYD LINES, CYLINDER 1 P.681-02 LC14405027-
LC42H00185F1 HYD LINES, CYLINDER
　 .
　 1 LC42H01753P1 TUBE 1
　 2 ZD12P03400 O-RING 1
　 3 ZD12A02100 O-RING 1
　 4 ZS28C12040 CAPSCREW
YN80E00088F1 LIGHT INSTAL, BOOM Not Service
　 .
　 1 YW80S00001F1 LIGHT 2
　 1-1 YW80S00001S001 LAMP UNIT 1
　 1-2 YW80S00001S002 RIM 1
　 1-4 YW80S00001S004 GASKET 1
　 1-5 YW80S00001S005 BULB 1
　 1-10 YW80S00001S010 LOCK WASHER 1
　 1-11 YW80S00001S011 NUT 1
　 1-12 YW80S00001S012 CAPSCREW 4
　 2 2416T13056 BRACKET 2
　 3 ZS18C10020 CAPSCREW 2
　 4 2418R323D11 LOCK WASHER 2
　 5 2418R323D13 LOCK WASHER 2

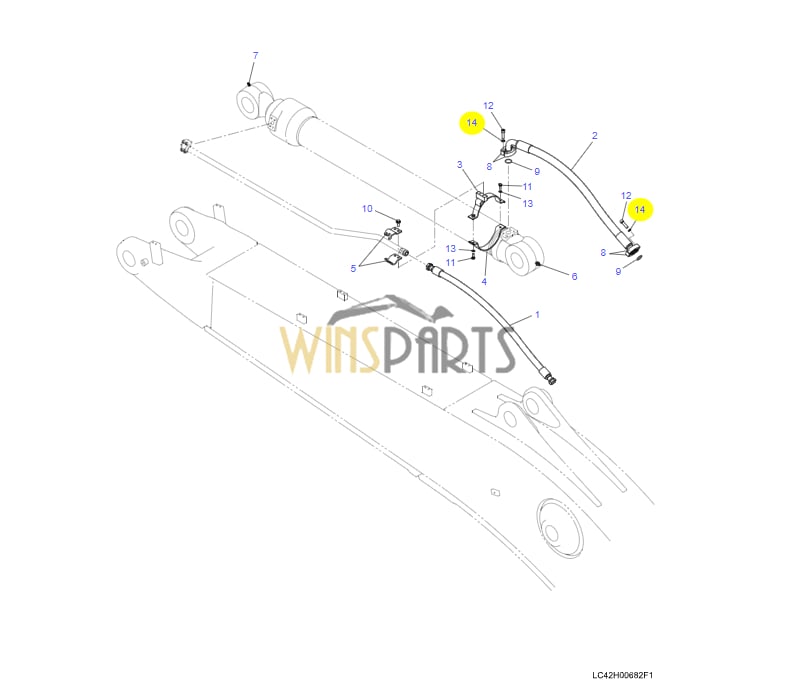

LC42H00492F1 CYLINDER HYD LINES TUBE HOSE KOBELCO SK330-10 SK350LC-10
　 1 ZX20H16120 HOSE 1
　 2 LC42H01873D6 HOSE 1
　 3 LC42H02474P1 BAND 1
　 4 LC42H01885P1 BAND 1
　 5 2432T2417 CLAMP 1
　 6 ZH22Z04000 CONNECTOR 1
　 7 ZG91V02000 NIPPLE, GREASE 1
　 8 ZE13X20001 CLAMP, HALF 4
　 9 ZD12P03800 O-RING 2
　 10 ZS18C10030 CAPSCREW 2
　 11 ZS18C12070 CAPSCREW 1
　 12 ZS28C14050 CAPSCREW 8
　 13 ZW26X10000 LOCK WASHER 2
　 14 ZW26K14000 LOCK WASHER 8
　 15 ZW16H12000 WASHER 1
LC42H00682F1 HYD LINES, CYLINDER
　 1 ZX20H16120 HOSE 1
　 2 LC42H01873D6 HOSE 1
　 3 LC42H01884P1 BAND 1
　 4 LC42H01885P1 BAND 1
　 5 YN42H02357P1 CLAMP 2
　 6 ZH22Z04000 CONNECTOR 1
　 7 ZG91V02000 NIPPLE, GREASE 1
　 8 ZE13X20001 CLAMP, HALF 4
　 9 ZD12P03800 O-RING 2
　 10 ZM73C12035 SEMS-BOLT 2
　 11 ZS18C10030 CAPSCREW 2
　 12 ZS28C14050 CAPSCREW 8
　 13 ZW26X10000 LOCK WASHER 2
　 14 ZW26K14000 LOCK WASHER 8
LC15E00071F1 HARNESS ASSY, BOOM Not Service
　 .
　 1 LC15E01082P1 HARNESS 1
　 2 PY01P01043D3 CLIP 1

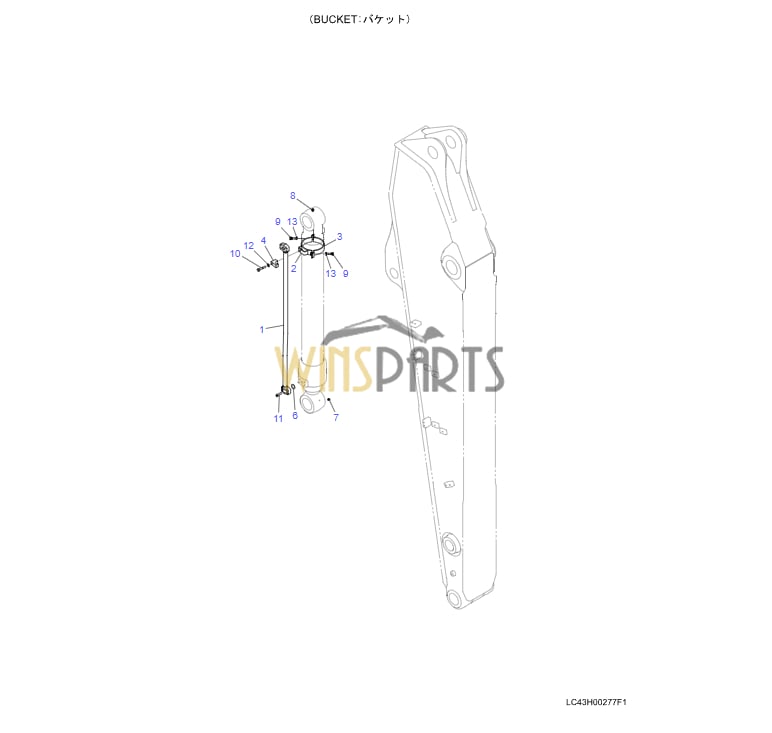

LC43H00277F1 LC43H01204P2 HYD LINES BUCKET CYLINDER TUBE KOBELCO SK330-10 SK350LC-10
　 . (BUCKET)
　 .
　 1 LC43H01204P2 TUBE 1
　 2 LC43H01539P1 BAND 1
　 2 LC43H01539P2 BAND 1 LC14405028-
　 . YC14405124-
　 3 LQ42H02010P1 BAND 1
　 4 2432T2417 CLAMP 1
　 6 ZD12P03400 O-RING 1
　 7 ZG91V02000 NIPPLE, GREASE 1
　 8 ZG91S04000 NIPPLE, GREASE 1
　 9 ZS18C10035 CAPSCREW 2
　 10 ZS18C12070 CAPSCREW 1
　 11 ZS28C12040 CAPSCREW 4
　 12 ZW16H12000 WASHER 1
　 13 ZW26X10000 LOCK WASHER 2
LC43H00276F1 HYD LINES, ARM 3.3M Not Service
　.
　 1 ZX60U16160 HOSE ASSY 1
　 2 YN03H01456DN HOSE 1
　 3 ZE13X16000 CLAMP, HALF 4
　 4 ZD12P03400 O-RING 2
　 5 HM83C12040G1 SEMS-BOLT 8
LC43H00288F1 HYD LINES, ARM 3.3M
741-01_KCM-EUR_D0002121793_1 1 LC43H00273F1 HYD LINES, ARM 1 P.741-01
741-02_KCM-EUR_D0002121792_1 2 LC43H00295F1 HYD LINES, ARM 1 P.741-02 LC14-18001–18089
　 . YC14-14001–14569
741-02_LC43H00307F1_ANZ_D0003560952_1 2 LC43H00307F1 HYD LINES, ARM 1 P.741-02 LC14-18090-
　 . YC14-14570-
742-03_LC43H01313F1_KCM-EUR-01_D0002121822_1 3 LC43H01313F1 PLUG ASSY 1 P.741-03
LC43H00273F1 HYD LINES, ARM
　 .
　 1 LC43H01552P1 TUBE 1
　 2 LC43H01553P1 TUBE 1
　 3 HX60L20195DX HOSE 2
HC741-01_KCMU_D0002507967_1 4 YN25V00015F1 VALVE, STOP 2 HC 741-01
　 5 LC43H01223P1 CONNECTOR 2
　 6 ZE13X20001 CLAMP, HALF 12
　 7 YN42H02361P1 CLAMP 8
　 8 YN42H02321P1 BUSHING 4
　 9 ZM73C12030 SEMS-BOLT 8
　 10 ZS18C08025 CAPSCREW 8
　 11 ZS28C14050 CAPSCREW 16
　 12 ZS28C14070 CAPSCREW 8
　 13 ZN18C14011 NUT 8
　 14 ZW26K14000 LOCK WASHER 16
　 15 YN43H01151P1 WASHER 8
　 16 ZD12P03800 O-RING 8
　 17 YN43H01663P1 BRACKET 2
LQ43H00263F1 ZX60U16180 HYD LINES, ARM HOSE ASSY
　 .
　 1 ZS18C16040 CAPSCREW 4
　 2 ZW16H16000 WASHER 4
LC43H00294F1 HYD LINES, ARM 2.6M Not Service
　 . (BUCKET)
　 .
　 1 ZX60U16180 HOSE ASSY 1 LC14-T1101–T1144
　 . YC14-T1101–T1154
　 1 ZX60U16160 HOSE ASSY 1 LC14-T1145-
　 . YC14-T1155-
　 2 YN03H01456DV HOSE 1 LC14-T1101–T1144
　 . YC14-T1101–T1154
　 2 YN03H01456DN HOSE 1 LC14-T1145-
　 . YC14-T1155-
　 3 ZE13X16000 CLAMP, HALF 4
　 4 ZD12P03400 O-RING 2
　 5 HM83C12040G1 SEMS-BOLT 8
LC43H00273F1 HYD LINES, ARM
　 .
　 1 LC43H01552P1 TUBE 1
　 2 LC43H01553P1 TUBE 1
　 3 HX60L20195DX HOSE 2
HC741-01_KCMU_D0002121821_1 4 YN25V00015F1 VALVE, STOP 2 HC 741-01
　 5 LC43H01223P1 CONNECTOR 2
　 6 ZE13X20001 CLAMP, HALF 12
　 7 YN42H02361P1 CLAMP 8
　 8 YN42H02321P1 BUSHING 4
　 9 ZM73C12030 SEMS-BOLT 8
　 10 ZS18C08025 CAPSCREW 8
　 11 ZS28C14050 CAPSCREW 16
　 12 ZS28C14070 CAPSCREW 8
　 13 ZN18C14011 NUT 8
　 14 ZW26K14000 LOCK WASHER 16
　 15 YN43H01151P1 WASHER 8
　 16 ZD12P03800 O-RING 8
　 17 YN43H01663P1 BRACKET 2

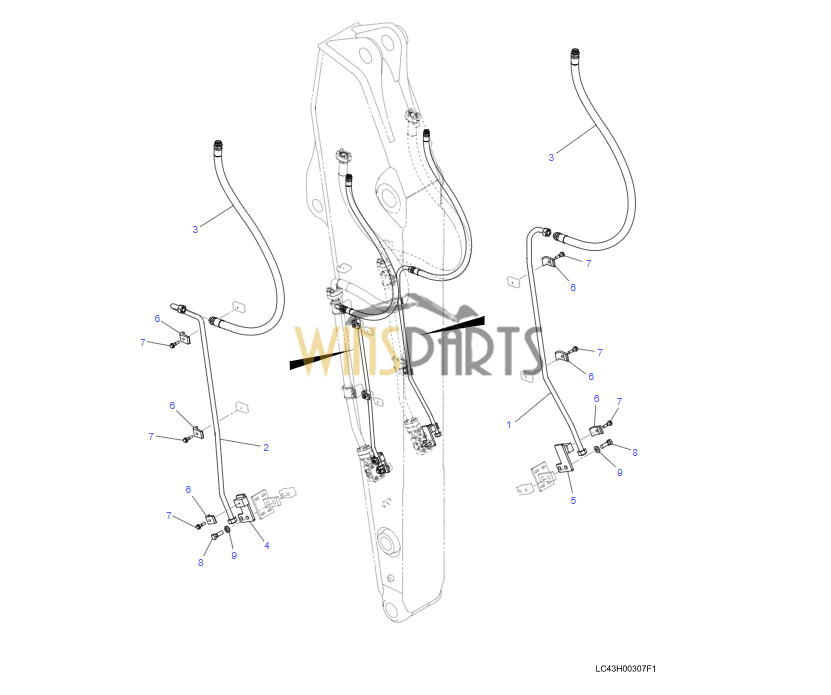

LC43H00307F1 LC43H01583P1 HYD LINES, ARM
　 1 LC43H01583P1 TUBE 1
　 2 LC43H01584P1 TUBE 1
　 3 ZX58N10160 HOSE 2
　 4 LQ43H01529P1 BRACKET 1
　 5 LQ43H01530P1 BRACKET 1
　 6 ZC26M22011 CLAMP 6
　 7 ZM73C10045 SEMS-BOLT 6
　 8 ZS18C16050 CAPSCREW 4
　 9 ZW16H16000 WASHER 4
LC43H00294F1 HYD LINES, ARM 2.6M
LC43H00293F1 HYD LINES, ARM
　 .
　 1 LC43H01564P1 TUBE 1
　 2 LC43H01563P1 TUBE 1
　 3 LC43H01011D7 HOSE 2
HC741-01_KCMU_D0002121821_1 4 YN25V00015F1 VALVE, STOP 2 HC 741-01
　 5 LC43H01223P1 CONNECTOR 2
　 6 ZE13X20001 CLAMP, HALF 12
　 7 YN42H02361P1 CLAMP 4
　 8 YN42H02321P1 BUSHING 2
　 9 ZM73C12030 SEMS-BOLT 4
　 10 ZS18C08025 CAPSCREW 8
　 11 ZS28C14050 CAPSCREW 16
　 12 ZS28C14070 CAPSCREW 8
　 13 ZN18C14011 NUT 8
　 14 ZW26K14000 LOCK WASHER 16
　 15 YN43H01151P1 WASHER 8
　 16 ZD12P03800 O-RING 8
　 17 YN43H01663P1 BRACKET 2
　 1 ZX60U16180 HOSE ASSY 1 YC14-14025–14295
　 1 ZX60U16160 HOSE ASSY 1 YC14-14296-
　 2 YN03H01456DV HOSE 1 YC14-14025–14295
　 2 YN03H01456DN HOSE 1 YC14-14296-
　 3 ZE13X16000 CLAMP, HALF 4
　 4 ZD12P03400 O-RING 2
　 5 HM83C12040G1 SEMS-BOLT 8

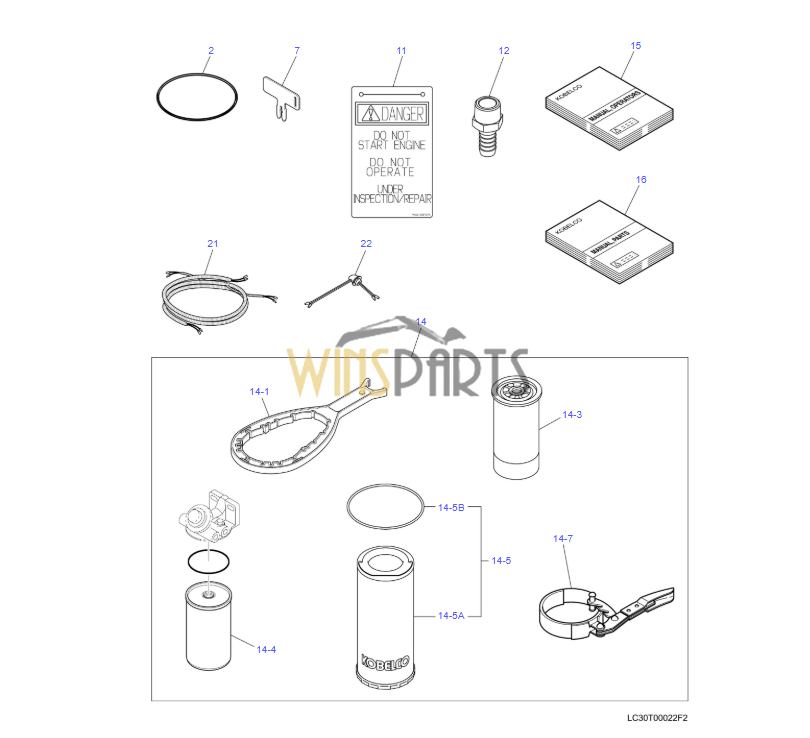

LC30T00022F2 LC30T00023F1 YN30T01001P1 ELEMENT FILTER KIT KOBELCO SK330-10 SK350LC-10
　 .
　 2 LQ61B01004P1 O-RING 4
　 7 YN50S01011P1 KEY 1
　 11 YN20T02672P1 LABEL 1
　 12 YN01T01083P1 CONNECTOR 1 YC14-14003-
　 14 LC30T00023F1 ELEMENT KIT 1
　 14-1 YN01T01044P1 WRENCH, FILTER 1
　 14-3 YN30T01001P1 ELEMENT, OIL 1
　 14-4 YN30T01007P1 ELEMENT, FUEL 1
　 14-5 LC52V01004R100 REPAIR KIT 1
　 14-5A LC52V01006P1 ELEMENT, FILTER 1
　 14-5B ZD11G19000 O-RING 1
　 14-7 2421R171 WRENCH 1
　 15 LC91Z00054D1 MANUAL, OPERATORS 1
　 16 LC91Z00057D1 MANUAL, PARTS 1
　 21 YN11E01294P2 HARNESS 2 YC14-14003-
　 22 LQ80E01019P2 HARNESS 2 YC14-14003-
LC30T00022FJ ELEMENT KIT
　 2 LQ61B01004P1 O-RING 4
　 11 YN20T02672P1 LABEL 1
　 12 YN01T01083P1 CONNECTOR 1
　 23 LC30T00023F2 ELEMENT KIT 1
　 23-3 YN30T01001P1 ELEMENT, OIL 1
　 23-5 LC52V01004R100 REPAIR KIT 1
　 23-5A LC52V01006P1 ELEMENT, FILTER 1
　 23-5B ZD11G19000 O-RING 1
　 23-6 LC21P01019R100 ELEMENT, FILTER 1
　 23-6B LC21P01019S002 ELEMENT, FILTER 1
　 23-6D LC21P01019S004 O-RING 1
　 23-7 2421R171 WRENCH 1
　 43 LC91Z00052DA MANUAL, OPERATORS 1
　 47 LC91Z00053DA MANUAL, PARTS 1
　 63 LC91Z00081D1 MANUAL, OPERATORS 1 LC14405041-
　 . YC14405181-
　 66 YN20T03045P1 LABEL 1 LC14405116-

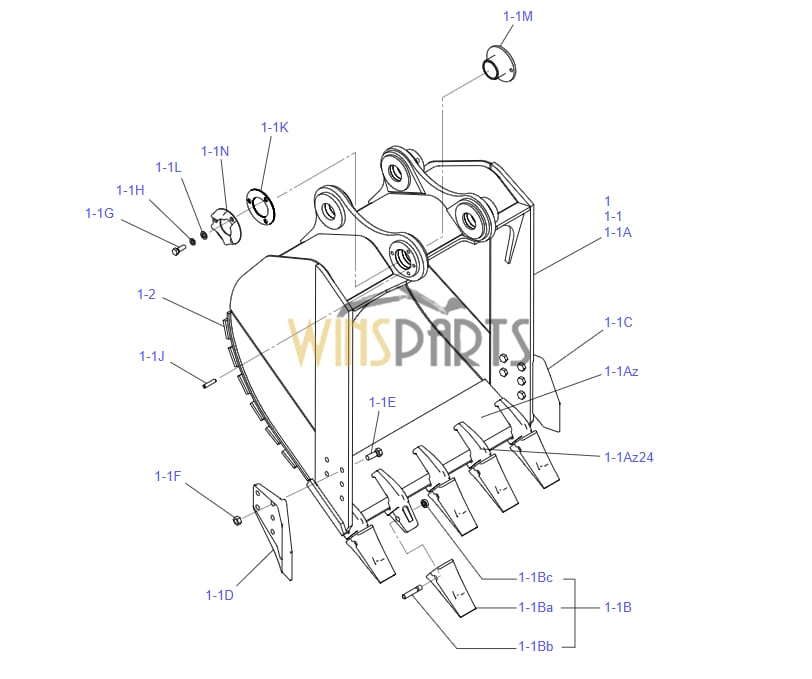

LC61B00192F1 LC61B00214F1 LC61B00215F1 LC61B00216P1 BUCKET ASSY KOBELCO SK330-10 SK350LC-10
　 .
　 1 LC61B00214F1 BUCKET ASSY 1
　 1-1 LC61B00215F1 BUCKET ASSY 1
　 1-1A LC61B00216P1 BUCKET 1
　 1-1Az LC69B01034P1 EDGE, CUTTING 1
　 1-1Az24 LC61B01107P1 ADAPTER 5
　 1-1B LC69B00002F1 TOOTH ASSY 5
　 1-1Ba LC69B00002S001 TOOTH 1
　 1-1Bb LC69B00002S002 PIN 1
　 1-1Bc LC69B00002S003 RETAINER ASSY 1
　 1-1C 2412J351D1 CUTTER, SIDE 1
　 1-1D 2412J351D2 CUTTER, SIDE 1
　 1-1E ZS13C24065 CAPSCREW 10
　 1-1F ZN13C24019 NUT 10
　 1-1G ZS13C20055 CAPSCREW 3
　 1-1H ZW22X20000 LOCK WASHER 3
　 1-1J LC61B01016P1 PIN 1
　 1-1K LC61B01013P1 SHIM (1.0) 5
　 1-1L ZW16H20000 WASHER 3
　 1-1M LC61B01014P1 BUSHING 1
　 1-1N LC61B01015P1 PLATE 1
　 1-2 LC61B00217P1 BUCKET 1

Related Posts
