YN02B00363F1 BOOM PIN Kobelco SK200-8 SK210LC-8 . 1 YN02B01719P1 PIN 1 2 HS18C20175G2 CAPSCREW 1 YQ12T00874--T00944 2 YN02B02491P1 CAPSCREW 1…
LC41C00090F1 CAB GUARD HANDRAIL BRACKET
785-00_LQ01C00006F1_KCM-EUR-04_D0002127492_1 785-00 LQ01C00006F1 CAB & GUARD ASSY(2 FACES GUARD, VERTICAL GRID TYPE)

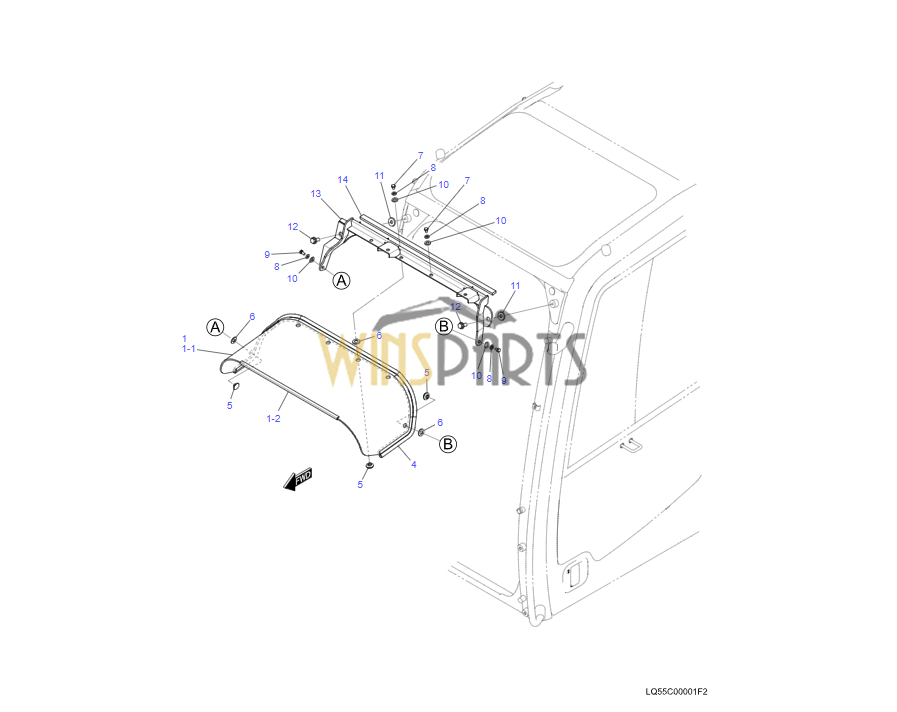

787-00_KCM-EUR_D0002127514_1 787-00 LQ55C00001F2 SUN VISOR ASSY
790-00_KCM-EUR_D0002127493_1 790-00 LQ80E00041F1 LIGHT INSTAL(CAB 2LIGHT, WITHOUT BRACKET)
789-01_KCM-EUR_D0002127490_1 789-01 LQ80E00033F1 LIGHT INSTAL
789-02_KCM-EUR_D0002127491_1 789-02 LQ80E00033F2 LIGHT INSTAL
790-00_KCMU_D0002157649_1 790-00 LQ80E00042F1 LIGHT INSTAL(CAB 2LIGHT)
789-01_KCM-EUR_D0002127490_1 789-01 LQ80E00033F1 LIGHT INSTAL
789-02_KCM-EUR_D0002127491_1 789-02 LQ80E00033F2 LIGHT INSTAL
790-03_KCMU_D0002157648_1 790-03 LQ80E00034F2 BRACKET INSTAL

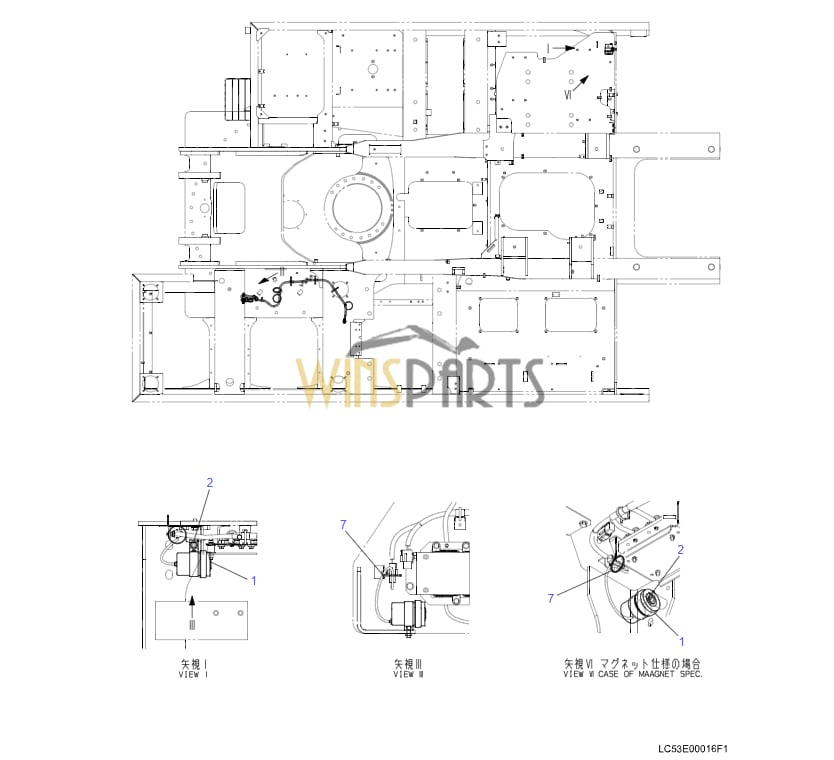

522-00_LC53E00016F1_KCM-EUR_D0002397445_1 522-00 LC53E00016F1 ALARM ASSY
793-00_YN50E00093F1_KCM-EUR-01_D0002392079_1 793-00 YN50E00093F1 SWITCH INSTAL(TRAVEL ALARM)

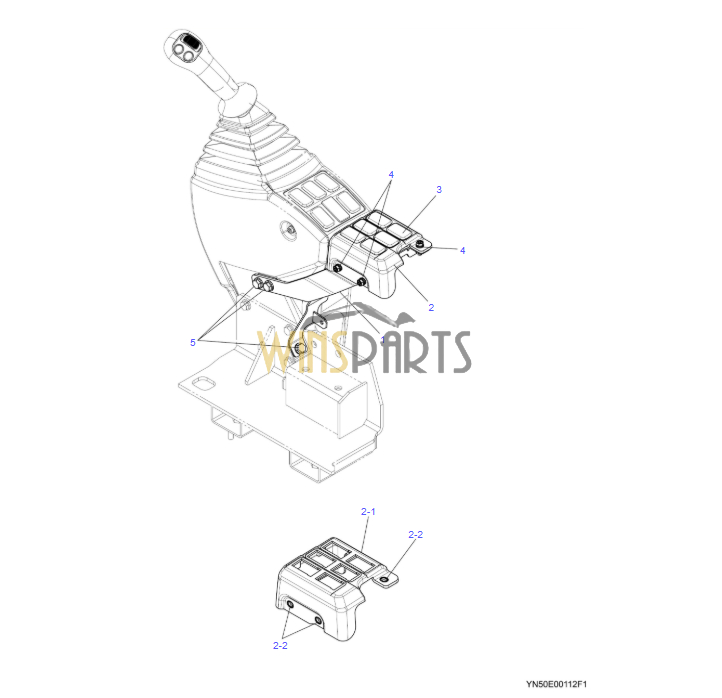

165-00_YN50E00112F1_JP_D0002497103_1 165-00 YN50E00112F1 SWITCH INSTAL
795-00_LC11E00084F1_ANZ_D0002352175_1 795-00 LC11E00084F1 HARNESS ASSY(RIGHT-HAND SIDE CAMERA)
524-00_YN11E00128F1_KCMU-03_D0002121026_1 524-00 YN11E00128F1 HARNESS ASSY(GLOBAL IT KIT MOBILE COMMUNICATIONS)
791-00_KCM-EUR_D0002127513_1 791-00 LC24C00027F1 COVER ASSY, UNDER(LOW)
792-00_KCM-EUR_D0002127512_1 792-00 LC24C01226P1 BLOCK INSTAL(LOW)
840-00_KCM-EUR_D0002127511_1 840-00 LC01F00031F1 LOW GROUP
.
1 LQ55C01002F1 COVER 1
1-1 LQ55C01001P1 COVER 1
1-2 LQ55C01003P1 CHANNEL 1
4 LQ55C01027P1 STRIP, WEATHER 1
5 YT50C01020P1 RETAINER 6
6 YN55C01025P1 WASHER 6
7 ZS18C08012 CAPSCREW 4
8 ZW16H08000 WASHER 6
9 ZS18C08016 CAPSCREW 2
10 ZW16P12000 WASHER 6
11 LQ55C01013P1 SPACER 2
12 ZM73C12030 SEMS-BOLT 2
13 LC55C01001P1 BRACKET 1
14 LC55C01004P1 INSULATION 1
LC41C00090F1 HANDRAIL KOBELCO SK330-10 SK350LC-10
.
1 LC41C00091P1 HANDRAIL 1
2 LQ21C02997P1 CLAMP 2
3 ZS18C10055 CAPSCREW 2
4 ZS18C12060 CAPSCREW 2
5 ZW16H10000 WASHER 2
6 ZW16H12000 WASHER 2
.
1 LQ13E01361P1 HARNESS 1
2 LC11E01129P1 HARNESS 1
3 YN13E01375P1 CLIP 10
4 PY01P01043D3 CLIP 20
5 PY01P01043D5 CLIP 14
6 PY01P01043DA CLIP 2
.

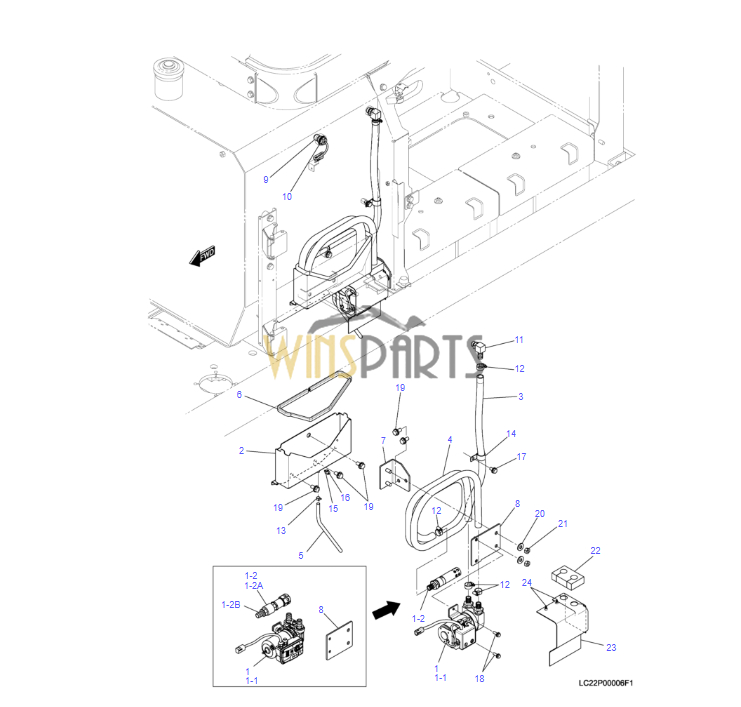

1 LQ22P00008F1 PUMP ASSY, FUEL 1
1-1 LQ22P00007P1 PUMP, FUEL 1
1-2 YY22P01097F1 FILLER 1
1-2A YY22P01084P1 FILLER 1
1-2B YY22P01083P1 CONNECTOR 1
1 YN22P00039F1 PUMP ASSY, FUEL 1 LC14405062-
. YC14405298-
1-1 YN22P00041P1 PUMP, FUEL 1
1-2 YT22P01058P1 FILLER 1
2 LQ22P01008P1 BOX 1
2 LQ22P01024P1 BOX 1 LC14405029-
. YC14405130-
3 YF22P01004D3 HOSE 1
4 LQ22P01009D1 HOSE 1
5 HX11Y06046DX HOSE 1
6 LQ21C01041D6 TRIM 1
7 LC22P01018P1 BRACKET 1
8 LC22P01015P1 BRACKET 1
8 LC22P01020P1 BRACKET 1 LC14405062-
. YC14405298-
9 YF52S00004P2 SENSOR, LEVEL 1
10 YN33H01052P1 SEAL 1
11 LC22P01012P1 ELBOW 1
12 ZC15X02600 CLAMP 4
13 PH05P01088D5 CLIP 1
14 ZC46X25011 CLIP 1
15 YN13E01375P1 CLIP 1
16 PY01P01043D3 CLIP 1
17 ZM73C10020 SEMS-BOLT 1
18 ZM73C08025 SEMS-BOLT 2
19 ZM73C12025 SEMS-BOLT 5
20 2418T10357 WASHER 2
21 ZN18C12010 NUT 2
22 LQ22P01020P1 RUBBER 1 LC14405029-
. YC14405130-
23 LQ22P01023P1 RUBBER 1 LC14405029-
. YC14405130-
24 YY21C01070P1 CLIP 2 LC14405029-
. YC14405130-
.

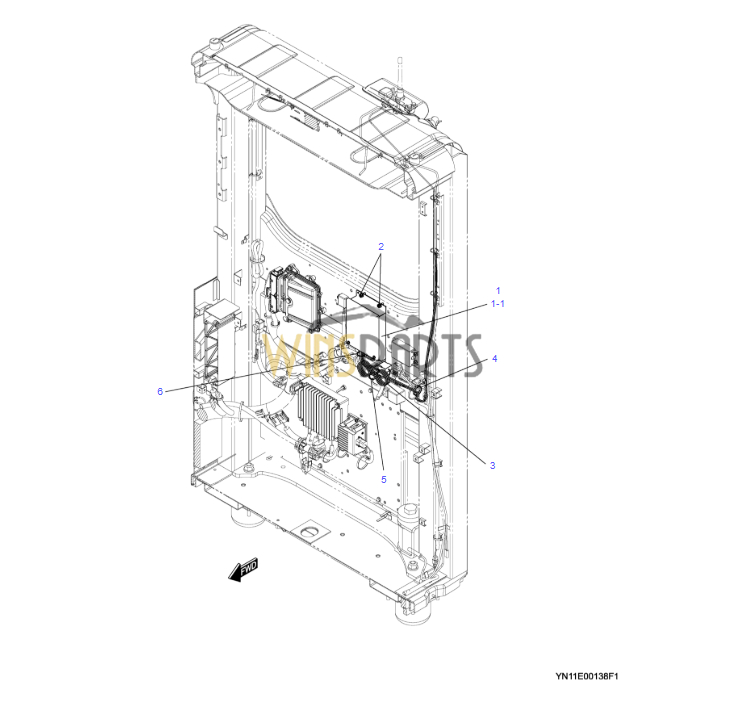

1 YN22E00664F1 CONTROLLER 1 LC14-T1101–T1128
. YC14-T1101–T1125
1-1 YN22E00469S001 BATTERY 1
1 YN22E00664F2 CONTROLLER 1 LC14-T1129–T1184
. YC14-T1126–T1168
1-1 YN22E00469S001 BATTERY 1
1 YN22E00664F3 CONTROLLER 1 LC14-T1185–T1243
. YC14-T1169–T1206
1-1 YN22E00469S001 BATTERY 1
1 YN22E00664F4 CONTROLLER 1 LC14-T1244–T1256
. LC14405001–05026
. YC14-T1207–T1246
. YC14405001–05097
1-1 YN22E00469S001 BATTERY 1
1 YN22E00664F5 CONTROLLER 1 LC14405027-
. YC14405098-
1-1 YN22E00469S001 BATTERY 1
2 ZM61C06016 SEMS-BOLT 4
3 YN11E01292P1 HARNESS 1
4 PY01P01043D3 CLIP 1
5 PY01P01043D5 CLIP 1
6 PY01P01043DA CLIP 1
.
1 YN53S00004F1 ALARM 1
2 ZM73C08025 SEMS-BOLT 1
3 YN50S00040DF SWITCH 1
4 YN24S00010P1 RELAY 1
5 PY01P01043D3 CLIP 6
6 PY01P01043D5 CLIP 6
7 PY01P01043DA CLIP 1
8 YN13E01375P1 CLIP 2
9 LQ53E01002P1 HARNESS 1
.
1 YN03M03133P1 BRACKET 1
2 YN03M03055F1 COVER ASSY 1
2-1 YN03M03056P1 COVER 1
2-2 YN17M01296P1 COLLAR 3
3 YN17M01282P2 CAP 6
4 ZM66C06020 SEMS-BOLT 3
5 ZM73C08020 SEMS-BOLT 3

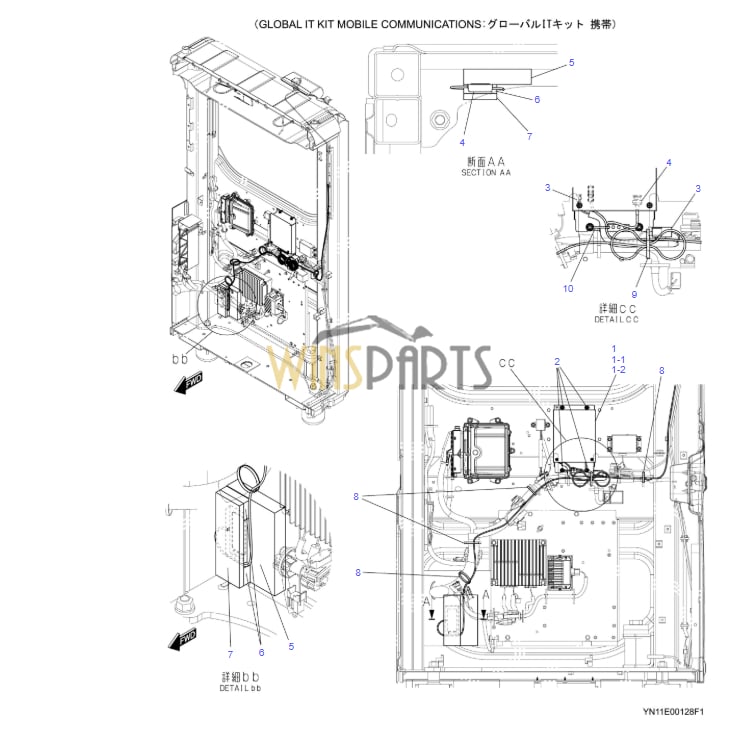

. (GLOBAL IT KIT MOBILE COMMUNICATIONS)
.
1 YN22E00643F3 CONTROLLER 1 YC14-14001–14047
1-1 YN22E00623F1 CONTROLLER 1
1-2 YN22E00643S001 BATTERY 1
1 YN22E00643F5 CONTROLLER 1 LC14-18001–18015
. YC14-14048–14165
1-1 YN22E00623F1 CONTROLLER 1
1-2 YN22E00643S001 BATTERY 1
1 YN22E00643F6 CONTROLLER 1 LC14-18016-
. YC14-14166-
1-1 YN22E00623F1 CONTROLLER 1
1-2 YN22E00643S001 BATTERY 1
2 ZM61C06016 SEMS-BOLT 4
3 YN11E01273P1 HARNESS 1 YC14-14001–14047
3 YN11E01273P2 HARNESS 1 LC14-18001-
. YC14-14048-
4 YN54S00072P1 ANTENNA 1
5 YY22C01383P1 INSULATION 1
6 YN02C04710P1 INSULATION 2
7 YN02C04711P1 INSULATION 1
8 PY01P01043D3 CLIP 4
9 PY01P01043D5 CLIP 1
10 PY01P01043DA CLIP 1
