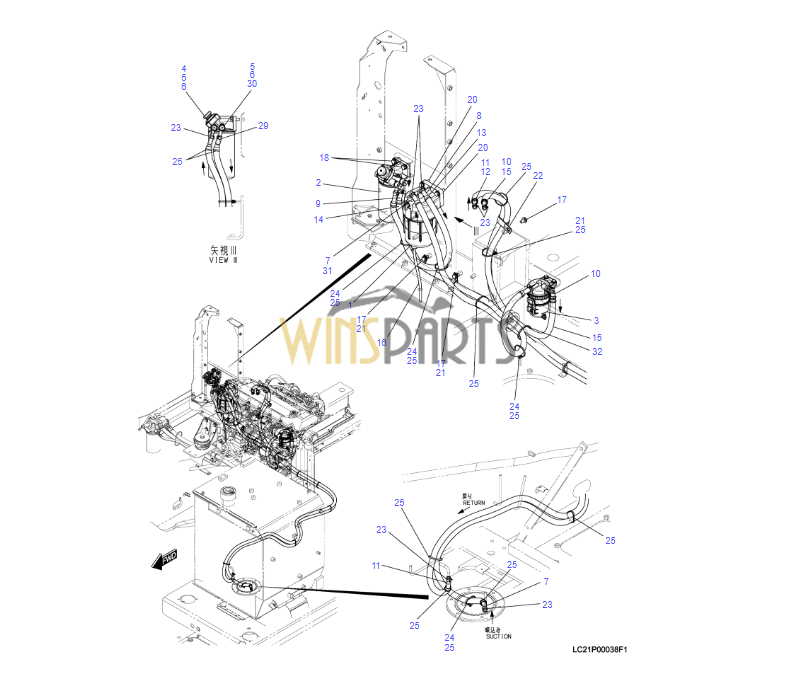

LC21P00038F1 FUEL LINES KOBELCO SK330-10 SK350LC-10

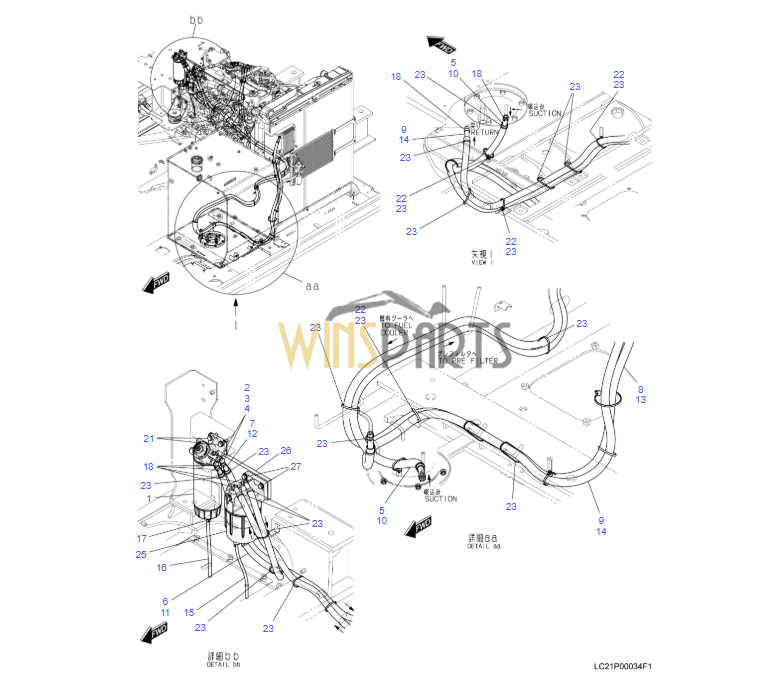

LC21P00034F1 FUEL LINES TUBE KOBELCO SK350NLC-10 SK350LC-10
　 1 YF21P01032F1 FILTER, FUEL 1
　 2 YF21P01030P1 TUBE 2
　 3 YF21P01033P1 JOINT 2
　 4 YF21P01031P1 WASHER 4
　 5 HX11F06380CX HOSE 1
　 6 HX11F06120CX HOSE 1
　 7 HX11F06210CZ HOSE 1
　 8 HX11F06525CY HOSE 1
　 9 HX11F06240CX HOSE 1
　 10 HX81X19370DX TUBE 1
　 11 HX81X19110DX TUBE 1
　 12 HX81X19200DX TUBE 1
　 13 LC21P01077P1 TUBE 1
　 14 HX81X19230DX TUBE 1
　 15 HX11Y05026DY HOSE 1
　 16 HX11Y06028DX HOSE 1
　 17 PH05P01088D6 CLIP 1
　 18 PH05P01088D8 CLIP 10
　 19 ZC48X24014 CLIP 1
　 20 ZM73C10020 SEMS-BOLT 1
　 21 ZM73C10035 SEMS-BOLT 2
　 22 YN13E01375P1 CLIP 4
　 23 PY01P01043D3 CLIP 30
　 24 PY01P01043D5 CLIP 1
065-01_CKCM_D0002107906_1 25 YN21P01157F1 FILTER, FUEL 1 P.065-01
　 26 LC21P01080P1 PLATE 1
　 27 ZM73C10040 SEMS-BOLT 2
　 28 ZM73C12040 SEMS-BOLT 2
LC21P00038F1 FUEL LINES KOBELCO SK330-10 SK350LC-10
　 .
065-01_CKCM_D0002431024_1 1 YN21P01157F1 FILTER, FUEL 1 P.065-01
　 2 LC21P01084F1 FILTER, FUEL 1
　 3 LC21P01085F1 FILTER, FUEL 1
　 4 YF21P01030P1 TUBE 1
　 5 YF21P01033P1 JOINT 2
　 6 YF21P01031P1 WASHER 4
　 7 HX11F06380CX HOSE 1
　 8 HX11F06100CX HOSE 1
　 9 YN21P01192D2 HOSE 1
　 10 LN21P01008DA HOSE 1
　 11 HX11F06390CY HOSE 1
　 12 HX81X19380DX TUBE 1
　 13 HX81X19090DX TUBE 1
　 14 HX81X19155DX TUBE 1
　 15 HX81X19140DX TUBE 1
　 16 HX11Y05026DY HOSE 1
　 17 ZM73C10020 SEMS-BOLT 3
　 18 ZM73C10030 SEMS-BOLT 2
　 20 ZM73C10040 SEMS-BOLT 2
　 21 ZC46X25011 CLIP 2
　 22 ZC48X24014 CLIP 1
　 23 PH05P01088D8 CLIP 8
　 24 YN13E01375P1 CLIP 5
　 25 PY01P01043D3 CLIP 22
　 28 ZM73C08035 SEMS-BOLT 2
　 29 ZC16X01800 CLIP 2
　 30 LC21P01086P1 TUBE 1
　 31 HX81X19370DX TUBE 1
　 32 PY01P01043D5 CLIP 1
LC51P00005F1 UREA LINES HOSE TUBE
　 .
　 1 YF51P01039F1 PUMP, UREA
　 2 YF02P00018F1 VALVE, SHUT OFF
　 3 LC51P01057P1 HOSE ASSY 1 LC14-18001–18009
　 . YC14-14029–14112
　 3 LC51P01071F1 HOSE ASSY 1 LC14-18010-
　 . YC14-14113-
　 3-1 LC51P01057P1 HOSE ASSY 1
　 3-2 YN51P01060P1 INSULATION 1
　 3-3 PY01P01043D3 CLIP 6
　 4 LC51P01047P1 HOSE ASSY 1
　 5 LC51P01031P1 HOSE ASSY 1
　 6 LC51P01060P1 PLATE 1
　 7 YN51P01029P1 CONNECTOR 1
　 8 LC51P01014D1 HOSE 2
　 9 LC51P01014DB HOSE 1
　 10 LC51P01014D3 HOSE 1
　 11 YN51P01057P1 HOSE 1
　 12 LC51P01014DA HOSE 1
　 13 HX81X19140DX TUBE 2
　 14 HX81X19046DX TUBE 1
　 16 HX81X19250DX TUBE 1
　 17 PH05P01088DB CLIP 10
　 18 EW02E01015DF CLIP 6
　 19 YN13E01375P1 CLIP 6
　 20 PY01P01043D8 CLIP 1
　 21 PY01P01043D3 CLIP 30 LC14-18001–18009
　 . YC14-14029–14112
　 21 PY01P01043D3 CLIP 24 LC14-18010-
　 . YC14-14113-
　 22 ZC48X24014 CLIP 2
　 23 ZC46X19011 CLIP 1
　 24 ZC46X12011 CLIP 1
　 25 ZM73C10020 SEMS-BOLT 9
　 26 ZM73C08016 SEMS-BOLT 3
　 27 ZS18C08090 CAPSCREW 3
　 28 ZW16P08000 WASHER 3
　 29 YN51P01023P1 HOSE 1
　 30 PH05P01088D9 CLIP 4
　 31 PH05P01088D4 CLIP 1
　 32 YN51P01030P1 HOSE 1
　 33 YN51P01056P1 TUBE 1
　 34 LC51P01044P1 CONNECTOR 1
　 35 ZC46X16011 CLIP 1
　 36 YN51P01060P1 INSULATION 1 LC14-18001–18009
　 . YC14-14029–14112
　 37 EW02E01015DA CLIP 3
　 38 LS51P01072P1 BRACKET 1
　 39 LC51P01058P1 PLATE 1 LC14-18001–18005
　 . YC14-14029–14085
　 39 LS51P01087P2 BRACKET 1 LC14-18006-
　 . YC14-14086-
　 40 LS51P01075P1 PLATE 1 LC14-18001–18005
　 . YC14-14029–14085
　 41 LC51P01059P1 PLATE 1 LC14-18001–18005
　 . YC14-14029–14085
　 42 LS51P01066P1 MOUNT, RUBBER 4 LC14-18001–18005
　 . YC14-14029–14085
　 42 LS12P01438P1 MOUNT, RUBBER 4 LC14-18006-
　 . YC14-14086-
　 43 ZM73C08020 SEMS-BOLT 11 LC14-18001–18005
　 . YC14-14029–14085
　 43 ZM73C08020 SEMS-BOLT 9 LC14-18006-

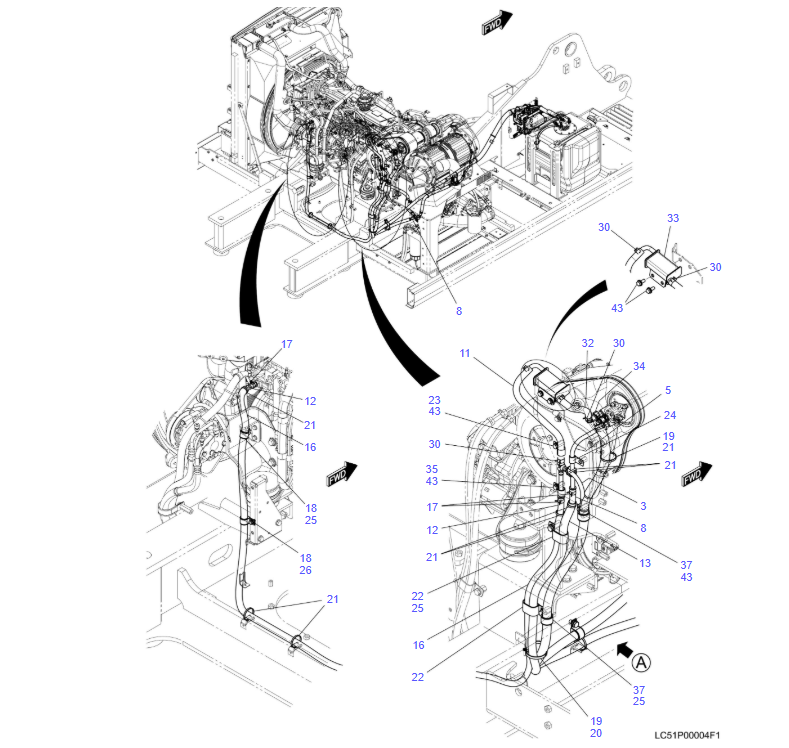

LC51P00004F1 UREA LINES HOSE ASSY KOBELCO
　 3 LC51P01057P1 HOSE ASSY 1
　 4 LC51P01047P1 HOSE ASSY 1
　 5 LC51P01031P1 HOSE ASSY 1
　 6 LC51P01060P1 PLATE 1
　 7 YN51P01029P1 CONNECTOR 1
　 8 LC51P01014D1 HOSE 2
　 9 LC51P01014DB HOSE 1
　 10 LC51P01014D3 HOSE 1
　 11 YN51P01057P1 HOSE 1
　 12 LC51P01014DA HOSE 1
　 13 HX81X19140DX TUBE 2
　 14 HX81X19046DX TUBE 1
　 16 HX81X19250DX TUBE 1
　 17 PH05P01088DB CLIP 10
　 18 EW02E01015DF CLIP 6
　 19 YN13E01375P1 CLIP 6
　 20 PY01P01043D8 CLIP 1
　 21 PY01P01043D3 CLIP 30
　 22 ZC48X24014 CLIP 2
　 23 ZC46X19011 CLIP 1
　 24 ZC46X12011 CLIP 1
　 25 ZM73C10020 SEMS-BOLT 9
　 26 ZM73C08016 SEMS-BOLT 7
　 27 ZS18C08090 CAPSCREW 3
　 28 ZW16P08000 WASHER 3
　 29 YN51P01023P1 HOSE 1
　 30 PH05P01088D9 CLIP 4
　 31 PH05P01088D4 CLIP 1
　 32 YN51P01030P1 HOSE 1
　 33 YN51P01056P1 TUBE 1
　 34 LC51P01044P1 CONNECTOR 1
　 35 ZC46X16011 CLIP 1
　 36 YN51P01060P1 INSULATION 1
　 37 EW02E01015DA CLIP 3
　 38 LS51P01072P1 BRACKET 1
　 39 LC51P01058P1 PLATE 1
　 40 LS51P01075P1 PLATE 1
　 41 LC51P01059P1 PLATE 1
　 42 LS51P01066P1 MOUNT, RUBBER 4
　 43 ZM73C08020 SEMS-BOLT 7
