LC21C00229F1 LC21C00207F1 LC21C00231F1 LC21C00210F1 LQ41C00055F1 GUARD KOBELCO

LC21C00229F1 LC21C00207F1 LC21C00231F1 LC21C00210F1 LQ41C00055F1 GUARD KOBELCO
　 .
360-01 LC21C00207F1 ASIA-02 D0002432120 1 1 LC21C00207F1 GUARD INSTAL 1 P.360-01
361-02 LC21C00231F1 ANZ-04 D0002431182 1 2 LC21C00231F1 GUARD INSTAL 1 P.361-02
360-03 LC21C00230F1 ASIA-04 D0002432119 1 3 LC21C00230F1 GUARD INSTAL 1 P.360-03
360-04 LC21C00210F1 ASIA-03 D0002432118 1 4 LC21C00210F1 GUARD INSTAL 1 P.360-04
360-05 LQ41C00055F1 CKCM-01 D0002431185 1 5 LQ41C00055F1 HANDRAIL INSTAL 1 P.360-05
360-06 LQ21C00251F1 ASIA-04 D0002432117 1 6 LQ21C00251F1 GUARD INSTAL 1 P.360-06

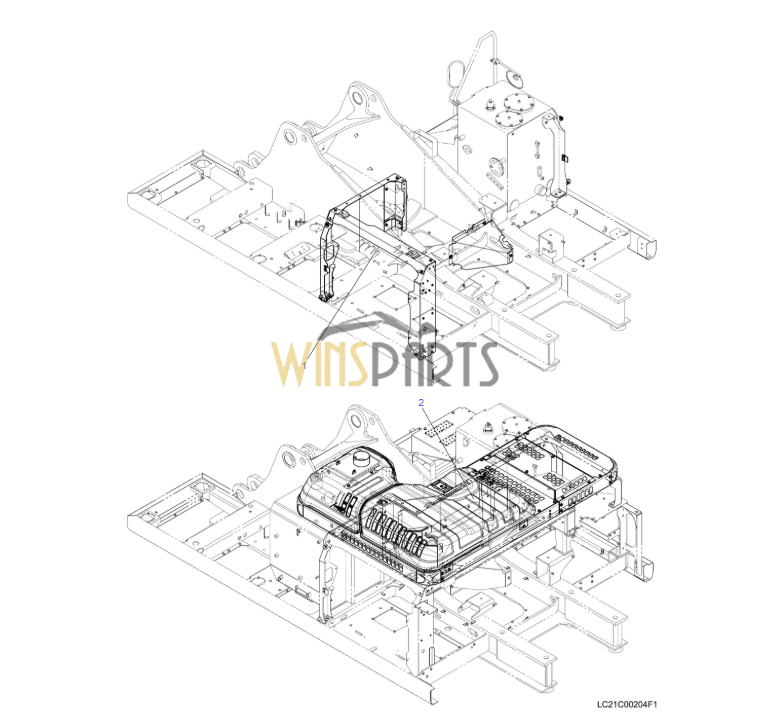

LC21C00204F1 GUARD INSTAL
　 .
1 LC21C00207F1 GUARD INSTAL 1 P.360-01
2 LC21C00226F1 GUARD INSTAL 1 P.360-02
3 LC21C00213F1 GUARD INSTAL 1 P.360-03
4 LC21C00227F1 GUARD INSTAL 1 P.360-04
5 LQ41C00059F1 HANDRAIL INSTAL 1 P.360-05
6 LQ21C00226F1 GUARD INSTAL 1 P.360-06
LC21C00207F1 GUARD
　 .
　 1 LC21C04799P1 PILLAR 1
　 1 LC21C04919P1 PILLAR 1
　 2 LC21C04734P1 PILLAR 1
　 2 LC21C05100P1 PILLAR 1
　 3 LC21C04616P1 PILLAR 1
　 4 LC21C04222F1 COVER ASSY
　 4-1 LC21C04105P1 COVER 1
　 4-2 LC21C04631P1 INSULATION
　 5 LC21C04387P1 BEAM 1
　 6 LC21C04619P1 BEAM 1
　 9 YN21C04515P1 STRIKER 2
　 10 YN21C03212P1 STOPPER 4
　 11 ZN18F10008 NUT 4
　 12 ZM73C12030 SEMS-BOLT
　 13 ZM73C12025 SEMS-BOLT
　 14 LQ21C02996P1 SHIM (1.0) 2
　 15 LQ21C02848P1 WASHER 1

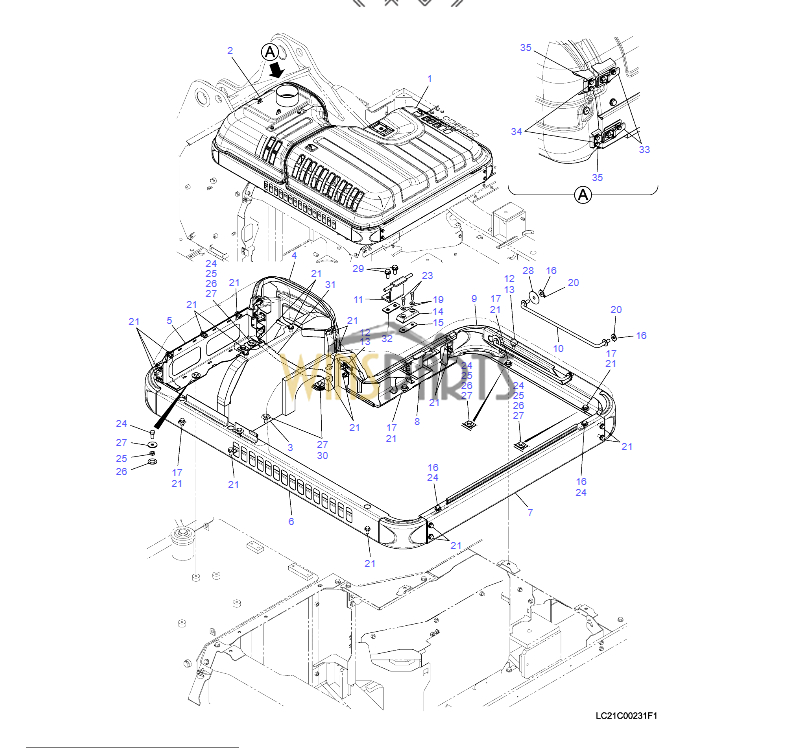

LC22C00045F1 ENGINE BONNET ASSY LC22C01402P1 LC21C00231F1 GUARD KOBELCO
　 .
　 1 LC22C00045F1 BONNET ASSY 1
　 1-1 LC22C01402P1 BONNET 1
　 1-1F LC22C01400P1 HINGE 2
　 1-2 LC22C01323DD STRIP, WEATHER 1
　 1-3 LC22C01387P1 INSULATION 1
　 1-4 LC22C01374P1 INSULATION 1
　 1-5 LC22C01375P1 INSULATION 1
　 1-6 LC22C01377P1 PLATE 1
　 1-7 LC21C04458P1 LOCK 1
　 1-8 PH22C01023P1 BOLT 6
　 1-9 ZW26X05000 LOCK WASHER 6
　 1-10 ZN18C05004 NUT 6
　 1-11 LC22C01388P1 INSULATION 1
　 2 LC21C04395F1 COVER ASSY 1
　 2-1 LC21C04397P2 COVER 1
　 2-2 LC21C04609P1 INSULATION 1
　 2-3 LC21C04268P1 RUBBER 1
　 2-4 YA21C01080D2 STRIP, WEATHER 1
　 2-5 LC22C01323DF STRIP, WEATHER 1
　 2-6 PY21C01007D3 STRIP, WEATHER 1
　 2-7 YT21C01039DC STRIP, WEATHER 1
　 2-8 LC21C04469P1 INSULATION 1
　 2-9 PE21C01070DB TRIM 1
　 2 LC21C04395F2 COVER ASSY 1 LC14405005-
　 . YC14405008-
　 2-2 LC21C04609P1 INSULATION 1
　 2-3 LC21C04268P1 RUBBER 1 LC14405005–05026
　 . YC14405008–05082
　 2-4 YA21C01080D2 STRIP, WEATHER 1
　 2-5 LC22C01323DF STRIP, WEATHER 1
　 2-6 PY21C01007D3 STRIP, WEATHER 1
　 2-7 YT21C01039DC STRIP, WEATHER 1
　 2-8 LC21C04469P1 INSULATION 1
　 2-9 PE21C01070DB TRIM 1
　 2-10 LC21C04967P1 COVER 1 LC14405005–05026
　 . YC14405008–05082
　 2-10 LC21C05055P1 COVER 1 LC14405027-
　 . YC14405083-
　 2-11 2416T13435 RUBBER, CUSHION 1
　 2-12 LC21C05057P1 RUBBER 1 LC14405027-
　 . YC14405083-
　 3 LC21C04400F1 COVER ASSY 1
　 3-1 LC21C04610P1 COVER 1
　 3-2 LC21C04644P1 INSULATION 1
　 3-3 LC21C04269P1 INSULATION 1
　 3-6 LC21C04627P1 INSULATION 1
　 3-7 LC21C04629P1 INSULATION 1
　 3-8 LC21C04655P1 INSULATION 1
　 4 LC21C04411F1 COVER ASSY 1
　 4-1 LC21C04412P2 COVER 1
　 4-1F LC21C04265P1 LOCK 1
　 4-1H LE21C01358P1 HINGE 2
　 4-2 LC21C04270P1 RUBBER 1
　 4-3 LQ21C04359P1 PLATE 1
　 4-4 YR22C01025P2 LOCK 1
　 4 LC21C04411F2 COVER ASSY 1 LC14405005-
　 . YC14405008-
　 4-3 LQ21C04359P1 PLATE 1
　 4-4 YR22C01025P2 LOCK 1
　 4-5 LC21C04950P1 COVER 1
　 4-5H LE21C01358P1 HINGE 2
　 5 LC21C04675F1 PANEL ASSY 1
　 5-1 LC21C04676P1 PANEL 1
　 5-2 LC21C04679P1 RUBBER 1
　 5 LC21C04675F2 PANEL ASSY 1 LC14405005-
　 . YC14405008-
　 5-2 LC21C04679P1 RUBBER 1
　 5-3 LC21C04938P1 PANEL 1
　 5-4 2416T13435 RUBBER, CUSHION 1
　 6 LC21C04427F1 PANEL ASSY 1
　 6-1 LC21C04621P1 PANEL 1 LC14-T1101–T1256
　 . YC14-T1101–T1232
　 6-1 LC21C04976P1 PANEL 1
　 6-1 LC21C05082P1 PANEL 1 LC14405023-
　 . YC14405070-
　 6-4 PW03M01207D1 TRIM 1
　 7 LC21C04413F1 PANEL ASSY 1
　 7-1 LC21C04798P1 PANEL 1
　 7-2 LC21C04791P1 INSULATION 1
　 7-3 LC22C01323D2 STRIP, WEATHER 1
　 7-4 YN21C01688D7 STRIP, WEATHER 1
　 8 LC21C04648F1 PANEL ASSY 1
　 8-1 LC21C04756P2 PANEL 1
　 8-3 2427P1836D36 STRIP, WEATHER 1
　 8-4 PM21C01152D1 STRIP, WEATHER 1
　 8-5 LC21C04654P1 RUBBER 1
　 8-6 LC21C04781P1 RUBBER 1
　 8-7 LC21C04652P1 RUBBER 1
　 9 LC21C04418P1 PANEL 1 LC14-T1101–T1256
　 . LC14405001–05026
　 . YC14-T1101–T1246
　 . YC14405001–05076
　 9 LC21C05037P1 PANEL 1 LC14405027-
　 . YC14405077-
　 10 LQ21C04450P1 STAY 1
　 11 LC21C04783P1 STRIKER 1
　 12 YN21C03212P1 STOPPER 2
　 13 ZN18F10008 NUT 2
　 14 2416T28650 RUBBER, CUSHION 1
　 15 LC21C04192P1 PLATE 1
　 16 2418T10357 WASHER 4
　 17 LQ21C02848P1 WASHER 4 LC14-T1101–T1256
　 . LC14405001–05026
　 . YC14-T1101–T1246
　 . YC14405001–05076
　 17 LQ21C02848P1 WASHER 2 LC14405027-
　 . YC14405077-
　 19 2418T23178 WASHER 2
　 20 2419R9D4 PIN 2
　 21 ZM73C12025 SEMS-BOLT 24 LC14-T1101–T1256
　 . LC14405001–05026
　 . YC14-T1101–T1246
　 . YC14405001–05076
　 21 ZM73C12025 SEMS-BOLT 22 LC14405027-
　 . YC14405077-
　 23 ZS18C08030 CAPSCREW 2
　 24 ZS18C12025 CAPSCREW 4 LC14-T1101–T1256
　 . LC14405001–05026
　 . YC14-T1101–T1246
　 . YC14405001–05076
　 24 ZS18C12025 CAPSCREW 6 LC14405027-
　 . YC14405077-
　 25 LS21C01410P1 WASHER 2 LC14-T1101–T1256
　 . LC14405001–05026
　 . YC14-T1101–T1246
　 . YC14405001–05076
　 25 LS21C01410P1 WASHER 4 LC14405027-
　 . YC14405077-
　 26 YN21C01395P1 WASHER 2 LC14-T1101–T1256
　 . LC14405001–05026
　 . YC14-T1101–T1246
　 . YC14405001–05076
　 26 YN21C01395P1 WASHER 4 LC14405027-
　 . YC14405077-
　 27 HY25X12040G1 WASHER 5 LC14-T1101–T1256
　 . LC14405001–05026
　 . YC14-T1101–T1246
　 . YC14405001–05076
　 27 HY25X12040G1 WASHER 7 LC14405027-
　 . YC14405077-
　 28 LQ21C04452P1 WASHER 1
　 29 ZM73C12030 SEMS-BOLT 2
　 30 ZS18C12035 CAPSCREW 3
　 31 LC21C04689P1 BRACKET 1
　 32 LC21C04772P1 PLATE 1
　 33 PM21C01371P1 LOCK 2 LC14405005-
　 . YC14405008-
　 34 LC21C04937P1 PLATE 2 LC14405005-
　 . YC14405008-
　 35 ZM73C08016 SEMS-BOLT 8 LC14405005-

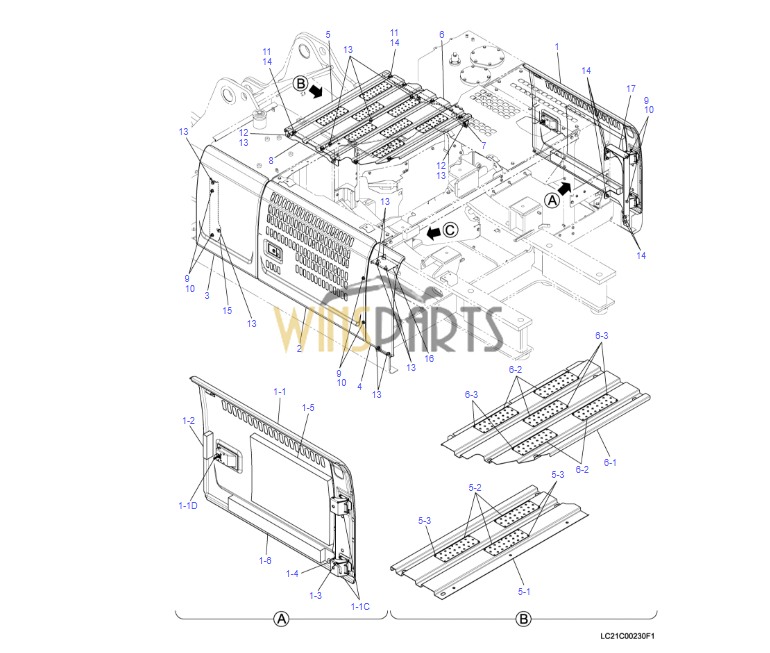

LC21C00230F1 LC21C04353F1 LC21C04703F1 PANEL ASSY
　 .
　 1 LC21C04353F1 PANEL ASSY 1
　 1-1 LC21C04354P2 PANEL 1
　 1-1C LQ21C03662P3 HINGE 2
　 1-1D YN21C06245P1 LOCK 1
　 1 LC21C05106F1 PANEL ASSY 1
　 1-1 LC21C05111P1 PANEL 1
　 1-1C LQ21C04710P1 HINGE 2
　 1-1D YN21C06245P1 LOCK 1
　 1-2 LQ21C03670P1 RUBBER 1
　 1-3 YR21C01123P1 CLIP 1
　 1-4 LQ21C03677P1 STAY 1
　 1-5 LC21C04663P1 INSULATION 1
　 1-6 LC21C04664P1 INSULATION 1
　 2 LC21C04703F1 PANEL ASSY 1
　 2-1 LC21C04356P2 PANEL 1
　 2-1C LQ21C03662P3 HINGE 2
　 2-1D YN21C06245P1 LOCK 1
　 2-2 LQ21C03783P1 RUBBER 1
　 2-3 LQ21C03677P1 STAY 1
　 2-4 YR21C01123P1 CLIP 1
　 2 LC21C05108F1 PANEL ASSY 1 LC14405046-
　 . YC14405206-
　 2-1 LC21C05112P1 PANEL 1
　 2-1C LQ21C04710P1 HINGE 2
　 2-1D YN21C06245P1 LOCK 1
　 2-2 LQ21C03783P1 RUBBER 1
　 2-3 YR21C01123P1 CLIP 1
　 2-4 LQ21C03677P1 STAY 1
　 3 LC21C04311F1 PANEL ASSY 1 LC14-T1101–T1256
　 . LC14405001–05045
　 . YC14-T1101–T1246
　 . YC14405001–05205
　 3-1 LC21C04895P1 PANEL 1 LC14-T1101–T1256
　 . LC14405001–05006
　 . YC14-T1101–T1246
　 . YC14405001–05011
　 3-1D LQ21C03662P3 HINGE 2
　 3-1 LC21C04979P1 PANEL 1 LC14405007-
　 . YC14405012-
　 3-1D LQ21C03662P3 HINGE 2
　 3-2 LQ21C03959P1 RUBBER 1
　 3-3 YR21C01123P1 CLIP 1
　 3-4 LQ21C03677P1 STAY 1
　 3 LC21C05109F1 PANEL ASSY 1 LC14405046-
　 . YC14405206-
　 3-1 LC21C05113P1 PANEL 1
　 3-1D LQ21C04710P1 HINGE 2
　 3-2 LQ21C03959P1 RUBBER 1
　 3-3 YR21C01123P1 CLIP 1
　 3-4 LQ21C03677P1 STAY 1
　 4 LC21C04357P1 PANEL 1
　 5 LC21C04691F1 GUARD ASSY 1
　 5-1 LC21C04693P1 GUARD 1
　 5-2 YN21C06508P1 PLATE 3
　 5-3 YN21C03168P1 RIVET 18
　 6 LC21C04692F1 GUARD ASSY 1
　 6-1 LC21C04696P1 GUARD 1
　 6-2 YN21C06508P1 PLATE 5
　 6-3 YN21C03168P1 RIVET 30
　 7 LC21C04111P1 BRACKET 1
　 8 LC21C04661P1 BRACKET 1
　 9 ZN18C12010 NUT 6
　 10 ZW16H12000 WASHER 6
　 11 LQ21C02848P1 WASHER 8
　 12 HY25X12040G1 WASHER 4
　 13 ZM73C12025 SEMS-BOLT 15
　 14 ZM73C12030 SEMS-BOLT 13
　 15 LQ21C04407P1 BRACKET 1
　 16 LC21C03761P1 BRACKET 1
　 17 LC21C04364P1 PILLAR 1 LC14-T1101–T1256
　 . LC14405001–05045
　 . YC14-T1101–T1246
　 . YC14405001–05205
　 17 LC21C05102P1 PILLAR 1 LC14405046-

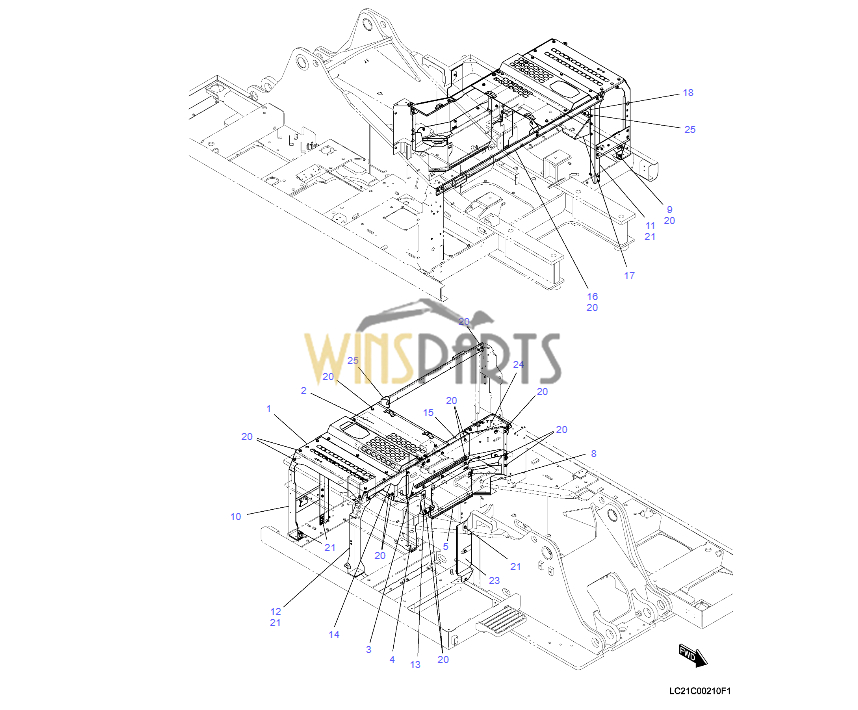

LC21C04368P2 LC21C00210F1 LC21C04369P1 LC21C04370F1 GUARD COVER ASSY
　 .
　 1 LC21C04368P2 GUARD 1
　 2 LC21C04369P1 GUARD 1
　 3 LC21C04370F1 COVER ASSY 1
　 3-1 LC21C04739P1 COVER 1
　 3-2 PH21C01136DF STRIP, WEATHER 1
　 3-3 YT21C01297DG STRIP, WEATHER 1
　 4 LC21C04327F1 COVER ASSY 1
　 4-1 LC21C04328P1 COVER 1
　 4-2 YT21C01039D4 STRIP, WEATHER 1
　 4-3 PM21C01152D1 STRIP, WEATHER 1
　 5 LC21C04376F1 COVER ASSY 1
　 5-1 LC21C04377P1 COVER 1
　 5-2 LC21C04171P1 RUBBER 1
　 5-3 PM21C01152DS STRIP, WEATHER 1
　 8 LC21C04379F1 COVER ASSY 1
　 8-1 LC21C04380P1 COVER 1
　 8-1 LC21C05035P1 COVER 1 LC14405018-
　 . YC14405048-
　 8-2 LC21C04403P1 RUBBER 1 LC14-T1101–T1256
　 . LC14405001–05017
　 . YC14-T1101–T1246
　 . YC14405001–05047
　 8-2 LC21C05036P1 RUBBER 1 LC14405018-
　 . YC14405048-
　 8-3 PM21C01152D5 STRIP, WEATHER 1
　 9 LC21C04190P1 BRACKET 1
　 10 LC21C04635P1 PILLAR 1
　 11 YN21C06445P1 PILLAR 1
　 12 LQ21C04020P2 PILLAR 1
　 13 LC21C04382P1 PILLAR 1
　 14 LC21C04133P1 BEAM 1
　 15 LC21C04745P1 BEAM 1 LC14-T1101–T1256
　 . LC14405001–05017
　 . YC14-T1101–T1246
　 . YC14405001–05060
　 15 LC21C05050P1 BEAM 1 LC14405018-
　 . YC14405061-
　 16 LC21C04391F1 BRACKET ASSY 1
　 16-1 LC21C04218P1 BEAM 1
　 16-2 LC21C02507P1 INSULATION 1
　 17 LC21C04562P1 COVER 1
　 18 LC21C04348P1 COVER 1
　 20 ZM73C12025 SEMS-BOLT 59
　 21 ZM73C12030 SEMS-BOLT 9
　 23 LC21C04889P1 COVER 1 LC14-T1101–T1138
　 . YC14-T1101–T1142
　 23 LC21C04921P1 COVER 1 LC14-T1139-
　 . YC14-T1143-
　 24 LC21C04393P1 GUARD 1
　 25 LC21C04431P1 PLATE 1

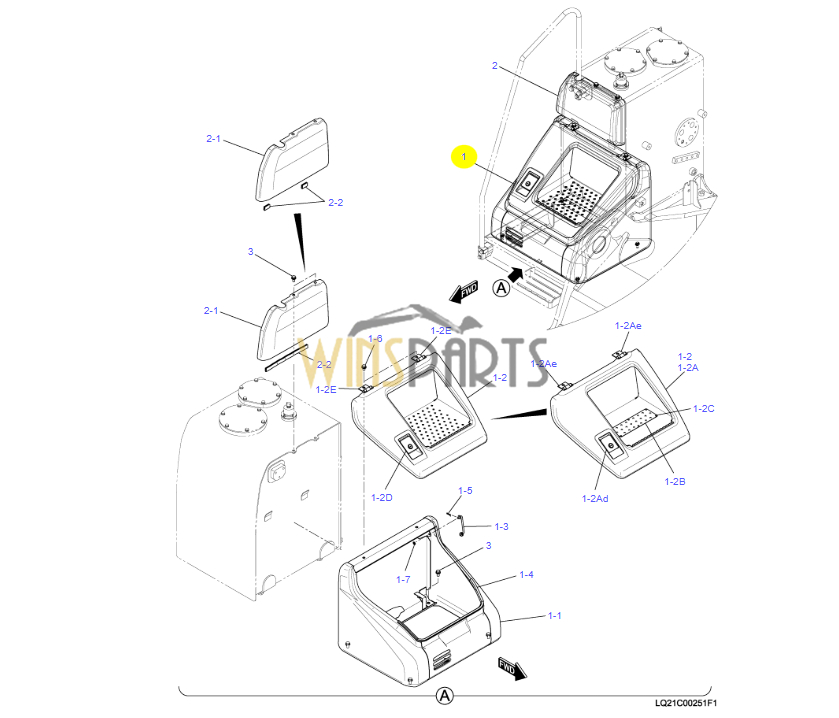

LQ21C00251F1 YN21C06888F1 GUARD YN21C06889P1 YN21C07218P1 BOX COVER ASSY
　 .
　 1 YN21C06888F1 COVER ASSY 1
　 1-1 YN21C06889P1 BOX 1
　 1-1 YN21C07218P1 BOX 1
　 1-2 YN21C07021F1 COVER ASSY 1
　 1-2A YN21C06478P3 COVER 1
　 1-2Ad YN21C06245P1 LOCK 1
　 1-2Ae YN21C06497P1 HINGE 2
　 1-2B YN21C06508P1 PLATE 1
　 1-2C YN21C03168P1 RIVET 6
　 1-3 LQ21C04573P1 STAY 1
　 1-4 PM21C01091D6 STRIP, WEATHER 1
　 1-5 2419R9D2 PIN 1
　 1-6 ZM73C12020 SEMS-BOLT 2
　 1-7 ZW16P08000 WASHER 1
　 1 YN21C07370F1 COVER ASSY 1 LC14405056-
　 . YC14405252-
　 1-1 YN21C07218P1 BOX 1
　 1-2 LS21C04849P1 COVER 1
　 1-2D YN21C06245P1 LOCK 1
　 1-2E YN21C06497P1 HINGE 2
　 1-3 LQ21C04573P1 STAY 1
　 1-4 PM21C01091D6 STRIP, WEATHER 1
　 1-5 2419R9D2 PIN 1
　 1-6 ZM73C12020 SEMS-BOLT 2
　 1-7 ZW16P08000 WASHER 1
　 2 YN21C06499F1 COVER ASSY 1
　 2-1 WB21C01158P1 COVER 1
　 2-2 LC21C02936D2 STRIP, WEATHER 2
　 2-2 HX83C13035DX STRIP, WEATHER 1
　 3 ZM73C12025 SEMS-BOLT 6
LQ41C00055F1 HANDRAIL INSTAL
　 1 LQ41C00056P2 HANDRAIL 1
　 2 LQ21C02995P1 PLATE 1
　 2 LQ21C04737P1 BRACKET 1
　 3 LQ21C02318P1 CLAMP 1
　 4 LQ21C02997P1 CLAMP 1
　 5 ZS18C10055 CAPSCREW 2
　 5 ZS18C10055 CAPSCREW 1
　 6 ZS18C12060 CAPSCREW 1
　 7 ZS18C16065 CAPSCREW 2
　 7 ZS18C16070 CAPSCREW 2
　 8 ZW16H10000 WASHER 2
　 9 ZW16H12000 WASHER 1
　 10 ZW16H16000 WASHER 2
　 11 ZS18C10060 CAPSCREW 1

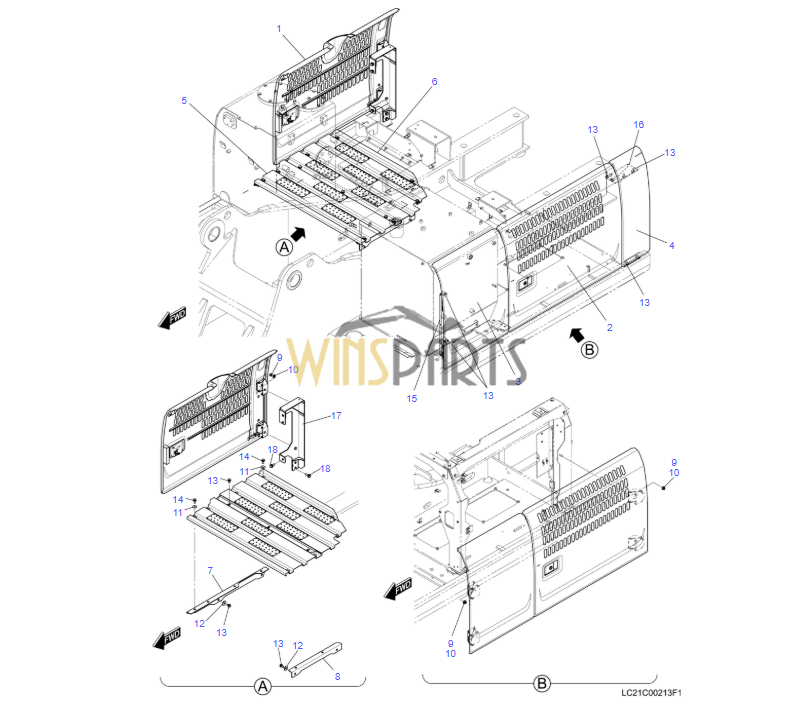

LC21C00213F1 LC21C04574F1 LC21C04575P1 GUARD PANEL ASSY
　 .
　 1 LC21C04574F1 PANEL ASSY 1
　 1-1 LC21C04575P1 PANEL 1
　 1-1C LQ21C03662P2 HINGE 2
　 1-1D YN21C06245P1 LOCK 1
　 1-2 LQ21C03670P1 RUBBER 1
　 1-3 YR21C01123P1 CLIP 1
　 1-4 LQ21C03677P1 STAY 1
　 2 LC21C04308F1 PANEL ASSY 1
　 2-1 LC21C04307P1 PANEL 1
　 2-1C LQ21C03662P2 HINGE 2
　 2-1D YN21C06245P1 LOCK 1
　 2-2 LQ21C03783P1 RUBBER 1
　 2-3 YR21C01123P1 CLIP 1
　 2-4 LQ21C03677P1 STAY 1
　 2-5 LC21C04335P1 INSULATION 1
　 2-6 LC21C03927P1 INSULATION 1
　 3 LC21C04311F1 PANEL ASSY 1
　 3-1 LC21C04310P1 PANEL 1
　 3-1D LQ21C03662P2 HINGE 2
　 3-2 LQ21C03959P1 RUBBER 1
　 3-3 YR21C01123P1 CLIP 1
　 3-4 LQ21C03677P1 STAY 1
　 4 LC21C04357P1 PANEL 1
　 5 LC21C04691F1 GUARD ASSY 1
　 5-1 LC21C04693P1 GUARD 1
　 5-2 YN21C06508P1 PLATE 3
　 5-3 YN21C03168P1 RIVET 18
　 6 LC21C04692F1 GUARD ASSY 1
　 6-1 LC21C04696P1 GUARD 1
　 6-2 YN21C06508P1 PLATE 5
　 6-3 YN21C03168P1 RIVET 30
　 7 LC21C04111P1 BRACKET 1
　 8 LC21C04661P1 BRACKET 1
　 9 ZN18C12010 NUT 6
　 10 ZW16H12000 WASHER 6
　 11 LQ21C02848P1 WASHER 8
　 12 HY25X12040G1 WASHER 4
　 13 ZM73C12025 SEMS-BOLT 15
　 14 ZM73C12030 SEMS-BOLT 8
　 15 LQ21C04407P1 BRACKET 1
　 16 LC21C03761P1 BRACKET 1
　 17 LC21C04364P1 PILLAR 1
　 18 ZM73C12035 SEMS-BOLT 5

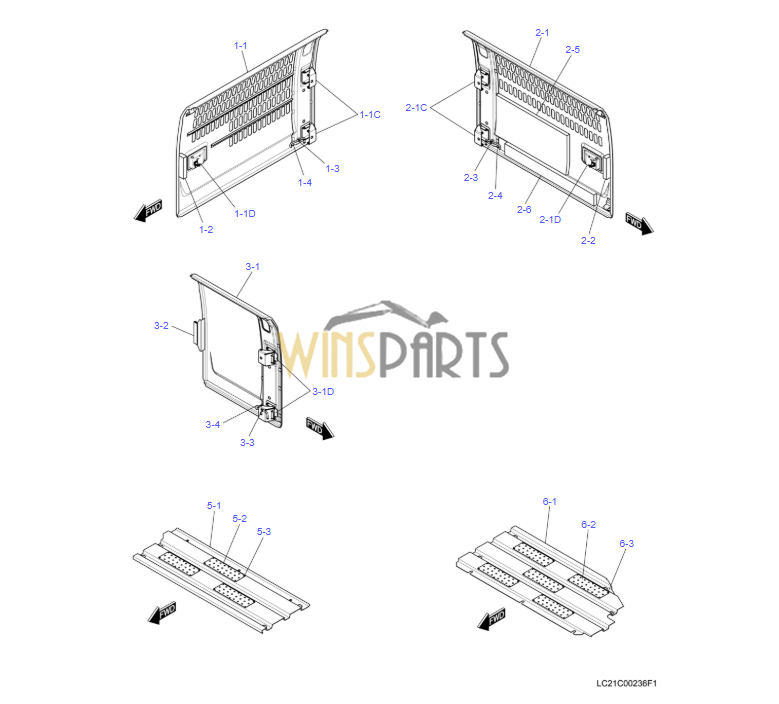

LC21C00236F1 LC21C04778F1 LC21C04779P2 LC21C04308F1 PANEL ASSY
　 .
　 1 LC21C04778F1 PANEL ASSY 1
　 1-1 LC21C04779P2 PANEL 1
　 1-1C LQ21C03662P3 HINGE 2
　 1-1D YN21C06245P1 LOCK 1
　 1-2 LQ21C03670P1 RUBBER 1
　 1-3 YR21C01123P1 CLIP 1
　 1-4 LQ21C03677P1 STAY 1
　 2 LC21C04308F1 PANEL ASSY 1
　 2-1 LC21C04307P2 PANEL 1
　 2-1C LQ21C03662P3 HINGE 2
　 2-1D YN21C06245P1 LOCK 1
　 2-2 LQ21C03783P1 RUBBER 1
　 2-3 YR21C01123P1 CLIP 1
　 2-4 LQ21C03677P1 STAY 1
　 2-5 LC21C04335P1 INSULATION 1
　 2-6 LC21C03927P1 INSULATION 1
　 3 LC21C04311F1 PANEL ASSY 1
　 3-1 LC21C04310P2 PANEL 1
　 3-1D LQ21C03662P3 HINGE 2
　 3-1 LC21C04895P1 PANEL 1 LC14-18016–18089
　 . YC14-14166–14569
　 3-1D LQ21C03662P3 HINGE 2
　 3-1 LC21C04979P1 PANEL 1 LC14-18090-
　 . YC14-14570-
　 3-1D LQ21C03662P3 HINGE 2
　 3-2 LQ21C03959P1 RUBBER 1
　 3-3 YR21C01123P1 CLIP 1
　 3-4 LQ21C03677P1 STAY 1
　 4 LC21C04357P1 PANEL 1
　 5 LC21C04691F1 GUARD ASSY 1
　 5-1 LC21C04693P1 GUARD 1
　 5-2 YN21C06508P1 PLATE 3
　 5-3 YN21C03168P1 RIVET 18
　 6 LC21C04692F1 GUARD ASSY 1
　 6-1 LC21C04696P1 GUARD 1
　 6-2 YN21C06508P1 PLATE 5
　 6-3 YN21C03168P1 RIVET 30
　 7 LC21C04111P1 BRACKET 1
　 8 LC21C04661P1 BRACKET 1
　 9 ZN18C12010 NUT 6
　 10 ZW16H12000 WASHER 6
　 11 LQ21C02848P1 WASHER 8
　 12 HY25X12040G1 WASHER 4
　 13 ZM73C12025 SEMS-BOLT 15
　 14 ZM73C12030 SEMS-BOLT 8
　 15 LQ21C04407P1 BRACKET 1
　 16 LC21C03761P1 BRACKET 1
　 17 LC21C04364P1 PILLAR 1
　 18 ZM73C12035 SEMS-BOLT 5

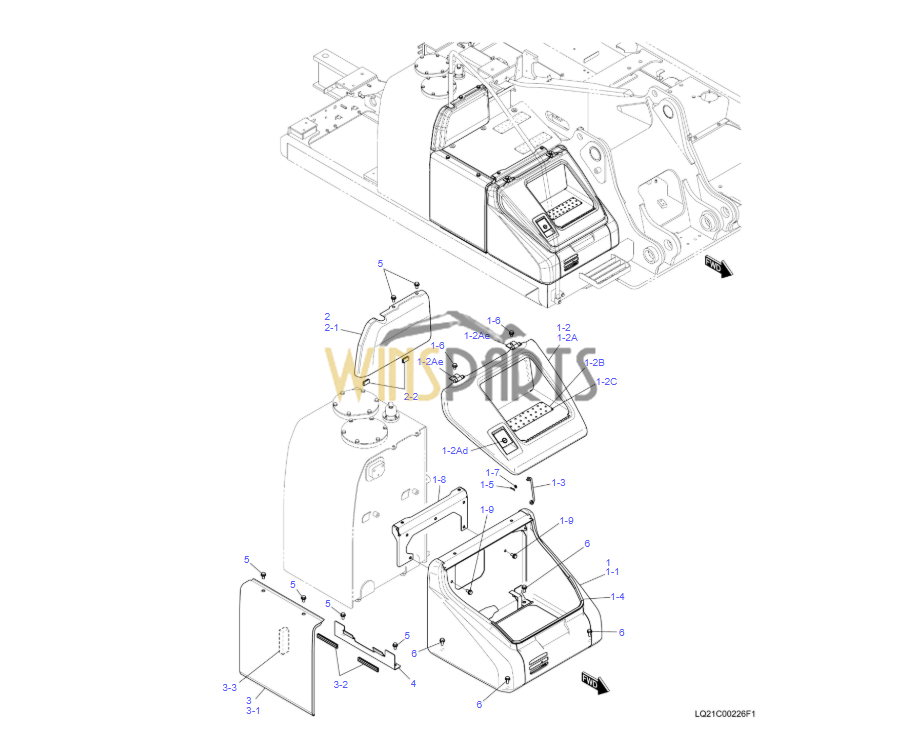

LQ21C00226F1 YN21C06728F1 YN21C06849P1 GUARD BOX COVER ASSY
　 .
　 1 YN21C06728F1 COVER ASSY 1
　 1-1 YN21C06849P1 BOX 1
　 1-2 YN21C06500F1 COVER ASSY 1 LC14-18001–18004
　 . YC14-14001–14082
　 1-2A YN21C06478P2 COVER 1
　 1-2Ad YN21C06245P1 LOCK 1
　 1-2Ae YN21C06497P1 HINGE 2
　 1-2B YN21C06508P1 PLATE 1
　 1-2C YN21C03168P1 RIVET 6
　 1-2 YN21C07021F1 COVER ASSY 1 LC14-18005-
　 . YC14-14083-
　 1-2A YN21C06478P3 COVER 1
　 1-2Ad YN21C06245P1 LOCK 1
　 1-2Ae YN21C06497P1 HINGE 2
　 1-2B YN21C06508P1 PLATE 1
　 1-2C YN21C03168P1 RIVET 6
　 1-3 LQ21C03751P1 STAY 1 LC14-18001–18004
　 . YC14-14001–14082
　 1-3 LQ21C04574P1 STAY 1 LC14-18005-
　 . YC14-14083-
　 1-4 PM21C01091D6 STRIP, WEATHER 1
　 1-5 2419R9D2 PIN 1
　 1-6 ZM73C12020 SEMS-BOLT 2
　 1-7 ZW16P08000 WASHER 1
　 1-8 YN21C06767P1 BRACKET 1
　 1-9 ZM73C12025 SEMS-BOLT 5
　 2 YN21C06499F1 COVER ASSY 1
　 2-1 YN21C06477P1 COVER 1 LC14-18001–18003
　 . YC14-14001–14071
　 2-1 WB21C01158P1 COVER 1 LC14-18004-
　 . YC14-14072-
　 2-2 LC21C02936D2 STRIP, WEATHER 2
　 3 YN21C06835F1 PANEL ASSY 1
　 3-1 YN21C06757P1 PANEL 1
　 3-2 2427P1836D35 STRIP, WEATHER 2
　 3-3 YN21C06878P1 RUBBER 1
　 4 YN21C06637P1 BRACKET 1 YC14-14001–14053
　 4 YN21C07003P1 BRACKET 1 LC14-18001-
　 . YC14-14054-
　 5 ZM73C12025 SEMS-BOLT 6
　 6 ZM73C12030 SEMS-BOLT 4

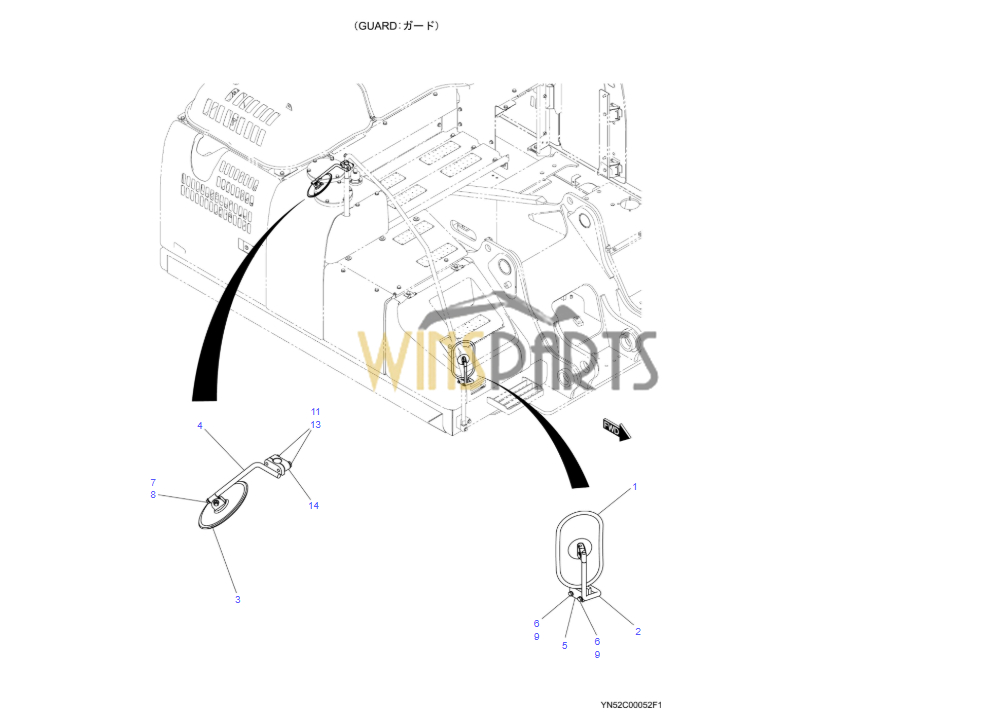

YN52C00052F1 YT52C00006P1 MIRROR KOBELCO SK350NLC-10 SK330-10 SK350LC-10 SK350DLC-10
　 1 PY02C01079P1 MIRROR ASSY, BACK 1
　 2 LQ52C01036P1 STAY 1
　 3 YT52C00006P1 MIRROR 1
　 4 LQ52C01049P1 STAY 1
　 5 2432T4113D2 CLAMP 1
　 6 ZS18C08045 CAPSCREW 2
　 7 ZS18C08012 CAPSCREW 1
　 8 ZW16P08000 WASHER 1
　 9 ZW26X08000 LOCK WASHER 2
　 11 ZW16H10000 WASHER 2
　 13 ZS18C10045 CAPSCREW 2
　 14 LS52C01060P1 CLAMP 1
LQ80E00014F1 LIGHT INSTAL, UPP
　 1 YT80S00002F2 LIGHT 1
　 1-5 YT80S00002S005 BULB 1
　 2 YN80E01034P1 BRACKET 1
　 3 ZM73C10020 SEMS-BOLT 2
　 4 YR02C01645P1 GROMMET 1
LC24C00046F1 COVER ASSY, UNDER Not Service
　 .
　 1 LC24C01271P1 COVER 1
　 2 LC24C01260P1 COVER 1
　 3 LC24C01272P1 COVER 1
　 4 LC24C01232P1 COVER 1
　 5 LC24C01233P1 COVER 1
　 6 LC24C01234P1 COVER 1
　 7 LC24C01262P1 COVER 1
　 8 LC24C01258P1 COVER 1
　 9 LQ24C01252P1 COVER 1
　 11 ZM73C12025 SEMS-BOLT 20
　 12 ZM73C12035 SEMS-BOLT 6
　 13 ZM73C12030 SEMS-BOLT 10
　 14 ZM73C12040 SEMS-BOLT 12
　 15 HY25X12040G1 WASHER 7

Related Posts
