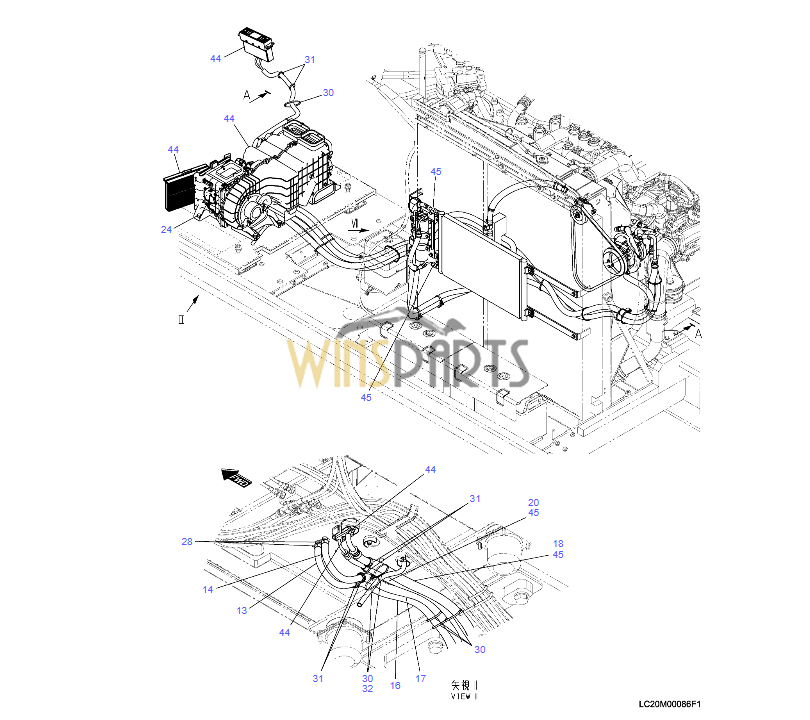

LC20M00086F1 LQ20M00086F1 LC20M01126P1 AIR CONDITIONER KOBELCO SK330-10 SK350LC-10

LC20M00086F1 LQ20M00086F1 LC20M01126P1 AIR CONDITIONER KOBELCO SK330-10 SK350LC-10
　 8 YN20M01494D2 V-BELT 1
　 9 LC20M01315P1 BRACKET 1
　 10 LC20M01317P1 BRACKET 1
　 12 LC20M01325P1 BRACKET 1
　 13 HX11W08360DX HOSE 1
　 14 HX11W08260DX HOSE 1
　 15 YN20M01492D9 HOSE 1
　 16 YN20M01046DN TUBE 1
　 17 YN20M01046DE TUBE 1
　 18 LQ20M01131D4 TUBE 1
　 19 2418Z1333D16 TUBE 1
　 20 LS21P01001D9 TUBE 1
　 21 LQ20M01131DK TUBE 1
　 22 LQ20M01370P1 TUBE 1
　 23 LC20M01126P1 CONNECTOR 1
　 24 ZM73C10025 SEMS-BOLT 6 LC14-T1101–T1124
　 . YC14-T1101–T1117
　 24 ZM32C10025 SEMS-BOLT 6 LC14-T1125-
　 . YC14-T1118-
　 25 ZM73C08025 SEMS-BOLT 8
　 26 ZM73C10030 SEMS-BOLT 1
　 27 ZM73C10020 SEMS-BOLT 1
　 28 LQ20M01371P1 CLIP 4
　 29 LQ20M01372P1 CLIP 2
　 30 PY01P01043D5 CLIP 19
　 31 PY01P01043D3 CLIP 18
　 32 YN13E01375P1 CLIP 5
　 33 EW02E01015D7 CLIP 1
　 35 ZS18C08100 CAPSCREW 4
　 36 ZS18C08030 CAPSCREW 4
　 37 ZS18C08020 CAPSCREW 2
　 38 ZW16P08000 WASHER 6
　 39 PV01P01007P1 WASHER 4
　 40 LC20M01307P1 INSULATION 1
　 41 YY20M01169P1 BRACKET 1
　 42 ZM73C06020 SEMS-BOLT 2
　 43 2418Z1333D1 TUBE 1
475-01_LQ20M00086F1_ASIA-02_D0002432130_1 44 LQ20M00086F1 CONDITIONER ASSY,AIR 1 P.475-01
475-02_LC20M00068F1_ASIA_D0002432129_1 45 LC20M00068F1 CONDITIONER ASSY,AIR 1 P.475-02
　 46 YN03E01001D4 CLIP 2
　 47 YN20M01751P1 CLIP 1
　 48 YN20M01752P1 CLIP 1
　 49 ZS18C10050 CAPSCREW 3
　 50 ZW16P10000 WASHER 3

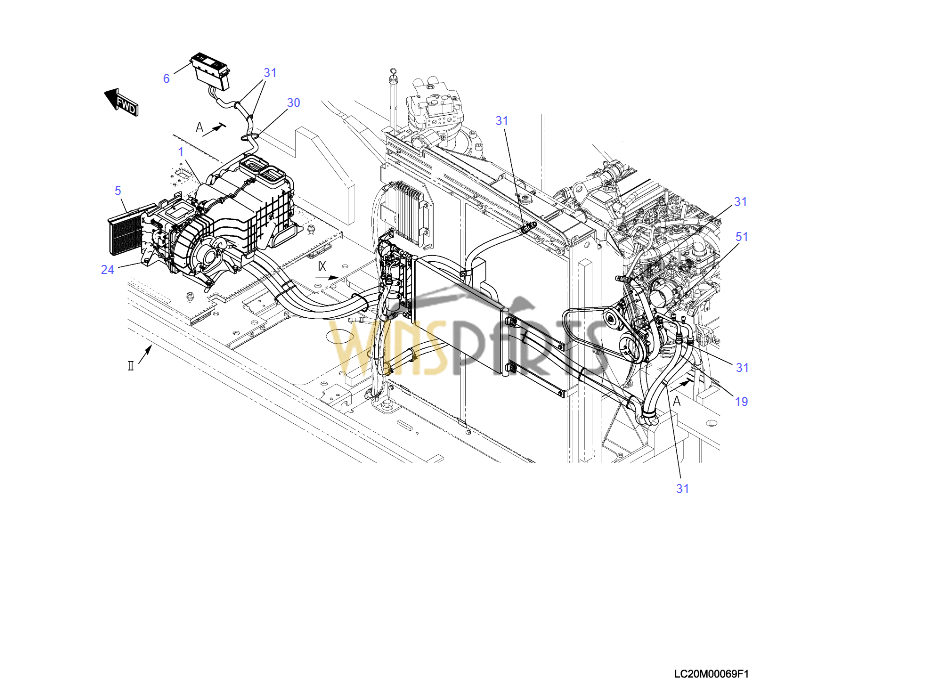

LC20M00069F1 LQ20M00089F1 YX91V00001F1 AIR CONDITIONER ASSY KOBELCO SK350NLC-10 SK350DLC-10
　 .
475-01_LQ20M00089F1_KCMU-01_D0002120997_1 1 LQ20M00089F1 CONDITIONER ASSY,AIR 1 P.475-01
　 2 YX91V00001F1 COMPRESSOR, AIR 1
　 2-1 LC91V00001S002 PLATE 1
　 2-2 YN91V01001S002 PLATE 1
　 2-3 YN91V01001S003 ROTOR 1
　 2-4 LC91V00001S004 ACCESSORIES 1
　 2-5 YN91V01001S005 COVER 1
　 2-6 YN91V01001S006 COVER 1
　 2-7 YN91V01001S007 RING ASSY 1
　 3 LQ20M01327F1 CONDENSER 1
　 3-1 LQ20M01327S001 CONDENSER 1
　 3-2 YT20M01215S002 RUBBER 4
　 3-3 YT20M01215S003 COLLAR 4
　 4 YN20M01696F1 PULLEY ASSY 1
　 5 LQ50V01009P1 FILTER 1
　 6 LQ20M01375P1 PANEL 1
　 8 YN20M01494D5 V-BELT 1
　 9 LC20M01315P1 BRACKET 1
　 10 LC20M01317P1 BRACKET 1
　 12 LC20M01313P1 BRACKET 1
　 13 HX11W08380DX HOSE 1
　 14 HX11W08310DX HOSE 1
　 16 YN20M01427D8 TUBE 1
　 17 YN20M01046DK TUBE 1
　 18 LQ20M01131DH TUBE 1
　 19 2418Z1333D18 TUBE 1
　 20 LS21P01001D9 TUBE 1
　 23 LC20M01126P1 CONNECTOR 2
　 24 ZM73C10025 SEMS-BOLT 6
　 25 ZM73C08025 SEMS-BOLT 8
　 27 ZM73C10020 SEMS-BOLT 2
　 28 LQ20M01371P1 CLIP 4
　 30 PY01P01043D5 CLIP 16
　 31 PY01P01043D3 CLIP 18
　 32 YN13E01375P1 CLIP 4
　 34 YW05P01025P1 CLIP 1
　 35 ZS18C08100 CAPSCREW 4
　 36 ZS18C08030 CAPSCREW 4
　 37 ZS18C08025 CAPSCREW 2
　 38 ZW16P08000 WASHER 6
　 39 PV01P01007P1 WASHER 4
　 40 LC20M01307P1 INSULATION 1
　 41 LC20M01311P1 PLATE 1
　 42 YN20M01751P1 CLIP 1
　 43 ZM73C08020 SEMS-BOLT 2
　 44 YY20M01169P1 BRACKET 1
　 45 ZM73C06020 SEMS-BOLT 2
　 46 2418Z1333D1 TUBE 1
　 47 YN03E01001D4 CLIP 2
　 48 LQ54S00005P1 RECEIVER 1
　 49 YN20M01469P1 BRACKET 1
　 50 LC20M01310F1 HOSE ASSY 1
　 50-1 LC20M01310S001 HOSE ASSY 1
　 50-2 2445Z1604D5 O-RING 2
　 50-3 YN20M01725P1 CAP 1
　 51 LC20M01321F1 HOSE ASSY 1
　 51-1 LC20M01321S001 HOSE ASSY 1
　 51-2 2445Z1604D4 O-RING 2
　 51-3 YN20M01726P1 CAP 1
　 52 LC20M01320F1 HOSE ASSY 1
　 52-1 LC20M01320S001 HOSE ASSY 1
　 52-2 2445Z1604D6 O-RING 2
　 53 LQ20M01409F1 HOSE ASSY 1
　 53-1 LQ20M01409S001 HOSE ASSY 1
　 53-2 2445Z1604D6 O-RING 2
　 54 YN20M01954P1 CAPSCREW 2
　 55 YN20M01955P1 CAPSCREW 2

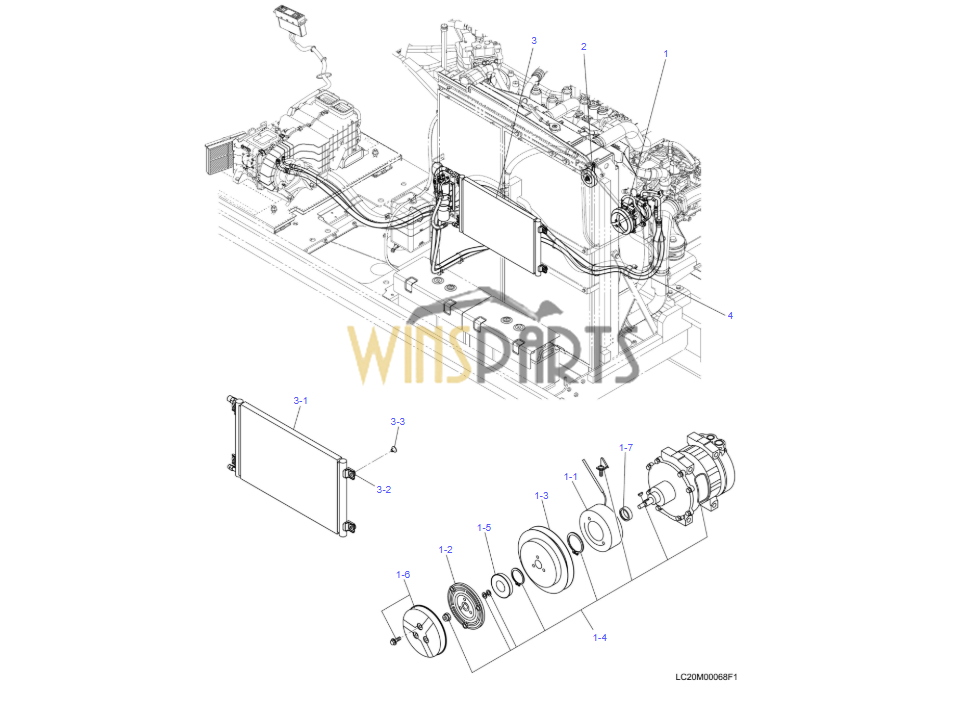

LC20M00068F1 YX91V00001F1 AIR COMPRESSOR KOBELCO SK350NLC-10 SK350DLC-10
　 .
　 1 YX91V00001F1 COMPRESSOR, AIR 1
　 1-1 LC91V00001S002 PLATE 1
　 1-2 YN91V01001S002 PLATE 1
　 1-3 YN91V01001S003 ROTOR 1
　 1-4 LC91V00001S004 ACCESSORIES 1
　 1-5 YN91V01001S005 COVER 1
　 1-6 YN91V01001S006 COVER 1
　 1-7 YN91V01001S007 RING ASSY 1
　 2 YN20M01696F1 PULLEY ASSY 1
　 3 LQ20M01327F1 CONDENSER 1
　 3-1 LQ20M01327S001 CONDENSER 1
　 3-2 YT20M01215S002 RUBBER 4
　 3-3 YT20M01215S003 COLLAR 4
　 4 LC96V00051F1 DRYER ASSY, AIR 1
　 4-1 LC20M01326F1 HOSE ASSY 1
　 4-1A LC20M01326S001 HOSE ASSY 1
　 4-1B 2445Z1604D5 O-RING 2
　 4-1C YN20M01725P1 CAP 1
　 4-2 LC20M01319F1 HOSE ASSY 1
　 4-2A LC20M01319S001 HOSE ASSY 1
　 4-2B 2445Z1604D4 O-RING 2
　 4-2C YN20M01726P1 CAP 1
　 4-3 LC20M01320F1 HOSE ASSY 1
　 4-3A LC20M01320S001 HOSE ASSY 1
　 4-3B 2445Z1604D6 O-RING 2
　 4-4 YT96V00001S009 CAPSCREW 2
　 4-5 YT96V00001S010 CAPSCREW 2
　 4-6 LQ20M01409F1 HOSE ASSY 1
　 4-6A LQ20M01409S001 HOSE ASSY 1
　 4-6B 2445Z1604D6 O-RING 2
　 4-7 LQ54S00005P1 RECEIVER 1
　 4-8 YN20M01469P1 BRACKET 1

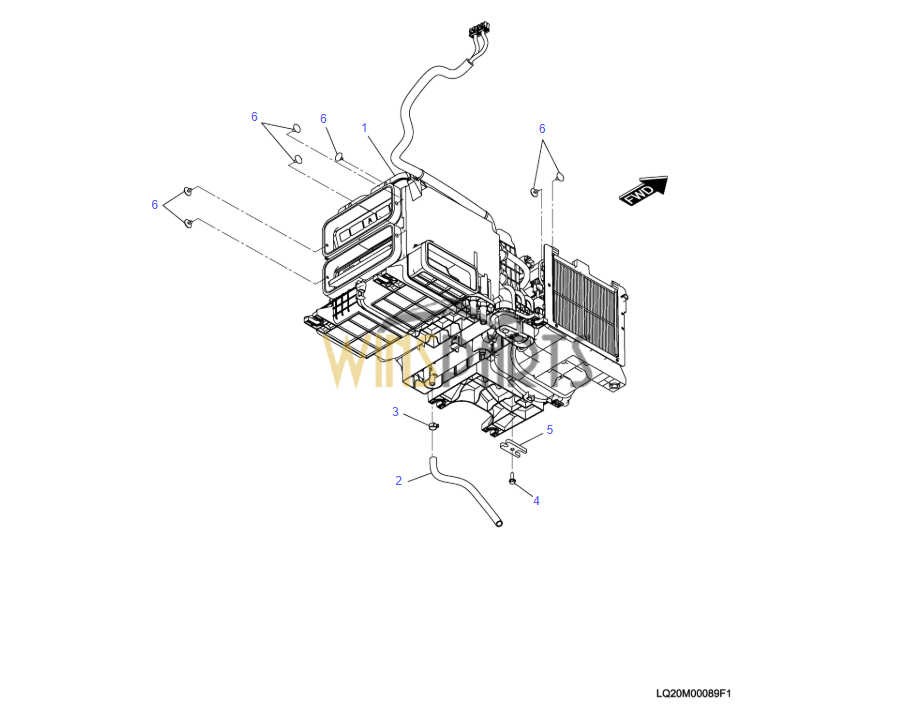

LC20M00091F1 LQ20M00089F1 YX91V00001F1 CONDITIONER, AIR KOBELCO
　 .
1 LQ20M00089F1 CONDITIONER ASSY,AIR 1 P.475-01
2 YX91V00001F1 COMPRESSOR, AIR 1
　LQ20M00089F1 CONDITIONER ASSY,AIR
　 .
　 1 LQ20M00088F1 CONDITIONER, AIR 1
　 1-1 LQ20M00059S001 CORE 1
　 1-2 LQ20M00088S002 CONDITIONER, AIR 1
　 1-3 LQ20M00059S003 RAIL 2
　 1-4 LQ20M00059S004 PACKING 1
　 1-5 LQ20M00059S005 LEVER 1
　 1-6 LQ20M00059S006 LEVER 1
　 1-7 LQ20M00059S007 DUMPER 1
　 1-8 LQ20M00059S008 SENSOR 1
　 1-9 LQ20M00059S009 JOINT ASSY 1
　 1-10 LQ20M00059S010 CASE 1
　 1-11 LQ20M00059S011 CASE 1
　 1-12 LQ20M00059S012 CASE 1
　 1-13 LQ20M00059S013 CLIP 1
　 1-14 LQ20M00059S014 COVER 1
　 1-15 LQ50V01007P1 FILTER 1
　 1-16 LQ20M00059S016 PACKING 2
　 1-17 LQ20M00059S017 PACKING 1
　 1-18 LQ20M00059S018 HOSE 1
　 1-19 LQ20M00059S019 BLOWER ASSY 1
　 1-20 LQ20M00088S020 CONDITIONER, AIR 3
　 1-21 LQ20M00088S021 CONDITIONER, AIR 1
　 1-22 LQ20M00059S022 LEVER 1
　 1-23 LQ20M00059S023 LEVER 1
　 1-24 LQ20M00059S024 LEVER 1
　 1-25 LQ20M00059S025 LEVER 1
　 1-26 LQ20M00059S026 JOINT 1
　 1-27 LQ20M00059S027 JOINT 1
　 1-28 LQ20M00059S028 JOINT 1
　 1-29 LQ20M00059S029 ROD 2
　 1-30 LQ20M00059S030 LEVER 1
　 1-31 LQ20M00059S031 LEVER 1
　 1-32 LQ20M00059S032 LEVER 1
　 1-33 LQ20M00059S033 LINK 1
　 1-34 LQ20M00059S034 ROD 1
　 1-35 LQ20M00059S035 DUMPER 3
　 1-36 LQ20M00059S036 DUMPER 2
　 1-37 LQ20M00059S037 DUMPER 1
　 1-38 LQ20M00059S038 RELAY 2
　 1-39 LQ20M00059S039 RESISTOR 1
　 1-40 LQ20M00059S040 EVAPORATOR 1
　 1-41 LQ20M00088S041 CONDITIONER, AIR 1
　 1-42 LQ20M00059S042 THERMOMETER 1
　 1-43 LQ20M00059S043 CAPSCREW 2
　 1-44 LQ20M00059S044 HOLDER 1
　 1-45 LQ20M00059S045 HOLDER 1
　 1-46 LQ20M00059S046 SCREW, TAPPING 3
　 1-47 LQ20M00059S047 SCREW, TAPPING 36
　 1-48 LQ20M00059S048 BUSHING 4
　 1-49 LQ20M00059S049 HOLDER 2
　 1-50 LQ20M00059S050 SCREW, TAPPING 1
　 1-51 LQ20M00059S051 INSULATION 2
　 1 LQ20M00109F1 CONDITIONER, AIR 1
　 1-1 LQ20M00059S001 CORE 1
　 1-2 LQ20M00088S002 CONDITIONER, AIR 1
　 1-3 LQ20M00059S003 RAIL 2
　 1-4 LQ20M00059S004 PACKING 1
　 1-5 LQ20M00059S005 LEVER 1
　 1-6 LQ20M00059S006 LEVER 1
　 1-7 LQ20M00059S007 DUMPER 1
　 1-8 LQ20M00059S008 SENSOR 1
　 1-9 LQ20M00059S009 JOINT ASSY 1
　 1-10 LQ20M00059S010 CASE 1
　 1-11 LQ20M00059S011 CASE 1
　 1-12 LQ20M00059S012 CASE 1
　 1-13 LQ20M00059S013 CLIP 1
　 1-14 LQ20M00059S014 COVER 1
　 1-15 LQ50V01007P1 FILTER 1
　 1-16 LQ20M00059S016 PACKING 2
　 1-17 LQ20M00059S017 PACKING 1
　 1-18 LQ20M00059S018 HOSE 1
　 1-19 LQ20M00059S019 BLOWER ASSY 1
　 1-20 LQ20M00059S020 MOTOR, ELEC 3
　 1-21 LQ20M00109S021 HARNESS 1
　 1-22 LQ20M00059S022 LEVER 1
　 1-23 LQ20M00059S023 LEVER 1
　 1-24 LQ20M00059S024 LEVER 1
　 1-25 LQ20M00059S025 LEVER 1
　 1-26 LQ20M00059S026 JOINT 1
　 1-27 LQ20M00059S027 JOINT 1
　 1-28 LQ20M00059S028 JOINT 1
　 1-29 LQ20M00059S029 ROD 2
　 1-30 LQ20M00059S030 LEVER 1
　 1-31 LQ20M00059S031 LEVER 1
　 1-32 LQ20M00059S032 LEVER 1
　 1-33 LQ20M00059S033 LINK 1
　 1-34 LQ20M00059S034 ROD 1
　 1-35 LQ20M00059S035 DUMPER 3
　 1-36 LQ20M00059S036 DUMPER 2
　 1-37 LQ20M00059S037 DUMPER 1
　 1-38 LQ20M00109S038 RELAY 2
　 1-39 LQ20M00059S039 RESISTOR 1
　 1-40 LQ20M00109S040 EVAPORATOR 1
　 1-41 LQ20M00088S041 CONDITIONER, AIR 1
　 1-42 LQ20M00059S042 THERMOMETER 1
　 1-43 LQ20M00059S043 CAPSCREW 2
　 1-44 LQ20M00059S044 HOLDER 1
　 1-45 LQ20M00059S045 HOLDER 1
　 1-46 LQ20M00059S046 SCREW, TAPPING 3
　 1-47 LQ20M00059S047 SCREW, TAPPING 36
　 1-48 LQ20M00059S048 BUSHING 4
　 1-49 LQ20M00059S049 HOLDER 2
　 1-50 LQ20M00059S050 SCREW, TAPPING 1
　 2 LC20M01014D4 HOSE 1
　 3 24100U1176S5 CLAMP 1
　 4 YT20M00009S005 MACHINE SCREW 1
　 5 LQ20M01169P1 PLATE 1
　 6 YN20M00016S078 CLIP 7
