LC15V00043F1 SWING MOTOR ASSY KOBELCO SK330-10 SK350LC-10

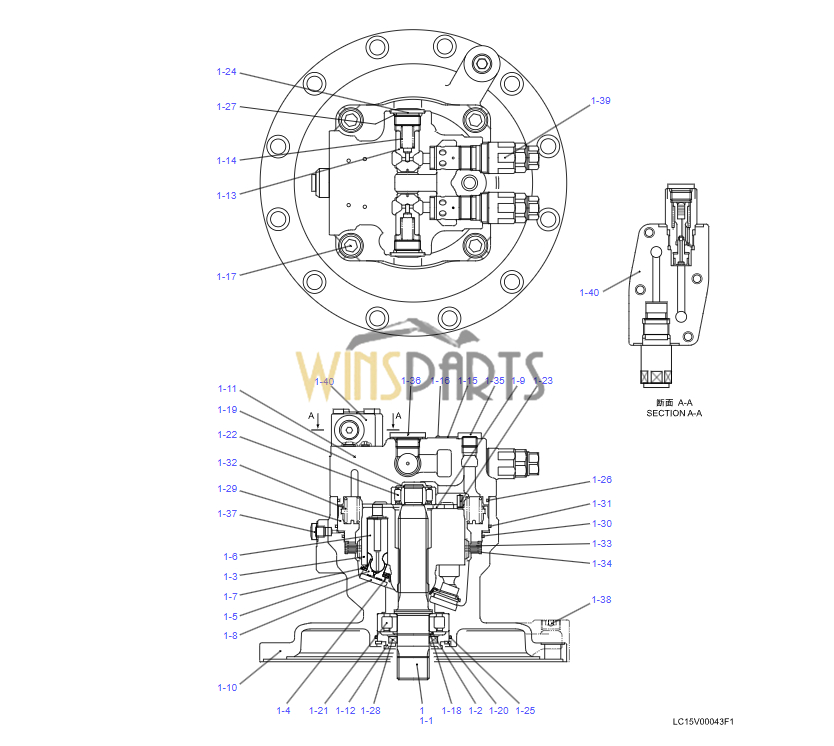

1 LC15V00042F1 MOTOR ASSY, HYD 1
1-1 LC15V00042S101 SHAFT 1
1-2 2441U785S106 SPACER 1
1-3 LB15V00011S111 CYLINDER 1
1-4 EZ15V00021S114 SPRING 1
1-5 NO P/No PISTON 9 R1
1-6 NO P/No SHOE 9 R1
1-7 EZ15V00021S123 PLATE 1
1-8 2441U785S124 PLATE 1
1-9 LB15V00011S131 PLATE 1
1-10 LC15V00042S301 CASE 1
1-11 NO P/No CASE 1 R2
1-12 LC15V00042S304 COVER 1
1-13 LC15V00003S351 SPOOL 2
1-14 LC15V00003S355 SPRING 2
1-15 YT10V00027S981 NAME PLATE 1
1-16 2437U407S983 RIVET 2
1-17 ZS23C20045 CAPSCREW 4
1-18 ZR16X04500 RING, SNAP 1
1-19 LQ15V00001S013 RING 1
1-20 ZR26X10000 RING, SNAP 1
1-21 LC15V00042S443 BEARING, ROLLER 1
1-22 LC15V00042S444 BEARING, ROLLER 1
1-23 NO P/No PIN 2 R2
1-24 LC15V00003S469 PLUG 2
1-25 LC15V00042S471 O-RING 1 R3
1-26 LB15V00011S987 O-RING 1 R3
1-27 ZD12P03400 O-RING 2 R3
1-28 LC15V00022S491 OIL SEAL 1 R3
1-29 LQ15V00001S015 PISTON 1 R3
1-30 2441U785S706 O-RING 1 R3
1-31 2441U741S706 O-RING 1 R3
1-32 LB15V00011S712 SPRING 14
1-33 LB15V00011S742 PLATE 3
1-34 LB15V00011S743 PLATE 4
1-35 LC15V00022S984 PLUG 1
1-36 LC15V00022S996 PLUG 1
1-37 YN15V00035S980 PLUG 1
1-38 ZE82T12000 PLUG 1
.

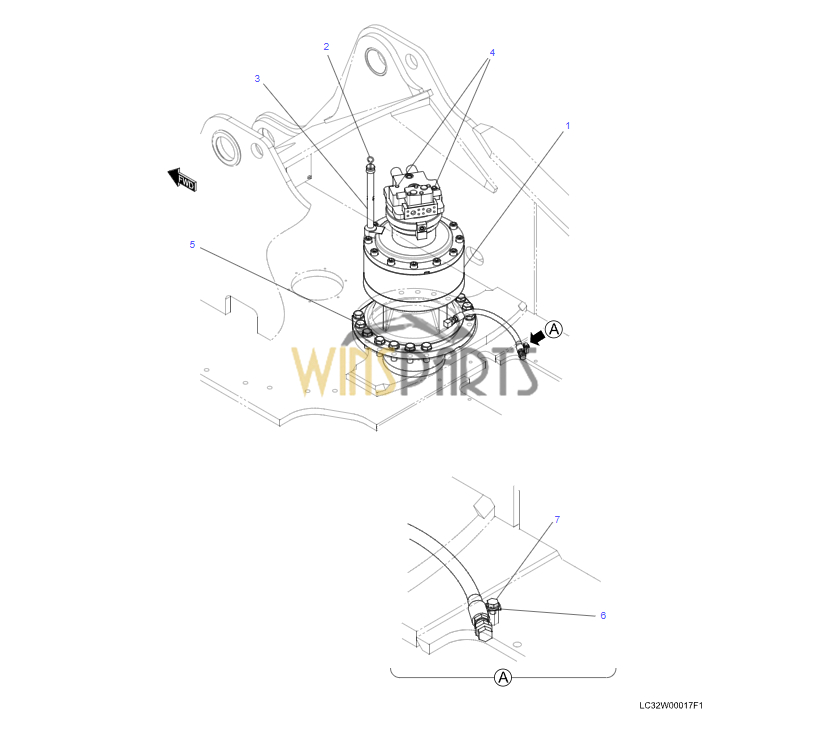

1 LC15V00043F1 MOTOR ASSY, SWING 1
2 YY32W01001D1 GAUGE, LEVEL 1
3 LC32W01073D1 TUBE 1
4 YN64H01391D1 CAP 2
5 2420P1613D4 CAPSCREW 14
6 ZC46X19011 CLIP 1
7 ZM73C10016 SEMS-BOLT 1
.
1 LC15V00043F1 MOTOR ASSY, SWING 1 HC 090-00
2 YY32W01001D1 GAUGE, LEVEL 1
3 LC32W01073D1 TUBE 1
4 YN64H01391D1 CAP 2
5 2420P1613D4 CAPSCREW 14
6 ZC46X19011 CLIP 1
7 ZM73C10016 SEMS-BOLT 1
8 2444R1117D145 HOSE 1
9 2444Z2002 CONNECTOR 1
10 PY01P01043D3 CLIP 4
11 YN13E01375P1 CLIP 4
12 YN32W01204P1 CAP 1 LC14-T1145–T1254
. YC14-T1153–T1224
13 ZG91S02000 NIPPLE, GREASE 1
1-39Z161 ZD12G03000 O-RING 1
1-39Z261 PY28V00002S161 O-RING 1 LC14405050-
. YC14405220-
1-39Z461 YN22V00014S461 O-RING 1 LC14405050-
. YC14405220-

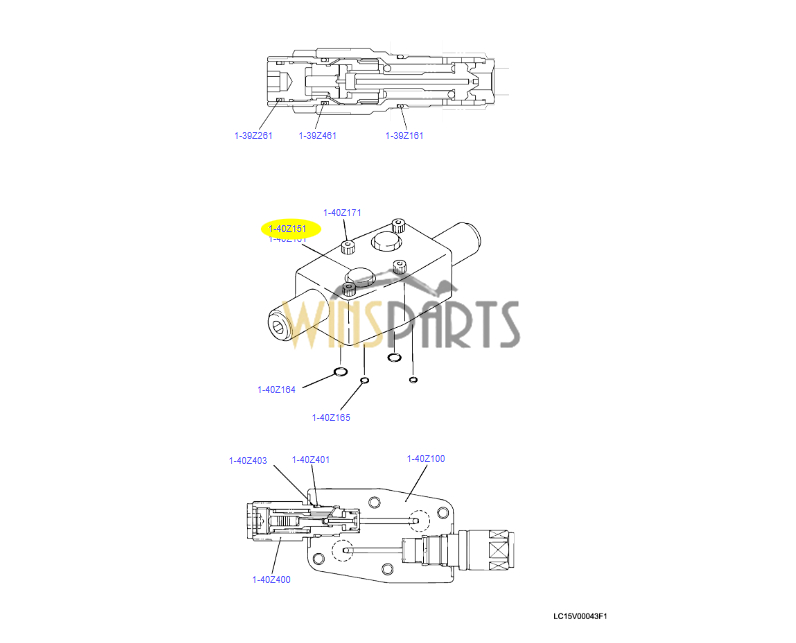

1-40 YN20V00004F4 VALVE ASSY 1
1-40Z100 LQ15V00001S100 CASE 1
1-40Z151 YW30V00001S157 PLUG 2
1-40Z161 ZD12P01100 O-RING 2
1-40Z164 YT10V00003S711 O-RING 2
1-40Z165 YN10V01006S011 O-RING 2
1-40Z171 ZS23C08055 CAPSCREW 4
1-40Z400 YN20V00004S400 VALVE ASSY 2
1-40Z401 ZD12P02000 O-RING 2
1-40Z403 ZD85P02000 RING, BACK-UP 2

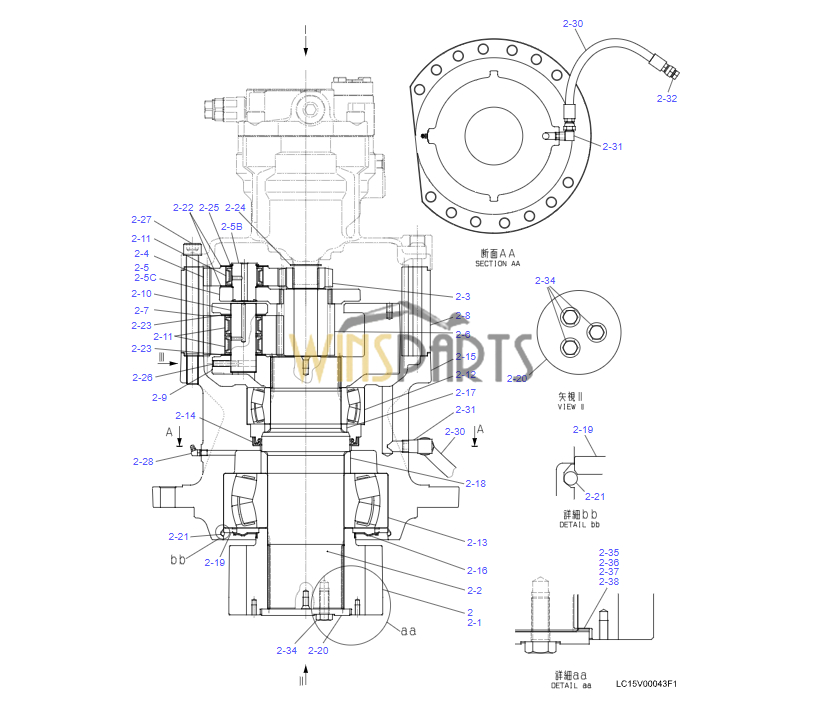

2 LC32W00016F1 REDUCTION ASSY,SWING 1
2-1 LC32W01027P1 PINION 1
2-2 LC32W01060P1 SHAFT 1
2-3 LC32W01006P1 GEAR, SUN 1
2-4 LC32W01021P1 PINION 3
2-5 LC32W01080F2 SPIDER ASSY 1
2-5B LC32W01079P1 SHAFT 3
2-5C LC32W01019P2 SPIDER 1
2-6 LC32W01008P1 GEAR, SUN 1
2-7 LC32W01024P1 PINION 4
2-8 LC32W01009P1 GEAR, RING 1
2-9 LC32W01093P1 SPIDER 1
2-10 LC32W01025P1 SHAFT 4
2-11 LC32W01036P1 BEARING, NEEDLE 11
2-12 LC32W01030P1 BEARING, SPHERICAL 1
2-13 LC32W01031P1 BEARING, SPHERICAL 1
2-14 LC32W01032P1 OIL SEAL 1
2-15 LC32W01095P1 HOUSING 1
2-16 LC32W01033P1 OIL SEAL 1
2-17 LC32W01011P1 SLEEVE 1
2-18 LC32W01012P1 SLEEVE 1
2-19 LC32W01013P1 PLATE 1
2-20 LC32W01061P1 PLATE 1
2-21 LC32W01014P1 RING 1
2-22 LC32W01022P1 WASHER, THRUST 6
2-23 LC32W01026P1 WASHER, THRUST 8
2-24 ZR16X04500 RING, SNAP 1
2-25 ZR16X04200 RING, SNAP 3
2-26 ZP26D10040 SPRING PIN 4
2-27 HS23C20220G1 CAPSCREW 12
2-28 ZG91V02000 NIPPLE, GREASE 1
2-30 ZX22M08050 HOSE 1
2-31 ZH32Z08000 ELBOW, 90 1
2-32 2444Z2728D3 PLUG 1
2-34 LC32W01062P1 CAPSCREW 3
2-35 LC32W01018D1 SHIM (0.1) 1
2-36 LC32W01018D2 SHIM (0.2) 1
2-37 LC32W01018D3 SHIM (0.3) 1
2-38 LC32W01018D4 SHIM (0.5) 1
.
LC15V00022R400 REPAIR KIT 1 RK1
. (1-5, 1-6)X9
.
LV15V00002R200 REPAIR KIT 1 RK2
. (1-11)X1
. (1-23)X2
.
LC15V00042R300 REPAIR KIT 1 RK3
. (1-25, 1-26, 1-28, 1-29, 1-30, 1-31)X1
. (1-27)X2
